Abstract

The present invention provides an eye patch for nursing eyes of the type with a protruding eye, the eye patch comprising: an eye patch body configured as a sheet structure; the eye patch body comprises a layer of non-woven fabric and at least one layer of melt-blown fabric; the eye patch body is provided with an opening at the middle position; the fixing frame is fixedly connected with the eye patch body on one side of the eye patch body away from the eyes; the opening is positioned in the fixed frame; the protective cover is connected with the fixed frame; the protective cover is provided with a cover body, and a protective space is formed on one side of the cover body close to the eyes; the eye patch provided by the embodiment of the utility model can keep the wettability inside the dressing and prevent eyes from being pressed through the protection space formed by the cover body.

Description

an eye patch

technical field

The utility model belongs to the field of medical technology, in particular to an eye patch.

Background technique

Protopia, also known as exophthalmos, refers to the abnormal state in which the eyeball moves forward and protrudes outward. When the eyeball protrudes to a certain extent, the cornea will be exposed, causing exposure keratitis. At this time, a dressing is required to cover the exposed cornea. The eye dressings currently used clinically are flat sheets, which are easy to stick to the protruding eyeball and the exposed cornea when covering, which not only causes discomfort to the patient, but also easily damages the cornea.

Utility model content

In view of the above problems existing in the prior art, the present invention provides an eye patch with a simple structure, convenient operation and easy replacement.

To achieve the above purpose, the technical scheme adopted in the embodiment of the present invention is:

Provided is an eye patch, which is used to care for exophthalmos, comprising: an eye patch body, which is configured as a sheet-like structure; the eye patch body includes a layer of non-woven fabric and at least one layer of melt-blown cloth; The sticker body is provided with an opening in the middle position; a fixing frame, which is fixedly connected with the eye sticker body on the side of the eye sticker body away from the eyes; and the opening is located in the fixing frame; The fixing frame is connected; the protective cover is provided with a cover body, and the cover body forms a protective space on the side close to the eyes.

In some embodiments of the present disclosure, the protective cover is provided with a connecting portion at its edge; the connecting portion extends in a direction away from the cover body; the protective cover fixes the fixing frame through the connecting portion.

In some embodiments of the present disclosure, the protective cover is provided with two strip-shaped fixing portions on the inner surface relative to the direction of the eyes.

In some embodiments of the present disclosure, one end of the bar-shaped fixing portion is fixedly connected to the protective cover, and the other end of the bar-shaped fixing portion is detachably connected to the protective cover; through the bar-shaped fixing portion Secure the gauze inside the shield.

In some embodiments of the present disclosure, the two strip-shaped fixing parts are arranged in parallel.

In some embodiments of the present disclosure, the fixing frame is provided with a slideway inside its frame; the connecting portion of the protective cover is detachably connected to the fixing frame through the slideway.

In some embodiments of the present disclosure, the eye patch further comprises two connecting ropes; two ends of each connecting rope are respectively fixedly connected to two corners on one side of the eye patch body.

In some embodiments of the present disclosure, the eye patch body is configured as a rectangle.

In some embodiments of the present disclosure, each corner of the eye patch body is provided with a connection ring; each end of the connection cord is fixedly connected to the connection ring.

Compared with the prior art, the beneficial effects of the present utility model are:

The eye patch of this embodiment effectively keeps the eyes free from pressure through the protective space formed by the cover.

The eye patch of this embodiment also reduces the air permeability by using materials and protective spaces with different air permeability, thereby effectively maintaining the moist state inside the dressing.

The eye patch of this embodiment can also be fixed with an elastic band without using adhesive.

Description of drawings

In the drawings, which are not necessarily to scale, the same reference numbers may describe similar parts in different views. The same reference number with a letter suffix or a different letter suffix may denote different instances of similar components. The drawings illustrate various embodiments generally by way of example and not limitation, and together with the specification and claims serve to explain the disclosed embodiments. Where appropriate, the same reference numbers will be used throughout the drawings to refer to the same or like parts. Such embodiments are illustrative, and are not intended to be exhaustive or exclusive embodiments of the present apparatus or method.

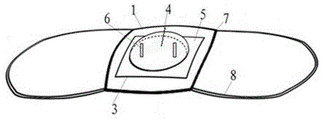

Fig. 1 is the structural representation of the eye patch of the utility model embodiment under the application state;

FIG. 2 is a schematic structural diagram of an eye patch according to an embodiment of the present invention.

Description of reference numerals

1-eye patch body; 2-opening; 3-fixed frame; 4-protective cover;

5-connecting part; 6-strip fixing part; 7-connecting ring; 8-connecting rope

Detailed ways

Hereinafter, the specific embodiments of the present invention will be described in detail with reference to the accompanying drawings, but not as a limitation of the present invention. In order to make those skilled in the art better understand the technical solutions of the present disclosure, the present disclosure will be described in detail below with reference to the accompanying drawings and specific embodiments. The embodiments of the present disclosure will be described in further detail below with reference to the accompanying drawings and specific embodiments, but are not intended to limit the present disclosure.

All terms (including technical or scientific terms) used in this disclosure have the same meaning as understood by one of ordinary skill in the art to which this disclosure belongs, unless otherwise specifically defined. It should also be understood that terms defined in, for example, general dictionaries should be construed to have meanings consistent with their meanings in the context of the related art, and not to be interpreted in an idealized or highly formalized sense, unless explicitly stated herein Defined like this.

Techniques, methods, and apparatus known to those of ordinary skill in the relevant art may not be discussed in detail, but where appropriate, such techniques, methods, and apparatus should be considered part of the specification.

At present, when the exophthalmos of patients with proptosis reaches a certain level, the cornea will be exposed, causing exposure keratitis, and the eyes are extremely vulnerable to damage from the external environment. In such cases, dressings are usually required to protect the exposed cornea. However, the eye dressings currently used in clinical applications are usually flat and sheet-like. During the covering process, because it is easy to stick to the protruding eyeball and the exposed cornea, it not only causes discomfort to the patient, but also easily damages the cornea. Therefore, the present invention provides a solution to solve the pain of exophthalmos patients.

The embodiment of the present invention provides an eye patch, which is used for nursing exophthalmos; the eye patch includes: an eye patch body 1, which is configured as a sheet structure; the eye patch body 1 includes a layer of non-woven fabric and at least one layer of melt-blown cloth; by setting a layer of non-woven fabric, the air permeability can be effectively reduced; and by using the melt-blown cloth, the damage to the eyeball can be effectively prevented by harmful substances such as external dust; the eye patch body 1 is in the middle position. There is an opening 2, which can meet the needs of exophthalmos patients using eye function after dressing; a fixing frame 3 is fixedly connected to the eye patch body 1 on the side of the eye patch body 1 away from the eyes; The opening 2 is located in the fixing frame 3; the protective cover 4 is connected with the fixing frame 3; the protective cover 4 is provided with a cover body, and the cover body forms a protective space on the side close to the eyes. For example, the cover body is concave and forms an arc structure so as to cover the protruding eyeball. By arranging the fixing frame 3, the part of the eye patch body 1 corresponding to the eyeball can be kept in a relatively fixed shape, so as to maintain a relatively fixed spatial distance from the eye; At the same time, the experience of exophthalmos patients in the process of wearing the eye patch is relatively comfortable. Since the eyeball is inside the protective cover 4 and is isolated from the external environment, the eyeball can effectively avoid damage to it by external harmful substances. In addition, it is found in the clinical process that exophthalmos patients usually have normal vision. Therefore, the material of the protective cover 4 can be selected to be transparent, and of course, non-transparent materials can also be selected, which can be adjusted accordingly according to requirements.

In one embodiment, the protective cover 4 is provided with a connecting portion 5 on its edge; the connecting portion 5 extends in a direction away from the cover body; the protective cover 4 is fixedly connected to the Fixed frame 3. In this embodiment, the protective cover 4 and the fixing frame 3 can be configured to be detachably connected. For example, the size of the protective cover 4 can be changed according to the needs of the user when the patient wears the eye patch; during the dressing process, the operation of changing the dressing can also be quickly completed by replacing the protective cover 4 .

In one embodiment, the protective cover 4 is provided with two strip-shaped fixing portions 6 on the inner surface relative to the direction of the eyes. With this arrangement, the material for the dressing (medical gauze) can be fixed by the strip-shaped fixing portion 6 . For example, the medicinal gauze coated with the drug can also be directly fixedly connected to the two strip-shaped fixing parts 6 in a pasting manner.

In one embodiment, one end of the bar-shaped fixing portion 6 is fixedly connected to the protective cover 4, and the other end of the bar-shaped fixing portion 6 is detachably connected to the protective cover 4; The part 6 fixes the gauze in the protective cover 4 . In this embodiment, the strip-shaped fixing portion 6 can also be directly fixed to the protective cover 4 , and a gap for binding is formed between the strip-shaped fixing portion 6 and the protective cover 4 . When a dressing is required, the medical gauze coated with the drug is inserted into the gap, and then the purpose of fixing is achieved by binding, and the dressing change efficiency is correspondingly improved. In addition, by using elastic material for the material of the strip-shaped fixing portion 6, the range of the size of the medical gauze for binding the medicine can be increased.

In one embodiment, the two strip-shaped fixing portions 6 are arranged in parallel. With this arrangement, the operation is convenient; accordingly, the uniformity in the dressing process is achieved.

In one embodiment, the fixing frame 3 is provided with a slideway on the inner side of the frame; the connecting portion 5 of the protective cover 4 is detachably connected to the fixing frame 3 through the slideway.

In one embodiment, the eye patch further includes two connecting ropes 8 ; two ends of each connecting rope 8 are fixedly connected to two corners on one side of the eye patch body 1 respectively. This setting method can meet the needs of people with skin allergies. In the process of using the eye patch, one way, the side surface of the eye patch body 1 facing the face is provided with an adhesive that meets health requirements, and the eye patch body 1 is attached to the face through the adhesive. However, due to skin allergies of some patients, giving up the method of sticking, but using the method of putting on the head or the method of hanging straps can well meet the needs of this part of the population. Of course, the design scheme of attaching by adhesive also belongs to a part of this embodiment. No further limitation is made here.

In one embodiment, the eye patch body 1 is configured as a rectangle. Through this setting, the attachment area between the eye patch body 1 and the face can be correspondingly increased, and the firmness after attachment can be improved. Of course, other different plane shapes can also be set to meet the needs of different groups of people.

In one embodiment, each corner of the eye patch body 1 is provided with a connecting ring 7 ; each end of the connecting cord 8 is fixedly connected to the connecting ring 7 . Through this setting method, corresponding adjustments can be made according to different needs. For example, for people with skin allergies, the connecting rope 8 can be connected with the connecting ring 7 and bound with the head to achieve the effect of eye patch attachment. For non-allergic people, there is no need to connect the rope 8, and the attachment can be realized directly by means of glue. Through the design of this embodiment, the flexibility of wearing is increased.

Furthermore, although illustrative embodiments are described herein, the scope includes any and all equivalents, modifications, omissions, combinations (eg, combinations of aspects across the various embodiments), adaptations, or alterations based on the present disclosure. All examples. Elements in the claims are to be interpreted broadly based on the language used in the claims and are not limited to the examples described in this specification or during the life of this application. Furthermore, the steps of the disclosed methods may be modified in any way, including by reordering steps or inserting or deleting steps. Therefore, the description is intended to be regarded as an example only, with the true scope being indicated by the following claims and their full scope of equivalents.

The above description is intended to be illustrative and not restrictive. For example, the above examples (or one or more aspects thereof) may be used in combination with each other. After reading the above description, for example, one of ordinary skill in the art may use other embodiments. Furthermore, in the above Detailed Description, various features may be grouped together to simplify the disclosure. This should not be interpreted as an intention that an unclaimed disclosed feature is essential to any claim. Thus, the following claims are hereby incorporated into the Detailed Description by way of example or embodiment, with each claim standing on its own as a separate embodiment, and it is contemplated that these embodiments may be combined with each other in various combinations and permutations. The scope of the invention should be determined with reference to the appended claims, along with the full scope of equivalents to which such claims are entitled.

Claims (9)

1. an eye patch, it is used for nursing exophthalmos type eyes, is characterized in that, comprises: The eye patch body is configured as a sheet structure; the eye patch body comprises a layer of non-woven fabric and at least one layer of meltblown cloth; the eye patch body is provided with an opening in the middle position; a fixing frame, which is fixedly connected with the eye patch body on the side of the eye patch body away from the eyes; and the opening is located in the fixing frame; The protective cover is connected with the fixing frame; the protective cover is provided with a cover body, and the cover body forms a protective space on the side close to the eyes. 2 . The eye patch according to claim 1 , wherein the protective cover is provided with a connecting portion at its edge; the connecting portion extends in a direction away from the cover body; the protective cover passes through the connection. 3 . The fixed frame is fixed at the part. 3 . The eye patch according to claim 2 , wherein the protective cover is provided with two strip-shaped fixing portions on the inner surface relative to the direction of the eyes. 4 . 4. The eye patch according to claim 3, wherein one end of the strip-shaped fixing portion is fixedly connected to the inside of the protective cover, and the other end of the strip-shaped fixing portion is detachably connected to the protective cover; The gauze is fixed in the protective cover through the strip-shaped fixing part. 5 . The eye patch according to claim 3 , wherein the two strip-shaped fixing parts are arranged in parallel. 6 . 6 . The eye patch according to claim 1 , wherein the fixing frame is provided with a slideway inside its frame; the connecting portion of the protective cover is detachably connected to the fixing frame through the slideway. 7 . . 7 . The eye patch according to claim 1 , further comprising two connecting ropes; two ends of each connecting rope are respectively fixedly connected to two corners on one side of the eye patch body. 8 . 8 . The eye patch according to claim 7 , wherein the eye patch body is configured as a rectangle. 9 . 9 . The eye patch according to claim 8 , wherein a connecting ring is provided on each corner of the eye patch body; and each end of the connecting rope is fixedly connected to the connecting ring. 10 .
