Abstract
本实用新型提供一种节能型园林建设用灌溉装置，包括盆体，盆体的顶部设有斜向下倾斜至盆体的边缘，凸缘上设有环状管，环状管上设有多个朝向盆体的喷嘴，盆体内壁设有温度传感器、湿度传感器。盆体底部设有蓄水池，蓄水池的侧壁设有注水口，注水口处设有电磁阀，注水口外接自来水管，蓄水池内设有水位传感器，蓄水池内的水通过抽水泵及供水管排入环状管；温度传感器、湿度传感器、电磁阀、水位传感器以及水泵均电性连接至设置在蓄水池侧壁的控制器。本实用新型能够在节水、节能的前提下，对园林绿植进行高效灌溉处理，并且便于施工安装，结构设计简单、实用。
The utility model provides an energy-saving irrigation device for garden construction, which comprises a basin body, the top of the basin body is provided with an edge inclined downward to the basin body, a ring-shaped pipe is arranged on the flange, and the ring-shaped pipe is provided with a plurality of A nozzle facing the basin body is provided with a temperature sensor and a humidity sensor on the inner wall of the basin. The bottom of the basin is provided with a reservoir, the side wall of the reservoir is provided with a water injection port, the water injection port is provided with a solenoid valve, the water injection port is connected to a tap water pipe, the water level sensor is provided in the reservoir, and the water in the reservoir passes through a pump The temperature sensor, the humidity sensor, the solenoid valve, the water level sensor and the water pump are all electrically connected to the controller arranged on the side wall of the reservoir. The utility model can efficiently irrigate garden green plants on the premise of water saving and energy saving, is convenient for construction and installation, and has simple and practical structural design.
Description
Technical Field
The utility model relates to the technical field of garden construction, in particular to an energy-saving irrigation device for garden construction.
Background
With the development of urbanization and small-town construction, garden construction projects become more important, and with the continuous expansion of building groups, the garden construction area will be gradually expanded, so the vegetation irrigation projects in gardens are more severe.
The existing irrigation device generally comprises a water delivery pipeline, an irrigation pipeline and spray heads, wherein water in the water delivery pipeline is horizontally paved underground, the irrigation pipeline is vertically arranged, the spray heads are fixed at the top of the irrigation pipeline and are higher than the ground to deliver water into the water delivery pipeline, and the water is sprayed out by the spray heads after passing through the irrigation pipeline so as to achieve the purpose of irrigation. Because fixed during irrigation pipe's length, the height of shower nozzle water spray just also can't be adjusted, if the vegetation height that is close to the shower nozzle is higher than the high drop that then can block spraying, leads to the vegetation of original place to accept the irrigation, and the vegetation irrigation of near is excessive.
SUMMERY OF THE UTILITY MODEL
In order to overcome the technical problem, the utility model provides an energy-saving irrigation device for garden construction, which has the following specific scheme:
an energy-saving irrigation device for garden construction comprises a first vertical pipe arranged on the ground, wherein a first support frame is arranged on the first vertical pipe, the top end of the first vertical pipe is connected with a second vertical pipe through a first rotary joint, a first servo motor is arranged on the first support frame, and the first servo motor drives the second vertical pipe to rotate through a gear structure; a second support frame is arranged at the top end of the second vertical pipe, a spray pipe is rotatably arranged on the second support frame, a second servo motor is further arranged on the second support frame, the second servo motor drives the spray pipe to rotate through a gear structure, and a plurality of nozzles are arranged on the spray pipe; the second vertical pipe is connected with one end of a connecting pipe, the other end of the connecting pipe is connected with the spray pipe through a second rotary joint, and a water pump is arranged on the connecting pipe.
Based on the above, be equipped with the backup pad on the second riser, first servo motor, second servo motor and water pump all with the controller electric connection who sets up in the backup pad, the controller passes through wireless communication module and control terminal wireless connection.
On the basis, still be equipped with solar cell panel in the backup pad, solar cell panel is the battery power supply of setting in the backup pad, the battery is the power supply of whole irrigation equipment.
Based on the above, the spray pipe is rotatably installed on the second support frame through the graphite copper bush bearing.
Compared with the prior art, the utility model has substantive characteristics and progress, and particularly has the following advantages:
1. according to the utility model, the first servo motor drives the second vertical pipe to rotate, and the second servo motor drives the spray pipe to rotate, so that the structural design can ensure that water sprayed from the spray head can uniformly spray and irrigate surrounding green plants, the effect of saving water is achieved, and meanwhile, the irrigation form also has a beautifying effect on gardens.
2. According to the utility model, the solar cell panel is arranged on the supporting plate, the solar cell panel supplies power to the storage battery arranged on the supporting plate, and the storage battery supplies power to the whole irrigation device.
Drawings

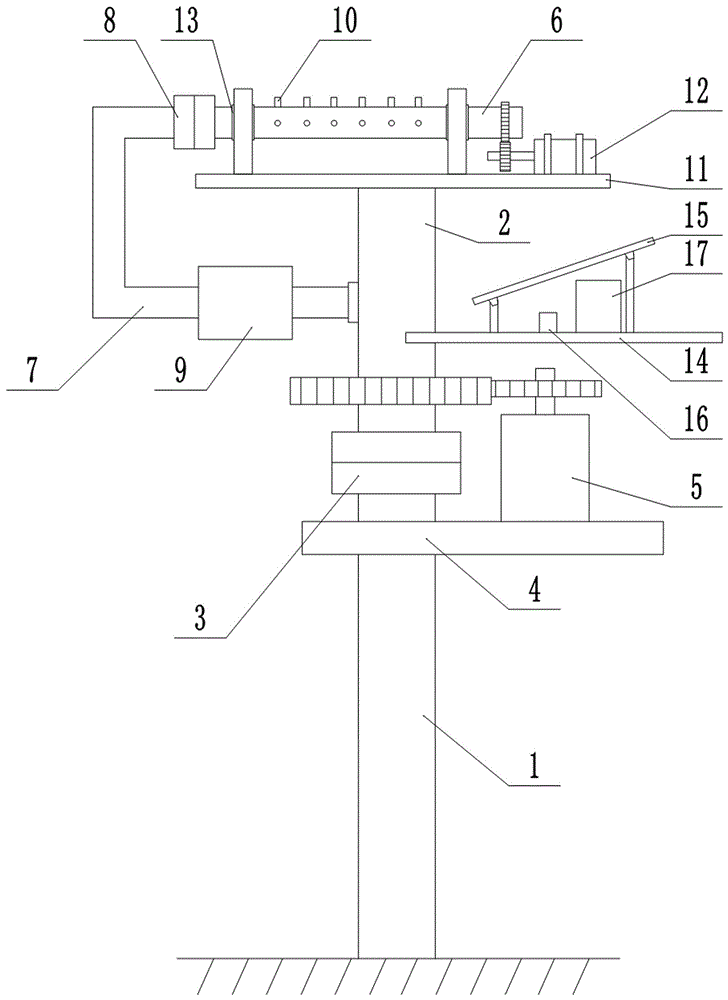

Fig. 1 is a schematic view of the overall structure of the present invention.
In the figure: 1. a first riser; 2. a second riser; 3. a first rotary joint; 4. a first support frame; 5. a first servo motor; 6. a nozzle; 7. a connecting pipe; 8. a second rotary joint; 9. a water pump; 10. a nozzle; 11. a second support frame; 12. a second servo motor; 13. a graphite copper bush bearing; 14. a support plate; 15. a solar panel; 16. a controller; 17. and (4) a storage battery.
Detailed Description
The technical solution of the present invention is further described in detail by the following embodiments.
Examples
As shown in fig. 1, the utility model provides an energy-saving irrigation device for garden construction, which comprises a first vertical pipe 1 arranged on the ground, wherein a first support frame 4 is arranged on the first vertical pipe 1, the top end of the first vertical pipe 1 is connected with a second vertical pipe 2 through a first rotary joint 3, a first servo motor 5 is arranged on the first support frame 4, and the first servo motor 5 drives the second vertical pipe 2 to rotate through a gear structure; a second support frame 11 is arranged at the top end of the second vertical pipe 2, a spray pipe 6 is rotatably arranged on the second support frame 11, a second servo motor 12 is further arranged on the second support frame 11, the second servo motor 12 drives the spray pipe 6 to rotate through a gear structure, and a plurality of nozzles 10 are arranged on the spray pipe 6; the second vertical pipe 2 is connected with one end of a connecting pipe 7, the other end of the connecting pipe 7 is connected with the spray pipe 6 through a second rotary joint 8, and a water pump 9 is arranged on the connecting pipe 7.
For the convenience is controlled irrigation equipment, be equipped with backup pad 14 on the above-mentioned second riser 2, first servo motor 5, second servo motor 12 and water pump 9 all with set up the controller 16 electric connection in backup pad 14, controller 16 passes through wireless communication module and control terminal wireless connection.
Still be equipped with solar cell panel 15 in the above-mentioned backup pad 14, solar cell panel 15 is the battery 17 power supply of setting in backup pad 14, battery 17 is the power supply of whole irrigation equipment, and this structural design has both made things convenient for irrigation equipment's construction installation, also has energy-conserving effect simultaneously.
To ensure that the nozzle 6 can be stably and rotatably arranged on the second support frame 11, the nozzle 6 is rotatably mounted on the second support frame 11 through a graphite copper bush bearing 13.
Finally, it should be noted that: the above examples are only intended to illustrate the technical solution of the present invention and not to limit it; although the present invention has been described in detail with reference to preferred embodiments, those skilled in the art will understand that: modifications to the specific embodiments of the utility model or equivalent substitutions for parts of the technical features may be made; without departing from the spirit of the present invention, it is intended to cover all aspects of the utility model as defined by the appended claims.
Claims (4)
1. The utility model provides an energy-saving irrigation equipment for landscape construction which characterized in that: the device comprises a first vertical pipe (1) arranged on the ground, wherein a first support frame (4) is arranged on the first vertical pipe (1), the top end of the first vertical pipe (1) is connected with a second vertical pipe (2) through a first rotary joint (3), a first servo motor (5) is arranged on the first support frame (4), and the first servo motor (5) drives the second vertical pipe (2) to rotate through a gear structure; a second support frame (11) is arranged at the top end of the second vertical pipe (2), a spray pipe (6) is rotatably arranged on the second support frame (11), a second servo motor (12) is further arranged on the second support frame (11), the second servo motor (12) drives the spray pipe (6) to rotate through a gear structure, and a plurality of nozzles (10) are arranged on the spray pipe (6); the second vertical pipe (2) is connected with one end of a connecting pipe (7), the other end of the connecting pipe (7) is connected with the spray pipe (6) through a second rotary joint (8), and a water pump (9) is arranged on the connecting pipe (7).
2. The irrigation device for energy-saving garden construction according to claim 1, wherein: be equipped with backup pad (14) on second riser (2), first servo motor (5), second servo motor (12) and water pump (9) all with set up controller (16) electric connection in backup pad (14), controller (16) are through wireless communication module and control terminal wireless connection.
3. The irrigation device for energy-saving garden construction according to claim 2, wherein: still be equipped with solar cell panel (15) on backup pad (14), solar cell panel (15) are for setting up battery (17) power supply in backup pad (14), battery (17) are the power supply of whole irrigation equipment.
4. The irrigation device for energy-saving garden construction according to claim 1, wherein: the spray pipe (6) is rotatably arranged on the second support frame (11) through a graphite copper bush bearing (13).
