CN216751653U - New forms of energy photovoltaic cell board that heat dissipation dust removal effect is good - Google Patents
New forms of energy photovoltaic cell board that heat dissipation dust removal effect is good Download PDFInfo
- Publication number
- CN216751653U CN216751653U CN202122587504.6U CN202122587504U CN216751653U CN 216751653 U CN216751653 U CN 216751653U CN 202122587504 U CN202122587504 U CN 202122587504U CN 216751653 U CN216751653 U CN 216751653U
- Authority
- CN
- China
- Prior art keywords
- fixedly installed
- photovoltaic cell
- heat dissipation
- dust removal
- cell panel
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/50—Photovoltaic [PV] energy
Landscapes
- Cleaning In General (AREA)
Abstract
本实用新型公开了一种散热除尘效果好的新能源光伏电池板，涉及新能源光伏电池板技术领域。本实用新型包括固定支架、底板、光伏电池板和扇叶，固定支架和光伏电池板固定安装，固定支架上方固定安装有下壳体，光伏电池板底部固定安装有底板，光伏电池板两侧面均固定安装有下固定块和上固定块，下固定块和上固定块之间固定安装有固定杆，底板上表面内表面固定安装有安装块，安装块内转动连接有螺纹杆，固定杆周侧面滑动连接有滑动板，螺纹杆远离安装块的一端贯穿滑动板延伸至下壳体内部。本实用新型提高清洗效率，并减少人工劳动强度，同时通过风力带动扇叶转动，减少成本，且提高环保性，具有良好的推广前景。
The utility model discloses a new energy photovoltaic panel with good heat dissipation and dust removal effect, which relates to the technical field of new energy photovoltaic panels. The utility model comprises a fixed bracket, a bottom plate, a photovoltaic battery plate and a fan blade, the fixed bracket and the photovoltaic battery plate are fixedly installed, a lower casing is fixedly installed above the fixed bracket, a bottom plate is fixedly installed at the bottom of the photovoltaic battery plate, and both sides of the photovoltaic battery plate are fixedly installed. A lower fixing block and an upper fixing block are fixedly installed, a fixing rod is fixedly installed between the lower fixing block and the upper fixing block, a mounting block is fixedly installed on the inner surface of the upper surface of the base plate, and a threaded rod is rotatably connected in the installation block. A sliding plate is slidably connected, and one end of the threaded rod away from the mounting block extends through the sliding plate to the interior of the lower casing. The utility model improves the cleaning efficiency, reduces the labor intensity, and at the same time drives the fan blades to rotate through the wind force, reduces the cost, improves the environmental protection, and has a good promotion prospect.
Description
Technical Field
The utility model belongs to the technical field of new energy photovoltaic cell panels, and particularly relates to a new energy photovoltaic cell panel with good heat dissipation and dust removal effects.
Background
The new energy is also called unconventional energy. Refers to various forms of energy other than traditional energy. The energy to be popularized is energy which is just developed and utilized or is actively researched, such as solar energy, geothermal energy, wind energy, ocean energy, biomass energy, nuclear fusion energy and the like. Photovoltaic cell board is also known as solar cell panel, belong to one kind of new forms of energy, assemble the piece on a board by a plurality of solar module according to certain mode, usually as a unit of photovoltaic square matrix, most photovoltaic cell board all installs on the bottom plate, photovoltaic cell board is through long-time use, the surface has thicker dust dirt, very influence photovoltaic cell board's heat dissipation, some current photovoltaic cell boards are when the surface removes dust, through artifical washing, lead to the cleaning efficiency lower, and artifical intensity of labour is great, therefore, provide a new forms of energy photovoltaic cell board that heat dissipation dust removal effect is good, solve the problem.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a new-energy photovoltaic cell panel with good heat dissipation and dust removal effects, and solves the problems that the cleaning efficiency is low and the manual labor intensity is high due to the fact that some existing photovoltaic cell panels are cleaned manually when the surfaces of the photovoltaic cell panels are subjected to dust removal.
In order to solve the technical problems, the utility model is realized by the following technical scheme:
the utility model relates to a new energy photovoltaic cell panel with good heat dissipation and dust removal effects, which comprises a fixed support, a bottom plate, a photovoltaic cell panel and fan blades, wherein the fixed support and the photovoltaic cell panel are fixedly installed, a lower shell is fixedly installed above the fixed support, the bottom of the photovoltaic cell panel is fixedly installed with the bottom plate, both two side surfaces of the photovoltaic cell panel are fixedly installed with a lower fixed block and an upper fixed block, a fixed rod is fixedly installed between the lower fixed block and the upper fixed block, an installation block is fixedly installed on the inner surface of the upper surface of the bottom plate, a threaded rod is rotatably connected in the installation block, a sliding plate is slidably connected on the peripheral surface of the fixed rod, one end of the threaded rod, far away from the installation block, penetrates through the sliding plate and extends into the lower shell, a second local gear is fixedly installed on the upper surface of the lower shell, and an upper shell is fixedly installed on the upper surface of the hollow column, go up casing side and rotate and be connected with the second dwang, second dwang outer end fixed mounting has the flabellum, the inner fixed mounting of second dwang has the driving gear, it is connected with the connecting rod to go up casing another side rotation, connecting rod outer end fixed mounting has the rotation handle, the cavity post internal rotation is connected with first dwang, first dwang top fixed mounting has first local gear, first dwang bottom fixed mounting has conical gear.
The threaded rod is in threaded connection with the sliding plate, and when the threaded rod rotates, the threaded rod is in threaded connection with the sliding plate, so that the sliding plate moves on the peripheral side face of the threaded rod.
The driving gear and the first local gear are meshed with each other, one end of the second rotating rod is fixedly installed with the second rotating rod, and the other end of the second rotating rod is fixedly installed with the connecting rod.
One end of the first rotating rod is fixedly installed with the first local gear, and the other end of the first rotating rod is fixedly installed with the conical gear.
The bevel gear and the second local gear are meshed with each other, and when the bevel gear rotates, the second local gear can be driven to rotate by the bevel gear and the second local gear.
One end of the threaded rod is fixedly installed with the second local gear, and the other end of the threaded rod is rotatably connected with the installation block.
The lower surface of the sliding plate is fixedly provided with a cloth wiping plate.
The utility model has the following beneficial effects:
according to the utility model, the fan blade and the sliding plate are arranged, when the fan blade rotates, the fan blade drives the driving gear to rotate through the second rotating rod, the driving gear drives the first local gear to rotate, the conical gear is driven to rotate through the first rotating rod, the threaded rod is driven to rotate through the mutual meshing of the conical gear and the second local gear, and the sliding plate moves on the peripheral side surface of the threaded rod through the threaded rod and the sliding plate in a threaded manner, so that the wiping cloth plate is wiped on the surface of the photovoltaic cell panel, the cleaning efficiency is improved, the labor intensity is reduced, meanwhile, the fan blade is driven to rotate through wind power, the cost is reduced, and the environmental protection property is improved.
Of course, it is not necessary for any product in which the utility model is practiced to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

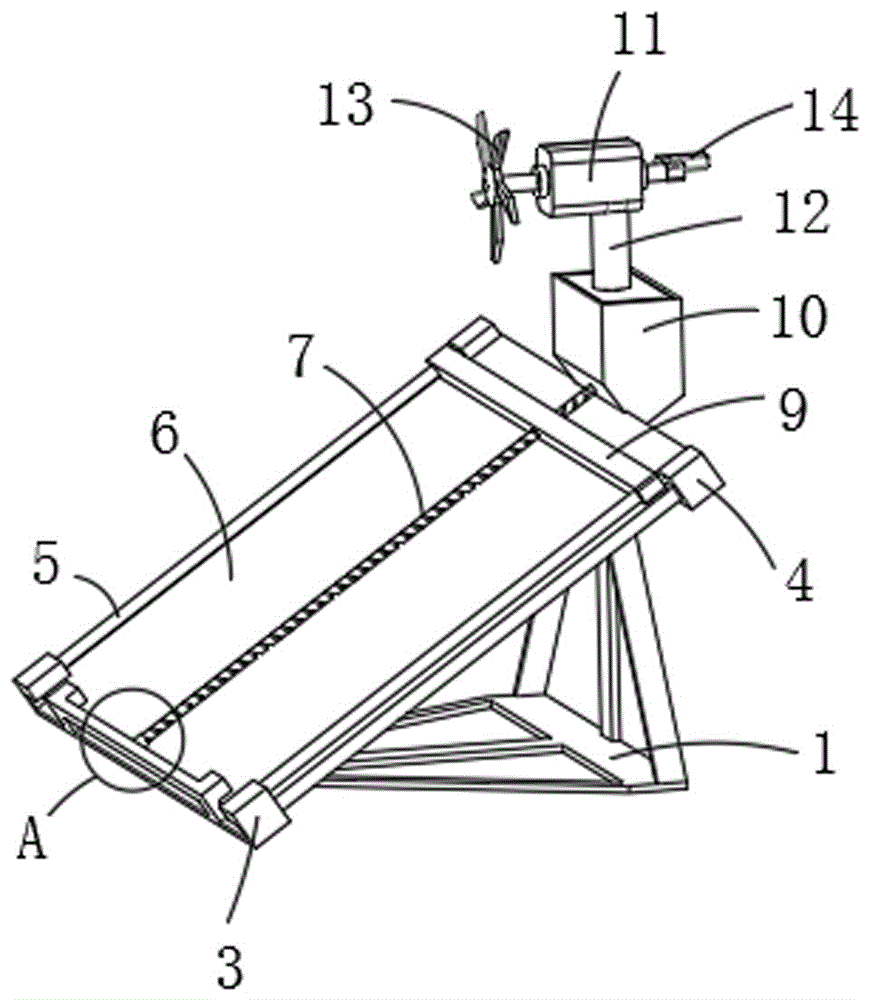

Fig. 1 is an overall schematic diagram of a new energy photovoltaic cell panel with good heat dissipation and dust removal effects according to the present invention;
fig. 2 is an internal schematic view of a new energy photovoltaic cell panel with good heat dissipation and dust removal effects according to the present invention;
FIG. 3 is a partial enlarged view of portion A of FIG. 1;
FIG. 4 is a partial enlarged view of portion B of FIG. 2;
fig. 5 is a schematic diagram of a wiper plate of the new energy photovoltaic cell panel with good heat dissipation and dust removal effects.
In the drawings, the components represented by the respective reference numerals are listed below:
1. fixing a bracket; 2. a base plate; 3. a lower fixed block; 4. an upper fixed block; 5. fixing the rod; 6. a photovoltaic cell panel; 7. a threaded rod; 8. mounting blocks; 9. a sliding plate; 10. a lower housing; 11. an upper housing; 12. a hollow column; 13. a fan blade; 14. rotating the handle; 15. a second partial gear; 16. a first rotating lever; 17. a bevel gear; 18. a second rotating lever; 19. a connecting rod; 20. a driving gear; 21. a first partial gear; 22. a wiping cloth board.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "middle", "outer", "inner", and the like, indicate orientations or positional relationships, are used for convenience in describing the present invention and simplifying the description, but do not indicate or imply that the referenced components or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Referring to fig. 1-5, the utility model is a new energy photovoltaic cell panel with good heat dissipation and dust removal effects, comprising a fixed bracket 1, a bottom plate 2, a photovoltaic cell panel 6 and fan blades 13, wherein the fixed bracket 1 and the photovoltaic cell panel 6 are fixedly installed, a lower shell 10 is fixedly installed above the fixed bracket 1, the bottom of the photovoltaic cell panel 6 is fixedly installed with the bottom plate 2, both side surfaces of the photovoltaic cell panel 6 are fixedly installed with a lower fixed block 3 and an upper fixed block 4, a fixed rod 5 is fixedly installed between the lower fixed block 3 and the upper fixed block 4, an installation block 8 is fixedly installed on the inner surface of the upper surface of the bottom plate 2, a threaded rod 7 is rotatably connected in the installation block 8, the peripheral surface of the fixed rod 5 is slidably connected with a sliding plate 9, one end of the threaded rod 7 far away from the installation block 8 penetrates through the sliding plate 9 and extends to the inside of the lower shell 10, and is fixedly installed with a second local gear 15, a hollow column 12 is fixedly installed on the upper surface of the lower shell 10, the upper surface of the hollow column 12 is fixedly provided with an upper shell 11, one side surface of the upper shell 11 is rotatably connected with a second rotating rod 18, the outer end of the second rotating rod 18 is fixedly provided with a fan blade 13, the inner end of the second rotating rod 18 is fixedly provided with a driving gear 20, the other side surface of the upper shell 11 is rotatably connected with a connecting rod 19, the outer end of the connecting rod 19 is fixedly provided with a rotating handle 14, the hollow column 12 is rotatably connected with a first rotating rod 16, the top end of the first rotating rod 16 is fixedly provided with a first local gear 21, and the bottom of the first rotating rod 16 is fixedly provided with a bevel gear 17.
The threaded rod 7 is in threaded connection with the sliding plate 9, and the lower surface of the sliding plate 9 is fixedly provided with a wiping cloth plate 22.
The driving gear 20 and the first partial gear 21 are engaged with each other, one end of the second rotating lever 18 is fixedly installed with the second rotating lever 18, and the other end of the second rotating lever 18 is fixedly installed with the connecting lever 19.
One end of a first rotating rod 16 is fixedly installed with a first partial gear 21, the other end of the first rotating rod 16 is fixedly installed with a bevel gear 17, one end of a threaded rod 7 is fixedly installed with a second partial gear 15, the other end of the threaded rod 7 is rotatably connected with an installation block 8, and the bevel gear 17 is meshed with the second partial gear 15.
As shown in fig. 1 to 5, this embodiment is a method for using a new energy photovoltaic cell panel with good heat dissipation and dust removal effects: the wind power drives the fan blade 13 to rotate, the fan blade 13 drives the driving gear 20 to rotate through the second rotating rod 18, the driving gear 20 drives the first local gear 21 to rotate, the first rotating rod 16 drives the bevel gear 17 to rotate, the bevel gear 17 is meshed with the second local gear 15, so as to drive the threaded rod 7 to rotate, the threaded rod 7 is in threaded connection with the sliding plate 9, so that the sliding plate 9 moves on the peripheral side of the threaded rod 7, so that the wiping plate 22 wipes the surface of the photovoltaic cell panel 6, the first local gear 21 is indirectly in meshed transmission with the driving gear 20, and the bevel gear 17 is indirectly in meshed transmission with the second local gear 15, so that the sliding plate 9 slowly drives the wiping plate 22 to slide and wipe the surface of the photovoltaic cell panel 6, after a certain period, the handle 14 is manually rotated in a reverse direction, and the handle 14 drives the driving gear 20 to rotate through the connecting rod 19, the threaded rod 7 is then rotated in the opposite direction, and the slide plate 9 is reset.
In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the utility model. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the utility model disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the utility model to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the utility model and the practical application, to thereby enable others skilled in the art to best utilize the utility model. The utility model is limited only by the claims and their full scope and equivalents.
Claims (7)
1. The utility model provides a new forms of energy photovoltaic cell board that heat dissipation dust removal effect is good, includes fixed bolster (1), bottom plate (2), photovoltaic cell board (6) and flabellum (13), its characterized in that: the fixed support (1) and the photovoltaic cell panel (6) are fixedly installed, a lower shell (10) is fixedly installed above the fixed support (1), a bottom plate (2) is fixedly installed at the bottom of the photovoltaic cell panel (6), a lower fixed block (3) and an upper fixed block (4) are fixedly installed on two side faces of the photovoltaic cell panel (6), a fixed rod (5) is fixedly installed between the lower fixed block (3) and the upper fixed block (4), an installation block (8) is fixedly installed on the inner surface of the upper surface of the bottom plate (2), a threaded rod (7) is connected to the installation block (8) in a rotating mode, a sliding plate (9) is connected to the side faces of the fixed rod (5) in a sliding mode, one end, far away from the installation block (8), of the threaded rod (7) penetrates through the sliding plate (9) and extends into the lower shell (10), and is fixedly installed with a second local gear (15), fixed surface installs cavity post (12) down on casing (10), fixed surface installs last casing (11) on cavity post (12), it rotates and is connected with second dwang (18) to go up casing (11) a side, second dwang (18) outer end fixed mounting has flabellum (13), second dwang (18) inner fixed mounting has driving gear (20), it rotates and is connected with connecting rod (19) to go up casing (11) another side, connecting rod (19) outer end fixed mounting has and rotates (14), cavity post (12) internal rotation is connected with first dwang (16), first dwang (16) top fixed mounting has first local gear (21), first dwang (16) bottom fixed mounting has conical gear (17).
2. The new energy photovoltaic cell panel with good heat dissipation and dust removal effects as claimed in claim 1, wherein the threaded rod (7) and the sliding plate (9) are in threaded connection.
3. The new energy photovoltaic cell panel with good heat dissipation and dust removal effects as claimed in claim 1, wherein the driving gear (20) and the first local gear (21) are meshed with each other, one end of the second rotating rod (18) is fixedly mounted with the second rotating rod (18), and the other end of the second rotating rod (18) is fixedly mounted with the connecting rod (19).
4. The new energy photovoltaic cell panel with good heat dissipation and dust removal effects as claimed in claim 1, wherein one end of the first rotating rod (16) is fixedly mounted with the first local gear (21), and the other end of the first rotating rod (16) is fixedly mounted with the bevel gear (17).
5. The new energy photovoltaic cell panel with good heat dissipation and dust removal effects as claimed in claim 1, wherein the bevel gear (17) and the second partial gear (15) are meshed with each other.
6. The new energy photovoltaic cell panel with good heat dissipation and dust removal effects as claimed in claim 1, wherein one end of the threaded rod (7) is fixedly mounted to the second local gear (15), and the other end of the threaded rod (7) is rotatably connected to the mounting block (8).
7. The new energy photovoltaic cell panel with good heat dissipation and dust removal effects as claimed in claim 1, wherein a wiping cloth plate (22) is fixedly mounted on the lower surface of the sliding plate (9).
