Abstract

The utility model discloses a dust-removing and spraying device for auxiliary tools in tunnel construction, comprising a base, a roller is rotatably connected to the bottom of the base, a push plate is fixedly connected to one side of the top of the base, and the top of the base is away from One side of the push plate is fixedly connected with a protective glass, one side of the protective glass is provided with a cleaning component, the top of the base and the side away from the protective glass is provided with a water tank, and the inner top of the water tank is fixedly connected with a mounting box The inside of the installation box is fixedly installed with a water pump, the water pumping end of the water pump is fixedly connected with a water pumping pipe, and the water delivery end of the water pump is fixedly connected with a water delivery pipe. On the staff, it plays an effective protective role, and the set cleaning components can clean the water droplets and stolen goods on the protective glass to avoid affecting the sight of the staff.

Description

A dust-removing and spraying device for auxiliary tools in tunnel construction

technical field

The utility model relates to the technical field of tunnel construction, in particular to a dedusting and spraying device of an auxiliary tool for tunnel construction.

Background technique

The structure of the tunnel includes two parts: the main building and the auxiliary equipment. The main building is composed of the tunnel body and the tunnel door. The auxiliary equipment includes the vehicle shelter, fire protection facilities, emergency communication and waterproof and drainage facilities. The long tunnel also has special ventilation and drainage facilities. Lighting equipment usually requires dust removal and spraying in the process of tunnel construction.

The existing dust-removing and spraying devices for tunnel construction auxiliary tools still have the following problems when they are used. It splashes on the staff, and secondly, the spraying range is small, which reduces the spraying efficiency.

Utility model content

In order to overcome the deficiencies of the prior art, one of the purposes of the present invention is to provide a dust-removing and spraying device for an auxiliary tool for tunnel construction.

One of the purposes of the present utility model adopts the following technical scheme to realize:

A dust-removing and spraying device for an auxiliary tool for tunnel construction includes a base, a roller is rotatably connected to the bottom of the base, a push plate is fixedly connected to one side of the top of the base, and the top of the base is away from the side of the push plate. A protective glass is fixedly connected, one side of the protective glass is provided with a cleaning component, the top of the base and the side away from the protective glass is provided with a water tank, the inner top of the water tank is fixedly connected with an installation box, the installation box A water pump is fixedly installed inside the water pump, the water pumping end of the water pump is fixedly connected with a water pumping pipe, the water delivery end of the water pump is fixedly connected with a water delivery pipe, and one end of the water delivery pipe is fixedly connected with a spray head, and the top of the water tank is respectively provided with There are lifting components and angle adjustment components.

Further, the cleaning assembly includes a first fixing base, two first fixing bases are fixedly connected to one side of the protective glass, and a motor is fixedly connected to the top of the base and located on one side of the protective glass, and the motor is The output end of the wire rod penetrates into the interior of a first fixing seat and is fixedly connected with a screw rod, the outer wall of the screw rod is threadedly connected with a screw rod, one end of the screw rod is fixedly connected with a scraper, and one end of the scraper is fixedly connected There is a connecting block, the inner wall of the connecting block is sleeved with a connecting column, and the upper and lower ends of the connecting column are connected with a second fixing seat.

Further, a brush is fixedly connected to one side of the scraper.

Further, the lifting assembly includes a motor, the top of the water tank is fixedly installed with the motor, the output end of the motor is fixedly connected with a first gear, both sides of the first gear are meshed with the second gear, and the two The top ends of each of the second gears are fixedly connected with studs, the interiors of the two studs are both threadedly connected with screws, and the tops of the two screws are fixedly connected to the support plate.

Further, the outer walls of the two screws are matched with the inner walls of the two studs.

Further, the angle adjustment assembly includes a fixed plate, the top of the support plate is fixedly connected with the fixed plate, the middle end of one side of the fixed plate is fixedly installed with an electric push rod, and the output end of the electric push rod is fixedly connected. There is a moving plate, one side of the fixed plate and the upper and lower ends of the electric push rod are fixedly connected with a fixed column, the outer walls of the two fixed columns are sleeved with sleeves, and the two sleeves are connected to the moving plate. Fixed connection, one side of the moving plate is fixedly connected with a telescopic rod, one side of the moving plate is fixedly connected with a mounting seat, and one side of the mounting seat is connected with a rotating rod through a rotating shaft. One end of the rotating rod is hinged with the telescopic rod, one end of the rotating rod is fixedly connected with the spray head, the other side of the rotating rod is fixedly connected with a spring, and one end of the spring is fixedly connected with the top end of the support plate.

Further, the inner walls of the two sleeves are matched with the outer walls of the two fixing columns.

Compared with the prior art, the beneficial effects of the present utility model are:

1. By setting the protective glass, it can prevent back splashing on the staff during spraying, which plays an effective protective role, and the cleaning components set up can clean the water droplets and stolen goods on the protective glass to avoid affecting the sight of the staff. ;

2. By setting the lifting component and the angle adjustment component, the operation of the motor makes the two screws move on the inner walls of the two studs, thereby driving the support plate to adjust to a suitable height, and the electric push rod drives the moving plate to move, making it rotate the rod The rotation is generated, which is convenient to adjust the use angle of the nozzle, further expands the spraying range, and has a good dust reduction effect.

The above description is only an overview of the technical solutions of the present invention, in order to be able to understand the technical means of the present invention more clearly, it can be implemented according to the contents of the description, and in order to make the above-mentioned and other purposes, features and advantages of the present invention better. It is obvious and easy to understand, and the preferred embodiments are exemplified below, and the detailed description is as follows in conjunction with the accompanying drawings.

Description of drawings

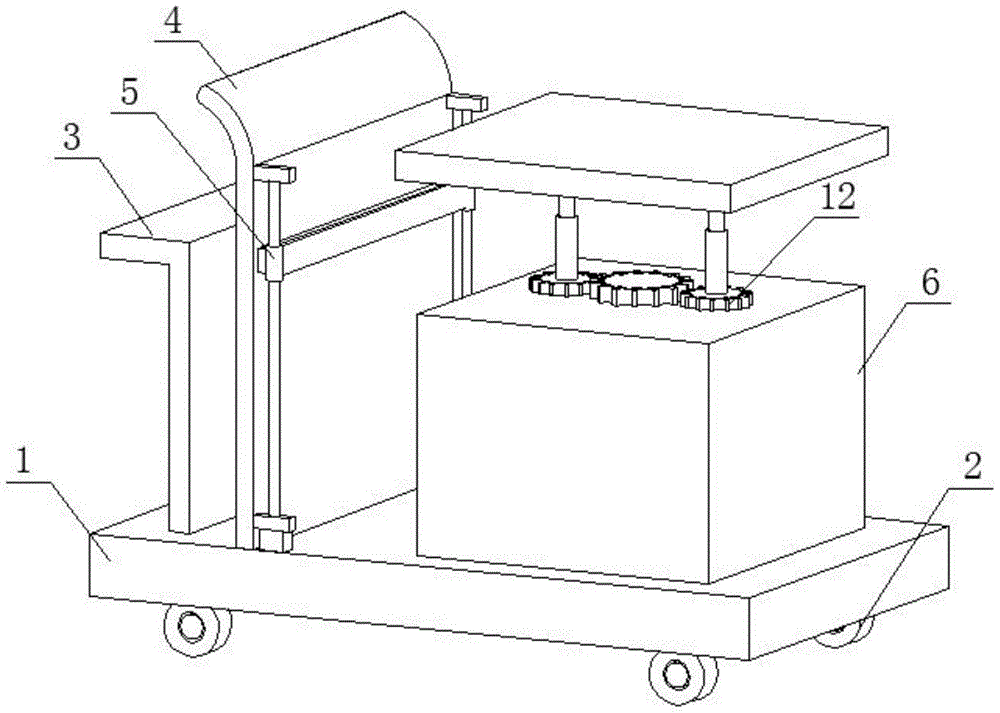

Fig. 1 is the overall perspective view of this embodiment;

Fig. 2 is the overall front sectional view of this embodiment;

3 is a side view of the cleaning assembly of the present embodiment;

Fig. 4 is the enlarged view of place A in Fig. 2 of this embodiment;

FIG. 5 is an enlarged view of B in FIG. 1 of the present embodiment.

In the figure: 1. base; 2. roller; 3. push plate; 4. protective glass; 5. cleaning component; 501, first fixing seat; 502, motor; 503, screw rod; 504, screw post; 505, scraper plate; 506, connecting block; 507, connecting column; 508, second fixed seat; 6, water tank; 7, installation box; 8, water pump; 9, suction pipe; 10, water delivery pipe; 11, spray head; 12, lift assembly ; 1201, motor; 1202, first gear; 1203, second gear; 1204, stud; 1205, screw; 1206, support plate; 13, angle adjustment assembly; 1301, fixed plate; 1302, electric push rod; 1303, 1304, fixed column; 1305, sleeve; 1306, telescopic rod; 1307, mounting seat; 1308, rotating rod; 1309, spring.

Detailed ways

Hereinafter, the present invention will be further described with reference to the accompanying drawings and specific embodiments. It should be noted that, on the premise of no conflict, the embodiments or technical features described below can be combined arbitrarily to form new implementations. example.

It should be noted that when a component is referred to as being "fixed to" another component, it can be directly on the other component or there may also be a centered component. When a component is considered to be "connected" to another component, it may be directly connected to the other component or there may be a co-existence of an intervening component. When a component is considered to be "set on" another component, it may be directly set on the other component or there may be a co-existing centered component. The terms "vertical," "horizontal," "left," "right," and similar expressions are used herein for illustrative purposes only.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field to which the present invention belongs. The terms used in the description of the present invention herein are only for the purpose of describing specific embodiments, and are not intended to limit the present invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Please refer to Figures 1-5, the utility model provides the following solutions:

Example 1:

A dedusting and spraying device for an auxiliary tool for tunnel construction, comprising a base 1, a roller 2 is rotatably connected to the bottom of the base 1, a push plate 3 is fixedly connected to one side of the top of the base 1, and a top of the base 1 is away from the push plate 3. A protective glass 4 is fixedly connected to the side, a cleaning component 5 is arranged on one side of the protective glass 4, a water tank 6 is arranged on the top of the base 1 and is far from the protective glass 4, and an installation box 7 is fixedly connected to the inner top of the water tank 6. The inside of the box 7 is fixedly installed with a water pump 8, the water pumping end of the water pump 8 is fixedly connected with a water pumping pipe 9, the water delivery end of the water pump 8 is fixedly connected with a water delivery pipe 10, and one end of the water delivery pipe 10 is fixedly connected with a nozzle 11, and the top of the water tank 6 is fixedly connected. A lift assembly 12 and an angle adjustment assembly 13 are respectively provided. When the device is in use, it can play a better protective effect, with a wide spraying range and a good dust reduction effect.

The cleaning assembly 5 includes a first fixing base 501 , two first fixing bases 501 are fixedly connected to one side of the cover glass 4 , a motor 502 is fixedly connected to the top of the base 1 and located on one side of the cover glass 4 , and the output end of the motor 502 is fixedly connected. A screw rod 503 is fixedly connected to the inside of a first fixing seat 501, the outer wall of the screw rod 503 is screwed with a screw rod 504, one end of the screw rod 504 is fixedly connected with a scraper 505, and one side of the scraper 505 is fixedly connected with a screw rod 505. The brush, one end of the scraper 505 is fixedly connected with a connecting block 506, the inner wall of the connecting block 506 is sleeved with a connecting column 507, the upper and lower ends of the connecting column 507 are connected with a second fixing seat 508, and the motor 502 drives the wire column 504 on the screw rod. When the outer wall of 503 moves, the scraper 505 moves accordingly, and at the same time, the connecting block 506 moves on the outer wall of the connecting column 507, so that the protective glass 4 can be cleaned.

The lifting assembly 12 includes a motor 1201. The top of the water tank 6 is fixedly installed with the motor 1201. The output end of the motor 1201 is fixedly connected with a first gear 1202. Both sides of the first gear 1202 are meshed with the second gear 1203. The top ends of the gears 1203 are fixedly connected with studs 1204 , the interiors of the two studs 1204 are threadedly connected with screws 1205 , the outer walls of the two screws 1205 are matched with the inner walls of the two studs 1204 , and the tops of the two screws 1205 Both are fixedly connected to the support plate 1206. The motor 1201 drives the first gear 1202 to drive the two second gears 1203 to rotate, so that the two screws 1205 move on the inner walls of the two studs 1204, so that the device can be adjusted to a suitable spray level.

Example 2:

A dust-removing and spraying device for an auxiliary tool for tunnel construction. The angle adjustment assembly 13 includes a fixed plate 1301, the top of the support plate 1206 is fixedly connected with the fixed plate 1301, and the middle end of one side of the fixed plate 1301 is fixedly installed with an electric push rod 1302. A movable plate 1303 is fixedly connected to the output end of the push rod 1302 , a fixed column 1304 is fixedly connected to one side of the fixed plate 1301 and located at the upper and lower ends of the electric push rod 1302 , and the outer walls of the two fixed columns 1304 are sleeved with sleeves 1305 , the inner walls of the two sleeves 1305 are matched with the outer walls of the two fixed columns 1304, and the two sleeves 1305 are fixedly connected to the moving plate 1303, and a telescopic rod 1306 is fixedly connected to the upper side of the moving plate 1303. A mounting seat 1307 is fixedly connected to one side of the 1303, and one side of the mounting seat 1307 is connected to a rotating rod 1308 through a rotating shaft. Fixed connection, the other side of the rotating rod 1308 is fixedly connected with a spring 1309, one end of the spring 1309 is fixedly connected with the top of the support plate 1206, the electric push rod 1302 drives the moving plate 1303 to telescopically move, and the two sleeves 1305 are fixed at the two When the outer wall of the column 1304 moves, the telescopic rod 1306 and the mounting seat 1307 are forced to move along with it, so that the rotating rod 1308 rotates, and the spring 1309 compresses or resets until the spray head 11 is adjusted to a suitable angle for spraying.

Working principle: first move the device to the desired position, then start the motor 1201, the motor 1201 drives the first gear 1202 to drive the two second gears 1203 to rotate, and the two screws 1205 move along the inner walls of the two studs 1204. Adjust the device to a suitable spraying height, then the electric push rod 1302 drives the moving plate 1303 to telescopically move, so that the rotating rod 1308 rotates, and the spray head 11 can be adjusted to a suitable angle. After being transported to the nozzle 11, the dust can be sprayed to reduce the dust. The protective glass 4 can be prevented from splashing on the staff during spraying. The operation of the motor 502 enables the scraper 505 to clean the protective glass 4 to avoid affecting the sight of the staff.

The above-mentioned embodiments are only the preferred embodiments of the present invention, and cannot be used to limit the scope of protection of the present invention. Any insubstantial changes and replacements made by those skilled in the art on the basis of the present invention belong to the scope of the present invention. The scope of protection of the present utility model.

Claims (7)

1. A dust-removing and spraying device for an auxiliary tool for tunnel construction, comprising a base (1), characterized in that: the bottom of the base (1) is rotatably connected with a roller (2), and one side of the top of the base (1) A push plate (3) is fixedly connected, a cover glass (4) is fixedly connected to the top of the base (1) and away from the push plate (3), and a cleaning component is provided on one side of the cover glass (4). (5), the top of the base (1) and the side away from the protective glass (4) is provided with a water tank (6), the inner top of the water tank (6) is fixedly connected with an installation box (7), the installation A water pump (8) is fixedly installed inside the box (7), a water suction pipe (9) is fixedly connected to the water pumping end of the water pump (8), and a water delivery pipe (10) is fixedly connected to the water delivery end of the water pump (8). One end of the water delivery pipe (10) is fixedly connected with a spray head (11), and the top of the water tank (6) is respectively provided with a lifting component (12) and an angle adjusting component (13). 2 . The dust-removing and spraying device for an auxiliary tool for tunnel construction according to claim 1 , wherein the cleaning assembly ( 5 ) comprises a first fixing seat ( 501 ), and a first fixing seat ( 501 ) of the protective glass ( 4 ). Two first fixing bases (501) are fixedly connected to the side, and a motor (502) is fixedly connected to the top of the base (1) and located on one side of the protective glass (4), and the output end of the motor (502) passes through A screw rod (503) is fixedly connected to the inside of a first fixing seat (501), and a screw rod (504) is threadedly connected to the outer wall of the screw rod (503), and one end of the screw rod (504) is fixedly connected with a screw rod (504). A scraper (505), one end of the scraper (505) is fixedly connected with a connecting block (506), the inner wall of the connecting block (506) is sleeved with a connecting column (507), and the connecting column (507) is The upper and lower ends are connected with a second fixing seat (508). 3. The dust-removing and spraying device for an auxiliary tool for tunnel construction according to claim 2, wherein a brush is fixedly connected to one side of the scraper (505). 4. The dust-removing and spraying device for a tunnel construction auxiliary tool according to claim 1, characterized in that: the lifting assembly (12) comprises a motor (1201), and the top of the water tank (6) is fixedly installed with the motor (1201), the output end of the motor (1201) is fixedly connected with a first gear (1202), and both sides of the first gear (1202) are meshed with the second gear (1203), and the two The tops of the second gears (1203) are fixedly connected with studs (1204), the interiors of the two studs (1204) are threadedly connected with screws (1205), and the tops of the two screws (1205) are connected to the support The plate (1206) is fixedly attached. 5. The dust-removing and spraying device for an auxiliary tool for tunnel construction according to claim 4, wherein the outer walls of the two screws (1205) are matched with the inner walls of the two screws (1204). . 6 . The dust-removing and spraying device for an auxiliary tool for tunnel construction according to claim 4 , wherein the angle adjustment assembly ( 13 ) comprises a fixing plate ( 1301 ), and the top of the supporting plate ( 1206 ) is fixed at the top. 7 . A fixed plate (1301) is connected, an electric push rod (1302) is fixedly installed on one middle end of the fixed plate (1301), and a movable plate (1303) is fixedly connected to the output end of the electric push rod (1302), A fixing column (1304) is fixedly connected to one side of the fixing plate (1301) and the upper and lower ends of the electric push rod (1302), and the outer walls of the two fixing columns (1304) are sleeved with sleeves (1305). ), both of the two sleeves (1305) are fixedly connected to the moving plate (1303), a telescopic rod (1306) is fixedly connected to the upper side of the moving plate (1303), and one of the moving plates (1303) A mounting seat (1307) is fixedly connected to the lower side of the side offset, one side of the mounting seat (1307) is rotatably connected with a rotating rod (1308) through a rotating shaft, and the middle end of one side of the rotating rod (1308) is connected to the telescopic rod (1306). ) hinged, one end of the rotating rod (1308) is fixedly connected with the spray head (11), the other side of the rotating rod (1308) is fixedly connected with a spring (1309), and one end of the spring (1309) is connected to the support plate (1206) are fixedly attached at the top end. 7. The dust-removing and spraying device for an auxiliary tool for tunnel construction according to claim 6, wherein the inner walls of the two sleeves (1305) and the outer walls of the two fixing columns (1304) are matched with each other .
