CN216739377U

CN216739377U - Hydraulic engineering warning sign with illumination function

Info

Publication number: CN216739377U
Application number: CN202123246032.4U
Authority: CN
Inventors: 邓家兵
Original assignee: Dingzhan Fujian Investment Co ltd
Current assignee: Jiangxi Shengbang Water Conservancy Construction Co ltd
Priority date: 2021-12-22
Filing date: 2021-12-22
Publication date: 2022-06-14
Anticipated expiration: 2031-12-22

Abstract

The utility model relates to the technical field of water conservancy projects, and discloses a warning sign for water conservancy projects with a lighting function. A cleaning mechanism is fixedly installed, and the cleaning mechanism includes a chassis, a motor, a rotating shaft, a first connecting rod, a second connecting rod, a third connecting rod, a brush plate, an L-shaped fixing rod, a mounting plate, and a T-shaped sliding block, The chassis is fixedly installed on the top of the bottom plate, and the motor is fixedly installed on the inner wall of the chassis. The brush board cleans the warning signs, which ensures the cleanliness of the warning signs and improves the warning efficiency of the warning signs. The universal wheel is convenient for the device to be moved and carried. The rechargeable battery prevents the device from providing energy when there is no external power supply. The warning sign can also play a warning effect at night.

Description

Hydraulic engineering warning sign with illumination function

Technical Field

The utility model relates to a hydraulic engineering technical field specifically is a hydraulic engineering warning sign with illumination function.

Background

Water conservancy is used for removing harmful substances and benefiting flood control, irrigation, shipping and the like, and the water conservancy range comprises eight projects including flood control, drainage, irrigation, water power, water channels, water supply, sewage channels and harbor engineering, wherein, the water power means water energy utilization, the sewage channel means town drainage, new contents such as water and soil conservation, water resource protection, environmental water conservancy, water conservancy and fishery are added in the water conservancy afterwards, and various measures are taken by the human society for the needs of survival and development, the water and water areas in the nature are controlled and allocated to prevent and control flood and drought disasters, the construction environment and the construction conditions are generally relatively severe in the hydraulic engineering construction, such as muddy ground, stabbing cold wind, and weather mixed with wind and rain, the durability of the used construction equipment is seriously tested, and need the warning sign in hydraulic engineering construction, we propose one kind to have the warning sign of illumination function for hydraulic engineering based on this.

For example, chinese patent publication No. is: the safety warning device for hydraulic engineering construction provided in CN212956227U is basically described as follows: the utility model discloses a through the cooperation of warning pole, warning sign, bottom plate use, solved the problem of current hydraulic engineering safety warning, but this utility model's cleanness performance to the warning sign can improve, inherits the experience of the abundant design development of this relevant trade of many years and actual preparation, researches the improvement to current structure and disappearance, provides a hydraulic engineering warning sign with illumination function to reach the purpose that more has practical value nature in term.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a hydraulic engineering warning sign with illumination function reaches the purpose in order to solve the problem of proposing in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a hydraulic engineering warning sign with illumination function, includes the bottom plate, be provided with the warning pole on the bottom plate, be provided with the warning sign on the warning pole, the top fixed mounting of bottom plate has clean mechanism, clean mechanism is including quick-witted case, motor, axis of rotation, head rod, second connecting rod, third connecting rod, brush board, L shape dead lever, mounting panel, T shape slider, quick-witted case fixed mounting is at the top of bottom plate, motor fixed mounting is at the inner wall of quick-witted case, the one end fixed connection of shaft coupling and axis of rotation is passed through to the output of motor, the fixed cover of head rod is established at the surface of axis of rotation, the one end that the axis of rotation was kept away from to the head rod is articulated with the one end of second connecting rod, the one end that the head rod was kept away from to the second connecting rod is articulated with the one end of third connecting rod.

Preferably, the one end that the second connecting rod was kept away from to the third connecting rod and the one end fixed connection of brush board, the brush board is cleaned the warning sign, has guaranteed the clean and tidy of warning sign, has also improved the warning efficiency of warning sign simultaneously.

Preferably, the L-shaped fixing rod is fixedly installed at the top of the case, the top of the L-shaped fixing rod is fixedly connected with one side of the mounting plate, a T-shaped sliding groove is formed in the other side of the mounting plate, the T-shaped sliding block is movably connected with the T-shaped sliding groove, one side of the T-shaped sliding block is fixedly connected with the outer surface of the third connecting rod, and the T-shaped sliding block limits the third connecting rod.

Preferably, the bottom fixed mounting of bottom plate has the universal wheel, the top fixed mounting of machine case has rechargeable battery, fixed mounting has the light on the L shape dead lever, and the universal wheel makes things convenient for the device to remove and carries, and rechargeable battery prevents to provide the energy for the device when the condition that does not have external power supply, and the light makes the warning sign also can play the effect of warning at night.

The utility model provides a hydraulic engineering warning sign with illumination function. The method has the following beneficial effects:

(1) the utility model discloses a brush board cleans the warning sign, has guaranteed the clean and tidy of warning sign, has also improved the warning efficiency of warning sign simultaneously.

(2) The utility model discloses an universal wheel makes things convenient for the device to remove and carries, and rechargeable battery prevents to provide the energy for the device when the condition that does not have external power supply, and the light makes the warning sign also can play the effect of warning at night.

Drawings

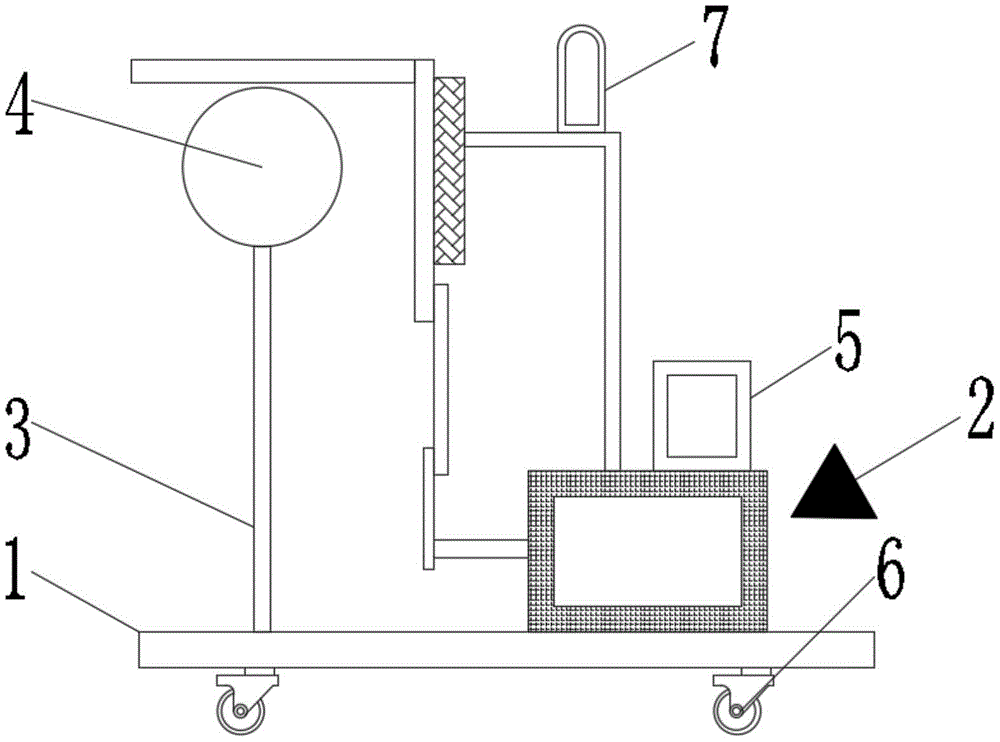

Fig. 1 is a front view of the present invention.

Fig. 2 is a perspective view of the present invention.

Fig. 3 is a schematic view of the T-shaped slider structure of the present invention.

In the figure: 1 bottom plate, 2 cleaning mechanism, 201 chassis, 202 motor, 203 axis of rotation, 204 head rod, 205 second connecting rod, 206 third connecting rod, 207 brush board, 208L shape dead lever, 209 mounting panel, 210T shape slider, 3 warning pole, 4 warning signs, 5 rechargeable battery, 6 universal wheels, 7 light.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below by referring to the drawings are exemplary intended for explaining the present invention, and should not be construed as limiting the present invention.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like, indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through intervening media, or may be connected through the use of two elements or the interaction of two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

As shown in fig. 1-3, the utility model provides a technical solution: a hydraulic engineering warning board with a lighting function comprises a bottom plate 1, universal wheels 6 are fixedly mounted at the bottom of the bottom plate 1, the universal wheels 6 are convenient to move and carry, a warning rod 3 is arranged on the bottom plate 1, a warning board 4 is arranged on the warning rod 3, a cleaning mechanism 2 is fixedly mounted at the top of the bottom plate 1, the cleaning mechanism 2 comprises a case 201, a motor 202, a rotating shaft 203, a first connecting rod 204, a second connecting rod 205, a third connecting rod 206, a brush plate 207, an L-shaped fixing rod 208, a mounting plate 209 and a T-shaped sliding block 210, the case 201 is fixedly mounted at the top of the bottom plate 1, a charging storage battery 5 is fixedly mounted at the top of the case 201, the charging storage battery 5 is used for preventing the device from providing energy when an external power supply is not available, the motor 202 is fixedly mounted on the inner wall of the case 201, and the output end of the motor 202 is fixedly connected with one end of the rotating shaft 203 through a coupler, the output end of the motor 202 drives the rotation shaft 203 to rotate through the shaft coupling, the first connecting rod 204 is fixedly sleeved on the outer surface of the rotation shaft 203, the rotation shaft 203 drives the first connecting rod 204 to rotate, one end of the first connecting rod 204, which is far away from the rotation shaft 203, is hinged with one end of the second connecting rod 205, the first connecting rod 204 rotates to drive the second connecting rod 205 to move, one end of the second connecting rod 205, which is far away from the first connecting rod 204, is hinged with one end of the third connecting rod 206, the second connecting rod 205 moves to drive the third connecting rod 206 to move, one end of the third connecting rod 206, which is far away from the second connecting rod 205, is fixedly connected with one end of the brush board 207, the brush board 206 moves to drive the brush board 207 to move, the brush board 207 cleans the warning board 4, the cleanliness of the warning board 4 is ensured, meanwhile, the warning efficiency of the warning board 4 is also improved, the L-shaped fixing rod 208 is fixedly installed on the top of the case 201, the top of L shape dead lever 208 and one side fixed connection of mounting panel 209, T shape spout has been seted up to mounting panel 209's opposite side, T shape slider 210 and T shape spout swing joint, the outer fixed surface of one side and third connecting rod 206 of T shape slider 210 is connected, fixed mounting has light 7 on the L shape dead lever 208, light 7 makes warning board 4 also can play the effect of warning at night.

When the warning board cleaning device is used, the motor 202 is started, the output end of the motor 202 drives the rotating shaft 203 to rotate through the coupler, the rotating shaft 203 drives the first connecting rod 204 to rotate, the first connecting rod 204 rotates to drive the second connecting rod 205 to move, the second connecting rod 205 moves to drive the third connecting rod 206 to move, the third connecting rod 206 moves to drive the brush board 207 to move, and the brush board 207 cleans the warning board 4.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising a reference structure" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Claims

1. A warning sign for a water conservancy project with a lighting function, comprising a base plate (1), a warning rod (3) is arranged on the base plate (1), and a warning sign (4) is arranged on the warning rod (3), It is characterized in that: a cleaning mechanism (2) is fixedly installed on the top of the bottom plate (1), and the cleaning mechanism (2) includes a chassis (201), a motor (202), a rotating shaft (203), and a first connecting rod (204), the second connecting rod (205), the third connecting rod (206), the brush plate (207), the L-shaped fixing rod (208), the mounting plate (209), the T-shaped sliding block (210), the The case (201) is fixedly installed on the top of the bottom plate (1), the motor (202) is fixedly installed on the inner wall of the case (201), and the output end of the motor (202) is connected to the rotating shaft (203) through a coupling One end is fixedly connected, the first connecting rod (204) is fixedly sleeved on the outer surface of the rotating shaft (203), and one end of the first connecting rod (204) away from the rotating shaft (203) is connected with the second connecting rod (205) ) is hinged with one end of the second connecting rod (205), and one end of the second connecting rod (205) away from the first connecting rod (204) is hinged with one end of the third connecting rod (206).

2. A water conservancy project warning sign with lighting function according to claim 1, characterized in that: one end of the third connecting rod (206) away from the second connecting rod (205) and the brush plate (207) Fixed connection at one end.

3. A water conservancy project warning sign with lighting function according to claim 1, characterized in that: the L-shaped fixing rod (208) is fixedly installed on the top of the chassis (201), and the L-shaped fixing rod (208) The top of 208) is fixedly connected with one side of the mounting plate (209), the other side of the mounting plate (209) is provided with a T-shaped chute, and the T-shaped slider (210) is movably connected with the T-shaped chute , one side of the T-shaped slider (210) is fixedly connected with the outer surface of the third connecting rod (206).

4. A water conservancy project warning sign with lighting function according to claim 1, characterized in that: a universal wheel (6) is fixedly installed at the bottom of the bottom plate (1), and a top of the chassis (201) is fixedly installed. A rechargeable battery (5) is fixedly installed, and a lighting lamp (7) is fixedly installed on the L-shaped fixing rod (208).
