Abstract

The utility model relates to the technical field of packaging, in particular to a chip-type inner card packaging structure, comprising a main body and a double-sided adhesive tape. The rear side plate, the end of the front side plate is connected to the inner front side plate at the position of the rear surface of the front side plate, the top end of the inner front side plate is connected to the bottom plate at the position of the lower end of the main body, and the end of the bottom plate is located at the front surface of the rear side plate The inner and rear side plates are connected at the position, a main groove is provided at the middle position of the top end of the main body, and an accessory groove A is provided at the position of the top end of the main body on the side of the main groove close to the rear surface. The utility model solves the problem that the existing devices mostly use multiple pieces of cardboard for pasting and forming, the production process is complicated, the assembly is inconvenient, the packaging convenience is not good, and the use height of the product cannot be adjusted, and it cannot be used in packaging boxes of different heights. The problem of poor applicability improves the convenience and applicability of the utility model.

Description

Chip inner card packaging structure

technical field

The utility model relates to the technical field of packaging, in particular to a chip-type inner card packaging structure.

Background technique

Packaging refers to the general name of containers, materials and auxiliary materials used in accordance with certain technical methods to protect products in the process of circulation, facilitate storage and transportation, and promote sales. Packaging elements include packaging objects, materials, shapes, structures, and protective technology. , visual communication, etc., can realize commodity value and use value, and is a means to increase commodity value and protect commodities from natural factors such as sun, rain, dust pollution, and prevent volatilization, leakage, melting, etc. Contamination, collision, extrusion, loss and theft, etc., generally need to use an inner card packaging structure inside the packaging box to fix the product.

The existing inner card packaging structure mostly adopts multiple pieces of cardboard pasting and forming setting, the production process is complicated, the assembly is inconvenient, the packaging convenience is not good, and the height of the product cannot be adjusted, and it cannot be used in packaging boxes of different heights. The applicability is not good, for this reason, we propose a chip inner card packaging structure.

Utility model content

The purpose of the utility model is to provide a piece-type inner card packaging structure, which has the advantages of a single-piece cardboard setting, and solves the problem that the existing devices mostly use multiple pieces of cardboard for pasting and forming, the production process is complicated, the assembly is relatively inconvenient, and the packaging convenience is not good. , and the height of the product cannot be adjusted, and it cannot be used in boxes of different heights, and the applicability of the product is not good.

In order to achieve the above purpose, the present invention provides the following technical solutions: a chip-type inner card packaging structure, including a main body and a double-sided adhesive tape, wherein a front side plate is connected at the bottom end of the front surface of the main body, and the bottom end of the rear surface of the main body is connected with a front side plate. The rear side plate is connected at the position, the end of the front side plate is connected to the inner front side plate at the position of the rear surface of the front side plate, the top end of the inner front side plate is connected to the bottom plate at the position of the lower end of the main body, and the end of the bottom plate is located at the position of the lower end of the main body. An inner rear side plate is connected at the position of the front surface of the rear side plate.

Preferably, a main groove is provided in the middle of the top of the main body, an accessory groove A is provided on the top of the main body at a position close to the rear surface of the main groove, and an accessory is provided on the top of the main body at a position on the front surface of the accessory groove A. Slot C, the top of the main body is provided with an accessory slot B at a position away from the accessory slot A. By setting the accessory slot A, the accessory slot B and the accessory slot C, the placement position of the product accessories is increased.

Preferably, connecting plates are installed on both sides of the bottom end of the main groove, the fitting groove A, the fitting groove B and the fitting groove C, and the end position of the connecting plate is connected to the top position of the bottom plate by double-sided adhesive tape. The connecting plate supports the main slot, the accessory slot A, the accessory slot B and the accessory slot C, and increases the supporting strength of the main slot, the accessory slot A, the accessory slot B and the accessory slot C.

Preferably, a double-sided adhesive tape is installed at the position of the gap between the inner rear side plate and the rear side plate to connect the inner rear side plate and the rear side plate, so as to facilitate the molding of the utility model.

Preferably, the main body, the connecting plate, the front side plate, the inner front side plate, the rear side plate, the inner rear side plate and the bottom plate are all provided with a fold line A, and the front side plate, the bottom plate and the inner front side plate are all provided with a folding line A. A folded line B is provided at a position on one side of the folded line A, and through the folded line A and the folded line B, it is convenient to quickly fold the connection.

Preferably, both sides of the main body are connected with covers, and the covers on both sides are installed with separation holes A near the end positions. Cover usage height.

Preferably, a separation hole B is installed on the front surface of the inner rear side plate near the end position, and a separation hole C is installed on the rear surface of the rear side plate near the end position. The rear side plate is torn and separated from the bottom end of the rear side plate to adjust the use height of the utility model.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model achieves the effect of using a single piece of paper to make the inner card by setting the main body, the cover, the front side plate, the inner front side plate, the rear side plate and the inner rear side plate. When in use, follow the folding line A. Fold it in position, connect the inner and rear side panels with the rear side panels, then snap the two covers into the middle of the inner front side panel and the inner rear side panel, and press down the connecting panels on both sides, and pass the ends of the connecting panels through the double-sided The glue is connected to the bottom plate to solve the problems that multiple pieces of cardboard are used for pasting and forming, the production process is complicated, the assembly is inconvenient, and the packaging convenience is not good, and the packaging convenience of the utility model is improved.

2. The utility model achieves the effect of facilitating the adjustment of the use height of the utility model by setting the separation hole A, the separation hole B and the separation hole C. The plate and the end of the cover are separated, and then the front side plate, the bottom plate and the inner front side plate are folded along the fold line B, and other joints are folded according to the fold line A, and then the inner and rear side plates and the rear side plates are connected to solve the height of the product. It cannot be adjusted, cannot be used in packaging boxes of different heights, and the problems of poor use applicability improve the use applicability of the utility model.

3. The utility model achieves the effect of increasing the placement stability of products and accessories by setting connecting plates at both sides of the bottom end of the main slot, accessory slot A, accessory slot B and accessory slot C. The double-sided tape is connected to the top of the bottom plate to solve the problem that the main slot, accessory slot A, accessory slot B and accessory slot C have no supporting structure, and the main slot, accessory slot A, accessory slot B and accessory slot C have poor support strength, and the product and The problem of poor placement stability of the accessories improves the support strength of the utility model.

Description of drawings

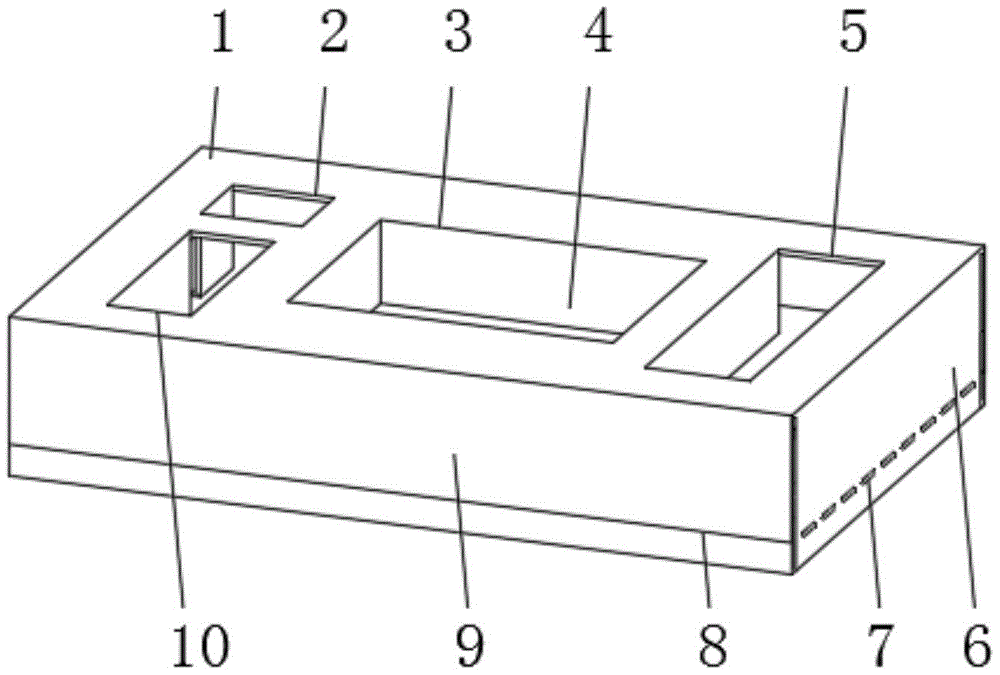

Fig. 1 is the front view structure schematic diagram of the utility model;

Fig. 2 is the side view structure schematic diagram of the utility model;

FIG. 3 is a schematic structural diagram of the front view after the utility model is unfolded.

In the figure: 1. main body; 2. accessory slot A; 3. main slot; 4. connecting plate; 5. accessory slot B; 6. cover; 7. separation hole A; 8. broken line A; 9. front side plate ; 10, accessory slot C; 11, double-sided tape; 12, rear side plate; 13, separation hole B; 14, separation hole C; 15, inner rear side plate; 16, bottom plate; 17, inner front side plate; 18 , Polyline B.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1 to 3 , the technical solution of the chip-type inner card packaging structure provided by the present invention: the chip-type inner card packaging structure includes a main body 1 and a double-sided adhesive tape 11 , and a front side is connected at the bottom end of the front surface of the main body 1 The plate 9, the rear side plate 12 is connected to the bottom end of the rear surface of the main body 1, the end of the front side plate 9 is connected to the inner front side plate 17 at the position of the rear surface of the front side plate 9, and the top of the inner front side plate 17 is located at the lower end of the main body 1. The bottom plate 16 is connected at the position, and the end of the bottom plate 16 is connected to the inner rear side plate 15 at the position of the front surface of the rear side plate 12. Double-sided adhesive tape 11 is installed at the gap position between the inner rear side plate 15 and the rear side plate 12. The inner rear side plate 15 is connected with the rear side plate 12 to facilitate the molding of the present invention.

A main groove 3 is provided at the middle position of the top of the main body 1, an accessory groove A2 is provided at the top of the main body 1 at the side of the main groove 3 near the rear surface, and an accessory groove C10 is provided at the top of the main body 1 at the front surface of the accessory groove A2. 1. There is an accessory slot B5 at the side of the top away from the accessory slot A2, the main slot 3, the accessory slot A2, the accessory slot B5 and the accessory slot C10 are installed on both sides of the bottom end of the connecting plate 4, and the end of the connecting plate 4 is installed. It is connected to the top position of the bottom plate 16 by the double-sided tape 11, and the main slot 3, the accessory slot A2, the accessory slot B5 and the accessory slot C10 are supported by the connecting plate 4, and the main slot 3, the accessory slot A2, the accessory slot B5 and the accessories are added. Support strength of slot C10.

The main body 1, the connecting plate 4, the front side plate 9, the inner front side plate 17, the rear side plate 12, the inner rear side plate 15 and the bottom plate 16 are all provided with a fold line A8 at the connection positions. The side plate 17 is provided with a fold line B18 at a position on one side of the fold line A8, and the fold line A8 and the fold line B18 are used to facilitate the quick folding of the connection. A separation hole A7 is installed on all of them, a separation hole B13 is installed on the front surface of the inner rear side plate 15 near the end position, and a separation hole C14 is installed on the rear surface of the rear side plate 12 near the end position, which is convenient for connecting the inner rear side plate 15 with the rear side. The bottom end of the plate 12 is torn and separated to adjust the use height of the utility model.

Working principle: After the utility model is installed, when the utility model needs to be folded for forming, it is folded along the fold line A8, and the inner rear side plate 15 and the rear side plate 12 are connected, and then the two sides are sealed. 6. Clip into the middle of the inner front side plate 17 and the inner rear side plate 15, and press down the connecting plates 4 on both sides, and connect the end of the connecting plate 4 to the bottom plate 16 through the double-sided adhesive tape 11, which can pass through the main slot 3, accessory slot A2, The accessory slot B5 and the accessory slot C10 support the product. When the height of the utility model needs to be adjusted, the rear side plate 12, the inner rear side plate 15 and the end of the cover 6 are separated through the separation hole A7, the separation hole B13 and the separation hole C14. Separate, and then fold the front side plate 9, the bottom plate 16 and the inner front side plate 17 along the fold line B18, and fold the other joints according to the fold line A8, and then connect the inner and rear side plate 15 and the rear side plate 12. At this point, the equipment works Process complete.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A chip-type inner card packaging structure, comprising a main body (1) and a double-sided adhesive tape (11), characterized in that: a front side plate (9) is connected at the bottom end position of the front surface of the main body (1), and the main body (1) is (1) A rear side plate (12) is connected at the bottom end of the rear surface, and an inner front side plate (17) is connected at the end of the front side plate (9) at the position of the rear surface of the front side plate (9). The top end of the inner front side plate (17) is located at the lower end of the main body (1) and is connected with a bottom plate (16), and the end of the bottom plate (16) is located at the front surface position of the rear side plate (12) and is connected with an inner rear side plate (15) . 2. The chip-type inner card packaging structure according to claim 1, wherein a main groove (3) is provided at the middle position of the top of the main body (1), and the top of the main body (1) is located in the main groove (3). ) is provided with an accessory groove A (2) at the position close to the rear surface, the top of the main body (1) is located at the front surface of the accessory groove A (2) with an accessory groove C (10), the main body (1) An accessory slot B (5) is provided at the side of the top end away from the accessory slot A (2). 3. The chip-type inner card packaging structure according to claim 2, characterized in that: the bottom end of the main slot (3), the accessory slot A (2), the accessory slot B (5) and the accessory slot C (10) A connecting plate (4) is installed at both sides, and the end position of the connecting plate (4) is connected to the top position of the bottom plate (16) by double-sided adhesive tape (11). 4. The chip-type inner card packaging structure according to claim 1, wherein a double-sided adhesive tape (11) is installed at the position of the gap between the inner rear side plate (15) and the rear side plate (12). 5. The chip-type inner card packaging structure according to claim 1, characterized in that: the main body (1), the connecting plate (4), the front side plate (9), the inner front side plate (17), the rear side A folding line A (8) is provided at the connection positions of the plate (12), the inner rear side plate (15) and the bottom plate (16), and the front side plate (9), the bottom plate (16) and the inner front side plate (17) A fold line B ( 18 ) is provided at a position on one side of the fold line A ( 8 ). 6. The chip-type inner card packaging structure according to claim 1, characterized in that: both sides of the main body (1) are connected with covers (6), and the covers (6) on both sides are close to the ends A separation hole A(7) is installed at all positions. 7. The chip-type inner card packaging structure according to claim 1, characterized in that: a separation hole B (13) is installed on the front surface of the inner rear side plate (15) near the end position, and the rear side plate (15). 12) A separation hole C (14) is installed on the rear surface near the end position.
