CN216734406U - An automatic electrical equipment installation and handling device - Google Patents

Abstract

The utility model discloses an automatic electrical equipment installation and handling device, comprising a base plate, two vertical plates are fixedly connected to the upper surface of the base plate, and a side surface of the two vertical plates close to each other is jointly fixed and connected with a placing plate. The upper surface of the bottom plate is fixedly connected with a double-headed motor, the right side of each vertical plate is fixedly inlaid with a first bearing, the two output ends of the double-headed motor are fixedly connected with a rotating rod, and the two The ends of the rotating rods away from each other respectively penetrate through the two first bearings and are fixedly connected with the first pulleys. The automatic electrical equipment installation and handling device uses the double-headed motor, the cooperation of the first pulley and the second pulley, and the work of the double-headed motor can make the second pulley drive the threaded barrel to rotate, and the two splints can quickly interact with each other. By approaching, a clamping and fixing of the electrical equipment can be formed, the operation of the staff will be more convenient, and the handling efficiency of the staff can be improved.

Description

An automatic electrical equipment installation and handling device

technical field

The utility model belongs to the technical field of electrical equipment, in particular to an automatic electrical equipment installation and handling device.

Background technique

Electrical equipment is a general term for generators, transformers, power lines, circuit breakers and other equipment in the power system. Keeping distribution lines and electrical equipment well insulated is the most basic element to ensure personal safety and the normal operation of electrical equipment. Electrical insulation Whether the performance of the electrical equipment is good can be measured by measuring its insulation resistance, withstand voltage strength, leakage current and dielectric loss and other parameters. When the electrical equipment is installed, it needs to be transported.

When the current handling device is transported, the staff generally uses ropes and other tools to fix the electrical equipment. The operation is cumbersome and will affect the handling efficiency of the staff. Therefore, in order to solve the above problems, we provide an automatic electrical equipment. Install the carrier.

Utility model content

The utility model is provided to solve the above-mentioned problem that the current handling device generally uses tools such as ropes to fix the electrical equipment, which is cumbersome and affects the handling efficiency of the staff.

The utility model is realized in this way, an automatic electrical equipment installation and handling device, comprising a base plate, the upper surface of the base plate is fixedly connected with two vertical plates, and one side of the two vertical plates close to each other is fixedly connected with a placing plate. The upper surface of the bottom plate is fixedly connected with a double-headed motor, the right side of each vertical plate is fixedly inlaid with a first bearing, and the two output ends of the double-headed motor are fixedly connected with a rotating rod, The ends of the two rotating rods away from each other respectively pass through the two first bearings and are fixedly connected with the first pulleys, the right side of each of the vertical plates is fixedly inlaid with second bearings, and each of the second bearings The inner rings are fixedly connected with threaded cylinders, and the ends of the two threaded cylinders away from each other are fixedly connected with a second pulley, and the outer surface of each of the first pulleys and the outer surface of the second pulley are jointly sleeved with a connection. For the belt, a threaded rod is threadedly connected to the inner wall of each of the threaded cylinders, and a splint is fixedly connected to the ends of the two threaded rods that are close to each other.

The upper surface of the placing plate is provided with a fixing groove, and the inner wall of the fixing groove is slidably connected with two connecting blocks, and the upper surface of each connecting block is fixedly connected with the bottom surface of the clamping plate.

One side of the two vertical plates away from each other is fixedly connected with a protective box, the bottom surface of each said protective box is fixedly connected with the upper surface of the bottom plate, and one side of the two said protective boxes away from each other is fixedly connected with a protective box. signage.

A support block is fixedly connected to one side of the two vertical plates close to each other, and the upper surface of each support block is fixedly connected to the bottom surface of the placing plate.

A traction component is arranged above the bottom plate, and the bottom surface of the traction component is fixedly connected with the upper surface of the bottom plate.

Two sets of support legs are arranged below the bottom plate, the top end of each of the support legs is fixedly connected with the bottom surface of the bottom plate, and the bottom end of each of the support legs is fixedly connected with a universal wheel.

Compared with the prior art, the beneficial effect of the present utility model is: through the cooperation of the provided double-headed motor, the first pulley and the second pulley, and the operation of the double-headed motor, the second pulley can drive the threaded cylinder to rotate, The two splints can be quickly approached to each other, which can form the clamping and fixing of the electrical equipment. It will be more convenient for the staff to operate, and the handling efficiency of the staff can be improved. The pulley is used for protection, which can also avoid injury to the staff and improve the safety performance of the device.

Description of drawings

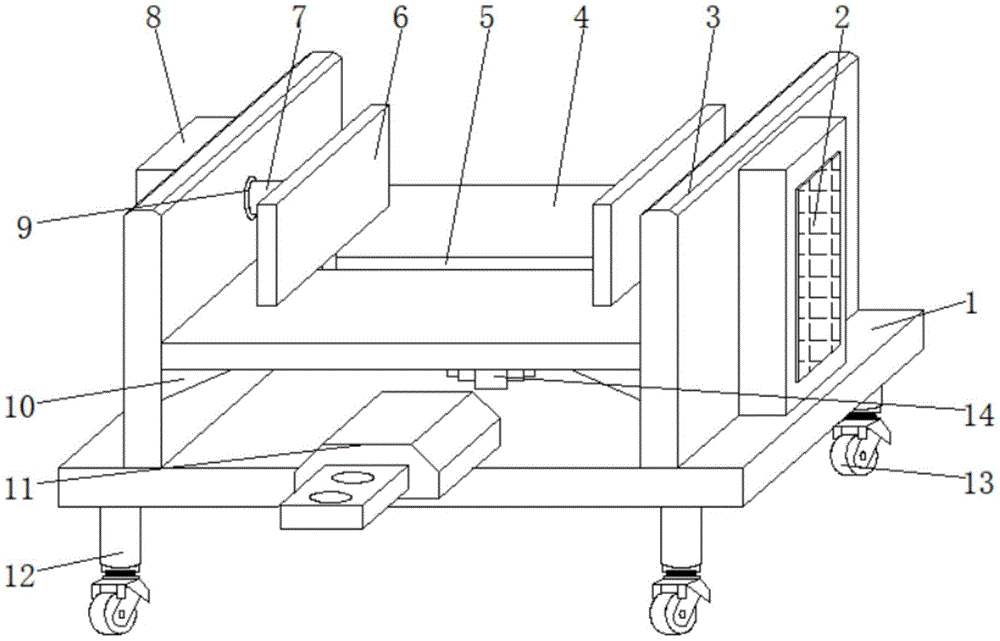

Fig. 1 is the three-dimensional structure schematic diagram of the base plate of the present utility model;

Fig. 2 is the sectional view of the front view of the protective box of the present utility model;

FIG. 3 is a schematic three-dimensional structure diagram of the splint of the present invention.

In the picture: 1. Bottom plate; 2. Signboard; 3. Vertical plate; 4. Placing plate; 5. Fixing groove; 6. Plywood; 7. Threaded cylinder; 8. Protective box; 9. Second bearing; ; 11, traction assembly; 12, support legs; 13, universal wheel; 14, double-headed motor; 15, second pulley; 16, connecting belt; 17, rotating rod; 18, first bearing; 19, first pulley ; 20, threaded rod; 21, connecting block.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model more clearly understood, the present utility model will be further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, and are not intended to limit the present invention.

In the description of the present invention, it should be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical" , "horizontal", "top", "bottom", "inside", "outside" and other indicated orientations or positional relationships are based on the orientations or positional relationships shown in the accompanying drawings, only for the convenience of describing the present utility model and simplifying the description, Rather than indicating or implying that the indicated device or element must have a particular orientation, be constructed and operate in a particular orientation, it should not be construed as a limitation of the present invention. In addition, in the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

Please refer to Figure 1-3, an automatic electrical equipment installation and handling device, including a base plate 1, the upper surface of the base plate 1 is fixedly connected with two vertical plates 3, and a side surface of the two vertical plates 3 close to each other is fixedly connected with a placement plate. 4. The upper surface of the bottom plate 1 is fixedly connected with a double-headed motor 14, the right side of each vertical plate 3 is fixedly inlaid with a first bearing 18, and the two output ends of the double-headed motor 14 are fixedly connected with a rotating rod 17, The ends of the two rotating rods 17 away from each other pass through the two first bearings 18 respectively and are fixedly connected with the first pulley 19. The right side of each vertical plate 3 is fixedly embedded with a second bearing 9. Each second bearing 9 The inner rings of the two threaded barrels 7 are fixedly connected with a threaded barrel 7, and the ends of the two threaded barrels 7 away from each other are fixedly connected with a second pulley 15. The outer surface of each first pulley 19 and the outer surface of the second pulley 15 are sleeved with Connecting the belt 16, a threaded rod 20 is threadedly connected to the inner wall of each threaded cylinder 7, and a splint 6 is fixedly connected to the ends of the two threaded rods 20 that are close to each other.

In the present invention, the upper surface of the placing plate 4 is provided with a fixing groove 5, and the inner wall of the fixing groove 5 is slidably connected with two connecting blocks 21. The splint 6 is connected, which can prevent the splint 6 from rotating, and a protective box 8 is fixedly connected to one side of the two vertical plates 3 away from each other. The bottom surface of each protective box 8 is fixedly connected to the upper surface of the bottom plate 1. A sign 2 is fixedly connected to one side of the box 8 away from each other, and the sign 2 can be used to let the staff know the precautions and make the operation more convenient for the staff.

A support block 10 is fixedly connected to one side of the two vertical plates 3 that are close to each other, and the upper surface of each support block 10 is fixedly connected to the bottom surface of the placing plate 4, which can reinforce the placing plate 4 and make the placing plate 4 more stable. To be stable, a traction assembly 11 is arranged above the bottom plate 1. The bottom surface of the traction assembly 11 is fixedly connected to the upper surface of the bottom plate 1, which is convenient for the connection between the staff and the vehicle. There are two sets of supporting legs 12 under the bottom plate 1. The tops of the legs 12 are fixedly connected to the bottom surface of the bottom plate 1 , and the bottom ends of each support leg 12 are fixedly connected with universal wheels 13 , which can move the device conveniently and facilitate the handling work of the staff.

The working principle of the utility model is as follows: when in use, the traction assembly 11 is used to connect with the vehicle, and then the electrical equipment is placed on the top of the placing plate 4, and then the control panel is clicked to make the double-head motor 14 work, and the double-head motor 14 will The two rotating rods 17 are driven to rotate on the inner rings of the two first bearings 18 respectively. At the same time, under the action of the connecting belt 16, the first pulley 19 will drive the second pulley 15 to rotate, and the threaded barrel 7 will rotate in the first pulley. When the inner ring of the two bearings 9 rotates, the splint 6 will continue to approach and form a clamping and fixing of the electrical equipment.

The above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model shall be included in the present utility model. within the scope of protection.

Claims (6)

1. An automatic electrical equipment installation and handling device, comprising a base plate (1), characterized in that: the upper surface of the base plate (1) is fixedly connected with two vertical plates (3), and the two vertical plates (3) A placement plate (4) is fixedly connected to one side surface close to each other, a double-headed motor (14) is fixedly connected to the upper surface of the bottom plate (1), and the right side of each of the vertical plates (3) is fixedly inlaid There is a first bearing (18), two output ends of the double-headed motor (14) are fixedly connected with a rotating rod (17), and the ends of the two rotating rods (17) away from each other respectively penetrate through the two first The bearing (18) is fixedly connected with a first pulley (19), the right side of each vertical plate (3) is fixedly embedded with a second bearing (9), and the The inner ring is fixedly connected with a threaded cylinder (7), and the ends of the two threaded cylinders (7) away from each other are fixedly connected with a second pulley (15), and the outer surface of each of the first pulleys (19) is connected to the outer surface of the first pulley (19). The outer surface of the second pulley (15) is jointly sleeved with a connecting belt (16), the inner wall of each threaded barrel (7) is threadedly connected with a threaded rod (20), and the two threaded rods (20) are connected to each other. A splint (6) is fixedly connected to the close ends. 2. An automatic electrical equipment installation and handling device according to claim 1, characterized in that: the upper surface of the placing plate (4) is provided with a fixing groove (5), and the inner wall of the fixing groove (5) slides Two connecting blocks (21) are connected, and the upper surface of each connecting block (21) is fixedly connected with the bottom surface of the clamping plate (6). 3. An automatic electrical equipment installation and handling device according to claim 1, characterized in that: a protective box (8) is fixedly connected to one side of the two vertical plates (3) away from each other, and each of the vertical plates (3) is fixedly connected with a protective box (8). The bottom surface of the protective box (8) is fixedly connected with the upper surface of the bottom plate (1), and the side surfaces of the two protective boxes (8) away from each other are fixedly connected with a sign (2). 4. An automatic electrical equipment installation and handling device according to claim 1, characterized in that: a support block (10) is fixedly connected to one side of the two vertical plates (3) that are close to each other, and each of the vertical plates (3) is fixedly connected with a support block (10). The upper surface of the support block (10) is fixedly connected with the bottom surface of the placing plate (4). 5. An automatic electrical equipment installation and handling device according to claim 1, characterized in that: a traction assembly (11) is provided above the bottom plate (1), and the bottom surface of the traction assembly (11) is connected to the bottom plate (11). 1) The upper surface of the fixed connection. 6. An automatic electrical equipment installation and handling device according to claim 1, characterized in that: two sets of support legs (12) are provided below the bottom plate (1), and each of the support legs (12) is provided with two sets of support legs (12). The top end is fixedly connected with the bottom surface of the bottom plate (1), and the bottom end of each support leg (12) is fixedly connected with a universal wheel (13).
