Abstract

The utility model discloses a file folder which is convenient for classification, comprising a main body, a front cover and a rear cover, the front cover is detachably installed on the front end of the main body, and the rear cover is removably installed on the rear end of the main body , the left end of the main body is provided with a left fixed plate, the right end of the main body is provided with a right fixed plate, the inner side walls of the left fixed plate and the right fixed plate are provided with grooves and slide rails, and the separation pages pass through the grooves. The groove is detachably installed inside the body, a slider is slidably installed on the slide rail, and a paper guide groove is installed on the slider. The folder described in the utility model is convenient for classification and storage, and has a flexible usage mode. The label page is placed in the separation page, and the label position can be adjusted easily.

Description

an easy-to-categorize folder

technical field

The utility model belongs to the field of stationery, in particular to a folder which is convenient for classification.

Background technique

Folders are specially used to hold full-page documents. The main purpose is to better preserve documents and make documents neat and standardized. It is used in business or career activities for the storage, protection and standardized management of paper documents. Tool of.

However, the existing folders often encounter the following problems during use:

1. When arranging and storing folders, the existing folders and their tab pages have defects such as inconvenient recording and insufficient recording locations. The location of the tab pages is relatively fixed, and the process of switching tab pages is troublesome;

2. When there is too much paper in the folder, inserting files will easily cause damage and deformation of the paper corners of the files;

3. When there are too many files, the capacity of one folder does not meet the needs of file storage, but it will cause inconvenience to store the same type of files in two folders.

Utility model content

The purpose of the present invention is to provide a folder that is easy to classify, and aims to solve the problems existing in the background technology. To achieve the purpose, the technical scheme adopted by the present utility model is:

A file folder for easy classification, comprising a main body, a front cover and a rear cover, the front cover is detachably mounted on the front end of the main body, the rear cover is removably mounted on the rear end of the main body, and the The left end is provided with a left fixing plate, the right end of the main body is provided with a right fixing plate, the inner side walls of the left fixing plate and the right fixing plate are provided with grooves and slide rails, and the separation page is detachably installed on the groove through the groove. Inside the body, a sliding block is slidably installed on the sliding rail, and a paper guide groove is installed on the sliding block.

Further, an inner cavity is provided inside the separation page, the label page is installed in the inner cavity, and the upper end of the label page is provided with a label position. Tabs have more flexible adjustments.

Further, a paper clip is arranged on the upper side of the front end of the front cover, a paper pad area is arranged at the front end of the front cover, and a page turning crease is formed on the left side of the front cover and the rear cover. When using the file folder of the utility model, after taking out the files or materials, it can be fixed with a paper clip, and the front cover can be directly used as a writing splint.

Further, the left rear end of the front cover is provided with a front cover installation clip, the front end of the left fixing plate is provided with a front cover installation slot, and the front cover installation clip is installed on the front cover installation clip. slot;

The left front end of the rear cover is provided with a rear cover installation card slot, the rear end of the left fixing plate is provided with a rear cover installation card column, and the rear cover installation and fixed card slot is installed on the rear cover installation card column .

Further, the main body is provided with at least two, and the two main bodies are installed by the rear cover installation clip installation and the front cover installation slot combination; The body assembling groove is detachably installed with a body assembling movable clamping column. When the storage space of a single folder is insufficient, the two bodies can be assembled and used. The left fixing plates of the two bodies are respectively installed by the rear cover mounting post and the front cover mounting slot. The assembly is realized by installing the body assembly movable clamping column in the assembly groove.

The beneficial effects of the present utility model:

When the utility model is used, the separation pages can be disassembled and assembled according to the actual use situation, and the label pages and the catalogues can be stored in the inner tank of the separation pages. There is not enough space in the folder, and multiple bodies can be assembled into one to avoid placing the same type of files in two folders. During the classification process, if you need to switch the position of the tab, you can change the position of the separator or put the tab in Another divider can be replaced in two ways, and the front cover can also be used as a writing board during use.

Description of drawings

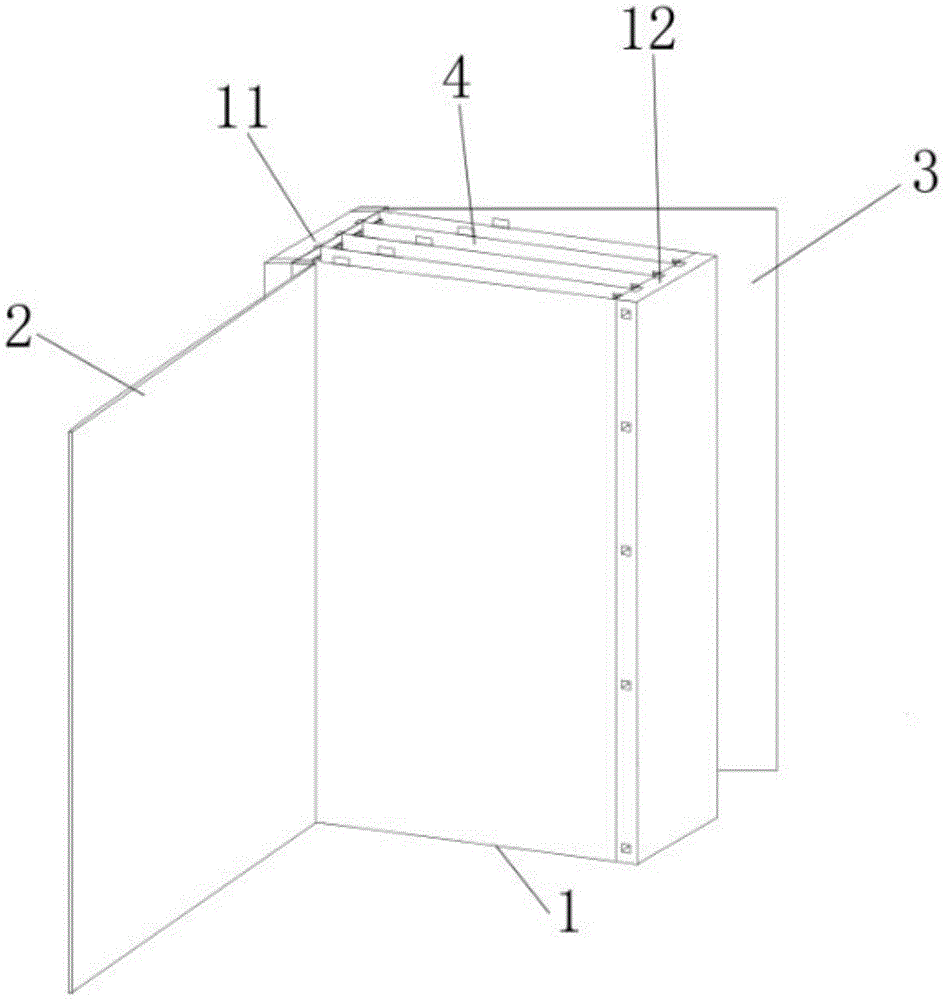

1 is an overall schematic diagram of a folder that is convenient for classification provided by an embodiment of the present utility model;

2 is a schematic diagram of a folder ontology structure that is convenient for classification according to an embodiment of the present invention;

3 is a schematic diagram of a folder ontology structure that is convenient for classification according to an embodiment of the present invention;

4 is a schematic diagram of the structure of part A of a folder that is easy to classify according to an embodiment of the present invention;

FIG. 5 is a schematic diagram of the structure of a folder separation page that is convenient for classification according to an embodiment of the present invention;

6 is a schematic diagram of the structure of the front cover of a folder that is convenient for classification according to an embodiment of the present invention;

FIG. 7 is a schematic diagram of the structure of the rear cover of a folder that is convenient for classification according to an embodiment of the present invention.

Among them, each reference sign in the figure:

1. Main body; 11. Left fixing plate; 111. Front cover mounting slot; 112. Rear cover mounting post; 12. Right fixing plate; 121. Body assembly slot; 13. Groove; 14. Slide rail; 15. Slider; 16. Paper guide slot; 2. Front cover; 21. Paper clip; 22. Paper pad area; 23. Front cover installation clip; 3. Rear cover; 31. Rear cover installation slot; 4. Separator ; 41. Inner cavity; 5. Label page; 51. Label position; 6. Page turning crease;

Detailed ways

In order to facilitate the understanding of the present utility model, the present utility model will be more fully described below with reference to the related drawings. The preferred embodiments of the present invention are shown in the accompanying drawings. However, the present invention may be implemented in many different forms and is not limited to the embodiments described herein. Rather, these embodiments are provided so that a thorough and complete understanding of the present disclosure is provided.

It should be noted that when an element is referred to as being "fixed to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. In contrast, when an element is referred to as being "directly on" another element, there are no intervening elements present. The terms "vertical", "horizontal", "left", "right" and similar expressions used herein are for illustrative purposes only and are not intended to be the only "Lower end", "left side", "right side", "front end", "rear end" and similar expressions are positional relationships with reference to the drawings.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field to which the present invention belongs. The terms used in the description of the present invention herein are only for the purpose of describing specific embodiments, and are not intended to limit the present invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

The technical solution of the present patent will be described in further detail below in conjunction with specific embodiments.

Example 1:

As shown in FIGS. 1 to 7 , an embodiment of the present invention provides a folder that is easy to classify, including a main body 1, a front cover 2 and a rear cover 3, the front cover 2 is detachably installed on the front end of the main body 1, and the rear cover 3 Removably installed at the rear end of the main body 1, the left end of the main body 1 is provided with a left fixed plate 11, the right end of the main body 1 is provided with a right fixed plate 12, and the inner walls of the left fixed plate 11 and the right fixed plate 12 are provided with grooves 13. With the slide rail 14 , the separator 4 is detachably installed inside the main body 1 through the groove 13 , the slide rail 14 is slidably installed with a slider 15 , and the slider 15 is installed with a paper guide groove 16 .

In this embodiment, an inner cavity 41 is provided inside the partition page 4 , the label page 5 is installed in the inner cavity 41 , and the upper end of the label page 5 is provided with a label position 51 .

In this embodiment, a paper clip 21 is provided on the upper side of the front end of the front cover 2 , a paper pad area 22 is provided at the front end of the front cover 2 , and page turning creases 6 are provided on the left sides of the front cover 2 and the rear cover 3 .

In this embodiment, the left rear end of the front cover 2 is provided with a front cover installation clip 23, the front end of the left fixing plate 11 is provided with a front cover installation slot 111, and the front cover installation clip 23 is installed on the front cover installation clip in slot 111;

The left front end of the rear cover 3 is provided with a rear cover installation slot 31 , and the rear end of the left fixing plate 11 is provided with a rear cover installation clip 112 .

Embodiment 2:

On the basis of the first embodiment, this embodiment is provided with two bodies 1 . The two bodies 1 are installed together one in front of the other, and the rear cover mounting posts 112 of the front body 1 are installed on the front cover of the rear body 1 In the installation slot 111, the body assembly slot 121 at the front end of the front body 1 is connected to the body assembly slot 121 of the rear end body 1, and the body assembly movable clamping column 7 is installed, so as to realize the fixed installation of the two bodies 1, and the front cover 2 is installed on the The front end of the front end body 1 and the rear cover 3 are mounted on the rear end of the rear end body 1 .

Way of working:

In the present invention, the partition plate divides the interior of the main body 1 into different areas, which can be used to place documents and materials in a classified manner. The label position 51 can help the user to quickly find the required file placement area. If the position of the label page 5 is not enough to record the catalogue, any paper can be used for supplementary recording, and the recorded catalogue paper can be put into the cavity 41 of the separator page 4. . If you need to adjust the position of the label page 5, you can adjust it in two ways: 1. Take the corresponding separation page 4 out of the groove 13 and place it in the groove 13 in the direction to be placed; 2. Remove the label page 5 from the separation page 4 Take it out from the inner cavity 41, and put the label page 5 into the inner cavity 41 of the separation page 4 at the corresponding position.

In the present invention, when there are many built-in files, it is easy to damage the corners of the paper by directly inserting the paper files into the folder. Therefore, a paper guide groove 16 is provided, and the paper is put into the folder along the paper guide groove 16. In the middle, the paper guide 16 is made of flexible material, the paper is removed from the paper guide 16, the paper guide 16 can adjust its position along the slide rail 14, and the use is flexible and can effectively avoid the paper from wrinkling and damage.

In the present invention, if the capacity of a single body 1 cannot meet the requirements for storing documents and materials, two or more bodies 1 can be assembled into one for use. The specific assembly method is shown in the second embodiment.

In the present invention, the front cover 2 can be used as a writing board, through which documents and materials are recorded and sorted, and then stored in the main body 1, and can also be used to sort out the required materials in advance before classes or meetings. material.

The above embodiments are only used to illustrate the present utility model, but not to limit the present utility model. Those of ordinary skill in the relevant technical field can also make various changes and modifications without departing from the spirit and scope of the present utility model. Therefore, all equivalent technical solutions also belong to the scope of the present utility model, and the patent protection scope of the present utility model shall be defined by the claims.
