Abstract
本实用新型一种注塑件脱模工装，包括底座，所述底座上可拆卸连接底模，所述底座一侧拆卸连接伸缩组件，所述伸缩组件可拆卸连接侧模组件和上模，所述侧模组件挤压连接所述底模和所述侧模组件，所述侧模组件内部设有空腔，所述空腔两端可拆卸连接水冷组件。本实用新型通过伸缩组件来属性点侧模组件和上模高度的调节，在通过侧模组件来进行对应的扩张，方便拆模，同时水冷加速了注塑件的降温拆模。
The utility model relates to a demoulding tool for injection molded parts, which comprises a base, a bottom mold is detachably connected to the base, a telescopic assembly is detachably connected to one side of the base, and the telescopic assembly is detachably connected to a side mold assembly and an upper mold. The side die assembly is extruded to connect the bottom die and the side die assembly, a cavity is provided inside the side die assembly, and both ends of the cavity are detachably connected to the water cooling assembly. The utility model adjusts the height of the side mold assembly and the upper mold through the telescopic assembly, and performs corresponding expansion through the side mold assembly, which is convenient for mold removal, and meanwhile, water cooling accelerates the cooling and mold removal of the injection molded parts.
Description
Technical Field
The utility model relates to the technical field of injection molding parts, and mainly relates to an injection molding part demolding tool.
Background
The injection molding part refers to various injection molding products produced by an injection molding machine, and is generally called as injection molding parts, including various packages, parts and the like. Is mainly prepared from polyethylene or polypropylene and various organic solvents.
The existing mould for the injection molding part has the advantages that the upper mould and the lower mould are arranged, the upper mould and the lower mould are separated after the injection molding part is formed, and the lower mould vibrates after the injection molding part is cooled, so that the corresponding demoulding effect is realized.
However, the demolding is complicated, and the demolding period is long.
SUMMERY OF THE UTILITY MODEL
The utility model mainly provides a demoulding tool for injection molding parts, which is used for solving the technical problems that the demoulding is complicated and the demoulding period is long in the background technology.
The technical scheme adopted by the utility model for solving the technical problems is as follows: the utility model provides an injection molding drawing of patterns frock, includes the base, can dismantle the connection die block on the base, the flexible subassembly of connection is dismantled to base one side, flexible subassembly can be dismantled and connect side form subassembly and go up the mould, side form subassembly extrusion is connected the die block with the side form subassembly, the inside cavity that is equipped with of side form subassembly, the connection water cooling module can be dismantled at the cavity both ends.
Furthermore, the telescopic assembly comprises a first connecting plate, two first sliding chutes are symmetrically arranged on one side of the first connecting plate, a first screw rod and a first sliding rod are respectively arranged in the two first sliding chutes, a first driving motor is arranged at the bottom of the first sliding chute on one side, the first driving motor driving shaft is connected with the first screw rod, the first screw rod and the first slide rod are rotationally connected with two first connecting blocks, the two first connecting blocks are detachably connected with the U-shaped plate, the inner opening of the U-shaped plate is detachably connected with two first telescopic rods, one end of each first telescopic rod is detachably connected with a second connecting plate, the two second connecting plates are detachably connected with the side die assembly, the upper end of the first connecting plate can be detachably connected with the rotating assembly, the upper end of the rotating assembly can be detachably connected with the supporting assembly, and the supporting assembly can be detachably connected with the upper die.
Furthermore, the rotating assembly comprises a second driving motor, the driving shaft of the second driving motor is connected with the L-shaped plate, and one side of the L-shaped plate is detachably connected with the supporting assembly.
Furthermore, the supporting assembly comprises a second lead screw, a second chute is formed in one side of the L-shaped plate, the second lead screw is connected to the second chute in a bearing mode, a third driving motor is arranged at the bottom of the second lead screw, the driving shaft of the third driving motor is connected with the second lead screw, the second lead screw is connected with a first connecting block in a rotating mode, two third chutes are symmetrically formed in two sides of the L-shaped plate, a limiting plate is connected to the two third chutes in a sliding mode, the limiting plate and the first connecting block are detachably connected with a second U-shaped plate, and the inner side of the second U-shaped plate is detachably connected with the upper die.
Furthermore, the side form subassembly includes four curb plate moulds, four the third connecting plate, two can all be dismantled in curb plate mould both sides and connect the third connecting plate one side can be dismantled and connect electric telescopic handle, two electric telescopic handle can dismantle and connect the second L template.
Further, the water cooling module includes the water tank, be equipped with the water pump in the water tank, the first connecting pipe of connection can be dismantled to the water pump, side form subassembly is equipped with a plurality of water inlets and a plurality of outlet on with last mould, first connecting pipe can be dismantled and connect a plurality ofly the water inlet is, and is a plurality of connecting drain pipe can be dismantled in the outlet, and is a plurality of the connecting water tank can be dismantled to the drain pipe.
Compared with the prior art, the utility model has the beneficial effects that:
according to the utility model, the mould is arranged into three parts, namely an upper mould, a side mould and a bottom mould, and the sealing effect is realized by extruding the upper mould, the side mould and the bottom mould during injection molding;
after the die assembly is completed, the side die assembly and the upper die are lifted, the water cooling assembly is used for accelerating the cooling of the plastic part, and finally the extension of the side die assembly achieves the die removing effect.
Drawings

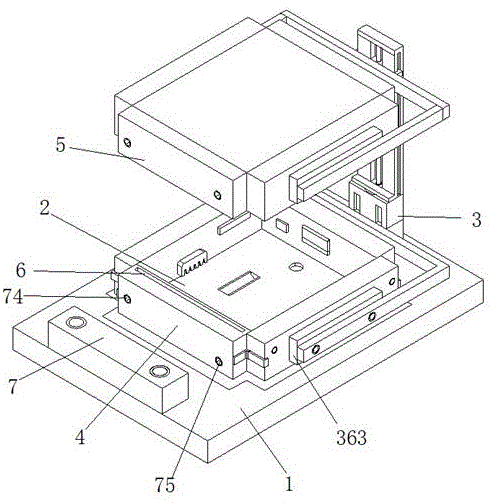

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the telescoping assembly of the present invention;
FIG. 3 is a schematic view of a sideform assembly of the present invention;
FIG. 4 is a schematic view of the water cooling module according to the present invention.
In the figure: 1. a base; 2. bottom die; 3. a telescoping assembly; 4. a side mold assembly; 5. an upper die; 6. a cavity; 7. a water-cooling assembly; 31. a first connecting plate; 32. a first chute; 33. a first lead screw; 34. a first slide bar; 35. a first drive motor; 36. a third connecting block; 361. a U-shaped plate; 362. a second electric telescopic rod; 363. a second connecting plate; 37. a rotating assembly; 371. a second drive motor; 372. an L-shaped plate; 373. a second chute; 374. a limiting plate; 38. a support assembly; 381. a second lead screw; 382. a third drive motor; 383. a second connecting block; 384. a second U-shaped plate; 4. a side mold assembly; 41. a side plate mold; 42. a third connecting plate; 43. an electric telescopic rod; 44. a second L-shaped plate; 5. an upper die; 6. a cavity; 7. a water cooling assembly 71, a water tank; 72. a water pump; 73. a first connecting pipe; 74. a water inlet; 75. a water outlet; 76. and a water discharge pipe.
Detailed Description
In order to facilitate an understanding of the utility model, the utility model will now be described more fully hereinafter with reference to the accompanying drawings, in which several embodiments of the utility model are shown, but which may be embodied in different forms and not limited to the embodiments described herein, but which are provided so as to provide a more thorough and complete disclosure of the utility model.
It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may be present, and when an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present, as the terms "vertical", "horizontal", "left", "right" and the like are used herein for descriptive purposes only.
Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs, and the knowledge of the terms used herein in the specification of the present invention is for the purpose of describing particular embodiments and is not intended to limit the present invention, and the term "and/or" as used herein includes any and all combinations of one or more of the associated listed items.
The embodiment, please refer to fig. 1-4 emphatically, an injection molding drawing of patterns frock, including base 1, can dismantle on the base 1 and connect die block 2, flexible subassembly 3 is dismantled in base 1 one side, flexible subassembly 3 can dismantle and connect side form subassembly 4 and go up mould 5, side form subassembly 4 extrusion connection die block 2 with side form subassembly 4, the inside cavity 6 that is equipped with of side form subassembly 4, connection water cooling module 7 can be dismantled at 6 both ends of cavity.
Please refer to fig. 1-2 again, the telescopic assembly 3 includes a first connecting plate 31, two first sliding grooves 32 are symmetrically disposed on one side of the first connecting plate 31, a first screw 33 and a first sliding rod 34 are respectively disposed in the two first sliding grooves 32, a first driving motor 35 is disposed at the bottom of the first sliding groove 32 on one side, a driving shaft of the first driving motor 35 is connected to the first screw 33, the first screw 33 and the first sliding rod 34 are rotatably connected to two third connecting blocks 36, the two third connecting blocks 36 are detachably connected to a U-shaped plate 361, an inner opening of the U-shaped plate 361 is detachably connected to two second electric telescopic rods 362, one end of each of the two second electric telescopic rods 362 is detachably connected to a second connecting plate 363, the two second connecting plates 363 are detachably connected to the side mold assembly 4, and the upper end of the first connecting plate 31 is detachably connected to a rotating assembly 37, the upper end of the rotating component 37 can be detachably connected with a supporting component 38, the supporting component 38 can be detachably connected with the upper die 5, the rotating component 37 comprises a second driving motor 371, the second driving motor 371 is in driving shaft connection with an L-shaped plate 372, the supporting component 38 is detachably connected with one side of the L-shaped plate 372, the supporting component 38 comprises a second screw rod 381, one side of the L-shaped plate 372 is provided with a second sliding groove 373, the second screw rod 381 is in bearing connection with the second sliding groove 373, the bottom of the second screw rod 381 is provided with a third driving motor 382, the driving shaft of the third driving motor 382 is connected with the second screw rod 381, the second screw rod 381 is rotatably connected with a second connecting block 383, two third sliding grooves 375 are symmetrically arranged at two sides of the L-shaped plate 372, two third sliding grooves 375 are in sliding connection with a limiting plate 374, and the limiting plate 374 and the second connecting block 383 can be detachably connected with the second U-shaped plate 384, the inner side of the second U-shaped plate 384 is detachably connected with the upper die 5.
Referring to fig. 3 again, the side form assembly 4 includes four side form forms 41, two sides of the four side form forms 41 are detachably connected to third connecting plates 42, one side of each of the two third connecting plates 42 is detachably connected to an electric telescopic rod 43, and the two electric telescopic rods 43 are detachably connected to a second L-shaped plate 44.
Please refer to fig. 4 again, the water cooling module 7 includes a water tank 71, a water pump 72 is disposed in the water tank 71, the water pump 72 is detachably connected to a first connection pipe 73, the side module 4 and the upper die 5 are provided with a plurality of water inlets 74 and a plurality of water outlets 75, the first connection pipe 73 is detachably connected to the plurality of water inlets 74, the plurality of water outlets 75 are detachably connected to a water discharge pipe 76, and the plurality of water discharge pipes 76 are detachably connected to the water tank 71.
The operation principle is as follows: after injection molding, the corresponding upper die, the corresponding side die assembly and the corresponding bottom die are combined and sealed through the rotation of the first driving motor and the third driving motor;
after the material is guided through the feeding hole above the upper die, the third driving motor rotates to drive the second screw rod to rotate so as to realize corresponding upward movement, and the first driving motor rotates to drive the first screw rod to rotate correspondingly so as to drive the first connecting block to drive the first U-shaped plate to perform corresponding upward movement, so that the side plate assembly realizes corresponding upward movement;
the electric telescopic rods at the four corners are extended, and meanwhile, the two second electric telescopic rods are retracted, so that the four side plates are correspondingly expanded, and the mold stripping effect is achieved.
Before the mold is disassembled, water is correspondingly introduced through the water pump to cool, and meanwhile, the water is circulated under the action of the water pump, so that the water is circulated through the water inlets 74 and the water outlets.
The utility model is described above with reference to the accompanying drawings, it is obvious that the utility model is not limited to the above-described embodiments, and it is within the scope of the utility model to adopt such insubstantial modifications of the inventive method concept and solution, or to apply the inventive concept and solution directly to other applications without modification.
Claims (6)
1. The utility model provides an injection molding drawing of patterns frock, includes base (1), its characterized in that: can dismantle on base (1) and connect die block (2), base (1) one side is dismantled and is connected flexible subassembly (3), flexible subassembly (3) can be dismantled and connect side form subassembly (4) and last mould (5), side form subassembly (4) extrusion is connected die block (2) with side form subassembly (4), side form subassembly (4) inside is equipped with cavity (6), cavity (6) both ends can be dismantled and connect water cooling module (7).
2. The injection molding demolding tool according to claim 1, wherein: the telescopic assembly (3) comprises a first connecting plate (31), two first sliding grooves (32) are symmetrically arranged on one side of the first connecting plate (31), two first screw rods (33) and first sliding rods (34) are respectively arranged in the first sliding grooves (32), one side of the first sliding grooves (32) is provided with a first driving motor (35) at the bottom, the first driving motor (35) is in driving shaft connection with the first screw rods (33), the first screw rods (33) and the first sliding rods (34) are in rotating connection with two third connecting blocks (36), the two third connecting blocks (36) are in detachable connection with a U-shaped plate (361), the inner opening of the U-shaped plate (361) is in detachable connection with two second electric telescopic rods (362), one end of each second electric telescopic rod (362) is in detachable connection with a second connecting plate (363), and the second connecting plates (363) are in detachable connection with the side mold assembly (4), first connecting plate (31) upper end can be dismantled and connect runner assembly (37), runner assembly (37) upper end can be dismantled and connect supporting component (38), supporting component (38) can be dismantled and connect go up mould (5).
3. The injection molding demolding tool according to claim 2, characterized in that: the rotating assembly (37) comprises a second driving motor (371), the driving shaft of the second driving motor (371) is connected with an L-shaped plate (372), and one side of the L-shaped plate (372) is detachably connected with the supporting assembly (38).
4. The injection molding demolding tool according to claim 3, characterized in that: the support assembly (38) comprises a second screw rod (381), one side of the L-shaped plate (372) is provided with a second sliding groove (373), a bearing of the second screw rod (381) is connected to the second sliding groove (373), a third driving motor (382) is arranged at the bottom of the second screw rod (381), a driving shaft of the third driving motor (382) is connected to the second screw rod (381), the second screw rod (381) is rotatably connected with a second connecting block (383), two third sliding grooves (375) and two third sliding grooves (372) are symmetrically arranged on two sides of the L-shaped plate (372), a limiting plate (374) is slidably connected to the third sliding groove (375), the limiting plate (374) is detachably connected with a second U-shaped plate (384) through the second connecting block (383), and the inner side of the second U-shaped plate (384) is detachably connected with the upper die (5).
5. The injection molding demolding tool according to claim 3, wherein: the side die assembly (4) comprises four side die plates (41), the two sides of the four side die plates (41) can be detachably connected with third connecting plates (42), one side of each third connecting plate (42) can be detachably connected with an electric telescopic rod (43), and the two electric telescopic rods (43) can be detachably connected with second L-shaped plates (44).
6. The injection molding demolding tool according to claim 5, wherein: water-cooling subassembly (7) include water tank (71), be equipped with water pump (72) in water tank (71), first connecting pipe (73) can be dismantled in water pump (72), side form subassembly (4) and last mould (5) are equipped with a plurality of water inlets (74) and a plurality of outlet (75), first connecting pipe (73) can be dismantled and connect a plurality ofly water inlet (74), a plurality of connect drain pipe (76), a plurality of can be dismantled in outlet (75) connect water tank (71) can be dismantled in drain pipe (76).
