CN216724257U - A separate air fryer - Google Patents

Abstract

The utility model discloses a detachable air frying pan, which comprises an outer shell, a top shell is connected with a top shell by means of a buckle; , an inner cover is installed inside the lining shell, a high-temperature electric heating tube is installed on the lower side of the inner cover, a cooling fan is connected to the upper side of the inner cover, and the cooling fan is fixedly installed on the output shaft of the motor, and a drum is connected to the lower side of the inner cover. The blower fan is fixedly installed on the output shaft of the motor. The utility model is convenient for cleaning, and the cooking conditions of the food can be viewed in all directions.

Description

A separate air fryer

technical field

The utility model relates to the technical field of kitchen cooking appliances, in particular to a separate air frying pan.

Background technique

An air fryer is a machine that can use air to "fry". It mainly uses air to replace the hot oil in the original frying pan to make the food cooked. At the same time, the hot air also blows away the moisture on the surface of the food, making the The ingredients are similar to frying. The working principle of the air fryer is "high-speed air circulation technology", which generates hot air by heating the heat pipe in the machine at high temperature, and then blows the high-temperature air into the pot with a fan to heat the food, so that the heat The air circulates in the closed space, and the hot air forms a rapid circulating heat flow in the closed pot, making the food cooked and frying the food with the fat of the food itself, and the hot air also blows away the moisture on the surface of the food, so that the ingredients do not need to be boiled. The oil can also achieve a similar frying effect, the surface becomes golden and crispy, and the frying effect is achieved. The unique combination of fast circulating hot air and oven parts can quickly make a variety of delicious food snacks, seafood, etc., because only air frying is used. Therefore, it produces less odor and steam than traditional frying, and is easier to clean than traditional kitchens in daily use. Air frying pans in the prior art are mainly box-type structures, and box-type air fryers are made After food, there is a lot of dirt accumulated in the inner tank of the fryer, but it cannot be washed with water. It can only be wiped with a towel, which makes the cleaning of the air fryer inconvenient and incomplete, and there are hygienic problems. Therefore, those skilled in the art provide a separate air fryer pan to solve the problem that the current air fryer pan is inconvenient to clean and cannot fully view the cooking status of food.

Utility model content

The purpose of the present invention is to provide a separate air fryer to solve the problems raised in the above background technology.

To achieve the above object, the utility model provides the following technical solutions:

A detachable air frying pan includes an outer shell, the top side of the outer shell is snap-connected with a top shell, a handle is fixedly installed on the upper side of the outer shell, an inner lining shell is installed inside the outer shell, and the upper side of the inner lining shell is installed A motor is fixedly installed, an inner cover is installed inside the lining shell, a high-temperature electric heating tube is installed on the lower side of the inner cover, a cooling fan is rotatably connected to the upper side of the inner cover, and the cooling fan is fixedly installed at the output of the motor On the shaft, a blower fan is rotatably connected to the lower side of the inner cover, and the blower fan is fixedly mounted on the output shaft of the motor.

As a further solution of the present invention, a partition net is installed on the lower side of the inner cover to prevent the food from contacting the high-temperature electric heating tube and causing damage to the equipment.

As a further solution of the present invention, there are a plurality of cooling air inlets on the top of the casing, and a filter screen is installed on the outer side of the casing, which is conducive to the circulation of air.

As a further solution of the present invention, a transparent glass frying pan is slidably connected to the lower side of the outer shell, a plurality of handles are fixedly installed on the side wall of the transparent glass frying pan, and a frying pan is installed on the lower side of the transparent glass frying pan. The fryer holder is useful for observing the cooking of the food.

As a further solution of the present invention, an operation panel is installed on the outer side of the casing, which is used to operate the equipment.

As a further solution of the present invention, a micro switch is fixedly installed on the lower surface of the casing.

Compared with the prior art, the beneficial effect of the utility model is: a separate air frying pan, by placing the food on the frying rack holder of the transparent glass frying pan, it is beneficial to view the cooking situation of the food in all directions. , to prevent the food from being scorched or undercooked, the user grabs the handle and places the device on the transparent glass frying pan. The device's own gravity makes the transparent glass frying pan and the device fit and connected, which is beneficial to the device and the transparent glass. Separation and disassembly of the frying pan is convenient for cleaning. The user grabs the handle, picks up the device, stops contact with the transparent glass frying pan through the micro switch, the micro switch is disconnected, and the motor and the high-temperature electric heating tube are automatically turned off , which is beneficial to protect the user's safety, operate the operation panel to start the equipment, the motor rotates to drive the cooling fan and the blower fan to rotate, and the air outside the equipment is sucked into the equipment from the cooling air inlet, and the high-temperature electric heating tube is activated to heat the air. The net is blown onto the food, the food is dehydrated, the surface becomes golden and crispy, and the frying effect is achieved, and the excess heat is discharged from the filter screen outside the shell. .

Description of drawings

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the rear view of the utility model;

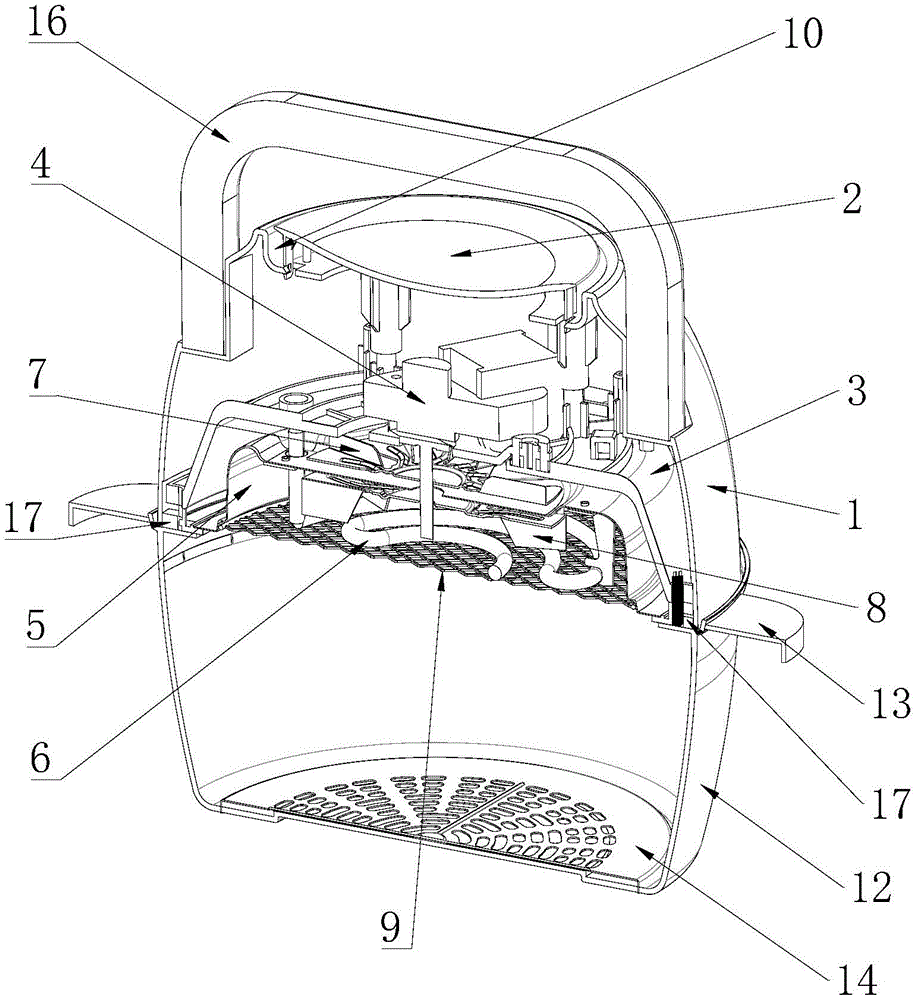

Figure 3 is an overall sectional view of the utility model.

FIG. 4 is a perspective view of the utility model with the glass frying pan removed.

In the figure: 1. Outer shell; 2. Top shell; 3. Lining shell; 4. Motor; 5. Inner cover; 6. High temperature electric heating pipe; 7. Cooling fan; 8. Blower fan; 10. Cooling air inlet; 11. Filter; 12. Transparent glass frying pan; 13. Handle; 14. Frying rack holder; 15. Operation panel; 16. Handle; 17. Micro switch.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Referring to FIGS. 1 to 3 , in an embodiment of the present invention, a detachable air fryer oven includes an outer shell 1 , a top shell 2 is snap-connected on the top side of the outer shell 1 , a handle 16 is fixedly installed on the upper side of the outer shell 1 , and the outer shell 1. The inner lining shell 3 is installed inside, the motor 4 is fixedly installed on the upper side of the inner lining shell 3, the inner cover 5 is installed inside the inner lining shell 3, the high temperature electric heating tube 6 is installed on the lower side of the inner cover 5, and the upper side of the inner cover 5 is rotated and connected There is a cooling fan 7 , which is fixedly installed on the output shaft of the motor 4 , and a blower fan 8 is rotatably connected to the lower side of the inner cover 5 , and the blower fan 8 is fixedly installed on the output shaft of the motor 4 .

Among them, a partition screen 9 is installed on the lower side of the inner cover 5, a plurality of cooling air inlets 10 are arranged on the top of the outer casing 1, a filter screen 11 is installed on the outer side of the outer casing 1, and a transparent glass frying pan 12 is slidably connected to the lower side of the outer casing 1. A plurality of handles 13 are fixedly installed on the side wall of the frying pan 12, a frying rack holder 14 is installed on the lower side of the transparent glass frying pan 12, an operation panel 15 is installed on the outer side of the casing 1, and a micro-movement is fixed on the lower surface of the casing 1 switch 17.

The working principle of the utility model is as follows: a separate air frying pan, when in use, by placing the food on the frying rack holder 14 of the transparent glass frying pan 12, it is conducive to viewing the cooking situation of the food in all directions, preventing food from being cooked. When the food is fried or the food is undercooked, the user can grasp the handle 16 and place the device on the transparent glass frying pan 12. The device's own gravity makes the transparent glass frying pan 12 fit and connect with the device, which is beneficial to the transparency of the device. The separation and disassembly of the glass frying pan 12 is convenient for cleaning. The user grabs the handle 16, picks up the device, and stops contacting with the transparent glass frying pan 12 through the micro switch 17. The micro switch 17 is disconnected, and the motor 4 and the The high-temperature electric heating tubes 6 are automatically turned off, which is beneficial to protect the safety of the user. The operation panel 15 starts the equipment, and the motor 4 rotates to drive the cooling fan 7 and the blower fan 8 to rotate, and the air outside the equipment is sucked from the cooling air inlet 10. Inside the device, the high-temperature electric heating tube 6 starts to heat the air, blows it onto the food through the separator 9, dehydrates the food, and the surface becomes golden and crispy, achieving the effect of frying. Discharging equipment, the utility model is convenient to clean, and the cooking situation of food can be viewed in all directions.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. The utility model provides a deep-fry roast pot of disconnect-type air, includes shell (1), its characterized in that, shell (1) top side buckle is connected with topshell (2), shell (1) upside fixed mounting handle (16), shell (1) internally mounted inner liner shell (3), inner liner shell (3) upside fixed mounting motor (4), inner liner shell (3) internally mounted has inner cover (5), high temperature electric heating tube (6) are installed to inner cover (5) downside, inner cover (5) upside rotates and is connected with radiator fan (7), radiator fan (7) fixed mounting is on the output shaft of motor (4), inner cover (5) downside rotates and is connected with blower fan (8), blower fan (8) fixed mounting is on the output shaft of motor (4).

2. A split air fryer according to claim 1 wherein a spacer screen (9) is mounted on the underside of the inner hood (5).

3. A split air fryer according to claim 1, wherein there are a plurality of radiating air inlets (10) at the top of the housing (1), and a filter screen (11) is mounted on the outside of the housing (1).

4. A split air fryer according to claim 1, wherein a transparent glass frying pan (12) is slidably connected to the underside of the housing (1), a plurality of handles (13) are fixedly mounted on the side wall of the transparent glass frying pan (12), and a frying rack tray (14) is mounted on the underside of the transparent glass frying pan (12).

5. A split air fryer according to claim 1, wherein an operating panel (15) is mounted on the outside of the housing (1).

6. A split air fryer according to claim 1 wherein a microswitch (17) is fixedly mounted on the lower surface of the housing (1).
