Abstract

The application provides a physiological underwear, including a body of the underwear, the crotch of the body of the underwear is at least three-layer structure, including a water-conducting layer, a water-storage layer and a waterproof layer, so as to realize a three-layer water-conducting and water-locking structure. Create a comfortable user experience, the crotch of the underwear has good water absorption, water locking, water absorption, non-return and non-leakage effects, effectively solving the worries of women's menstrual period, reducing the humidity and stuffiness between the underwear and the body, and maintaining a dry and fresh feeling ; On the other hand, the moisture is locked between the interlayers to prevent backflow, no leakage, no leakage, and contamination of clothes and sheets.

Description

menstrual underwear

technical field

The present application relates to the field of underwear, in particular to a kind of physiological underwear.

Background technique

Due to the physiological structure of women, during the menstrual period, due to the problem of sitting or sleeping position, leakage is easy to occur. Even if the sanitary napkin is used, it is easy to contaminate the underwear, and at the same time soak the clothes, sheets, cushions, etc., if all this happens in public places , will cause embarrassment. In addition, because menstruation is bloody and difficult to clean, it is easy to leave traces on clothes, sheets, and cushions, which brings a lot of trouble to women.

At the same time, due to the use of sanitary napkins, it is also easy to cause the crotch to be damp and hot, which can breed bacteria. If the sanitary napkins are not changed frequently, coupled with poor resistance during the menstrual period, it is easy to cause uterine diseases in the long run, and uterine fibroids are the highest among women today. The incidence of uterine cancer has seriously affected the health of women. The breathability of common underwear on the market is relatively general, and it is not suitable for menstrual period use.

Therefore, it is urgent to design a physiological underwear to solve this problem.

Utility model content

In order to overcome the problems existing in the related art, the present application provides a physiological underwear comprising a body of the underwear, the crotch of the body of the underwear is of at least three-layer structure, including a water-conducting layer, a water-storing layer and a waterproof layer.

Preferably, it also includes a reverse structure disposed on both sides of the crotch body, and the reverse structure is formed by at least a part of the waterproof layer that is folded back.

Preferably, the transporting structure is constituted by at least a part of the waterproof layer that is folded back for a second time.

Preferably, the transport-reverse structure is fixedly connected to the crotch by sewing threads, and the sewing threads are hidden between the outer surfaces of the waterproof layer.

Preferably, an adhesive film strip is embedded in the crotch portion along the edge.

Preferably, the waterproof layer is a knitted fabric woven from cotton yarn provided with a water-repellent finishing agent or a water-repellent finishing film.

Preferably, the water-conducting layer is a knitted fabric with a unidirectional conductive structure.

Preferably, the middle section of the crotch is provided with an area enclosed by a plastic film ring.

Preferably, a decorative layer is provided on the inner surface and/or the outer surface of the underpants body.

Preferably, the decorative layer is a skin-friendly knitted fabric.

Through this water-conducting and water-locking structure, the first water-conducting and water-absorbing structure can create a comfortable user experience. The crotch of the underwear has good water-absorbing, water-locking, water-absorbing and non-returning and non-leaking effects, effectively solving women's physiological period. Worry-free, reduce the dampness and stuffiness between the panties and the body, and keep you dry and fresh. Second, it can lock water, lock the water between the interlayers, prevent backflow, no leakage, no leakage, and contamination of clothes and bed sheets. At the same time, a film structure is adopted at the edge of the underwear, which makes the underwear better wrap, and can more flexibly adapt to the movement of the inner thigh, making the sanitary napkin or sanitary napkin more firmly fixed. It is to be understood that the foregoing general description and the following detailed description are exemplary and explanatory only and are not limiting of the present application.

Description of drawings

The above and other objects, features and advantages of the present application will become more apparent from the more detailed description of the exemplary embodiments of the present application in conjunction with the accompanying drawings, wherein the same reference numerals generally represent the exemplary embodiments of the present application. same parts.

Fig. 1 is the overall schematic diagram of the physiological underwear shown in the embodiment of the present application;

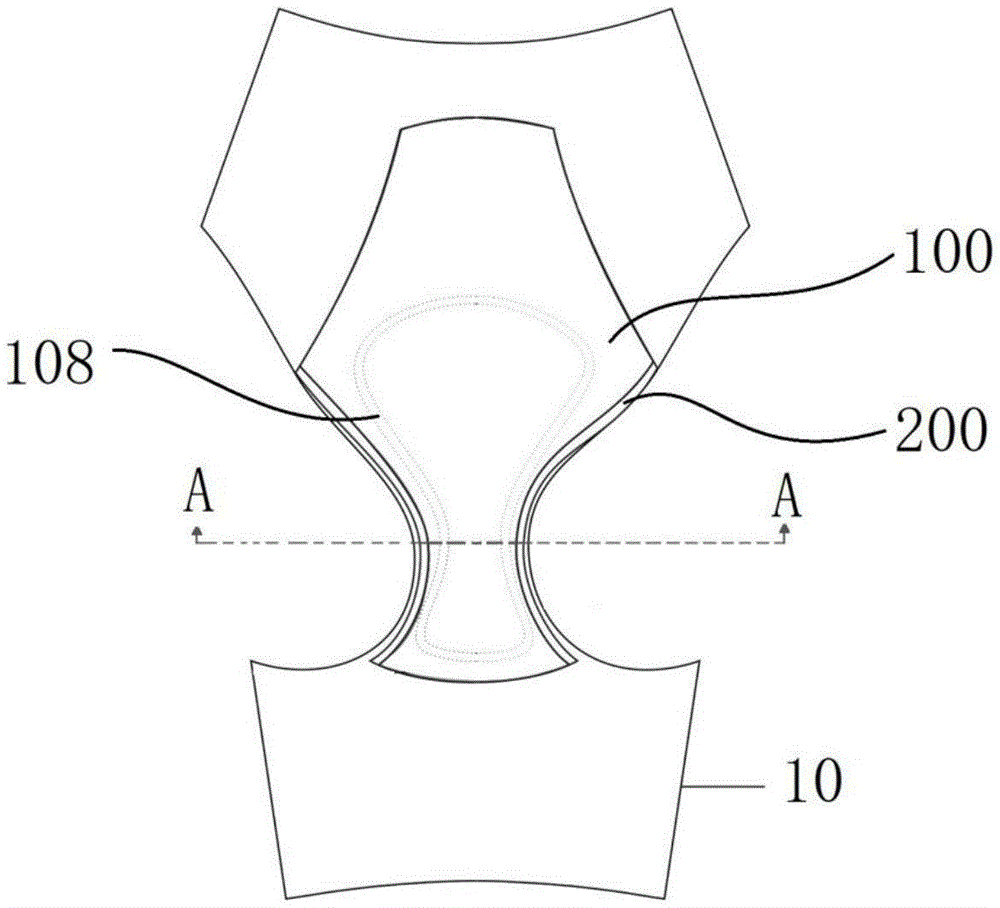

Fig. 2 is the dismantling structure schematic diagram of Fig. 1;

Fig. 3 is the planing section schematic diagram at Fig. 2A-A place;

FIG. 4 is a schematic diagram of another crotch fabric layering shown in the present application.

The corresponding meanings of the symbols in the figure are as follows:

10 panties body

100 crotch

101 Absorbent layer

102 Aqueduct

103 Aquifer

104 Waterproof layer

105 Decorative layer

107 Film strip

108 Rubber film ring

200 Transport Anti-Structure

201 sewing thread

Detailed ways

Preferred embodiments of the present application will be described in more detail below with reference to the accompanying drawings. While preferred embodiments of the present application are shown in the drawings, it should be understood that the present application may be embodied in various forms and should not be limited by the embodiments set forth herein. Rather, these embodiments are provided so that this application will be thorough and complete, and will fully convey the scope of this application to those skilled in the art.

The terminology used in this application is for the purpose of describing particular embodiments only and is not intended to limit the application. As used in this application and the appended claims, the singular forms "a," "the," and "the" are intended to include the plural forms as well, unless the context clearly dictates otherwise. It will also be understood that the term "and/or" as used herein refers to and includes any and all possible combinations of one or more of the associated listed items.

It should be understood that although the terms "first", "second", "third", etc. may be used in this application to describe various information, such information should not be limited to these terms. These terms are only used to distinguish the same type of information from each other. For example, the first information may also be referred to as the second information, and similarly, the second information may also be referred to as the first information without departing from the scope of the present application. Thus, a feature defined as "first", "second" may expressly or implicitly include one or more of that feature. In the description of the present application, "plurality" means two or more, unless otherwise expressly and specifically defined.

In the description of this application, it should be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", The orientation or positional relationship indicated by "horizontal", "top", "bottom", "inner", "outer", etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present application and simplifying the description, and It is not indicated or implied that the indicated device or element must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as limiting the application.

Unless otherwise expressly specified and limited, the terms "installed", "connected", "connected", "fixed" and other terms should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral body; It can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be the internal communication between the two elements or the interaction relationship between the two elements. For those of ordinary skill in the art, the specific meanings of the above terms in this application can be understood according to specific situations.

A physiological underwear, as shown in Figures 1 to 3 of the accompanying drawings, includes a body 10 of underwear, the crotch portion 100 of the body of the underwear is at least three-layer structure, a water-conducting layer 102, a water-storing layer 103 and a waterproof layer 104.

Through this water-conducting and water-locking structure, firstly, it can guide and absorb water, creating a comfortable user experience. The crotch of the underwear has good water-absorbing, water-locking, water-absorbing, non-returning and non-leaking effects, effectively solving the problems of women's menstrual period. Worry-free, reduce the dampness and stuffiness between the panties and the body, and keep the feeling dry and fresh. Second, it can lock water, lock the water between the interlayers, prevent backflow, no leakage, no leakage, and contamination of clothes and bed sheets. Further, an independently provided water-absorbing layer 101 may also be included, and the water-absorbing layer may be configured as a one-way water-permeable and water-conducting membrane body or another layer of water-conducting layer to further prevent liquid backflow.

In a preferred embodiment, it also includes a transport and reverse structure 200 disposed on both sides of the crotch body, and the transport and reverse structure is formed by at least the part of the waterproof layer folded back. The water absorbed between the water-conducting layer and the water-storing layer can be wrapped by the waterproof layer, thereby further preventing side leakage of the underwear along the edge.

In a preferred embodiment, the transport-reversing structure is composed of at least a part of the waterproof layer that is folded back for a second time. The secondary folding can also generate a certain height, thereby forming a convex edge, which is used to form a protective body feeling and an anti-side leakage effect.

In a preferred embodiment, a sewing thread 201 is used in the transport reverse structure to be fixedly connected to the crotch, and the sewing thread is hidden between the outer surfaces of the waterproof layer. Through the built-in sewing thread, on the one hand, the structure between different cloth layers is fixed, and on the other hand, the irritation to the skin caused by the position of the sewing thread is reduced, and the overall appearance is more beautiful.

In a preferred embodiment, an adhesive film strip 107 is embedded along the edge of the crotch. The film structure can provide a certain structural shape, so that the underwear is not easily deformed. At the same time, the film strips arranged along the edge make the underwear better wrap, and can more flexibly adapt to the movement of the inner thigh, so that the sanitary napkin or sanitary napkin can be fixed. more solid.

In a preferred embodiment, the waterproof layer is a knitted fabric woven from cotton yarn provided with a water-repellent finishing agent or a water-repellent finishing film, and the waterproof coating or film will prevent a large amount of menstrual flow to the outside.

In a preferred embodiment, the water-conducting layer is a knitted fabric with a unidirectional conductive structure. While menstruation is quickly absorbed, it can prevent backflow and cause secondary pollution. The water-conducting layer can be provided with multiple layers.

In a preferred embodiment, the middle section of the crotch is provided with an area enclosed by the rubber film ring 108 . As shown in Fig. 2 of the accompanying drawings, the plastic film is encircled into an area to seal the key menstrual occurrence area, and the diffusion direction of menstruation is controlled in a graded manner, so that the overall water absorption is more uniform, and the water absorption phenomenon does not occur in the one side of the panties.

In a preferred embodiment, a decorative layer 105 is provided on the inner surface and/or the outer surface of the underwear body. As shown in FIG. 4 of the accompanying drawings, decorative layers for decorative purposes can be added to the inner and outer layers as required, so as to achieve an aesthetic effect. Preferably, the decorative layer is a skin-friendly knitted fabric.

Various embodiments of the present application have been described above, and the foregoing descriptions are exemplary, not exhaustive, and not limiting of the disclosed embodiments. Numerous modifications and variations will be apparent to those of ordinary skill in the art without departing from the scope and spirit of the described embodiments. The terminology used herein was chosen to best explain the principles of the various embodiments, the practical application or improvement over the technology in the marketplace, or to enable others of ordinary skill in the art to understand the various embodiments disclosed herein.

Claims (10)

1. The underpants for the physiological period comprise an underpants body and are characterized in that the crotch of the underpants body is of at least three-layer structure and comprises a water guide layer, a water storage layer and a waterproof layer.

2. The underpants according to claim 1, further comprising a reflective structure provided on both sides of said crotch portion, said reflective structure being formed by at least a portion of said waterproof layer folded back.

3. The menstrual period undergarment according to claim 2, wherein the reflective structure is formed by at least a portion of the waterproof layer folded back twice.

4. The underpants as claimed in claim 2, wherein the inside of the run-back structure is fixedly connected to the crotch part by a sewing thread, and the sewing thread is concealed between the outer surfaces of the waterproof layer.

5. The menstrual period underwear of claim 2, wherein a strip of adhesive film is embedded in the crotch portion along the edge.

6. The underpants according to claim 1, wherein the waterproof layer is a knitted fabric woven from cotton yarn provided with a water repellent finish or a water repellent finish film.

7. The underpants according to claim 1, wherein the water-guiding layer is a knitted fabric having a unidirectional structure.

8. The sanitary pant of claim 1, wherein the crotch center section is provided with an area bounded by a film loop.

9. The sanitary napkin of any of claims 1-8 wherein the inner and/or outer surface of the main body of the undergarment is provided with a decorative layer.

10. The underpants according to claim 9, wherein said decorative layer is a knitted fabric of skin-friendly material.
