Abstract

The utility model discloses a catheter fixing head frame, which comprises an arch head frame, an upper clamping opening is arranged at one end of the upper part of the arch head frame, and the upper clamping opening comprises two parallel horizontal long holes and two horizontal long holes. There is a vertical gap in the center, and two horizontal long holes are located in the middle of the vertical gap. The vertical gap is connected with the interior of the two horizontal long holes. Symmetrical barbs are arranged in the notch. The upper clamping opening and the two lateral clamping notches correspond to the upper part of the mouth and nose and the two ears of the head respectively. The bottom ends of the two sides of the arched head frame are symmetrically and vertically provided with support blocks, and the main body of the arched head frame is in the shape of an arched plate. Barbs are used to hook up catheters. The sealing end of the vertical gap is provided with a circular hole, the two ends of the upper horizontal long hole are each provided with two circular holes, and the two ends of the lower horizontal long hole are each provided with a circular hole, and the upper horizontal long hole is longer than the lower one. Horizontal slot.

Description

A pipe fixing head frame

technical field

The utility model relates to the technical field of a catheter fixing head frame, in particular to a catheter fixing head frame.

Background technique

During daily general anesthesia surgery, after tracheal intubation, it is easy to cause the tracheal tube to be unstable, and the trachea may be displaced or even prolapsed due to dragging, especially after general anesthesia in the patient's lateral position. The most common is after the double-lumen tracheal tube is fixed, because there are many exposed parts outside the mouth, due to the gravity of the bronchial orifice blocking forceps, the double-lumen tracheal tube is very easy to slip out. In addition, due to the requirements of general anesthesia surgery, the head frame cannot cover the patient's head, and the sterile sheet is completely covered on the patient's head. Facial, it is easy to cause catheter displacement, blockage, and facial pressure injury of patients. Therefore, most current surgical headgears do not meet the requirements.

Utility model content

The technical problem to be solved by the utility model is to overcome the defects of the above-mentioned technology and provide a catheter fixing head frame.

In order to solve the above-mentioned technical problems, the technical solution provided by the present utility model is a catheter fixing head frame, which includes an arch head frame, and an upper clamping port is provided at one end of the upper part of the arch head frame, and the upper clamping port includes two There are parallel horizontal long holes and a vertical gap perpendicular to the center of the two horizontal long holes, the two horizontal long holes are located in the middle of the vertical gap, and the vertical gap is communicated with the interior of the two horizontal long holes, The bottom ends of the two sides of the arched head frame are symmetrically provided with side locking notches, and barbs are symmetrically arranged in the side locking notches.

As an improvement, the upper latching opening and the two lateral latching notches correspond to the upper part of the mouth and nose and the two ears of the head, respectively.

As an improvement, the bottom ends of the two sides of the arched head frame are symmetrically and vertically provided with support blocks, and the main body of the arched head frame is in the shape of an arched plate.

As an improvement, the barbs are used in hook-and-tuck catheters.

As an improvement, the sealing end of the vertical gap is provided with a circular hole, the two ends of the upper horizontally long hole are each provided with two circular holes, and the two ends of the lower horizontally long hole are each provided with a circular hole The length of the upper horizontal long hole is longer than the lower horizontal long hole.

As an improvement, the circular hole is a three-quarter arc hole, and the circular hole is provided with an elastic leather strip.

As an improvement, two ends of the upper horizontally elongated hole are respectively provided with locking pieces close to the circular holes, and the open end of the vertical gap is provided with a locking piece, and the locking pieces are respectively connected with the horizontally long hole and the vertical gap. Sliding connection, the clamping part is fixed with the arched head frame by bolts.

Compared with the prior art, the utility model has the advantages that: the patient lies on the operating bed, covers the head with the arched head frame, and puts the catheter of the mouth and nose into the back of the horizontal long hole and the vertical gap at both ends. Put the catheters on both sides of the head into the barbs of the side clamping notch to make the catheter hang firmly. The middle hole is for the supine position, and the two holes are for the lateral position.

The catheter fixing head frame can prevent the catheter from being disordered and messy to cause trouble or injury, the design is simple and exquisite, the use is efficient and safe, and it has high practical value and promotion value.

Description of drawings

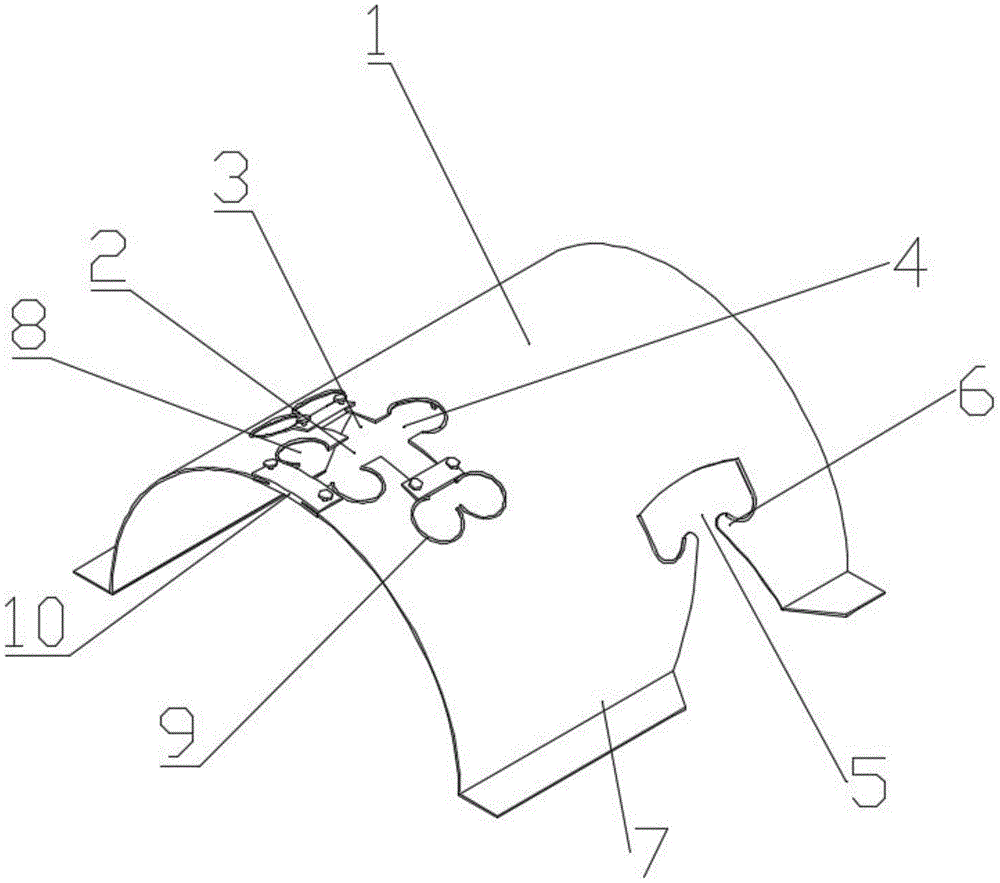

FIG. 1 is a schematic structural diagram of a catheter fixing head frame of the present invention.

2 is a top view of a catheter fixing head frame of the present invention.

FIG. 3 is a top view of FIG. 2 with the retaining member removed.

FIG. 4 is a schematic structural diagram of a latching member of a catheter fixing head frame of the present invention.

As shown in the picture: 1. Arched head frame, 2. Upper bayonet opening, 3. Long horizontal hole, 4. Vertical notch, 5. Side bayonet notch, 6. Barb, 7. Support block, 8. Circular hole, 9. Elastic leather strip, 10. Positioning piece, 11. Bolt.

Detailed ways

A catheter fixing head frame of the present invention will be further described in detail below with reference to the accompanying drawings.

1 to 4, a catheter fixing head frame includes an arched head frame 1, and an upper latching port 2 is provided at an upper end of the arched head frame 1, and the upper latching port 2 includes two parallel The horizontal long hole 3 and a vertical gap 4 perpendicular to the center of the two horizontal long holes 3, the two horizontal long holes 3 are located in the middle of the vertical gap 4, the vertical gap 4 and the two horizontal long holes 3 Internally communicated, the bottom ends of the two sides of the arched head frame 1 are symmetrically provided with side locking notches 5 , and the side locking notches 5 are symmetrically provided with barbs 6 .

The upper locking opening 2 and the two lateral locking notches 5 correspond to the upper part of the mouth and nose and the two ears of the head, respectively.

The bottom ends of the two sides of the arched head frame 1 are symmetrically and vertically provided with support blocks 7 , and the main body of the arched head frame 1 is in the shape of an arched plate.

The barbs 6 are used for hooking catheters.

The sealing end of the vertical gap 4 is provided with a circular hole 8 , the two ends of the upper horizontally long hole 3 are each provided with two circular holes 8 , and the two ends of the lower horizontally long hole 3 are each provided with one circular hole 8 . For the circular hole 8, the length of the upper horizontally long hole 3 is longer than that of the lower horizontally long hole 3.

The circular hole 8 is a three-quarter arc hole, and the circular hole 8 is provided with an elastic leather strip 9 .

The two ends of the upper horizontal long hole 3 are respectively provided with a locking member 10 near the circular hole 8 , and the opening end of the vertical gap 4 is provided with a locking member 10 , and the locking member 10 is respectively connected with the horizontal long hole 3 . And the vertical gap 4 is slidably connected, and the locking member 10 is fixed to the arched head frame 1 by bolts 11 .

During the specific implementation of the present utility model, the patient lies on the operating bed, covers the head with the arched head frame 1, puts the catheter of the mouth and nose into the two ends of the horizontal long hole 3 and the rear end of the vertical gap 4, To play a fixing role, put the catheters on both sides of the head into the barbs 6 of the side clamping notch 5, so that the catheters can be suspended steadily. The middle hole is for the supine position, and the two holes are for the lateral position.

The catheter fixing head frame can prevent the catheter from being disordered and messy to cause trouble or injury, the design is simple and exquisite, the use is efficient and safe, and it has high practical value and promotion value.

The present invention and the embodiments thereof have been described above, and the description is not restrictive, and what is shown in the accompanying drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. All in all, if those of ordinary skill in the art are inspired by it, without departing from the purpose of the present invention, and without creatively designing structural modes and embodiments similar to the technical scheme, all should belong to the protection of the present invention. scope.
