Abstract

The present invention relates to a folding bed which can effectively reduce the volume, which comprises a bed frame assembly and a bed board assembly. The bed frame assembly includes a main support frame and side support members which are sequentially arranged along the longitudinal direction of the bed frame assembly and are respectively located at the sides of the corresponding main support frame. The bed board assembly is arranged on the bed frame assembly, and includes a main bed board and side wing bed boards which are sequentially arranged along the longitudinal direction of the bed board assembly and are respectively located on the sides of the corresponding main bed board. The side wing supports are respectively extendable and retractable along the lateral direction of the bed frame assembly. The side-wing bed boards can be folded along the lateral direction of the bed board assembly respectively. When the bed board assembly is deployed and used with the bed frame assembly, the side wing supports are respectively supported on the bottom of the corresponding side wing bed board, so as to increase the side wing bed board to bear the downward pressure towards the bottom of the bed frame assembly, so that the bed can be folded vertically and horizontally. The frame assembly and the bed board assembly have horizontal and vertical folding functions to reduce the volume of the folded materials, save storage and freight space, and facilitate storage and handling to reduce freight costs.

Description

Folding bed that can effectively reduce the volume

technical field

The utility model relates to a folding bed that can effectively reduce the volume of materials, in particular to a folding bed technology that can make the bed frame assembly and the bed board assembly have both the horizontal and vertical folding functions through the function setting of the vertical and horizontal folding.

Background technique

In order to solve the shortcomings of the known bed frame device due to the lack of a folding mechanism, the volume is too large, the handling is relatively laborious and inconvenient, a large storage space or cargo space is required, and the freight cost is increased. The technical means adopted by the industry in the field of bedding technology to solve the above-mentioned shortcomings. The known foldable bed frame is composed of two main support frames that are pivotally connected to each other and can be folded relative to each other along the longitudinal direction of the foldable bed frame. The mattress is used to form the basic structure of the folding bed. When storing or transporting, the two mutually pivoted main support frames can be folded in half with each other, so as to facilitate storage and transport.

As far as we know, the representative patent of the folding bed with the function of folding in half is shown in Taiwan Model Announcement No. M621470 "Foldable Bed Frame Device". The patent includes a first frame unit, a second frame unit and two hinge units. The hinge unit is used for pivoting the first frame unit and the second frame unit, each hinge unit includes a hinge piece, the hinge piece has two spaced apart connecting walls, and a bottom wall connected to one end of the connecting walls, each of the The connecting wall has a first pivot portion pivotally connected to the corresponding first end portion, and a second pivot portion opposite to the first pivot portion and pivoted to the corresponding second end portion; the Although the patent has a longitudinal folding function of rotating the second frame unit relative to the first frame unit between an unfolded position and a folded position; however, the patent does not have the lateral folding function of the side wing support and the side wing bed board, Therefore, the bed frame and the bed board cannot be folded horizontally, so that the lateral volume of the bed frame and the bed board cannot be further reduced, which not only increases the storage and handling space, but also increases the freight cost.

In addition, as far as is known, the US patents for beds with foldable functions are as follows:

1. US2018000254 No. "Folding Bed Frame", including a folding bed frame with two symmetrically arranged bed frame units. The two bed frame units are hinged to each other at the joint. The bed frame unit is further provided with a plurality of first support rods hingedly connected with the bed frame unit. The direction in which the plurality of first support rods are folded is perpendicular to the direction in which the bed frame unit is folded.

2. US2020205576 "Light bed board and folding bed", including a bed frame and a bed board set on the bed frame. The bed frame includes a first frame unit and a second frame unit arranged side by side and pivotally connected to each other. The bed board includes a first board unit fixedly arranged on the upper side of the first frame unit and a second board unit fixedly arranged on the upper side of the second bed frame unit. Each of the first panel unit and the second panel unit includes one or more panel elements. Each panel element includes a substrate, a sponge layer and a cover. The base plate is provided on the upper side of the first or second frame unit. The sponge layer is arranged on the upper side of the base material, and the cover layer is arranged on the upper side of the sponge layer.

3. US2021337976 "Transportable Foldable Bed Frame", the bed base includes a base, the base includes a first frame with a bottom and a top, a second frame with a bottom and a top, and the second frame is pivotally connected to the first frame connector. The first frame and the second frame selectively pivot relative to each other about a pivot such that the first frame and the second frame selectively pivot relative to each other between open, unfolded positions, wherein the top of the first frame The second frame is substantially coplanar and adapted to support the mattress and in a closed folded position, wherein the bottom is folded and the top of the second frame covers the top of the first frame.

4. US2009249545 No. "Portable Folding Bed", by installing a triangular support plate at the junction between the rotating rod of the rotating support rod and the connecting rod to enhance the support strength of the rotating support rod, and a fixed plate with a fixed plate . A width twice the width of the bed frame is provided in the bed frame engaging unit of the fixed support rod, and a tighter contact unit is provided between the fixed plate and the fixed support rod, so as to obtain a stable engagement of the fixed support rod, and a central support A foldable spring is arranged between the lower cross bar of the rod and the outer frame of the bed frame, so that the folding operation can be conveniently performed in the process of folding the bed.

It can be seen from the above that although the above four US patents have the function of longitudinal folding of the bed frame; however, these US patents do not have the lateral folding function of the side wing support and the side wing bed board, so it is impossible to make the bed frame and the bed board have a horizontal folding function. Because of the folding function, it is impossible to further reduce the lateral volume of the bed frame and the bed board, which not only increases the storage and carrying space, but also increases the cost of freight.

Utility model content

The main purpose of this new model is to provide a folding bed that can effectively reduce the volume, mainly through the function of vertical and horizontal folding, so that the bed frame assembly and the bed board assembly have both horizontal and vertical folding functions, so as to effectively reduce the size of the bed. Reducing the volume, it has the characteristics of saving storage space and freight space, facilitating storage and handling, and reducing freight costs.

In order to achieve the above object, the present invention provides a folding bed that can effectively reduce the volume, including a bed frame assembly and a bed board assembly. The bed frame assembly includes a plurality of main support frames that can be folded relative to each other along the longitudinal direction thereof, and a plurality of side support members arranged in sequence along the longitudinal direction of the bed frame assembly and respectively located on at least one side of the corresponding main support frame. The bed board assembly is arranged on the bed frame assembly and includes a plurality of main bed boards that can be folded relative to each other along its longitudinal direction and a plurality of side wing bed boards that are sequentially arranged along the longitudinal direction of the bed board assembly and are respectively located on at least one side of the corresponding main bed board . The plurality of side wing support members are respectively capable of extending and retracting along the lateral direction of the bed frame assembly. The plurality of side-wing bed boards can be respectively folded along the lateral direction of the bed board assembly. At least one mattress is placed on a top surface of the bed board assembly. When the bed board assembly is deployed and used with the bed frame assembly, the side wing supports extend laterally relative to the main support frame to support the bottom of the corresponding side wing bed boards respectively, so as to increase the downward pressure of the side wing bed boards towards the bottom of the bed frame assembly.

Preferably, the main support frame is provided with a plurality of laterally extending root-accommodating tube parts, and the plurality of lateral wing supporting members are respectively telescopically inserted into the corresponding plurality of root-accommodating tube parts, so that the plurality of lateral wing supporting members are respectively retractable. It can be extended and retracted along the lateral direction of the bed frame assembly.

Preferably, at least one positioning hole is provided on each of the plurality of tube-receiving members; each side support member is provided with an elastic sheet and a positioning member; the elastic sheet is arranged in the lateral support member; the positioning member receives the elastic sheet The elastic force partially protrudes from the peripheral surface of the side wing support for inserting into the at least one positioning hole.

Preferably, the plurality of side-wing bed boards are respectively connected to the at least one side of the corresponding plurality of main bed-boards by at least one connecting piece, so that the plurality of side-wing bed boards respectively use the at least one connecting piece as a turning point. Rotate toward the main deck to fold in the lateral direction of the deck assembly.

Preferably, the at least one connecting piece is at least one long strip, and the at least one long strip includes two half-surfaces that are connected as a whole. The bed board is made to rotate toward the opposite main bed board with the joint of the two half-faces as the pivot point.

Preferably, a marking line extending along the length direction of the two halves is provided at the junction, and the marking line is arranged to be aligned with the side of the main bed board and the side wing board board.

Preferably, the two sides of each main support frame are respectively connected with at least one of the plurality of side support members; the two sides of each main bed board can be folded and connected to at least one of the plurality of side support members along the transverse direction of the main bed board respectively. A wing bed.

Preferably, the plurality of side wing support frames inserted on the two sides of each main support frame are symmetrical with each other; the plurality of side wing bed boards connected on the two sides of each main bed board are symmetrical with each other; symmetrical and foldable The lateral widths of the two lateral bed boards connected to the two sides of the corresponding main bed boards are equal.

Preferably, the ratio of the lateral width of the side wing deck to the lateral width of the main deck is 1/6-1/2.

Preferably, a top of at least one main support frame is rotatably provided with an angle adjustment frame; at least one main bed board is fixed on the angle adjustment frame; an actuating component is arranged on the at least one main support frame; The moving assembly is used for driving the angle adjusting frame to rotate relative to the main support frame along the longitudinal direction of the bed frame assembly at a predetermined angle.

The beneficial effects of the utility model are:

The folding bed provided by the utility model, which can effectively reduce the volume, can be set by the function of vertical and horizontal folding, so that the bed frame assembly and the bed board assembly have the functions of horizontal and vertical folding, and the material volume of the bed frame and the bed board can be effectively Therefore, it has the characteristics of saving storage space and freight space, facilitating storage and handling, and reducing freight costs.

Description of drawings

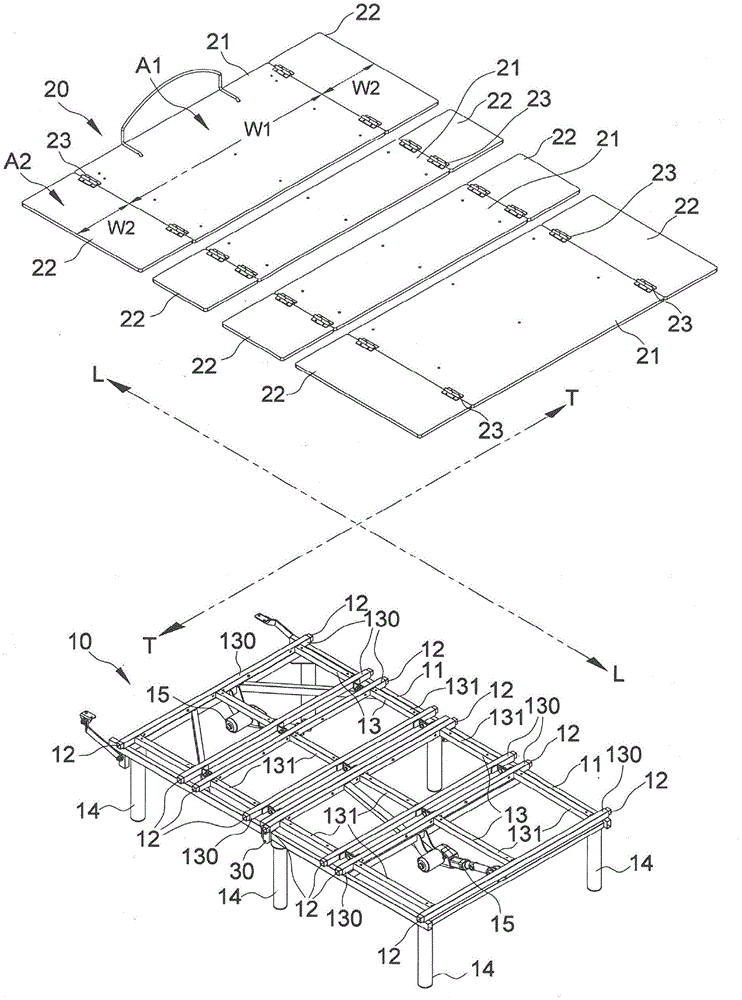

FIG. 1 is a schematic diagram of an exploded implementation of the specific structure of the present invention.

FIG. 2 is a schematic view of the appearance of the extended side wing support of the bed frame assembly of the present invention.

FIG. 3 is an implementation schematic diagram of the unfolding of the bed frame assembly and the bed board assembly of the present invention.

FIG. 4 is an implementation schematic diagram of the lateral partial folding of the bed frame assembly and the bed board assembly of the present invention.

FIG. 5 is a schematic diagram of the implementation of the horizontal folding of the bed board assembly of the present invention.

6 is an implementation schematic diagram of the lateral folding of the bed frame assembly and the bed board assembly of the present invention.

FIG. 7 is a schematic view of the appearance of the bed frame assembly and the bed board assembly of the present invention being completely folded in the horizontal and vertical directions.

8 is a schematic top view of the bed frame assembly and the bed board assembly of the present invention being completely folded in the lateral and longitudinal directions.

FIG. 9 is a schematic diagram of the side wing support of the present invention being retracted into the tube-receiving member.

FIG. 10 is a schematic view of the utility model side wing support extending out of the receiving tube.

FIG. 11 is a schematic diagram of an embodiment in which the connecting member is changed to a long strip to connect the main bed board and the side wing bed board in the example of FIG. 1 .

reference number

10: bed frame assembly; 11: main support frame; 12: side wing support; 120: safety plug cover; 121: shrapnel; 122: positioning member; 13: angle adjustment frame; 132: positioning hole; 14: foot bar; 15: actuation assembly; 20: deck assembly; 21: main deck; 22: side deck; 23: connecting piece; 230: half face; line; 30: pivoting device; L: longitudinal; T: transverse; W1, W2: width; A1, A2: board area.

Detailed ways

In view of the fact that the above-mentioned known technologies and the above-mentioned patents have not been perfected in terms of the functionality of the horizontal folding, the inventors of the present utility model have accumulated many years of rich experience in research and development and actively invested in research and development. Design, trial production and testing, and finally the research and development results of the utility model will be produced.

In order to allow your review committee to further understand the overall technical features of the new model and the technical means to achieve the purpose of the new model, specific examples and drawings are hereby described in detail:

Please refer to FIGS. 1 to 8 together. In order to achieve the main purpose of the present invention, the specific embodiment includes a bed frame assembly 10 and a bed board assembly 20 . The bed frame assembly 10 includes a plurality of relatively foldable numbers along its longitudinal direction L (as shown by the dashed double-arrow line in FIG. 1 , for a general bed, its longitudinal direction L is the lengthwise direction of the unfolded bed frame assembly 10 ) A main support frame 11. The bed board assembly 20 includes a plurality of main bed boards 21 that can be folded relatively along its longitudinal direction L. Because the bed board assembly 20 is laid on it according to the size of the bed frame assembly 10 to be supported by the bed frame assembly 10, the The longitudinal direction L of the bed board assembly 20 referred to here is the length direction after the bed board assembly 20 is unfolded. The main feature of the present invention is that the bed frame assembly 10 includes a plurality of side wing supports 12, the plurality of side wing supports 12 are sequentially arranged along the longitudinal direction L of the bed frame assembly 10, and can be respectively along the transverse direction T They are movably plugged and positioned on at least one side of the corresponding plurality of main support frames 11 ; in the illustrated example, the plurality of side support members 12 are symmetrically aligned with the bed frame assembly 10 along the bed frame assembly 10 in sequence. They are arranged along the longitudinal direction L, and are respectively movably inserted along the transverse direction T and inserted into the two sides of the corresponding plurality of main support frames 11 . The plurality of side support members 12 can be respectively along the transverse direction T of the bed frame assembly 10 (as shown by the double-arrow dotted line in FIG. 1 , for a general bed, the transverse direction T is the width direction of the bed frame assembly 10 after unfolding). ) for expansion. The bed board assembly 20 includes a plurality of side wing bed boards 22, the plurality of side wing bed boards 22 are sequentially arranged along the longitudinal direction L of the bed board assembly 20, and are respectively foldably connected with at least one side of the corresponding plurality of main bed boards 21. , so that the plurality of side-wing bed boards 22 can be respectively folded along the transverse direction T of the bed board assembly 20, wherein, because the bed board assembly 20 is laid on it according to the size of the bed frame assembly 10, so as to be supported by the bed frame assembly 10, so this The transverse direction T of the bed board assembly 20 referred to here is the width direction after the bed board assembly 20 is unfolded. When the bed board assembly 20 is deployed together with the bed frame assembly 10, the plurality of side support members 12 are respectively stretched on the sides of the main supporting frame 11 to increase the width of the entire bed frame assembly 10 after deployment, so that the main supporting frame 11 is supported on the The bottom of the main bed board 21, and the side wing supports 12 are matched and supported on the bottom of the corresponding plurality of side wing bed boards 22, so as to increase the side wing bed boards 22 to bear the downward pressure towards the bottom of the bed frame assembly 10; that is, when the side wings are folded, The support member 12 is folded on the main support frame 11 to reduce the width of the bed frame assembly 10 , the side wing bed board 22 is bent relative to the main bed board 21 and is folded on the top surface of the main bed board 21 to reduce the width of the bed board assembly 20 , and the main support frame 11 together with the main bed board 21 is folded along the longitudinal direction L to be in the state shown in Figures 7 and 8; and when in use, the side wing supports 12 protrude from the sides of the main support frame 11 to increase the width of the bed frame assembly 10, and the side wing bed boards 22 is bent relative to the main bed board 21 and flattened on the side of the main bed board 21 to increase the width of the bed board assembly 20, so that the plurality of main support frames 11 support the corresponding plurality of main bed boards 21, and the plurality of side support members 12 support corresponding The plurality of side-wing bed boards 22 are in the state shown in FIG. 3 .

As shown in Figures 1, 2, 9 and 10, in a specific embodiment of the present invention, the main support frame 11 is provided with a plurality of root-accommodating tube parts 130 extending in the transverse direction T, and the plurality of side-wing support parts 12 are respectively retractably inserted. The plurality of side support members 12 are respectively connected to the corresponding plurality of root-accommodating tube members 130 , so that the plurality of side support members 12 can be extended and retracted along the transverse direction T of the bed frame assembly 10 and the main support frame 11 respectively. When the bed frame assembly 10 is to be folded to reduce the volume, the side support members 12 are retracted into the receiving tube member 130 along the transverse direction T of the bed frame assembly 10 , so that the side wing supports 12 are folded toward the center of the main support frame 11 to reduce the bed frame size. The width of the frame assembly 10 and the main support frame 11 . In the example shown in FIG. 9 , a safety plug cover 120 is sleeved at the end of the side support 12 . The safety plug cover 120 can be made of plastic or rubber, and has a protective function to prevent the side support 12 from cutting the human body and has a positioning function That is, when the side support 12 is completely retracted into the receiving pipe 130, the safety plug cover 120 is clamped on the outer edge of the end of the receiving pipe 130 to be positioned, and the use wants to pull the side support 12 out of the receiving pipe 130. , the safety plug cover 120 can be held by the user.

As shown in FIGS. 9 and 10 , in order to enable the side support member 12 to have the function of telescopic positioning, at least one positioning hole 132 is provided on each tube receiving member 130 , and each side support member 12 is provided with an elastic piece 121 and A positioning piece 122, the elastic piece 121 is disposed in the side support piece 12; the positioning piece 122 is set at one end of the elastic piece 121 to withstand the elastic force of the elastic piece 121 and partially protrudes from the peripheral surface of the side support piece 12 for embedding at least one positioning piece hole 132. In the illustrated example, two positioning holes 132 are provided on each tube receiving member 130 . When the side support member 12 is completely retracted into the tube accommodating member 130 , the positioning member 122 is inserted into a positioning hole 132 thereof. When the wing supporting member 12 extends relative to the tube receiving member 130 to a position where it can effectively support the wing bed board 22 , the positioning member 122 is inserted into another positioning hole 132 .

Referring to the embodiments shown in FIGS. 1 and 3 , the plurality of side-wing bed boards 22 are respectively connected to at least one side of the corresponding plurality of main bed boards 21 by at least one connecting piece 23 (a hinge is shown in FIG. 1 ), so that the The plurality of side deck boards 22 respectively rotate toward the main deck board 21 with at least one connecting member 23 as a pivot point, so as to be folded or unfolded along the transverse direction T of the deck board assembly 20 .

Preferably, as shown in FIG. 11 , a preferred embodiment of the connector 23 is a long strip 231 that is foldable but not stretched and not easy to tear. The two half-surfaces 230 are respectively affixed and riveted to the opposite main bed board 21 and the side-wing bed-board 22, so that the side-wing bed-board 22 faces the opposite main bed-board 21 with the junction of the two half-surfaces 230 as the turning point. rotate. A marking line 232 extending along the length direction of the two half-surfaces 230 is provided at the junction. The marking line 232 is for aligning with the side of the main bed board 21 and the side bed board 22 which are abutting. The long straps 231 can replace the general hinges, which can avoid snagging the mattress placed on the bed board assembly 20 .

Referring to the embodiment shown in FIG. 1 and FIGS. 3-6 , the number of the plurality of main bed boards 21 is four, and they are arranged in sequence from the first to the fourth according to the longitudinal direction L of the bed board assembly 20 . The board surface area of the main bed board 21 is equal, the board surface area of the second and third main bed boards 21 is equal, and the board surface area of the first and fourth main bed boards 21 is larger than that of the second and third main board boards 21 The surface area is large.

Preferably, please refer to the embodiment shown in FIGS. 1 and 3 , the plurality of side wing supports 12 are respectively arranged on the two sides of the corresponding plurality of main support frames 11 , and the plurality of side wing bed boards 22 are respectively arranged on the opposite sides. The corresponding two sides of the plurality of main bed boards 21 . In addition, the plurality of side wing supports 12 are symmetrically connected to two sides of the corresponding plurality of main support frames 11, and the plurality of side wing bed boards 22 are symmetrically connected to the corresponding plurality of main bed boards 21. the second side.

Referring again to the embodiments shown in FIGS. 1 and 3 to 6 , the lateral T widths W2 and the board surface areas A2 of the two lateral bed boards 22 that are symmetrically and foldably connected to the two sides of the corresponding main bed board 21 are equal. . The ratio of the lateral T width W2 of the side wing bed board 22 to the lateral T width W1 of the main bed board 21 is 1/6 to 1/2, and the ratio can be adjusted according to the size of the bed frame assembly and the bed board assembly after unfolding, so as to meet the best The foldable material volume of the single bed and double bed has different proportions, and different container volumes are matched with different proportions during shipment. The ratio of the board surface area A2 of the side deck board 22 to the board surface area A1 of the main deck board 21 is 1/6 to 1/2, which is basically the ratio of the lateral T width W2 of the side wing deck board 22 to the lateral T width W1 of the main deck board 21 Depends.

Referring to the embodiments shown in FIGS. 1 to 6 , each main support frame 11 is provided with two main bed boards 21 that can be folded relative to each other along the longitudinal direction L of the bed frame assembly 10 . The bottom of each main support frame 11 is connected with a plurality of downwardly extending foot rods 14 that can be respectively disassembled, and the top of at least one main support frame 11 is rotatably provided with at least one angle adjustment frame 13 (in the example shown in the figure, there are a total of There are two main support frames 11, and two angle adjustment frames 13) are rotatably provided on the top of each main support frame 11. Each angle adjustment frame 13 is fixedly provided with at least one main bed board 21 (in the illustrated example, a large and a small angle adjustment frame 13 is rotatably disposed on the top of each main support frame 11 , and the large angle adjustment frame 13 is fixed A main bed board 21 with a larger board surface area, and a main bed board 21 with a smaller board surface area is fixed on the small angle adjustment frame 13 . Each main support frame 11 is provided with an actuating assembly 15, and the actuating assembly 15 is used to drive the array of angle adjustment frames 13 to rotate relative to the main support frame 11 to a predetermined angle in the longitudinal direction L, so as to achieve the adjustment of the inclination angle of the main bed board 21. Function (ie, corresponding to the tilt angle adjustment function of the user's head, back and feet). In the present embodiment, the side support members 12 connected to the main support frame 11 provided with the angle adjustment frame 13 are symmetrically connected to the two sides of the corresponding angle adjustment frame 13, that is, to receive The pipe member 130 is arranged on the angle adjustment frame 13 for the laterally movable insertion of the side support member 12 .

Please refer to FIGS. 1 and 3 , when the bed board assembly 20 cooperates with the bed frame assembly 10 for deployment, the plurality of side support members 12 are respectively supported on the bottom of the corresponding plurality of side bed boards 22 to increase the bearing capacity of the side board 22 Press down towards the bottom of the bed frame assembly 10 . When the bed board assembly 20 cooperates with the bed frame assembly 10 for folded use, the plurality of leg bars 14 are first disassembled in sequence (usually in a screw-thread structure); On the corresponding main bed board 21 , each side support member 12 is retracted and positioned into the storage tube member 130 in sequence, so as to achieve the purpose of laterally retracting to reduce the width of the bed frame assembly 10 , as shown in FIGS. 4 to 6 . As shown, through the pivoting device 30 provided between the two main support frames 11 and appropriate force, the two main support frames 11 and the four main bed boards 21 provided thereon are folded relative to each other, so that The purpose of vertical folding can be achieved, as shown in Figures 7-8, to form the smallest volume and facilitate packaging and transportation.

Specifically, please refer to the embodiment shown in FIGS. 1 to 2 , the angle adjustment frame 13 is composed of a plurality of horizontally extending storage tubes 130 and a plurality of longitudinally extending vertical tubes 131 , and two adjacent storage tubes 130 with small intervals are adjacent to each other. The two opposite sides of the pipe member 130 form a rotatable pivot connection, and each vertical pipe 131 spans the two opposite sides of the two adjacent receiving pipe members 130 with a larger interval.

After the above specific detailed description, the new model can indeed be set by the function of vertical and horizontal folding, so that the bed frame assembly and the bed board assembly have the function of horizontal and vertical folding, and the volume of the bed frame and the bed board can be effectively reduced, Therefore, it has the characteristics of saving storage space and freight space, facilitating storage and handling, and reducing freight costs.

The above description is only a feasible embodiment of the present invention and is not intended to limit the scope of the patent of the present invention. Any equivalent implementation of other changes based on the content, features and spirits described in the following claims shall include within the scope of this utility model patent. The structural features of this utility model specifically defined in the claims are not found in similar articles, and it is practical and progressive, and has met the requirements for a creation patent. It is required to file an application in accordance with the law, and please approve the patent in accordance with the law to maintain this application. legitimate rights and interests of people.

Claims (10)

1. A folding bed capable of effectively reducing the volume, characterized in that: it includes a bed frame assembly and a bed board assembly; the bed frame assembly includes a plurality of main support frames that can be folded relative to each other along its longitudinal direction; the bed board assembly It includes a plurality of main bed boards that can be folded relative to each other along its longitudinal direction; the bed board assembly is arranged on the bed frame assembly, and a top surface of the bed board assembly is provided for placing at least one mattress; The bed frame assembly includes a plurality of side wing supports; The plurality of side wing supports are sequentially arranged along the longitudinal direction of the bed frame assembly, and are respectively located on at least one side of the corresponding plurality of main support frames; The plurality of side wing supports are respectively capable of extending and retracting along the lateral direction of the bed frame assembly; The bed board assembly includes a plurality of side wing bed boards; The plurality of wing bed boards are sequentially arranged along the longitudinal direction of the bed board assembly, and are respectively located on at least one side of the corresponding plurality of main bed boards; The plurality of side-wing bed boards can be folded along the transverse direction of the bed board assembly; When the bed board assembly is deployed and used with the bed frame assembly, the plurality of side support members are respectively supported on the bottom of the corresponding plurality of side bed boards, so as to increase the side wing bed board to bear a bottom downward pressure toward the bed frame assembly. 2 . The folding bed capable of effectively reducing material volume according to claim 1 , wherein the main support frame is provided with a plurality of laterally extending tube-accommodating members, and the plurality of side support members are respectively telescopically plugged into the corresponding Inside the plurality of root-accommodating tube pieces, the plurality of side wing support pieces can be respectively extended and retracted along the lateral direction of the bed frame assembly. 3. The folding bed capable of effectively reducing the volume of material according to claim 2, wherein at least one positioning hole is provided on each of the plurality of tube-receiving members; each side support member is provided with an elastic piece and a positioning member; The elastic piece is disposed in the side support member; the positioning piece is partially protruded from the peripheral surface of the side support piece under the elastic force of the elastic piece, so as to be inserted into the at least one positioning hole. 4 . The folding bed capable of effectively reducing the material volume of claim 1 , wherein the plurality of side-wing bed boards are respectively connected to the at least one side of the corresponding plurality of main bed boards by at least one connecting piece, 4 . The plurality of side-wing bedboards are respectively rotated toward the main bedboard with the at least one connecting piece as a turning point, so as to be folded along the lateral direction of the bedboard assembly. 5 . The folding bed capable of effectively reducing the volume of material as claimed in claim 4 , wherein the at least one connecting piece is at least one long strip, and the at least one long strip comprises two half-faces that are connected as a whole, and the two The half-surfaces are respectively attached to and riveted on the opposite main bed board and the side wing bed board, so that the side-wing bed board rotates toward the opposite main bed board with the joint of the two half-surfaces as a turning point. 6 . The folding bed capable of effectively reducing material volume as claimed in claim 5 , wherein a marking line extending along the length direction of the two halves is provided at the junction of the two halves, and the marking line is for aligning with the main bed board. 7 . and the side of the side deck that abuts against. 7 . The folding bed capable of effectively reducing the volume of material as claimed in claim 1 , wherein at least one of the plurality of side support members is respectively connected to two sides of each main support frame; two sides of each main bed board are respectively connected. At least one of the plurality of lateral bed boards can be folded and connected along the transverse direction of the main bed board respectively. 8 . The folding bed capable of effectively reducing the material volume according to claim 7 , wherein the plurality of side support frames connected to two sides of each main support frame are symmetrical with each other; The plurality of side-wing bedboards on the two sides are symmetrical with each other; the lateral widths of the two side-wing bedboards symmetrically and foldably connected to the two sides of the corresponding main bedboard are equal. 9 . The folding bed capable of effectively reducing the material volume according to claim 7 , wherein the ratio of the lateral width of the side-wing bedboard to the lateral width of the main bedboard is 1/6˜1/2. 10 . 10 . The folding bed capable of effectively reducing material volume as claimed in claim 1 , wherein a top of at least one main support frame is rotatably provided with an angle adjustment frame; the angle adjustment frame is fixed with at least one main frame. 11 . a bed board; an actuating assembly is arranged on the at least one main support frame; the actuating assembly is used to drive the angle adjustment frame to rotate relative to the main support frame along the longitudinal direction of the bed frame assembly at a predetermined angle.
