CN216701072U - Convenient chinese-medicinal material nursery cabinet of transporting - Google Patents

Abstract

The utility model provides a traditional Chinese medicinal material seedling raising rack which is convenient for transportation. The traditional Chinese medicinal material seedling rack for convenient transportation includes a rack body, and a plurality of universal wheels are symmetrically and fixedly installed at the bottom of the rack body; a push handle rack is fixedly installed on one side of the rack body; a plurality of groove plates, a plurality of the groove plates are fixedly installed in the frame body; a plurality of seedling cups, a plurality of the seedling cups are respectively arranged in the plurality of the groove plates; the rainwater collection and watering mechanism, the The rainwater collecting and watering mechanism is arranged on the frame body and the plurality of groove plates; the nutrient solution spraying mechanism is arranged on the frame body. The convenient transportation of the traditional Chinese medicinal material seedling rack provided by the utility model has the advantages of labor-saving and convenient operation and transportation, and better stability.

Description

A kind of traditional Chinese medicinal material seedling rack for convenient transportation

technical field

The utility model relates to the technical field of Chinese medicinal material seedling raising equipment, in particular to a traditional Chinese medicinal material seedling raising rack which is convenient for transportation.

Background technique

Traditional Chinese medicinal materials refer to the famous and authentic medicinal materials with Chinese characteristics that are traditionally recognized by people and originating from specific production areas. Destruction and other reasons make it difficult for Chinese medicinal materials to survive during growth, especially in the seedling stage. Therefore, many Chinese medicinal materials are now grown and continued through artificial seedling planting.

At present, most of the traditional Chinese medicine seedlings are cultivated in the Chinese herbal medicine seedling racks. It has been observed that although the current Chinese herbal medicine seedling racks have better stability and lower production costs, due to their large overall structure, more It can be moved only with the cooperation of people, and it is more troublesome and laborious to move it.

Therefore, it is necessary to provide a new convenient transportable Chinese medicinal material seedling rack to solve the above-mentioned technical problems.

Utility model content

The technical problem solved by the utility model is to provide a traditional Chinese medicinal material seedling raising rack which is labor-saving and convenient to operate and move, and has better stability and is convenient for transportation.

In order to solve the above-mentioned technical problems, the convenient transporting traditional Chinese medicinal material seedling rack provided by the present utility model includes: a rack body, a plurality of universal wheels are symmetrically and fixedly installed at the bottom of the rack body; a push handle rack, the push handle rack is fixedly installed On one side of the frame body; a plurality of groove plates, which are fixedly installed in the frame body; a plurality of seedling cups, which are respectively arranged in a plurality of the grooves a rainwater collection and watering mechanism, the rainwater collecting and watering mechanism is arranged on the frame body and a plurality of the groove plates; a nutrient solution spraying mechanism is arranged on the frame body.

Preferably, the rainwater collection and irrigation mechanism includes a water storage tank, a port, a water collecting bucket, an activated carbon filter plate, a first connecting pipe and a plurality of irrigation pipes, the water storage tank is fixedly installed on the top of the frame body, and the A through port is opened on the top of the water storage tank, the water collecting bucket is fixedly installed on the top of the through opening, the activated carbon filter plate is arranged in the water collecting bucket, and the first connecting pipe is fixedly installed in the water collecting bucket. On one side of the water storage tank, the bottom end of the first connecting pipe extends into the frame body, and a plurality of the irrigation pipes are respectively fixed and installed on the top inner wall of the frame body and the groove plates. At the bottom, the water inlet ends of the plurality of irrigation pipes are all fixedly connected with the first connecting pipe.

Preferably, the nutrient solution spraying mechanism includes a placing basket, a liquid storage tank, a dosing pump, a communication pipe, a second connecting pipe, a third connecting pipe and a dispensing mechanism, and the placing basket is fixed on one side of the frame body , the liquid storage tank is arranged in the placing basket, the dosing pump is fixed on one side of the frame body, the communication pipe is fixedly installed on the liquid outlet end of the dosing pump, the communication The liquid outlet end of the pipe is fixedly connected with one of the plurality of irrigation pipes, the second connection pipe is fixedly installed on the liquid inlet end of the dosing pump, and the liquid inlet end of the second connection pipe extends into the In the liquid storage tank, the third connecting pipe is fixedly installed on the top of the liquid storage tank, the water inlet end of the third connecting pipe is fixedly connected with the water storage tank, and the adjusting mechanism is arranged on the on the reservoir.

Preferably, the mixing mechanism includes a stirring roller, a motor and two bevel teeth, the stirring roller is rotatably installed in the liquid storage tank, and the top of the stirring roller extends out of the liquid storage tank, so The motor is fixedly installed on the top of the liquid storage tank, the two bevel teeth are respectively fixedly installed on the output shaft of the motor and the top of the stirring roller, and the two bevel teeth mesh with each other.

Preferably, both the first connecting pipe and the third connecting pipe are provided with water valves.

Preferably, a material pipe is fixedly installed on one side of the liquid storage tank, and a funnel is arranged on the material pipe.

Compared with the related art, the convenient transporting traditional Chinese medicinal material seedling support provided by the utility model has the following beneficial effects:

The utility model provides a Chinese medicinal material seedling raising rack for convenient transportation:

The multiple universal wheels installed at the bottom of the frame and the push handle frame are convenient for flexible operation and movement. The operation is more labor-saving and convenient and has better stability. Multiple seedling cups can be placed through the groove plate to cultivate Chinese herbal medicine seedlings. The rainwater collection and irrigation mechanism The rainwater can be collected and filtered for rational use, which can save water resources. The nutrient solution spraying mechanism can conveniently and labor-savingly apply fertilizer water or nutrient solution to the seedlings of Chinese herbal medicines.

Description of drawings

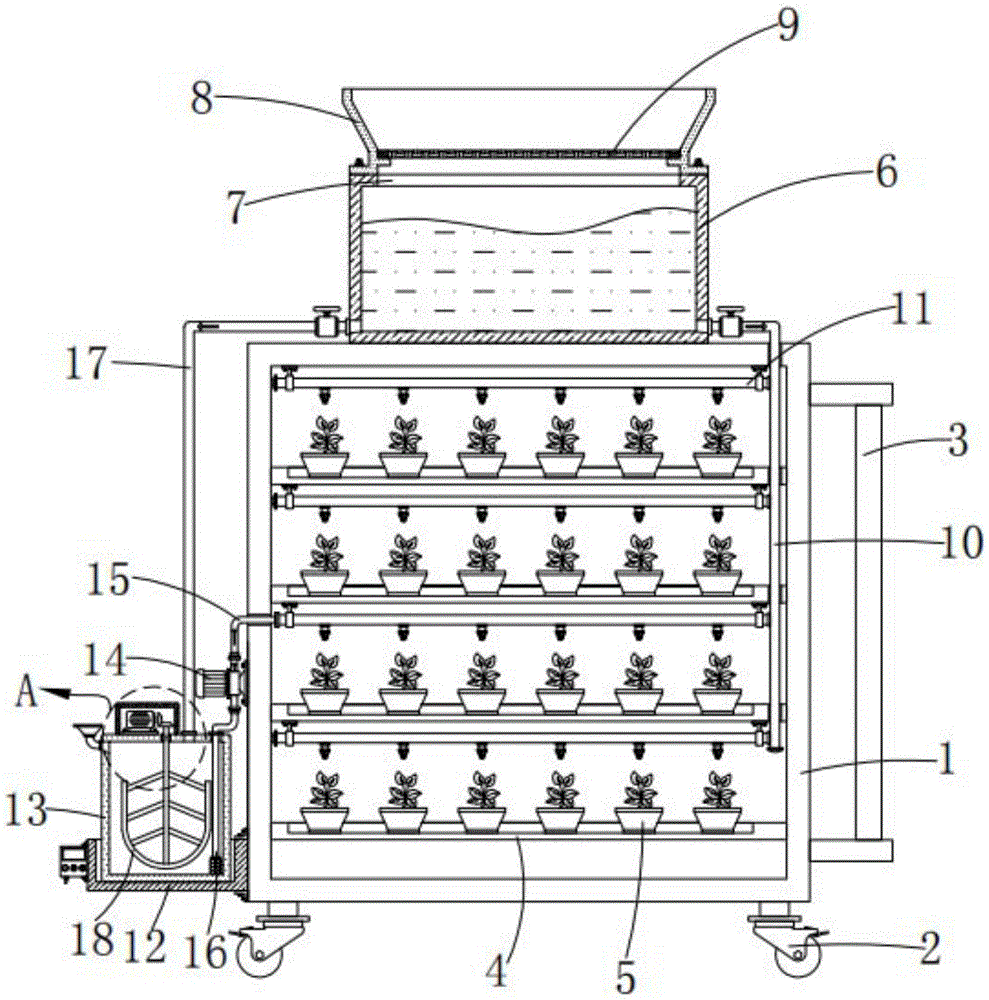

Fig. 1 is the front sectional structure schematic diagram of the Chinese medicinal material seedling raising rack of convenient transport provided by the utility model;

Fig. 2 is the enlarged structural representation of A part shown in Fig. 1;

FIG. 3 is a schematic view of the front structure of the utility model.

Labels in the figure: 1, frame body; 2, universal wheel; 3, push handle frame; 4, groove plate; 5, seedling cup; 6, water storage tank; 7, port; 8, water collecting bucket; 9, Activated carbon filter plate; 10. The first connecting pipe; 11. The irrigation pipe; 12. The placing basket; 13. The liquid storage tank; 14. The dosing pump; 15. The connecting pipe; tube; 18, stirring roller; 19, motor; 20, bevel teeth.

Detailed ways

The present utility model will be further described below with reference to the accompanying drawings and embodiments.

Please refer to Fig. 1, Fig. 2 and Fig. 3 in conjunction with Fig. 1, wherein Fig. 1 is a schematic view of the front sectional structure of a Chinese medicinal material seedling raising rack for convenient transportation provided by the utility model; Fig. 2 is an enlarged structure of part A shown in Fig. 1 Schematic diagram; FIG. 3 is a schematic view of the front structure of the utility model. The traditional Chinese medicinal material seedling rack for convenient transportation includes: a rack body 1, and a plurality of universal wheels 2 are symmetrically and fixedly installed at the bottom of the rack body 1; a push handle rack 3 is fixedly installed on the rack body 1 a plurality of groove plates 4, and a plurality of the groove plates 4 are fixedly installed in the frame body 1; a plurality of seedling cups 5 are respectively arranged in the plurality of the inside the groove plate 4; a rainwater collection and watering mechanism, the rainwater collection and watering mechanism is arranged on the frame body 1 and the plurality of the groove plates 4; a nutrient solution spraying mechanism, the nutrient solution spraying mechanism is arranged on the On the frame body 1, a plurality of universal wheels 2 installed at the bottom of the frame body 1 cooperate with the push handle frame 3 to facilitate flexible operation and movement, the operation is relatively labor-saving and convenient, and the stability is better, and multiple seedling cups can be placed through the groove plate 4. Cultivate seedlings of Chinese herbal medicines.

The rainwater collection and irrigation mechanism includes a water storage tank 6, a port 7, a water collecting bucket 8, an activated carbon filter plate 9, a first connecting pipe 10 and a plurality of irrigation pipes 11. The water storage tank 6 is fixedly installed on the frame body 1. The top of the through port 7 is opened on the top of the water storage tank 6, the water collecting bucket 8 is fixedly installed on the top of the through opening 7, and the activated carbon filter plate 9 is arranged in the water collecting bucket 8 , the first connecting pipe 10 is fixedly installed on one side of the water storage tank 6, the bottom end of the first connecting pipe 10 extends into the frame body 1, and a plurality of the watering pipes 11 are respectively fixed and installed on On the top inner wall of the frame body 1 and the bottoms of the plurality of groove plates 4, the water inlet ends of the plurality of watering pipes 11 are fixedly connected with the first connecting pipe 10, and the watering mechanism can be collected by the rainwater. Collecting and filtering rainwater for rational use can save water resources.

The nutrient solution spraying mechanism includes a placing basket 12, a liquid storage tank 13, a dosing pump 14, a communication pipe 15, a second connecting pipe 16, a third connecting pipe 17 and a dispensing mechanism. The placing basket 12 is fixed on the rack. One side of the frame body 1, the liquid storage tank 13 is arranged in the placing basket 12, the dosing pump 14 is fixed on one side of the frame body 1, and the communication pipe 15 is fixedly installed on the dosing basket 12. On the liquid outlet end of the pump 14 , the liquid outlet end of the communication pipe 15 is fixedly connected to one of the plurality of irrigation pipes 11 , and the second connection pipe 16 is fixedly installed on the liquid inlet of the dosing pump 14 . The liquid inlet end of the second connecting pipe 16 extends into the liquid storage tank 13, the third connecting pipe 17 is fixedly installed on the top of the liquid storage tank 13, and the third connecting pipe 17 The water inlet end is fixedly connected with the water storage tank 6, and the dispensing mechanism is arranged on the liquid storage tank 13, and the nutrient solution spraying mechanism can conveniently and labor-savingly apply fertilizer water or nutrient solution to the Chinese herbal medicine seedlings.

The mixing mechanism includes a stirring roller 18, a motor 19 and two bevel teeth 20. The stirring roller 18 is rotatably installed in the liquid storage tank 13, and the top of the stirring roller 18 extends out of the liquid storage tank. 13, the motor 19 is fixedly installed on the top of the liquid storage tank 13, and the two bevel teeth 20 are fixedly installed on the output shaft of the motor 19 and the top of the stirring roller 18, respectively. The bevel teeth 20 are meshed with each other, and the water-soluble fertilizer or nutritional agent can be easily and labor-savingly prepared through the dispensing mechanism.

Both the first connecting pipe 10 and the third connecting pipe 17 are provided with water valves.

A material pipe is fixedly installed on one side of the liquid storage tank 13, and a funnel is provided on the material pipe.

The working principle of the convenient transporting traditional Chinese medicinal material seedling rack provided by the utility model is as follows:

When it is necessary to transfer and move the frame body 1, hold the push handle frame 3 to push the frame body 1, and the frame body 1 can be moved under the action of the universal wheel 2, and the transfer and movement do not require the cooperation of many people, and the transfer is labor-saving and convenient;

When it rains, the rainwater falls into the water collecting bucket 8, and the impurities are filtered by the activated carbon filter plate 9 and then flows into the water storage tank 6 from the port 7 for storage. When the Chinese medicinal material seedlings need to be watered, open the water valve on the first connecting pipe 10, After the water valve is opened, the water in the water storage tank 6 flows into the first connecting pipe 10, and then the water is divided into the irrigation pipe 11 along the pipe, and then sprayed from the nozzle to water the medicinal material seedlings in the seedling cup 5, and so on. The method of collecting rainwater for rational use can save water resources. When the Chinese medicinal material seedlings need to be fertilized with water or nutrient solution, pour the water-soluble fertilizer or nutrient solution into the liquid storage tank 13, and then open the water valve on the third connecting pipe 17 to the storage tank 13. An appropriate amount of water is added to the liquid tank 13, and then the motor 19 is started. When the motor 19 is running, the output shaft drives the two bevel teeth 20 to drive the stirring roller 18 to rotate, and the rotating stirring roller 18 stirs the water-soluble fertilizer or nutrient in the liquid storage tank 13. It can be fully integrated with water. In this way, the preparation can be completed easily and conveniently. After the preparation is completed, the dosing pump 14 is turned on. It is transported through the communicating pipe 15 into the watering pipe 11 connected with it, and then the liquid is split from the nozzle to spray the medicinal material seedlings in the seedling cup 5, and the fertilizer or nutrient solution is applied in this way, which is convenient, labor-saving and uniform.

Compared with the related art, the convenient transporting traditional Chinese medicinal material seedling support provided by the utility model has the following beneficial effects:

The utility model provides a traditional Chinese medicinal material seedling rack that is convenient for transportation. The plurality of universal wheels 2 installed at the bottom of the rack body 1 cooperate with the push handle rack 3 to facilitate and flexibly move and move, the operation is labor-saving and convenient, and the stability is better. The plate 4 can place multiple seedling cups 5 to cultivate Chinese herbal medicine seedlings. The rainwater collection and irrigation mechanism can collect and filter rainwater for rational use, which can save water resources. The nutrient solution spraying mechanism can conveniently and labor-savingly apply fertilizer or nutrition to the Chinese herbal medicine seedlings. The water-soluble fertilizer or nutrient agent can be easily and labor-savingly prepared by the dispensing mechanism.

It should be noted that the equipment structure and accompanying drawings of the present utility model mainly describe the principle of the present utility model. In the technical aspect of the design principle, the settings of the power mechanism, power supply system and control system of the device are not completely described. On the premise that those skilled in the art understand the principles of the above utility model, they can clearly know the specifics of its power mechanism, power supply system and control system.

The above are only the embodiments of the present invention, and are not intended to limit the patent scope of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and accompanying drawings of the present invention, or directly or indirectly applied to other Relevant technical fields are similarly included in the scope of patent protection of the present invention.

Claims (6)

1. The utility model provides a convenient chinese-medicinal material frame of growing seedlings of transporting, its characterized in that includes:

the bottom of the frame body is symmetrically and fixedly provided with a plurality of universal wheels;

the push handle frame is fixedly arranged on one side of the frame body;

the groove plates are fixedly arranged in the frame body;

the seedling raising cups are respectively arranged in the groove plates;

the rainwater collecting and irrigating mechanism is arranged on the frame body and the plurality of groove plates;

nutrient solution spraying mechanism, nutrient solution spraying mechanism sets up on the support body.

2. The convenient-to-transport traditional Chinese medicinal material seedling rack as claimed in claim 1, wherein the rainwater collection and irrigation mechanism comprises a water storage tank, an opening, a water collection hopper, an activated carbon filter plate, a first connecting pipe and a plurality of irrigation pipes, the water storage tank is fixedly mounted on the top of the rack body, the opening is arranged on the top of the water storage tank, the water collection hopper is fixedly mounted on the top of the opening, the activated carbon filter plate is arranged in the water collection hopper, the first connecting pipe is fixedly mounted on one side of the water storage tank, the bottom end of the first connecting pipe extends into the rack body, the irrigation pipes are respectively fixedly mounted on the inner wall of the top of the rack body and the bottoms of the groove plates, and the water inlet ends of the irrigation pipes are fixedly connected with the first connecting pipe.

3. The convenient-to-transport traditional Chinese medicinal material seedling culturing frame as claimed in claim 2, wherein the nutrient solution spraying mechanism comprises a placing basket, a liquid storage tank, a dosing pump, a communicating pipe, a second connecting pipe, a third connecting pipe and a blending mechanism, the placing basket is fixed on one side of the frame body, the liquid storage tank is arranged in the placing basket, the medicine feeding pump is fixed on one side of the frame body, the communicating pipe is fixedly arranged on the liquid outlet end of the medicine feeding pump, the liquid outlet end of the communicating pipe is fixedly connected with one of the irrigation pipes, the second connecting pipe is fixedly arranged on the liquid inlet end of the dosing pump, the liquid inlet end of the second connecting pipe extends into the liquid storage tank, the third connecting pipe is fixedly arranged at the top of the liquid storage tank, the water inlet end of the third connecting pipe is fixedly connected with the water storage tank, and the blending mechanism is arranged on the liquid storage tank.

4. The convenient chinese-medicinal material of transporting frame of growing seedlings of claim 3, characterized in that, the allotment mechanism includes stirring roller, motor and two awl teeth, stirring roller rotates to be installed in the liquid reserve tank, the top of stirring roller extends outside the liquid reserve tank, the motor is fixed mounting in the top of liquid reserve tank, two the awl teeth respectively fixed mounting on the output shaft of motor and on the top of stirring roller, two the awl teeth intermeshing.

5. The convenient-to-transport traditional Chinese medicinal material seedling rack as claimed in claim 3, wherein water valves are arranged on the first connecting pipe and the third connecting pipe.

6. The convenient-to-transport traditional Chinese medicinal material seedling rack as claimed in claim 3, wherein a material pipe is fixedly installed on one side of the liquid storage tank, and a funnel is arranged on the material pipe.
