Abstract

The utility model discloses a convenient mobile intelligent computer screen bracket, comprising a mobile base, universal wheels with braking function are installed around the bottom end of the mobile base, and two symmetrically arranged electric motors are fixed on the top of the mobile base The push rod and the telescopic end of the electric push rod are fixed with a vertical rod. This convenient mobile intelligent computer screen bracket is different from the existing technology. The use of protective pads can protect the bottom of the computer screen. Secondly, two electric push rods are used. The setting of the rod can facilitate the adjustment of the height of the computer screen after installation. Furthermore, the use of the convenient installation mechanism can facilitate the installation or disassembly of the computer screen, which greatly improves the efficiency of disassembly and assembly. It is convenient to adjust the angle of the computer screen after installation, so that the use range is wide. Finally, the setting of the universal wheel can facilitate the rapid movement of the bracket, which is more convenient to use.

Description

A convenient mobile smart computer screen stand

technical field

The utility model relates to the technical field of intelligent computer screen brackets, in particular to a convenient mobile intelligent computer screen bracket.

Background technique

The Smart Computer Screen is a battery powered 10" or 15" LCD computer screen with a touch screen that connects to a PC via an 802.11b WiFi network, text entry via Transcribe or using a pop-up soft keyboard, built-in speaker.

At present, the existing smart computer screen bracket is inconvenient to install or disassemble the computer screen. Generally, during installation, it needs to be installed and fixed with multiple screws, resulting in low installation efficiency. Secondly, it is inconvenient to adjust the angle of the computer screen after installation. Adjustment leads to a limited range of use. For this reason, we propose a convenient mobile smart computer screen stand.

Utility model content

The purpose of the present invention is to provide a convenient and mobile intelligent computer screen bracket to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a convenient mobile intelligent computer screen support, including a mobile base, the bottom end of the mobile base is equipped with a universal wheel with a braking function, and the top of the mobile base is Two symmetrically arranged electric push rods are fixed, the telescopic ends of the electric push rods are fixed with vertical rods, and the vertical rods are connected with connecting shafts through the bearing rotation, and the opposite ends of the two connecting shafts are fixed with connecting blocks , one end of the two connecting blocks is fixed with a mounting plate with an L-shaped vertical section, a convenient mounting mechanism is mounted on the mounting plate, and an angle adjustment mechanism is mounted between the two vertical rods and the mounting plate;

The convenient installation mechanism includes a turntable that is rotatably connected to the rear side wall of the installation plate through a rotating shaft, two symmetrically arranged push-pull rods are hinged on the surface edge of the turntable, and two symmetrically arranged push-pull rods are slidably connected to the front sidewall of the installation plate. One end of the positioning plate is fixed with a T-shaped sliding seat, the front side wall of the mounting plate is provided with a sliding groove matched with the sliding seat, and the other end of the sliding seat is fixed with a moving block. The rear side wall of the plate is provided with a moving channel matched with the moving block, the ends of the two push-pull rods away from each other are hinged with the corresponding moving block, and the end of the rotating shaft away from the mounting plate is fixed with a rotating Handle 1, the turntable is screwed with a hand screw.

Preferably, a protective pad is provided on the inner bottom wall of the mounting plate.

Preferably, the cross-sections of the positioning plates are all L-shaped structures, the moving channels are all communicated with the corresponding sliding grooves, and one end of the hand screw is pressed against the rear side wall of the mounting plate.

Preferably, the angle adjustment mechanism includes an arc-shaped outer rod fixed on one side wall of the vertical rod, the arc-shaped outer rod is slidably connected with an arc-shaped inner rod, and one end of the arc-shaped inner rod extends to The outer side of the arc-shaped outer rod is fixed with a fixing block, and the fixing blocks are all fixed on the outer side wall of the mounting plate.

Preferably, arc-shaped sliding blocks are fixed on the outer sides of the arc-shaped inner rods, arc-shaped sliding grooves matched with the arc-shaped sliding blocks are provided on the inner side walls of the arc-shaped outer rods, and the outer sides of the arc-shaped inner rods are fixed There are a plurality of teeth, and the inside of the arc-shaped outer rod is also provided with a movable channel matched with the plurality of teeth, and the movable channels are all communicated with the inner part of the corresponding arc-shaped outer rod and the arc-shaped chute.

Preferably, L-shaped brackets are fixed on the outer sides of the arc-shaped outer rods, two L-shaped brackets are connected to the same transmission shaft through bearings, and the outer sides of the transmission shafts are fixed with two symmetrically arranged gears , the L-shaped brackets are provided with rotating channels matched with the gears, the arc-shaped inner rods are meshed with the corresponding gears through a plurality of teeth, and one end of the transmission shaft extends to the outside of one of the L-shaped brackets, and The second rotating handle is fixedly connected, and the outer side of the transmission shaft is also screwed with a hand-tightening nut.

Compared with the prior art, the beneficial effects of the present utility model are:

The utility model is different from the prior art in that the bottom of the computer screen can be protected by using the protective pad, and secondly, the height of the installed computer screen can be adjusted conveniently by the arrangement of two electric push rods. It is easy to install or disassemble the computer screen, which greatly improves the efficiency of disassembly and assembly. In addition, the use of the angle adjustment mechanism can easily adjust the angle of the installed computer screen, so that the use range is wide. The setting of the direction wheel facilitates the rapid movement of the bracket and is more convenient to use.

Description of drawings

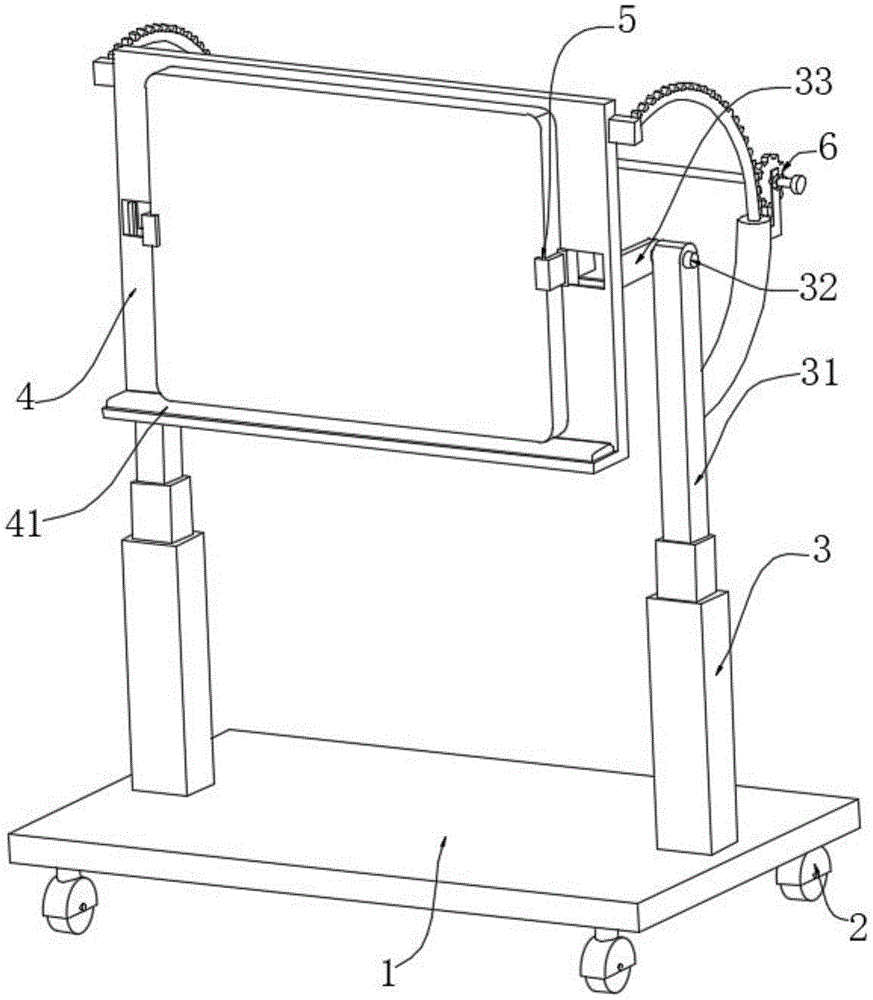

Fig. 1 is the overall structural representation of the utility model;

2 is a schematic structural diagram of some components in the convenient installation mechanism and the angle adjustment mechanism of the present invention;

3 is a schematic structural diagram of each component in the convenient installation mechanism of the present invention;

Fig. 4 is the structural schematic diagram of the utility model after the arc-shaped outer rod is cut;

FIG. 5 is a schematic view of the enlarged structure of the A part of the present invention.

In the picture: 1. Mobile base; 2. Universal wheel; 3. Electric push rod; 31. Pole; 32. Connecting shaft; 33. Connecting block; 4. Mounting plate; 41. Protective pad; 5. Convenient installation Mechanism; 501, rotating shaft; 502, turntable; 503, push-pull rod; 504, positioning plate; 505, sliding seat; 506, moving block; 507, hand screw; 6, angle adjustment mechanism; 601, arc outer rod; 602 , arc inner rod; 603, arc slider; 604, teeth; 605, fixed block; 606, L-shaped bracket; 607, drive shaft; 608, gear;

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-5 , the present utility model provides a technical solution: a convenient mobile intelligent computer screen bracket, comprising a mobile base 1, and universal wheels 2 with braking function are installed around the bottom end of the mobile base 1, Two symmetrically arranged electric push rods 3 are fixed on the top of the mobile base 1 , and vertical rods 31 are fixed on the telescopic ends of the electric push rods 3 . The vertical rods 31 are all connected with a connecting shaft 32 through a bearing rotation, and the two connecting shafts 32 A connecting block 33 is fixed on the opposite ends, and one end of the two connecting blocks 33 is fixed with a same L-shaped mounting plate 4 in vertical section, and a convenient mounting mechanism 5 is installed on the mounting plate 4;

The convenient installation mechanism 5 includes a turntable 502 which is rotatably connected to the rear side wall of the installation plate 4 through a rotating shaft 501. Two symmetrically arranged push-pull rods 503 are hinged on the surface edge of the turntable 502, and the front side wall of the installation plate 4 is slidably connected. There are two symmetrically arranged positioning plates 504. One end of the positioning plates 504 is fixed with a sliding seat 505 whose vertical cross section is a T-shaped. The other end of the 505 is fixed with a moving block 506, the rear side wall of the mounting plate 4 is provided with a moving channel matched with the moving block 506, and the ends of the two push-pull rods 503 away from each other are hinged with the corresponding moving block 506. , one end of the rotating shaft 501 away from the mounting plate 4 is fixed with a rotating handle 1, and a hand screw 507 is screwed on the turntable 502. After the hand screw 507 is locked, one end is tightly pressed against the rear side of the mounting plate 4. on the wall.

Further, a protective pad 41 is provided on the inner bottom wall of the mounting plate 4, and the protective pad 41 can protect the bottom of the computer screen.

Further, the cross-sections of the positioning plates 504 are all L-shaped structures, the moving channels are connected with the corresponding sliding grooves, one end of the hand screw 507 is pressed against the rear side wall of the mounting plate 4, and the width of the moving channels is smaller than that of the sliding channel. The width of the slot.

Further, an angle adjustment mechanism 6 is installed between the two vertical rods 31 and the mounting plate 4 , and the angle adjustment mechanism 6 includes an arc-shaped outer rod 601 fixed on one side wall of the vertical rod 31 . Both are slidably connected with an arc-shaped inner rod 602 , one end of the arc-shaped inner rod 602 extends to the outside of the arc-shaped outer rod 601 , and a fixing block 605 is fixed, and the fixing blocks 605 are fixed on the outer side wall of the mounting plate 4 . , the outer side of the arc-shaped inner rod 602 is fixed with an arc-shaped slider 603, and the inner side wall of the arc-shaped outer rod 601 is provided with an arc-shaped sliding slot matched with the arc-shaped slider 603. The outer side of the arc-shaped inner rod 602 A plurality of teeth 604 are fixed, and the interior of the arc-shaped outer rod 601 is also provided with a movable channel that cooperates with the plurality of teeth 604, and the movable channels are connected with the corresponding arc-shaped outer rod 601 and the arc-shaped chute. The outer side of the arc-shaped outer rod 601 is fixed with an L-shaped bracket 606, the two L-shaped brackets 606 are both connected with the same transmission shaft 607 through the bearing rotation, and the outer side of the transmission shaft 607 is fixed with two symmetrically arranged gears 608, The L-shaped brackets 606 are provided with rotating channels matched with the gears 608 , the arc-shaped inner rods 602 are meshed with the corresponding gears 608 through a plurality of teeth 604 , and one end of the transmission shaft 607 extends to one of the L-shaped brackets 606 The outer side of the shaft is fixed with a rotating handle II 609. The outer side of the transmission shaft 607 is also screwed with a hand-tightening nut 610. A plurality of teeth 604 are arranged in a circular array on the outer side of the arc-shaped inner rod 602. The hand-tightening nut 610 After locking, the transmission shaft 607 will not rotate any more, so as to ensure that the angle of the computer screen after adjusting the angle remains unchanged.

In this scheme, when in use, first, the computer screen is placed on the mounting plate 4, the bottom of the computer screen is supported by the protective pad 41, so that the bottom of the computer screen is protected, and the turntable 502 connected by the rotating shaft 501 is rotated by rotating the handle, In conjunction with the action of the two push-pull rods 503, the sliding seat 505 connected to the two moving blocks 506 is pulled to move relative to each other, so that the positioning plate 504 connected to the two sliding seats 505 can quickly position the computer screen, so that the computer screen can be quickly positioned. It is more convenient and quick to install or disassemble between the computer screen and the bracket, and then tighten the hand screw 507 to ensure that the turntable 502 does not rotate, so that the fixed computer screen is not easy to loosen. There are electric push rods 3, so that the height of the installed computer screen can be adjusted to meet the needs of different heights, and the range of use is wide. Furthermore, when the angle of the installed computer screen needs to be adjusted, it can be adjusted by loosening the hand. The nut 610 is then rotated by rotating the two gears 608 connected to the transmission shaft 607 by rotating the handle two 609. Since the gears 608 are all meshed with the arc-shaped inner rod 602 connected with the plurality of teeth 604, and then the two gears 608 are rotated. , the arc inner rod 602 can be extended or retracted in the arc outer rod 601, so as to realize the rapid adjustment of the angle of the computer screen, so as to meet the needs of use at different angles and further expand the scope of use.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device comprising a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a portable intelligent computer screen support, is including removing base (1), its characterized in that: universal wheels (2) with a braking function are mounted on the periphery of the bottom end of the moving base (1), two electric push rods (3) which are symmetrically arranged are fixed to the top end of the moving base (1), vertical rods (31) are fixed to the telescopic ends of the electric push rods (3), connecting shafts (32) are rotatably connected to the vertical rods (31) through bearings, connecting blocks (33) are fixed to opposite ends of the two connecting shafts (32), a same mounting plate (4) with an L-shaped vertical section is fixed to one end of each connecting block (33), a portable mounting mechanism (5) is mounted on each mounting plate (4), and an angle adjusting mechanism (6) is mounted between each vertical rod (31) and each mounting plate (4);

the portable mounting mechanism (5) comprises a rotary disc (502) which is rotatably connected to the rear side wall of the mounting plate (4) through a rotary shaft (501), two push-pull rods (503) which are symmetrically arranged are hinged to the edge of the surface of the rotary disc (502), two positioning plates (504) which are symmetrically arranged are slidably connected to the front side wall of the mounting plate (4), sliding seats (505) with T-shaped vertical sections are fixed to one ends of the positioning plates (504), sliding grooves matched with the sliding seats (505) are formed in the front side wall of the mounting plate (4), moving blocks (506) are fixed to the other ends of the sliding seats (505), moving channels matched with the moving blocks (506) are formed in the rear side wall of the mounting plate (4), one ends, far away from the two push-pull rods (503), are hinged to the corresponding moving blocks (506), and a first rotating handle is fixedly connected to one end, far away from the mounting plate (4), of the rotary shaft (501), a hand screw (507) is spirally connected on the rotary table (502).

2. The portable intelligent computer screen support of claim 1, wherein: and a protective pad (41) is arranged on the inner bottom wall of the mounting plate (4).

3. The portable intelligent computer screen support of claim 1, wherein: the cross section of the positioning plate (504) is of an L-shaped structure, the moving channels are communicated with the corresponding sliding grooves, and one end of a hand-screwed screw (507) is tightly propped against the rear side wall of the mounting plate (4).

4. The portable intelligent computer screen support of claim 1, wherein: angle adjustment mechanism (6) include arc outer rod (601) all fixed on pole setting (31) a lateral wall, and the equal sliding connection in inside of arc outer rod (601) has pole (602) in the arc, and the one end of pole (602) extends to the outside that all extends to arc outer rod (601) in the arc to be fixed with fixed block (605), fixed block (605) are all fixed on the lateral wall of mounting panel (4).

5. The portable intelligent computer screen support of claim 4, wherein: the outside of pole (602) all is fixed with arc slider (603) in the arc, all seted up on the inside wall of arc outer pole (601) with arc slider (603) matched with arc spout, the outside of pole (602) is fixed with a plurality of teeth (604) in the arc, the inside of arc outer pole (601) still seted up with a plurality of teeth (604) matched with movable passageway, movable passageway all is linked together with the arc outer pole (601) inside and the arc spout that corresponds.

6. The portable intelligent computer screen support of claim 4, wherein: the outside of arc outer pole (601) all is fixed with L shape support (606), two all be connected with same transmission shaft (607) through the bearing rotation on L shape support (606), the outside rigid coupling of transmission shaft (607) has gear (608) that two symmetries set up, all offer on L shape support (606) with gear (608) matched with rotation passageway, pole (602) all mesh mutually with corresponding gear (608) through a plurality of tooth (604) in the arc, the one end of transmission shaft (607) extends to one of them the outside of L shape support (606) to the rigid coupling has rotating handle two (609), and the outside of transmission shaft (607) is screwed up nut (610) by the hand still screwed connection.
