Abstract

The utility model discloses a clamping device for a composite welding process of a welding piece of a plate with a substrate, which comprises a base, a guide rail and a sliding block are installed on the right side of the base, the sliding block and the right base are connected by fixing screws, and the right base is The upper part of the seat is threadedly connected with the screw, the screw is installed with a pressure head, the left and right sides of the pressure head are provided with fixing nuts, the pressure head is pressed down to fix the parts a and b to be welded, and the parts to be welded are a and the left side of the part to be welded b are fixed with a baffle plate, a cooling plate is installed on the lower side of the baffle plate, the baffle plate is connected to the sliding plate through connecting bolts and mounting holes, and the sliding plate is connected to the stud and the stud through the connecting rod. Punch connection. The utility model is simple to operate and convenient to manufacture, and can clamp welding samples of different sizes by adjusting the positions of the baffle plate and the indenter, and at the same time, the positioning plate and the sliding plate can solve the stability problem in the welding process of the welding sample with the substrate plate .

Description

A clamping device for composite welding process of welded parts with substrate plate

technical field

The utility model relates to the technical field of a welding piece clamping device, in particular to a clamping device for a composite welding process of a welding piece with a substrate plate.

Background technique

As an important connection method, welding is widely used in aerospace, medical equipment, energy and chemical industries. Usually, when welding butt specimens, defects such as welding penetration of butt specimens and poor joint formation are easy to occur. Adding the backing plate under the butting plate can avoid welding through defects, but it will introduce the under-welding defect between the backing plate and the butting plate. When welding butt specimens with backing plates, a single welding method cannot meet the needs of forming a good welded joint. Using a composite welding method, such as TIG + brazing method, can avoid the lack of penetration between the backing plate and the butt plate. , affecting the quality of welded joints. However, in the composite welding process, the substrate plate needs to be coated with brazing material, and then the butt plate is placed on the substrate plate for welding. The existing welding clamping device can generally only weld the butt sample, which cannot meet the requirement of forming the substrate plate and the butt plate into a welding sample with a substrate plate and then welding.

Therefore, how to design a clamping device for a composite welding process of a welded piece with a substrate plate has become an urgent problem to be solved at present.

Utility model content

The purpose of the present utility model is to provide a clamping device for a composite welding process of a plate weldment with a substrate, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a clamping device for a composite welding process of a welded piece with a substrate plate, comprising a base, a guide rail is fixed on the right side of the base, and a slider is connected to the guide rail, and the slide The block and the right base are connected by fixing screws, the upper part of the right base is threadedly connected with the screw rod, the screw rod is installed with a pressure head, and the left and right sides of the pressure head are provided with fixed nuts to fix the pressure head position, the pressure head Press down and fix the parts a and b to be welded. The parts to be welded a and b have parts to be welded on the lower sides of the parts to be welded. The left and right sides of the parts to be welded c are fixed with positioning plates and sliding plates. The positioning plate is fixed on the cooling plate by positioning screws, the left and right sides of the cooling plate are respectively provided with water inlet and outlet holes, the left side of the sliding plate is fixed with a baffle, and the baffle is connected to the cooling plate through connecting bolts and mounting holes. The sliding plate is connected, the sliding plate is connected with the stud through the connecting rod, the stud is installed in the punch, the punch is installed at the front end of the connecting piece through the round head pin, and the rear end of the connecting piece is connected with the push rod. The upper part of the push rod is installed with a handle, the push rod is connected to the seat base through the rotating shaft, and the left base is fixed on the base through the inner hexagon bolt and the base mounting hole.

Further, the base is provided with 10 rows of installation holes, and the left base can be installed at different positions of the base according to the requirements of the sample.

Further, the pressure head can move up and down along the screw rod, and the position of the pressure head is fixed by the fixing nut.

Further, the extension length of the stud is controlled by the inner rotation of the punch, so as to drive the sliding plate to move.

Further, the positioning plate and the sliding plate are made of copper for the convenience of welding and heat dissipation.

Further, the cooling plate is provided with two water inlet holes and one water outlet hole.

The beneficial effects achieved by the utility model are as follows: the clamping device used for the composite welding process of the weldment of the plate with the substrate has the advantages of simple structure, simple operation, strong adjustable range, and can be flexibly fixed according to the size of the welded sample. Greatly improve the working efficiency of welding. By placing the part c to be welded between the positioning plate and the sliding plate, the handle is pressed down to drive the push rod to move the punch forward, the sliding plate connected with the punch moves forward, and the baffle plate is moved to the part to be welded a Move the slider to both sides of the sample, press down the indenter to fix the to-be-welded a and the to-be-welded part b, rotate the fixing nut to fix the position of the indenter, and realize the fixation of the composite welding sample with the substrate plate . Therefore, this kind of clamping device used in the composite welding process of the weldment with the substrate plate has a broad prospect in the composite welding process of the plate sample with the substrate.

Description of drawings:

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification. They are used to explain the present invention together with the specific embodiments of the present invention, and do not constitute a limitation to the present invention.

Fig. 1 is the left side view of the present utility model;

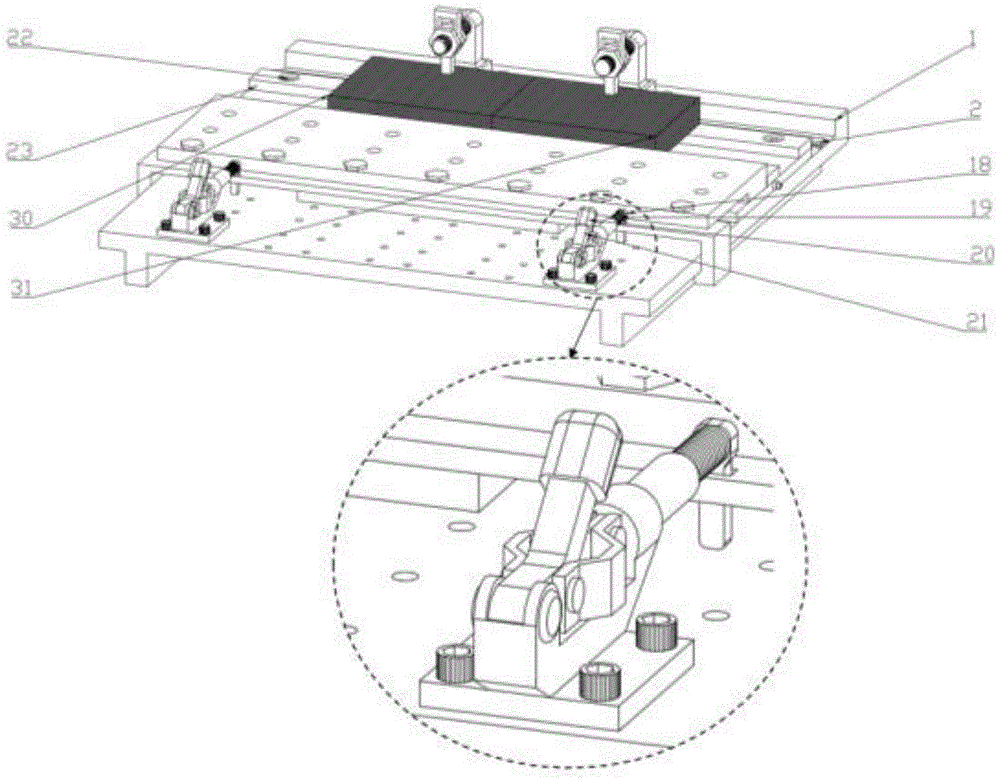

Fig. 2 is the overall structure diagram of the present utility model;

Fig. 3 is the top view of the present utility model;

Labels in the figure: 1, base; 2, guide rail; 3, slider; 4, right base; 5, fixing screw; 6, screw rod; 7, fixing nut; 8, indenter; 9, baffle plate; 10, connection Bolt; 11. Sliding plate; 12. Left base; 13. Rotating shaft; 14. Round head pin; 15. Connecting piece; 16. Hexagon socket head bolt; 17. Punch; 18. Connecting rod; 19. Stud; 20, handle; 21, push rod; 22, positioning screw; 23, positioning plate; 24, cooling plate; 25, water outlet; 26, sliding plate; 27, installation hole; 28, water inlet; 29, base installation Holes; 30, the parts to be welded a; 31, the parts to be welded b; 32, the parts to be welded c.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and understand the present utility model, and are not intended to limit the present utility model.

Example 1

Please refer to FIG. 1-FIG. 3, the present utility model provides a technical solution: a clamping device for a composite welding process of a plate weldment with a substrate, comprising a base (1), a right side mounting rail (2) of the base (1) , the guide rail (2) is provided with a slider (3), the slider (3) is connected with the right base (4) by a fixing screw (5), and the upper part of the right base (4) is connected with the screw ( 6) Threaded connection, a pressure head (8) is installed on the screw (6), fixing nuts (7) are arranged on the left and right sides of the pressure head (8), and the pressure head (8) is pressed down and fixed to be welded Part a (30) and part b (31) to be welded, the left side of the part a (30) and part b (31) to be welded is fixed by a baffle (9), the baffle (9) is connected by The bolt (10) and the mounting hole (27) are connected with the sliding plate (11), the sliding plate (11) is connected with the stud (19) through the connecting rod (18), and the stud (19) is installed on the punch In (17), the punch (17) is installed on the front end of the connecting piece (15) through the round plug (14), and the rear end of the connecting piece (15) is connected to the push rod (21), and the push rod (21) A handle (20) is installed on the upper part, the push rod (21) is connected to the left base (12) through a rotating shaft (13), and the left base (12) is installed on the base through a hexagon socket head bolt (16) The hole (29) is fixed on the base (1), the baffle plate (9) moves left and right on the cooling plate (24), and the left and right sides of the cooling plate (24) are respectively provided with a right water inlet hole (28) and a water outlet A hole (25), a positioning plate (23) and a sliding plate (26) are mounted on the cooling plate (24), the positioning plate (23) is fixed by a positioning screw (22), and the positioning plate (23) and The center of the sliding plate (26) fixes the to-be-welded part c (32).

More specifically, the slider (3) moves on the guide rail (2), moves to a suitable fixed position according to the size of the sample, and presses the indenter (8) down to the workpiece a (30) and the workpiece to be welded. b (31) surface, after pressing, turn the fixing nut (7) to fix the position of the indenter (8); the handle (20) presses the control push rod (21) down to drive the connecting piece (15) and the punch (17) Move forward, the stud (19) connected with the punch (17) and the connecting rod (18) move forward at the same time, the connecting rod (18) pushes the movement of the baffle (9) on the cooling plate (24) until the The side of the weldment a (30) and the to-be-welded b (31) to complete the sample clamping.

When the utility model is in use, a positioning plate (23) and a sliding plate (26) are fixed on the cooling plate (24), and the sliding plate (26) can be adjusted to the positioning plate (23) according to the size of the workpiece c (32) to be welded. The distance between the welding parts c (32) of different sizes and the welding parts a (30) and b (31) to be welded forms a welding sample with a substrate plate.

Finally, it should be noted that the above are only the preferred embodiments of the present utility model, and are not intended to limit the present utility model. In other words, it can be understood that various changes, modifications, substitutions and alterations can be made to these specific embodiments without departing from the principles and spirit of the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (5)

1. The utility model provides a take backing plate weldment complex welding process clamping device, includes base (1), its characterized in that, base (1) right side installation guide rail (2), be equipped with slider (3) on guide rail (2), slider (3) are connected through set screw (5) with right base (4), right base (4) upper portion and screw rod (6) threaded connection, install pressure head (8) on screw rod (6), the pressure head (8) left and right sides is equipped with fixation nut (7), pressure head (8) push down the fixed weldment a (30) of waiting and wait to weld b (31), wait to weld a (30) and wait to weld b (31) downside and wait to weld a (32), wait to weld the left and right sides of c (32) and fix with locating plate (23) and first sliding plate (26), locating plate (23) are fixed on cooling plate (24) through set screw (22), cooling plate (24) left side is equipped with inlet opening (28) right side and is equipped with apopore (25), first sliding plate (26) left side is fixed with baffle (9), baffle (9) are connected with second sliding plate (11) through connecting bolt (10) and mounting hole (27), second sliding plate (11) are connected with double-screw bolt (19) through connecting rod (18), double-screw bolt (19) are installed in drift (17), drift (17) are installed at connecting piece (15) front end through round head bolt (14), connecting piece (15) rear end meets with push rod (21), push rod (21) upper portion installation handle (20), left base (12) are connected through axis of rotation (13) in push rod (21), left side base (12) are fixed on base (1) through hexagon socket head cap screw (16) and base mounting hole (29).

2. The clamping device for the composite welding process of the weldment with the backing plate as recited in claim 1, wherein the clamping device comprises: the base (1) is provided with 10 rows of mounting holes (27), and the left base (12) can be mounted at different positions of the base (1) as required.

3. The clamping device for the composite welding process of the weldment with the backing plate as recited in claim 1, wherein the clamping device comprises: the pressure head (8) can move up and down along the screw rod (6) according to the sizes of the piece to be welded a (30) and the piece to be welded b (31).

4. The clamping device for the composite welding process of the weldment with the backing plate as recited in claim 1, wherein the clamping device comprises: the stud (19) rotates in the punch (17) to control the movement of the second slide plate (11).

5. The clamping device for the composite welding process of the weldment with the backing plate as recited in claim 1, wherein the clamping device comprises: the cooling plate (24) is provided with two water inlet holes (28) and a water outlet hole (25).
