Abstract

The utility model relates to a corset, comprising a main body, a shoulder strap is fixedly installed on the top of the main body, a first elastic cloth is fixedly installed on the rear side of the main body, and a first card is fixedly installed on the rear side of the main body The inner part of the shoulder strap is fixedly installed with a shoulder buckle, the front side of the main body is fixedly installed with a chest protector, the front side of the main body is fixedly installed with a heating block, and the left and right sides of the main body are fixedly installed with plastic belt. The main body of the utility model plays a role of fixing, the first elastic cloth is arranged to facilitate loosening and tightening the corset, the first buckle can fasten and fix the corset, the shoulder buckles are arranged , The length of the shoulder strap can be adjusted according to the size of the body, which is convenient for different body shapes. The set chest protector helps to shape the chest. The plastic belt can further adjust the elasticity of the waist and better shape the female body shape.

Description

a corset

technical field

The utility model relates to the technical field of corsets, in particular to a corset.

Background technique

The corset is made of fabric suitable for underwear, processed in a special factory, and formed in one time. It has the advantages of good elasticity, tight chest, breathable, does not affect breathing and does not bring pressure to the body, and it is also easy to exercise. Comfortable, most of the corset styles are divided into three types: vests for outer wear, full body inner wear and half body styles. According to their wearing methods, they can be divided into four types: breasted, Velcro, direct pullover and zipper. In terms of bra fabrics, there are traditionally used Lycra and low-elastic fibers, and later new ones use pure cotton, ice silk, silk, bamboo fiber and bamboo charcoal fiber.

Corsets can shape a beautiful figure for women, but the elasticity of the existing corsets can be adjusted as a whole and cannot be adjusted by parts, which cannot meet the individual requirements of women, and women wear less in winter, so the corsets cannot be very tight. It is good for women's body to keep warm, which is not conducive to the healthy development of women. Therefore, a corset is proposed to solve the above problems.

Utility model content

In view of the deficiencies in the prior art, the purpose of the present utility model is to provide a corset, which is provided with a first buckle that can fasten and fix the corset, and the three first buckles can control different positions of the corset. The tightness of the strap, the set shoulder buckle, the length of the shoulder strap can be adjusted according to the size of the body, which is convenient for different body shapes. The plastic belt can further adjust the elasticity of the waist and better shape the female body shape.

The above-mentioned utility model purpose of the present utility model is achieved through the following technical solutions:

A corset comprises a main body, a shoulder strap is fixedly installed on the top of the main body, a first elastic cloth is fixedly installed on the rear side of the main body, a first buckle is fixedly installed on the rear side of the main body, and the A shoulder buckle is fixedly installed inside the shoulder strap, a chest protector is fixedly installed on the front side of the main body, a heating block is fixedly installed on the front side of the main body, and a plastic belt is fixedly installed on the left and right sides of the main body.

Preferably, the heating block includes a cloth cover, a sheet battery and a heating wire, a cloth cover is fixedly installed on the front side of the main body, a sheet battery is fixedly installed inside the cloth cover, and a sheet battery is fixedly installed inside the cloth cover heating wire.

Preferably, the plastic belt includes a second elastic cloth and a second buckle, the second elastic cloth is fixedly installed on the left and right sides of the main body, and the second buckle is fixedly installed on the left and right sides of the main body.

Preferably, the sheet battery is located on the right side of the inside of the cloth cover, the heating wire is surrounded by the inside of the cloth cover, and the cloth cover is attached to the front side of the main body.

Preferably, the number of the second buckles is four, and the four second buckles are divided into two groups, the four second buckles are located at the bottom of the left and right sides of the main body respectively, and the four second The two ends of the buckle are located on the front and rear sides of the two second elastic cloths, respectively, and the rear sides of the four second buckles are provided with second buckles more than ten in number.

Preferably, the first elastic cloth is located in the middle of the rear side of the main body, the number of the first buckles is three, and the three first buckles are equally spaced in the middle of the rear side of the main body, and three The two ends of the first buckle are respectively located on the left and right sides of the first elastic cloth, and the right sides of the three first buckles are each provided with more than ten first buckles.

Preferably, the heating block is located at the bottom of the front side of the main body, the chest protector is located at the top of the front side of the main body, the number of the shoulder straps is two, one end of the two shoulder straps is located on the top of the chest protector, and the two shoulder straps are located at the top of the chest protector. One end of each of the shoulder straps away from the chest guard is located at the top of the rear side of the main body.

Preferably, the number of the shoulder buckles is two, and the two shoulder buckles are respectively located on the rear sides of the two shoulder straps.

To sum up, the present utility model includes at least one of the following beneficial technical effects:

1. Through the main body set, it plays the role of supporting and fixing, and plays the role of shaping the body, the set shoulder straps prevent the corset from falling and sliding, and the set first elastic cloth, the first elastic cloth has elasticity, It is convenient to loosen and tighten the corset, the set first buckle can fasten and fix the corset, the three first buckles can control the tightness of the corset at different positions, and the set shoulder buckle can be adjusted according to the The size of the body can adjust the length of the shoulder straps, which is convenient for different body shapes. The set chest protector helps to shape the chest. The set heating block, the heating block heats up to make women who wear less clothes warm and comfortable, preventing frostbite, and the set The plastic belt can further adjust the elasticity of the waist and better shape the female body shape.

2. The set cloth cover can fit on the corset, which is convenient to take off when not in use. The set thin battery provides electricity for heating the heating wire, which is convenient to use. The set heating wire is surrounded by the cloth cover. The heating wire can emit even heat, making the user feel more comfortable, the second elastic cloth is provided, the second elastic cloth is elastic, which is convenient for loosening and tightening the waist of the corset, and the second buckle is provided, Can button and fix the waist of the corset to better shape the waist curve.

Description of drawings

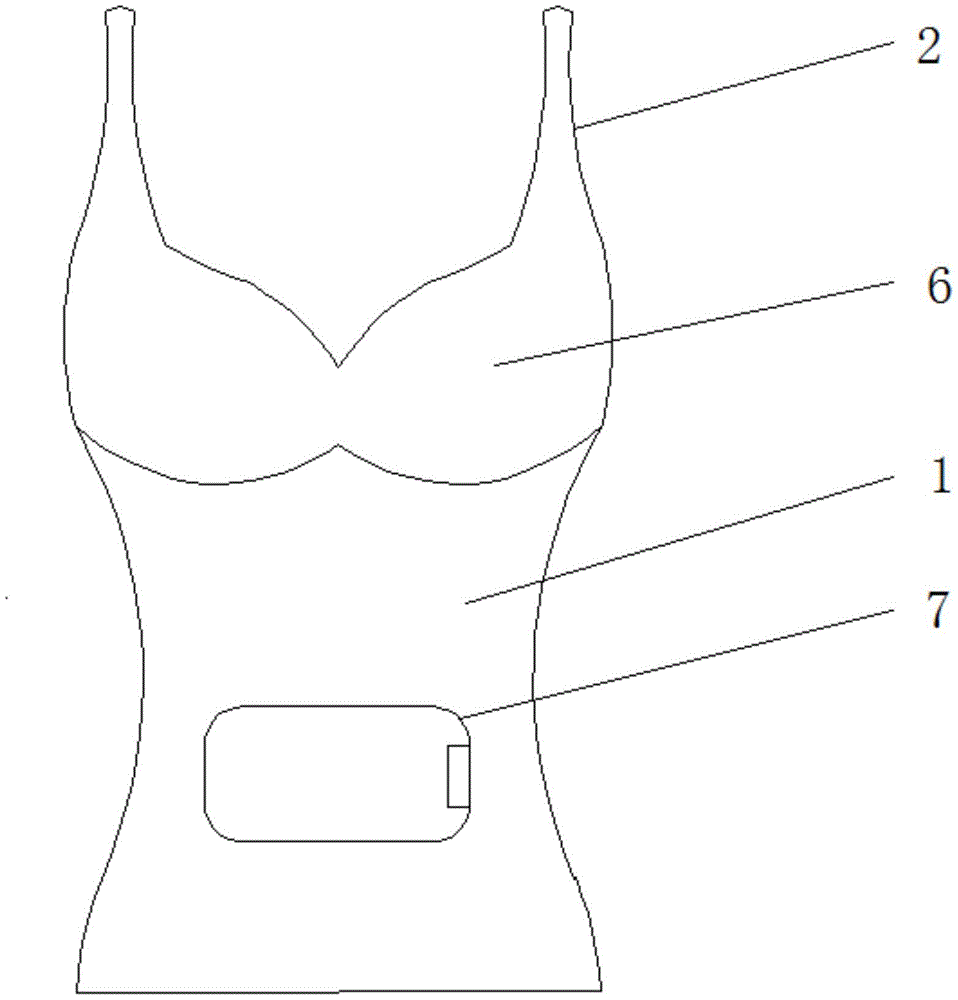

Fig. 1 is the front structure schematic diagram of the utility model;

Fig. 2 is the rear view structure schematic diagram of the utility model;

Fig. 3 is the right side view structure schematic diagram of the utility model;

FIG. 4 is a structural anatomical view of the heating block of the present invention.

Reference symbols: 1 main body, 2 shoulder straps, 3 first elastic cloth, 4 first buckle, 5 shoulder buckle, 6 chest protector, 7 heating block, 701 cloth cover, 702 sheet battery, 703 heating wire, 8 plastic belt , 801 second elastic cloth, 802 second buckle.

Detailed ways

The present utility model will be described in further detail below in conjunction with the accompanying drawings.

1-4, it is a corset disclosed by the utility model, comprising a main body 1, a shoulder strap 2 is fixedly installed on the top of the main body 1, a first elastic cloth 3 is fixedly installed on the rear side of the main body 1, The first buckle 4 is fixedly installed on the rear side, the shoulder buckle 5 is fixedly installed on the inside of the shoulder strap 2, the chest protector 6 is fixedly installed on the front side of the main body 1, the heating block 7 is fixedly installed on the front side of the main body 1, and the A plastic belt 8 is fixedly installed on the left and right sides.

In FIGS. 1 and 4 , the heating block 7 is composed of a cloth cover 701, a thin battery 702 and a heating wire 703. The cloth cover 701 is arranged on the front side of the main body 1, and the cloth cover 701 wraps the thin battery 702 and the heating wire 703 inside. And the heating wire 703 is sewed and fixed inside the cloth cover 701 .

In FIG. 3, the plastic belt 8 is composed of a second elastic cloth 801 and a second buckle 802. There are two second elastic cloths 801. The two second elastic cloths 801 are installed on the left and right sides of the main body 1 respectively. The two buckles 802 are installed on the left and right sides of the main body 1 .

In FIG. 4 , the sheet battery 702 is installed on the right side inside the cloth cover 701 , and the inside of the cloth cover 701 is surrounded by a heating wire 703 .

In FIG. 3 , there are four second buckles 802 , and through the second buckles provided, the second buckles 802 can fasten and fix the waist of the corset to better shape the waist curve, and the second elastic Cloth 801 is elastic for easy loosening and tightening of the waist of the corset.

In FIG. 2, the first elastic cloth 3 is arranged in the middle of the rear side of the main body 1, the first elastic cloth 3 has elasticity, which is convenient for loosening and tightening the corset, and the number of the first buckles 4 is three. The first buckle enables the three first buckles 4 to better control the tightness of the corset at different positions.

In FIG. 1, the heating block 7 is arranged at the bottom of the front side of the main body 1, which can better keep the user's abdomen warm and protect the user's health. The number of the shoulder straps 2 is two, which can fix the position of the corset and prevent it from slipping.

In Figures 1 and 2, shoulder buckles 5 are respectively provided on the back sides of the two shoulder straps 2, which can control the length of the shoulder straps 2 according to the body shape, which is convenient for users of different body shapes, and better fixes the corset. s position.

The implementation principle of this embodiment is as follows: the corset is sleeved on the user's upper body, and the two shoulder buckles 5 are adjusted according to the user's body shape, so that the length of the two shoulder straps 2 is suitable for the user, and then according to the needs, respectively Adjust the first buckles 4 in different parts, and use the first buckles set by the first buckles 4 to control the tightness of different parts of the corset to better shape the body, and then further adjust the waist through the second buckles 802. Elasticity, the second buckle set by the second buckle 802 is used to further control the tightness of the waist of the corset to create a better waist shape, and finally activate the heating block 7. The heating block 7 on the abdomen can warm the user's abdomen. , protect the health of users and prevent frostbite.

The examples of this specific embodiment are all preferred embodiments of the present invention, and are not intended to limit the protection scope of the present invention. Therefore: all equivalent changes made according to the structure, shape and principle of the present invention are not It should be covered within the protection scope of the present invention.

Claims (7)

1. Corset comprising a main body (1), characterized in that: the top fixed mounting of main part (1) has baldric (2), the rear side fixed mounting of main part (1) has first elasticity cloth (3), the rear side fixed mounting of main part (1) has first buckle (4), the inside fixed mounting of baldric (2) has shoulder-clasping (5), the front side fixed mounting of main part (1) has chest protector (6), the front side fixed mounting of main part (1) has heating piece (7), the equal fixed mounting in the left and right sides of main part (1) has moulds waistband (8).

2. The corset garment of claim 1, wherein: the heating block (7) comprises a cloth cover (701), a sheet battery (702) and a heating wire (703), the cloth cover (701) is fixedly installed on the front side of the main body (1), the sheet battery (702) is fixedly installed inside the cloth cover (701), and the heating wire (703) is fixedly installed inside the cloth cover (701).

3. The corset garment of claim 1, wherein: mould waistband (8) and include second elasticity cloth (801) and second buckle (802), the equal fixed mounting in both sides has second elasticity cloth (801) about main part (1), the equal fixed mounting in both sides has second buckle (802) about main part (1).

4. A corset garment according to claim 2, wherein: the sheet battery (702) is positioned on the right side of the inside of the cloth cover (701), the heating wire (703) is wound around the inside of the cloth cover (701), and the cloth cover (701) is attached to the front side of the main body (1).

5. A corset garment according to claim 3, wherein: the number of the second buckles (802) is four, the four second buckles (802) are divided into two groups, the four second buckles (802) are located at the bottoms of the left side and the right side of the main body (1) respectively, two ends of the four second buckles (802) are located on the front side and the rear side of the two second elastic fabrics (801) respectively, and the rear sides of the four second buckles (802) are provided with second snap rings of which the number is larger than ten.

6. The corset garment of claim 1, wherein: first elasticity cloth (3) are located the middle part of main part (1) rear side, the quantity of first buckle (4) is three, and is three first buckle (4) are the equidistance and distribute at the middle part of main part (1) rear side, and the both ends of three first buckle (4) are located the left and right sides of first elasticity cloth (3) respectively, and are three the right side of first buckle (4) all is provided with the first buckle that quantity is greater than ten.

7. The corset garment of claim 1, wherein: the heating block (7) is located at the bottom of the front side of the main body (1), the chest protector (6) is located at the top of the front side of the main body (1), the number of the shoulder straps (2) is two, two the one end of the shoulder straps (2) is located at the top of the chest protector (6), two the one end of the shoulder straps (2) far away from the chest protector (6) is located at the top of the rear side of the main body (1), the number of the shoulder buckles (5) is two, two the shoulder buckles (5) are located at the rear sides of the two shoulder straps (2) respectively.
