Abstract

The utility model provides a socket type shaped protective railing, which comprises a fixing part, an upright post and a protective fence arranged on the upright post; the fixing part comprises a fixing rod and a fixing track which are fixedly connected; a fixing plate is arranged at the bottom of the fixing rod; the upright rod is inserted into the fixed track; through holes for fixing the upright rods are arranged at the two end parts of the fixed track; the guard rail comprises at least two rails. The guardrail is high in standardization degree, strong in universality, good in economy, guaranteed in quality, energy-saving and environment-friendly, solves the problem that the protective railings need to be dismantled when the windowsill is built, is lifted out of the fixed rails before the windowsill is built, can be directly recovered after the windowsill is built, and is simple, safe and convenient to operate.

Description

Socket type shaping protective railing

Technical Field

The utility model relates to the technical field of building protection, in particular to a socket type shaped protective railing.

Background

In the existing design, when designing the building, south side window generally designs for the french window, need set up the guardrail bar in the french window outside, if adopt the tradition to prevent guardrail bar, then, when building by laying bricks or stones the windowsill, need to prevent guardrail bar and demolish, this moment, it faces the limit construction to surpass to produce behind the guardrail bar, there is huge potential safety hazard in the adjacent limit construction, and, after the adjacent limit construction is accomplished, the high general unsatisfied of surplus brickwork faces the limit and protects high requirement, need face the limit and protect once more, the impression effect is not good simultaneously, maintenance cost is higher, and, the extravagant labour of such operation, construction safety is difficult to the guarantee.

SUMMERY OF THE UTILITY MODEL

In view of the above problems, the utility model aims to provide a socket type shaped protection handrail, which is detachably arranged through a fixed rail, reduces unnecessary labor intensity, is simple and quick to operate, and saves construction cost.

The utility model provides a socket type shaping protective railing, which comprises a fixing part, an upright post and a protective fence arranged on the upright post; wherein,

the fixing part comprises a fixing rod and a fixing track which are fixedly connected;

a fixing plate is arranged at the bottom of the fixing rod;

the upright rod is inserted into the fixed track;

through holes for fixing the upright rods are arranged at the two end parts of the fixed track;

the guard rail comprises at least two rails. In this embodiment, further, the fixed rails are arranged in pairs opposite to each other, and the guard rail is embedded between each pair of fixed rails through the vertical rod.

In this embodiment, furthermore, a skirting board is disposed at the bottom of the guard rail.

In this embodiment, the vertical rod is a square steel tube with 30mm by 30mm, and the distance between two ends of the vertical rod is 1880 mm.

In this embodiment, further, the balustrade is a square steel tube with 30mm × 30mm, wherein the balustrade has a pitch of 200mm and a height of 1150 mm.

In this embodiment, further, the skirting board is a steel plate, wherein; the thickness of the skirting board is 1mm, and the length of the skirting board is 180 mm.

In this embodiment, further, the fixing rod is a square steel tube with a height of 50mm by 50mm, wherein the height of the fixing rod is 800 mm.

In this embodiment, the fixing rail is a channel steel of 1mm x 40 mm.

In this embodiment, further, the fixing plate is a steel plate with a thickness of 70mm × 1 mm.

In this embodiment, further, a fixing bolt is provided in the through hole.

Compared with the prior art, the utility model has the following beneficial effects:

1. the guardrail is high in standardization degree, strong in universality, good in economy, guaranteed in quality, energy-saving and environment-friendly, solves the problem that the protective railings need to be dismantled when the windowsill is built, is lifted out of the fixed rails before the windowsill is built, can be directly recovered after the windowsill is built, and is simple, safe and convenient to operate.

2. The protective railing has simple structure and reasonable design, and can meet the safety requirement of the front protection of the French window after trial use; and, after the protection railing resumes, fix through the through-hole cooperation bolt that sets up on the trapped orbit, practice thrift construction cost.

3. The bottom of the protective railing is provided with the skirting board, so that articles on a windowsill can be prevented from falling from high altitude, and danger is caused to downstairs passing personnel.

Drawings

Other objects and results of the present invention will become more apparent and more readily appreciated as the same becomes better understood by reference to the following description and appended claims, taken in conjunction with the accompanying drawings.

In the drawings:

FIG. 1 is a front view of a socket shaped protective rail according to an embodiment of the present invention;

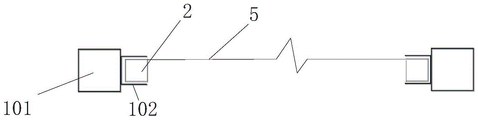

FIG. 2 is a top view of a socket shaped protective rail according to an embodiment of the present invention;

fig. 3 is a top view of a fixing portion according to an embodiment of the present invention.

Reference numerals:

1. fixed part 2, pole setting 3, rail guard 4, fixed plate

5. Skirting board 101, dead lever 102, fixed track.

The same reference numbers in all figures indicate similar or corresponding features or functions.

Detailed Description

Specific embodiments of the present invention will be described in detail below with reference to the accompanying drawings.

FIG. 1 is a front view of a socket shaped protective rail according to an embodiment of the present invention; FIG. 2 is a top view of a socket shaped guard rail according to an embodiment of the present invention; and, fig. 3 is a top view of a fixing portion according to an embodiment of the present invention.

As shown in fig. 1-3, the socket type shaped protective barrier of the present invention comprises a fixing portion 1, a vertical rod 2 and a protective fence 3 disposed on the vertical rod 2.

The fixing part 1 comprises a fixing rod 101 and a fixing track 102, the fixing rod 101 is made of a square steel pipe, the specification of the fixing rod 101 is 50mm by 50mm, and the height of the fixing rod 101 is 800 mm; the fixed rail 102 is made of steel, specifically, the fixed rail 102 is channel steel, and the specification of the fixed rail 102 is 1mm by 40 mm; dead lever 101 and trapped orbit 102 one end level alignment, fixed connection, more detailed, the bottom and the square steel pipe fixed connection of channel-section steel, the opening of channel-section steel is outside, and the welding is first selected to the fixed connection mode, certainly, is not limited to other fixed modes, through the opening relative setting with two channel-section steels, is convenient for guard rail's mentioning and plant.

Specifically, be provided with fixed plate 4 in the bottom of dead lever 101, the material of fixed plate 4 is the steel sheet, the length of fixed plate 4, wide, thickness is 70mm, 1mm respectively, fixed plate 4 passes through welded fastening at the lower extreme of dead lever 101, and is further, can set up the staple on fixed plate 4, improves the stability of fixed plate 4, and the quantity of staple is 3 at least, evenly sets up on the bottom surface of fixed plate 4, and the staple is planted at the brickwork internal fixation.

Specifically, the material of pole setting 2 is square steel pipe, and the specification of pole setting 2 is 30mm, and pole setting 2 is planted in fixed track 102, and is further, pole setting 2 includes two mobile trunks of planting in both ends fixed track 102 and connects two horizontal poles of planting the mobile trunk in fixed track 102, and the height of trunk is 1150mm, and the length of horizontal pole is 1880 mm.

More specifically, guard rails 3 are arranged in the upright posts 2, the number of the guard rails in the guard rails 3 is at least two, in the utility model, the number of the guard rails is 9, the guard rails are made of square steel pipes, the specification of the guard rails is 30mm by 30mm, the distance between every two guard rails is 200mm, and the height of the guard rails is 1150 mm.

More specifically, be provided with baseboard 5 in the bottom of rail guard 3, baseboard 5's material is the steel sheet, baseboard 5's thickness is 1mm, length is 180mm, through the welding mode, fixed the setting on rail guard 3, in this embodiment, prevent the railing setting before the french window, consequently, prevent the effect of railing, not only be used for protecting the article before the french window, more importantly, the article that the protection set up before the french window drops, avoid the object that falls from high altitude, threatens to personnel's life safety under the floor.

More specifically, be provided with the through-hole of fixed pole setting 2 at fixed track 102's both ends, prevent that pole setting 2 from rocking inside fixed track 102, fixed track 102 sets up in opposite directions in pairs, and rail guard 3 inlays through pole setting 2 and establishes the location between every to fixed track 102, and is further, be provided with fixing bolt in the through-hole, inside the rotatory through-hole that gets into of bolt, support pole setting 2, and control pole setting 2 rocks in fixed track, increase stability.

When the socket type shaping protective railing is used, the protective railing is fixedly arranged at a preset position in front of the French window.

After the socket type shaped protective railing is determined, when the windowsill needs to be built, the protective railing is integrally lifted out of the fixed track 102, so that the operation is convenient, and the building of the windowsill by operators is not influenced.

Finally, after the building of the windowsill is finished, the whole protective barrier is inserted into the fixed track 102, so that the efficient and quick recovery of the protective barrier can be guaranteed, the situation that the protective barrier is built by laying the protective barrier on the edge again due to insufficient protection height is avoided, and labor waste and unnecessary cost expenditure are reduced.

Compared with the prior art, the socket type shaping protective railing has the following beneficial effects:

1. the guardrail is mainly applied to protection before a French window, has high standardization degree, strong universality, good economy, guaranteed quality, energy conservation and environmental protection, solves the problem that the existing guardrail needs to be dismantled when a windowsill is built, and can be directly recovered after the windowsill is built by only taking the guardrail out of the fixed track before the windowsill is built due to the arrangement of the guardrail after the windowsill is dismantled, thus the guardrail is simple to operate, safe and convenient.

2. The protective railing has simple structure and reasonable design, and can meet the safety requirement of the front protection of the French window after trial use; and, resume the back at the guardrail bar, fix through the through-hole cooperation bolt that sets up on the trapped orbit, practice thrift construction cost to the result of use is splendid.

3. The bottom of the protective railing is provided with the skirting board, so that the protective railing can be used for protecting articles on a windowsill and preventing the articles on the windowsill from falling from high altitude, and danger is generated to downstairs passing personnel.

The socket-type shaped guard rail according to the utility model is described above by way of example with reference to the accompanying drawings. However, it will be appreciated by those skilled in the art that various modifications may be made to the female shaped guard rail of the present invention described above without departing from the scope of the utility model. Therefore, the scope of the present invention should be determined by the contents of the appended claims.

Claims (10)

1. A socket joint type shaped protective barrier is characterized by comprising a fixing part, an upright rod and a protective barrier arranged on the upright rod; wherein,

the fixing part comprises a fixing rod and a fixing track which are fixedly connected;

a fixing plate is arranged at the bottom of the fixing rod;

the upright rod is inserted into the fixed track;

through holes for fixing the upright rods are arranged at the two end parts of the fixed track;

the guard rail comprises at least two rails.

2. The socket-type shaped guard rail of claim 1,

the fixed tracks are oppositely arranged in pairs, and the guard rails are embedded between each pair of fixed tracks through the vertical rods.

3. The socket-type shaped guard rail of claim 1,

and a skirting board is arranged at the bottom of the guard rail.

4. The socket-type shaped guard rail of claim 1,

the pole setting is 30 mm's square steel pipe, the pole setting both ends interval is 1880 mm.

5. The socket shaped guard rail of claim 1,

the railing is a square steel pipe with 30mm by 30mm, wherein,

the interval of railing is 200mm, highly is 1150 mm.

6. The socket-type shaped guard rail of claim 3,

the skirting board is a steel plate, wherein;

the thickness of the skirting board is 1mm, and the length of the skirting board is 180 mm.

7. The socket-type shaped guard rail of claim 1,

the fixed rod is a square steel tube with the thickness of 50mm x 50mm, wherein,

the height of the fixed rod is 800 mm.

8. The socket-type shaped guard rail of claim 1,

the fixed track is a channel steel with the thickness of 1mm x 40 mm.

9. The socket-type shaped guard rail of claim 1,

the fixed plate is a steel plate with the thickness of 70mm x 1 mm.

10. The socket-type shaped guard rail of claim 1,

and a fixing bolt is arranged in the through hole.
