CN216635897U

CN216635897U - Color spraying machine for printing

Info

Publication number: CN216635897U
Application number: CN202123230632.1U
Authority: CN
Inventors: 文莉莉
Original assignee: Shanghai Mocheng Printing Technology Co ltd
Current assignee: Shanghai Mocheng Printing Technology Co ltd
Priority date: 2021-12-21
Filing date: 2021-12-21
Publication date: 2022-05-31
Anticipated expiration: 2031-12-21

Abstract

The utility model belongs to the technical field of printing, and relates to a color inkjet machine for printing, which comprises a support frame, a shock absorber is fixedly connected to the top of the support frame, and a support plate is fixedly connected to the top of the shock absorber. A slide rail is opened in the support plate, an electric wheel is slidably connected in the slide rail, a first casing is fixedly connected to the top of the electric wheel, a printing device is arranged inside the first casing, and one side of the printing device is provided with For the printing head, a deodorant component is fixedly connected to one side of the first casing. The beneficial effect is that the color inkjet machine for printing works through the first driving motor to drive the bidirectional threaded rod to rotate, thereby driving the threaded sleeve and the clamping assembly to move, and can position and fix operation panels of different sizes, which is convenient for subsequent printing. , Control the rotation of the electric wheel through the control panel, drive the first housing, the printing equipment and the printing head to move, and print color inkjet on the objects on the surface of the operation panel.

Description

Color spraying machine for printing

Technical Field

The utility model belongs to the technical field of printing, and particularly relates to a color spray machine for printing.

Background

Printing is a technique of transferring ink to the surface of paper, fabric, plastic product, leather and other materials through plate making, inking, pressing and other steps to copy the content of original in batch, and printing is a process of transferring the approved printing plate to the printing stock through printing machinery and special ink, so that a color spray machine for printing is especially important.

For example, the chinese patent discloses a color spray machine for printing and processing, with publication number CN112026379A, the publication date is: 20201204, including box, sliding tray, moving seat, color spray box, workbench, control box, sliding tray embedded in the upper end of the box, its device set up fixed structure outside cavity, while forming cavity to collect, dry the ink on the banner back, prevent it from being infected with other positions, have guaranteed the neatness of the banner; the limiting shaft is arranged at the upper end of the conveying belt, so that the side end of the banner is limited to be conveyed, and the contact area of the back is reduced.

However, the device still has the drawback, and its device does not set up the shock attenuation, can't slow down the vibrations that the device during operation produced, can't ensure the stability and the security of device, and its device does not set up the stoving, can't carry out timely drying to the content of printing, influences the printing efficiency of device, and its device can't clear away the smell simultaneously.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Aiming at the defects of the prior art, the utility model provides the color spraying machine for printing, which has the advantages of good stability, high safety and high printing efficiency, and solves the problems of poor stability, low safety, poor printing efficiency and use requirements of incapability of removing odor.

(II) technical scheme

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a color spray machine that printing was used, includes the support frame, support frame top fixedly connected with bumper shock absorber, bumper shock absorber top fixedly connected with backup pad, the slide rail has been seted up in the backup pad, sliding connection has motor wheel in the slide rail, the first casing of motor wheel top fixedly connected with, the inside lithography apparatus that is provided with of first casing, lithography apparatus one side is provided with the print head, first casing one side fixedly connected with removes the flavor subassembly, backup pad top fixedly connected with mount.

The utility model discloses a clamping device for a motor, including fixed bolster top fixedly connected with work board, work board top fixedly connected with second fixed block, second fixed block one side fixedly connected with motor frame, the first driving motor of fixedly connected with in the motor frame, first driving motor output shaft fixedly connected with two-way threaded rod, two-way threaded rod one end fixedly connected with pivot, pivot one end is cup jointed in second fixed block one side through the bearing, two-way threaded rod surface threaded connection has the thread bush, just the quantity of thread bush has two, thread bush top fixedly connected with centre gripping subassembly.

Through adopting above-mentioned scheme, through a driving motor work, drive two-way threaded rod and rotate to drive thread bush and centre gripping subassembly and remove, can fix a position fixedly to the operating panel of unidimensional, convenient follow-up printing, through controlling panel control motor wheel and rotating, drive first casing, lithography apparatus and print head and remove, print the coloured silk to the article on operating panel surface and spout.

Preferably, the centre gripping subassembly includes the fixed plate, fixed plate fixed connection is at the thread bush top, the third spout has been seted up in the fixed plate, sliding connection has the third slider in the third spout, third slider top fixedly connected with third fixed block, third fixed block top fixedly connected with stopper, the joint has the operation panel in the stopper, third fixed block one side fixedly connected with spring, spring one end fixed connection is in the inside one side of fixed plate.

Through adopting above-mentioned scheme, through setting up third spout and third slider, can ensure the stability of third fixed block when the motion, through setting up the spring, realize the effect fixed to the operation panel with the help of the stopper.

Preferably, remove the flavor subassembly and include the second casing, fixedly connected with second filter screen, sponge filter screen and active carbon filter screen in the second casing, second filter screen one side fixedly connected with third driving motor, third driving motor output shaft fixedly connected with second flabellum.

Through adopting above-mentioned scheme, through the work of third driving motor, drive the second flabellum and rotate, with the air in the first casing, filter the back through second filter screen and sponge net, take first casing out after the active carbon filter screen adsorbs to remove the flavor again, realize the removal flavor work after the device printing.

Preferably, the first filter screen is fixedly connected in the first shell, the second driving motor is fixedly connected to one side of the first filter screen, the first fan blade is fixedly connected to an output shaft of the second driving motor, the second sliding groove is formed in the first shell, the second sliding block is slidably connected in the second sliding groove, the second sliding block is fixedly connected to one side of the working plate, the first sliding groove is formed in the working plate, the first sliding block is slidably connected in the first sliding groove, and the first sliding block is fixedly connected to the bottom of the threaded sleeve.

Through adopting above-mentioned scheme, through second driving motor work, drive first flabellum and rotate, with first casing outside air, blow to the operation panel surface after filtering through first filter screen screening, realize the drying effect to the device, through setting up second spout and second slider, can ensure the stability of working plate when removing.

Preferably, the first fixed block of support frame both sides fixedly connected with, first fixed block bottom fixedly connected with electric putter, electric putter bottom fixedly connected with supporting seat, support frame bottom fixedly connected with universal wheel.

Through adopting above-mentioned scheme, through setting up electric putter, drive the supporting seat and go up and down, can support fixedly, ensure the stability of device to the device.

Preferably, the control panel is fixedly connected to one side of the support plate and is electrically connected with the first driving motor, the second driving motor, the third driving motor, the electric push rod, the electric wheel and the printing equipment through wires.

By adopting the above scheme, control the panel through setting up, can be convenient control the device, convenient operation.

(III) advantageous effects

Compared with the prior art, the utility model provides a color spraying machine for printing, which has the following beneficial effects:

the color spraying machine for printing drives the bidirectional threaded rod to rotate through the work of the first driving motor, thereby driving the threaded sleeve and the clamping component to move, positioning and fixing operation boards with different sizes can be realized, the subsequent printing is convenient, the electric wheel is controlled to rotate through the control panel, the first shell, the printing equipment and the printing head are driven to move, the color spraying is carried out on an object on the surface of the operation board, the stability of a third fixed block in motion can be ensured through arranging the third chute and the third sliding block, the effect of fixing the operation board is realized through the limiting block through arranging the spring, the second fan blade is driven to rotate through the work of the third driving motor, the air in the first shell is filtered through the second filter screen and the sponge screen, and then the first shell is extracted after being adsorbed by the activated carbon filter screen to remove odor, the odor removal work after the printing of the device is realized, and the second driving motor works, drive first flabellum and rotate, with first casing outside air, filter the back through first filter screen and blow to the operation panel surface, realize the drying effect to the device, through setting up second spout and second slider, can ensure the stability of working plate when removing, through setting up electric putter, drive the supporting seat and go up and down, can support fixedly to the device, ensure the stability of device, control the panel through the setting, can be convenient control the device, convenient operation.

Drawings

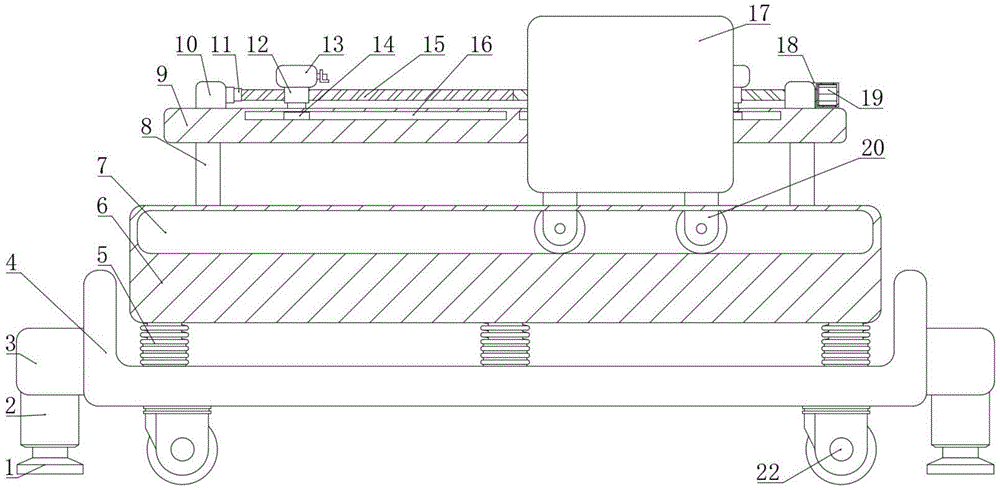

FIG. 1 is a schematic front sectional view of the present invention;

FIG. 2 is a schematic side view of the present invention;

FIG. 3 is a schematic structural view of the clamping assembly of FIG. 1;

FIG. 4 is a schematic view of the odor elimination assembly of FIG. 2;

in the figure: 1. a supporting seat; 2. an electric push rod; 3. a first fixed block; 4. a support frame; 5. a shock absorber; 6. a support plate; 7. a slide rail; 8. a fixed mount; 9. a working plate; 10. a second fixed block; 11. a rotating shaft; 12. a threaded sleeve; 13. a clamping assembly; 131. a fixing plate; 132. a third chute; 133. a third slider; 134. a third fixed block; 135. a spring; 136. a limiting block; 137. an operation panel; 14. a first slider; 15. a bidirectional threaded rod; 16. a first chute; 17. a first housing; 18. a motor frame; 19. a first drive motor; 20. an electric vehicle wheel; 21. a control panel; 22. a universal wheel; 23. a second chute; 24. a second slider; 25. a odor removal assembly; 251. a second housing; 252. a sponge filter screen; 253. an activated carbon filter screen; 254. a second fan blade; 255. a third drive motor; 256. a second filter screen; 26. a print head; 27. a first filter screen; 28. a first fan blade; 29. a second drive motor.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Examples

The utility model provides a color spray machine that printing was used, including support frame 4, 4 top fixedly connected with bumper shock absorbers 5 of support frame, 5 top fixedly connected with backup pad 6 of bumper shock absorbers, slide rail 7 has been seted up in the backup pad 6, sliding connection has motored wheel 20 in the slide rail 7, the first casing 17 of the 20 top fixedly connected with of motored wheel, the inside lithography apparatus that is provided with of first casing 17, lithography apparatus one side is provided with print head 26, first casing 17 one side fixedly connected with removes

flavor subassembly

25, 6 top fixedly connected with mounts 8 of backup pad.

8 top fixedly connected with working plates 9 of mount, 9 top fixedly connected with second fixed block 10 of working plates, 10 one side fixedly connected with motor frame 18 of second fixed block, the first driving motor 19 of fixedly connected with in the

motor frame

18, 19 output shaft fixedly connected with two-way threaded rod 15 of first driving motor, 15 one end fixedly connected with pivot 11 of two-way threaded rod, 11 one end of pivot cup joints in 10 one side of second fixed block through the bearing, 15 surperficial threaded connection of two-way threaded rod have the thread bush 12, the quantity of thread bush 12 has two, 12 top fixedly connected with centre gripping subassemblies 13 of thread bush.

The clamping assembly 13 comprises a fixing plate 131, the fixing plate 131 is fixedly connected to the top of the threaded sleeve 12, a third sliding groove 132 is formed in the fixing plate 131, a third sliding block 133 is connected in the third sliding groove 132 in a sliding mode, a third fixing block 134 is fixedly connected to the top of the third sliding block 133, a limiting block 136 is fixedly connected to the top of the third fixing block 134, an operating plate 137 is connected in the limiting block 136 in a clamping mode, a spring 135 is fixedly connected to one side of the third fixing block 134, and one end of the spring 135 is fixedly connected to one side of the inside of the fixing plate 131.

The smell removing assembly 25 comprises a second shell 251, a second filter screen 256, a sponge filter screen 252 and an activated carbon filter screen 253 are fixedly connected in the second shell 251, a third driving motor 255 is fixedly connected on one side of the second filter screen 256, and second fan blades 254 are fixedly connected with an output shaft of the third driving motor 255.

First filter screen 27 of fixedly connected with in the first casing 17, first filter screen 27 one side fixedly connected with second driving motor 29, second driving motor 29 output shaft fixedly connected with first flabellum 28, second spout 23 has been seted up in the first casing 17, sliding connection has second slider 24 in the second spout 23, second slider 24 fixed connection is in working plate 9 one side, first spout 16 has been seted up in working plate 9, sliding connection has first slider 14 in first spout 16, first slider 14 fixed connection is in 12 bottoms of thread bush.

Support frame 4 both sides fixedly connected with first

fixed block

3, 3 bottom fixedly connected with electric putter 2 of first fixed block, 2 bottom fixedly connected with supporting seats of electric putter 1, 4 bottom fixedly connected with universal wheels 22 of support frame.

One side of the support plate 6 is fixedly connected with a control panel 21, and the control panel 21 is electrically connected with the first driving motor 19, the second driving motor 29, the third driving motor 255, the electric push rod 2, the electric wheel 20 and the printing equipment through conducting wires.

With reference to FIGS. 1-4

S1, firstly, the pushing device is driven by the universal wheel 22 to move to the working position, then the electric push rod 2 is controlled by the control panel 21 to work to drive the supporting seat 1 to move, the device is supported and fixed, then the operation of the first driving motor 19 is controlled by the control panel 21 to drive the bidirectional threaded rod 15 to rotate, thereby driving the threaded sleeve 12 and the clamping component 13 to move, according to the length requirement of the product to be printed, the two clamping assemblies 13 are controlled to be at proper positions, then the object to be printed is fixed on the surface of the operating plate 137, then the operating board 137 is clamped in the limiting block 136 by the elasticity of the spring 135, the operation of the printing equipment is controlled by the control panel 21, the object is printed with color spray by the printing head 26, meanwhile, the electric wheel 20 is controlled to work through the control panel 21, the first shell 17 and the printing equipment are driven to move, and printing color spraying is carried out on different positions.

During printing, the second driving motor 29 can be controlled to work through the control panel 21 to drive the first fan blade 28 to rotate, air outside the first shell 17 is pumped into the operation board 137 in the first shell 17 through the first filter screen 27, the printed content on the surface of the operation board 137 is dried, meanwhile, the third driving motor 255 is controlled to work through the control panel 21 to drive the second fan blade 254 to rotate, the air in the first shell 17 is filtered through the second filter screen 256, the sponge filter screen 252 and the activated carbon filter screen 253 and then pumped out of the first shell 17, and peculiar smell generated during printing is removed and purified.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A color inkjet machine for printing, comprising a support frame (4), characterized in that: the top of the support frame (4) is fixedly connected with a shock absorber (5), and the top of the shock absorber (5) is fixed A support plate (6) is connected, a slide rail (7) is opened in the support plate (6), an electric wheel (20) is slidably connected in the slide rail (7), and the top of the electric wheel (20) is fixed A first housing (17) is connected, a printing device is arranged inside the first housing (17), a printing head (26) is arranged on one side of the printing device, and one side of the first housing (17) is fixedly connected There is a deodorizing component (25), and a fixing frame (8) is fixedly connected to the top of the support plate (6);

A working plate (9) is fixedly connected to the top of the fixing frame (8), a second fixing block (10) is fixedly connected to the top of the working plate (9), and a side of the second fixing block (10) is fixedly connected to A motor frame (18), a first drive motor (19) is fixedly connected in the motor frame (18), and a bidirectional threaded rod (15) is fixedly connected to the output shaft of the first drive motor (19), and the bidirectional thread One end of the rod (15) is fixedly connected with a rotating shaft (11), one end of the rotating shaft (11) is sleeved on one side of the second fixing block (10) through a bearing, and the surface of the two-way threaded rod (15) is threadedly connected with a threaded sleeve ( 12), and the number of the threaded sleeves (12) is two, and a clamping assembly (13) is fixedly connected to the top of the threaded sleeves (12).

2. A color inkjet machine for printing according to claim 1, characterized in that: the clamping assembly (13) comprises a fixing plate (131), and the fixing plate (131) is fixedly connected to the threaded sleeve (131). 12) At the top, a third chute (132) is opened in the fixing plate (131), and a third slider (133) is slidably connected in the third chute (132). 133) A third fixing block (134) is fixedly connected to the top, the top of the third fixing block (134) is fixedly connected to a limit block (136), and an operation board (137) is snapped into the limit block (136) A spring (135) is fixedly connected to one side of the third fixing block (134), and one end of the spring (135) is fixedly connected to the inner side of the fixing plate (131).

3. A color inkjet machine for printing according to claim 1, characterized in that: the deodorant assembly (25) comprises a second casing (251), and the second casing (251) is fixed inside A second filter screen (256), a sponge filter screen (252) and an activated carbon filter screen (253) are connected, and a third drive motor (255) is fixedly connected to one side of the second filter screen (256). A second fan blade (254) is fixedly connected to the output shaft of the drive motor (255).

4. A color inkjet machine for printing according to claim 1, characterized in that: a first filter screen (27) is fixedly connected in the first casing (17), and the first filter screen ( 27) A second drive motor (29) is fixedly connected to one side, a first fan blade (28) is fixedly connected to the output shaft of the second drive motor (29), and a first fan blade (28) is fixedly connected to the output shaft of the second drive motor (29). Two sliding grooves (23), a second sliding block (24) is slidably connected in the second sliding groove (23), and the second sliding block (24) is fixedly connected to one side of the working plate (9), the A first sliding groove (16) is opened in the working plate (9), a first sliding block (14) is slidably connected in the first sliding groove (16), and the first sliding block (14) is fixedly connected to a thread Set (12) bottom.

5. A color inkjet machine for printing according to claim 1, characterized in that: both sides of the support frame (4) are fixedly connected with a first fixing block (3), and the first fixing block (3) ) An electric push rod (2) is fixedly connected at the bottom, a support base (1) is fixedly connected at the bottom of the electric push rod (2), and a universal wheel (22) is fixedly connected at the bottom of the support frame (4).

6. A color inkjet machine for printing according to claim 1, wherein a control panel (21) is fixedly connected to one side of the support plate (6), and the control panel (21) is connected to the first The driving motor (19), the second driving motor (29), the third driving motor (255), the electric push rod (2), the electric wheel (20) and the printing equipment are electrically connected through wires.
