The utility model relates to a household multifunctional intelligent bed in the field of intelligent beds, which comprises a bed body frame, a main lifting device, an auxiliary lifting device, a pillow lifting device and a lying posture regulator, wherein the lying posture regulator comprises a back support plate, a thigh support plate and a shank support plate, the main lifting device is arranged between the thigh support plate and the back support plate, the auxiliary lifting device is arranged in the main lifting device, the pillow lifting device is arranged at one end of the bed body frame close to the back support plate, when the lying posture needs to be regulated, a back plate support rod is driven by a leg push rod to jack a first rotating shaft of the back support plate, the thigh plate support rod is driven by the leg push rod to jack the thigh support plate along the first rotating shaft, and meanwhile, the shank support plate is lifted by a second rotating shaft, so that a user forms a half-sitting posture to achieve the purpose of regulating the lying posture, the height of the pillow is changed by the pillow lifting device, the local lifting is adjusted by the main lifting device and the auxiliary lifting device.
Description
Technical Field
The utility model relates to the field of intelligent beds, in particular to a household multifunctional intelligent bed.
Background
The intelligent home is characterized in that a house is used as a platform, facilities related to home life are integrated by utilizing a comprehensive wiring technology, a network communication technology, a safety precaution technology, an automatic control technology and an audio and video technology, an efficient management system of home facilities and family schedule affairs is constructed, home safety, convenience, comfortableness and artistry are improved, an environment-friendly and energy-saving living environment is realized, and a bed is one of the intelligent home.
Chinese patent with publication number CN211023631U discloses a novel intelligent household multifunctional nursing bed, relates to nursing bed technical field, this novel intelligent household multifunctional nursing bed, comprising a base plate, the below of bottom plate is provided with the support frame, be provided with adjustable shelf and mount on the bottom plate respectively, it is connected with the pivot to rotate through the bearing on the bottom plate, pivot and adjustable shelf fixed connection, the top of adjustable shelf is provided with the buttock bed board, there are thigh bed board and back bed board on the left side and the right side of buttock bed board swing joint respectively, one side that the buttock bed board was kept away from to the thigh bed board is rotated and is connected with the shank bed board, be provided with back push rod, shank push rod, first loose axle and second loose axle on the adjustable shelf respectively. The utility model solves the problems that the existing nursing beds can not rotate to change the orientation of a user, so that the sitting posture is fixed and the use is limited, and can not reasonably adjust the lying posture of the user, adjust the height of the pillow and perform reasonable lifting movement by arranging the movable frame, the bearing, the rotating shaft, the hip bed plate and the rotating push rod.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects and provides a household multifunctional intelligent bed which can reasonably adjust the lying posture of a user, can randomly adjust the height of a pillow and can perform reasonable lifting movement.
The purpose of the utility model is realized by the following modes:
a household multifunctional intelligent bed comprises a bed body frame, a main lifting device, an auxiliary lifting device, a pillow lifting device and a lying posture regulator, wherein the lying posture regulator comprises a back support plate, a thigh support plate and a shank support plate, the back support plate and the thigh support plate are both arranged on the bed body frame through first rotating shafts, the shank support plate is connected with the thigh support plate through second rotating shafts, a back plate push rod and a leg push rod are arranged in the bed body frame, the back plate push rod is connected with the back support plate through a back plate support rod, so that the back support plate can be driven by the back plate push rod to rotate along the first rotating shafts, the thigh support plate is connected with the leg push rod through a shank plate support rod, so that the thigh support plate can be driven by the leg push rod to rotate along the first rotating shafts, the shank support plate is arranged on the bed body frame through the shank plate support rod, and the force born by the shank support plate can be guided to the bed body frame, install back slide rail and shank slide rail in the bed body frame, the back support pulley that is used for using with the cooperation of back slide rail is installed through the third pivot to the backplate push rod, the backplate bracing piece is rotatably installed in the third pivot, the shank support pulley that is used for using with the cooperation of shank slide rail is installed through the fourth pivot to the shank push rod, thigh board bracing piece is rotatably installed in the fourth pivot, backplate push rod and shank push rod all are connected with third pivot and fourth pivot respectively through the solid fixed ring cover, main elevating gear installs between thigh backup pad and back backup pad, vice elevating gear installs in main elevating gear, pillow elevating gear installs the one end that is close to the back backup pad at bed body frame.
Further, in the above description, the main lifting device includes two cross lifting brackets and a main lifting push rod, the main lifting push rod is installed between the thigh support plate and the back support plate through the main support frame, the two cross lifting brackets are installed on the main lifting push rod through the main slide bar, the main slide bar is connected with the main lifting push rod through the limiting fixing ring, so that the two cross lifting brackets can be driven by the main lifting push rod to perform lifting movement, the fixing brackets are installed on the two cross lifting brackets, when in use, the main slide bar is pulled back by the main lifting push rod, so that the two cross lifting brackets jack up the fixing brackets, when in need of lowering, the main lifting push rod can be pushed out by the main lifting push rod, so that the two cross lifting brackets lower the fixing brackets, thereby completing the whole process of using the auxiliary lifting.
In the above description, the lower end of the fixed support is in contact with the support frame, and when the fixed support is lowered to the lowest height, the fixed support is flush with the upper end face of the bed body frame, so that the fixed support does not interfere with the function of the bed body frame as a bed, and meanwhile, the support frame bears the main gravity, and the abrasion of the crossed lifting support is reduced.
Furthermore, in the above description, main slide rails are installed at both ends of the main support frame, the main slide bar is installed on the main slide rails through the main pulley in a matching manner, and the friction force is smaller compared with the sliding movement manner of the main pulley, so that the probability of maintenance and replacement can be reduced.
Further in the above explanation, vice elevating gear includes the backup pad, driving motor and bent axle, driving motor passes through the motor support frame and installs between two alternately lifting support, the bent axle is rotatably installed on driving motor, the backup pad is connected with the bent axle through the connecting rod, make driving motor can drive the backup pad and move, when using, it is rotatory to drive the bent axle by driving motor, make it carry out the elevating movement by connecting rod drive backup pad, the lift in-process can be stretched the waist, and the even rotational speed of driving motor can drive the backup pad and carry out the even elevating movement of rule, in order to guarantee to carry out reasonable stretching to the waist, prevent to appear stretching excessive possibility, also can increase driving motor's rotational speed, in order to increase the speed of going up and down.
Further, in the above description, a bearing is installed at a joint between the driving motor and the crankshaft, a bearing support seat for supporting the bearing is installed on the motor support frame, the bearing supports gravity from the support plate, and the bearing support seat is used for dispersing the gravity on the bearing to the motor support frame, so as to reduce the probability of damage to the driving motor.
Further, in the above description, the motor support frame is provided with the guide cylinder, and the support plate is connected with the guide cylinder through the guide post, so that the motor support frame can only linearly move in the guide cylinder along the guide post, thereby preventing the motor support frame from deviating during the lifting movement.
Further, the pillow lifting device comprises a pillow lifting push rod, a cross lifting frame and a support bar, the pillow lifting push rod is arranged at one end of the bed body frame close to the back support plate through a fixed support frame, the cross lifting frame is retractably arranged on the bed body frame through a slide way, the lower end of the cross lifting frame is connected with the pillow lifting push rod through an auxiliary slide bar, so that the fixed support frame can be driven by the pillow lifting push rod to move up and down, the support bar is fixedly arranged on the cross lifting frame, when the pillow is used, the height of the pillow can be adjusted according to the requirement, when the pillow is too high, the cross lifting frame is pulled back by the pillow lifting push rod, so that the cross lifting frame descends, so as to achieve the purpose of lifting the pillow, when the pillow is too low, the cross lifting frame is pushed out by the pillow lifting push rod, so that the cross lifting frame ascends, guarantee to use and experience, guarantee the rationality of going up and down.
In the above description, two pillow lifting devices are further provided, and the two pillow lifting devices are both installed at one end of the bed body frame close to the back support plate, so that the requirement of two different pillow heights can be met on one bed.
Further, the back plate push rod, the leg push rod, the main lifting push rod and the pillow lifting push rod are all electric push rods, and the electric push rods can accurately control the lifting height.
The utility model has the beneficial effects that: when the lying posture needs to be adjusted, the leg push rod drives the back plate support rod to jack up the first rotating shaft of the back support plate, the leg push rod drives the thigh plate support rod to jack up the thigh support plate along the first rotating shaft, and simultaneously the shank support plate is lifted up through the second rotating shaft, so that a user forms a half-sitting posture, the purpose of adjusting the lying posture is achieved, the gravity on the back support plate and the thigh support plate is respectively transmitted to the back slide rail and the leg slide rail through the back support pulley and the leg support pulley, the burden of the back plate push rod and the leg push rod can be reduced, the service life of the back plate push rod and the leg push rod is prolonged, meanwhile, the rolling friction of the back support pulley and the leg support pulley is far smaller than the sliding friction, the possibility of maintenance can be reduced, the back support plate and the thigh support plate can be more stable in movement, and the use experience of the user is increased, the height of the pillow is changed by the pillow lifting device, and the local lifting is adjusted by the main lifting device and the auxiliary lifting device.
Drawings

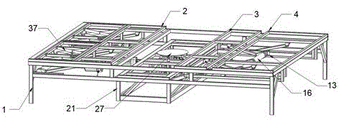

FIG. 1 is a perspective view of a front view of an embodiment of the present invention;
FIG. 2 is an enlarged view of A in FIG. 1;
FIG. 3 is an enlarged view of B in FIG. 1;
FIG. 4 is a perspective view of a rear view of an embodiment of the present invention;
FIG. 5 is a schematic view of a recumbent posture regulator in an embodiment of the present invention after use;

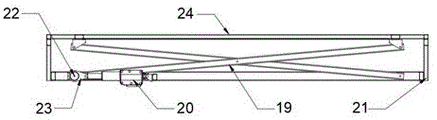

FIG. 6 is a schematic perspective view of a main lifting device according to an embodiment of the present invention;
FIG. 7 is an enlarged view of C in FIG. 6;
FIG. 8 is a schematic view of a main angle of the main lifting device according to an embodiment of the present invention;
FIG. 9 is a schematic perspective view of an auxiliary lifting device according to an embodiment of the present invention;
FIG. 10 is a schematic perspective view of the auxiliary lifting device with the motor support frame removed according to the embodiment of the present invention;

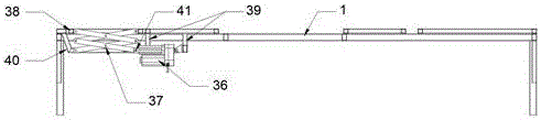

FIG. 11 is a front perspective sectional view of a pillow lifting device in an embodiment of the present invention;
in the figure, the reference numbers are respectively 1-bed body frame, 2-back support plate, 3-thigh support plate, 4-calf support plate, 5-first rotating shaft, 6-second rotating shaft, 7-backboard push rod, 8-leg push rod, 9-backboard support rod, 10-thigh plate support rod, 11-calf plate support rod, 12-back slide rail, 13-leg slide rail, 14-third rotating shaft, 15-back support pulley, 16-fourth rotating shaft, 17-leg support pulley, 18-fixed ring sleeve, 19-cross lifting support, 20-main lifting push rod, 21-main support frame, 22-main slide rod, 23-limit fixed ring, 24-fixed support, 25-main slide rail, 26-main pulley, 27-auxiliary support plate, 28-driving motor, 29-crankshaft, 30-motor support frame, 31-connecting rod, 32-bearing, 33-bearing support seat, 34-guide column, 35-guide cylinder, 36-pillow lifting push rod, 37-cross lifting frame, 38-support bar, 39-fixed support frame, 40-slideway and 41-auxiliary slide bar.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.
In this embodiment, referring to fig. 1-11, a household multifunctional intelligent bed specifically implemented by the present invention comprises a bed body frame 1, a main lifting device, an auxiliary lifting device, a pillow lifting device and a lying posture adjuster, wherein the lying posture adjuster comprises a back support plate 2, a thigh support plate 3 and a shank support plate 4, the back support plate 2 and the thigh support plate 3 are both mounted on the bed body frame 1 through a first rotating shaft 5, the shank support plate 4 is connected with the thigh support plate 3 through a second rotating shaft 6, a back plate push rod 7 and a leg push rod 8 are mounted in the bed body frame 1, the back plate push rod 7 is connected with the back support plate 2 through a back plate support rod 9, so that the back support plate 2 can be driven by the back plate push rod 7 to rotate along the first rotating shaft 5, the leg support plate 3 is connected with the leg push rod 8 through a leg plate support rod 10, so that the leg support plate 3 can be driven by the leg push rod 8 to rotate along the first rotating shaft 5, the shank supporting plate 4 is arranged on the bed body frame 1 through a shank supporting rod 11, so that the force born by the shank supporting plate 4 can be transferred to the bed body frame 1, a back sliding rail 12 and a leg sliding rail 13 are arranged in the bed body frame 1, a back supporting pulley 15 matched with the back sliding rail 12 for use is arranged on a back push rod 7 through a third rotating shaft 14, a back supporting rod 9 is rotatably arranged on the third rotating shaft 14, a leg supporting pulley 17 matched with the leg sliding rail 13 for use is arranged on a leg push rod 8 through a fourth rotating shaft 16, a thigh plate supporting rod 10 is rotatably arranged on the fourth rotating shaft 16, the back push rod 7 and the leg push rod 8 are respectively connected with the third rotating shaft 14 and the fourth rotating shaft 16 through a fixed ring sleeve 18, a main lifting device is arranged between the thigh supporting plate 3 and the back supporting plate 2, and an auxiliary lifting device is arranged in the main lifting device, the pillow lifting device is arranged at one end of the bed body frame 1 close to the back support plate 2, when the lying posture needs to be adjusted, the leg push rod 8 drives the back support plate 9 to jack up the first rotating shaft 5 of the back support plate 2, the leg push rod 8 drives the thigh plate support rod 10 to jack up the thigh support plate 3 along the first rotating shaft 5, and simultaneously the second rotating shaft 6 takes up the shank support plate 4, so that a user forms a half-sitting posture, thereby achieving the purpose of adjusting the lying posture, the gravity on the back support plate 2 and the thigh support plate 3 is respectively transmitted to the back slide rail 12 and the leg slide rail 13 through the back support pulley 15 and the leg support pulley 17, so that the burden of the back support rod 7 and the leg push rod 8 can be reduced, the service life of the back support rod 7 and the leg push rod 8 can be prolonged, and simultaneously, because the rolling friction of the back support pulley 15 and the leg support pulley 17 is far smaller than the sliding friction, the possibility of maintenance can be reduced, the back support plate 2 and the thigh support plate 3 can be more stable during movement, the use experience of a user is increased, the height of the pillow is changed by the pillow lifting device, the local lifting is adjusted by the main lifting device and the auxiliary lifting device, the back plate push rod 7, the leg push rod 8, the main lifting push rod 20 and the pillow lifting push rod 36 are all electric push rods, and the lifting height can be accurately controlled by the electric push rods.
Referring to fig. 6-10 in detail, the main lifting device includes two cross lifting brackets 19 and a main lifting push rod 20, the main lifting push rod 20 is installed between the thigh support plate 3 and the back support plate 2 through a main support frame 21, the two cross lifting brackets 19 are installed on the main lifting push rod 20 through a main slide bar 22, the main slide bar 22 is connected with the main lifting push rod 20 through a limit fixing ring 23, so that the two cross lifting brackets 19 can be driven by the main lifting push rod 20 to perform lifting movement, the fixing brackets 24 are installed on the two cross lifting brackets 19, when in use, the main lifting push rod 20 pulls back the main slide bar 22, so that the two cross lifting brackets 19 jack up the fixing brackets 24, when in need of lowering, the main lifting push rod 20 pushes out the slide main rod, so that the two cross lifting brackets 19 lower the fixing brackets 24, so as to complete the whole process of using auxiliary lifting, the lower end of the fixed support 24 contacts with the support frame, when the fixed support 24 descends to the lowest height, the fixed support is flush with the upper end face of the bed body frame 1, so that the fixed support does not interfere with the function of the bed body frame as a bed, meanwhile, the support frame bears the main gravity, the abrasion of the crossed lifting support 19 is reduced, the main slide rail 25 is arranged at each of the two ends of the main support frame 21, the main slide bar 22 is arranged on the main slide rail 25 in a matching way through the main pulley 26, the friction force is smaller compared with the sliding movement way of the main pulley 26, the probability of maintenance and replacement can be reduced, the auxiliary lifting device comprises an auxiliary support plate 27, a driving motor 28 and a crankshaft 29, the driving motor 28 is arranged between the two crossed lifting support frames 19 through a motor support frame 30, the crankshaft 29 is rotatably arranged on the driving motor 28, the auxiliary support plate 27 is connected with the crankshaft 29 through a connecting rod 31, so that the driving motor 28 can drive the auxiliary support plate 27 to move, when the waist stretching device is used, the crankshaft 29 is driven to rotate by the driving motor 28, so that the connecting rod 31 drives the auxiliary supporting plate 27 to perform lifting movement, the waist can be stretched in the lifting process, the auxiliary supporting plate 27 can be driven to perform regular and uniform lifting movement by the uniform rotating speed of the driving motor 28, so that the reasonable stretching of the waist is ensured, the possibility of excessive stretching is prevented, the rotating speed of the driving motor 28 can be increased so as to increase the lifting speed, a bearing 32 is installed at the joint of the driving motor 28 and the crankshaft 29, a bearing supporting seat 33 used for supporting the bearing 32 is installed on the motor supporting frame 30, the gravity from the auxiliary supporting plate 27 is supported by the bearing 32, the bearing supporting seat 33 is used for dispersing the gravity on the bearing 32 onto the motor supporting frame 30 so as to reduce the damage probability of the driving motor 28, the guide cylinder 35 is installed on the motor supporting frame 30, the auxiliary supporting plate 27 is connected with the guide cylinder 35 through the guide column 34, the motor support frame 30 can only move linearly in the guide cylinder 35 along the guide column 34, so as to prevent the displacement during the lifting movement.
Referring to fig. 11, the pillow lifting device includes a pillow lifting push rod 36, a cross lifting frame 37 and a support bar 38, the pillow lifting push rod 36 is installed at one end of the bed frame 1 near the back support plate 2 through a fixed support frame 39, the cross lifting frame 37 is installed on the bed frame 1 through a slide way 40 in a retractable manner, the lower end of the cross lifting frame 37 is connected with the pillow lifting push rod 36 through a subsidiary slide rod 41, so that the fixed support frame 39 can be driven by the pillow lifting push rod 36 to move up and down, the support bar 38 is fixedly installed on the cross lifting frame 37, when the pillow lifting device is used, the pillow is placed on the support bar 38, then the height of the pillow can be adjusted according to requirements, when the pillow is too high, the cross lifting frame 37 is pulled back by the pillow lifting push rod 36, so that the cross lifting frame 37 descends, so as to achieve the purpose of putting down the pillow, when the pillow is too low, the cross lifting frame 37 is pushed out by the pillow lifting push rod 36, make alternately crane 37 rise to reach the purpose that rises the pillow, guarantee to use and experience, guarantee the rationality of going up and down, pillow elevating gear is equipped with two, and two pillow elevating gear are all installed in bed body frame 1 and are close to the one end of back backup pad 2, make it guarantee to satisfy the requirement of two different pillow heights on a bed.
Although the present invention has been described with reference to the above preferred embodiments, it should be understood that various changes, substitutions and alterations can be made herein without departing from the spirit and scope of the utility model as defined by the appended claims.
Claims (10)
1. The utility model provides a multi-functional intelligent bed of house, includes bed body frame, main elevating gear, vice elevating gear, pillow elevating gear and the appearance regulator of lying, its characterized in that: the lying posture regulator comprises a back support plate, a thigh support plate and a shank support plate, wherein the back support plate and the thigh support plate are both arranged on a bed body frame through a first rotating shaft, the shank support plate is connected with the thigh support plate through a second rotating shaft, a back plate push rod and a leg push rod are arranged in the bed body frame, the back plate push rod is connected with the back support plate through a back plate support rod, the back support plate can be driven by the back plate push rod to rotate along the first rotating shaft, the thigh support plate is connected with the leg push rod through a shank plate support rod, the thigh support plate can be driven by the leg push rod to rotate along the first rotating shaft, the shank support plate is arranged on the bed body frame through a shank plate support rod, the force borne by the shank support plate can be transferred to the bed body frame, a back slide rail and a leg slide rail are arranged in the bed body frame, a back support pulley matched with the back slide rail is arranged on the back support plate push rod through a third rotating shaft, the backplate bracing piece is rotatably installed in the third pivot, the shank support pulley that is used for using with the cooperation of shank slide rail is installed through the fourth pivot to the shank push rod, thigh board bracing piece is rotatably installed in the fourth pivot, backplate push rod and shank push rod all are connected with third pivot and fourth pivot respectively through the solid fixed ring cover, main elevating gear installs between thigh backup pad and back backup pad, vice elevating gear installs in main elevating gear, pillow elevating gear installs the one end that is close to the back backup pad at bed body frame.
2. The household multifunctional intelligent bed according to claim 1, characterized in that: the main lifting device comprises two crossed lifting supports and a main lifting push rod, the main lifting push rod is installed between a thigh supporting plate and a back supporting plate through a main supporting frame, the two crossed lifting supports are installed on the main lifting push rod through main sliding rods, the main sliding rods are connected with the main lifting push rod through limiting fixing rings, the two crossed lifting supports can be driven by the main lifting push rod to move up and down, and fixing supports are installed on the two crossed lifting supports.
3. The household multifunctional intelligent bed according to claim 2, characterized in that: the lower end of the fixed support is in contact with the support frame.
4. The household multifunctional intelligent bed according to claim 2, characterized in that: and main slide rails are arranged at two ends of the main support frame, and the main slide rails are arranged on the main slide rails through the matching of the main pulleys.
5. The household multifunctional intelligent bed according to claim 2, characterized in that: the auxiliary lifting device comprises a supporting plate, a driving motor and a crankshaft, wherein the driving motor is installed between the two crossed lifting supports through a motor supporting frame, the crankshaft is rotatably installed on the driving motor, and the supporting plate is connected with the crankshaft through a connecting rod, so that the driving motor can drive the supporting plate to move.
6. The household multifunctional intelligent bed according to claim 5, characterized in that: the bearing is installed to the junction of driving motor and bent axle, installs the bearing supporting seat that is used for supporting the bearing on the motor support frame.
7. The household multifunctional intelligent bed according to claim 5, characterized in that: the motor support frame is provided with a guide cylinder, and the support plate is connected with the guide cylinder through a guide column.
8. The household multifunctional intelligent bed according to claim 1, characterized in that: pillow elevating gear includes pillow lifting push rod, alternately crane and support bar, and pillow lifting push rod passes through the fix the support frame to be installed in the one end that bed body frame is close to the back backup pad, and alternately crane installs on bed body frame through the slide retractably, and the lower extreme of alternately crane is connected with pillow lifting push rod through vice slide bar, makes fix the support frame can carry out the elevating movement by pillow lifting push rod drive, and support bar fixed mounting is on alternately crane.
9. The household multifunctional intelligent bed according to claim 8, characterized in that: the two pillow lifting devices are arranged at one end of the bed body frame close to the back supporting plate.
10. The household multifunctional intelligent bed according to any one of claims 1, 2, 8 or 9, characterized in that: the back plate push rod, the leg push rod, the main lifting push rod and the pillow lifting push rod are all electric push rods.
