Abstract
本实用新型公开了一种一分四大功率适配器，属于适配器领域，一种一分四大功率适配器，包括适配器，适配器的上下两端均固定连接有外框，外框的内壁处固定安装有微型电机，微型电机的输出端固定连接有扇叶，外框内壁处靠近微型电机的一侧固定连接有第一弹簧，第一弹簧靠近适配器的一端固定连接有抵板，适配器对应抵板的一端安装有压敏开关，适配器的右端固定连接有保护壳，适配器靠近保护壳的一端固定连接有数据线，可以实现在对一分四大功率适配器使用时，当适配器产生的热量过大时，适配器周围温度过高，使得记忆合金弹簧伸展抵住压敏开关，从而使得微型电机通电带动扇叶转动进行散热，方便使用。
The utility model discloses a one-point four-power adapter, which belongs to the field of adapters. A one-point four-power adapter comprises an adapter. The upper and lower ends of the adapter are fixedly connected with an outer frame, and the inner wall of the outer frame is fixedly installed with an outer frame. Micro motor, the output end of the micro motor is fixedly connected with a fan blade, the side of the inner wall of the outer frame close to the micro motor is fixedly connected with a first spring, and one end of the first spring close to the adapter is fixedly connected with an abutting plate, and the adapter corresponds to one end of the abutting plate A pressure-sensitive switch is installed, the right end of the adapter is fixedly connected with a protective shell, and the end of the adapter close to the protective shell is fixedly connected with a data cable. The surrounding temperature is too high, so that the memory alloy spring stretches against the pressure-sensitive switch, so that the micro motor is energized to drive the fan blade to rotate for heat dissipation, which is convenient for use.
Description
Technical Field
The utility model relates to the field of adapters, in particular to a one-to-four high-power adapter.
Background
The one-to-four high-power adapter is a power supply conversion equipment for portable electronic equipment and electronic electric appliances, generally composed of a shell, a power transformer and a rectification circuit, and can be divided into an AC output type and a DC output type according to the output type, and can be divided into a wall-plugging type and a desktop type according to the connection mode, and can be widely matched with equipment such as a telephone master-slave machine, a game machine, a language repeater, a walkman, a notebook computer, a cellular phone and the like.
However, most of the one-to-four high-power adapters are not easy to dissipate heat in the using process, and the adapters are easy to damage and affect the use due to the poor heat dissipation effect after long-term use, so that the technology capable of improving the structure of the one-to-four high-power adapter is urgently needed to perfect the equipment.
SUMMERY OF THE UTILITY MODEL
1. Technical problem to be solved
The utility model aims to provide a one-to-four high-power adapter, which can realize that when the adapter is used for the one-to-four high-power adapter and heat generated by the adapter is excessive, the ambient temperature of the adapter is too high, so that a memory alloy spring is stretched to abut against a pressure sensitive switch, a micro motor is electrified to drive a fan blade to rotate for heat dissipation, and the use is convenient.
2. Technical scheme
In order to solve the above problems, the present invention adopts the following technical solutions.
A one-to-four high-power adapter comprises an adapter, wherein outer frames are fixedly connected to the upper end and the lower end of the adapter, a micro motor is fixedly mounted at the inner wall of each outer frame, fan blades are fixedly connected to the output end of the micro motor, a first spring is fixedly connected to one side, close to the micro motor, of the inner wall of each outer frame, a supporting plate is fixedly connected to one end, close to the adapter, of each first spring, a pressure-sensitive switch is mounted at one end, corresponding to the corresponding supporting plate, of the adapter, a protective shell is fixedly connected to the right end of the adapter, a data line is fixedly connected to one end, close to the protective shell, of the adapter, a coil spring is connected to the outer end of the data line in a gluing mode and is located inside the protective shell, a data connector is fixedly connected to the tail end of the data line, a slot is formed in the left end of the adapter, and a cover plate is rotatably connected to one end, close to the slot, of the adapter, the adapter is close to one side of slot and cuts there is the fixed slot, the apron corresponds a pair of branch of one end fixedly connected with of fixed slot, fixedly connected with second spring between branch and the branch, can realize when using four high-power adapters in one minute, when the heat that the adapter produced is too big, the adapter ambient temperature is too high for the memory alloy spring extends and supports pressure sensitive switch, thereby makes micro motor circular telegram drive flabellum rotate and dispel the heat, facilitates the use.
Furthermore, the frame is the grid shape, the material of frame is heat-resistant steel, through establishing the frame into the grid shape, can make the heat part that the adapter produced distribute away from the grid, and the material of frame is heat-resistant steel, is the alloy steel that has higher intensity and good chemical stability under high temperature, avoids the frame to damage because of the high temperature on every side.
Further, the material shape memory alloy of first spring, the material of second spring is the musical instrument steel wire, establishes shape memory alloy for the material through with first spring, can make first spring can stretch out and draw back along with the change of temperature by oneself, and when the heat that the adapter produced was too high, first spring can extend and drive and support the board and support pressure sensitive switch, labour saving and time saving, establishes the material through with the second spring into the musical instrument steel wire, can make the second spring have higher intensity limit and elasticity limit.
Further, the cross-sectional area of apron is greater than the cross-sectional area of slot, be equipped with sealed the pad between the outer wall of apron and slot, through establishing the cross-sectional area with the apron into the cross-sectional area that is greater than the slot, can make the apron can cover the slot, avoid the dust to get into, through setting up sealed the pad, strengthened the leakproofness between apron and the slot.
Further, the profile of branch strip is the arc, the material of branch strip is soft silica gel, rotates the apron, establishes to soft silica gel through the material with the branch strip, can make the inside that the drive branch strip that the apron can be smooth enters into the fixed slot, and the elastic construction that branch strip and second spring constitute makes the branch strip support the inner wall of fixed slot, is convenient for carry on spacing fixedly to the apron.
3. Advantageous effects
Compared with the prior art, the utility model has the advantages that:
(1) this scheme can realize when using one in four high-power adapters, when the heat that the adapter produced was too big, and adapter ambient temperature is too high for the memory alloy spring extends and supports pressure sensitive switch, thereby makes micro motor circular telegram drive the flabellum and rotates and dispel the heat, facilitates the use.
(2) The frame is the grid shape, and the material of frame is heat-resisting steel, through establishing the frame into the grid shape, can make the heat part that the adapter produced distribute away from the net, and the material of frame is heat-resisting steel, is an alloy steel that has higher intensity and good chemical stability under high temperature, avoids the frame to damage because of the high temperature on every side.
(3) The material shape memory alloy of first spring, the material of second spring are the musical instrument steel wire, establish shape memory alloy through the material with first spring, can make first spring can stretch out and draw back along with the change of temperature by oneself, when the heat that the adapter produced was too high, first spring can extend and drive and support the board and support pressure sensitive switch, labour saving and time saving, establish the material through with the second spring into the musical instrument steel wire, can make the second spring have higher intensity limit and elasticity limit.
(4) The cross-sectional area of apron is greater than the cross-sectional area of slot, is equipped with sealed the pad between the outer wall of apron and slot, establishes the cross-sectional area through the cross-sectional area with the apron into being greater than the cross-sectional area of slot, can make the apron can cover the slot, avoids the dust to get into, through setting up sealed the pad, has strengthened the leakproofness between apron and the slot.
(5) The profile of branch is the arc, and the material of branch is soft silica gel, rotates the apron, establishes to soft silica gel through the material with the branch, can make the inside that the drive branch that the apron can be smooth enters into the fixed slot, and the elastic construction that branch and second spring constitute makes the branch support the inner wall of fixed slot, is convenient for carry on spacing fixedly to the apron.
Drawings

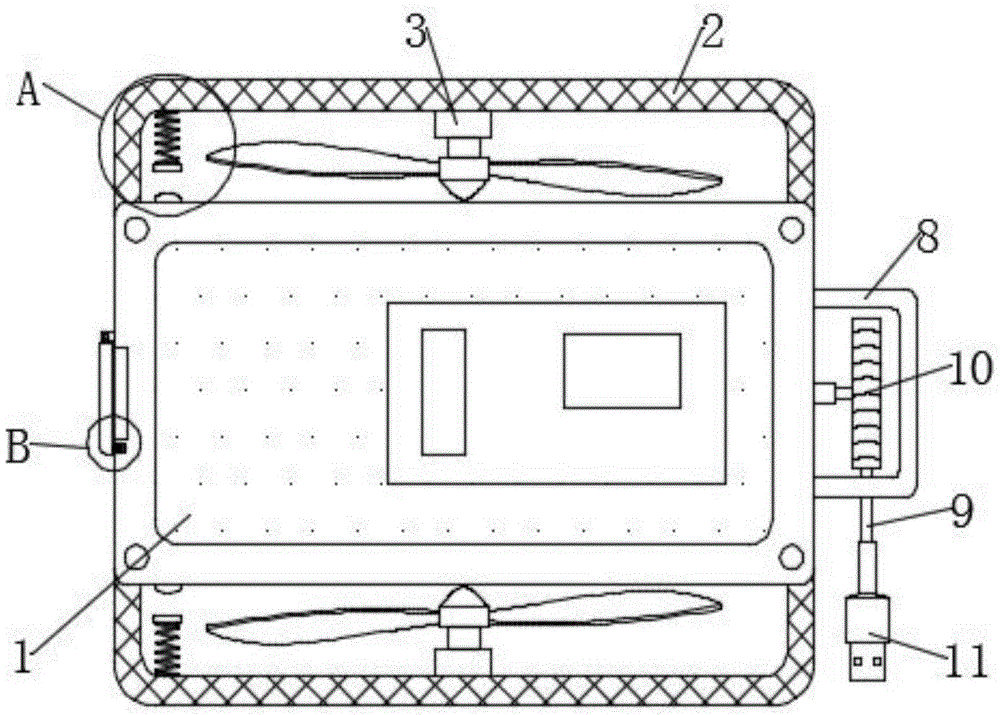

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged view of a portion of FIG. 1A;
FIG. 3 is an enlarged view of a portion B of FIG. 1 according to the present invention.
The reference numbers in the figures illustrate:
1. an adapter; 2. an outer frame; 3. a micro motor; 4. a fan blade; 5. a first spring; 6. a resisting plate; 7. a pressure sensitive switch; 8. a protective shell; 9. a data line; 10. a coil spring; 11. a data connector; 12. a slot; 13. a cover plate; 14. fixing grooves; 15. branch; 16. a second spring.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention; it is to be understood that the embodiments described are merely exemplary embodiments, rather than exemplary embodiments, and that all other embodiments may be devised by those skilled in the art without departing from the scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "top/bottom", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "fitted/connected", "connected", and the like, are to be interpreted broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Example (b):
referring to fig. 1-3, a one-to-four high-power adapter comprises an adapter 1, wherein the upper end and the lower end of the adapter 1 are fixedly connected with an outer frame 2, the inner wall of the outer frame 2 is fixedly provided with a micro motor 3, the output end of the micro motor 3 is fixedly connected with a fan blade 4, one side of the inner wall of the outer frame 2 close to the micro motor 3 is fixedly connected with a first spring 5, one end of the first spring 5 close to the adapter 1 is fixedly connected with a resisting plate 6, one end of the adapter 1 corresponding to the resisting plate 6 is provided with a pressure sensitive switch 7, the right end of the adapter 1 is fixedly connected with a protective shell 8, one end of the adapter 1 close to the protective shell 8 is fixedly connected with a data wire 9, the outer end of the data wire 9 is glued and connected with a coil spring 10, the coil spring 10 is positioned inside the protective shell 8, the tail end of the data wire 9 is fixedly connected with a data connector 11, the left end of the adapter 1 is provided with a slot 12, one end of the adapter 1 close to the slot 12 is rotatably connected with a cover plate 13, adapter 1 is close to one side of slot 12 and cuts open there is fixed slot 14, a pair of branch 15 of one end fixedly connected with that apron 13 corresponds fixed slot 14, fixedly connected with second spring 16 between branch 15 and the branch 15, can realize when using a four-in-one high-power adapter, when the heat that adapter 1 produced is too big, adapter 1 ambient temperature is too high, make the memory alloy spring extend and support pressure sensitive switch 7, thereby make micro motor 3 circular telegram drive flabellum 4 rotate and dispel the heat, facilitate the use.
Referring to fig. 1-2, the frame 2 is in the form of a grid, the frame 2 is made of heat-resistant steel, and by forming the frame 2 in the form of a grid, the heat generated by the adapter 1 is partially dissipated from the grid, the outer frame 2 is made of heat-resistant steel, and is alloy steel with high strength and good chemical stability at high temperature, the outer frame 2 is prevented from being damaged due to overhigh ambient temperature, the first spring 5 is made of shape memory alloy, the second spring 16 is made of piano steel wire, the first spring 5 is made of shape memory alloy, the first spring 5 can automatically extend and retract along with the change of temperature, when the heat generated by the adapter 1 is overhigh, the first spring 5 can extend and drive the abutting plate 6 to abut against the pressure-sensitive switch 7, thereby saving time and labor, the second spring 16 is made of piano wire, so that the second spring 16 has high strength limit and elastic limit.
Referring to fig. 1 and 3, the cross-sectional area of the cover plate 13 is greater than the cross-sectional area of the slot 12, a sealing gasket is disposed between the cover plate 13 and the outer wall of the slot 12, the cross-sectional area of the cover plate 13 is greater than the cross-sectional area of the slot 12, the cover plate 13 can cover the slot 12, dust is prevented from entering the slot, the sealing gasket is disposed to enhance the sealing performance between the cover plate 13 and the slot 12, the support 15 is arc-shaped, the support 15 is made of soft silica gel, the cover plate 13 is rotated, the support 15 is made of soft silica gel, the cover plate 13 can smoothly drive the support 15 to enter the inside of the fixing slot 14, and the elastic structure formed by the support 15 and the second spring 16 enables the support 15 to abut against the inner wall of the fixing slot 14, so as to limit and fix the cover plate 13.
In the utility model, when a related technician uses the device, the cover plate 13 is rotated, the support 15 is made of soft silica gel by setting the material of the support 15, the cover plate 13 can smoothly drive the support 15 to enter the inside of the fixed groove 14, the elastic structure formed by the support 15 and the second spring 16 enables the support 15 to abut against the inner wall of the fixed groove 14, the cover plate 13 is conveniently limited and fixed, dust is prevented from entering the inside of the slot 12 when the adapter 1 is not used, when the heat generated by the adapter 1 during use is too high, the temperature around the adapter 1 is too high, the first spring 5 is a shape memory alloy and can automatically stretch along with the change of the temperature, the first spring 5 can extend to abut against the pressure sensitive switch 7, so that the micro motor 3 is electrified to drive the fan blade 4 to rotate for heat dissipation, and when the data connector 11 is used, the data connector 11 is pulled, the data connector 11 drives the data wire 9 to be pulled out, when the data connector 11 is not used, the data wire 9 is wound back into the protective shell 8 through the coil spring 10, and the data wire 9 is convenient to store.
The foregoing is only a preferred embodiment of the present invention; the scope of the utility model is not limited thereto. Any person skilled in the art should be able to cover the technical scope of the present invention by equivalent or modified solutions and modifications within the technical scope of the present invention.
Claims (5)
1. A one-to-four high-power adapter comprises an adapter (1), and is characterized in that: the upper end and the lower end of the adapter (1) are fixedly connected with an outer frame (2), a micro motor (3) is fixedly mounted at the inner wall of the outer frame (2), a fan blade (4) is fixedly connected at the output end of the micro motor (3), a first spring (5) is fixedly connected at one side, close to the micro motor (3), of the inner wall of the outer frame (2), a supporting plate (6) is fixedly connected at one end, close to the adapter (1), of the first spring (5), a pressure-sensitive switch (7) is mounted at one end, corresponding to the supporting plate (6), of the adapter (1), a protective shell (8) is fixedly connected at the right end of the adapter (1), a data wire (9) is fixedly connected at one end, close to the protective shell (8), the outer end of the data wire (9) is connected with a coil spring (10) in a gluing mode, and the coil spring (10) is located inside the protective shell (8), terminal fixedly connected with data connector (11) of data line (9), the left end excavation of adapter (1) has slot (12), the one end rotation that adapter (1) is close to slot (12) is connected with apron (13), one side excavation that adapter (1) is close to slot (12) has fixed slot (14), a pair of brace (15) of one end fixedly connected with that apron (13) correspond fixed slot (14), fixedly connected with second spring (16) between brace (15) and brace (15).
2. A one-to-four high power adapter according to claim 1, wherein: the outer frame (2) is in a grid shape, and the outer frame (2) is made of heat-resistant steel.
3. A one-to-four high power adapter according to claim 1, wherein: the first spring (5) is made of shape memory alloy, and the second spring (16) is made of piano steel wires.
4. A one-to-four high power adapter according to claim 1, wherein: the cross-sectional area of apron (13) is greater than the cross-sectional area of slot (12), be equipped with sealed the pad between the outer wall of apron (13) and slot (12).
5. A one-to-four high power adapter according to claim 1, wherein: the profile of the branch strip (15) is arc-shaped, and the branch strip (15) is made of soft silica gel.
