Abstract

The utility model discloses an advertising page turning structure, comprising a fixed base, the top surface of the fixed base is respectively fixed with one end of a first column, a second column and a third column, the first column, the second column and the third column Three transparent display boards are arranged between the columns, two sides of the third column are respectively fixed to one end of a transparent display board, and the other ends of the two transparent display boards are respectively fixed to one side of the first column and the second column. The other side of the first column is hinged to one end of the third transparent display board, the other end of the transparent display board is fixed to one side of the magnetic sheet, and the magnetic piece contacts the magnet fixed to the other side of the second column; the third said The handle is fastened to the outside of the transparent display board. The device can display three different advertisements at the same time, and flip it inside the device to change the position of different advertisements, increase the freshness, strengthen the influence of advertisements on passers-by, and at the same time ensure that the advertisement posters will not be affected by the external environment and prolong its service life .

Description

An advertisement page flipping structure

technical field

The utility model relates to the technical field of billboards, in particular to an advertisement page turning structure.

Background technique

Advertising, as the name suggests, is to advertise, to inform the general public of something. Economic advertising refers to advertisements for the purpose of profit, usually commercial advertisements. It is a means of disseminating information of goods or services to consumers or users through advertising media in a paid manner for the purpose of promoting goods or providing services. Merchandise advertising is such economic advertising. The existing flat-type billboards have fewer pictures, less information on the displayed advertising signals, and no three-dimensional effect on the display surface. At the same time, the direction of the billboards is fixed, and the display range is limited, which greatly affects the publicity effect of the advertisements.

In this regard, the Chinese utility model with the authorization publication number CN209747085U provides a billboard that is easy to turn over, comprising a base, a groove is formed in the center of the top of the base, and a rotating motor is installed in the groove, and the rotating motor The output end is fixedly connected with a rotating shaft, the top of the rotating shaft is fixedly connected with a support plate, the top of the support plate is provided with a fixing slot, the top of the mounting plate is set with a limit slot 1, and a billboard is installed in the limit slot, so the The top of the column is provided with a fixed plate, the bottom of the fixed plate is provided with a limit slot that matches the column, the bottom of the fixed plate is provided with a second limit slot that matches the billboard, and the top of the billboard is located at the limit In the second slot, the utility model has a simple structure, and by rotating the motor to drive three groups of billboards, the amount of information displayed by the advertisements can be increased, so that customers can better understand the information content displayed by Guanggao, and the floor space is small, and the billboards are easy to install and disassemble , easy to replace advertising posters.

However, the device is easily damaged by impact during the rotation process, and the billboard needs to be specially made, which is rather troublesome. Therefore, we propose an advertising page flip structure to solve the above problems.

Utility model content

The purpose of the present invention is to provide an advertisement page turning structure, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: an advertising page turning structure, comprising a fixed base,

The top surface of the fixed base is respectively fixed to one end of the first column, the second column and the third column. There are three transparent display panels between the first column, the second column and the third column. The sides are respectively fixed to one end of a transparent display board, the other ends of the two transparent display boards are respectively fixed to one side of the first column and the second column, and the other side of the first column is hinged to one end of the third transparent display board, so the The other end of the transparent display board is fixed to one side of the magnetic sheet, and the magnetic sheet contacts the magnet fixed to the other side of the second column;

The third outer side of the transparent display board is fixedly connected to the handle, and the other ends of the first column, the second column and the third column are fixed to the rainproof ceiling;

The top surface of the fixed base is provided with a fixing groove, and the bottom end of the turning device is fixedly connected in the fixing groove, and the turning device is located directly under the rainproof ceiling;

The inner top surface of the fixing groove is connected to the lamp tube.

Preferably, the height of the transparent display panel is equal to the heights of the first, second and third uprights.

Preferably, the turning device includes three rotating gears, the bottom surfaces of the rotating gears are respectively fixed to connecting blocks, the connecting blocks are rotatably connected to the inner bottom surface of the fixing groove, and the inner bottom surface of the fixing groove is embedded with a servo motor, and the servo motor The driving end is fixedly connected to one of the connecting blocks, the rotating gears are connected to each other through a transmission chain, the top surface of the rotating gears is respectively fixed to one end of the fixed roller, the other end of the fixed roller is fixed to the limit block, the The fixed rollers are connected to each other through a display belt, and the outer side of the display belt is symmetrically fixed to one side of the female surface of the Velcro.

Preferably, the top surface of the fixed base is provided with a control button for controlling the switch of the lamp tube.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The device can display three different advertisements at the same time, and flip it inside the device to change the position of different advertisements, increase the freshness, strengthen the influence of advertisements on passers-by, and at the same time ensure that the advertisement posters will not be affected by the external environment. service life.

2. The equipment is simple in structure and easy to operate, which is convenient for operators to quickly replace the advertising posters to ensure the amount of advertising.

Description of drawings

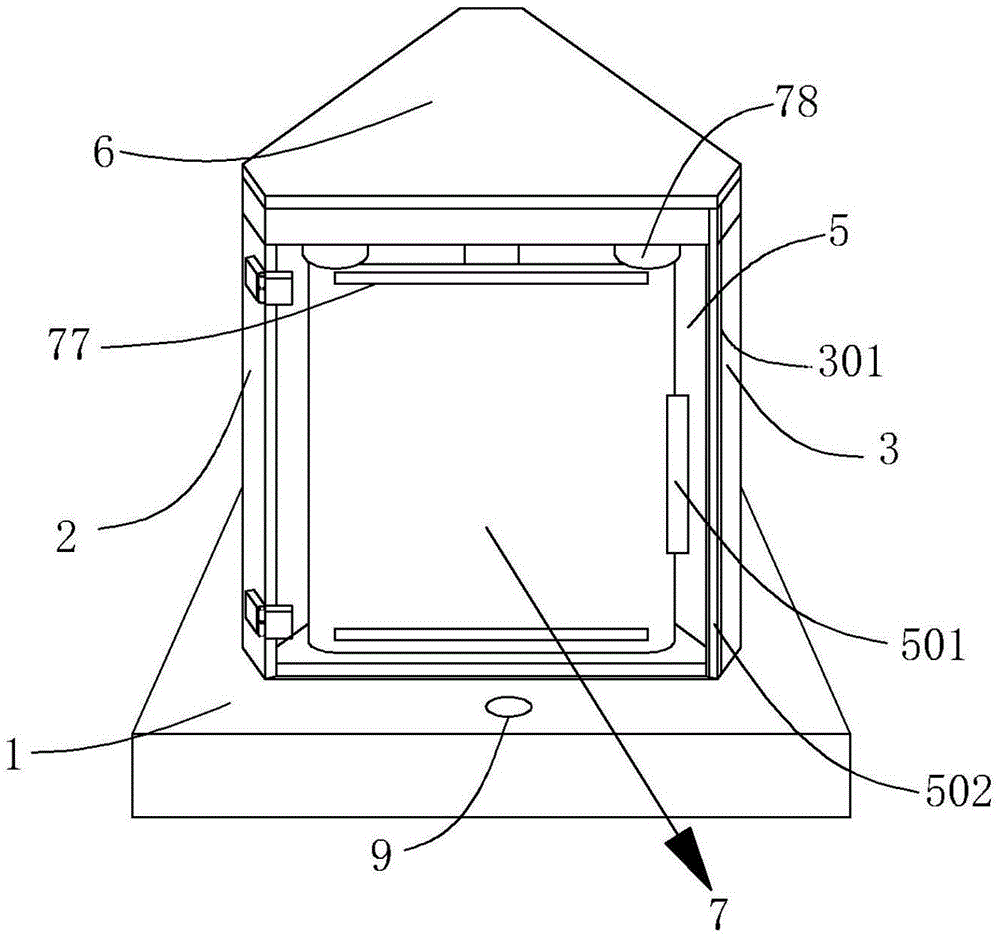

Fig. 1 is the structural representation of the utility model;

FIG. 2 is a schematic view of the vertical section structure of the utility model;

FIG. 3 is an enlarged structural schematic diagram of the structure at A in FIG. 2 of the present utility model.

In the figure: 1, fixed base; 101, fixed slot; 2, first column; 3, second column; 301, magnet; 4, third column; 5, transparent display board; 501, handle; 502, magnetic sheet; 6. Rainproof ceiling; 7. Turning device; 71. Rotating gear; 72. Connecting block; 73. Servo motor; 74. Fixed roller; 75. Transmission chain; 76. Display belt; 77. Velcro mother surface; 8 , lamp; 9, control button.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1 to FIG. 3 , the present utility model provides a technical solution: an advertising page flip structure, comprising a fixed base 1 ,

As shown in FIGS. 1 and 2 , the top surface of the fixed base 1 is respectively fixed to one end of the first column 2 , the second column 3 and the third column 4 . There are three transparent display boards 5, the two sides of the third column 4 are respectively fixed to one end of a transparent display board 5, and the other ends of the two transparent display boards 5 are respectively fixed to one side of the first column 2 and the second column 3. The first column 2 The other side is hinged to one end of the third transparent display board 5 , the other end of the transparent display board 5 is fixed to one side of the magnetic sheet 502 , and the magnetic sheet 502 contacts the magnet 301 fixed to the other side of the second column 3 ;

As shown in FIG. 1 , the handle 501 is fixedly connected to the outside of the third transparent display board 5 , and the other ends of the first column 2 , the second column 3 and the third column 4 are fixed to the rainproof ceiling 6 ;

Further, the height of the transparent display board 5 is equal to the height of the first column 2 , the second column 3 and the third column 4 .

As shown in FIG. 3 , the top surface of the fixed base 1 is provided with a fixing groove 101 , and the bottom end of the turning device 7 is fixedly connected to the fixing groove 101 , and the turning device 7 is located directly under the rainproof ceiling 6 ;

As shown in FIGS. 2 and 3 , the turning device 7 includes three rotating gears 71 . The bottom surfaces of the rotating gears 71 are respectively fixed to the connecting blocks 72 . The connecting blocks 72 are rotatably connected to the inner bottom surface of the fixing slot 101 , and the inner bottom surface of the fixing slot 101 is embedded with a servo motor. 73. The drive end of the servo motor 73 is fixedly connected to one of the connecting blocks 72, the rotating gears 71 are connected to each other through the transmission chain 75, the top surface of the rotating gear 71 is respectively fixed to one end of the fixed roller 74, and the other end of the fixed roller 74 is fixed to the limit The position block 78 and the fixed rollers 74 are connected to each other by a display belt 76 , and the outer side of the display belt 76 is symmetrically fixed to one side of the female Velcro surface 77 .

The servo motor 73 drives the connecting block 72 to rotate, so that one of the rotating gears 71 rotates, and drives the other two rotating gears 71 to rotate under the action of the transmission chain 75, so that the fixed roller 74 rotates and drives the display belt 76 to move. Panel 5 displays the placed advertisement.

As shown in FIG. 2 , the inner top surface of the fixing groove 101 is connected to the lamp tube 8 .

As shown in FIG. 1 , the top surface of the fixed base 1 is provided with a control button 9 for controlling the switch of the lamp 8 .

At night, the light tube 8 can be turned on through the control button 9 to increase the brightness inside the device, so as to ensure that pedestrians can see the advertisements placed at night when the light is poor.

Working principle: When the utility model is in use, it is opened through the handle 501 on one of the transparent display boards 5, and the Velcro surface is pasted on the back of the advertising poster and fixed with the Velcro mother surface 77 on the display belt 76. , the device can paste three different advertising posters at the same time, and then close the transparent display board 5, so that the magnetic sheet 502 contacts the magnet 301 and is fixed. When displaying, the servo motor 73 in the turning device 7 drives the connecting block 72 to rotate, so that one of the The rotating gear 71 rotates, and drives the other two rotating gears 71 to rotate under the action of the transmission chain 75, so that the fixed roller 74 rotates, which drives the display belt 76 to move, and displays the advertisements through the transparent display board 5; Button 9 turns on the light tube 8, which increases the brightness inside the device and ensures that pedestrians can see the advertisements placed at night when the light is poor.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (4)

1. The utility model provides an advertisement page flip structure, includes unable adjustment base (1), its characterized in that:

the top surface of the fixed base (1) is fixedly connected with one end of a first upright post (2), one end of a second upright post (3) and one end of a third upright post (4) respectively, three transparent display boards (5) are arranged between the first upright post (2), the second upright post (3) and the third upright post (4), two sides of the third upright post (4) are fixedly connected with one end of one transparent display board (5) respectively, the other ends of the two transparent display boards (5) are fixedly connected with one sides of the first upright post (2) and the second upright post (3) respectively, the other side of the first upright post (2) is hinged with one end of the third transparent display board (5), the other end of the transparent display board (5) is fixedly connected with one side of a magnetic sheet (502), and the magnetic sheet (502) is contacted with a magnet (301) fixedly connected with the other side of the second upright post (3);

a handle (501) is fixedly connected to the outer side of the third transparent display board (5), and the other ends of the first upright column (2), the second upright column (3) and the third upright column (4) are fixedly connected with a rainproof ceiling (6);

a fixing groove (101) is formed in the top surface of the fixing base (1), the bottom end of a turnover device (7) is fixedly connected into the fixing groove (101), and the turnover device (7) is located right below the rainproof ceiling (6);

the top surface in the fixed groove (101) is connected with the lamp tube (8).

2. An advertisement sheet turning structure according to claim 1, wherein: the height of the transparent display board (5) is equal to the height of the first upright post (2), the second upright post (3) and the third upright post (4).

3. An advertisement sheet turning structure according to claim 1, wherein: turning device (7) include three rotating gear (71), rotating gear (71) bottom surface rigid coupling connecting block (72) respectively, connecting block (72) rotate and connect bottom surface in fixed slot (101), bottom surface embedding installation servo motor (73) in fixed slot (101), servo motor (73) drive end rigid coupling one of them connecting block (72), interconnect through drive chain (75) between rotating gear (71), rotating gear (71) top surface rigid coupling fixed roller (74) one end respectively, fixed roller (74) other end rigid coupling stopper (78), interconnect through show area (76) between fixed roller (74), show area (76) outside symmetry rigid coupling magic subsides mother face (77) one side from top to bottom.

4. An advertisement sheet turning structure according to claim 1, wherein: and the top surface of the fixed base (1) is provided with a control button (9) for controlling the switch of the lamp tube (8).
