Abstract
The utility model discloses a track lamp guide rail, which comprises a guide rail base, a power-on guide rail, a conductive metal sheet, a power supply box and a plug; a lamp embedded groove is formed in the center of the guide rail base, side grooves are symmetrically formed in the inner sides of the lamp embedded groove, and a conductive metal embedded groove is formed in the electrified guide rail; the conductive metal sheet is arranged in the conductive metal embedded groove, and the power supply module is arranged in the power supply box. Compared with the prior art, the beneficial effects of the utility model are as follows: the power supply module is arranged in the power supply box, so that the power supply box becomes a power supply, the structure of the power supply box is simplified, the production cost is reduced, and the installation of the power supply box is simpler.
Description
Technical Field
The utility model relates to an accessory field of making especially relates to a track lamp guide rail.
Background
The existing guide rails for installing the track lamp are mostly split type guide rails, the track lamp guide rails are usually track strips with grooves embedded in an outer shell, conductive metal strips for conducting electricity are fixedly arranged on the grooves of the track strips and are in contact conduction with the conductive metal strips through metal contacts on a power supply box, a conduction circuit of the power supply box is separated from the guide rails, and the track lamp is multiple in structural accessories, complex in structure, multiple in production process and high in cost; meanwhile, the power box separated from the outside can deform due to factors such as vibration and the like, and the stability of an internal power-on circuit is influenced.
Disclosure of Invention
In view of the above-mentioned drawbacks, the present inventors have made active research and innovation to create a track light guide rail with a novel structure to solve or at least alleviate the above-mentioned problems
The utility model discloses a following technical scheme realizes above-mentioned purpose:
a track lamp guide rail comprises a guide rail base (1), an electrified guide rail (2), a conductive metal sheet (3), a power supply box (4) and a plug (5), wherein stepped flanges (12) are symmetrically arranged at one end of the power supply box (4), a power supply box embedded groove (11) is formed in the electrified guide rail (2), the power supply box (4) is in a strip shape, the size of the power supply box is matched with that of the power supply box embedded groove (11) in the electrified guide rail (2), and a power supply module is arranged in the power supply box; the power supply box (4) is connected with the power supply box embedded groove (11) in the electrified guide rail (2) in a plug-in mode through the stepped flange (12).
Further measures are as follows: a lamp embedded groove (6) is formed in the center of the guide rail base (1), side grooves (10) are formed in two sides of the lamp embedded groove (6), the electrified guide rails (2) are arranged in the side grooves (10) in two sides of the lamp embedded groove (6), the number of the electrified guide rails (2) is two, and two first conductive metal embedded grooves (7) are formed in one electrified guide rail; a second conductive metal embedded groove (13) is arranged on the other electrified guide rail; the conductive metal sheet (3) is respectively connected with the first conductive metal embedded groove (7) and the second conductive metal embedded groove (13)) on two sides of the electrified guide rail (2) in an inserting way.
Further measures are as follows: the electrified guide rail (2) is formed by injection molding of an insulating material and is integrally formed with the first conductive metal embedded groove (7), the second conductive metal embedded groove (13) and the power supply box embedded groove (11).
Further measures are as follows: the lamp embedded groove (6) and the guide rail base (1) are integrally formed.
Further measures are as follows: the side groove (10) and the lamp embedded groove (6) are integrally formed.
Further measures are as follows: the power supply box is characterized in that elastic electrified metal contacts (8) are arranged on two sides of one end, provided with a stepped flange (12), of the power supply box (4), a grounding metal contact (9) is arranged at the bottom of the power supply box (4), and the power supply box (4) is respectively electrically connected with conductive metal sheets (3) in a first conductive metal embedded groove (7) and a second conductive metal embedded groove (13) on the electrified guide rail (2) through the elastic electrified metal contacts (8) and the grounding metal contacts (9) on the two sides.
Further measures are as follows: and the plug (5) is made of plastic and is in screw connection with the guide rail base (1).
Further measures are as follows: the number of the conductive metal sheets is three.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the power module is arranged in the power box, so that the power box becomes a power supply, the structure of the power box is simplified, the production cost is reduced, and the installation of the power box is simpler.
2. Through inserting conductive metal piece after the conductive metal embedded groove fix in the circular telegram guide rail to the mode that inserts the circular telegram guide rail in the side groove of lamps and lanterns embedded groove both sides is installed the circular telegram guide rail in the guide rail base, makes the circular telegram guide rail become independent component, makes things convenient for the maintenance and the change in later stage.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

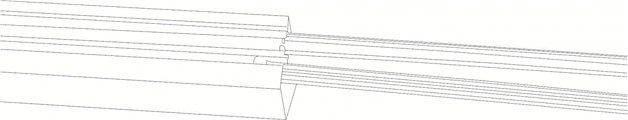

Fig. 1 is an overall structure diagram of a track lamp guide rail according to the present invention;
FIG. 2 is a schematic view of a base structure of a track lamp
FIG. 3 is a schematic view of the installation of the guide rail base and the plug;
FIG. 4 is a schematic view of an electrified rail configuration;

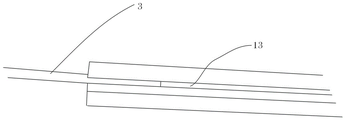

FIG. 5 is a schematic view of the conductive sheet metal and energized rail mounting;
FIG. 6 is a schematic view of the installation of the track lamp base and the energized guide tracks;
FIG. 7 is a schematic diagram of the external structure of the power supply box;
FIG. 8 is a schematic view of the bottom structure of the power box;
FIG. 9 is a schematic view of the power pack and electrified rail installation;
description of reference numerals: 1. a guide rail base; 2. a powered guide rail; 3. a conductive metal sheet; 4. a power supply box; 5. a plug; 6. the lamp is embedded into the groove; 7. a first conductive metal embedded groove; 8. an elastic energizing metal contact; 9. a ground metal contact; 10. a side groove; 11. the power supply box is embedded in the groove; 12. a stepped flange; 13 a second conductive metal embedded slot.
Detailed Description
The invention will be further described with reference to the following examples and drawings:
as shown in fig. 1 to 9, a track lamp guide rail comprises a guide rail base 1, two electrified guide rails 2, two conductive metal sheets 3, a power supply box 4 and a plug 5, wherein a lamp embedded groove 6 is formed in the center of the guide rail base 1, side grooves 10 are formed in two sides of the lamp embedded groove 6, the electrified guide rails 2 are arranged in the side grooves 10 in the two sides of the lamp embedded groove 6, the number of the electrified guide rails 2 is two, and two first conductive metal embedded grooves 7 are formed in one electrified guide rail; a second conductive metal embedded groove 13 is formed in the other electrified guide rail 2; the number of the conductive metal sheets 3 is three, the conductive metal sheets 3 are respectively in plug-in connection with a first conductive metal embedded groove 7 and a second conductive metal embedded groove 13 on the electrified guide rail 2, and a power supply box embedded groove 11 is arranged in the electrified guide rail 2; one end of the power box 4 is symmetrically provided with a stepped flange 12, the power box 4 is in a strip shape with the size matched with the power box embedding groove 11 in the electrified guide rail 2, and a power module is arranged in the power box 4; the power supply box 4 is connected with the power supply box embedded groove 11 in the electrified guide rail 2 in a plug-in manner through a stepped flange 12; the two sides of one end, provided with the stepped flange 12, of the power supply box 4 are respectively provided with an elastic electrifying metal contact 8, the bottom of the power supply box 4 is provided with a grounding metal contact 9, and the power supply box 4 is respectively and electrically connected with the conductive metal sheets 3 in the first conductive metal embedded groove 7 and the second conductive metal embedded groove 13 on the electrifying guide rail 2 through the elastic electrifying metal contacts 8 and the grounding metal contacts 9 on the two sides.
During assembly, three conductive metal sheets 3 are directly inserted into a first conductive metal embedded groove 7 and a second conductive metal embedded groove 13 in the electrified guide rail 2 respectively, then the electrified guide rail 2 is inserted into side grooves 10 on two sides of the lamp embedded groove 6, then a stepped flange 12 at one end of the power supply box 4 is inserted into a power supply box embedded groove 11 at a corresponding position of the electrified guide rail 2, then the plug 5 is fixed at the tail part of the guide rail base 1 by screws (as shown in figure 3), finally the lamp is directly inserted into the guide rail base, then the power supply is switched on, the power supply box 4 can be fully contacted with the conductive metal sheets 3 in the first conductive metal embedded groove 7 and the second conductive metal embedded groove 13 on the electrified guide rails 2 on two sides of the guide rail base 1 respectively through the elastic electrified metal contacts 8 and the grounding metal contacts 9 on two sides, and power supply is achieved for the product.
The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention.
Claims (8)
1. The utility model provides a track lamp guide rail, includes guide rail base (1), circular telegram guide rail (2), electrically conductive sheetmetal (3), power pack (4), end cap (5), wherein, the one end symmetry of power pack (4) is provided with ladder flange (12), is provided with power pack embedded groove (11), its characterized in that in circular telegram guide rail (2): the power supply box (4) is a strip-shaped power supply module, the size of the power supply box is matched with that of a power supply box embedded groove (11) in the electrified guide rail (2), and the power supply module is arranged in the power supply box; the power supply box (4) is connected with the power supply box embedded groove (11) in the electrified guide rail (2) in a plug-in mode through the stepped flange (12).
2. A track light guide according to claim 1, wherein: further comprising: a lamp embedded groove (6) is formed in the center of the guide rail base (1), side grooves (10) are formed in two sides of the lamp embedded groove (6), the electrified guide rails (2) are arranged in the side grooves (10) in the two sides of the lamp embedded groove (6), the number of the electrified guide rails (2) is two, and one of the electrified guide rails is provided with two first conductive metal embedded grooves (7) used for containing the conductive metal sheets (3); the other one is provided with a second conductive metal embedded groove (13) for accommodating the conductive metal sheet (3); the conductive metal sheet (3) is respectively connected with the first conductive metal embedded groove (7) and the second conductive metal embedded groove (13) on two sides of the electrified guide rail (2) in an inserting manner.
3. A track light guide according to claim 2, wherein: the electrified guide rail (2) is formed by injection molding of an insulating material and is integrally formed with the first conductive metal embedded groove (7), the second conductive metal embedded groove (13) and the power supply box embedded groove (11).
4. A track light guide according to claim 2, wherein: the lamp embedded groove (6) and the guide rail base (1) are integrally formed.
5. A track light guide according to claim 2, wherein: the side groove (10) and the lamp embedded groove (6) are integrally formed.
6. A track light guide according to claim 1, wherein: further comprising: the two sides of one end, provided with a stepped flange (12), of the power supply box (4) are respectively provided with an elastic electrifying metal contact (8), the bottom of the power supply box (4) is provided with a grounding metal contact (9), and the power supply box (4) is respectively and electrically connected with a first conductive metal embedded groove (7) and a conductive metal sheet (3) in a second conductive metal embedded groove (13) on the electrifying guide rail (2) through the elastic electrifying metal contacts (8) and the grounding metal contacts (9) on the two sides.
7. A track light guide according to claim 1, wherein: and the plug (5) is made of plastic and is in screw connection with the guide rail base (1).
8. A track light guide according to claim 1, wherein: the number of the conductive metal sheets is three.
