Abstract

The utility model provides a cable fixing frame for cable processing, which relates to the technical field of cable fixing frames. A screw is installed at the center of the surface. The utility model can realize the connection between the sleeve and the screw through the cooperation of the screw holes opened by the screw and the sleeve by arranging the support frame, the No. 1 turntable, the screw rod, the sleeve, the No. 2 turntable, the rotating shaft, the torsion spring and the clamping plate. function and the position adjustment function of the sleeve, through the cooperation of the No. 1 turntable and the No. 2 turntable, the fixed cable can be prevented from deviating. In this way, the fixing frame can fix and store the end of the cable to be processed, which effectively avoids the occurrence of winding at the end of the cable to be processed, thereby providing convenience for subsequent processing work.

Description

Cable mount for cable processing

Technical Field

The utility model relates to a cable mount technical field especially relates to a cable mount for cable processing.

Background

The utility model provides a cable fixing frame, be one kind in the cable course of working, carry out the practical device fixed to the cable, its usage is in order to provide convenient for the processing work of cable, in the in-service use of cable fixing frame, because the cable fixing frame is in the in-process of fixing the cable, often just fixes the one end of cable, and the other end of cable is owing to lack relevant fixed work, appears wire-wound condition easily, causes inconvenience to the subsequent processing work of cable, needs to improve.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a cable fixing frame for cable processing.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a cable mount for cable processing, includes the table, the upper surface of table is equipped with the support frame, the side surface of support frame is rotated and is connected with the carousel No. one, the side surface central point of carousel puts and is equipped with the screw rod, the surface cover of screw rod is equipped with the sleeve, No. two carousels are equipped with to telescopic one end, the side surface of No. two carousels is rotated and is connected with the pivot, splint are equipped with to the surface of pivot, the flange is equipped with to the one end of pivot, be equipped with the torsional spring between flange and No. two carousels, the surface at the pivot is established to the torsional spring cover.

In order to make the clamping face of splint perfect more, the utility model discloses an improvement has, the shape of splint is the arc, splint and sleeve laminate mutually.

In order to realize the position control function of slider, the utility model discloses an improvement has, the spout has been seted up to the upper surface of table, the inboard sliding connection of spout has the slider, the stopper is equipped with to the lower surface of slider, the upper surface of slider is equipped with the antiskid ribbed tile.

In order to fix the slip orbit of inserted bar, the utility model discloses an improvement has, the upper surface of antiskid ribbed tile is equipped with the support, the round hole has all been seted up to the both sides of support, the inboard sliding connection of round hole has the inserted bar.

In order to realize the clamping function of clamp plate, the utility model discloses an improvement has, the clamp plate is equipped with to the bottom of inserted bar, be equipped with the extension spring between clamp plate and the support, the handle is equipped with to the lower surface of clamp plate.

In order to realize telescopic position control function, the utility model discloses an improvement has, the screw has been seted up to telescopic one end, the screw rotates with the screw rod to be connected.

In order to realize the stable support function to the table, the utility model discloses an improvement has, an extension board is all equipped with to the lower surface both sides of table, the lower surface central point of table puts and is equipped with No. two extension boards, the shape of an extension board and No. two extension boards is the arc, the bottom plate is equipped with the bottom of No. two extension boards to an extension board, the slipmat is equipped with to the lower surface of bottom plate.

Compared with the prior art, the utility model has the advantages and positive effects that,

1. the utility model discloses, through having set up the support frame, a carousel, the screw rod, the sleeve, No. two carousels, the apparatus further comprises a rotating shaft, torsional spring and splint, can provide the stable support through the rotation of support frame for a carousel, the cooperation of screw is seted up through screw rod and sleeve, realize the connection function and the telescopic position control function of sleeve and screw rod, cooperation through a carousel and No. two carousels, avoid the condition of fixed cable off tracking to take place, through the pivot, the cooperation of torsional spring and splint, realize the fixed function to cable one end, through this kind of mode, make this mount can treat the one end of processing to the cable and fix and accomodate, avoided the cable to treat the one end of processing effectively and take place the wire-wound condition, and then provide convenient for subsequent processing work.

2. The utility model discloses, through having set up spout, slider, antiskid ribbed tile, support, inserted bar, extension spring and clamp plate, can be through the cooperation of spout, slider and antiskid ribbed tile, adjust around the position that makes the support can carry out, and then make the processing space of cable more nimble, the inserted bar is fixed to the slip orbit of clamp plate to the elasticity of cooperation extension spring realizes the centre gripping fixed function of clamp plate, and through this kind of mode, the processing work that makes the cable is more convenient, free.

Drawings

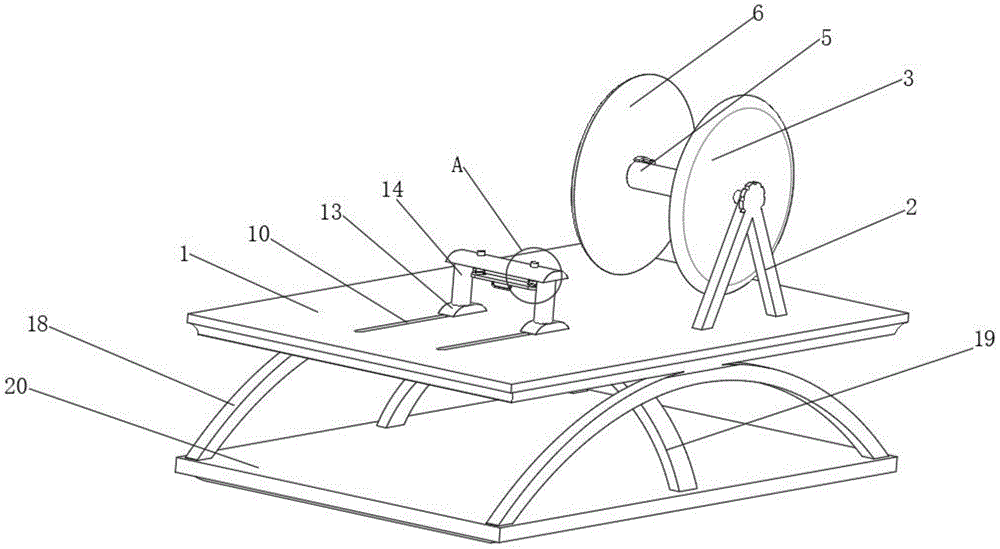

Fig. 1 is a schematic view of the entire components of a cable fixing frame for cable processing according to the present invention;

fig. 2 is a schematic side view angle explosion diagram of the cable fixing frame for cable processing according to the present invention;

fig. 3 is a schematic view of a bottom view of a cable holder for cable processing according to the present invention;

fig. 4 is an enlarged schematic view of a portion a of fig. 1 of the cable fixing frame for cable processing according to the present invention;

fig. 5 is the utility model provides a cable fixing frame for cable processing B of fig. 2 enlarges the schematic diagram.

Illustration of the drawings:

1. a table plate; 2. a support frame; 3. a first turntable; 4. a screw; 5. a sleeve; 6. a second turntable; 7. a rotating shaft; 8. a splint; 9. a torsion spring; 10. a chute; 11. a slider; 12. a limiting block; 13. an anti-skid plate; 14. a support; 15. inserting a rod; 16. pressing a plate; 17. a tension spring; 18. a first support plate; 19. a second support plate; 20. a base plate.

Detailed Description

In order to make the above objects, features and advantages of the present invention more clearly understood, the present invention will be further described with reference to the accompanying drawings and examples. It should be noted that the embodiments and features of the embodiments of the present application may be combined with each other without conflict.

In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, however, the present invention may be practiced in other ways than those specifically described herein, and therefore the present invention is not limited to the limitations of the specific embodiments of the present disclosure.

Example one

Referring to fig. 1, 2 and 5, the present invention provides a technical solution: a cable fixing frame for processing cables comprises a table plate 1, wherein a supporting frame 2 is arranged on the upper surface of the table plate 1, a first rotary table 3 is rotatably connected to the side surface of the supporting frame 2, stable support can be provided for the rotation of the first rotary table 3 through the supporting frame 2, a screw rod 4 is arranged at the center position of the side surface of the first rotary table 3, a sleeve 5 is sleeved on the outer surface of the screw rod 4, a screw hole is formed in one end of the sleeve 5 and is rotatably connected with the screw rod 4, the sleeve 5 and the screw rod 4 can be connected through the rotary connection of the screw rod 4 and the screw hole, the position adjusting function of the sleeve 5 is realized at the same time, a second rotary table 6 is arranged at one end of the sleeve 5, the second rotary table 6 moves along with the position adjustment of the sleeve 5, a rotating shaft 7 is rotatably connected to the side surface of the second rotary table 6, a clamping plate 8 is arranged on the outer surface of the rotating shaft 7, a convex plate is arranged at one end of the rotating shaft 7, and a torsion spring 9 is arranged between the convex plate and the second rotary table 6, elasticity through torsional spring 9 can be when 8 angles of splint change, drive 8 automatic reductions of splint, and realize splint 8's grip function through this kind of mode, splint 8's shape is the arc, splint 8 laminates with sleeve 5 mutually, the purpose of this kind of design is more perfect for making splint 8's clamping face, and then the realization treats to use the better fixed function of one end to the cable, the surface at pivot 7 is established to torsional spring 9 cover, the purpose of this kind of design is in order to avoid torsional spring 9 self condition emergence of warping in long-time use.

Example two

Referring to fig. 2 and 4, a sliding groove 10 is formed in an upper surface of a table board 1, a sliding block 11 is slidably connected to an inner side of the sliding groove 10, the design is to achieve a position adjusting function of the sliding block 11, a limiting block 12 is installed on a lower surface of the sliding block 11, an anti-slip plate 13 is installed on an upper surface of the sliding block 11, the sliding block 11 can slide more stably through cooperation of the limiting block 12 and the anti-slip plate 13, and the sliding block 11 is prevented from falling off from the sliding groove 10, a support 14 is installed on an upper surface of the anti-slip plate 13, circular holes are formed in two sides of the support 14, an insertion rod 15 is slidably connected to an inner side of the circular hole, the design is to achieve a fixing function of a sliding track of the insertion rod 15, a pressing plate 16 is installed at a bottom end of the insertion rod 15, the pressing plate 16 changes along with a position change of the insertion rod 15, a tension spring 17 is installed between the pressing plate 16 and the support 14, and the pressing plate 16 can be driven to move upwards through an elastic force of the tension spring 17, and then fix the one end that the cable was processed, the handle is equipped with to the lower surface of clamp plate 16, can provide convenient for the pulling of clamp plate 16 through the handle, makes the fixed work of this mount more convenient.

Referring to fig. 3, the first support plate 18 is arranged on each of two sides of the lower surface of the table 1, the second support plate 19 is arranged in the center of the lower surface of the table 1, the first support plate 18 and the second support plate 19 are both arc-shaped, the purpose of the design is to transmit pressure from the upper side of the table 1 to the bottom plate 20 through the arc-shaped arc surface, so that better pressure resistance of the first support plate 18 and the second support plate 19 is achieved, the bottom plate 20 is arranged at the bottom ends of the first support plate 18 and the second support plate 19, the contact area between the first support plate 18 and the second support plate 19 and the ground can be increased through the bottom plate 20, the placement of the tabletop is more stable, the non-slip mat is arranged on the lower surface of the bottom plate 20, and the non-slip function of the bottom plate 20 can be achieved through the non-slip mat.

The working principle is as follows: in the cable processing process, a better supporting effect can be provided for the table plate 1 through the arc-shaped structures of the first support plate 18 and the second support plate 19, before the processing work begins, firstly, the angle of the clamping plate 8 is adjusted through a mode of pressing the clamping plate 8, one end of the cable to be processed is placed between the clamping plate 8 and the sleeve 5, the clamping plate 8 is loosened, the clamping plate 8 is driven to return to the original position through the elasticity of the torsion spring 9, one end of the cable is fixed, the accommodating function of the end of the cable to be processed can be realized through rotating the first rotary plate 3 or the second rotary plate 6, when the length of the cable is too long and the volume is too large after the accommodating, the sleeve 5 can be driven to rotate through a mode of fixing the first rotary plate 3 and rotating the second rotary plate 6, the distance between the first rotary plate 3 and the second rotary plate 6 is adjusted along the thread track of the screw rod 4, when the processing work is carried out, only need stimulate clamp plate 16, place the one end of cable processing between clamp plate 16 and support 14, loosen clamp plate 16, can realize the fixed position function of cable processing one end to through the pulling support 14, drive slider 11 at the inside gliding mode of spout 10, adjust the processing position of this mount, make the processing work of this mount more convenient.

The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in other forms, and any person skilled in the art may use the above-mentioned technical contents to change or modify the equivalent embodiment into equivalent changes to be applied in other fields, but all those persons do not depart from the technical contents of the present invention, and any simple modification, equivalent change and modification made to the above embodiments according to the technical matters of the present invention still belong to the protection scope of the technical solution of the present invention.

Claims

1. A cable fixing frame for cable processing, comprising a table board (1), characterized in that: the upper surface of the table board (1) is provided with a support frame (2), and the side surface of the support frame (2) A No. 1 turntable (3) is rotatably connected, the center position of the side surface of the No. 1 turntable (3) is equipped with a screw (4), and the outer surface of the screw (4) is sleeved with a sleeve (5), and the sleeve (5) is sleeved. One end of the cylinder (5) is equipped with a No. 2 turntable (6), the side surface of the No. 2 turntable (6) is rotatably connected with a rotating shaft (7), and the outer surface of the rotating shaft (7) is equipped with a splint (8), One end of the rotating shaft (7) is equipped with a convex plate, and a torsion spring (9) is installed between the convex plate and the No. 2 turntable (6), and the torsion spring (9) is sleeved on the outside of the rotating shaft (7). surface.
