Abstract

The utility model discloses a turning device for brain surgery nursing. , each group of rotating parts is equipped with a rotating panel, and the other end of the rotating panel is placed on the fixed support plate; the surface of the rotating panel is provided with an airbag assembly, and the airbag assembly includes an upper sub-airbag and a lower sub-airbag, and the upper sub-airbag and the lower airbag are both Inflate and deflate independently through the inflation control device. The utility model lays the patient flat on the rotating panel by slowly deflating the air, which greatly reduces the energy consumption of the nursing staff when turning the patient over. The rotating panel rotates around the rotating axis, so that the turning angle can reach 180°, which is convenient for the nursing staff to clean various areas of the body for the patients after the operation, and help the patients to change the dressing and other operations.

Description

A turning device for brain surgery nursing

technical field

The utility model relates to the technical field of brain surgery nursing, in particular to a turning device used for brain surgery nursing.

Background technique

For some patients who need to stay in bed for a long time due to illness, lying flat for a long time will cause problems of long-term compression of local tissues, blood circulation disorders, ischemia and hypoxia and malnutrition. These problems will accumulate for a long time. Soft tissue is ulcerated or even necrotic, resulting in diseases such as pressure ulcers. Therefore, these patients need to turn over frequently to relieve the problem of prolonged pressure on the local area. However, because most bedridden patients cannot actively complete the operation of turning over, they need medical care. personnel to help the patient to complete the turning action; because such patients have a long recovery period and need to turn over frequently, two to three medical staff are required to complete the turning action each time they turn over, so a force-saving turning device is needed to help the medical staff. Personnel can easily and quickly complete the turning action, but the force-saving turning device in the prior art has the following disadvantages

1. The existing turning device usually requires force when lifting the patient, and also requires the nursing staff to exert force to stabilize the patient when the patient is put down;

2. The existing turning device has a small turning angle. For some patients with affected areas in multiple skin areas, these turning devices obstruct the sight of medical staff, so that it is impossible to observe some parts of the patient's skin and respond accordingly. operate.

Utility model content

The purpose of the utility model is to provide a force-saving turning device, so as to solve the problem that the turning angle of the turning device in the prior art is too small and the operator is laborious.

In order to solve the above-mentioned technical problems, the utility model specifically provides the following technical solutions:

A turning device for brain surgery nursing, comprising a bed board, fixed support plates are installed on both ends of the bed board, and two sets of rotating parts are installed on the bed board between the two fixed support boards, Each group of the rotating parts is provided with a rotating panel for the patient to lie down, and the other end of the rotating panel is placed on the fixed support plate;

An airbag assembly is arranged on the outer surface of the rotating panel, and the airbag assembly includes an upper sub-airbag and a lower sub-airbag with two inclined surfaces attached to each other, and the upper sub-airbag and the lower sub-airbag are independently inflated and Deflation.

As a preferred solution of the present invention, the rotating part includes a support frame arranged on the bed of the hospital bed, the upper end of the support frame is fixedly provided with a rotating shaft, and the other end of the rotating shaft is rotatably connected with the rotating panel.

As a preferred solution of the present invention, a pull-out support plate is provided inside the two rotating panels on the opposite side.

As a preferred solution of the present invention, a handle is fixedly arranged on a surface of each of the rotating panels on one side away from the pull-out support plate.

As a preferred solution of the present invention, the upper sub-airbag and the lower sub-airbag are movably connected by adhesive patches or mushroom hasps.

Compared with the prior art, the utility model has the following beneficial effects:

1. By setting up two sub-airbags that are independently inflated, the patient is flattened on the rotating panel by slowly deflating, which greatly reduces the energy consumption of the nursing staff when turning the patient over.

2. The utility model adopts the setting that the rotating panel rotates around the rotating shaft, so that the turning angle can reach 180°, which is convenient for the nursing staff to clean various areas of the body for the patients after the operation, and help the patients to change the dressings and other operations.

Description of drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that are required to be used in the description of the embodiments or the prior art. Obviously, the drawings in the following description are only exemplary, and for those of ordinary skill in the art, other implementation drawings can also be obtained according to the extension of the drawings provided without creative efforts.

Fig. 1 is the overall structure top view that the utility model provides;

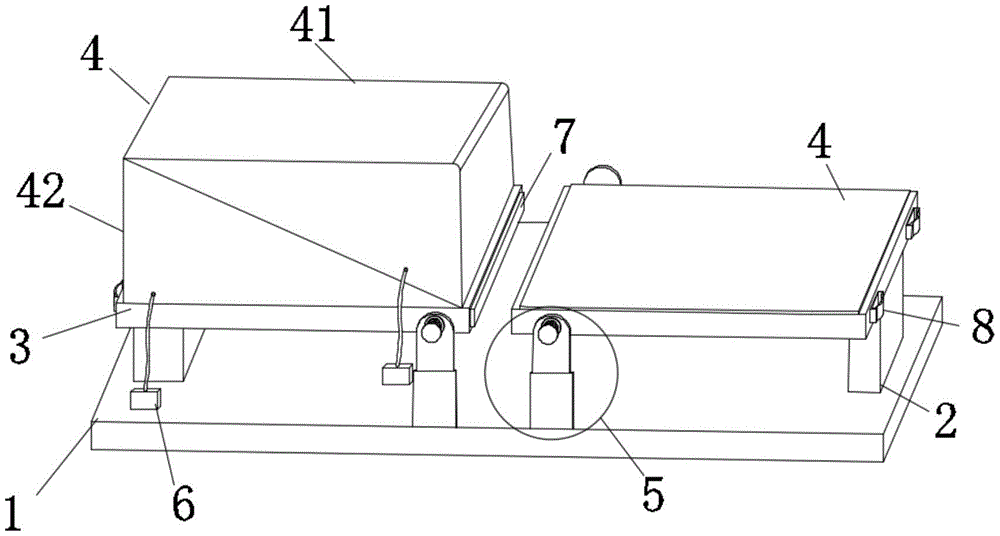

Fig. 2 is the structural schematic diagram of the force-saving turning device provided by the utility model;

FIG. 3 is a schematic structural diagram of a rotating part provided by the present invention.

The symbols in the figure are as follows:

1-bed board; 2-fixed support plate; 3-rotating panel; 4-airbag assembly; 5-rotating part; 6-inflatable control device; 7-pulling support plate; 8-handle;

41-upper sub-airbag; 42-lower sub-airbag; 51-support frame; 52-rotating shaft.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in FIG. 1 , a device for turning over for brain surgery care includes a bed board 1 , and fixed support boards 2 are installed at both ends of the bed board 1 , and are located on the bed board 1 between the two fixed support boards 2 . Two sets of rotating parts 5 are installed, each set of rotating parts 5 is equipped with a rotating panel 3 for the patient to lie down, and the other end of the rotating panel 3 is placed on the fixed support plate 2 .

The outer surface of the rotating panel 3 is provided with an airbag assembly 4 , and the airbag assembly 4 includes an upper sub-airbag 41 and a lower sub-airbag 42 whose two inclined surfaces are attached to each other. Fill and deflate.

It should be added that at the beginning of the treatment, the patient is directly transferred from the stretcher or the transfer vehicle to the rotating panel 3, and the patient undergoes treatment and training on the rotating panel 3. When the nursing care is required, the corresponding operation will be carried out. .

Therefore, the surface of the airbag assembly 4 on the rotating panel 3 is set as a soft surface made of soft rubber material, so as to improve the comfort of the patient.

The rotating part 5 includes a support frame 51 arranged on the bed of the hospital bed. The upper end of the support frame 51 is fixedly provided with a rotating shaft 52, and the other end of the rotating shaft 52 is rotatably connected with the rotating panel 3 so that the rotating panel 3 can rotate around The shaft 52 rotates; in addition, the inside of the two rotating panels 3 are provided with a pull-out support plate 7, and the surface of each rotating panel 3 away from the pull-out support plate 7 is fixedly provided with a handle 8 .

During use, the grip handle 8 is pulled upward to flip the rotating panel 3, and the patient lying on the rotating panel 3 will slide down and contact the extended pull-out support plate 7. At this time, this contact The point is used as a fulcrum to transfer the patient to the surface of the upper sub-airbag 41 on the other rotating panel 3 .

In this embodiment, when the patient is turned over and contacts the upper sub-airbag 41 that has been inflated, the upper sub-airbag 41 starts to deflate slowly, the patient is gradually descended to the lower sub-bag 42, and then the lower sub-bag 42 is slowly deflated again. The patient is placed on the rotating panel 3 smoothly, and the nursing staff can take care of the skin area that is not usually operated.

In the present embodiment, the concrete steps of turning over with force are as follows:

1. Fill the airbag assembly 4 on one of the rotating panels 3 without the patient lying down with gas, and pull out the pull-out support plate extension 7 on the rotating panel 3;

2. The nursing staff grabs the handle 8 on the rotating panel 3 where the patient is located, and turns the rotating panel 3 around the rotating shaft 52, so that one side of the patient's body is on the extended panel 7 that is pulled apart, and part of the body is connected to the upper sub-airbag 41. touch;

3. Release the gas inside the upper sub-airbag 41, and transfer the patient to the lower sub-airbag 42;

4. Slowly release the gas inside the lower sub-airbag 42, so that the patient can be placed on the rotating panel 3 smoothly, and the patient can be turned over;

5. When the nursing is over, if you want to put the patient back on the original rotating panel 3, repeat the operation according to the above steps.

The above embodiments are only exemplary embodiments of the present application, and are not intended to limit the present application. The protection scope of the present application is defined by the claims. Those skilled in the art can make various modifications or equivalent replacements to the present application within the spirit and protection scope of the present application, and such modifications or equivalent replacements should also be regarded as falling within the protection scope of the present application.

Claims (5)

1. A turn-over device for brain surgery nursing comprises a sickbed bed board (1) and is characterized in that fixed supporting boards (2) are mounted at two ends of the sickbed board (1), two groups of rotating parts (5) are mounted on the sickbed board (1) between the two fixed supporting boards (2), a rotating panel (3) for a patient to lie down is mounted on each group of rotating parts (5), and the other end of the rotating panel (3) is arranged on the fixed supporting board (2);

the outer surface of the rotating panel (3) is provided with an air bag assembly (4), the air bag assembly (4) comprises an upper sub air bag (41) and a lower sub air bag (42) which are mutually attached through two inclined planes, and the upper sub air bag (41) and the lower sub air bag (42) are respectively and independently inflated and deflated through an inflation control device (6).

2. A turn-over device for brain surgical care according to claim 1, wherein: the rotating part (5) comprises a support frame (51) arranged on the sickbed bed board, a rotating shaft (52) is fixedly arranged at the upper end of the support frame (51), and the other end of the rotating shaft (52) is rotatably connected with the rotating panel (3).

3. A turn-over device for brain surgical care according to claim 2, wherein: a pull type supporting plate (7) is arranged inside one opposite side of each of the two rotating panels (3).

4. A turn-over device for brain surgical care according to claim 3, wherein: and a handle (8) is fixedly arranged on the surface of one side, far away from the pull-out type supporting plate (7), of each rotating panel (3).

5. A turn-over device for brain surgical care according to claim 1, wherein: the upper sub-air bag (41) and the lower sub-air bag (42) are movably connected through adhesive patches or mushroom hasps.
