本实用新型公开了一种医用多功能床头柜，包括柜体、滑动架和托板，柜体水平放置在地面，柜体的一侧上设有固定架、转动挂架和两个活动限位销，滑动架设置在柜体的后侧，滑动架相对于柜体沿垂直方向移动，托板与滑动架连接，滑动架包括底板和两个对称的滑动组件，底板连接两个对称的滑动组件，两个对称的滑动组件包括滑套、滑块和移动限位销，滑块设在滑套内，托板与滑块连接，托板在滑动组件上沿垂直方向滑动，托板相对于滑动组件翻转至与柜体桌面平行。优点，采用了简单的滑动和转动结构，操作简单，使用方便。
The utility model discloses a medical multifunctional bedside cabinet, which comprises a cabinet body, a sliding frame and a support plate. The cabinet body is placed horizontally on the ground, and one side of the cabinet body is provided with a fixed frame, a rotating hanger and two movable limit pins , the sliding frame is arranged on the rear side of the cabinet body, the sliding frame moves in the vertical direction relative to the cabinet body, the support plate is connected with the sliding frame, the sliding frame includes a bottom plate and two symmetrical sliding components, and the bottom plate is connected with two symmetrical sliding components, The two symmetrical sliding assemblies include a sliding sleeve, a sliding block and a moving limit pin. The sliding block is arranged in the sliding sleeve, and the supporting plate is connected with the sliding block. The supporting plate slides along the vertical direction on the sliding assembly, and the supporting plate is relative to the sliding assembly Flip over to be parallel to the table top of the cabinet. The advantages are that a simple sliding and rotating structure is adopted, the operation is simple and the use is convenient.
Description
Technical Field
The utility model relates to a medical bedside cabinet, in particular to a medical multifunctional bedside cabinet.
Background
In the ward of hospital, a sick bed can be equipped with a bedside cupboard usually, the bedside cupboard is used for placing patient's articles for use, other article such as patient's drinking cup, paper extraction or lunch-box are placed mostly to the desktop of bedside cupboard, some patients need to use the monitor to monitor, the monitor is placed and has taken very big position on the desktop of bedside cupboard, lead to on other article of patient can not put the desktop of bedside cupboard, the space of putting of current medical bedside cupboard is limited, need increase the space of putting of current bedside cupboard, make things convenient for patient's use.
SUMMERY OF THE UTILITY MODEL
Aiming at the technical problem, a medical multifunctional bedside cabinet is provided; the method is realized by the following technical scheme: a medical multifunctional bedside cabinet comprises a cabinet body, a sliding frame and a supporting plate, wherein the cabinet body is horizontally placed on the ground, one side of the cabinet body is provided with a fixed frame, a rotating hanging frame and two movable limiting pins, the sliding frame is arranged at the rear side of the cabinet body, the sliding frame moves along the vertical direction relative to the cabinet body, the supporting plate is connected with the sliding frame, the sliding frame comprises a bottom plate and two symmetrical sliding assemblies, the bottom plate is connected with the two symmetrical sliding assemblies, the two symmetrical sliding assemblies comprise sliding sleeves, slider and removal spacer pin, the slider is established in the sliding sleeve, and the layer board is connected with the slider, and the layer board slides along the vertical direction on the slip subassembly, and the layer board overturns to being parallel with cabinet body desktop for the slip subassembly, and the both sides of layer board are equipped with the bracing piece of symmetry, and the layer board includes plate body, connecting axle and handle, and connecting axle and handle setting are on the plate body, offer on the plate body and separate the basin and put the thing groove, put the thing inslot and be provided with clamping component.
According to the medical multifunctional bedside table, the sliding frame is arranged on the rear side of the table body, the sliding frame and the supporting plate slide in a matched mode, the bedside table is pulled out when in use and is stored when not in use, the clamping assembly is additionally arranged on the supporting plate, objects placed in the storage groove are clamped, the bedside table is prevented from toppling over, furthermore, the simple sliding and rotating structure is adopted, the operation is simple, the use space is increased, and the bedside table is convenient to use.
According to the technical scheme, the cabinet body comprises a first cabinet body, a second cabinet body, a first drawer, a second drawer, a left cabinet door, a right cabinet door, a rotating plate and a garbage can, wherein the first cabinet body is horizontally placed on the ground, the second cabinet body is arranged on the rear side of the first cabinet body, the second cabinet body is connected with the first cabinet body, a first groove, a second groove, a third groove and a fourth groove are formed in the front side of the first cabinet body along the horizontal direction, a partition plate is arranged in the fourth groove, and the partition plate divides the fourth groove into two parts; a fifth groove and a sixth groove are formed in the left side of the first cabinet body, four support legs are arranged at the bottom of the first cabinet body and are uniformly distributed on the bottom surface of the first cabinet body, and the four support legs are horizontally placed on the ground; the first drawer is arranged in the first groove, the second drawer is arranged in the second groove, the left cabinet door is arranged at the third groove, one side of the left cabinet door is rotatably connected with the first cabinet body, the right cabinet door is arranged at the fourth groove, one side of the right cabinet door is rotatably connected with the first cabinet body, the rotating plate and the garbage can are arranged at the sixth groove, and the upper end of the rotating plate is rotatably connected with the sixth groove; the sliding groove is formed in the top surface of the second cabinet body in the vertical direction, the sliding frame is arranged in the sliding groove, symmetrical first holes are formed in the upper end of the second cabinet body, and the two movable limiting pins are correspondingly arranged in the symmetrical first holes.
According to the technical scheme, each of the two movable limiting pins comprises a first sleeve, a limiting pin, a first spring, a limiting plate, a limiting ring and two limiting rings; the first sleeve is arranged in the first hole, the first sleeve is connected with the first hole, the first spring is arranged in the first sleeve, the two limiting rings are arranged at two ends of the first sleeve, the limiting ring is arranged in the first sleeve, one end of the first spring is connected with the limiting ring, the other end of the first spring is connected with the limiting ring, the limiting pin penetrates into the first spring, the limiting pin is connected with the limiting ring, one end of the limiting pin is a plane, the other end of the limiting pin is an arc surface, and the limiting plate is arranged at the plane end of the limiting pin.
According to the technical scheme, two symmetrical sliding assemblies are arranged at two ends of a bottom plate and are connected with the bottom plate, a sliding block is arranged in a sliding sleeve and slides along the vertical direction relative to the sliding sleeve, a movable limiting pin is arranged on the sliding block, a second hole is formed in the lower end of the sliding sleeve and corresponds to two movable limiting pins, a third hole is formed in the upper end of the sliding sleeve and penetrates through the sliding sleeve, a clamping groove is formed in one side of the sliding sleeve, a fourth hole is formed in the sliding block and is connected with a supporting plate, a bearing is arranged in the fourth hole, a fifth hole is formed in the sliding block and is positioned below the fourth hole, the central line of the fifth hole is vertical, the movable limiting pin is arranged in the fifth hole and corresponds to the third hole in the sliding sleeve; the movable limiting pin comprises a second sleeve, two cylindrical pins, a second spring, two check rings and two baffle pieces, the second spring is arranged in the second sleeve, the two baffle pieces are arranged at two ends of the second spring, the two cylindrical pins are respectively connected with the two baffle pieces, one ends of the two cylindrical pins are planes, the other ends of the two cylindrical pins are cambered surfaces, and the two check rings respectively penetrate through the two cylindrical pins to be connected with the second sleeve.
According to the technical scheme, the object placing grooves comprise a first object placing groove and a plurality of second object placing grooves, three first sliding grooves are formed in the first object placing groove and are uniformly distributed along the circumferential direction, three first sliding grooves are formed in the plurality of second object placing grooves and are uniformly distributed along the circumferential direction, the number of clamping assemblies is equal to that of the first sliding grooves, the cross sections of the first sliding grooves are inverted T-shaped, and the clamping assemblies are arranged in the first sliding grooves; the water separating groove is provided with a through hole, the through hole is provided with a sealing plug, the connecting shaft is arranged at one end of the plate body and is positioned at two sides of the plate body, the connecting shaft is connected with a fourth hole on the sliding block, so that the supporting plate is connected with the sliding block in a rotating mode, the handle is arranged at the other end of the plate body, symmetrical connecting pins are arranged at positions, close to the connecting shaft, of two sides of the plate body, the connecting pins are connected with the supporting rod, one end of the supporting rod is provided with the through hole corresponding to the connecting pins, and the other end of the supporting rod corresponds to the clamping groove.
According to the technical scheme, the clamping assembly comprises a half-arc piece, a sliding plate, a third spring and a center pin, the sliding plate is inverted-T-shaped, a through hole is formed in the sliding plate, the sliding plate is arranged in a first sliding groove in a sliding mode and is sleeved on the center pin, the third spring is arranged on one side of the sliding plate, the half-arc piece is arranged at one end of the sliding plate, the third spring is arranged at the other end of the sliding plate, two ends of the center pin are respectively connected with two ends of the first sliding groove, and anti-skidding materials are arranged on the surface of the half-arc piece.
According to the technical scheme, the fixing frame is arranged on the left side of the first cabinet body, one end of the fixing frame is a cylinder and is connected with the first cabinet body, and the other end of the fixing frame is in a semi-arc shape; the rotary hanging rack is arranged in a fifth groove of the first cabinet body and is rotatably connected with the fifth groove, and the rotary hanging rack is in a U shape.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the technical scheme, the sliding frame is arranged on the rear side of the cabinet body, the sliding frame and the supporting plate slide in a matched mode, the sliding frame is pulled out when in use and is stored when not in use, and the clamping assembly is additionally arranged on the supporting plate and is used for clamping articles placed in the storage groove to prevent the articles from toppling.
2. According to the technical scheme, the simple sliding and rotating structure is adopted, the operation is simple, the use space is increased, and the use is convenient.
Drawings

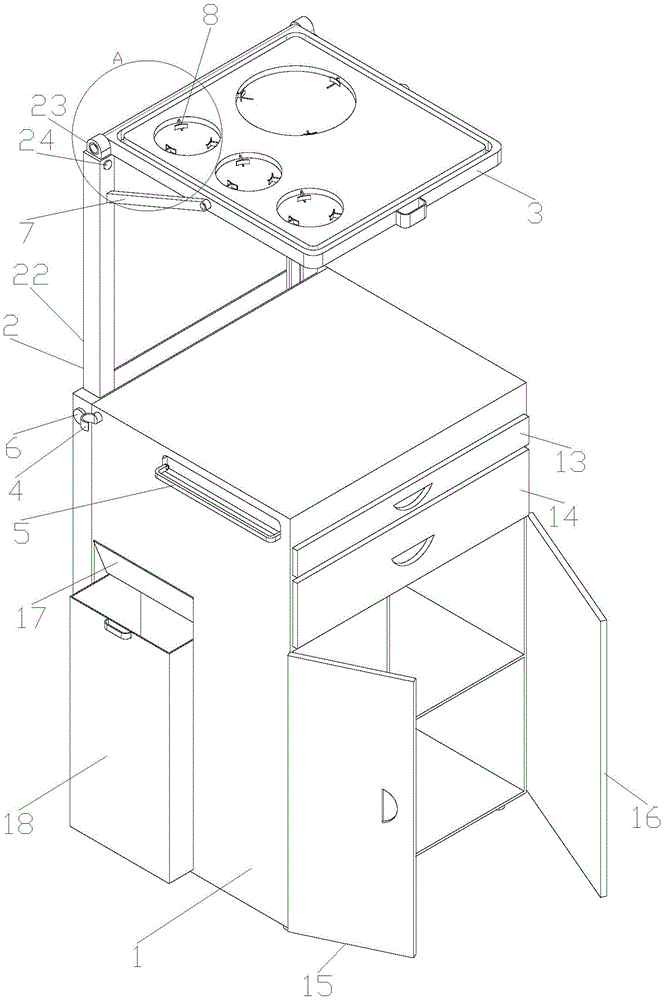

Fig. 1 is a top left isometric view of the bedside table.
Fig. 2 is a partially enlarged view of a in fig. 1.
Fig. 3 is a lower left isometric view of the bedside table.
Fig. 4 is an upper left isometric view of the cabinet.
Fig. 5 is an axial cross-sectional view of the movable stopper pin.
Fig. 6 is a rear isometric view of the mobile frame and pallet.
Fig. 7 is a front isometric view of the mobile frame and pallet.
Fig. 8 is a schematic view of a pallet within a mobile frame.
FIG. 9 is an isometric view of the slide.
FIG. 10 is an isometric view of the clamping assembly.
FIG. 11 is an axial cross-sectional view of the movable restraint pin.
Fig. 12 is an isometric view of the bedside table when not in use.
Detailed Description
The technical solutions in the embodiments of the present invention will be described in detail below with reference to fig. 1 to 12 in the embodiments of the present invention.
It is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by those skilled in the art without any inventive work are within the scope of the present invention based on the embodiments of the present invention. In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; the two elements can be directly connected or indirectly connected through an intermediate medium, and the two elements can be communicated with each other, so that the specific meaning of the terms in the utility model can be understood by those skilled in the art.
Example 1
As shown in fig. 1, a medical multifunctional bedside table comprises a cabinet body 1, a sliding frame 2 and a supporting plate 3, wherein the cabinet body 1 is horizontally placed on the ground, one side of the cabinet body 1 is provided with a fixed frame 4, a rotating hanging frame 5 and two movable limiting pins 6, the sliding frame 2 is arranged on the rear side of the cabinet body 1, the sliding frame 2 moves along the vertical direction relative to the cabinet body 1, and the supporting plate 3 is rotationally connected with the sliding frame 2.
As shown in fig. 1, 3 and 6, the sliding rack 2 includes a bottom plate 21 and two symmetrical sliding assemblies, the bottom plate 21 connects the two symmetrical sliding assemblies, the two symmetrical sliding assemblies include a sliding sleeve 22, a sliding block 23 and a movable limit pin 24, the sliding block 23 is disposed in the sliding sleeve 22, the supporting plate 3 is rotatably connected with the sliding block 23, the supporting plate 3 slides on the sliding assemblies in the vertical direction, the supporting plate 3 is turned over to be parallel to the tabletop of the cabinet 1 relative to the sliding assemblies, symmetrical support rods 7 are disposed on two sides of the supporting plate 3, the support rods 7 are rotatably connected with the supporting plate 3, the supporting plate 3 includes a plate body 31, a connecting shaft 32 and a handle 33, the connecting shaft 32 and the handle 33 are disposed on the plate body 31, a water separation groove 34 and a storage groove are disposed on the plate body 31, and a clamping assembly 8 is disposed in the storage groove.
As shown in fig. 1, 2, 3 and 4, the cabinet body 1 includes a first cabinet body 11, a second cabinet body 12, a first drawer 13, a second drawer 14, a left cabinet door 15, a right cabinet door 16, a rotating plate 17 and a garbage can 18, the first cabinet body 11 is horizontally placed on the ground, the second cabinet body 12 is arranged at the rear side of the first cabinet body 11, the second cabinet body 12 is connected with the first cabinet body 11, a first groove 111, a second groove 112, a third groove 113 and a fourth groove 114 are arranged at the front side of the first cabinet body 11 along the horizontal direction, a partition plate 118 is arranged in the fourth groove 114, and the partition plate 118 divides the fourth groove 114 into two parts; the left side of the first cabinet body 11 is provided with a fifth groove 115 and a sixth groove 116, the bottom of the first cabinet body 11 is provided with four support legs 117, the four support legs 117 are uniformly distributed on the bottom surface of the first cabinet body 11, and the four support legs 117 are horizontally placed on the ground.
As shown in fig. 1 and 4, the first drawer 13 is arranged in the first groove 111, the second drawer 14 is arranged in the second groove 112, the left cabinet door 15 is arranged at the third groove 113, one side of the left cabinet door 15 is rotatably connected with the first cabinet body 11, the right cabinet door 16 is arranged at the fourth groove 114, one side of the right cabinet door 16 is rotatably connected with the first cabinet body 11, the rotating plate 17 and the garbage bin 18 are arranged at the sixth groove 116, and the upper end of the rotating plate 17 is rotatably connected with the sixth groove 116; the top surface of the second cabinet body 12 is provided with a sliding groove 12a along the vertical direction, the sliding frame 2 is arranged in the sliding groove 12a, the upper end of the second cabinet body 12 is provided with symmetrical first holes 12b, and the two movable limit pins 6 are correspondingly arranged in the symmetrical first holes 12 b.
The first drawer 13 and the second drawer 14 are connected in a known drawing mode, the left cabinet door 15 and the right cabinet door 16 are connected in a known rotating mode, the rotating plate 17 is connected in a known rotating mode, the garbage can 18 is made of medical hard plastic, and the garbage can 18 is directly placed in the sixth groove 116.
During the use, promote rotor plate 17, rotor plate 17 can rotate for the cabinet body 1, throws into the garbage bin with its rubbish, and after having done rubbish, rotor plate 17 oneself resumes the state parallel with the cabinet body 1, and article are isolated in 18 to the garbage bin, reduce volatilizing and bacterial growing between article and air.
As shown in fig. 5, each of the two movable stopper pins 6 includes a first sleeve 61, a stopper pin 62, a first spring 63, a stopper plate 64, a stopper ring 66, and two stopper rings 65; first sleeve 61 is established in first hole 12b, first sleeve 61 is connected with first hole 12b, first spring 63 sets up in first sleeve 61, two spacing rings 65 are established at the both ends of first sleeve 61, spacing ring 66 is established in first sleeve 61, first spring 63 one end is connected with spacing ring 65, the first spring 63 other end is connected with spacing ring 66, spacer pin 62 penetrates in first spring 63, spacer pin 62 is connected with spacing ring 66, spacer pin 62 one end is the plane, the other end is the arc surface, limiting plate 64 is established at spacer pin 62 plane end.
Two activity spacer pins 6 adopt the metal material, first sleeve 61 and first hole 12b welded connection, the one end of first spring 63 and the welded fastening of spacing collar 66 one end earlier, and then spacing collar 66 and spacer pin 62 welded fastening are emboliaed first sleeve 6 with it, with two spacing rings 65 respectively with first sleeve 61 both ends welded fastening, one of them spacing ring 65 and the other end welded fastening of first spring 63, limiting plate 64 and 62 plane end welded fastening of spacer pin, the arc surface of spacer pin 62 has fine smooth transition effect.
During the use, pulling limiting plate 64, driving the spacer pin 62 and removing, first spring 63 is under the effect of spacing collar 66, and the atress warp, accomplishes the removal of a spacer pin 62 along the horizontal direction, when getting rid of the power on the limiting plate 64, according to the characteristic of spring, spacer pin 62 resumes the normal position.
As shown in the figures 6 and 7, the figure, 8 and 9, two symmetrical sliding assemblies are arranged at two ends of the bottom plate 21, the two symmetrical sliding assemblies are connected with the bottom plate 21, the sliding block 23 is arranged in the sliding sleeve 22, the sliding block 23 slides along the vertical direction relative to the sliding sleeve 22, the movable limiting pin 24 is arranged on the sliding block 23, the lower end of the sliding sleeve 22 is provided with a second hole 22a, the second hole 22a corresponds to the two movable limiting pins 6, the upper end of the sliding sleeve 22 is provided with a third hole 22b, the third hole 22b penetrates through the sliding sleeve 22, one side of the sliding sleeve 22 is provided with a clamping groove 22c, the sliding block 23 is provided with a fourth hole 23a, the fourth hole 23a is connected with the supporting plate 3, a bearing is arranged in the fourth hole 23a, the sliding block 23 is provided with a fifth hole 23b, the fifth hole 23b is positioned below the fourth hole 23a, the central line of the fifth hole is vertical, the movable limiting pin 24 is arranged in the fifth hole 23b, and the movable limiting pin 24 corresponds to the third hole 22b on the sliding sleeve 22.
The bottom plate 21 and the two symmetrical sliding assemblies are made of metal materials, the sliding sleeve 22 and the bottom plate 21 are fixedly welded, the sliding sleeve 22 is a C-shaped groove with a shank edge, the sliding block 23 is sleeved in the sliding sleeve 22 and slides in the vertical direction, the sliding sleeve 22 and the bottom plate 21 slide in the sliding groove 12a, the upper end of the sliding block 23 is an arc surface, and the arc surface can prevent the sliding block 23 from being damaged when being touched.
When the sliding sleeve 22 slides upwards and slides to the positions of the two movable limiting pins 6, the limiting pins 62 of the two movable limiting pins 6 are inserted into the second holes 22a in the sliding sleeve 22, the two movable limiting pins 6 limit the sliding sleeve 22, when the limiting plates 64 of the two movable limiting pins 6 are pulled, the limiting pins 62 are separated from the second holes 22a in the sliding sleeve 22, and the sliding sleeve 22 slides downwards to the original position.
As shown in fig. 11, the movable stopper pin 24 includes a second sleeve 241, two cylindrical pins 242, a second spring 243, two retaining rings 244 and two retaining pieces 245, the second spring 243 is disposed in the second sleeve 241, the two retaining pieces 245 are disposed at two ends of the second spring 243, the two cylindrical pins 242 are respectively connected with the two retaining pieces 245, one end of each of the two cylindrical pins 242 is a plane, the other end of each of the two cylindrical pins 242 is an arc surface, and the two retaining rings 244 respectively pass through the two cylindrical pins 242 and are connected with the second sleeve 241.
The movable limiting pin 24 is made of metal, the third hole 22b of the second sleeve 241 is welded and fixed, two blocking pieces 245 are welded at two ends of the second spring 243, the two cylindrical pins 242 are respectively welded and fixed with the two blocking pieces 245 and are installed in the second sleeve 241, the two retaining rings 244 are welded and fixed with two ends of the second sleeve 241, and the arc surfaces of the two cylindrical pins 242 have the effect of smooth transition.
When the sliding block 23 is in the sliding sleeve 22, the two cylindrical pins 242 are stressed to press the second spring 243, the two cylindrical pins 242 are located in the second sleeve 241, when the sliding block 23 slides upwards, the two cylindrical pins 242 have no pressing force when the two cylindrical pins 242 slide to the third hole 22b of the sliding sleeve 22, and the two cylindrical pins 242 are located in the third hole 22b of the sliding sleeve to limit the sliding block 23.
As shown in fig. 6, the article holding grooves include a first article holding groove 35 and a plurality of second article holding grooves 36, three first sliding grooves 38 are formed in the first article holding groove 35 and are uniformly distributed along the circumferential direction, three first sliding grooves 38 are formed in the plurality of second article holding grooves 36 and are uniformly distributed along the circumferential direction, the number of the clamping assemblies 8 is equal to that of the first sliding grooves 38, the cross sections of the first sliding grooves 38 are inverted "T", and the clamping assemblies 8 are arranged in the first sliding grooves 38; the water separating groove 34 is provided with a through hole, a sealing plug 37 is arranged on the through hole, the connecting shaft 32 is arranged at one end of the plate body 31 and is positioned at two sides of the plate body 31, the connecting shaft 32 is connected with the fourth hole 23a on the sliding block 23, so that the supporting plate 3 is rotatably connected with the sliding block 23, the handle 33 is arranged at the other end of the plate body 31, symmetrical connecting pins 39 are arranged at two sides of the plate body 31 at positions close to the connecting shaft 32, the connecting pins 39 are connected with the supporting rod 7, one end of the supporting rod 7 is provided with a through hole corresponding to the connecting pins 39, and the other end of the supporting rod corresponds to the clamping groove 22 c.
Connecting axle 32 adopts the metal material, plate body 31 adopts medical environmental protection plastics material, connecting axle 32 is connected with plate body 31 hot melt, fourth hole 23a on connecting axle 32 and the slider 23 rotates to be connected, be equipped with the bearing in the fourth hole 23a, be convenient for connecting axle 32 and slider 23's rotation, connecting pin 39 adopts the metal material, connecting pin 39 is connected with plate body 31 hot melt, handle 33 and plate body 31 integrated into one piece, water-proof groove 34 and plate body 31 integrated into one piece, the first thing groove 35 of putting on the plate body 31, a plurality of seconds are put thing groove 36 and a plurality of first spout 38 and are adopted the prior art preparation, first thing groove 35 of putting can be used to place like the heat-preserving container, a plurality of seconds are put thing groove 36 and can be used to place like the drinking cup, the medicine bottle.
During the use, layer board 3 is pulled out and is rotated the back, with the other end and the draw-in groove 22c cooperation of bracing piece 7, and sliding sleeve 22, layer board 3 and bracing piece 7 form a triangular supports, improve support stability, and when finishing using, bracing piece 7 follows layer board 3 and slides to the sliding sleeve 22 in together.
As shown in fig. 10, the clamping assembly 8 includes a half-arc piece 81, a sliding plate 82, a third spring 83 and a center pin 84, the sliding plate 82 is of an inverted T shape, a through hole is formed in the sliding plate 82, the sliding plate 82 is disposed in the first sliding groove 38 and slides, the sliding plate 82 is sleeved on the center pin 84, the third spring 83 is disposed on one side of the sliding plate 82, the half-arc piece 81 is disposed at one end of the sliding plate 82, the third spring 83 is disposed at the other end of the sliding plate 82, two ends of the center pin 84 are respectively connected with two ends of the first sliding groove 38, and an anti-slip material is disposed on the surface of the half-arc piece 81.
Clamping unit 8 adopts medical environmental protection plastics material, place sliding plate 82 in the first spout 38, core pin 84 and first spout 38 hot melt connection, the one end and the sliding plate 82 hot melt connection of third spring 83, the other end of third spring 83 and the inner wall hot melt connection of first spout 38, half arc piece 81 and sliding plate 82 hot melt connection, and the lower extreme of half arc piece 81 and the upper end contact of first spout 38, clamping unit 8 can press from both sides tight article, prevent that the drinking cup from empting the back, the monitor is drenched to the water in the drinking cup.
During the use, when placing article and putting the thing inslot, sliding plate 82 slides in first spout 38, and sliding plate 82 slides on kingpin 84, half arc piece 81 follows sliding plate 82 and slides, third spring 83 atress deformation, the reconversion after getting rid of the power, when placing article, support two clamping component 8 with the hand, give clamping component 8 power, make it slide to can place article and put the thing inslot, loosen the power on clamping component 8, half arc piece 81 of clamping component 8 is tight article clamp, when getting the article, stimulate one clamping component 8 and make its article that drops, take out article.
As shown in fig. 1, the fixing frame 4 is arranged on the left side of the first cabinet body 11, one end of the fixing frame 4 is a cylinder and is connected with the first cabinet body 11, and the other end of the fixing frame 4 is in a semi-arc shape; the rotary hanging rack 5 is arranged in a fifth groove 115 of the first cabinet body 11, the rotary hanging rack 5 is rotatably connected with the fifth groove 115, and the rotary hanging rack 5 is U-shaped.
Mount 4 adopts the plastics material, and mount 4 is connected with 1 hot melt of the cabinet body, and mount 4 is used for placing the calling line, and the patient of being convenient for finds fast, rotates stores pylon 5 and adopts the plastics material, rotates stores pylon 5 and is used for hanging at towel or other article.
The medical multifunctional bedside table of the embodiment is used as follows:
move the bedside cupboard to sick bed limit earlier, when the monitor was placed at the desktop of bedside cupboard, pulling handle 33 upwards slides layer board 3, layer board 3 drives slider 23 and slides to sliding sleeve 22's spacing time, sliding sleeve 22 slides along with slider 23, sliding sleeve 22 slides to two spacer pins 6 with sliding sleeve 22 spacing, rotate layer board 3 and slider 23 again, through with bracing piece 7 card in draw-in groove 22c, bracing piece 7 plays the supporting role to layer board 3, when article placed put the thing inslot, pulling clamping component 8, place article and put the thing inslot, loosen the power on the clamping component 8, clamping component 8 presss from both sides tightly article.
The above embodiments are only for illustrating the technical idea of the present invention, and the protection scope of the present invention is not limited thereby, and any modifications made on the basis of the technical scheme according to the technical idea of the present invention fall within the protection scope of the present invention.
