Abstract

The utility model belongs to the technical field of medical devices, in particular to the neck wound compression clothes. Aiming at the problem that the existing compression effect is not good, the following solution is proposed, which includes clothes, and the clothes are provided with buttons and two rows of buttonholes, And the buttons and buttonholes are matched, the left and right sides and the back side of the neckline of the clothes are fixedly sewn with accommodation pockets, the side of the bottom of the accommodation pockets close to the collar is fixedly sewn with a cloth cover, and the end of the cloth cover away from the accommodation bag is fixed with a seam An inserting block is made, a connecting block is fixedly sewn on the top of the accommodating bag, a No. The utility model has the advantages of simple structure, reasonable design and convenient operation, which not only frees the hands and is convenient for patients and their families, but also can fix the compression position, solves the problem of improper compression and bleeding caused by the displacement of the salt bag, and is safer.

Description

Neck wound compression clothing

technical field

The utility model relates to the technical field of medical devices, in particular to neck wound compression clothes.

Background technique

Generally, after neck surgery is completed, it is necessary to apply a certain amount of pressure to the wound on the neck to achieve the effect of compression and hemostasis and assist wound healing. For hematoma measures, for neck compression, sandbags, salt bags, or air cushions are usually used to pressurize the neck. However, after the removal of the inferior vena cava filter, patients with wounds in the neck use a hand-held salt bag to pressurize, which is exhausting and laborious. , It is very inconvenient, and sometimes the compression of the salt bag is displaced, resulting in improper compression, resulting in bleeding, which can seriously endanger life.

Utility model content

The purpose of the utility model is to propose a neck wound compression garment in order to solve the shortcomings existing in the prior art.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

Neck wound compression clothes, including clothes, the clothes are provided with buttons and two rows of buttonholes, and the buttons and buttonholes are matched, the left and right sides and the back side of the neckline of the clothes are fixed and sewn with accommodation pockets, and the bottom of the accommodation pockets is sewn. The side close to the collar is fixedly sewn with a cloth cover, the end of the cloth cover away from the accommodating bag is fixedly sewn with an insert block, the top of the accommodating bag is fixedly sewn with a connecting block, and the top of the connecting block is provided with a No. 1 slot. There is an inner cavity, the insert block is movably inserted into the No. 1 slot, the side of the insert block close to the inner cavity is provided with a No. 2 slot, and a straight strip is movably inserted in the No. 2 slot, and the straight strip extends away from the end of the No. 2 slot. into the inner cavity, and is fixedly connected with an auxiliary plate, the bottom inner wall of the inner cavity is fixedly connected with a longitudinal plate, the top of the longitudinal plate is fixedly connected with a pulley, and the longitudinal plate is between the side close to the No. 1 slot and the inner wall of one side of the inner cavity Two straight rods are fixedly connected, and the auxiliary plate is slidably sleeved on the two straight rods.

Preferably, two springs are fixedly connected between the auxiliary plate and the vertical plate, and the two springs are respectively movably sleeved on the two straight rods.

Preferably, the inner wall of the inner cavity away from the first slot is provided with a third slot, a sliding block is slidably installed in the third slot, and a square sleeve is fixedly connected to the side of the sliding block close to the auxiliary plate.

Preferably, one end of the metal wire is fixedly connected to the side of the auxiliary plate away from the straight bar, and the other end of the metal wire is fixedly connected to the square sleeve through a pulley.

Preferably, a screw rod is rotatably connected to the bottom inner wall of the inner cavity, the longitudinal plate is located between the screw rod and the auxiliary plate, and the square sleeve thread is sleeved on the screw rod.

Preferably, the top end of the screw rod extends above the connection block, and is fixedly connected with a knob.

In the utility model, when using the neck wound compression clothes, the clothes are put on the patient's body, and then the buttons on the clothes are buttoned on the corresponding buttonholes as required. The double-row buttonholes can be set according to the patient's fatness. Adjust it, and then turn the knob to make the lead screw rotate. Due to the setting of the No. 3 slot and the sliding block, the square sleeve can only move vertically along the No. 3 slot. Rotation can drive the square sleeve to move vertically downward. Because the auxiliary plate is slidably sleeved on two straight rods, the auxiliary plate can only move horizontally. Due to the connection between the square sleeve, the metal wire and the auxiliary plate, With the downward movement of the square sleeve, the auxiliary plate can be pulled by pulling the metal wire, so that the auxiliary plate is close to the vertical plate, and the spring is compressed. Due to the fixed connection between the auxiliary plate and the straight bar, it can drive the straight bar to move. When the bar is moved out of the No. 2 slot, the locking of the insert block is released, and the insert block can be pulled out of the No. 1 slot by pulling the cloth cover. Then the crushed salt bag is placed in the holding bag, and the insert block is inserted into the No. 1 slot. Rotate the knob to make the direction sleeve move upwards without pulling the metal wire. Due to the elastic restoring force of the spring, the auxiliary plate is pushed close to the No. 1 slot, thereby driving the straight bar to move, so that the straight bar is inserted into the No. 2 slot, so as to be inserted in the opposite direction. The position of the block is locked, which in turn enables the cloth cover to seal the containment bag, thereby compressing the neck wound. The utility model has the advantages of simple structure, reasonable design and convenient operation, which not only frees hands, is convenient for patients and their families, but also can fix the compression position, solves the problem of improper compression and bleeding caused by the displacement of the salt bag, and is safer.

Description of drawings

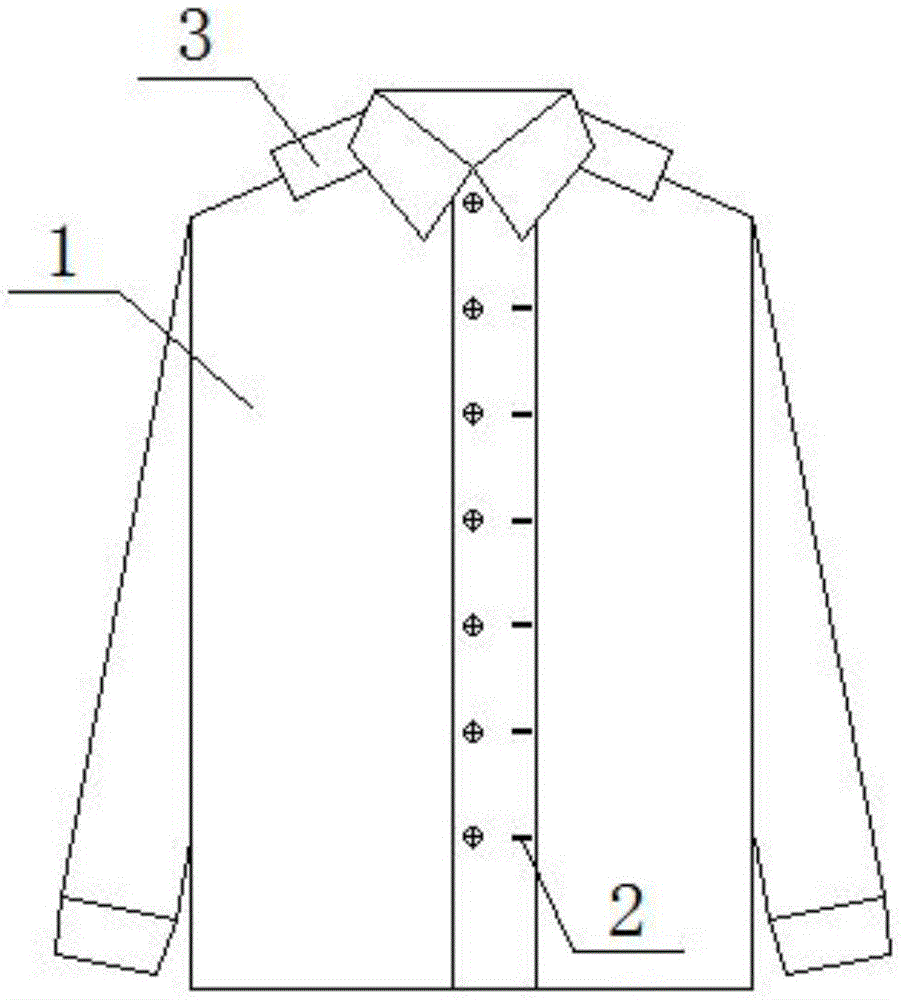

Fig. 1 is the structural representation of the neck wound compression garment proposed by the utility model;

2 is a schematic structural diagram of the accommodating bag of FIG. 1 of the neck wound compression garment proposed by the utility model;

3 is a schematic structural diagram of part A of FIG. 2 of the neck wound compression garment proposed by the present utility model;

FIG. 4 is a schematic structural diagram of part B of FIG. 3 of the neck wound compression garment proposed by the present invention.

In the picture: 1 clothes, 2 buttonholes, 3 storage bags, 4 cloth covers, 5 insert blocks, 6 connection blocks, 7 No. 1 slot, 8 inner cavity, 9 No. 2 slot, 10 straight bars, 11 auxiliary boards, 12 vertical boards , 13 pulleys, 14 straight rods, 15 springs, 16 No. 3 slots, 17 sliding blocks, 18 square sets, 19 metal wires, 20 screw rods, 21 knobs.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Example 1

1-4, a neck wound compression garment, including a garment 1, the garment 1 is provided with buttons and two rows of buttonholes 2, and the buttons and the buttonholes 2 are matched, the left and right sides and the back side of the neckline of the garment 1 A accommodating bag 3 is fixedly sewn on the bottom of the accommodating bag 3, and a cloth cover 4 is fixed and sewn on the side of the bottom of the accommodating bag 3, which is close to the collar. A connecting block 6 is sewn, the top of the connecting block 6 is provided with a No. 1 slot 7, an inner cavity 8 is provided on the connecting block 6, and the inserting block 5 is movably inserted into the No. A second slot 9 is opened on the side, and a straight bar 10 is movably inserted into the second slot 9. The end of the straight bar 10 away from the second slot 9 extends into the inner cavity 8, and the auxiliary plate 11 is fixedly connected. A vertical plate 12 is fixedly connected to the inner wall of the bottom, a pulley 13 is fixedly connected to the top of the vertical plate 12, and two straight rods 14 are fixedly connected between the side of the vertical plate 12 close to the first slot 7 and the inner wall of the inner cavity 8, And the auxiliary board 11 is slidably sleeved on the two straight rods 14 , and the auxiliary board 11 can only move horizontally along the straight rods 14 .

In the present invention, two springs 15 are fixedly connected between the auxiliary plate 11 and the vertical plate 12, and the two springs 15 are respectively movably sleeved on the two straight rods 14. The elastic restoring force of the springs 15 can push the auxiliary plate 11 is away from the vertical plate 12 .

In the present invention, the inner wall of the inner cavity 8 away from the first slot 7 is provided with a third slot 16, a sliding block 17 is slidably installed in the third slot 16, and the side of the sliding block 17 close to the auxiliary plate 11 is fixedly connected with a square sleeve 18. The sliding block 17 can only slide vertically along the third slot 16, so that the square sleeve 18 can only move vertically.

In the present invention, one end of the metal wire 19 is fixedly connected to the side of the auxiliary plate 11 away from the straight bar 10, and the other end of the metal wire 19 is fixedly connected to the square sleeve 18 through the pulley 13, and the square sleeve 18 moves downward, which can be pulled The metal wire 19 is moved, thereby pulling the auxiliary plate 11 to move horizontally.

In the utility model, the bottom inner wall of the inner cavity 8 is rotatably connected with a screw rod 20, and the vertical plate 12 is located between the screw rod 20 and the auxiliary plate 11, the square sleeve 18 is threadedly sleeved on the screw rod 20, and the screw rod 20 rotates, It can drive the square sleeve 18 to move vertically.

In the present invention, the top end of the screw rod 20 extends to the top of the connecting block 6 , and is fixedly connected with a knob 21 , and rotating the knob 21 can drive the screw rod 20 to rotate.

Embodiment 2

1-4, a neck wound compression garment, including a garment 1, the garment 1 is provided with buttons and two rows of buttonholes 2, and the buttons and the buttonholes 2 are matched, the left and right sides and the back side of the neckline of the garment 1 A accommodating bag 3 is fixedly sewn on the bottom of the accommodating bag 3, and a cloth cover 4 is fixed and sewn on the side of the bottom of the accommodating bag 3, which is close to the collar. A connecting block 6 is sewn, a No. 1 slot 7 is drilled on the top of the connecting block 6, an inner cavity 8 is drilled on the connecting block 6, and the plug 5 is movably inserted into the No. The second slot 9 is chiseled on the side, and a straight bar 10 is movably inserted into the second slot 9. The end of the straight bar 10 away from the second slot 9 extends into the inner cavity 8, and an auxiliary plate 11 is welded. The bottom of the inner cavity 8 The inner wall is welded with a longitudinal plate 12, the top of the longitudinal plate 12 is welded with a pulley 13, two straight rods 14 are welded between the side of the longitudinal plate 12 close to the No. 1 slot 7 and the inner wall of one side of the inner cavity 8, and the auxiliary plate 11 The sliding sleeves are arranged on the two straight rods 14 .

In the present invention, two springs 15 are welded between the auxiliary plate 11 and the vertical plate 12 , and the two springs 15 are respectively movably sleeved on the two straight rods 14 .

In the present invention, the inner wall of the inner cavity 8 away from the first slot 7 is drilled with a third slot 16, a sliding block 17 is slidably installed in the third slot 16, and a square sleeve 18 is welded on the side of the sliding block 17 close to the auxiliary plate 11. .

In the present invention, one end of the metal wire 19 is welded to the side of the auxiliary plate 11 away from the straight bar 10 , and the other end of the metal wire 19 is welded to the square sleeve 18 through the pulley 13 .

In the present invention, the bottom inner wall of the inner cavity 8 is rotatably connected with a screw rod 20 , the longitudinal plate 12 is located between the screw rod 20 and the auxiliary plate 11 , and the square sleeve 18 is threadedly sleeved on the screw rod 20 .

In the present invention, the top end of the screw rod 20 extends to the top of the connecting block 6, and the knob 21 is welded.

In the utility model, when in use, the clothes are put on the patient, and then the buttons on the clothes are buttoned on the corresponding buttonholes 2 according to the needs. The setting of the double-row buttonholes 2 can be adjusted according to the fatness and thinness of the patient, and then the knob is turned. 21. The screw rod 20 is rotated, and the square sleeve 18 can only move vertically along the No. 3 slot 16 due to the setting of the No. 3 slot 16 and the sliding block 17. Because the square sleeve 18 is threaded on the screw rod 20, the wire The rotation of the rod 20 can drive the square sleeve 18 to move vertically downward. Because the auxiliary plate 11 is slidably sleeved on the two straight rods 14, the auxiliary plate 11 can only move horizontally. Therefore, with the downward movement of the square sleeve 18, the auxiliary plate 11 can be pulled by pulling the metal wire 19, so that the auxiliary plate 11 is close to the vertical plate 12, and the spring 15 is compressed. The fixed connection relationship between the strips 10 can drive the straight strip 10 to move. When the straight strip 10 moves out of the second slot 9, the locking of the insert block 5 is released, and the cloth cover 4 can be pulled. Slot 7, then put the crushed salt bag in the holding bag 3, insert the insert block 5 into the No. 1 slot 7, turn the knob 21 in the opposite direction, so that the square sleeve 18 moves upward, so as not to pull the wire 19, because the spring 15 The elastic restoring force pushes the auxiliary plate 11 close to the No. 1 slot 7, thereby driving the straight bar 10 to move, so that the straight bar 10 is inserted into the No. 2 slot 9, thereby locking the position of the insert block 5, so that the cloth cover 4 can The containment bag 3 is sealed to compress the neck wound. The utility model has the advantages of simple structure, reasonable design and convenient operation, which not only frees the hands and is convenient for patients and their families, but also can fix the compression position, solves the problem of improper compression and bleeding caused by the displacement of the salt bag, and is safer.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. The neck wound pressurizing garment comprises a garment body (1) and is characterized in that buttons and two rows of button holes (2) are arranged on the garment body (1), the buttons are matched with the button holes (2), accommodating bags (3) are fixedly sewn on the left side, the right side and the rear side of a neckline of the garment body (1), a cloth cover (4) is fixedly sewn on one side, close to the collar, of the bottom of each accommodating bag (3), an inserting block (5) is fixedly sewn on one end, far away from the accommodating bags (3), of each cloth cover (4), a connecting block (6) is fixedly sewn on the top of each accommodating bag (3), a first groove (7) is formed in the top of each connecting block (6), an inner cavity (8) is formed in each connecting block (6), each inserting block (5) is movably inserted into the corresponding groove (7), a second groove (9) is formed in one side, close to the inner cavity (8), a straight strip (10) is movably inserted into each second groove (9), one end of the straight strip (10) far away from the second groove (9) extends into the inner cavity (8), the auxiliary plate (11) is fixedly connected with the bottom inner wall of the inner cavity (8) and is fixedly connected with the longitudinal plate (12), the pulley (13) is fixedly connected with the top of the longitudinal plate (12), two straight rods (14) are fixedly connected between one side of the longitudinal plate (12) close to the first groove (7) and one side inner wall of the inner cavity (8), and the auxiliary plate (11) is sleeved on the two straight rods (14) in a sliding mode.

2. The neck wound pressurizing garment as claimed in claim 1, wherein two springs (15) are fixedly connected between the auxiliary plate (11) and the longitudinal plate (12), and the two springs (15) are movably sleeved on the two straight rods (14) respectively.

3. The neck wound pressurizing garment as claimed in claim 1, wherein a third groove (16) is formed in the inner wall of the inner cavity (8) on the side far away from the first groove (7), a sliding block (17) is slidably mounted in the third groove (16), and a square sleeve (18) is fixedly connected to the side, close to the auxiliary plate (11), of the sliding block (17).

4. The neck wound pressurizing garment as claimed in claim 1, wherein one end of a metal wire (19) is fixedly connected to one side of the auxiliary plate (11) away from the straight strip (10), and the other end of the metal wire (19) is fixedly connected to the square sleeve (18) through a pulley (13).

5. The garment as claimed in claim 1, wherein a screw rod (20) is rotatably connected to the inner wall of the bottom of the inner cavity (8), the longitudinal plate (12) is located between the screw rod (20) and the auxiliary plate (11), and the square sleeve (18) is threaded on the screw rod (20).

6. Neck wound compression garment according to claim 5, wherein the top end of the lead screw (20) extends above the connection block (6) and a knob (21) is fixedly connected.
