CN216568506U - A hospital gown for physically handicapped children - Google Patents

Abstract

A children's hospital gown with disabled limbs comprises a top and trousers, wherein the top comprises a gown body and sleeves, two sides of the gown body are respectively provided with one sleeve, a zipper is arranged in the middle of each sleeve, the sleeves are correspondingly provided with zipper pockets at the positions of arms, the gown body consists of a front gown piece and a rear gown piece, the front gown piece and the rear gown piece are connected through magic tapes at the shoulders, and at least one pocket is arranged on the front gown piece; the rear garment pieces comprise a rear upper garment piece and a rear lower garment piece, and the rear upper garment piece and the rear lower garment piece are connected through a zipper; the trousers comprise a waistband, two front trousers pieces and two rear trousers pieces, and the outer side of the waistband of each rear trousers piece is correspondingly connected with the front trousers pieces through a zipper III. The child hospital gown provided by the utility model is convenient for children with disabled limbs to wear and take off the gown, is convenient for medical staff to monitor, treat and inject children with disabled limbs, and is also convenient for family members to replace medicines or to clean and sanitation.

Description

A hospital gown for physically handicapped children

technical field

The utility model relates to the technical field of clothing, in particular to a hospital gown for children with physical disabilities.

Background technique

Hospital gowns are clothes worn by inpatients. Most hospital gowns are not divided into adults and children, and patients in various departments also wear conventional gowns. At present, some hospital gowns have been designed for different pediatric patients. For example, the Chinese utility model patent with the authorization announcement number CN 209931575U discloses a hospital gown for children, including a top, the top includes a front placket, a back placket, sleeves and a neckline, and the back placket is provided with a pressure reducer for placing and the pocket of the drainage bag, a cover cloth is arranged above the upper pocket of the back placket, and the cover cloth and the pocket can be opened and closed. Another example, the Chinese utility model with the authorization announcement number CN 209825301U discloses a hospital gown for children's cardiac surgery, comprising a patient gown body, a shoulder loop, a drainage tube fixing piece and an auxiliary back pocket, the front placket of the patient gown body is The middle part is provided with a window for drawing out the drainage tube, the shoulder loop is connected to the shoulder of the hospital gown body, the drainage tube fixing piece is connected to the bottom of the window of the patient gown body, and the auxiliary back pocket is connected A flexible member or a cooling member is filled with an upward opening in the middle of the back placket of the hospital gown body.

Because children with physical disabilities are mainly manifested in functional impairments such as physical activities, ordinary hospital gowns are not convenient for children with physical disabilities to put on and take off, and are not conducive to medical staff for intravenous injection, inspection and nursing. Moreover, during the rehabilitation process of such children, if they wear conventional pediatric hospital gowns that are too loose, partially tight, and inconvenient to put on and take off, it is easy to aggravate their psychological pressure and anxiety. Therefore, the existing children's hospital gowns obviously cannot meet the needs of such children.

In addition, the existing paediatric hospital gowns are mainly blue and white stripes, and their appearance is relatively simple and uninteresting, which is not in line with the innocent character of children, and it is difficult to meet the diverse wearing needs of children with physical disabilities.

Utility model content

The utility model provides a medical gown for children with physical disabilities, so as to solve the shortcomings of the existing medical gowns for children with physical disabilities, which are inconvenient for children with physical disabilities to put on, take off, and move, and are not conducive to intravenous injection, inspection and nursing for medical staff, and the like.

The utility model adopts the following technical solutions:

A hospital gown for children with physical disabilities, comprising a top and trousers.

The top includes a body and sleeves, two sides of the body are respectively provided with a sleeve, a zipper is provided in the middle of the sleeve, and a zipper pocket is correspondingly provided on the sleeve at the arm position; the body consists of a front piece. and the rear garment piece, the front garment piece and the rear garment piece are connected at the shoulder by Velcro, and the front garment piece is provided with at least one pocket; the rear garment piece includes a rear upper garment piece and a rear lower garment piece , the rear upper part and the rear lower part are connected by the second zipper;

The trousers are composed of a waistband, two front trousers and two rear trousers, and the outer sides of the waistband of each of the rear trousers are respectively connected with the corresponding front trousers through a zipper three.

In a preferred embodiment, the front garment piece is provided with two pockets, the length of the pockets is 8 cm, the height is 10 cm, and each pocket is provided with a corresponding bag cover.

In a preferred embodiment, two sides of the body are respectively provided with a side seam.

In a preferred embodiment, the rear garment piece is also provided with a fixing belt at the waist.

In a preferred embodiment, element patterns are provided on both the jacket and the trousers.

In a preferred embodiment, the zipper 3 extends from the waist to the trouser leg.

In a preferred embodiment, the front trousers panel is provided with a placket extending from the waist to the crotch, and the placket is fastened by a concealed button.

In a preferred embodiment, the knee position of each of the front trousers is correspondingly provided with an anti-falling pad.

As can be seen from the above description of the structure of the present utility model, compared with the prior art, the present utility model has the following advantages:

1. The hospital gown for children of the present utility model has three-quarter sleeves on the upper sleeve and a zipper in the middle, which is convenient for children with physical disabilities to put on and take off clothes. There are zipper pockets at the arm position, which can place electronic thermometers and identity tags, which is convenient for children with disabilities. Monitoring by medical staff; the front and back pieces are connected by Velcro on the shoulders. When medical staff need to treat children, they can directly tear off the Velcro. In addition, medical staff can also adjust according to the actual condition, open the Velcro. side or both sides; a zipper is provided on both sides of the waist of the back piece of the trousers, which is convenient for medical staff to inject in the buttocks and family members to change medicines or clean and hygienic.

2. The rear garment piece includes the rear upper garment piece and the rear lower garment piece, and is connected with the second zipper. The second zipper can be opened when nursing and inspection are required to prevent children from taking off the whole piece of clothing and getting cold.

3. The back piece is provided with a fixed buckle at the waist. The buckle can not only fasten the waist of the child to make the clothing fit better, but also fasten the bed or seat. Accidental falls in children; on the other hand, it is beneficial for medical staff to administer intravenous injections and care for them.

4. The zipper 3 on the back of the trousers extends from the waist to the trousers. When it needs to be replaced, simply open the zipper 3, which is convenient for disabled children to put on and take off; the front trousers are provided with a placket extending from the waist to the crotch. It is fastened by a hidden button, which is convenient for placing the drainage tube and urine bag, and at the same time, it is convenient for family members or caregivers to clean up excrement.

5. There are element patterns on the top and trousers. The pattern is based on stone lions. The head of the stone lion is extracted for design, and the tedious and complicated details are simplified. Combined with modern trends, a simple, generous and interesting lion pattern is created. In line with children's innocent character, it can ease the anxiety and psychological pressure of physically handicapped children, and speed up the speed of recovery.

Description of drawings

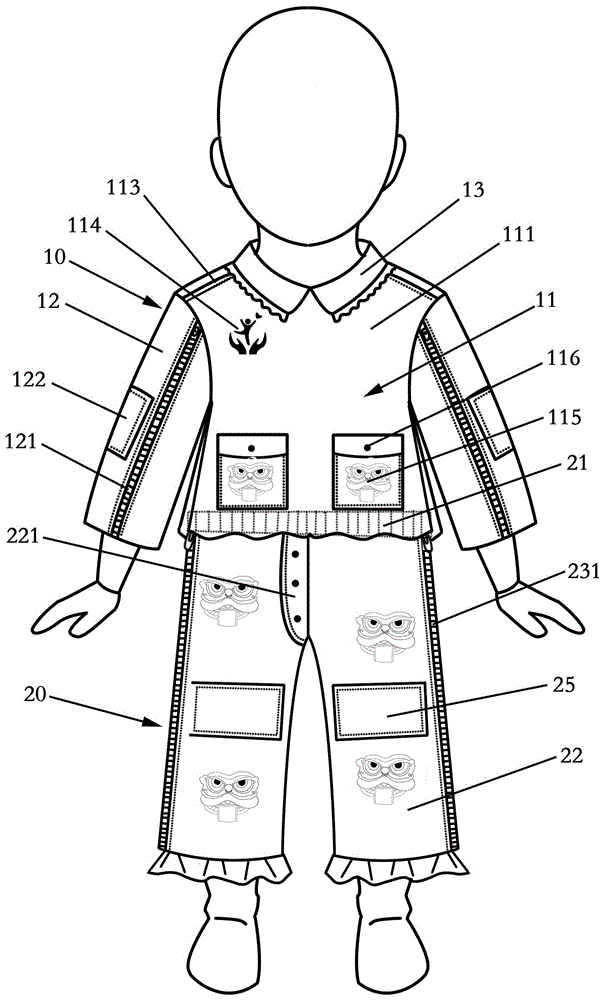

Fig. 1 is the front view of the utility model.

Figure 2 is a rear view of the utility model.

Detailed ways

The specific embodiments of the present invention will be described below with reference to the accompanying drawings. In order to fully understand the present invention, many details are described below, but for those skilled in the art, the present invention can be practiced without these details. Well-known components, methods, and procedures are not described in detail below.

A hospital gown for children with physical disabilities, referring to FIG. 1 , includes a jacket 10 and trousers 20 . The top includes a body 11 , sleeves 12 and a collar 13 . Two sides of the body 11 are respectively provided with a sleeve 12 , the sleeves 12 are three-quarter sleeves, and a zipper 121 is provided in the middle, which is convenient for children with physical disabilities to put on and take off clothes. The sleeves 12 A zipper pocket 122 is correspondingly provided at the arm position for placing an electronic thermometer and an identity tag, which is convenient for medical staff to monitor. The collar 13 is a cute lotus leaf collar that suits the character of children, and the bottom edge is sewn with pleats to add interest.

Referring to FIGS. 1 and 2 , side seams are provided on the sides of the body 11 to facilitate the inspection by medical staff and the care of family members. The body 11 is composed of a front garment piece 111 and a rear garment piece 112. The front garment piece 111 and the rear garment piece 112 are connected at the shoulder by a Velcro 113. When the medical staff needs to treat the child, they directly tear off the Velcro. 113 is enough; in addition, medical staff can also adjust according to the actual condition, open one or both sides of the Velcro.

Referring to FIG. 1 , a LOGO 114 is designed on the front chest position of the front garment piece 111 , which symbolizes that the medical staff will do their best to help each child grow up healthily, care for the growth of the child, and take care of the body and mind of the child. The front garment piece 111 is provided with two pockets 115 with a width of 10CM and a length of 8CM, and each pocket 115 is provided with a corresponding cover 116, which is convenient for children to place medicines or personal items.

2, the rear garment piece 112 includes a rear upper garment piece 1121 and a rear lower garment piece 1122. The rear upper garment piece 1121 and the rear lower garment piece 1122 are connected by a zipper 2 1123, and the zipper 2 1123 can be opened when nursing inspection is required to prevent children from taking off The next whole outfit is cold. The back piece 112 is also provided with a fixed buckle 117 at the waist. The buckle 117 can not only fasten the waist of the child to make the clothing fit better, but also fasten the bed or seat. , to avoid accidental falls in children; on the other hand, it is helpful for medical staff to perform intravenous injection and care.

1 and 2, the trousers 20 are composed of a waistband 21, two front trousers 22 and two rear trousers 23, and a door extending from the waistband to the crotch is arranged between the two front trousers 22. The placket 221 is fastened by a hidden button, which is convenient for placing a drainage tube and a urine bag, and at the same time, it is convenient for family members or care workers to clean up excrement. A zipper 3 231 is provided on the outer side of the waist of each rear trousers piece 23, which is convenient for medical staff to inject in the buttocks and family members to change medicines or clean and sanitize. Each rear trousers piece is correspondingly connected to the front trousers piece through a zipper 3. The zipper 3 231 extends from the waist to the trousers. When it needs to be replaced, the zipper 3 231 can be directly opened, which is convenient for disabled children to put on and take off, reflecting the humanized design .

Referring to FIG. 1 , the front trousers 22 is provided with an anti-fall pad 25 at the knee position, which can protect children with physical disabilities from accidental knee damage during the rehabilitation process.

The top 10 and the trousers 20 are both provided with element patterns. The pattern is based on stone lions. The head of the stone lion is extracted for design, and the complicated and complicated details are simplified. Combined with modern and popular trends, a simple, generous and interesting lion pattern is created. In line with children's innocent character, it can ease the anxiety and psychological pressure of physically handicapped children, and speed up the speed of recovery. The lion element pattern is optimized from the printing process to the embroidery process, which highlights the three-dimensional sense of the pattern, is not easy to deform, and is not easy to fade, making the pattern more attractive.

The above are only specific embodiments of the present utility model, but the design concept of the present utility model is not limited to this, and any non-substantial changes to the present utility model by using this concept shall be regarded as acts that violate the protection scope of the present utility model.

Claims (8)

1. a medical gown for physically handicapped children, comprising coat and trousers, and the coat comprises a body and a sleeve, and both sides of the body are respectively provided with a sleeve, it is characterized in that: The middle of the sleeve is provided with a zipper, and the sleeve is provided with a corresponding zipper pocket at the arm position; the body is composed of a front garment piece and a back garment piece, and the front garment piece and the rear garment piece pass through magic on the shoulders The front garment piece is provided with at least one pocket; the rear garment piece includes a rear upper garment piece and a rear lower garment piece, and the rear upper garment piece and the rear lower garment piece are connected by two zippers; The trousers are composed of a waist, two front trousers and two rear trousers, and the outer sides of the waist of each of the rear trousers are respectively connected with the front trousers through a zipper 3 correspondingly. 2. The medical gown for children with physical disabilities as claimed in claim 1, wherein the front garment piece is provided with two pockets, the length of the pockets is 8cm, the height is 10cm, and each pocket corresponds to a set of two pockets. There is a bag cover. 3 . The hospital gown for children with physical disabilities as claimed in claim 1 , wherein a side seam is respectively provided on both sides of the clothes body. 4 . 4 . The hospital gown for children with physical disabilities according to claim 1 , wherein the rear garment piece is further provided with a fixed buckle at the waist. 5 . 5 . The hospital gown for children with physical disabilities according to claim 1 , wherein the top and the pants are provided with element patterns. 6 . 6 . The medical gown for children with physical disabilities according to claim 1 , wherein the zipper 3 extends from the waist to the trousers. 7 . 7 . The medical gown for children with physical disabilities as claimed in claim 1 , wherein the front trousers piece is provided with a placket extending from the waist to the crotch portion, and the placket is fastened by a hidden button. 8 . 8 . The medical gown for children with physical disabilities as claimed in claim 1 , wherein the knee position of each front trousers piece is provided with a drop-proof pad correspondingly. 9 .

Images
