Abstract

The utility model provides a sound box with an L-shaped support structure, which comprises a sound box main body and a support structure, the support structure includes an L-shaped support and a decorative plate, and the L-shaped support includes a connecting inclined plate and a transition arc plate connected in sequence. and the horizontal support plate, the horizontal support plate is used to be placed on the support plane, and the angle between the connecting inclined plate and the horizontal support plate is an acute angle; the decorative plate is arranged on the side of the connecting inclined plate close to the horizontal support plate, and the decorative plate is The first end is connected to the main body of the speaker, and the second end of the decorative plate is connected to the horizontal support plate; the decorative plate is a transparent plate for light transmission, and the first end of the main body of the speaker close to the decorative plate is provided with an LED light, and the LED light is used to transmit light. Decorative panels cast light. The support structure of the speaker is simple, and at the same time, the required lighting can be displayed on the decorative board, so that the speaker can present a better ambient lighting effect, the overall shape of the speaker is more beautiful, and the user experience is better.

Description

A loudspeaker with L-shaped support structure

technical field

The utility model relates to the technical field of sound boxes, in particular to a sound box with an L-shaped support mechanism.

Background technique

In recent years, with the continuous improvement of people's living standards, the demand for high-quality speaker equipment has increased sharply. A speaker is an electrical device that converts audio signals into sound output after being processed by a power amplifier. The loudspeaker in the body, the main body of the loudspeaker is placed on the table through the support component, the existing loudspeaker has a complex supporting structure, the internal fixed connection structure of the loudspeaker body is complex, the production cost is high, the overall shape is unsightly, and the function is single.

SUMMARY OF THE INVENTION

The purpose of the utility model is to provide a sound box with an L-shaped support structure, the support structure is simple, and the overall shape is more beautiful.

In order to achieve the above purpose, the present invention provides a sound box with an L-shaped support structure, including a sound box main body and a support structure, the support structure includes an L-shaped support and a decorative plate, and the L-shaped support includes sequentially connected connecting inclined plate, transition arc plate and horizontal support plate, the horizontal support plate is used to be placed on the support plane, and the included angle between the connecting inclined plate and the horizontal support plate is an acute angle; the decorative plate is provided with On the side of the connecting inclined plate close to the horizontal support plate, the first end of the decorative plate is connected to the main body of the sound box, and the second end of the decorative plate is connected to the horizontal support plate; the The decorative board is a transparent board for light transmission, and an LED light is provided on the main body of the sound box close to the first end of the decorative board, and the LED light is used for projecting light to the decorative board.

It can be seen from the above scheme that by setting the L-shaped support and the decorative plate, the L-shaped support includes the connecting inclined plate, the transition arc plate and the horizontal support plate which are connected in sequence. The included angle with the horizontal support plate is an acute angle, the first end of the decorative plate is connected to the main body of the speaker, and the second end of the decorative plate is connected to the horizontal support plate, so as to achieve reliable and stable support for the main body of the speaker, and the support structure of the speaker is simple , the production cost is low. At the same time, the decorative board is a transparent board for light transmission. The main body of the speaker is provided with an LED light at the first end of the decorative board. It can present a better ambient lighting effect, the overall shape of the speaker is more beautiful, and the user experience is better.

A further solution is that the support structure further includes a base, the base is located on the side of the horizontal support plate away from the connecting inclined plate and forms a receiving cavity with the horizontal support plate, and a wireless cable is arranged in the receiving cavity. A charging module, the base is configured to be placed on the support plane.

It can be seen from the above solution that the base is arranged to be placed on the support plane, and a accommodating cavity is formed with the horizontal support plate, and a wireless charging module is arranged in the accommodating cavity, so that the utility model has the ability of wireless charging, which is convenient. User use, improve user experience, increase the practical application function of speakers, and improve space utilization.

In a further solution, the speaker body includes a casing and a control mainboard disposed in the casing, and the wireless charging module is electrically connected to the control mainboard.

A further solution is that a groove is formed on the side of the connecting inclined plate close to the horizontal support plate, and both ends of the groove are respectively connected with the inner cavity of the housing and the accommodating cavity; the wireless charging The module is electrically connected with the control mainboard through wires, and the wires are located in the grooves.

It can be seen from the above scheme that by setting grooves, the wires are arranged in the grooves, so that the wires are not exposed to the outside, the wiring is more reasonable, the use is safer, and the overall shape of the utility model is more beautiful.

A further solution is that, one side of the decorative plate adjacent to the connecting inclined plate is located in the open end of the groove.

It can be seen from the above solution that the side of the decorative plate adjacent to the connecting inclined plate is located in the open end of the groove, so that the contact area between the decorative plate and the connecting plate is larger, the support of the present invention is more stable and reliable, and the groove can be installed. The wires in the slot are completely shielded, eliminating the influence of the wires on the overall shape.

In a further solution, an anti-skid pad is provided on the side of the base away from the horizontal support plate, and the anti-skid pad is used to be placed on the support plane.

A further solution is that the casing is provided with a first threaded post, the base is provided with a first threaded hole, and the first end of the decorative board is provided with a second threaded hole, and the second end of the decorative board is provided with a second threaded hole. A second threaded post is provided; the first end of the decorative board is inserted into the casing, and the second threaded hole and the first threaded post are fastened with first screws; the second threaded hole of the decorative board is The end is inserted into the accommodating cavity, and the second threaded post is fastened with the first threaded hole through a second screw.

A further solution is that the outer shell is arranged in the form of a disc.

In a further solution, an arc-shaped groove is formed at one end of the connecting inclined plate away from the horizontal support plate, and the outer periphery of the casing is embedded in the arc-shaped groove.

In a further solution, one end of the horizontal support plate away from the connecting inclined plate extends in the radial direction of the casing.

Description of drawings

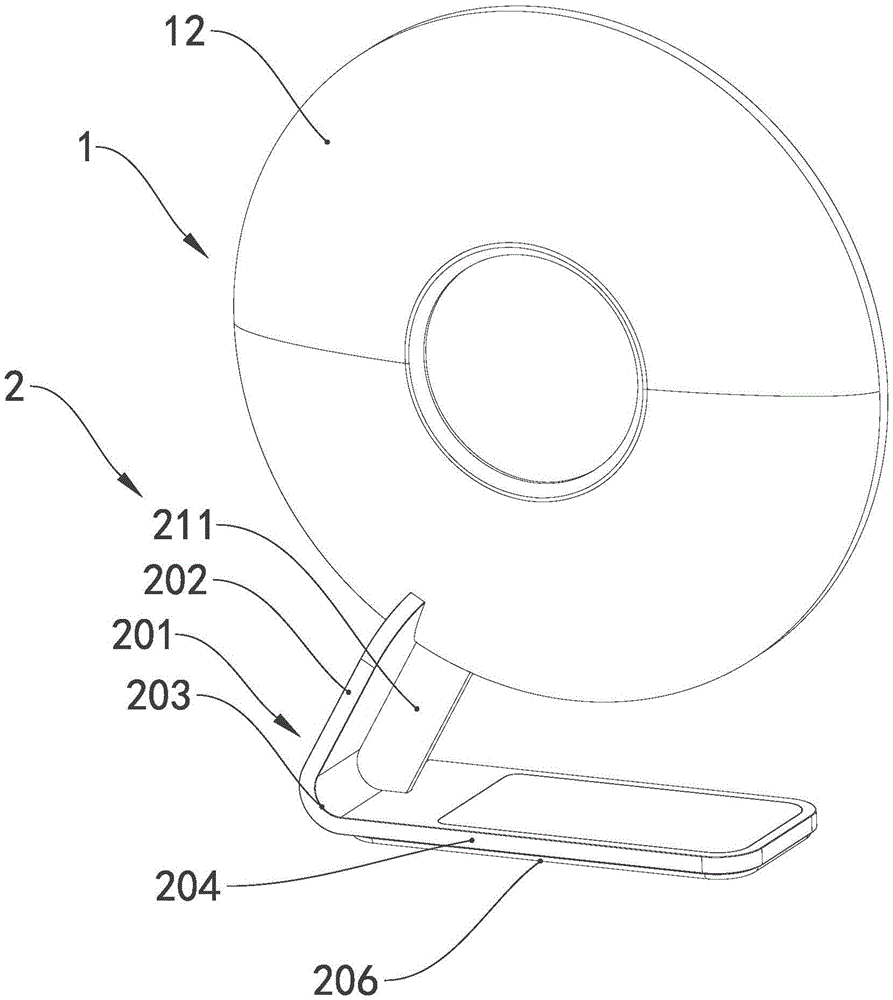

FIG. 1 is a structural diagram of an embodiment of a loudspeaker with an L-shaped support structure according to the present invention.

FIG. 2 is a partial structural diagram of an embodiment of a sound box with an L-shaped support structure of the present invention.

FIG. 3 is an exploded view of FIG. 2 .

FIG. 4 is a partial cross-sectional view of an embodiment of a sound box with an L-shaped support structure of the present invention.

The present utility model will be further described below in conjunction with the accompanying drawings and embodiments.

Detailed ways

1 to 4 , the present invention provides a speaker with an L-shaped support structure, including a speaker body 1 and a support structure 2. The support structure 2 includes an L-shaped support 201 and a decorative plate 211. The L-shaped support 201 includes The connecting inclined plate 202, the transition arc plate 203 and the horizontal supporting plate 204 are connected in sequence, the horizontal supporting plate 204 is used to be placed on the supporting plane, and the included angle 205 between the connecting inclined plate 202 and the horizontal supporting plate 204 is an acute angle; The board 211 is arranged on the side of the connecting inclined board 202 close to the horizontal support board 204, and the first end of the decorative board 211 is connected with the speaker body 1, and the second end of the decorative board 211 is connected with the horizontal support board 204; the decorative board 211 is used for For the transparent board that transmits light, the first end of the speaker body 1 close to the decorative board 211 is provided with an LED light 11 , and the LED light 11 is used for projecting light to the decorative board 211 . The speaker body 1 includes a casing 12 and a control mainboard 13 disposed in the casing 12 , and the wireless charging module 4 is electrically connected to the control mainboard 13 .

In this solution, the L-shaped support 201 and the decorative plate 211 are provided. The L-shaped support 201 includes the connecting inclined plate 202, the transition arc plate 203 and the horizontal support plate 204 which are connected in sequence, and the horizontal support plate 204 is used to be placed on the support plane. Above, the angle 205 between the connecting inclined plate 202 and the horizontal support plate 204 is an acute angle, the first end of the decorative plate 211 is connected to the speaker body 1, and the second end of the decorative plate 211 is connected to the horizontal support plate 204, thereby realizing the The sound box main body 1 is supported reliably and stably, the sound box support structure is simple, the manufacturing difficulty is reduced, and the overall production cost is low. At the same time, the decorative board 211 is a transparent board for light transmission. The first end of the speaker body 1 close to the decorative board 211 is provided with an LED light 11. The LED light 11 is used to project light to the decorative board 211. And the lights can be automatically changed in color, so that lights of different colors can be displayed on the decorative board 211, so that the speaker can present a better ambient lighting effect, the overall shape of the speaker is more beautiful, and the user experience is better.

The support structure 2 of the present invention further includes a base 206. The base 206 is located on the side of the horizontal support plate 204 away from the connecting inclined plate 202 and forms an accommodation cavity 3 with the horizontal support plate 204. The accommodation cavity 3 is provided with a wireless charging module 4. The base 206 for placement on a support plane. The side of the base 206 away from the horizontal support plate 204 is provided with a non-slip pad (not shown in the figure) for placing on the support plane. By arranging the base 206 and the anti-skid pad (not shown in the figure), and the base 206 and the horizontal support plate 204 form an accommodating cavity 3, and a wireless charging module 4 is arranged in the accommodating cavity 3, so that the present invention has the capability of wireless charging , which is convenient for users to use, improves user experience, increases the practical application functions of speakers, and improves space utilization. Specifically, a groove 207 is formed on the side of the connecting inclined plate 202 close to the horizontal support plate 204, and the two ends of the groove 207 are respectively connected with the inner cavity of the casing 12 and the accommodating cavity 3; For electrical connection, the wire 5 is located in the groove 207 . By arranging the grooves 207, the wires 5 are arranged in the grooves 207, so that the wires 5 are not exposed to the outside, the wiring is more reasonable, the use is safer, and the overall shape of the utility model is more beautiful.

The side of the decorative plate 211 of the present invention adjacent to the connecting inclined plate 202 is located in the open end of the groove 207 . The side of the decorative plate 211 adjacent to the connecting inclined plate 202 is located in the open end of the groove 207, so that the contact area between the decorative plate 211 and the connecting plate is larger, the support of the present invention is more stable and reliable, and the The wires 5 in the groove 207 are completely shielded, eliminating the influence of the wires 5 on the overall shape. The fixing method of the decorative plate 211 and the connecting inclined plate 202 can be fixedly connected to the groove 207 by means of glue; it is also possible to open a screw through hole on the other side of the connecting inclined plate 202 away from the groove 207, and the decorative plate 211 is adjacently connected One side of the inclined plate 202 is provided with a third threaded hole corresponding to the screw hole, so that the decorative plate 211 and the groove 207 are fixedly connected by screws; the groove 207 can also be set as a T-shaped groove, adjacent to the decorative plate 211 One side of the connecting inclined plate 202 is provided with a T-shaped table matching the T-shaped groove, so that the decorative plate 211 and the groove 207 can also be fixedly connected.

The connecting inclined plate 202 of the present invention is provided with an arc-shaped groove 209 at one end away from the horizontal support plate 204. The outer casing 12 is provided in the shape of a disc and its outer circumference is embedded in the arc-shaped groove 209. The outer casing 12 is provided with a first threaded post 14. The base 206 is provided with a first threaded hole 208, the first end of the decorative board 211 is provided with a second threaded hole 212, the second end of the decorative board 211 is provided with a second threaded post 213; the first end of the decorative board 211 is inserted into the casing 12, and the second threaded hole 212 and the first threaded post 14 are fastened and connected by the first screw; the second end of the decorative plate 211 is inserted into the accommodating cavity 3, and the second threaded post 213 and the first threaded hole 208 pass through the first screw. The two screws are fastened and connected, and one end of the horizontal support plate 204 away from the connecting inclined plate 202 extends in the radial direction of the housing 12 . By arranging the first threaded post 14, the second threaded hole 212, the first threaded hole 208 and the second threaded post 213, the decorative plate 211 can be stably connected to the housing 12 and the base 206, the fixed installation is simpler and more stable and reliable, and the horizontal support The end of the plate 204 away from the connecting inclined plate 202 extends in the radial direction of the casing 12 , so that the supporting structure 2 has a better supporting strength for the speaker body 1 and the supporting is more stable.

The above embodiments are only preferred examples of the present utility model, and are not intended to limit the scope of implementation of the present utility model. Therefore, any equivalent changes or modifications made according to the structure, features and principles of the claimed scope of the present utility model shall be included in the This utility model patent application scope.

Claims (10)

1. a sound box with an L-shaped support structure, comprising a sound box main body and a support structure, is characterized in that: The support structure includes an L-shaped support and a decorative plate, the L-shaped support includes a connecting inclined plate, a transition arc plate and a horizontal support plate connected in sequence, and the horizontal support plate is used to be placed on the support plane, so the The angle between the connecting inclined plate and the horizontal support plate is an acute angle; The decorative plate is arranged on the side of the connecting inclined plate close to the horizontal support plate, the first end of the decorative plate is connected to the main body of the sound box, and the second end of the decorative plate is connected to the horizontal support board connection; The decorative board is a transparent board for light transmission, and an LED light is provided on the main body of the sound box close to the first end of the decorative board, and the LED light is used for projecting light to the decorative board. 2. a kind of sound box with L-shaped support structure according to claim 1, is characterized in that: The support structure further includes a base, the base is located on the side of the horizontal support plate away from the connecting inclined plate and forms a accommodating cavity with the horizontal support plate; A wireless charging module is arranged in the accommodating cavity, and the base is used to be placed on the supporting plane. 3. a kind of sound box with L-shaped support structure according to claim 2 is characterized in that: The speaker main body includes a casing and a control mainboard arranged in the casing, and the wireless charging module is electrically connected to the control mainboard. 4. a kind of sound box with L-shaped support structure according to claim 3, is characterized in that: A groove is formed on the side of the connecting inclined plate close to the horizontal support plate, and two ends of the groove are respectively communicated with the inner cavity of the housing and the accommodating cavity; The wireless charging module is electrically connected with the control mainboard through a wire, and the wire is located in the groove. 5. a kind of sound box with L-shaped support structure according to claim 4 is characterized in that: One side of the decorative plate adjacent to the connecting inclined plate is located in the open end of the groove. 6. a kind of sound box with L-shaped support structure according to claim 3, is characterized in that: An anti-skid pad is provided on the side of the base away from the horizontal support plate, and the anti-skid pad is used to be placed on the support plane. 7. a kind of sound box with L-shaped support structure according to any one of claims 3 to 6, is characterized in that: The casing is provided with a first threaded post, the base is provided with a first threaded hole, the first end of the decorative board is provided with a second threaded hole, and the second end of the decorative board is provided with a second threaded hole column; The first end of the decorative board is inserted into the housing, and the second threaded hole and the first threaded post are fastened with a first screw; The second end of the decorative board is inserted into the accommodating cavity, and the second threaded post and the first threaded hole are fastened with a second screw. 8. a kind of sound box with L-shaped support structure according to claim 7 is characterized in that: The casing is arranged in the form of a disc. 9. a kind of sound box with L-shaped support structure according to claim 8, is characterized in that: An arc-shaped groove is formed at one end of the connecting inclined plate away from the horizontal support plate, and the outer periphery of the casing is embedded in the arc-shaped groove. 10. a kind of sound box with L-shaped support structure according to claim 9 is characterized in that: One end of the horizontal support plate away from the connecting inclined plate extends in the radial direction of the housing.
