Abstract

The utility model discloses a high-tightness shielding and soundproofing device, comprising: a box body, a door and a window, and a pressing and driving component, wherein an opening is arranged on the box body, and the door and window are covered on the opening; It includes: a linear drive device, an adapter column connected to the output end of the linear drive device, two guide members, an upper guide shaft connected to the upper side of the door and window, and a lower guide shaft connected to the lower side of the door and window. The adapter column is connected with the door and window, and the two guide members are symmetrically arranged on both sides of the door and window; the guide member includes: a guide rail, a first guide groove and a second guide groove arranged on the guide rail , the upper guide shaft is arranged in the first guide groove, the lower guide shaft is arranged in the second guide groove, and both the first guide groove and the second guide groove are provided with arc-shaped sinkers groove. The utility model realizes the quick automatic switching of the doors and windows on the box body by pressing the driving component, and has high automation degree and strong practicability.

Description

A high-sealing shielding sound insulation device

technical field

The utility model relates to the field of shielding and soundproofing equipment, in particular to a shielding and soundproofing equipment with high sealing performance.

Background technique

The shielding sound insulation equipment is usually provided with a door and window, through which the entry and exit of materials in the shielding sound insulation equipment can be realized. However, since the shielding and soundproofing equipment has high requirements on the airtightness of the box, the doors and windows need to be compressed after they are closed; the doors and windows in the prior art cannot realize automatic switching and automatic compression after closing, and the degree of automation is low and cannot be Meet the needs of automated production.

Therefore, the prior art has shortcomings and needs to be improved.

Utility model content

The purpose of the utility model is to overcome the deficiencies of the prior art, provide a high-sealing shielding sound insulation equipment, and solve the problems in the prior art that the shielding sound insulation equipment cannot realize automatic opening and closing of doors and windows, the degree of automation is low, and it cannot meet the needs of automated production. .

The technical scheme of the utility model is as follows: a high-tightness shielding and sound insulation device, comprising: a box body, doors and windows arranged on the box body, and a pressing drive assembly connected with the doors and windows, and a box body is provided on the box body. an opening, the door and window are covered on the opening; the pressing and driving assembly includes: a mounting plate, a linear drive device rotatably mounted on the mounting plate, and an adapter connected with the output end of the linear drive device A column, two guide members, an upper guide shaft connected to the upper side of the door and window, and a lower guide shaft connected to the lower side of the door and window, the transfer column is connected to the door and window, and the two guide members are symmetrically arranged at on both sides of the door and window; the guide member includes: a guide rail, a first guide groove and a second guide groove arranged on the guide rail, the upper guide shaft is arranged in the first guide groove, the The lower guide shaft is arranged in the second guide groove, and both the first guide groove and the second guide groove are provided with arc-shaped sinking grooves.

Further, the high-tightness shielding and soundproofing equipment further includes: a sealing strip arranged on the inner side of the door and window.

Further, the high-tightness shielding and sound insulation device further includes: a box door rotatably mounted on the box body, a locking assembly for locking the box door and the box body, The handle on the box door.

Further, the locking assembly includes: a rotary handle rotatably mounted on the box door, a first adapter block, a second adapter block, a locking piece, a first adapter block, a lock piece, a socket on the rotary handle The pulling block on the locking member, the locking block matched with the locking member, one end of the second adapter block is rotatably connected to the first adapter block, and the other end is rotatable connected to the pull block.

Further, the locking member comprises: a lifting rod, a clamping post arranged on the lifting rod, and the pulling block is sleeved on the lifting rod.

Further, the locking block is provided with an arc-shaped locating slot matched with the locating post.

Further, the locking assembly further includes: a plurality of guide blocks, all of which are sleeved on the lift rod

Further, the linear drive device is a drive cylinder.

Further, one end of the linear drive device is provided with a rotating shaft, and the rotating shaft is rotatably mounted on the mounting plate.

By adopting the above scheme, the utility model provides a high-tightness shielding and sound insulation device, which has the following beneficial effects: the quick automatic switching of the doors and windows on the box body can be realized by pressing the drive assembly, and the transfer post can exert a pressure on the doors and windows after closing, With the cooperation of the upper guide shaft and the lower guide shaft, the doors and windows can be pressed tightly, so as to ensure good sealing performance and strong practicability in the box of the shielding and sound insulation equipment.

Description of drawings

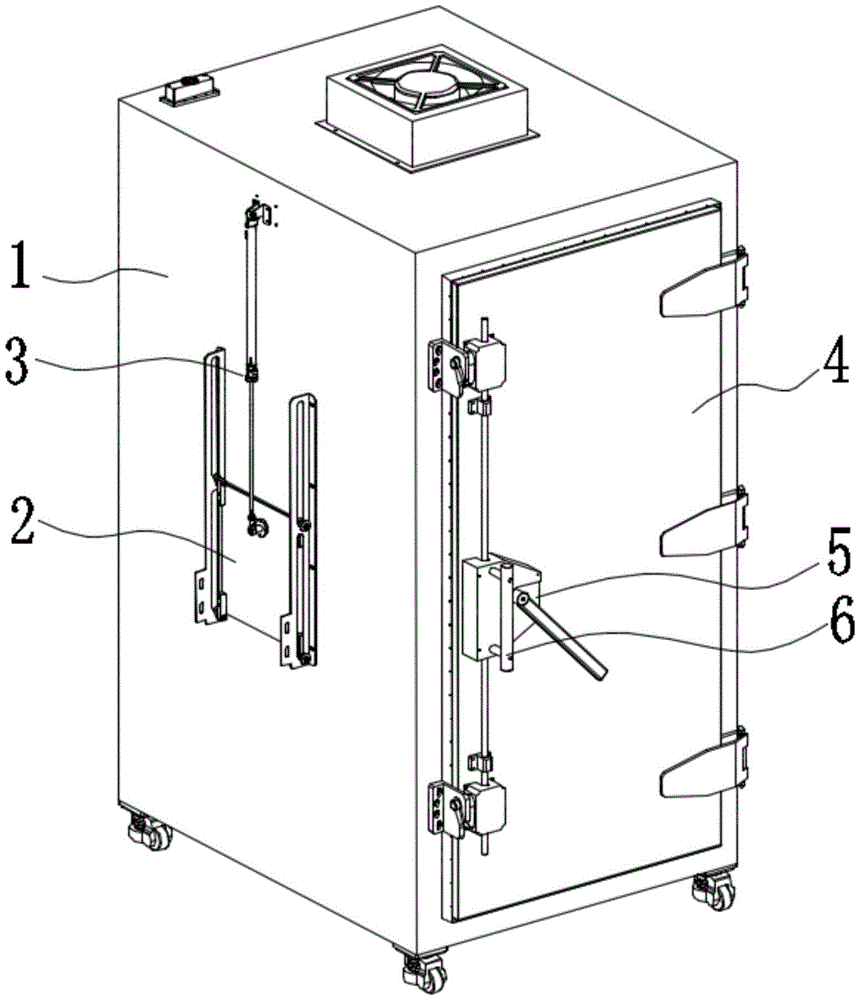

Fig. 1 is the structural representation of the utility model;

2 is a schematic structural diagram of a box body, a box door and a locking assembly of the present invention;

3 is a schematic structural diagram of a pressing drive assembly and a door and window of the present invention;

Fig. 4 is the structural schematic diagram of the guide member of the present invention

Fig. 5 is the enlarged view of A place in Fig. 2;

FIG. 6 is an enlarged view of B in FIG. 2 .

Among them: box 1, opening 10, doors and windows 2, pressing drive assembly 3, linear drive device 30, transfer column 31, guide member 32, guide rail 320, first guide groove 321, second guide groove 322, arc lower Sink 323, upper guide shaft 33, lower guide shaft 34, sealing strip 35, mounting plate 36, rotating shaft 37, box door 4, locking assembly 5, rotating handle 50, first adapter block 51, second adapter block 52. The locking member 53, the lifting rod 530, the locking post 531, the pulling block 54, the locking block 55, the arc-shaped locking groove 550, the guide block 56, and the handle 6.

Detailed ways

The present utility model will be described in detail below with reference to the accompanying drawings and specific embodiments.

Please refer to FIG. 1 to FIG. 6 , the present invention provides a high-sealing shielding and sound insulation device, comprising: a box body 1 , a door and window 2 arranged on the box body 1 , and a pressing drive assembly connected to the door and window 2 . 3. The box body 1 is provided with an opening 10, and the door and window 2 is covered on the opening 10; the pressing and driving assembly 3 includes: a mounting plate 36, a The linear drive device 30 , the adapter column 31 connected to the output end of the linear drive device 30 , the two guide members 32 , the upper guide shaft 33 connected to the upper side of the door and window 2 , and the lower side connected to the lower side of the door and window 2 . The guide shaft 34, specifically, the linear drive device 30 can be an electric drive device, such as an electric push rod, or a pneumatic drive device, such as a drive cylinder, which can be determined according to actual production requirements, and is described in this embodiment. The linear driving device 30 is a driving cylinder; one end of the linear driving device 30 is provided with a rotating shaft 37, and the rotating shaft 37 is rotatably mounted on the mounting plate 36; the connecting post 31 is connected with the door and window 2, The two guide members 32 are symmetrically arranged on both sides of the door and window 2 ; the guide members 32 include: a guide rail 320 , a first guide groove 321 and a second guide groove 322 arranged on the guide rail 320 . The upper guide shaft 33 is disposed in the first guide groove 321, the lower guide shaft 34 is disposed in the second guide groove 322, and both the first guide groove 321 and the second guide groove 322 are provided with The arc-shaped sinking groove 323, the arc-shaped sinking groove 323 in the first guide groove 321 communicates with the first guide groove 321, and the connection is an arc-shaped surface, and the arc-shaped sinking groove in the second guide groove 322 The groove 323 communicates with the second guide groove 322, and the connection is an arc surface. The specific action process of the high-tightness shielding and sound insulation equipment in the present invention when closing doors and windows is as follows: starting the linear drive device 30 to drive the doors and windows 2 to move toward the side close to the opening 10 on the box body 1, and at the same time the upper guide shaft 33 moves in the first guide groove 321, and the lower guide shaft 34 moves in the second guide groove 322. When the upper guide shaft 33 moves to the arc-shaped sinking groove 323 in the first guide groove 321, the lower guide shaft 34 moves to When inside the arc-shaped sinking groove 323 in the second guide groove 322, the linear drive device 30 rotates on the mounting plate 36 by a certain angle, so that the door and window 2 moves to the side of the opening 10 and completely covers the opening 10 on the box body 1. , and the upper guide shaft 33 moves from the first guide groove 321 and the lower guide shaft 34 from the second guide groove 322 to the arc-shaped sinking groove 323 at the corresponding position respectively, the door and window 2 will move to the side close to the box 1, and finally Fully fit on the opening 10 on the box body 1, so that the opening 10 is sealed, and the process of opening the door and window 2 is opposite to the above-mentioned operation process; Realize the quick automatic switch of the doors and windows 2 on the box body 1. After closing, the transfer column 31 can exert a pressure on the doors and windows 2. With the cooperation of the upper guide shaft 33 and the lower guide shaft 34, the doors and windows 2 can be pressed tightly to ensure the shielding and sound insulation. The sealing performance in the box body 1 of the equipment is good, and the practicability is strong.

Specifically, in this embodiment, the described high-tightness shielding and sound insulation device further includes: a sealing strip 35 arranged on the inner surface of the door and window 2 , and the sealing strip 35 is arranged on the door and window 2 and the box body 1 On the contact surface of the opening 10, it is further ensured that after pressing the door and window 2, the air tightness in the box body 1 is good; specifically, the sealing strip 35 is an electromagnetic sealing strip or a conductive rubber sealing strip that is both electromagnetic and airtight. .

Specifically, in this embodiment, the described high-tightness shielding and soundproofing device further includes: a box door 4 rotatably mounted on the box body 1, used for locking the box door 4 and The locking assembly 5 of the box body 1, the handle 6 arranged on the box door 4; the box body 1 and the box door 4 are connected by a hinge, the locking assembly 5 is arranged on the side of the box door 4 when it is opened and closed, and the handle 6 Set on one side of the locking assembly 5 .

Specifically, in this embodiment, the locking assembly 5 includes: a rotating handle 50 rotatably mounted on the box door 4 , a first adapter block 51 sleeved on the rotating handle 50 , a first Two adapter blocks 52 , a locking piece 53 , a pulling block 54 sleeved on the locking piece 53 , and a locking block 55 matched with the locking piece 53 , one end of the second adapter block 52 It is rotatably connected to the first transfer block 51 , and the other end is rotatably connected to the pulling block 54 ; the locking member 53 includes: a lifting rod 530 , a The locking post 531, the pulling block 54 is sleeved on the lifting rod 530, and the locking assembly 5 further includes: a plurality of guide blocks 56, the plurality of guide blocks 56 are all sleeved on the lifting rod 530, and guide the The block 56 is fixed on the box door 4 and is used for guiding during the up and down movement of the lift rod 530 ; the locking block 55 is provided with an arc-shaped locking slot 550 matched with the locking post 531 . The action process of the locking assembly 5 is: manually rotate the rotary handle 50, under the action of the rotary handle 50, the first adapter block 51 is synchronously driven to rotate, and the second adapter block 52 moves. The transfer block 52 forms a connecting rod structure, and further pulls the lift rod 530 to move up and down. When the box door 4 is opened, the lift rod 530 moves down, and drives the locking post 531 to move downward. The arc-shaped detent grooves 550 are separated, thereby realizing the opening of the box door 4. The lifting rod 530 moves upward during the closing process. The operation is opposite to the above process. Therefore, the box door 4 can be quickly locked by the locking assembly 5.

In summary, the utility model provides a high-sealing shielding and sound insulation device, which has the following beneficial effects: the fast automatic switching of doors and windows on the box body can be realized by pressing the drive assembly, and the transfer post can apply a pressure to the doors and windows after closing. , Under the cooperation of the upper guide shaft and the lower guide shaft, the doors and windows can be pressed tightly, so as to ensure good sealing performance and strong practicability in the box of the shielding and sound insulation equipment.

The above are only the preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model shall be included in the present utility model. within the scope of protection.

Claims (9)

1. A high-sealability shielding sound-insulating device, comprising: the door and window pressing device comprises a box body, a door and window arranged on the box body and a pressing driving assembly connected with the door and window, wherein an opening is formed in the box body, and the door and window is covered on the opening; the compression drive assembly includes: the device comprises a mounting plate, a linear driving device rotatably mounted on the mounting plate, a switching column connected with the output end of the linear driving device, two guide members, an upper guide shaft connected to the upper side of a door window, and a lower guide shaft connected to the lower side of the door window, wherein the switching column is connected with the door window, and the two guide members are symmetrically arranged on two sides of the door window; the guide member includes: the guide rail, set up first guide way and second guide way on the guide rail, it sets up to go up the guiding axle in the first guide way, the guiding axle sets up down in the second guide way, all be provided with the arc and sink the groove in first guide way and the second guide way.

2. The high-sealability shielding sound insulation device of claim 1, further comprising: and the sealing strips are arranged on the inner side surfaces of the doors and the windows.

3. The high-sealability shielding sound insulation device of claim 1, further comprising: the box door is rotatably arranged on the box body, the locking assembly is used for locking the box door and the box body, and the handle is arranged on the box door.

4. A high-sealability shielding sound-proofing device according to claim 3, wherein the locking assembly comprises: the box door locking device comprises a rotary handle, a first transfer block, a second transfer block, a locking piece, a pulling block and a locking block, wherein the rotary handle is rotatably arranged on the box door, the first transfer block, the second transfer block, the locking piece and the locking block are sleeved on the locking piece, the locking block is matched with the locking piece, one end of the second transfer block is rotatably connected to the first transfer block, and the other end of the second transfer block is rotatably connected to the pulling block.

5. The shielding sound-proofing device with high sealing performance as claimed in claim 4, wherein said locking member comprises: the lifting rod and the clamping column are arranged on the lifting rod, and the pulling block is sleeved on the lifting rod.

6. The shielding and sound-insulating device with high sealing performance as claimed in claim 5, wherein the locking block is provided with an arc-shaped clamping groove matched with the clamping column.

7. The high-sealability shielding sound insulation device of claim 5, wherein the locking assembly further comprises: and the guide blocks are all sleeved on the lifting rod.

8. The shielding and sound-proofing apparatus with high sealing performance as claimed in claim 1, wherein said linear driving means is a driving cylinder.

9. The shielding and sound-insulating device with high sealing performance as claimed in claim 1, wherein a rotating shaft is provided at one end of the linear driving device, and the rotating shaft is rotatably mounted on the mounting plate.
