Abstract

The utility model relates to the technical field of leisure trousers processing equipment, in particular to a clamping device for a production confirmation template for casual trousers, comprising a workbench, a transmission component is inserted in the inner part of the workbench, and the top of the transmission component is fixedly installed with a horizontal A buffer clamping component is inserted into the interior of the horizontal plate, an engaging component is fixedly installed at the bottom end of the horizontal plate, and the engaging component includes a second telescopic rod, and the bottom end of the horizontal plate is fixedly installed with a clamping component. The second telescopic rod is fixedly mounted with a magnet at the bottom end of the second telescopic rod. The utility model uses the magnetic force of the magnet to match with the grooves opened inside the clamping plate, so that the magnet and the clamping plate are attached together, thereby improving the stability of the clamping plate lifting and lowering, and the elastic force of the second spring is matched with the conical structure of the clamping block. In cooperation, when the splint is pulled through the inclined surface of the clamping block, it is convenient for the clamping block to fall off from the interior of the connecting block. At this moment, the first spring lacks a limit, so as to facilitate the purpose of replacing the first spring.

Description

A clamping device for production confirmation sample of casual pants

technical field

The utility model relates to the technical field of leisure trousers processing equipment, in particular to a clamping device for a production confirmation template of leisure trousers.

Background technique

Casual trousers are trousers that look more casual and casual. In the production process of casual trousers, multiple processes are required to complete, including the cutting process of the fabric through the template, and the use of clamping devices to limit the casual trousers. The model is attached to the fabric for subsequent cutting. However, the existing clamping device does not have a buffer mechanism, which leads to excessive extrusion of the model and damage to the model, thereby affecting the processing progress of the casual pants. However, the buffer The spring in the component works for a long time, which leads to the aging of the spring and the decrease of its elasticity, which affects the normal operation of the buffer component. For this reason, we propose a clamping device for the production confirmation model of casual pants to solve the above problems.

Utility model content

The purpose of this utility model is to provide a clamping device for the production confirmation sample of casual trousers, so as to solve the problem that the spring in the buffer assembly proposed in the above background works for a long time, resulting in the aging of the spring and the decrease of its elastic force, thereby affecting the performance of the buffer assembly. Problems with working properly.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a clamping device for slacks production confirmation template, including a workbench, a transmission assembly is inserted inside the workbench, and the top of the transmission assembly is fixedly installed with a horizontal A buffer clamping component is inserted into the interior of the horizontal plate, an engaging component is fixedly installed at the bottom end of the horizontal plate, and the engaging component includes a second telescopic rod, and the bottom end of the horizontal plate is fixedly installed with a A second telescopic rod is fixedly installed with a magnet at the bottom end of the second telescopic rod, a second spring is fixedly installed inside the buffer clamping assembly, and a clamping block is fixedly installed at the other end of the second spring.

Preferably, the transmission assembly includes a reverse threaded column, a reverse threaded column is inserted inside the worktable, a motor is fixedly installed on the outer side of the workbench, and one end of the reverse threaded column is fixedly installed on the motor The other end of the reverse threaded column is fixedly installed with a pulley set on the rotating output shaft of the reverse threaded column, the outer side of the reverse threaded column is sleeved with a connecting rod, and the reverse threaded column is engaged with the connecting rod through threads.

Preferably, a limit plate is fixedly installed on the outer side of the connecting rod, and a chute adapted to the limit plate is provided inside the worktable.

Preferably, the buffer clamping assembly includes a threaded rod, a threaded rod is inserted inside the horizontal plate, a nut is sleeved on the outer side of the threaded rod, and a first telescopic rod is fixedly installed at the bottom end of the threaded rod , and the outer side of the first telescopic rod is sleeved with a first spring, the bottom end of the first spring is fixedly installed with a connecting block, and the outer side of the connecting block is sleeved with a splint.

Preferably, a limiting column is fixedly installed on the top of the horizontal plate, and the outer shape of the limiting column is an "L"-shaped structure. A limit block is fixedly installed inside the plate, and a chute adapted to the limit block is provided inside the threaded rod.

Preferably, there are two sets of the second telescopic rods, which are arranged symmetrically with the central symmetry plane of the horizontal plate, the interior of the splint is provided with a groove that is adapted to the magnet, and one end of the clamping block is in the shape of a Conical structure, the interior of the connecting block is provided with a groove matching with the clamping block.

Compared with the prior art, the beneficial effects of the present utility model are:

(1) The magnetic force of the magnet is matched with the grooves opened inside the splint to make the magnet and the splint fit together, thereby improving the stability of the splint's lifting, and the elastic force of the second spring is compatible with the conical structure of the clamping block. In cooperation, when the splint is pulled through the inclined surface of the clamping block, it is convenient for the clamping block to fall off from the interior of the connecting block. At this moment, the first spring lacks a limit, so as to facilitate the purpose of replacing the first spring;

(2) By setting the nut, the horizontal position of the nut is inconvenient because the nut slides outside the limit post, and the limit block slides inside the threaded rod, so that the threaded rod drives the splint through the first telescopic rod and the connecting block Stable downward movement, while clamping the template, due to the elastic force of the first spring, the pressing force of the clamping plate on the template is reduced.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

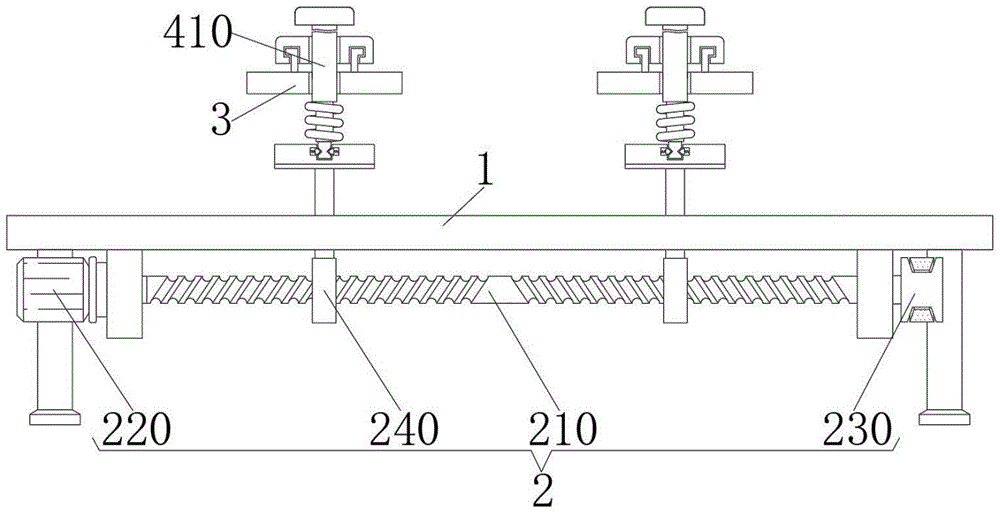

Fig. 1 is the structural front sectional schematic diagram of the present utility model;

Fig. 2 is the structural side sectional schematic diagram of the utility model;

Fig. 3 is the structural side sectional schematic diagram of the horizontal plate and the threaded rod of the utility model;

FIG. 4 is an enlarged schematic view of the structure of A in FIG. 3 of the present invention.

In the figure: 1. Workbench; 2. Transmission assembly; 210, Reverse threaded column; 220, Motor; 230, Pulley set; 240, Connecting rod; 420, nut; 430, first telescopic rod; 440, first spring; 450, connecting block; 460, splint; 5, snap-fit assembly; 510, second telescopic rod; 520, magnet; 530, second spring ; 540, card block.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-4 , an embodiment provided by the present invention: a clamping device for a production confirmation sample of casual pants, comprising a workbench 1, a transmission component 2 is inserted inside the workbench 1, and the transmission component 2 A horizontal plate 3 is fixedly installed at the top of the horizontal plate 3, a buffer clamping assembly 4 is inserted in the interior of the horizontal plate 3, and an engaging assembly 5 is fixedly installed at the bottom end of the horizontal plate 3, and the engaging assembly 5 includes a second telescopic rod 510. The bottom end of the plate 3 is fixedly installed with a second telescopic rod 510, and the bottom end of the second telescopic rod 510 is fixedly installed with a magnet 520, the buffer clamping assembly 4 is fixedly installed with a second spring 530, and the second spring 530 is fixedly installed. The other end is fixedly installed with a clamping block 540. In this structure, the clamping block 540 is arranged to cooperate with the elastic force of the second spring 530 to facilitate the disassembly of the buffer clamping assembly 4, so as to replace the internal parts of the buffer clamping assembly 4 later. the goal of;

Further, the transmission assembly 2 includes a reverse threaded column 210, a reverse threaded column 210 is inserted inside the workbench 1, a motor 220 is fixedly installed on the outer side of the workbench 1, and one end of the reverse threaded column 210 is fixedly installed on the motor 220. On the output shaft of the rotation of the shaft, the other end of the reverse threaded column 210 is fixedly installed with a pulley set 230, the outer side of the reverse threaded column 210 is sleeved with a connecting rod 240, and the reverse threaded column 210 and the connecting rod 240 are engaged through threads and connected to each other. The outer side of the rod 240 is fixedly installed with a limit plate, and the inside of the worktable 1 is provided with a chute adapted to the limit plate. In this structure, by setting the connecting rod 240, when the reverse threaded post 210 engages with the connecting rod 240 and rotates, The connecting rod 240 slides inside the workbench 1 through the limit plate, thereby improving the stability of the connecting rod 240 sliding inside the workbench 1;

Further, the buffer clamping assembly 4 includes a threaded rod 410 , a threaded rod 410 is inserted inside the horizontal plate 3 , a nut 420 is sleeved on the outer side of the threaded rod 410 , and the bottom end of the threaded rod 410 is fixedly installed with a first telescopic rod 430, and the outer side of the first telescopic rod 430 is sleeved with a first spring 440, the bottom end of the first spring 440 is fixedly installed with a connecting block 450, and the outer side of the connecting block 450 is sleeved with a splint 460, the top of the cross plate 3 The limit post is fixedly installed, and the shape of the limit post is an "L"-shaped structure. The inside of the nut 420 is provided with a slide rail that matches the limit post, and the interior of the horizontal plate 3 is fixedly installed with a limit block and a threaded rod. The inside of 410 is provided with a chute adapted to the limit block. In this structure, by setting the nut 420, since the nut 420 slides on the outside of the limit post, the horizontal position of the nut 420 is inconvenient, and the limit block is in the thread. The rod 410 slides inside, so that the threaded rod 410 drives the clamping plate 460 to move downward through the first telescopic rod 430 and the connecting block 450, and cooperates with the workbench 1 to clamp the template. Through the elastic force of the first spring 440, To prevent the plywood 460 from extruding too much force on the template;

Further, the second telescopic rods 510 are provided with two groups in total and are arranged symmetrically with the central symmetry plane of the horizontal plate 3. The interior of the splint 460 is provided with a groove that is adapted to the magnet 520, and one end of the clamping block 540 is tapered. The inner part of the connecting block 450 is provided with a groove that is adapted to the clamping block 540. In this structure, the second spring 530 is arranged, and the magnetic force of the magnet 520 is matched with the groove opened in the splint 460, so that the magnet 520 and the clamping plate 460 are matched. The splint 460 is attached together, thereby improving the stability of the lifting and lowering of the splint 460, and through the elastic force of the second spring 530, it is matched with the conical structure of the clamping block 540. The block 540 falls off from the inside of the connection block 450 for the purpose of replacing the first spring 440 .

The working principle and use process of the utility model: when in use, the device is connected to an external power supply and then turned on the switch, and the motor 220 is started. The two sets of reverse threaded posts 210 rotate synchronously, and through the engagement and rotation of the reverse threaded posts 210 and the connecting rod 240, it is convenient for the connecting rod 240 to adjust the position of the buffer clamping assembly 4 through the horizontal plate 3. By setting the nut 420, due to the The nut 420 slides on the outside of the limit post, which makes the horizontal position of the nut 420 inconvenient, and the limit block slides inside the threaded rod 410, so that the threaded rod 410 drives the splint 460 downward through the first telescopic rod 430 and the connecting block 450 Move, cooperate with the workbench 1 to clamp the template, through the elastic force of the first spring 440, prevent the clamping plate 460 from pressing too much on the template;

The magnetic force of the magnet 520 is matched with the grooves opened in the splint 460 to make the magnet 520 and the splint 460 fit together, so as to improve the stability of the splint 460 rising and falling, and the elastic force of the second spring 530 is used to match the clamping block 540. The conical structure is matched, and when the splint 460 is pulled through the inclined surface of the clamping block 540, it is convenient for the clamping block 540 to fall off from the interior of the connecting block 450, so as to replace the first spring 440. The above is the entire working principle of the present invention. .

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a template is confirmed in leisure trousers production and is used clamping device which characterized in that: including workstation (1), the inside of workstation (1) is inserted and is equipped with drive assembly (2), and the top fixed mounting of drive assembly (2) has diaphragm (3), the inside of diaphragm (3) is inserted and is equipped with buffering clamping unit (4), the bottom fixed mounting of diaphragm (3) has block subassembly (5), and block subassembly (5) include second telescopic link (510), the bottom fixed mounting of diaphragm (3) has second telescopic link (510), and the bottom fixed mounting of second telescopic link (510) has magnet (520), the inside fixed mounting of buffering clamping unit (4) has second spring (530), and the other end fixed mounting of second spring (530) has fixture block (540).

2. The clamping device for the leisure pants production confirmation template as claimed in claim 1, wherein: the utility model discloses a reverse thread structure of a motor, including transmission assembly (2), the inside of workstation (1) is inserted and is equipped with reverse thread post (210), the outside fixed mounting of workstation (1) has motor (220), the one end fixed mounting of reverse thread post (210) is on the rotation output shaft of motor (220), the other end fixed mounting of reverse thread post (210) has pulley group (230), the outside cover of reverse thread post (210) is equipped with connecting rod (240), reverse thread post (210) and connecting rod (240) pass through the screw thread and mesh mutually.

3. The clamping device for the leisure pants production confirmation template as claimed in claim 2, wherein: the outside fixed mounting of connecting rod (240) has the limiting plate, the spout with the limiting plate looks adaptation is seted up to the inside of workstation (1).

4. The clamping device for the leisure pants production confirmation template as claimed in claim 1, wherein: buffering clamping components (4) include threaded rod (410), the inside of diaphragm (3) is inserted and is equipped with threaded rod (410), and the outside cover of threaded rod (410) is equipped with nut (420), the bottom fixed mounting of threaded rod (410) has first telescopic link (430), and the outside cover of first telescopic link (430) is equipped with first spring (440), the bottom fixed mounting of first spring (440) has connecting block (450), and the outside cover of connecting block (450) is equipped with splint (460).

5. The clamping device for the leisure pants production confirmation template as claimed in claim 4, wherein: the top fixed mounting of diaphragm (3) has spacing post, and the appearance of spacing post is "L" shape structure, the slide rail with spacing post looks adaptation is seted up to the inside of nut (420), the inside fixed mounting of diaphragm (3) has the stopper, the spout with stopper looks adaptation is seted up to the inside of threaded rod (410).

6. The clamping device for the leisure pants production confirmation template as claimed in claim 4, wherein: the second telescopic link (510) is provided with two sets of and personally submits the symmetry form setting with the central symmetry of diaphragm (3) altogether, the recess with magnet (520) looks adaptation is seted up to the inside of splint (460), the one end of fixture block (540) is the toper structure, the recess with fixture block (540) looks adaptation is seted up to the inside of connecting block (450).
