Abstract

The utility model discloses a sitting-type flushing device for vaginal cleaning, comprising a seat, an opening formed on a plate surface of the seat, a waste liquid cylinder detachably connected in the opening, and a waste liquid cylinder arranged in the seat. The vaginal rinsing head on the chair, and the vaginal rinsing head is located above the waste liquid cylinder; the vaginal rinsing head includes a snap ring detachably connected to the seat, a connecting pipe and a flushing pipe respectively arranged on the snap ring, and the connecting pipe It is connected with the flushing pipe. The flushing pipe extends into the opening of the seat and is located above the waste liquid cylinder. The connecting pipe is used to connect the warm water pipe. The flushing pipe is provided with a plurality of flushing holes; the structure is reliable and the performance is good. The vaginal cleaning effect is good, and the seat and the waste liquid cylinder, and the seat and the vaginal flushing head are all detachably connected, which is convenient for disassembly and assembly, and facilitates the overhaul, maintenance or cleaning of the device itself.

Description

A seated irrigation device for vaginal cleaning

technical field

The utility model relates to the technical field of medical devices, in particular to a sitting flushing device used for vaginal cleaning.

Background technique

Gynecological inflammation is the most common disease in clinical gynecology. Especially in recent years, with the accelerated pace of people's life and irregular living habits, the incidence of gynecological inflammation has increased year by year. For gynecological inflammation, one of the commonly used clinical methods is warm water flushing. At the same time, patients with cervical cancer and other gynecological tumors must perform long-term vaginal irrigation after radiotherapy and after radiotherapy. If the vaginal irrigation is not thorough, the treatment effect of the patients will be affected.

Whether it is preoperative vaginal irrigation or vaginal irrigation for the treatment of vaginitis, the most difficult part to rinse is the vaginal fornix, because it is connected to the cervix, the folds are deep, and it is difficult for the irrigation liquid to reach here; Avoid retrograde flow of the irrigant into the uterine cavity from the cervix to avoid infection. Therefore, special attention should be paid to the irrigating process when rinsing the vaginal fornix.

Utility model content

In order to solve the above-mentioned technical problems, the utility model provides a sitting-type flushing device for vaginal cleaning.

The technical solution of the utility model to solve the above-mentioned technical problems is as follows: a sitting flushing device for vaginal cleaning, comprising a seat, an opening formed on the board surface of the seat, and a waste liquid detachably connected in the opening a tube and a vaginal flushing head arranged on the seat, and the vaginal flushing head is located above the waste liquid tube;

The vaginal flushing head includes a snap ring detachably connected to the seat, and a connecting pipe and a flushing pipe respectively arranged on the snap ring, the connecting pipe and the flushing pipe are communicated, and the flushing pipe extends into the opening of the seat and is located in the waste fluid Above the cylinder, the connecting pipe is used to connect the warm water pipe, and the flushing pipe is provided with a plurality of flushing holes.

Further, the end of the flushing pipe away from the snap ring is provided with a waste liquid guide port.

Further, the waste liquid cylinder includes a cylinder body matched with the opening and a clamping plate connected with the cylinder body and buckled on the seat, and the cylinder body protrudes below the seat.

Further, the outer wall of the connecting pipe is provided with an outer thread, and the inner wall of the warm water pipe is provided with an inner thread matched with the outer thread.

Further, the seat is provided with a snap groove matching with the snap ring, and the snap ring is assembled in the snap groove.

Further, the flushing holes are evenly distributed along the wall of the flushing pipe.

The utility model has the following beneficial effects: a seated flushing device for vaginal cleaning provided by the utility model has reliable structure, good use performance and good vaginal cleaning effect. The seat and the vaginal irrigation head are all detachable connections, which are easy to disassemble and assemble, which is convenient for cleaning the device itself; when using, the patient only needs to sit on the stool and insert the vaginal irrigation head into the vagina to complete the irrigation, which is convenient, fast and comfortable; The vaginal irrigation device changes the patient's original squat irrigation position, improves the patient's comfort and experience; solves the problems of incomplete irrigation or interruption in the middle of the traditional squat irrigation because the position cannot be maintained for a long time. The device keeps the patient in a relatively comfortable position during the entire operation, which can effectively improve the flushing effect; the special design of the vaginal flushing head, the arrangement of multiple flushing holes on the wall of the flushing tube and the design of the waste liquid guide port at the end ensure that the Rinse thoroughly, and it is convenient to discharge the rinsed waste liquid into the waste liquid barrel.

Description of drawings

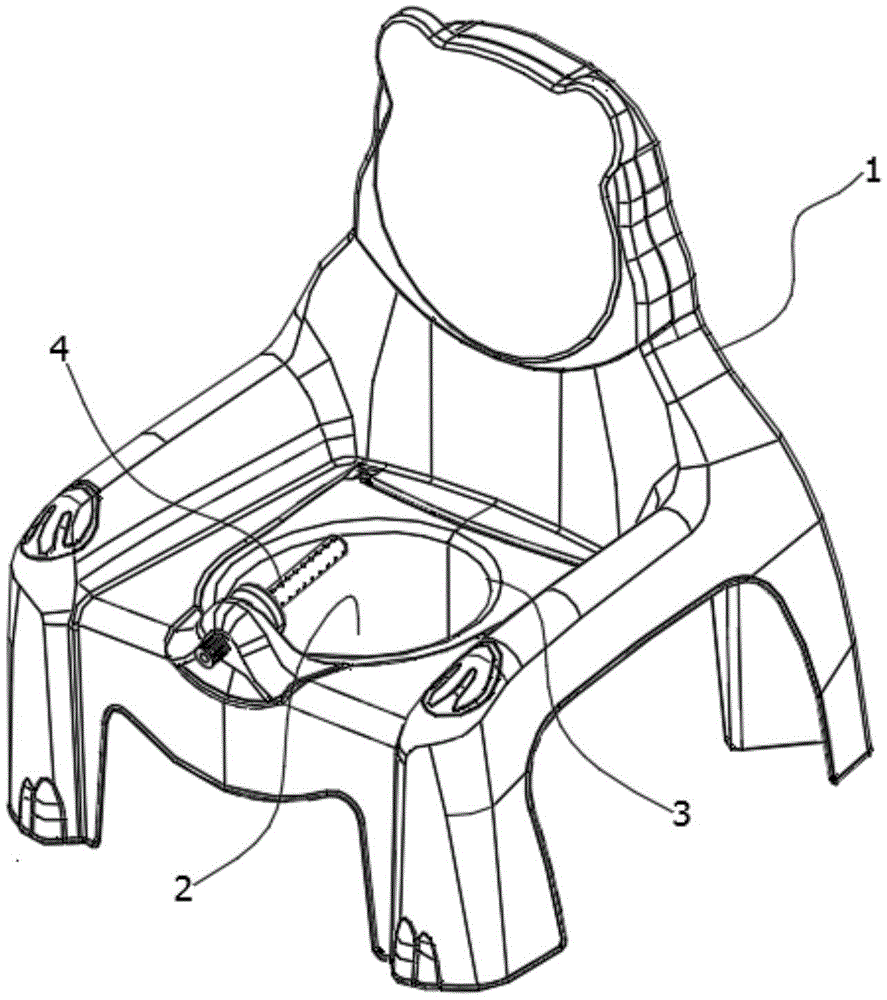

Fig. 1 is the structural representation of the utility model;

Figure 2 is a schematic view of the seat structure in the utility model;

Fig. 3 is the structural representation of vaginal flushing head in the utility model;

Fig. 4 is the structural representation of waste liquid cylinder in the utility model;

The reference numerals shown in Figures 1 to 4 are respectively indicated as: 1-seat, 2-opening hole, 3-waste cartridge, 4-vaginal irrigation head, 40-retaining ring, 41-connecting tube, 42-irrigation Tube, 43 - flushing hole, 44 - waste liquid guide port, 30 - cylinder, 31 - card board.

Detailed ways

The principles and features of the present invention will be described below with reference to the accompanying drawings, and the examples are only used to explain the present invention, and are not intended to limit the scope of the present invention.

As shown in FIG. 1 to FIG. 2, a sitting-type irrigation device for vaginal cleaning includes a seat 1, an opening 2 formed on the board surface of the seat 1, and a waste product detachably connected in the opening 2. The liquid cylinder 3 and the vaginal flushing head 4 arranged on the seat 1 , and the vaginal flushing head 4 is located above the waste liquid cylinder 3 . When in use, the patient sits on the seat 1, inserts the vaginal flushing head 4 into the vagina, and infuses warm water through the vaginal flushing head 4 to complete the flushing, which is convenient, quick and comfortable. The washed waste liquid flows to the waste liquid cylinder 3 for recovery without causing pollution.

As shown in FIG. 3 , the vaginal irrigation head 4 includes a snap ring 40 detachably connected to the seat 1 , a connecting pipe 41 and a flushing pipe 42 respectively arranged on the snap ring 40 , and the connecting pipe 41 and the flushing pipe 42 communicate with each other, The flushing pipe 42 extends into the opening 2 of the seat 1 and is located above the waste liquid container 3 . The connecting pipe 41 is used to connect the warm water pipe. The flushing pipe 42 is provided with a plurality of flushing holes 43 . The seat 1 is provided with a snap groove, which is assembled with the snap ring 40 to form a detachable structure, so that the vaginal rinsing head 4 and the seat 1 are detachable for easy cleaning. The connecting pipe 41 is used for connecting the warm water pipe, the flushing pipe 42 is used for rinsing the vagina, and the warm water is infused to different positions in the vagina through the plurality of flushing holes 43, and the flushing holes 43 located outside the vagina can also flush the outside of the vagina, Guaranteed complete reliability for vaginal cleaning.

In order to facilitate the discharge of waste liquid after flushing, in the present invention, a waste liquid guide port 44 is provided at the end of the flushing pipe 42 away from the snap ring 40 .

In order to facilitate the disassembly and assembly between the waste liquid cylinder 3 and the seat 1, as shown in FIG. 4 , in the present invention, the waste liquid cylinder 3 includes a cylinder body 30 that matches the opening 2 and a cylinder body 30 that is connected and overlapped with the cylinder body 30 . With the card plate 31 buckled on the seat 1 , the cylinder 30 protrudes downward to the bottom of the seat 1 .

In order to facilitate the connection between the connection pipe 41 and the warm water pipe, in the present invention, the outer wall of the connection pipe 41 is provided with external threads, and the inner wall of the warm water pipe is provided with internal threads matched with the external threads. The screw connection is adopted, which has self-locking performance and ensures the reliability of the connection between the two. At the same time, the screw connection is a disassembly connection structure, which is convenient for the disassembly of the two in a non-working state, and thus is convenient for separate cleaning.

In order to improve the uniformity of warm water flushing, in the present invention, the flushing holes 43 are evenly distributed along the pipe wall of the flushing pipe 42 .

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included in the present invention. within the scope of protection of the utility model.

Claims (6)

1. A sitting type washing device for vagina cleaning is characterized by comprising a seat (1), an opening (2) formed in the plate surface of the seat (1), a waste liquid cylinder (3) detachably connected in the opening (2) and a vagina washing head (4) arranged on the seat (1), wherein the vagina washing head (4) is positioned above the waste liquid cylinder (3);

vagina washes head (4) including dismantling the connection snap ring (40) on seat (1) and set up connecting pipe (41) and flushing pipe (42) on snap ring (40) respectively, connecting pipe (41) with flushing pipe (42) are linked together, flushing pipe (42) extend to in trompil (2) of seat (1) and are located the top of waste liquid section of thick bamboo (3), connecting pipe (41) are used for connecting the warm water pipe, a plurality of flushing holes (43) have been seted up on flushing pipe (42).

2. Sitting irrigation device for vaginal cleaning according to claim 1, characterized in that the end of the irrigation tube (42) distal from the snap ring (40) is provided with a waste liquid guide (44).

3. Sitting irrigation device for vaginal cleaning according to claim 1, characterized in that the waste cartridge (3) comprises a cartridge (30) matching the aperture (2) and a catch plate (31) connected to the cartridge (30) and snapping onto the seat (1), the cartridge (30) protruding downwards under the seat (1).

4. The sitting irrigation device for vaginal cleaning as claimed in any one of claims 1 to 3, characterized in that the outer wall of the connection tube (41) is provided with an external thread and the inner wall of the warm water tube is provided with an internal thread matching with the external thread.

5. Sitting irrigation device for vaginal cleaning according to claim 4, characterized in that the seat (1) is provided with a snap groove adapted to the snap ring (40), the snap ring (40) fitting inside the snap groove.

6. Sitting irrigation device for vaginal cleaning according to claim 5, characterized in that the irrigation holes (43) are evenly distributed along the wall of the irrigation tube (42).
