Abstract

The utility model relates to the field of air-conditioning installation, in particular to an installation device for a refrigeration and air-conditioning host. A guide rod is rotatably installed in the support frame, two rolls of traction rope are wound on the outside of the guide rod, and the other end of the two rolls of the traction rope is installed with a working platform, and the working platform is slidably connected with the clamping assembly; Place it by the window, then turn on the drive motor, let the gear rotate, and when the gear rotates, it meshes with another gear, so that the two gears can drive the two threaded rods to rotate at the same time, thereby changing the distance between the two movable plates. Push the splint to fix the fixed seat on the window, and then use the traction rope to fix the working platform on the guide rod on the support frame, and control the descending of the working platform by turning the guide rod.

Description

A kind of installation device for refrigerating and air-conditioning host

technical field

The utility model relates to the field of air-conditioning installation, in particular to an installation device for a refrigerating and air-conditioning host.

Background technique

Air conditioners are indispensable household appliances in people's daily life. The existing external units of air conditioners are installed on a metal bracket, and then the main air conditioner is connected to the metal bracket by bolts.

Since the main unit of the air conditioner needs to be installed outside, it usually requires workers to hang it outdoors for installation. However, because the main unit of the air conditioner is heavy, and the installation is performed by a single person, the installation process is very dangerous and it is very inconvenient to install. Therefore, , we propose an installation device for a refrigeration and air-conditioning host to solve the above problems.

Utility model content

The purpose of the present utility model is to provide an installation device for a main unit of a refrigeration air conditioner in order to solve the above problems, so as to improve the problem that workers need to hang people outdoors for installation when installing the main unit of the air conditioner.

The utility model achieves the above objects through the following technical solutions. An installation device for a refrigerating and air-conditioning host includes a fixing seat, a clamping assembly is arranged at the bottom of the fixing seat, a support frame is installed at the top of the fixing seat, and the A guide rod is rotatably installed in the support frame, the outer side of the guide rod is wound with two rolls of traction rope, and the other ends of the two rolls of the traction rope are installed with a working platform, and the working platform is slidably connected with the clamping assembly;

The clamping assembly includes two movable plates slidably installed on the bottom of the fixed seat, two threaded rods are arranged between the two movable plates, and one end of the two threaded rods is installed with a gear, and the two The gears are meshed and connected with each other, and the threaded rod on the displacement side penetrates the gears and is connected with a drive motor.

Preferably, a plywood is installed on the sides of the two movable plates that are close to each other, and a rubber block is integrally connected to the sides of the two plywoods that are close to each other.

Preferably, a placing frame is installed inside the working platform, and a host is arranged inside the placing frame.

Preferably, a rotary motor is installed inside the support frame, and the output end of the rotary motor is connected with the guide rod, and an operation panel is installed on the inner wall of the working platform.

Preferably, a support plate is installed on one side of the movable plate located on one side, two sliding grooves are opened on the supporting plate, and guide blocks are slidably connected in the two sliding grooves, and the two guide blocks All are connected to the working platform.

Preferably, a pillar is installed on one side of the fixed seat, and two movable grooves are opened on the pillar, both of the two traction ropes slide in the movable groove, and the other ends of the two traction ropes are connected to the guide The tops of the blocks are connected.

The beneficial effect of the utility model is: by placing the fixing seat on the side of the window, then turning on the driving motor, allowing the gear to rotate, and when the gear rotates, it meshes with another gear, so that the two gears can simultaneously drive the two threaded rods to rotate, thereby Change the distance between the two movable plates, the movable plate pushes the splint to fix the fixed seat on the window side, when the splint is clamped, the rubber block can increase the friction force when the splint is clamped, making the clamping more firm, and when clamping At the same time, the rubber block can also produce a certain buffer to protect the window edge from being pinched, and then use the traction rope to fix the working platform on the guide rod on the support frame, and control the descending of the working platform by rotating the guide rod.

Description of drawings

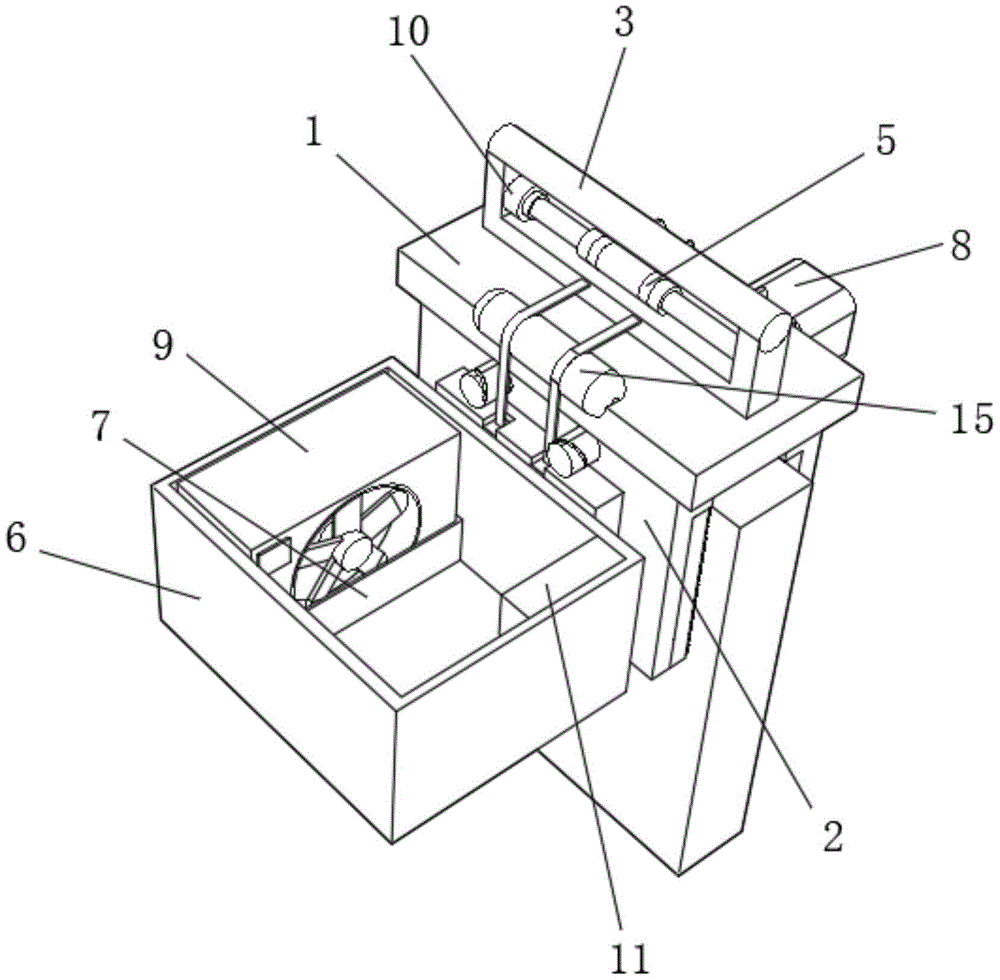

Fig. 1 is the main structure schematic diagram of the present utility model;

2 is a schematic structural diagram of a clamping assembly of the present invention;

Fig. 3 is the support plate structure schematic diagram of the utility model;

4 is a schematic diagram of the cross-sectional structure of the splint of the present invention.

In the figure: 1. Fixed seat; 2. Clamping component; 201, movable plate; 202, threaded rod; 203, gear; 204, splint; 205, rubber block; 3, support frame; 4, guide rod; 5, traction Rope; 6. Working platform; 7. Placing frame; 8. Driving motor; 9. Host; 10. Rotating motor; 11. Operation panel; 12. Supporting plate; 13. Chute; 14. Guide block; 15. Pillar; 16. Active slot.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In specific implementation: as shown in Figures 1-4, an installation device for a refrigerating and air-conditioning host includes a fixing base 1, a clamping assembly 2 is arranged at the bottom of the fixing base 1, and a support frame 3 is installed on the top of the fixing base 1, which supports A guide rod 4 is rotatably installed in the frame 3, two rolls of traction rope 5 are wound on the outside of the guide rod 4, and a working platform 6 is installed on the other end of the two rolls of traction rope 5, and the working platform 6 is slidably connected with the clamping assembly 2, and the clamping The tightening assembly 2 includes two movable plates 201 slidably installed on the bottom of the fixed seat 1, two threaded rods 202 are arranged between the two movable plates 201, and one end of the two threaded rods 202 is installed with a gear 203, and the two gears 203 Intermeshing connection, the threaded rod 202 on the displacement side penetrates the gear 203 and is connected with the drive motor 8, the two movable plates 201 are installed with a splint 204 on the side close to each other, and the two splints 204 are integrally connected on the side close to each other There is a rubber block 205. By placing the fixing base 1 on the side of the window, and then turning on the driving motor 8, the gear 203 is rotated. When the gear 203 rotates, it meshes with another gear 203, so that the two gears 203 can drive two threaded rods at the same time. 202 rotates to change the distance between the two movable plates 201. The movable plate 201 pushes the clamping plate 204 to fix the fixing seat 1 on the side of the window. When the clamping plate 204 is clamped, the rubber block 205 can increase the friction force when the clamping plate 204 is clamped. It makes the clamping more firm, and also allows the rubber block 205 to generate a certain buffer when clamping, so as to protect the window edge from being clamped.

As shown in Figures 1-3, a placement frame 7 is installed inside the working platform 6, a host 9 is installed inside the placement frame 7, a rotating motor 10 is installed inside the support frame 3, and the output end of the rotating motor 10 is connected to the guide rod 4 are connected, the operation panel 11 is installed on the inner wall of the working platform 6, and the placing frame 7 installed in the working platform 6 can put the host 9 into the interior of the placing frame 7 when the working platform 6 is lifted, and the host 9 is fixed. , to prevent the host 9 from tipping over, the guide rod 4 can be rotated by controlling the rotating motor 10, and the guide rod 4 can rotate to drive the traction rope 5 to rotate, and the working platform 6 connected to the other end of the traction rope 5 can be manipulated to rise or fall.

As shown in FIG. 1 , FIG. 3 and FIG. 4 , a support plate 12 is installed on one side of the movable plate 201 located on one side, and two sliding grooves 13 are opened on the supporting plate 12 , and the two sliding grooves 13 are both slidably connected. There is a guide block 14, the two guide blocks 14 are connected with the working platform 6, a pillar 15 is installed on one side of the fixed seat 1, and two movable grooves 16 are opened on the pillar 15, and the two traction ropes 5 are in the movable groove 16. The other ends of the two traction ropes 5 are connected to the top of the guide block 14. When the working platform 6 is lifted and lowered, the guide block 14 will be driven to slide in the chute 13 inside the support plate 12, so that the working platform can slide. 6. It is more stable during lifting and lowering, and the movable groove 16 on the strut 15 can protect the traction rope 5 to a certain extent when the traction rope 5 slides, reduce the wear of the traction rope 5, and improve the safety of the traction rope 5. .

When the utility model is in use, by placing the fixed seat 1 on the side of the window, and then turning on the driving motor 8, the gear 203 is rotated, and when the gear 203 rotates, it meshes with another gear 203, so that the two gears 203 can drive two gears 203 at the same time. The threaded rod 202 is rotated to change the distance between the two movable plates 201. The movable plate 201 pushes the clamping plate 204 to fix the fixing seat 1 on the window side. When the clamping plate 204 is clamped, the rubber block 205 can increase the friction when the clamping plate 204 is clamped. The clamping force can make the clamping firmer, and the rubber block 205 can also generate a certain buffer during clamping to protect the window edge from being clamped. The placement frame 7 installed in the working platform 6 can be lifted and lowered on the working platform 6 When the main engine 9 is put into the inside of the placing frame 7, the main engine 9 is fixed to prevent the main engine 9 from tipping over. 5. The working platform 6 connected to the other end makes it rise or fall. When the working platform 6 is lifted, it will drive the guide block 14 to slide in the inner chute 13 of the support plate 12, which can make the working platform 6 more stable during lifting. , reduce shaking, and the movable groove 16 on the strut 15 can protect the traction rope 5 to a certain extent when the traction rope 5 slides, reduce the wear of the traction rope 5, and improve the safety of the traction rope 5.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (6)

1. An installation device for a refrigeration and air-conditioning host, comprising a fixing seat (1), characterized in that: the bottom of the fixing seat (1) is provided with a clamping assembly (2), and the top of the fixing seat (1) is installed There is a support frame (3), a guide rod (4) is rotatably installed in the support frame (3), and two rolls of traction rope (5) are wound around the outer side of the guide rod (4), and the two rolls of the traction rope ( The other end of 5) is installed with a working platform (6), and the working platform (6) is slidably connected with the clamping assembly (2); The clamping assembly (2) includes two movable plates (201) slidably installed at the bottom of the fixed seat (1), two threaded rods (202) are arranged between the two movable plates (201), and two A gear (203) is installed on one end of the threaded rod (202), the two gears (203) are meshed and connected with each other, and the threaded rod (202) on the displacement side penetrates the gear (203) and is connected with a drive motor (8). 2. The installation device for a refrigeration and air-conditioning host according to claim 1, characterized in that: a plywood (204) is installed on one side of the two movable plates (201) that are close to each other, and the two plywood (201) 204) The sides close to each other are integrally connected with rubber blocks (205). 3. The installation device for a refrigeration and air-conditioning host according to claim 1, characterized in that: a placing frame (7) is installed inside the working platform (6), and the inside of the placing frame (7) is provided with host (9). 4. The installation device for a refrigeration and air-conditioning host according to claim 1, characterized in that: a rotary motor (10) is installed inside the support frame (3), and the output end of the rotary motor (10) is connected to a guide rod ( 4) connected, an operation panel (11) is installed on the inner wall of the working platform (6). 5. The installation device for a refrigeration and air-conditioning host according to claim 1, wherein a support plate (12) is installed on one side of the movable plate (201) located on one side, and the support plate (12) ) is provided with two sliding grooves (13), and guide blocks (14) are slidably connected in the two sliding grooves (13), and both of the guide blocks (14) are connected with the working platform (6). 6. The installation device for a refrigeration and air-conditioning host according to claim 1, characterized in that: a pillar (15) is installed on one side of the fixed seat (1), and two pillars (15) are provided on the pillar (15). A movable groove (16), the two traction ropes (5) slide in the movable groove (16), and the other ends of the two traction ropes (5) are connected with the top end of the guide block (14).
