Abstract

The present application relates to an intelligent drying device, and relates to the field of clothes drying racks. The device includes an installation body, a telescopic mechanism, a horizontal rod, a clothes drying rod, a sliding mechanism, an electric lifting rod and a quilt drying rod; the top of the horizontal rod can be lifted and connected to the installation body through a telescopic mechanism; the two ends of the clothes drying rod and the horizontal rod The clothes drying rod and the horizontal rod are perpendicular to each other; the sliding mechanism can be connected up and down with the bottom of the horizontal rod through the electric lifting rod; the quilt drying rod and the sliding mechanism are detachably connected, and the quilt drying rod and the clothes drying rod are parallel to each other. An intelligent drying device provided by the present application realizes that the clothes and the quilt do not interfere with each other at the same time, and the distance and height between the quilt rods can be adjusted according to the drying requirements of the user.

Description

Intelligent airing device

Technical Field

This application belongs to clothes hanger technical field that dries in the air, concretely relates to intelligence drying device.

Background

Clothes horses, as household articles used by people every day, have become necessities of life of many families today. The clothes hanger is divided into a manual clothes hanger and an electric clothes hanger, and the hand-operated clothes hanger comprises: a lifter, a steel wire, a steering gear, a top seat, an airing rod and a clothes rack; the electric clothes hanger comprises: the clothes hanger comprises a clothes hanger main machine, clothes poles, a suspension bridge, hardware fittings, end covers, connecting pieces, plugs and the like.

The clothes hanger in the related art comprises two clothes drying rods which are arranged in parallel, wherein a plurality of through holes for hanging the clothes hanger hooks are formed in the clothes drying rods, when a quilt needs to be aired, the clothes hangers, clothes and the like hung on the clothes drying rods can be taken down firstly, and then the quilt is aired on the clothes drying rods.

However, the drying rack in the related art is not capable of drying clothes and quilts at the same time, which is troublesome; on the other hand, the distance between the clothes drying rods cannot be adjusted according to the airing requirements of users.

SUMMERY OF THE UTILITY MODEL

Utility model purpose: in order to overcome the defects in the prior art, the application provides the intelligent airing device, and the technical problem to be solved is how to realize airing clothes and quilts simultaneously, and the distance and the height between quilt airing rods can be adjusted according to the airing requirements of users.

The technical scheme is as follows: in order to achieve the purpose, the technical scheme adopted by the application is as follows:

an intelligent airing device comprises an installation machine body, a telescopic mechanism, a cross bar, a airing rod, a sliding mechanism, an electric lifting rod and a quilt airing rod;

the top of the cross rod is connected with the mounting machine body in a lifting manner through the telescopic mechanism; the clothes airing rods are connected with two ends of the cross rod and are perpendicular to the cross rod;

the sliding mechanism is connected with the bottom of the cross rod in a lifting way through the electric lifting rod;

the quilt airing rod is detachably connected with the sliding mechanism, and the quilt airing rod is parallel to the clothes airing rod.

In one possible implementation manner, the electric lifting rod comprises a female rod and a male rod, and the female rod is telescopically connected with the male rod;

the first end of female pole with the bottom of horizontal pole links firmly, the second end of female pole with the first end telescopic connection of son pole, the second end of son pole with slide mechanism's top links firmly.

In a possible implementation manner, the sliding mechanism includes a sliding rail and a sliding hook, the top of the sliding rail is fixedly connected with the second end of the sub-rod, and the bottom of the sliding rail is connected with the sliding hook in a sliding manner;

the quilt airing rod is detachably connected with the sliding hook.

In a possible implementation manner, the telescopic mechanism comprises a steel wire rope and a cross telescopic frame, a first end of the steel wire rope is connected with a rope winder in the mounting machine body, and a second end of the steel wire rope is fixedly connected with the top of the cross rod;

the cross expansion bracket is foldable, the first end of the cross expansion bracket is fixedly connected with the installation machine body, and the second end of the cross expansion bracket is fixedly connected with the top of the cross rod;

the steel wire rope is positioned on the central axis of the cross expansion bracket.

In a possible implementation manner, the intelligent airing device further comprises an illuminating lamp, and the illuminating lamp is located in the center of the bottom of the installation machine body.

In a possible implementation manner, the intelligent airing device further comprises a warm air port, the warm air port is located on the bottom of the installation machine body, and the warm air port is communicated with a warm air blower inside the installation machine body.

In one possible implementation, the clothes-horse has a plurality of evenly spaced clothes-horse holes.

Has the advantages that: compared with the prior art, the intelligent airing device provided by the application has the advantages that on one hand, clothes and quilts are aired simultaneously through the arrangement of the clothes drying rod and the quilt airing rod respectively, and complementary interference is achieved; on the other hand, through the arrangement of the sliding mechanism and the electric lifting rod, the space and height adjustment between the quilt airing rods are realized, and the integral height adjustment of the airing device through the telescopic mechanism is not influenced; on the other hand, through shining by the pole with the setting that the connection can be dismantled to the slip couple, make the user can will shine by the pole when not shining the quilt and accomodate, adaptation user's different user demands.

Drawings

The accompanying drawings are included to provide a further understanding of the application and are incorporated in and constitute a part of this specification, illustrate embodiment(s) of the application and together with the description serve to explain the application and not limit the application. In the drawings:

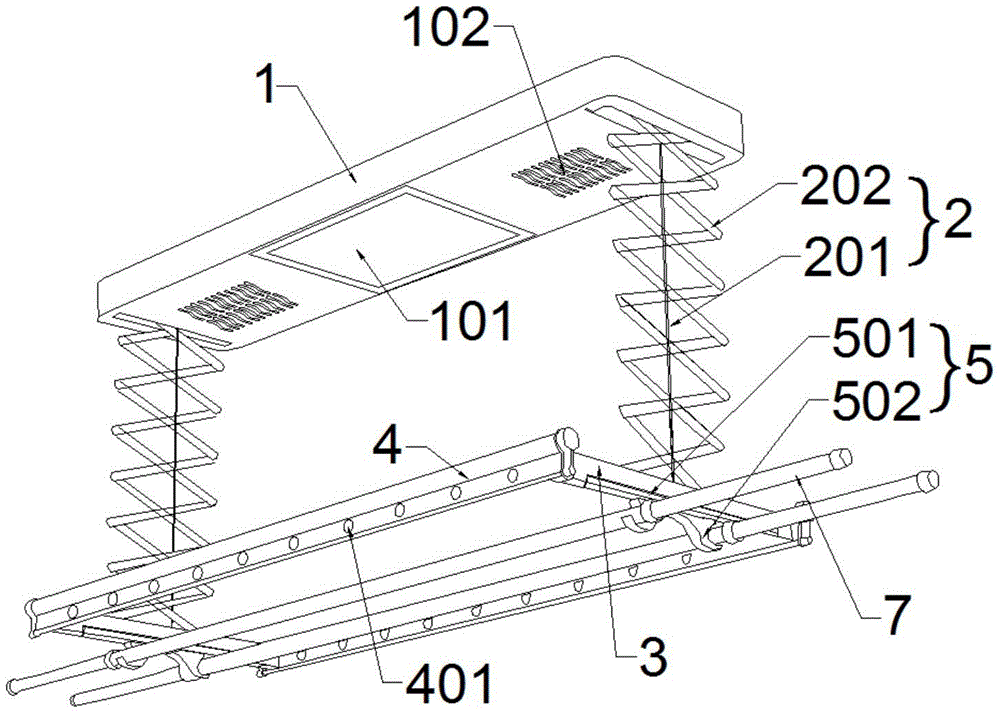

FIG. 1 is a schematic structural diagram of an intelligent airing device provided by an exemplary embodiment of the application;

FIG. 2 is a schematic view illustrating a partial structure of a cross bar, a sliding mechanism and an electric lifting bar of an intelligent airing device according to an exemplary embodiment of the present application;

in the figure:

1. installing a machine body; 101. an illuminating lamp; 102. a warm air port;

2. a telescoping mechanism; 201. a wire rope; 202. a cross telescopic frame;

3. a cross bar;

4. a clothes-horse; 401. a hanger hole;

5. a sliding mechanism; 501. a slide rail; 502. a sliding hook;

6. an electric lifting rod; 601. a female rod; 602. a sub-rod;

7. a quilt drying rod.

Detailed Description

The technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only a part of the embodiments of the present application, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.

The present application will be further described with reference to the following drawings and examples.

Referring to fig. 1 and 2, the intelligent airing device includes an installation machine body 1, a telescopic mechanism 2, a cross bar 3, a clothes airing rod 4, a sliding mechanism 5, an electric lifting rod 6 and a quilt airing rod 7; the top of the cross rod 3 is connected with the mounting machine body 1 in a lifting way through a telescopic mechanism 2; the clothes airing rods 4 are connected with two ends of the cross rod 3, and the clothes airing rods 4 are perpendicular to the cross rod 3; the sliding mechanism 5 is connected with the bottom of the cross rod 3 in a lifting way through an electric lifting rod 6; the quilt airing rod 7 is detachably connected with the sliding mechanism 5, and the quilt airing rod 7 is parallel to the clothes airing rod 4.

Optionally, the connection manner of the clothes-horse 4 and the cross bar 3 includes, but is not limited to, one of welding, riveting and bolt fixing.

In the embodiment of the application, the installation body 1 is internally provided with a driving mechanism for driving the telescopic mechanism 2 to move; this installation organism 1 has still built-in the power module of electric lift pole 6, is connected with electric lift pole 6 through hidden circuit, and this electric lift pole 6 realizes being a circular telegram can be telescopic motion's spare part. This installation organism 1 has still built-in wireless control module, and this wireless control module is connected with telescopic machanism 2, electric lift pole 6, can realize through remote controller wireless control telescopic machanism 2, the motion of electric lift pole 6.

Alternatively, the sliding mechanism 5 may be implemented as an automatic sliding mechanism that is electrically controlled, or may be implemented as a manual sliding mechanism; when the automatic sliding mechanism is realized as an electric control automatic sliding mechanism, the wireless sliding mechanism is connected with a wireless control module arranged in the installation machine body 1.

As an alternative embodiment, referring to fig. 2, the electric lifting rod 6 includes a female rod 601 and a male rod 602, wherein the female rod 601 is telescopically connected with the male rod 602; the first end of female pole 601 links firmly with the bottom of horizontal pole 3, and the second end of female pole 601 and the first end telescopic connection of sub-pole 602, the second end of sub-pole 602 links firmly with the top of slide mechanism 5.

In the embodiment of the application, the quilt airing rod 7 can independently ascend or descend through the arrangement of the electric lifting rod 6, the integral height adjustment of the airing device through the telescopic mechanism is not influenced, and therefore the airing device is suitable for quilts of different sizes.

Optionally, the first end of the female bar 601 is connected to the bottom of the cross bar 3 by any one of welding, riveting and bolting.

Optionally, the second end of the sub-rod 602 is connected to the top of the sliding mechanism 5 by any means including, but not limited to, welding, riveting, or bolting.

As an alternative embodiment, please refer to fig. 1 and fig. 2, the sliding mechanism 5 includes a sliding rail 501 and a sliding hook 502, the top of the sliding rail 501 is fixedly connected to the second end of the sub-rod 602, and the bottom of the sliding rail 501 is slidably connected to the sliding hook 502; the quilt drying rod 7 is detachably connected with the sliding hook 502.

In this application embodiment, shine by pole 7 card and locate in sliding hook 502, easy to assemble and dismantlement make the user can will shine by the pole when not shining the quilt and accomodate, adaptation user's different user demands.

Optionally, the top of the sliding rail 501 is connected to the second end of the sub-rod 602 by one of, but not limited to, welding, riveting, and bolting.

In the embodiment of the application, the arrangement of the sliding rails 501 and the sliding hooks 502 in sliding connection enables the space between the quilt airing rods 7 to be adjusted, so that the quilt can be adapted to quilts with different sizes.

As an alternative embodiment, please refer to fig. 1, the telescopic mechanism 2 includes a steel wire rope 201 and a cross telescopic frame 202, a first end of the steel wire rope 201 is connected with a rope winder in the installation machine body 1, and a second end of the steel wire rope 201 is fixedly connected with the top of the cross bar 3; the cross expansion bracket 202 can be folded, the first end of the cross expansion bracket 202 is fixedly connected with the installation machine body 1, and the second end of the cross expansion bracket 202 is fixedly connected with the top of the cross rod 3; the steel wire rope 201 is located on the central axis of the cross telescopic frame 202.

In the embodiment of the application, when the rope winder rotates in the positive direction, the steel wire rope 201 is wound up to drive the cross rod 3 to ascend; when the rotation is performed in the opposite direction, the steel wire rope 201 is unfolded, and the cross rod 3 is driven to descend under the action of gravity. The rope winder is also connected with a wireless control module arranged in the installation machine body 1, so that remote control is realized.

Optionally, the second end of the steel cable 201 is connected to the top of the cross bar 3 by one of, but not limited to, welding, riveting, and bolting.

In the embodiment of the present application, the cross telescopic frame 202 is implemented as a freely foldable cross telescopic frame, and can be folded and stretched following the winding and unwinding of the steel wire rope 201. Optionally, the connection manner of the first end of the cross expansion bracket 202 and the installation body 1 includes, but is not limited to, one of welding, riveting and bolting; the second end of the cross telescoping bracket 202 is connected to the top of the cross bar 3 by any means including, but not limited to, welding, riveting, or bolting.

In the embodiment of the present application, the arrangement of the cross expansion bracket 202 can make the connection between the installation machine body 1 and the cross rod 3 more stable, and reduce the shaking range of the intelligent airing device.

As an alternative embodiment, please refer to fig. 1, the intelligent airing device further includes an illuminating lamp 101, and the illuminating lamp 101 is located at the bottom center of the installation machine body 1.

In the embodiment of the present application, the lighting lamp 101 is connected to a wireless control module built in the installation body 1, so as to realize remote control for lighting.

As an optional implementation manner, please refer to fig. 1, the intelligent airing device further includes a warm air opening 102, the warm air opening 102 is located at the bottom of the installation machine body 1, and the warm air opening 102 is communicated with a warm air blower inside the installation machine body 1.

In the embodiment of the present application, the fan heater inside the installation machine body 1 is connected to the wireless control module inside the installation machine body 1, so as to realize remote control, and when the fan heater is started, the warm air is sent out from the warm air inlet 102 to dry the clothes.

As an alternative, referring to fig. 1, the clothes-horse 4 has a plurality of clothes-hanger holes 401 uniformly spaced for hanging clothes.

For a better understanding of the present application, reference is made to the following description of the present application in conjunction with the accompanying drawings and a specific embodiment. It should be noted that the described embodiments are only a part of the embodiments of the present application, and do not limit the protection scope of the present application.

In this embodiment, in order to solve the problem how to air clothes and a quilt simultaneously and adjust the distance and height between clothes drying rods according to the airing requirement of a user, the intelligent airing device described in any one of the above embodiments is used, and the working principle of the device is as follows:

when the telescopic mechanism 2 is in a working state, the clothes airing rod 4 and the quilt airing rod 7 integrally ascend and descend along with the cross rod 3;

when the electric lifting rod 6 is in a working state, the quilt drying rod 7 can ascend and descend along with the sliding mechanism 5;

when the sliding mechanism 5 is in the working state, the quilt drying rod 7 slides on the sliding rail 501 along with the sliding hook 502, so that the adjustment of the distance between the quilt drying rods 7 is realized.

In summary, according to the intelligent airing device provided by the application, on one hand, by respectively arranging the airing rod and the quilt airing rod, clothes and a quilt can be aired simultaneously, and complementary interference is realized; on the other hand, through the arrangement of the sliding mechanism and the electric lifting rod, the space and height adjustment between the quilt airing rods are realized, and the integral height adjustment of the airing device through the telescopic mechanism is not influenced; on the other hand, through shining by the pole with the setting that the connection can be dismantled to the slip couple, make the user can will shine by the pole when not shining the quilt and accomodate, adaptation user's different user demands.

The above is only the preferred embodiment of the present application, and it should be noted that: it will be apparent to those skilled in the art that various modifications and enhancements can be made without departing from the principles of the application, and such modifications and enhancements are intended to be included within the scope of the application.

Claims

1. An intelligent drying device, characterized in that it comprises an installation body (1), a telescopic mechanism (2), a crossbar (3), a clothes drying rod (4), a sliding mechanism (5), and an electric lift rod (6) and a quilt pole (7);

The top of the cross bar (3) is connected up and down with the installation body (1) through the telescopic mechanism (2); the clothes drying bar (4) is connected with both ends of the cross bar (3), The clothes drying rod (4) is perpendicular to the transverse rod (3);

The sliding mechanism (5) is connected with the bottom of the cross bar (3) through the electric lifting rod (6) in a liftable manner;

The quilting rod (7) is detachably connected to the sliding mechanism (5), and the quilting rod (7) and the clothes drying rod (4) are parallel to each other.

2. The intelligent drying device according to claim 1, wherein the electric lift rod (6) comprises a main rod (601) and a sub rod (602), the main rod (601) and the sub rod (602) retractable connection;

The first end of the main rod (601) is fixedly connected with the bottom of the cross rod (3), and the second end of the main rod (601) is telescopically connected with the first end of the sub-rod (602) , the second end of the sub-rod (602) is fixedly connected with the top of the sliding mechanism (5).

3. The intelligent drying device according to claim 2, wherein the sliding mechanism (5) comprises a sliding rail (501) and a sliding hook (502), and the top of the sliding rail (501) is connected to the The second end of the rod (602) is fixedly connected, and the bottom of the sliding rail (501) is slidably connected to the sliding hook (502);

The tanning rod (7) is detachably connected with the sliding hook (502).

4. The intelligent drying device according to claim 1, wherein the telescopic mechanism (2) comprises a wire rope (201) and a cross telescopic frame (202), and the first end of the wire rope (201) is connected to the The rope reel in the installation body (1) is connected, and the second end of the wire rope (201) is fixedly connected to the top of the cross bar (3);

The cross telescopic frame (202) is foldable, the first end of the cross telescopic frame (202) is fixedly connected with the installation body (1), and the second end of the cross telescopic frame (202) is connected with the horizontal telescopic frame (202). The top of the rod (3) is fastened;

The steel wire rope (201) is located on the central axis of the cross telescopic frame (202).

5. The intelligent drying device according to any one of claims 1 to 4, characterized in that, the intelligent drying device further comprises a lighting lamp (101), and the lighting lamp (101) is located on the side of the installation body (1). Bottom center.

6. The intelligent drying device according to any one of claims 1 to 4, characterized in that, the intelligent drying device further comprises a warm air outlet (102), and the warm air outlet (102) is located on the side of the installation body (1). On the bottom, the warm air port (102) communicates with the warm air fan inside the installation body (1).

7 . The intelligent drying device according to claim 1 , wherein the clothes drying rod ( 4 ) has a plurality of uniformly spaced clothes hanger holes ( 401 ). 8 .
