CN216512173U - Adjustable cable drum convenient to collect

Info

Publication number: CN216512173U
Application number: CN202122227531.2U
Authority: CN
Inventors: 杜杰
Original assignee: Jiangsu Tuoyuan Electric Power Technology Co ltd
Current assignee: Hangzhou Jirao Mu Technology Service Co.,Ltd.
Priority date: 2021-09-15
Filing date: 2021-09-15
Publication date: 2022-05-13
Anticipated expiration: 2031-09-15

Abstract

The utility model discloses an adjustable cable reel which is convenient for collection, comprising a base, a winding device and a driving device. The winding device is arranged on the top of the base, the driving device is arranged on the top of the base, and the right The side is provided with a clamping device, the bottom of the base is provided with a moving device, the top of the base is fixedly connected with a first support rod and a second support rod, and the tops of the first support rod and the second support rod are respectively provided with U-shaped The bottoms of the first support rod and the second support rod are respectively fixedly connected with sliders. The utility model adjusts the size of the take-up diameter by setting a threaded rod, on the one hand, it can facilitate the collection of some cables that are not resistant to folding, and on the other hand, the take-up speed can also be controlled by adjusting the diameter. When the first motor rotates at a constant speed In the case, the smaller the diameter, the slower the storage, the larger the diameter, the faster the storage, and the distance between the threaded rod and the roller can be freely adjusted as needed.

Description

Adjustable cable drum convenient to collect

Technical Field

The utility model relates to the technical field of cable collecting drums, in particular to an adjustable cable drum convenient to collect.

Background

The wire cable product is widely applied in the industrial field of China, cable manufacturers generally coil cables on a material tray, then package the cables and send the cables to cable electric fitting production units, and each production unit receives the coiled cables and then carries out off-line operation.

But present cable drum utensil most all is the snap-on the support, and the very inconvenient of taking, when collecting the cable moreover, the diameter is too unified, can't adjust, leads to a kind of drum utensil can only accomodate a type cable, also very trouble when collecting moreover, needs to dismantle the device and just can take off drum utensil or installation drum utensil.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide an adjustable cable drum convenient to collect, so as to solve the problems in the background technology.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides an adjustable cable dish utensil convenient to collect, includes base, winding device, drive arrangement, winding device sets up at the base top, drive arrangement sets up at the base top, the base right side is provided with clamping device, the base bottom is provided with the mobile device.

The winding device is characterized in that a first supporting rod and a second supporting rod are fixedly connected to the top of the base, a U-shaped groove is formed in the top of the first supporting rod and the top of the second supporting rod respectively, sliders are fixedly connected to the bottoms of the first supporting rod and the bottom of the second supporting rod respectively, a first sliding groove is formed in the top of the base, two sliders are slidably connected with the first sliding groove respectively, a T-shaped groove is formed in the top of the base, four grooves are formed in the bottom of the base, a limiting groove is formed in the surface of the second supporting rod and penetrates through the second supporting rod, the winding device can be placed in different sizes by sliding between the sliders and the first sliding groove, the winding device can be prevented from being placed in one length only, and the advantage of the winding device cannot be brought out.

Preferably, winding device includes two fixed plates, two be provided with the roller bearing in the middle of the fixed plate, both ends run through two fixed plates, two respectively about the roller bearing the second spout has been seted up respectively to the fixed plate surface, two the second spout runs through two fixed plates, two respectively the inside threaded rod that is provided with of second spout, both ends run through two second spouts respectively about the threaded rod, both ends threaded connection has the nut about the threaded rod, the first gear dish of roller bearing left side fixedly connected with through setting up threaded rod and nut threaded connection, guarantees to fix it when adjusting suitable diameter position, avoids the threaded rod pine to take off when the winding, leads to receiving the not good problem of line effect.

Preferably, drive arrangement includes the third bracing piece, third bracing piece bottom fixedly connected with T type pole, third bracing piece top fixedly connected with backup pad, the first motor of backup pad top fixedly connected with, first motor output fixedly connected with second toothed disc, the meshing of second toothed disc and first toothed disc can reduce staff's the amount of labour through setting up first motor, makes labourer have more energy and can go the angle and the position of adjusting the line of receipts.

Preferably, clamping device includes the gag lever post, the gag lever post runs through the spacing groove, both ends difference fixedly connected with stopper about the gag lever post, the spring has been cup jointed on the gag lever post surface, the spring right-hand member contacts with spacing inslot wall right-hand member, the spring left end contacts with the stopper, and the gag lever post runs through the spacing groove and rotates and sliding connection with it, and the gag lever post of being convenient for removes to the inside convenient storage of spacing inslot, can emit the gag lever post again when needs press from both sides tightly, makes its normal operating that does not influence the device.

Preferably, the mobile device includes the pivot, pivot quantity is four, four the pivot sets up respectively inside four recesses, four both ends respectively with four recess inner wall fixed connection about the pivot, four the pivot surface is provided with the gyro wheel respectively, four the pivot runs through four gyro wheels respectively, four the gyro wheel rotates with four pivot respectively to be connected, is convenient for the device to remove through setting up the gyro wheel, makes it can make the device freely remove under the condition with the help of other mobile device not.

Preferably, the surface of the threaded rod is respectively contacted with the inner walls of the two second sliding grooves, the threaded rod is respectively connected with the two second sliding grooves in a sliding manner, and the diameter of the collecting coil can be conveniently adjusted by arranging the threaded rod and the two second sliding grooves in a sliding manner.

Preferably, T type pole surface and the contact of T type inslot wall, T type pole and T type groove sliding connection through setting up T type pole and T type groove sliding connection, can more stable support when first motor rotates live first motor, and the third bracing piece is emptyd when preventing the moment of torsion too big.

Compared with the prior art, the utility model has the beneficial effects that:

(1) according to the utility model, the size of the take-up diameter is adjusted by arranging the threaded rod, so that on one hand, cables which are not folding-resistant can be conveniently collected, on the other hand, the take-up speed can be controlled by adjusting the diameter, and when the first motor rotates at a constant speed, the smaller the diameter is, the slower the take-up is, the larger the diameter is, the faster the take-up is, and the distance between the threaded rod and the roller can be freely adjusted according to the requirement.

(2) The utility model is rotationally and slidably connected with the two U-shaped grooves through the arrangement of the rolling shaft. The winding device can be replaced easily, the winding device is prevented from being fully collected in the collecting process and needing to be replaced through a complex replacing method, and therefore not only is collecting time wasted, but also physical strength and energy of workers are wasted.

Drawings

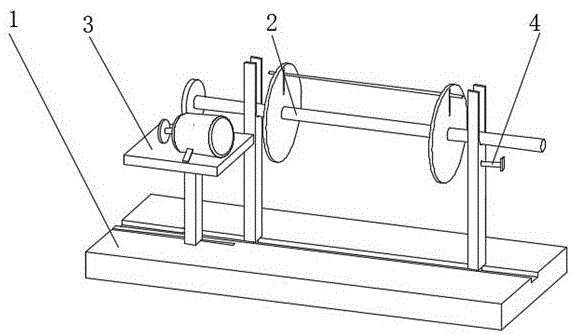

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a front cross-sectional view of the body of the present invention;

FIG. 3 is a left side cross-sectional view of the body of the present invention;

FIG. 4 is a front sectional view of the winding device of the present invention;

FIG. 5 is a front cross-sectional view of a clamping device of the present invention;

FIG. 6 is a left side view of the clamping assembly of the present invention;

fig. 7 is a partial cross-sectional view of a mobile device of the present invention.

In the figure: the device comprises a base 1, a first support rod 11, a second support rod 12, a U-shaped groove 13, a sliding block 14, a first sliding groove 15, a T-shaped groove 16, a groove 17, a limiting groove 18, a winding device 2, a fixing plate 21, a rolling shaft 22, a second sliding groove 23, a threaded rod 24, a nut 25, a first gear disc 26, a driving device 3, a third support rod 31, a T-shaped rod 32, a supporting plate 33, a first motor 34, a second gear disc 35, a clamping device 4, a limiting rod 41, a limiting block 42, a spring 43, a moving device 5, a rotating shaft 51 and a roller 52.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-7, the present invention provides a technical solution: the utility model provides an adjustable cable dish utensil convenient to collect, includes base 1, winding device 2, drive arrangement 3, and winding device 2 sets up at base 1 top, and drive arrangement 3 sets up at base 1 top, and base 1 right side is provided with clamping device 4, and base 1 bottom is provided with mobile device 5.

The top of the base 1 is fixedly connected with a first supporting rod 11 and a second supporting rod 12, the tops of the first supporting rod 11 and the second supporting rod 12 are respectively provided with a U-shaped groove 13, the bottoms of the first supporting rod 11 and the second supporting rod 12 are respectively fixedly connected with a sliding block 14, the top of the base 1 is provided with a first sliding groove 15, the two sliding blocks 14 are respectively connected with the first sliding groove 15 in a sliding way, the top of the base 1 is provided with a T-shaped groove 16, the bottom of the base 1 is provided with four grooves 17, the surface of the second supporting rod 12 is provided with a limiting groove 18, the limiting groove 18 penetrates through the second supporting rod 12, the sliding between the sliding block 14 and the first sliding chute 15 can enable the winding device 2 with different sizes to be placed, the phenomenon that the winding device 2 can only be placed in one length is avoided, and the advantage of the winding device cannot be exerted, and the winding device is rotatably and slidably connected with the two U-shaped grooves 13 through the arrangement of the rolling shaft 22. Make it can be light change winding device 2, avoid collecting in-process winding device and collected full need change through loaded down with trivial details change method, not only wasted the collection time like this but also wasted staff's physical power and energy.

The winding device 2 comprises two fixing plates 21, a roller 22 is arranged between the two fixing plates 21, the left end and the right end of the roller 22 respectively penetrate through the two fixing plates 21, the surfaces of the two fixing plates 21 are respectively provided with a second sliding chute 23, the two second sliding chutes 23 respectively penetrate through the two fixing plates 21, threaded rods 24 are arranged inside the two second sliding chutes 23, the surfaces of the threaded rods 24 are respectively contacted with the inner walls of the two second sliding chutes 23, the diameter of a collecting coil can be conveniently adjusted by arranging the threaded rods 24 to be in sliding connection with the two second sliding chutes 23, the threaded rods 24 are respectively in sliding connection with the two second sliding chutes 23, the utility model adjusts the size of the winding diameter by arranging the threaded rods 24, on one hand, cables which are not resistant to folding can be conveniently collected, on the other hand, the winding speed can be controlled by adjusting the diameter, and under the condition that the first motor 34 rotates at a constant speed, the diameter is the less, accomodate the slower, the diameter is the bigger, accomodate the faster, the accessible needs the distance between free adjustment threaded rod 24 and the roller bearing 22, both ends run through two second spouts 23 respectively about threaded rod 24, both ends threaded connection has nut 25 about threaded rod 24, the first toothed disc 26 of roller bearing 22 left side fixedly connected with, through setting up threaded rod 24 and nut 25 threaded connection, guarantee can fix it when adjusting suitable diameter position, avoid 24 pine of threaded rod to take off when the winding, lead to receiving the not good problem of line effect.

Drive arrangement 3 includes third bracing piece 31, third bracing piece 31 bottom fixedly connected with T type pole 32, T type pole 32 surface and the contact of 16 inner walls in T type groove,

T type pole

32 and 16 sliding connection in T type groove, through setting up T type pole and T type groove sliding connection, can more stable support first motor 34 when first motor 34 rotates, third bracing piece 31 emptys when preventing the moment of torsion too big, third bracing piece 31 top fixedly connected with backup pad 33, backup pad 33 top fixedly connected with first motor 34, first motor 34 output end fixedly connected with second toothed disc 35, second toothed disc 35 meshes with first toothed disc 26, can reduce staff's the amount of labour through setting up first motor 34, make staff have more energy and can go to adjust the angle and the position of receiving the line.

Clamping device 4 includes gag lever post 41, gag lever post 41 runs through spacing groove 18, both ends difference fixedly connected with stopper 42 about gag lever post 41, spring 43 has been cup jointed on the gag lever post 41 surface, spring 43 right-hand member and the contact of limiting groove 18 inner wall right-hand member, spring 43 left end and stopper 42 contact, gag lever post 42 runs through spacing groove 18 and rotates and sliding connection with it, the stopper 42 of being convenient for removes to the inside convenient storage of spacing groove 18, can emit the gag lever post again when needs press from both sides tightly, make its normal operating that does not influence the device.

The moving device 5 comprises four rotating shafts 51, the number of the rotating shafts 51 is four, the four rotating shafts 51 are respectively arranged inside the four grooves 17, the left end and the right end of each of the four rotating shafts 51 are respectively fixedly connected with the inner walls of the four grooves 17, rollers 52 are respectively arranged on the surfaces of the four rotating shafts 51, the four rotating shafts 51 respectively penetrate through the four rollers 52, the four rollers 52 are respectively rotatably connected with the four rotating shafts 51, and the moving device can be moved conveniently by arranging the rollers 52, so that the moving device can be moved freely under the condition that other moving devices 5 are not used.

The working principle is as follows: the winding device 2 is convenient to put in by adjusting the distance between the first supporting rod 11 and the second supporting rod 12, when the left end and the right end of the rolling shaft 22 are put in the U-shaped groove 13, the first gear disc 26 is meshed with the second gear disc 35, the first motor 34 is electrified and started to drive the second gear disc 35 to rotate, the second gear disc 35 drives the first gear disc 26 to rotate to take in the cable, the nut 25 can be rotated as required before taking in to facilitate the adjustment of the threaded rod 24, the threaded rod 24 slides in the second sliding groove 23, the nut 25 is screwed after the adjustment to fix the threaded rod 24, the taking in may be suspended due to external factors in the collection, at the moment, the limiting rod 41 can be rotated to enable the limiting block 42 to be separated from the limiting of the limiting groove 18, the spring 43 pushes the limiting rod 41 out of the limiting groove 18 to enable the limiting block 42 to be contacted with the fixing plate 21, the winding device is fixed, when the collection is needed, the limiting rod 41 is pulled, the limiting block 42 is pulled to the inside of the limiting groove 18, the limiting rod 42 can be limited at the outlet of the limiting groove 18 by rotating the limiting rod 41, the normal rotation of the winding device is convenient, the winding device 2 can be directly lifted after being fully wound, then a new winding device 2 is replaced, the steps are repeated to operate the winding device, the first supporting rod 11 and the second supporting rod 12 can be directly pushed by external force when the winding device needs to be moved, and the winding device moves through the roller 52.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an adjustable cable drum utensil convenient to collect, includes base (1), winding device (2), drive arrangement (3), its characterized in that: the winding device (2) is arranged at the top of the base (1), the driving device (3) is arranged at the top of the base (1), the clamping device (4) is arranged on the right side of the base (1), and the moving device (5) is arranged at the bottom of the base (1);

base (1) top fixedly connected with first bracing piece (11) and second bracing piece (12), U type groove (13) have been seted up respectively at first bracing piece (11) and second bracing piece (12) top, first bracing piece (11) and second bracing piece (12) bottom fixedly connected with slider (14) respectively, first spout (15) have been seted up at base (1) top, two slider (14) respectively with first spout (15) sliding connection, T type groove (16) have been seted up at base (1) top, four recess (17) have been seted up to base (1) bottom, spacing groove (18) have been seted up on second bracing piece (12) surface, spacing groove (18) run through second bracing piece (12).

2. An adjustable cable drum for facilitating collection according to claim 1, wherein: winding device (2) are including two fixed plates (21), two be provided with roller bearing (22) in the middle of fixed plate (21), roller bearing (22) are controlled both ends and are run through two fixed plates (21), two respectively second spout (23), two have been seted up respectively on fixed plate (21) surface second spout (23) run through two fixed plates (21), two respectively second spout (23) inside are provided with threaded rod (24), both ends run through two second spout (23) respectively about threaded rod (24), both ends threaded connection has nut (25) about threaded rod (24), roller bearing (22) left side fixedly connected with first gear dish (26).

3. An adjustable cable drum for facilitating collection according to claim 1, wherein: drive arrangement (3) include third bracing piece (31), third bracing piece (31) bottom fixedly connected with T type pole (32), third bracing piece (31) top fixedly connected with backup pad (33), backup pad (33) top fixedly connected with first motor (34), first motor (34) output end fixedly connected with second toothed disc (35), second toothed disc (35) and first toothed disc (26) meshing.

4. An adjustable cable drum for facilitating collection according to claim 1, wherein: clamping device (4) include gag lever post (41), gag lever post (41) run through spacing groove (18), both ends difference fixedly connected with stopper (42) about gag lever post (41), spring (43) have been cup jointed on gag lever post (41) surface, spring (43) right-hand member and the contact of spacing groove (18) inner wall right-hand member, spring (43) left end and stopper (42) contact.

5. An adjustable cable drum for facilitating collection according to claim 1, wherein: mobile device (5) are including pivot (51), pivot (51) quantity is four, four pivot (51) set up respectively inside four recess (17), four both ends respectively with four recess (17) inner wall fixed connection, four about pivot (51) surface is provided with gyro wheel (52), four respectively four gyro wheel (52), four are run through respectively in pivot (51) gyro wheel (52) rotate with four pivot (51) respectively and are connected.

6. An adjustable cable drum for facilitating collection according to claim 2, wherein: the surface of the threaded rod (24) is respectively contacted with the inner walls of the two second sliding grooves (23), and the threaded rod (24) is respectively connected with the two second sliding grooves (23) in a sliding manner.

7. An adjustable cable drum for facilitating collection according to claim 3, wherein: the surface of the T-shaped rod (32) is in contact with the inner wall of the T-shaped groove (16), and the T-shaped rod (32) is in sliding connection with the T-shaped groove (16).
