Abstract
本实用新型属于包装技术领域，具体涉及一种缓冲装置、包装结构及空调室外机组件。所述空调室外机包装结构包括：第一缓冲组件，所述第一缓冲组件包括第一瓦楞纸板包括第一底板和与第一底板边缘连接以围设形成第一凹槽的第一侧板，至少两个第一纸护角相对地设于第一底板与第一侧板的连接处，并与第一底板和第一侧板贴合，第一蜂窝纸板，设于第一凹槽内，第二纸护角设于第一凹槽内，且与第一蜂窝纸板贴合，第二纸护角的两端与至少两个第一纸护角接触。本实用新型的缓冲装置、包装结构及空调室外机组件可回收再利用，不会产生对环境造成污染的物质，且不需要开模具制备，降低了生产成本。
The utility model belongs to the technical field of packaging, in particular to a buffer device, a packaging structure and an air conditioner outdoor unit assembly. The air conditioner outdoor unit packaging structure includes: a first buffer component, the first buffer component includes a first corrugated cardboard, a first bottom plate, and a first side plate connected with the edge of the first bottom plate to surround and form a first groove, At least two first paper corner protectors are oppositely arranged at the junction of the first bottom plate and the first side plate, and are attached to the first bottom plate and the first side plate, and the first honeycomb paperboard is arranged in the first groove, The second paper corners are arranged in the first groove and are attached to the first honeycomb paperboard, and both ends of the second paper corners are in contact with at least two first paper corners. The buffer device, the packaging structure and the components of the air conditioner outdoor unit of the utility model can be recycled and reused, no substances that pollute the environment are produced, and no mold is required for preparation, thereby reducing the production cost.
Description
Technical Field
This application belongs to packing technical field, concretely relates to buffer, packaging structure and air condensing units subassembly.
Background
In the prior art, the air conditioner outdoor unit is usually wrapped by placing foam in a box body in the transportation process, so that the air conditioner outdoor unit is buffered, and the air conditioner outdoor unit is prevented from falling off and deforming due to collision in the transportation process.
However, the air conditioner outdoor unit is buffered by foam, which is not environment-friendly and is not beneficial to recycling.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problems, the utility model provides a buffer device and an air conditioner outdoor unit packaging structure, and aims to solve the technical problems that the air conditioner outdoor unit is buffered by foam to a certain extent, is not environment-friendly and is not beneficial to recycling.
The technical scheme of the utility model is as follows:
a cushioning device characterized by comprising: a first cushioning assembly, the first cushioning assembly comprising: the first corrugated board comprises a first bottom board and a first side board which is connected with the edge of the first bottom board to enclose a first groove; the at least two first paper corner protectors are oppositely arranged at the joint of the first bottom plate and the first side plate and are attached to the first bottom plate and the first side plate; the first honeycomb paperboard is arranged in the first groove; and the second paper corner protector is arranged in the first groove and is attached to the first honeycomb paperboard, and two ends of the second paper corner protector are in contact with at least two first paper corner protectors.
The first corrugated board comprises a first bottom board and a first side board which is connected with the edge of the first bottom board to enclose and form a first groove, at least two first paper corner protectors are oppositely arranged at the joint of the first bottom board and the first side board and are jointed with the first bottom board and the first side board, so the first paper corner protectors can ensure the structural strength of the first corrugated board and further ensure the service life of the first corrugated board, meanwhile, the first corrugated board can be prevented from being damaged by packing belts when the carton is packed, and the first honeycomb board is arranged in the first groove, so the air conditioner outdoor unit is buffered by the first honeycomb board, the air conditioner outdoor unit can be prevented from falling and deforming caused by collision in the transportation process, and the second paper corner protectors are arranged in the first groove and are jointed with the first honeycomb board, so the second paper corner protectors can ensure the structural strength of the first honeycomb board, the air conditioner outdoor unit can be supported, and because two ends of the second paper corner protector are in contact with the at least two first paper corner protectors, the second paper corner protector can transmit the pressure of the air conditioner outdoor unit to the first paper corner protector, and shares part of the pressure of the air conditioner outdoor unit through the first paper corner protector, so that the structural strength of the first buffer assembly is ensured, the first corrugated board and the first honeycomb paper can be recycled, substances polluting the environment cannot be generated, the preparation of a mold is not needed, and the production cost is reduced.
In some embodiments, the number of the first cellular paper boards is multiple, and the first cellular paper boards are arranged side by side at intervals for saving material and achieving the purpose of reducing cost, and at the same time, a space is arranged between every two adjacent first cellular paper boards in the multiple first cellular paper boards and used for accommodating a support leg at the bottom of the air conditioner outdoor unit.
In some embodiments, the number of second paper corner protectors is the same as the number of first honeycomb cardboards, and one second paper corner protector is attached to each first honeycomb cardboard.
Guarantee the structural strength of every honeycomb cardboard through second paper angle bead, avoid first honeycomb cardboard to damage, improve the life of first honeycomb cardboard.
In some embodiments, each of the second paper corner protectors is disposed between two adjacent first honeycomb paperboards, the second paper corner protectors support the outdoor unit of the air conditioner to ensure the service lives of the first honeycomb paperboards, two sides of each of the first honeycomb paperboards in the plurality of first honeycomb paperboards are in contact with the first paper corner protectors, partial pressure can be transmitted to the first paper corner protectors, the first paper corner protectors share the partial pressure to ensure the service lives of the first honeycomb paperboards, and the end portions of two first honeycomb paperboards at two ends of the plurality of first honeycomb paperboards are in contact with the first side plates to protect the first honeycomb paperboards through the first side plates, so that the first honeycomb paperboards are prevented from being scratched by external articles.
In some embodiments, the number of the first paper corner protectors is two, and each of the first paper corner protectors is disposed along a length direction of the first base plate, and a direction in which the second paper corner protector is disposed is perpendicular to a direction in which the first paper corner protector is disposed.
Can guarantee first corrugated container board's structural strength, simultaneously, when preventing the carton packing, the bad first corrugated container board is tightened in packing area.
In some embodiments, the first bottom plate and the first side plates are foldable, the number of the first side plates is multiple, and the first side plates are arranged at the edge of the first bottom plate at intervals, so that carton sleeving is facilitated, and the production efficiency is improved.
In some embodiments, the cushioning device further comprises a second cushioning component comprising: the second corrugated board comprises a second bottom board and second side boards oppositely arranged on two sides of the second bottom board; the two third corrugated boards are connected with the two second side boards so as to form second grooves in a surrounding manner with the second bottom board and the two second side boards; the second honeycomb paperboard comprises a third bottom plate and third side plates which are oppositely arranged on two sides of the third bottom plate to form a third groove, and the third bottom plate and the third side plates are arranged in the second groove.
When the top of the air conditioner outdoor unit is to be protected, the second honeycomb paperboard is placed into the second groove, the second corrugated paperboard is supported through the second corrugated paperboard, the structural strength of the second buffer assembly is guaranteed, the top of the air conditioner outdoor unit is sleeved in the third groove, the top of the air conditioner outdoor unit is buffered through the second honeycomb paperboard, and the top of the air conditioner outdoor unit is protected.
In some embodiments, the third corrugated cardboard is disposed along a width direction of the second bottom panel, and the second side panel is disposed along a length direction of the second bottom panel; the corrugation direction of the second corrugated board is perpendicular to the length direction of the second bottom board, so that the accuracy of the packaging size is guaranteed; the corrugation direction of the third corrugated board is consistent with the length direction of the second bottom board, so that the supporting force of the second buffer component in the length direction of the second corrugated board can be increased, and the air conditioner outdoor unit can be clamped and carried conveniently.
In some embodiments, the second cushioning component further comprises: and the third honeycomb paperboard is arranged in the third groove and is attached to one of the two third side plates.
The size of the third groove is changed by adjusting the position of the third honeycomb paperboard in the third groove, so that the size of the third groove is matched with the size of the top of the air-conditioning outdoor unit, the top of the air-conditioning outdoor unit is prevented from shaking in the third groove, and the top safety of the air-conditioning outdoor unit is ensured.
In some embodiments, the second cushioning component further comprises: two corrugated paper support pieces are arranged in the third groove, and the two corrugated paper support pieces are oppositely arranged at the joint of the third bottom plate and the third side plate and are attached to the third bottom plate and the third side plate.
Support the strengthening rib through corrugated paper support piece, avoid the strengthening rib direct with the contact of second honeycomb cardboard, lead to the damage of second honeycomb cardboard, guarantee the life of second honeycomb cardboard.
Based on the same conception of the utility model, the utility model also provides a packaging structure, which comprises a box body and a buffer device; and the first buffer assembly of the buffer device is arranged at the bottom of the box body.
When the air conditioner outdoor unit is placed in the box body, the air conditioner outdoor unit is supported through the first buffering assembly.
Based on the same conception of the utility model, the utility model also provides an air conditioner outdoor unit assembly, which comprises an air conditioner outdoor unit and a packaging structure; the first buffer assembly of the buffer device is arranged at the bottom of the box body.
When the air conditioner outdoor unit is placed in the box body, the air conditioner outdoor unit is supported through the first buffering assembly.
The beneficial effects of the utility model at least comprise:
the first corrugated board comprises a first bottom board and a first side board which is connected with the edge of the first bottom board to enclose and form a first groove, at least two first paper corner protectors are oppositely arranged at the joint of the first bottom board and the first side board and are jointed with the first bottom board and the first side board, so the first paper corner protectors can ensure the structural strength of the first corrugated board and further ensure the service life of the first corrugated board, meanwhile, the first corrugated board can be prevented from being damaged by packing belts when the carton is packed, and the first honeycomb board is arranged in the first groove, so the air conditioner outdoor unit is buffered by the first honeycomb board, the air conditioner outdoor unit can be prevented from falling and deforming caused by collision in the transportation process, and the second paper corner protectors are arranged in the first groove and are jointed with the first honeycomb board, so the second paper corner protectors can ensure the structural strength of the first honeycomb board, the air conditioner outdoor unit can be supported, and because two ends of the second paper corner protector are in contact with the at least two first paper corner protectors, the second paper corner protector can transmit the pressure of the air conditioner outdoor unit to the first paper corner protector, and shares part of the pressure of the air conditioner outdoor unit through the first paper corner protector, so that the structural strength of the first buffer assembly is ensured, the first corrugated board and the first honeycomb paper can be recycled, substances polluting the environment cannot be generated, the preparation of a mold is not needed, and the production cost is reduced.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present application, the drawings needed to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present application, and it is obvious for those skilled in the art to obtain other drawings based on these drawings without creative efforts.

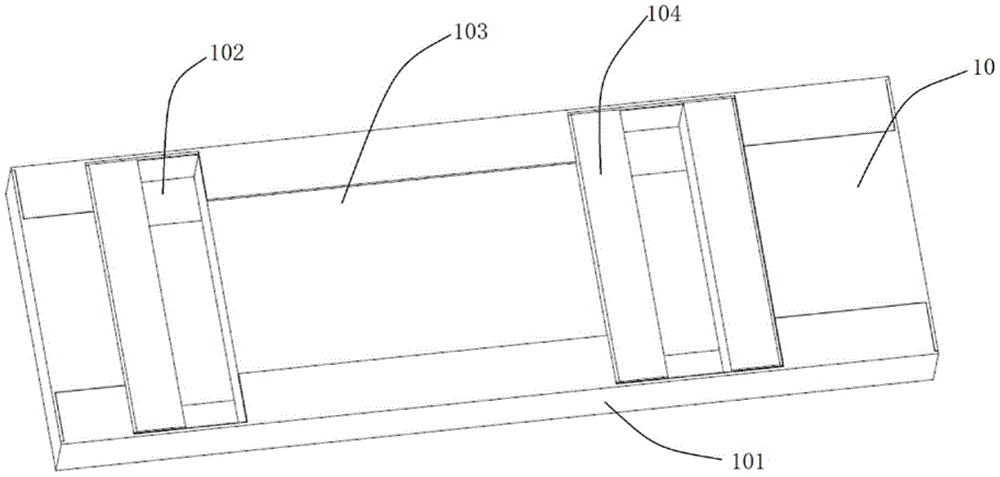

FIG. 1 is a schematic structural diagram of a first buffer assembly of the buffer device of the present embodiment;
FIG. 2 is an exploded view of the first cushioning assembly of FIG. 1;
FIG. 3 is a front view of the first cushioning assembly of FIG. 1;
FIG. 4 is a cross-sectional view taken along line A-A of the first cushioning assembly of FIG. 3;
FIG. 5 is a schematic structural diagram of a second buffer assembly of the buffer device of the present embodiment;
FIG. 6 is an exploded view of the second cushioning assembly of FIG. 1;
FIG. 7 is a front view of the second cushioning assembly of FIG. 1;
FIG. 8 is a cross-sectional view taken along line B-B of the first cushioning assembly of FIG. 7;
figure 9 is a cross-sectional view taken along line C-C of the second cushioning assembly of figure 7.
In the drawings:
a first cushioning assembly 10, a first corrugated cardboard 101, a first paper corner protector 102, a first honeycomb cardboard 103, a second paper corner protector 104, a first bottom plate 1011, a first groove 1012, a first side plate 1013;
the second buffer component 20, the second corrugated cardboard 201, the second honeycomb cardboard 202, the two third corrugated cardboard 203, the second bottom plate 2011, the second side plate 2012, the second groove 204, the third bottom plate 2021, the third groove 2023, the third side plate 2022, the third honeycomb cardboard 205 and the corrugated cardboard support 206.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that all the directional indications in the embodiments of the present invention are only used to explain the relative position relationship, the motion situation, and the like between the components in a certain posture, and if the certain posture is changed, the directional indication is changed accordingly.
In the present invention, unless otherwise expressly stated or limited, the terms "connected," "secured," and the like are to be construed broadly, and for example, "secured" may be a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; they may be directly connected or indirectly connected through intervening media, or they may be connected internally or in any other suitable relationship, unless expressly stated otherwise. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
In addition, the descriptions related to "first", "second", etc. in the present invention are only for descriptive purposes and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, technical solutions between various embodiments may be combined with each other, but must be realized by a person skilled in the art, and when the technical solutions are contradictory or cannot be realized, such a combination should not be considered to exist, and is not within the protection scope of the present invention.
The application is described below with reference to specific embodiments in conjunction with the following drawings:
the utility model provides a buffer, packaging structure and air condensing units subassembly aims at least can solving to a certain extent and adopting the foam to cushion air condensing units, and it is not environmental protection, is unfavorable for the technical problem of recycling.
Fig. 1 is a schematic structural view of a first buffer assembly of a buffer device according to the present embodiment, fig. 2 is an exploded view of the first buffer assembly in fig. 1, fig. 3 is a front view of the first buffer assembly in fig. 1, and fig. 4 is a sectional view of the first buffer assembly in fig. 3 taken along a direction a-a. Referring to fig. 1, 2, 3 and 4, the air conditioner outdoor unit packaging structure of the present embodiment includes: a first cushioning assembly 10. The first cushion assembly 10 includes: a first corrugated cardboard 101, a first paper corner protector 102, a first honeycomb cardboard 103 and a second paper corner protector 104. The first corrugated board 101 includes a first bottom board 1011 and a first side board 1013 connected to an edge of the first bottom board 1011 to form a first recess 1012, at least two first paper corner protectors 102 are oppositely disposed at a connection between the first bottom board 1011 and the first side board 1013 and attached to the first bottom board 1011 and the first side board 1013, the first honeycomb board 103 is disposed in the first recess 1012, the second paper corner protector 104 is disposed in the first recess 1012 and attached to the first honeycomb board 103, and two ends of the second paper corner protector 104 are in contact with the at least two first paper corner protectors 102.
In some embodiments, since the first corrugated cardboard 101 includes the first bottom plate 1011 and the first side plate 103 connected to the edge of the first bottom plate 1011 to enclose the first groove 1012, and at least two first paper corner protectors 102 are oppositely disposed at the connection position of the first bottom plate 1011 and the first side plate 103 and are attached to the first bottom plate 1011 and the first side plate 103, the first paper corner protectors 102 can ensure the structural strength of the first corrugated cardboard 101, and thus ensure the service life of the first corrugated cardboard 101, and at the same time, can prevent the packing belts from damaging the first corrugated cardboard 101 when the cardboard box is packed, since the first honeycomb cardboard 103 is disposed in the first groove 1012, the air conditioner outdoor unit is buffered by the first honeycomb cardboard 103, and the air conditioner outdoor unit can be prevented from falling and deforming due to collision, since the second paper corner protectors 104 are disposed in the first groove 1012 and are attached to the first honeycomb cardboard 103, therefore, the second paper corner protectors 104 can ensure the structural strength of the first honeycomb paper boards 103 and can support the outdoor unit of the air conditioner, since both ends of the second paper corner protectors 104 are in contact with at least two first paper corner protectors 102, the second paper corner protectors 104 can transmit the pressure of the outdoor unit of the air conditioner to the first paper corner protectors 102, the first paper corner protectors 102 share part of the pressure of the outdoor unit of the air conditioner, the structural strength of the first buffer assembly 10 is ensured, and the first corrugated paper boards 101 and the first honeycomb paper can be recycled, so that substances polluting the environment are not generated, the preparation of a mold is not needed, and the production cost is reduced.
In some embodiments, the first buffering assembly 10 may be placed at the bottom of the outdoor unit of the air conditioner to buffer the outdoor unit of the air conditioner through the first cellular paper board 103, and of course, the first buffering assembly 10 may also be placed at the top of the outdoor unit of the air conditioner to protect the outdoor unit of the air conditioner.
With reference to fig. 1 and fig. 2, in some embodiments, the first paper corner protector 102 may be attached to the first bottom plate 1011 and the first side plate 1013 through an adhesive, so as to prevent the first paper corner protector 102 from falling off from the first bottom plate 1011 and the first side plate 1013, so as to ensure the stability of the connection of the first paper corner protector 102 from the first bottom plate 1011 and the first side plate 1013, and at the same time, facilitate the operation and improve the efficiency. Of course, the first paper corner protector 102 can also be attached to the first bottom plate 1011 and the first side plate 1013 through bolts, but the bolts inevitably bore holes in the first paper corner protector 102, the first bottom plate 1011 and the first side plate 1013, which affects the structural strength of the first paper corner protector 102, the first bottom plate 1011 and the first side plate 1013 and is troublesome to operate. Therefore, it is preferable that the first paper corner protector 102 is attached to the first bottom plate 1011 and the first side plate 1013 by bonding.
With reference to fig. 1 and 2, in some embodiments, the second paper corner protector 104 may be attached to the first honeycomb paperboard 103 through an adhesive, so as to prevent the second paper corner protector 104 from falling off from the first honeycomb paperboard 103, ensure the stability of the connection between the second paper corner protector 104 and the first honeycomb paperboard 103, and facilitate the operation and improve the efficiency. Of course, the second paper corner guard 104 can also be attached to the first honeycomb paperboard 103 through bolts, but with the bolt connection, holes are inevitably drilled in the second paper corner guard 104 and the first honeycomb paperboard 103, the structural strength of the second paper corner guard 104 and the first honeycomb paperboard 103 is affected, and the operation is troublesome. Therefore, the second paper corner protector 104 is preferably attached to the first honeycomb paperboard 103 by means of glue.
In some embodiments, in order to prevent the first honeycomb cardboard 103 from falling out of the first groove 1012, the bottom surface of the first honeycomb cardboard 103 is attached to the first bottom plate 1011, and the circumferential surface of the first honeycomb cardboard 103 is attached to the first side plate 1013, so that the stability of the first honeycomb cardboard 103 disposed in the first groove 1012 is ensured, and the transportation is facilitated. In this embodiment, the bottom surface of the first honeycomb paperboard 103 can be attached to the first bottom plate 1011 through the adhesive, and the circumferential surface of the first honeycomb paperboard 103 can be attached to the first side plate 1013 through the adhesive, so that the attachment is firm, the operation is convenient, and the efficiency is improved.
In some embodiments, the adhesive may be one or more of epoxy adhesive, anaerobic adhesive, UV adhesive (ultraviolet light curing), hot melt adhesive, pressure sensitive adhesive, and latex, but the adhesive is preferably a hot melt adhesive because the hot melt adhesive is non-toxic and odorless, is an environmentally friendly chemical product, and has simple production process, high adhesive strength and high speed, from the viewpoint of cost reduction and environmental protection.
In some embodiments, the first paper corner protector 102 has an L-shaped cross section, so that the first paper corner protector 102 is disposed at the connection between the first bottom plate 1011 and the first side plate 1013 and is attached to the first bottom plate 1011 and the first side plate 1013.
In some embodiments, the second paper corner guard 104 has an L-shaped cross-section, which is convenient to fit around the corners of the first honeycomb paperboard 103, and ensures the structural strength of the first honeycomb paperboard 103.
Referring to fig. 1 and 2, in some embodiments, the number of the first honeycomb paper boards 103 is multiple, and a plurality of the first honeycomb paper boards 103 are arranged in parallel at intervals to save materials and achieve the purpose of reducing cost. Meanwhile, a space is reserved between every two adjacent first honeycomb paper boards 103 in the plurality of first honeycomb paper boards 103 and used for accommodating support legs at the bottom of the air conditioner outdoor unit, so that the support legs are prevented from directly falling on the first honeycomb paper boards 103 to cause damage to the first honeycomb paper boards 103. Since the number of the legs at the bottom of the outdoor unit of the air conditioner is generally four, the legs are symmetrically arranged two by two, and therefore, it is preferable that the number of the first honeycomb paper sheets 103 is 3.
Referring to fig. 1 and 2, in some embodiments, the number of the second paper corner protectors 104 is the same as the number of the first honeycomb paperboards 103, and one second paper corner protector 104 is attached to each first honeycomb paperboard 103, so that the structural strength of each honeycomb paperboard 103 is ensured by the second paper corner protectors 104, the first honeycomb paperboards 103 are prevented from being damaged, and the service life of the first honeycomb paperboards 103 is prolonged. Of course, the number of the second paper corner protectors 104 may be increased or decreased according to the buffering characteristics of the outdoor unit of the air conditioner, that is, the number of the second paper corner protectors 104 may be greater than the number of the first honeycomb paper sheets 103 or less than the number of the first honeycomb paper sheets 103. However, a second paper corner 104 already ensures the structural strength of a first honeycomb board 103, and it is not preferable to vary the number of second paper corners 104 for mass production in order to improve efficiency, and it is preferable that the number of second paper corners 104 is the same as the number of first honeycomb boards 103 from the viewpoint of cost reduction.
In some embodiments, in order to further ensure the structural strength of the first honeycomb cardboard 103 and prevent the outdoor unit from damaging the first honeycomb cardboard 103, each second paper corner guard 104 is disposed between two adjacent first honeycomb cardboard 103, and the second paper corner guard 104 can support the outdoor unit to ensure the service life of the first honeycomb cardboard 103.
Referring to fig. 1 and 2, in some embodiments, both sides of each first honeycomb paperboard 103 of the plurality of first honeycomb paperboards 103 are in contact with the first paper corner protectors 102, when the first honeycomb paperboard 103 is subjected to pressure, a part of the pressure can be transmitted to the first paper corner protectors 102, and the first paper corner protectors 102 share the part of the pressure, so that the service life of the first honeycomb paperboard 103 is ensured. In this embodiment, two sides of each first honeycomb paper board 103 of the plurality of first honeycomb paper boards 103 may be attached to the first paper corner protector 102 by glue, so as to ensure that the first honeycomb paper board 103 is firmly connected to the first paper corner protector 102.
Referring to fig. 1 and 2, in some embodiments, in order to ensure the safety of the first honeycomb cardboard 103, the ends of two first honeycomb cardboards 103 at two ends of the plurality of first honeycomb cardboards 103 are in contact with the first side plate 1013, so that the first side plate 1013 protects the first honeycomb cardboard 103 from being scratched by external articles. In this embodiment, the end portions of two first honeycomb paperboards 103 at two ends of the plurality of first honeycomb paperboards 103 are attached to the first side plate 1013 through glue, so that the two first honeycomb paperboards 103 at two ends of the plurality of first honeycomb paperboards 103 are firmly connected to the first side plate 1013.
With reference to fig. 1 and 2, in some embodiments, the number of the first paper corner protectors 102 is two, and each first paper corner protector 102 is disposed along the length direction of the first bottom plate 1011, so that the structural strength of the first corrugated cardboard 101 can be ensured, and meanwhile, the first corrugated cardboard 101 is prevented from being damaged by a packing belt when the carton is packed. Of course, the number of the first paper corner protectors 102 may also be four, two of the first paper corner protectors are arranged along the length direction of the first base plate 1011, and the other two of the first paper corner protectors are arranged along the width direction of the first base plate 1011, so that the structural strength of the first corrugated board 101 can be further ensured. However, since two first paper horns 102 can already secure the structural strength of the first corrugated cardboard 101, the number of first paper horns 102 is preferably two from the viewpoint of cost saving, and each first paper horn 102 is disposed along the length direction of the first base plate 1011.
In some embodiments, in combination with fig. 1 and 2, in order to ensure that the first paper corner protector 102 can support the second paper corner protector 104, the first paper corner protector 102 transmits the second paper corner protector 104 in a direction perpendicular to the direction in which the first paper corner protector 102 is disposed, and the second paper corner protector 104 can transmit the pressure of the outdoor unit of the air conditioner to the first paper corner protector 102, and the first paper corner protector 102 shares a part of the pressure of the outdoor unit of the air conditioner, thereby ensuring the structural strength of the first buffering assembly.
Referring to fig. 1 and 2, in some embodiments, to facilitate the assembly of the outdoor unit, the top of the second paper corner protector 104 is flush with the top of the first side plate 1013, so that the top of the first buffering assembly 10 is a plane, and the outdoor unit can be directly placed on the plane to ensure the stability of the support.
Referring to fig. 1 and fig. 2, in some embodiments, in order to facilitate carton packing and improve production efficiency, the first bottom panel 1011 and the first side panel 1013 are foldable, that is, the first side panel 1013 is a folded edge of the first bottom panel 1011 folded toward the first honeycomb cardboard 103, and the first side panel 1013 is folded on the first bottom panel 1011 to form a first groove 1012 for accommodating the first honeycomb cardboard 103, so as to facilitate operation and improve production efficiency.
In some embodiments, in order to save material and reduce cost, referring to fig. 1 and fig. 2, the number of the first side plates 1013 is plural, and the first side plates 1013 are spaced apart from the edge of the first bottom plate 1011, that is, every two adjacent first side plates 1013 of the plural first side plates 1013 have a space therebetween, and the space is free of corrugated cardboard, i.e., material is saved.
In some embodiments, since the first buffering assembly 10 has the first paper corner protector 102 and the second paper corner protector 104, the structural strength of the first buffering assembly 10 can be ensured, and during the use process, the air conditioner outdoor unit is supported by the first buffering assembly 10, and the top of the air conditioner outdoor unit does not need to bear the air conditioner outdoor unit, but the top of the air conditioner outdoor unit also needs to be protected, however, due to the existence of the first paper corner protector 102 and the second paper corner protector 104, the cost of the first buffering assembly 10 is high, and in order to reduce the cost, the buffering device further includes the second buffering assembly 20, and the second buffering assembly 20 is disposed on the top of the air conditioner outdoor unit to protect the air conditioner outdoor unit. Fig. 5 is a schematic structural view of a second damping unit of a damping device according to an embodiment, fig. 6 is an exploded view of the second damping unit of fig. 1, fig. 7 is a front view of the second damping unit of fig. 1, fig. 8 is a sectional view of the first damping unit of fig. 7 taken along the direction B-B, and fig. 9 is a sectional view of the second damping unit of fig. 7 taken along the direction C-C, and in conjunction with fig. 5, 6, 7, 8 and 9, the second damping unit 20 includes: a second corrugated cardboard 201, a second honeycomb cardboard 202 and two third corrugated cardboards 203. The second corrugated cardboard 201 includes a second bottom plate 2011 and second side plates 2012 oppositely disposed on both sides of the second bottom plate 2011. The two third corrugated boards 203 are connected to the two second side boards 2012 to form a second groove 204 surrounded by the second bottom board 2011 and the two second side boards 2012. The second honeycomb cardboard 202 includes a third bottom plate 2021 and a third side plate 2022 oppositely disposed on two sides of the third bottom plate 2021 to form a third groove 2023, and the third bottom plate 2021 and the third side plate 2022 are disposed in the second groove 204.
Referring to fig. 5 and 6, in some embodiments, when the top of the outdoor unit of the air conditioner is to be protected, the second honeycomb cardboard 202 is placed in the second groove 204, the second corrugated cardboard 201 supports the second honeycomb cardboard 202, so as to ensure the structural strength of the second buffer assembly 20, the top of the outdoor unit of the air conditioner is sleeved in the third groove 2023, and the second honeycomb cardboard 202 is used for buffering, so as to protect the top of the outdoor unit of the air conditioner.
Referring to fig. 5 and 6, in some embodiments, the top of the outdoor unit is protected by the third bottom panel 2021, and the side of the outdoor unit is protected by the third side panel 2022, so that the outdoor unit is prevented from being damaged.
With reference to fig. 5 and 6, in some embodiments, the top of the second side plate 2012 is flush with the top of the third side plate 2022, so that the second buffer assembly 20 can be stacked and stacked to reduce breakage and increase the transportation load rate.
In some embodiments, the second cushioning component 20 is constructed of only corrugated board and honeycomb board, and does not require paper corner protectors, thereby providing a lower cost relative to the first cushioning component 10.
In some embodiments, the thickness of the two third corrugated cardboards 203 may be adjusted according to the size of the top of the outdoor unit of the air conditioner, so as to facilitate the assembly with the top of the outdoor unit of the air conditioner.
Referring to fig. 5 and 6, in some embodiments, the third bottom plate 2021 is attached to the second bottom plate 2011 to ensure the stability of the second corrugated cardboard 201 supporting the second honeycomb cardboard 202. In this embodiment, the third bottom plate 2021 can be attached to the second bottom plate 2011 through an adhesive, so that the third bottom plate is firmly attached to the second bottom plate 2011, the operation is facilitated, and the efficiency is improved.
In some embodiments, in combination with fig. 5 and 6, the third side panel 2022 is attached to the second side panel 2012 to ensure the stability of the second corrugated cardboard 201 supporting the second honeycomb cardboard 202. In this embodiment, the third side plate 2022 can be attached to the second side plate 2012 by an adhesive, so that the attachment is firm, the operation is convenient, and the efficiency is improved.
With reference to fig. 5 and 6, in some embodiments, in order to facilitate carton encasement and improve production efficiency, the second bottom plate 2011 and the second side plate 2012 are foldable, that is, the second side plate 2012 is a folded edge of the second bottom plate 2011 folded toward the second honeycomb paperboard 202, and the second side plate 2012 is folded on the second bottom plate 2011 to form a U-shaped groove for accommodating the second honeycomb paperboard 202, so that operation is facilitated and production efficiency is improved.
In some embodiments, in combination with fig. 5 and 6, in order to facilitate folding the second side plate 2012 over the second floor 2011, the second bottom plate 2011 is provided with a score line at the junction with the second side plate 2012.
In some embodiments, with reference to fig. 5 and fig. 6, in order to facilitate carton nesting and improve production efficiency, the third bottom plate 2021 and the third side plate 2022 are foldable, that is, the third side plate 2022 is a folded edge of the third bottom plate 2021 folded in a direction away from the second bottom plate 2011, and the third side plate 2022 is folded on the third bottom plate 2021 to form a U-shaped groove for accommodating a top of the outdoor unit of the air conditioner, so that operation is facilitated and production efficiency is improved.
In some embodiments, to facilitate the third side panel 2022 to be folded on the third bottom panel 2021, a crease line is formed at the connection of the third side panel 2022 and the third bottom panel 2021.
In some embodiments, the third corrugated cardboard 203 is disposed along the width direction of the second bottom plate 2011, and the second side plate 2012 is disposed along the length direction of the second bottom plate 2011, so as to reduce the influence of cardboard shrinkage on the package size, the corrugation direction of the second corrugated cardboard 201 is perpendicular to the length direction of the second bottom plate 2011, and the accuracy of the package size is ensured.
In some embodiments, since the corrugated direction of the corrugated cardboard has the greatest supporting strength, and the corrugated direction of the third corrugated cardboard 203 is consistent with the length direction of the second bottom plate 2011, the supporting force of the second buffer assembly 20 in the length direction of the second corrugated cardboard 201 can be increased, which facilitates the clamping and carrying of the outdoor unit of the air conditioner.
Referring to fig. 5 and 6, in some embodiments, in order to match the size of the third groove 2023 with the size of the top of the outdoor unit of the air conditioner, the second buffering assembly 20 further includes: a third honeycomb cardboard 205. The third honeycomb cardboard 205 is disposed in the third groove 2023 and attached to one of the two third side panels 2022, and the size of the third groove 2023 is changed by adjusting the position of the third honeycomb cardboard 205 in the third groove 2023, so that the size of the third groove 2023 matches with the size of the top of the outdoor unit of the air conditioner, thereby preventing the top of the outdoor unit of the air conditioner from shaking in the third groove 2023, and ensuring the safety of the top of the outdoor unit of the air conditioner.
In some embodiments, when the position of the third honeycomb cardboard 205 in the third groove 2023 is determined, the third honeycomb cardboard 205 is attached to the third bottom plate 2021, so as to prevent the third honeycomb cardboard 205 from moving in the third groove 2023, ensure the size of the third groove 2023, and make the size of the third groove 2023 match with the size of the top of the outdoor unit of the air conditioner. In this embodiment, the third honeycomb cardboard 205 can be attached to the third bottom plate 2021 by adhesive, so that the attachment is firm, the operation is convenient, and the efficiency is improved.
Referring to fig. 5 and 6, in some embodiments, since the top of the outdoor unit of the air conditioner is provided with the reinforcing ribs, in order to support the reinforcing ribs and prevent the reinforcing ribs from damaging the second honeycomb cardboard 202, the second buffering assembly 20 further includes: two corrugated paper support members 206. Two corrugated paper support members 206 are arranged in the third groove 2023, the two corrugated paper support members 206 are oppositely arranged at the joint of the third bottom plate 2021 and the third side plate 2022 and are attached to the third bottom plate 2021 and the third side plate 2022, and the corrugated paper support members 206 support the reinforcing ribs, so that the second honeycomb paperboard 202 is prevented from being damaged due to the fact that the reinforcing ribs are directly contacted with the second honeycomb paperboard 202, and the service life of the second honeycomb paperboard 202 is ensured.
In some embodiments, the corrugated paper support 206 is sized to match the size of the reinforcing bars to support the reinforcing bars.
In some embodiments, the corrugated paper support 206 is attached to the third bottom plate 2021 and the third side plate 2022 by glue, so that the attachment is firm, the operation is convenient, and the efficiency is improved.
Based on same utility model design, this application has still provided a packaging structure, and this packaging structure has adopted buffer, this buffer's concrete structure refers to above-mentioned embodiment, because buffer has adopted the whole technical scheme of above-mentioned all embodiments, consequently has all beneficial effects that the technical scheme of above-mentioned embodiment brought at least, and the repeated description is not repeated here one by one again.
In some embodiments, the packaging structure comprises: the box and buffer. The first buffer assembly 10 of the buffer device is arranged at the bottom of the box body, and the second buffer assembly 20 of the buffer assembly is arranged at the top of the box body. When the outdoor unit is placed in the cabinet, the outdoor unit is supported by the first buffering assembly 10, and the top of the outdoor unit is protected by the second buffering assembly 20.
Based on same utility model conceive, this application still provides an air condensing units subassembly, and this air condensing units subassembly has adopted packaging structure, this packaging structure's concrete structure refers to above-mentioned embodiment, because packaging structure has adopted the whole technical scheme of above-mentioned all embodiments, consequently has all beneficial effects that the technical scheme of above-mentioned embodiment brought at least, and the repeated description is not repeated here one by one.
In some embodiments, an outdoor unit assembly of an air conditioner includes: air condensing units and packaging structure. The outdoor unit of the air conditioner is disposed on the first buffering assembly 10. When the outdoor unit is placed in the cabinet, the outdoor unit is supported by the first buffering assembly 10, and the top of the outdoor unit is protected by the second buffering assembly 20.
In the description of the present application, it is to be understood that the terms "center," "longitudinal," "lateral," "length," "width," "thickness," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," "clockwise," "counterclockwise," and the like are used in the orientations and positional relationships indicated in the drawings for convenience in describing the present application and for simplicity in description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed in a particular orientation, and be operated in a particular manner, and are not to be construed as limiting the present application.
In addition, descriptions in this application as to "first", "second", etc. are for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicit to the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one of the feature. In addition, technical solutions between various embodiments may be combined with each other, but must be realized by a person skilled in the art, and when the technical solutions are contradictory or cannot be realized, such a combination should not be considered to exist, and is not within the protection scope of the present application.
In the description of the present invention, unless otherwise expressly specified or limited, the first feature "on" or "under" the second feature may comprise the first and second features being in direct contact, or may comprise the first and second features being in contact, not directly, but via another feature in between. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
In the description herein, reference to the description of the term "one embodiment," "some embodiments," "an example," "a specific example," or "some examples," etc., means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the application. In this specification, the schematic representations of the terms used above are not necessarily intended to refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, various embodiments or examples described in this specification can be combined and combined by those skilled in the art.
While the preferred embodiments of the present application have been described, additional variations and modifications in those embodiments may occur to those skilled in the art once they learn of the basic inventive concepts. Therefore, it is intended that the appended claims be interpreted as including preferred embodiments and all alterations and modifications as fall within the scope of the application.
It will be apparent to those skilled in the art that various changes and modifications may be made in the present application without departing from the spirit and scope of the application. Thus, if such modifications and variations of the present application fall within the scope of the claims of the present application and their equivalents, the present application is intended to include such modifications and variations as well.
