Abstract
本实用新型涉及乳胶枕技术领域，且公开了一种乳胶枕加工用切割设备，包括切割底座，所述切割底座的背部固定连接有电机固定座，所述切割底座的表面固定连接有固定滑杆，所述固定滑杆的表面滑动连接有切割机构，所述切割机构的表面固定连接有固定装置，述液压缸滑动连接在固定滑杆的表面，所述往复电机固定连接在液压缸的底部，所述连接柱固定连接在往复电机的底部，所述切刀固定连接在连接柱的内部，支撑腿将切割底座整体支撑住，乳胶枕切割座与切割底座相连接，可以放置乳胶枕，电机底座将电机固定座支撑固定，转动电机与主动皮带轮连接，传动皮带将主动皮带轮和从动皮带轮连接，且螺杆与从动皮带轮连接，可实现切割机构的前后滑动。
The utility model relates to the technical field of latex pillows, and discloses a cutting device for latex pillow processing, comprising a cutting base, a motor fixing seat is fixedly connected to the back of the cutting base, and a fixed sliding rod is fixedly connected to the surface of the cutting base , a cutting mechanism is slidably connected to the surface of the fixed sliding rod, a fixing device is fixedly connected to the surface of the cutting mechanism, the hydraulic cylinder is slidably connected to the surface of the fixed sliding rod, and the reciprocating motor is fixedly connected to the bottom of the hydraulic cylinder, The connecting column is fixedly connected to the bottom of the reciprocating motor, the cutting knife is fixedly connected to the interior of the connecting column, the support legs support the cutting base as a whole, the latex pillow cutting seat is connected to the cutting base, and the latex pillow can be placed, the motor base The motor fixing seat is supported and fixed, the rotating motor is connected with the driving pulley, the driving belt is connected with the driving pulley and the driven pulley, and the screw is connected with the driven pulley, so that the front and rear sliding of the cutting mechanism can be realized.
Description
Technical Field
The utility model relates to the technical field of latex pillows, in particular to cutting equipment for processing a latex pillow.
Background
The latex pillow is made of juice of a rubber tree, the latex pillow cannot be made of 100% pure latex, the latex content of the latex pillow on the market is only 80% -93%, and can reach 96% at most, because the pure latex cannot achieve the solidification and fluffy effects, the latex pillow needs to be fermented by manually adding a safety material, the latex pillow accords with a long sleep habit, can provide comfortable experience for a user, and the side cutting treatment needs to be carried out on the produced and molded latex pillow when the latex pillow is produced;
the latex pillow of prior art after to the shaping when cutting edge, needs a hand control pillow, and the other hand cuts, causes the error easily, reduces work efficiency, improves the defective rate, and thereby the pillow can appear the skew under the effect of cutter when having the cutting and cause the cutting skew to make the pillow scrap.
SUMMERY OF THE UTILITY MODEL
Aiming at the defects of the prior art, the utility model provides the cutting equipment for processing the latex pillow, which has the advantages of automatic cutting and control on the pressing of the latex pillow, and solves the problems that the error is easily caused by controlling the pillow by one hand and cutting by the other hand, the working efficiency is reduced, the reject ratio is improved, and the pillow can be deviated under the action of a cutter.
The utility model provides the following technical scheme: a cutting device for processing a latex pillow comprises a cutting base, wherein the back of the cutting base is fixedly connected with a motor fixing seat, the surface of the cutting base is fixedly connected with a fixed sliding rod, the surface of the fixed sliding rod is slidably connected with a cutting mechanism, and the surface of the cutting mechanism is fixedly connected with a fixing device;
the cutting mechanism comprises a hydraulic cylinder, a reciprocating motor, a connecting column and a cutter, wherein the hydraulic cylinder is connected to the surface of the fixed sliding rod in a sliding mode, the reciprocating motor is fixedly connected to the bottom of the hydraulic cylinder, the connecting column is fixedly connected to the bottom of the reciprocating motor, and the cutter is fixedly connected to the inner portion of the connecting column.
Preferably, the cutting mechanism further comprises a fixing plate and a protection block, the fixing plate is fixedly connected to the bottom of the connecting column, and the protection block is fixedly connected to the bottom of the fixing plate.
Preferably, the bottom fixedly connected with supporting leg of cutting base, the top fixedly connected with latex pillow cutting seat of cutting base, the fixed commentaries on classics hole has been seted up on the top surface of cutting base, the rear fixedly connected with motor base of cutting base, motor base's bottom fixedly connected with support frame.
Preferably, motor base's top fixedly connected with motor fixing base, motor fixing base's top fixedly connected with rotates the motor, the one end that rotates the motor and be close to the cutting base is rotated and is connected with driving pulley, driving pulley's surface drive is connected with driving belt, driving belt's internal drive connecting piece has driven pulley, driven pulley runs through fixed commentaries on classics hole rotation and is connected with the screw rod near the one end of cutting base.
Preferably, the fixed roof that is provided with in the top of fixed plate, the spout has been seted up in the top of fixed plate run through, the inside sliding connection of spout has the litter, the surface of litter is provided with the spring, the bottom fixedly connected with fixed bent plate of litter.
Preferably, the two ends of the spring are fixedly connected with a fixed plate and a fixed bent plate, and the sliding rod penetrates through the fixed plate and is fixedly connected to the bottom of the fixed top plate.
Preferably, the hydraulic cylinder is in threaded connection with the surface of the screw rod, and the cutter is inserted in the protective block in a sliding manner
Compared with the prior art, the utility model has the following beneficial effects:
1. this cutting equipment is used in latex pillow processing, when fixing latex pillow through as needs, at first place latex pillow at the upper surface of latex pillow cutting seat then rotate the motor and drive the drive pulley rotation, the driving belt on drive pulley surface drives the driven pulley rotation, and the screw rod also rotates along with driven pulley's rotation, because pneumatic cylinder and screw rod screw thread transmission, so the pneumatic cylinder slides along with the rotation of screw rod, slide to the top stop motion of latex pillow until the pneumatic cylinder, will fix at the fixing device on fixed plate surface and descend through the pneumatic cylinder, latex pillow top is pushed down to the fixed roof, spring contraction avoids pressing the latex pillow deformation that leads to. And the slide bar makes the pressure face of fixed bent plate keep flush under the spacing of spout to keep the accuracy of tangent plane, the device is convenient for fix the latex pillow.
2. This cutting equipment is used in processing of latex pillow through when needs cutting latex pillow, at first with latex pillow fixed through fixing device, then start reciprocating motor, reciprocating motor passes through the spliced pole and drives the reciprocal cutting of cutter, rotates the motor this moment and drives the screw rod and rotate, makes the pneumatic cylinder inwards slide, make the cutter to latex pillow cut can, the device is convenient for cut latex pillow.
Drawings

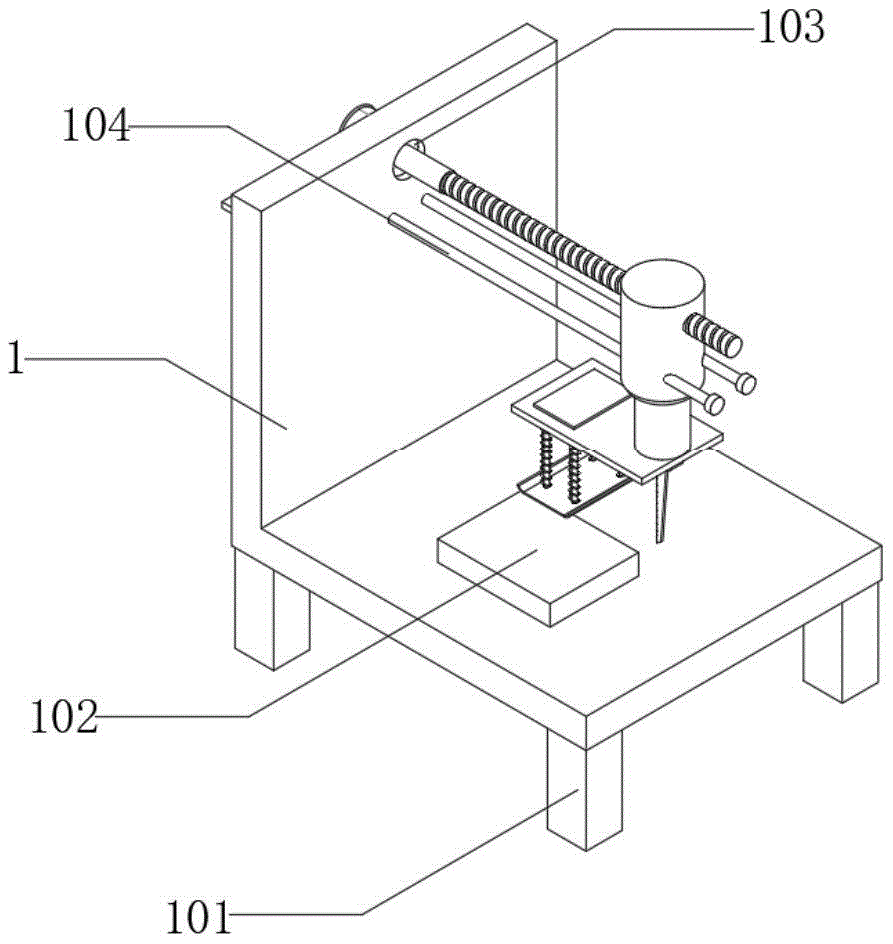

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the left side of the present invention;
FIG. 3 is a schematic view of a rotating electric machine according to the present invention;
FIG. 4 is a schematic view of a fixing device according to the present invention;
FIG. 5 is a schematic view of a cutting mechanism according to the present invention.
In the figure: 1. cutting the base; 101. supporting legs; 102. a latex pillow cutting seat; 103. fixing the rotary hole; 104. fixing the sliding rod; 105. a motor base; 106. a support frame; 2. a motor fixing seat; 201. rotating the motor; 202. a drive pulley; 203. a drive belt; 204. a driven pulley; 205. a screw; 3. a fixing device; 301. fixing a top plate; 302. a chute; 303. a slide rod; 304. a spring; 305. fixing the bent plate; 4. a cutting mechanism; 401. a hydraulic cylinder; 402. a reciprocating motor; 403. connecting columns; 404. a cutter; 405. a fixing plate; 406. and (5) protecting the block.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, a cutting device for latex pillow processing, including cutting base 1, back fixedly connected with motor fixing base 2 of cutting base 1, surface fixedly connected with fixed slide bar 104 of cutting base 1, surface sliding connection of fixed slide bar 104 has cutting mechanism 4, surface fixedly connected with fixing device 3 of cutting mechanism 4, bottom fixedly connected with supporting leg 101 of cutting base 1, top fixedly connected with latex pillow cutting base 102 of cutting base 1, fixed rotating hole 103 has been seted up on the top surface of cutting base 1, rear fixedly connected with motor base 105 of cutting base 1, bottom fixedly connected with support frame 106 of motor base 105, through setting up latex pillow cutting base 102, be used for placing latex pillow cutting base 102
Referring to fig. 5, the cutting mechanism 4 includes a hydraulic cylinder 401, a reciprocating motor 402, a connecting column 403 and a cutter 404, the hydraulic cylinder 401 is slidably connected to the surface of the fixed sliding rod 104, the reciprocating motor 402 is fixedly connected to the bottom of the hydraulic cylinder 401, the connecting column 403 is fixedly connected to the bottom of the reciprocating motor 402, the cutter 404 is fixedly connected to the inside of the connecting column 403, the cutting mechanism 4 further includes a fixing plate 405 and a protection block 406, the fixing plate 405 is fixedly connected to the bottom of the connecting column 403, the protection block 406 is fixedly connected to the bottom of the fixing plate 405, the hydraulic cylinder 401 is in threaded connection with the surface of the screw 205, the cutter 404 is slidably inserted into the protection block 406, and the latex pillow can be cut by arranging the cutter 404.
Referring to fig. 3, a motor fixing seat 2 is fixedly connected to the top of the motor base 105, a rotating motor 201 is fixedly connected to the top of the motor fixing seat 2, one end of the rotating motor 201 close to the cutting base 1 is rotatably connected with a driving pulley 202, a driving belt 203 is connected to the surface of the driving pulley 202 in a transmission manner, a driven pulley 204 is connected to an internal transmission connecting piece of the driving belt 203, one end of the driven pulley 204 close to the cutting base 1 penetrates through a fixing rotating hole 103 and is rotatably connected with a screw 205, and the screw 205 is arranged and used for moving the cutting mechanism 4.
Referring to fig. 4, a fixed top plate 301 is fixedly disposed on the top of a fixed plate 405, a sliding slot 302 is formed through the top of the fixed plate 405, a sliding rod 303 is slidably connected inside the sliding slot 302, a spring 304 is disposed on the surface of the sliding rod 303, a fixed curved plate 305 is fixedly connected to the bottom of the sliding rod 303, a fixed plate 405 and a fixed curved plate 305 are fixedly connected to two ends of the spring 304, the sliding rod 303 penetrates through the fixed plate 405 and is fixedly connected to the bottom of the fixed top plate 301, and the fixed curved plate 305 is disposed for fixing the latex pillow.
The working principle is that when the cutting equipment for processing the latex pillow is used, in an initial state, the supporting legs 101 support the whole cutting base 1, the latex pillow cutting base 102 is connected with the cutting base 1 and can be used for placing the latex pillow, the motor base 105 supports and fixes the motor fixing base 2, the rotating motor 201 is connected with the driving pulley 202, the driving pulley 202 is connected with the driven pulley 204 through the transmission belt 203, the screw 205 is connected with the driven pulley 204 and can realize the front and back sliding of the cutting mechanism 4, the fixed curved plate 305 is connected with the sliding rod 303 and can fix the latex pillow on the surface of the latex pillow cutting base 102;
when the latex pillow needs to be fixed, firstly, the latex pillow is placed on the upper surface of the latex pillow cutting seat 102, then the motor 201 is rotated to drive the driving pulley 202 to rotate, the driving belt 203 on the surface of the driving pulley 202 drives the driven pulley 204 to rotate, the screw 205 also rotates along with the rotation of the driven pulley 204, as the hydraulic cylinder 401 and the screw 205 are in threaded transmission, the hydraulic cylinder 401 slides along with the rotation of the screw 205 until the hydraulic cylinder 401 slides to the upper side of the latex pillow to stop moving, the fixing device 3 fixed on the surface of the fixing plate 405 is lowered through the hydraulic cylinder 401, the fixing top plate 301 presses the top of the latex pillow, and the spring 304 contracts to avoid the latex pillow from deforming due to over-pressing. And the slide rod 303 keeps the pressing surface of the fixed curved plate 305 flush under the limit of the sliding groove 302, so that the accuracy of the cutting surface is kept, and the device is convenient for fixing the latex pillow.
When the latex pillow needs to be cut, the latex pillow is fixed through the fixing device 3, then the reciprocating motor 402 is started, the reciprocating motor 402 drives the cutter 404 to cut in a reciprocating mode through the connecting column 403, the motor 201 is rotated to drive the screw rod 205 to rotate, the hydraulic cylinder 401 slides inwards, the cutter 404 is used for cutting the latex pillow, and the device is convenient for cutting the latex pillow.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
