Abstract

The utility model discloses an anorectal irrigation tank, which comprises a rectangular block, the right side of the rectangular block is fixedly connected with a flow guide plate, the front and rear sides of the rectangular block are fixedly connected with a connecting plate, and the inner part of the connecting plate is fixedly connected. A rotating shaft is fixedly connected to the cavity, a cylinder is fixedly connected to the bottom of the rotating shaft, a first claw is fixedly connected to the left side of the bottom of the cylinder, and a second claw is fixedly connected to the right side of the bottom of the cylinder. Anorectal irrigation tank, the left side of the inner cavity of the rectangular plate is the isolation plate, the right side of the inner cavity of the rectangular plate is the irrigation tank, the isolation plate is 80cm long and 20cm wide, and there are first and second clamping jaws on both sides. It is fixed with the treatment bed and can be removed during disinfection. The isolation plate is seamlessly connected to the flushing tank at right angles. The flushing tank is 80cm long, 20cm wide and 15cm high. The baffle plate is 30° higher than the right side. There is a drainage port on the right side with a diameter of 5cm, which is connected to one end of the drainage pipe, and the other side of the drainage pipe. One end is connected to a medical trash can.

Description

An anorectal irrigation tank

technical field

The utility model relates to the medical industry, the technical field of clinical anorectal surgery and dressing change treatment, in particular to an anorectal flushing tank.

Background technique

When a doctor performs an incision and drainage of perianal abscess for patients with anal carbuncle (perianal abscess), it is necessary to thoroughly rinse the residual pus from the perianal wound to make the wound clean, which is conducive to wound healing. For patients with anal carbuncle (perianal abscess), the dressing should be changed every day, and the perianal wound secretions should be thoroughly rinsed to avoid wound infection and facilitate wound healing.

The surgical bed and dressing treatment bed used in clinic are flat. When the doctor performs surgery, dressing change and flushing treatment for patients with anal abscess (perianal abscess), cotton should be placed under the buttocks to absorb water. When the wound is large, the cotton should be replaced. , the work is tedious, there are many consumables, and even the flushing secretions sometimes splash around, polluting the operating bed, dressing bed, and dripping into the floor, which does not meet the requirements of hospital feeling and produces more medical waste.

Utility model content

The purpose of this utility model is to provide a kind of anorectal flushing tank, in order to solve the problem that the clinical operation bed and the dressing change treatment bed are all flat, and the doctor is required to perform surgery, dressing change flushing treatment for patients with anal carbuncle (perianal abscess), and it is necessary to The cotton under the buttocks absorbs water. When the wound is large, it is necessary to replace the cotton, which is tedious work and has many consumables. Even the flushing secretions sometimes splash around, polluting the operating bed, dressing bed, and dripping into the floor, which does not meet the requirements of hospital feeling. , while producing more medical waste.

In order to achieve the above purpose, the present utility model provides the following technical solutions: an anorectal irrigation tank, comprising a rectangular block, the right side of the rectangular block is fixedly connected with a deflector, and the front and rear sides of the rectangular block are fixedly connected with a connection The inner cavity of the connecting plate is fixedly connected with a rotating shaft, the bottom of the rotating shaft is fixedly connected with a cylinder, the left side of the bottom of the cylinder is fixedly connected with a first claw, and the right side of the bottom of the cylinder is fixedly connected There is a second jaw.

Preferably, the outer ring of the cylinder is provided with a circular hole, the inner cavity of the circular hole is provided with a bearing, the inner cavity of the bearing is fixedly connected with a threaded rod, and the outer ring of the threaded rod is sleeved with a ring, A second clamping claw is fixedly connected to the bottom of the ring, and a knob is fixedly connected to the right side of the threaded rod.

Preferably, both the rectangular block and the top of the guide plate are provided with a guide groove, and the top of the rectangular plate is fixedly connected with a support plate.

Preferably, a drainage port is opened on the left side of the inner cavity of the rectangular block.

Compared with the prior art, the beneficial effects of the present utility model are:

1. This kind of anorectal flushing tank, the left side of the inner cavity of the rectangular plate is the isolation plate, the right side of the inner cavity of the rectangular plate is the flushing tank, the isolation plate is 80cm long, 20cm wide, and has a first claw and a second claw on both sides. It is clamped and fixed with the treatment bed during use, and can be removed during disinfection. The isolation plate is seamlessly connected to the flushing tank at right angles. The flushing tank is 80cm long, 20cm wide and 15cm high. The baffle plate is 30° higher than the right side. There is a drainage port on the right side with a diameter of 5cm, which is connected to one end of the drainage pipe, and the other side of the drainage pipe. One end is connected to a medical trash can.

2. In this anorectal flushing tank, the patient's pus, blood, secretions, and flushing fluid flow into the flushing tank through the isolation plate, and directly flow into the medical trash can through the connection between the drainage port of the flushing tank and the drainage tube, which reduces the number of medical cotton. It also prevents the patient's pus, blood, secretions, and irrigation fluid from splashing around, polluting the operating bed, dressing bed, and floor. Strictly implement the hospital feeling requirements, maintain a clean and comfortable medical environment, improve the quality of medical safety and medical services, and effectively save medical resources and human resources.

Description of drawings

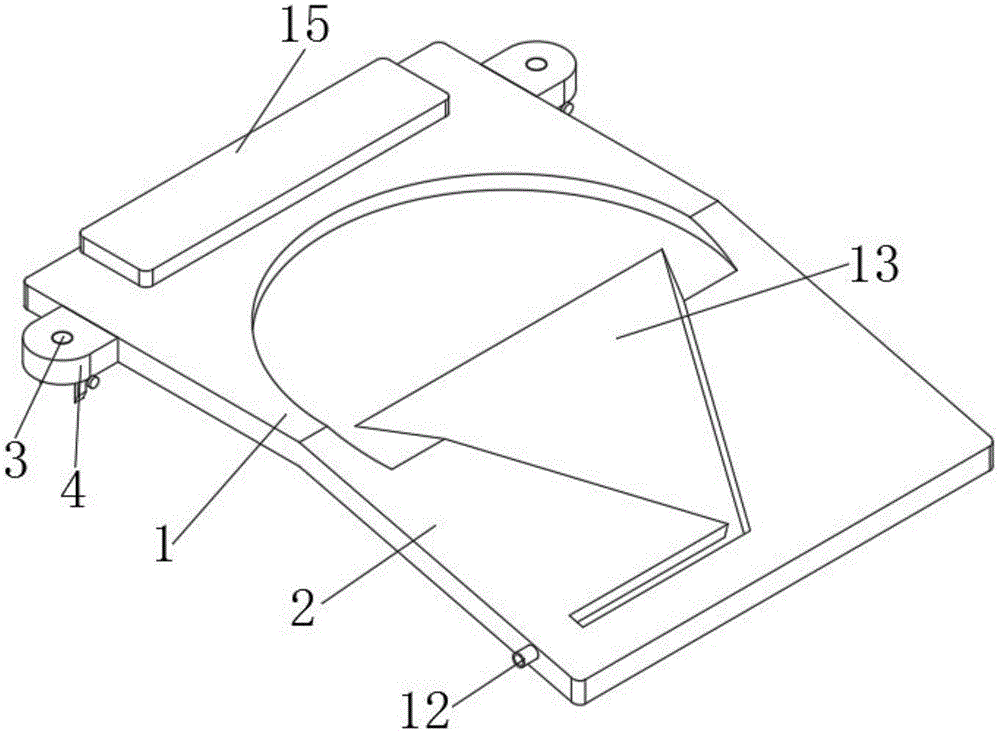

Figure 1 is a schematic structural diagram of the utility model.

FIG. 2 is a top view of an anorectal irrigation tank of the present invention.

Figure 3 is a cross-sectional view of a anorectal irrigation tank of the present invention.

FIG. 4 is a front view of an anorectal irrigation tank of the present invention.

In the figure: 1, rectangular block; 2, deflector; 3, rotating shaft; 4, connecting plate; 5, first jaw; 6, second jaw; 7, round hole; 8, bearing; 9, circle Ring; 10, threaded rod; 11, knob; 12, deflector; 13, drainage port; 14, cylinder; 15, support plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-4 , the present utility model provides a technical solution: an anorectal irrigation tank, comprising a rectangular block 1, the right side of the rectangular block 1 is fixedly connected with a deflector 2, and the front and rear sides of the rectangular block 1 are fixed The connecting plate 4 is connected, the inner cavity of the connecting plate 4 is fixedly connected with the rotating shaft 3, the bottom of the rotating shaft 3 is fixedly connected with the cylinder 14, the left side of the bottom of the cylinder 14 is fixedly connected with the first jaw 5, and the right side of the bottom of the cylinder 14 is fixedly connected. A second claw 6 is fixedly connected to the side.

Among them, the outer ring of the cylinder 14 is provided with a circular hole 7, the inner cavity of the circular hole 7 is provided with a bearing 8, the inner cavity of the bearing 8 is fixedly connected with a threaded rod 10, and the outer ring of the threaded rod 10 is sleeved with a circular ring 9. A second claw 6 is fixedly connected to the bottom of the ring 9 , and a knob 11 is fixedly connected to the right side of the threaded rod 10 .

In this embodiment, the rotating shaft 3 can drive the cylinder 14 to rotate 360 degrees, which makes it more convenient to fix. When fixing is required, place the first jaw 5 and the second jaw 6 in the middle of the place where they need to be stuck, and rotate The knob 11, the threaded rod 10 rotates, the rotation of the threaded rod 10 drives the ring 9 to move, and the movement of the ring 9 drives the second jaw 6 to move until it is clamped, and the knob can be loosened.

Wherein, the tops of the rectangular block 1 and the guide plate 2 are provided with a guide groove 13 , and the top of the rectangular plate 1 is fixedly connected with a support plate 15 .

In this embodiment, the guide plate 2 is 30° higher than the right side of the rectangular plate 1, so that the patient’s pus, blood, secretions, and flushing fluid can be diverted through the guide groove 13 to the direction of the drainage port 12. The support plate 15 can support the patient's waist, and can relieve the patient's waist pain.

Among them, the left side of the inner cavity of the rectangular block 1 is provided with a drainage port 12,

In this embodiment, the drainage port 12 is connected to one end of the drainage tube, and the other end of the drainage tube is connected to the medical trash can, so that the patient's pus, blood, secretion fluid, and flushing fluid directly flow into the medical trash can.

Working principle: the left side of the inner cavity of the rectangular plate 1 is the isolation plate, and the right side of the inner cavity of the rectangular plate 1 is the flushing tank. It is fixed with the treatment bed during use and can be removed during disinfection. The isolation plate is seamlessly connected to the flushing tank at right angles. The flushing tank is 80cm long, 20cm wide and 15cm high. The baffle plate 2 is 30° higher than the right side. The other end of the tube is connected to a medical trash can.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (4)

1. The utility model provides an anus intestines branch of academic or vocational study wash tank, includes rectangular block (1), its characterized in that: the right side fixedly connected with guide plate (2) of rectangular block (1), the equal fixedly connected with connecting plate (4) in both sides around rectangular block (1), the inner chamber fixedly connected with rotation axis (3) of connecting plate (4), the bottom fixedly connected with cylinder (14) of rotation axis (3), the first jack catch of left side fixedly connected with (5) of cylinder (14) bottom, the right side fixedly connected with second jack catch (6) of cylinder (14) bottom.

2. The anorectal irrigation channel of claim 1, wherein: round hole (7) have been seted up to the outer lane of cylinder (14), the inner chamber of round hole (7) all is provided with bearing (8), the inner chamber fixedly connected with threaded rod (10) of bearing (8), the outer lane cover of threaded rod (10) is equipped with ring (9), the bottom fixedly connected with second jack catch (6) of ring (9), the right side fixedly connected with knob (11) of threaded rod (10).

3. The anorectal irrigation channel of claim 1, wherein: the flow guide groove (13) has all been seted up at the top of rectangle piece (1) and guide plate (2), the top fixedly connected with backup pad (15) of rectangle piece (1).

4. The anorectal irrigation channel of claim 1, wherein: and a drainage port (12) is formed in the left side of the inner cavity of the rectangular block (1).
