The utility model relates to the technical field of cleaning electrical appliances, in particular to a cleaning device. It includes a shell, an inner liner, a bracket and a door body, the shell forms a cavity with an opening; the inner liner is arranged in the cavity of the shell; the bracket is used to support a baking tray or a grill, and the bracket The bracket is slidably arranged in the inner tank; the bracket includes an outer frame and a plurality of support rods arranged on the outer frame in parallel and at intervals along the horizontal direction; the door body is fixedly connected with the end of the bracket facing the opening, and the door body can be closed Open your mouth. The support rods are arranged in parallel, which can facilitate the placement of the baking tray or grill, so that the baking tray or grill is in a horizontal state, so that the cleaning liquid can be sprayed, so that all parts of the baking tray or grill can be cleaned, and the baking tray or grill can be improved. The cleaning effect of the rack. It also facilitates the flow or spray of cleaning fluid from between the support bars onto the pan or grill. The door body and the bracket can be moved at the same time for easy access to the baking tray or grill.

Description

Cleaning device

Technical Field

The utility model relates to the technical field of cleaning electric appliances, in particular to a cleaning device.

Background

The baking tray and the baking rack of the prior oven are stained with heavy oil stains in the using process, so that the baking tray and the baking rack are generally cleaned by manual work when being cleaned after being used. The manual cleaning process generally includes wetting the towel with water, placing the cleaning agent, wiping the baking tray and the baking frame, and cleaning the baking tray and the baking frame. The cleaning of the baking tray and the grill usually needs to use more water and more cleaning agents, after cleaning, oil stains are remained on the towel, the towel basically has no way of being reused, and the cleaning cost is greatly increased.

Although the dish washer that provides among the prior art can accomplish the self-cleaning to overware and gridion, but the dish basket in the dish washer designs according to domestic bowl dish, when overware or gridion are placed in the dish basket, can be the slope setting more, and overware or gridion are in the part of high position and are difficult for being washd by the cleaning solution, lead to overware or gridion clean effect poor.

Therefore, a cleaning device is needed to solve the above technical problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a cleaning device which can enable a baking tray or a baking rack to be placed flatly so that cleaning liquid can be sprayed to each position of the baking tray or the baking rack, and the cleaning effect of the baking tray or the baking rack is improved.

In order to achieve the purpose, the utility model adopts the following technical scheme:

there is provided a cleaning device for cleaning a baking tray or a grill, comprising:

a housing forming a cavity having an opening;

the inner container is arranged in the cavity of the shell;

the bracket is used for supporting a baking tray or a baking rack and can be arranged in the inner container in a sliding way; the bracket comprises an outer frame and a plurality of support rods which are parallel along the horizontal direction and are arranged on the outer frame at intervals;

the door body is fixedly connected with one end, facing the opening, of the bracket, and the door body can seal the opening.

As an optimal technical scheme of the cleaning device, the cleaning device further comprises a cleaning solution unit for providing cleaning solution for the inner container, the cleaning solution unit comprises a cleaning solution box and a first water pump, the first water pump is detachably connected with the cleaning solution box, and a water outlet of the first water pump is connected with an inlet of the cleaning solution of the inner container through a pipeline.

As a preferred technical solution of the above cleaning device, the cleaning device further includes a wastewater unit for removing wastewater in the inner container from the inner container, the wastewater unit includes a second water pump, a water inlet of the second water pump is connected to the inner container through a pipeline, and a water outlet of the second water pump discharges the wastewater out of the inner container.

As a preferable technical scheme of the above cleaning device, the wastewater unit further comprises a wastewater tank, and the wastewater tank is detachably connected with the second water pump.

As a preferable technical solution of the above cleaning device, the waste water tank and the cleaning liquid tank are respectively disposed on two sides of the outer portion of the inner container, and the waste water tank and the cleaning liquid tank are respectively disposed on two sides of the door body.

As a preferable technical scheme of the cleaning device, a water-accumulating box is arranged on the bottom wall of the inner container, the bottom wall of the water-accumulating box is lower than the bottom wall of the inner container, and the water-accumulating box is communicated with the inner container.

As a preferable technical solution of the above cleaning device, the water inlet of the second water pump is connected to the water collecting box through a pipeline.

As a preferable technical scheme of the cleaning device, a sprayer is arranged at a cleaning liquid inlet of the inner container.

As a preferable technical solution of the above cleaning device, the outer frame and the inner container are slidably connected by a drawer slide.

As a preferable technical solution of the above cleaning device, a sealing structure is provided between the door body and the casing.

As a preferable technical solution of the above cleaning device, a control panel is disposed on the door body, and the control panel is electrically connected to the first water pump and the second water pump, respectively.

The utility model has the beneficial effects that:

the cleaning device provided by the utility model comprises a shell, an inner container, a bracket and a door body, wherein the shell forms a cavity with an opening, and the inner container is arranged in the cavity of the shell; the inner container has a similar structure with the shell, and is provided with an open cleaning cavity for cleaning a baking tray or a grill; the bracket can be arranged in the cleaning cavity of the inner container in a sliding way, and the baking tray or the baking rack can be conveniently taken and placed after the bracket is pulled out of the inner container. The bracket is used for supporting a baking tray or a baking rack, the bracket comprises an outer frame and a plurality of supporting rods which are arranged on the outer frame at intervals along the horizontal direction in parallel, the supporting rods are arranged in parallel, the baking tray or the baking rack can be placed conveniently, the baking tray or the baking rack is enabled to be in the horizontal state, so that the cleaning liquid can be sprayed, all parts of the baking tray or the baking rack can be cleaned, and the cleaning effect of the baking tray or the baking rack is improved. And because the supporting rods are arranged on the outer frame at intervals, cleaning liquid can flow out of the supporting rods or can be sprayed onto a baking tray or a baking rack conveniently, and the cleaning effect is further improved. The door body is fixedly connected with one end, facing the opening, of the bracket, and the door body can seal the opening. Therefore, the opening and closing door body can enable the bracket to slide in the inner container, so that the door body and the bracket can move simultaneously, and the baking tray or the baking rack can be conveniently taken and placed.

Drawings

FIG. 1 is a schematic structural diagram of a cleaning apparatus provided in an embodiment of the present invention;

FIG. 2 is a schematic view of a connection relationship between a door body and a bracket according to an embodiment of the present invention;

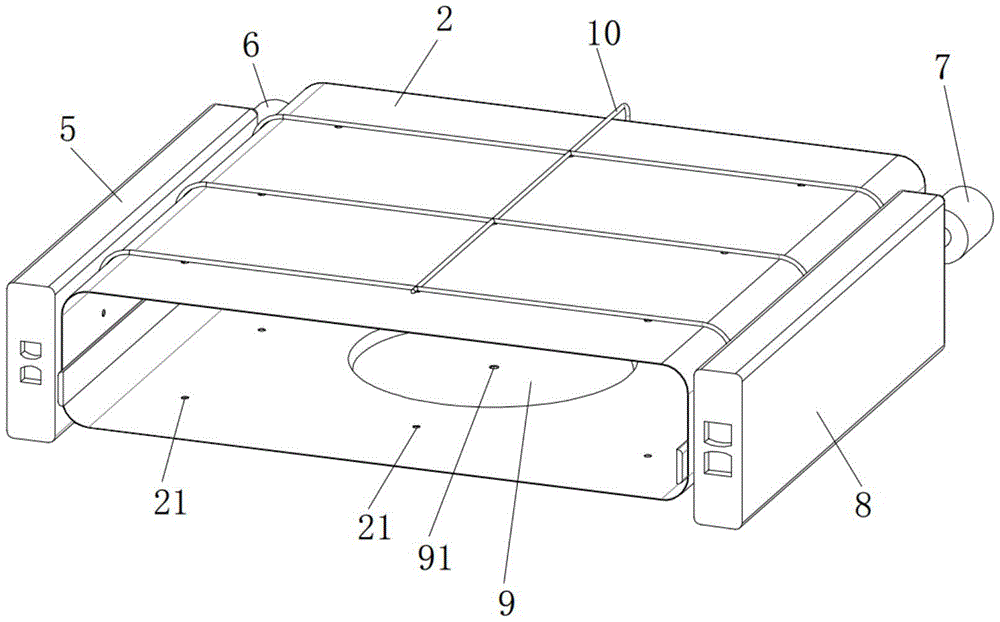

fig. 3 is a schematic structural diagram of the inner container according to the embodiment of the present invention.

In the figure:

1. a housing; 11. an upper shell; 12. a lower case; 2. an inner container; 21. a cleaning liquid inlet; 3. a bracket; 31. an outer frame; 32. a support bar; 4. a door body; 5. a cleaning liquid tank; 6. a first water pump; 7. a second water pump; 8. a wastewater tank; 9. a water accumulation box; 91. a waste water outlet; 10. and (4) a water inlet pipe.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings and examples. It is to be understood that the specific embodiments described herein are merely illustrative of the utility model and are not limiting of the utility model. It should be further noted that, for the convenience of description, only some of the structures related to the present invention are shown in the drawings, not all of the structures.

In the description of the present invention, unless expressly stated or limited otherwise, the terms "connected," "connected," and "fixed" are to be construed broadly, e.g., as meaning permanently connected, removably connected, or integral to one another; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

In the present invention, unless otherwise expressly stated or limited, "above" or "below" a first feature means that the first and second features are in direct contact, or that the first and second features are not in direct contact but are in contact with each other via another feature therebetween. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.

In the description of the present embodiment, the terms "upper", "lower", "right", etc. are used in an orientation or positional relationship based on that shown in the drawings only for convenience of description and simplicity of operation, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used only for descriptive purposes and are not intended to have a special meaning.

The dish basket to dish washer among the prior art can not effectual bearing overware gridion, causes the difficult problem by the washing of overware gridion in clean in-process corner, and this embodiment provides a belt cleaning device, and this belt cleaning device can make overware or gridion parallel placement, makes overware or gridion all can be washd by the cleaning solution in every position of cleaning process.

The cleaning device is used for cleaning baking trays or grills, and as shown in fig. 1 and 2, the cleaning device comprises a shell 1, an inner container 2, a bracket 3 and a door body 4, wherein the shell 1 forms a cavity with an opening, and the inner container 2 is arranged in the cavity of the shell 1; the inner container 2 has a structure similar to that of the shell 1, and the inner container 2 is provided with an open cleaning cavity for cleaning a baking tray or a grill; the bracket 3 can be arranged in the cleaning cavity of the inner container 2 in a sliding way, and is convenient for taking and placing a baking tray or a baking rack after being pulled out of the inner container 2. The bracket 3 is used for supporting a baking tray or a baking rack, the bracket 3 comprises an outer frame 31 and a plurality of supporting rods 32 which are arranged on the outer frame 31 at intervals along the horizontal direction, the supporting rods 32 are arranged in parallel, so that the baking tray or the baking rack can be conveniently placed, the baking tray or the baking rack is enabled to be in a horizontal state, the spraying of cleaning liquid is facilitated, all parts of the baking tray or the baking rack can be cleaned, and the cleaning effect of the baking tray or the baking rack is improved. Since the support rods 32 are disposed on the outer frame 31 at intervals, the cleaning liquid can flow out from between the support rods 32 or can be sprayed onto the baking tray or the grill, thereby further improving the cleaning effect. The door 4 is fixedly connected to an end of the bracket 3 that opens toward the case 1, and the door 4 can close the opening of the case 1. Therefore, the opening and closing door body 4 can enable the bracket 3 to slide in the inner container 2, so that the door body 4 and the bracket 3 can move simultaneously, and a baking tray or a baking rack can be conveniently taken and placed.

Alternatively, in this embodiment, with continued reference to fig. 1, the housing 1 may be fixedly coupled to the upper and

lower shells

11 and 12, and the upper and

lower shells

11 and 12 may be arranged in a manner that facilitates the overall manufacture and assembly of the housing 1.

Optionally, in this embodiment, as shown in fig. 3, the cleaning device further includes a cleaning liquid unit for providing a cleaning liquid to the inner container 2, the cleaning liquid unit includes a cleaning liquid tank 5 and a first water pump 6, an inlet of the first water pump 6 is connected to the cleaning liquid tank 5 through a pipeline, and an outlet of the first water pump 6 is connected to the plurality of cleaning liquid inlets 21 of the inner container 2 through a pipeline. The cleaning liquid tank 5 contains a mixture of water and a cleaning agent, namely cleaning liquid; first water pump 6 pressurizes the back to the cleaning solution, makes the cleaning solution high-pressure injection to overware or in the oven, because through the dirt that pressurized liquid can take away the object surface, the cleaning solution after consequently the pressurization plays good washing effect. Because the cleaning solution is fan-shaped after being spout from the delivery port, causes overware or roast net edge can not be washd, for this reason, is provided with a plurality of cleaning solution imports 21 on the roof of inner bag 2 and the diapire, can make the cleaning solution from each cleaning solution import 21 enter into inner bag 2 in, increased clean scope. Certainly, in other embodiments of the present invention, a sprayer is disposed at the water inlet of the inner container 2, a plurality of water outlet holes are disposed on the sprayer, and the sprayer can rotate under the action of the high-pressure cleaning solution, so that the cleaning solution is sprayed by the sprayer in a wider range, and the cleaning force of the cleaning solution on the edge of the baking tray or the baking net is enhanced.

Optionally, in this embodiment, the cleaning device further includes a wastewater unit for removing wastewater in the liner 2 from the liner 2, the wastewater unit includes a second water pump 7, a water inlet of the second water pump 7 is connected to the liner 2 through a pipeline, and a water outlet of the second water pump 7 discharges the wastewater out of the liner 2. The second water pump 7 provides power for waste water, so that the waste water can flow out of the inner container 2, and the waste water is prevented from being gathered in the inner container 2 to influence the sanitation of the whole cleaning device. It should be noted that the waste water may be directly discharged into the sewer through the second water pump 7, or may be discharged into a container for collecting the waste water through the second water pump, and after the cleaning of the cleaning apparatus is completed, the waste water is discharged from the container by the user. In this embodiment, the wastewater unit further comprises a wastewater tank 8, and the wastewater tank 8 is connected with the water outlet of the second water pump 7 through a pipeline. That is, in this embodiment, the waste water enters the waste water tank 8 through the second water pump 7, and the waste water in the waste water tank 8 is poured out by the user after the baking tray or the baking net is cleaned. The waste water tank 8 is convenient for users who are installed and lack a drainage port to use, and is also suitable for outdoor use.

It should be noted that the waste water tank 8 and the cleaning liquid tank 5 are respectively arranged at two sides of the outer part of the inner container 2, and do not occupy the space in the inner container 2. The waste water tank 8 and the cleaning liquid tank 5 are respectively arranged at two sides of the door body 4, and it can be understood that the waste water tank 8 and the cleaning liquid tank 5 can be shielded by the door body 4 and also can be directly arranged on the shell 1 without being covered by the door body 4. The wastewater tank 8 and the water outlet of the second water pump 7 are detachably connected through a pipeline, and the water inlet of the first water pump 6 and the cleaning liquid tank 5 are detachably connected through a pipeline. Waste water tank 8 and cleaning solution tank 5 are not covered by door body 4 in this embodiment to the getting of waste water tank 8 and cleaning solution tank 5 is especially got in belt cleaning device working process and is put, prevents that the cleaning solution from flowing.

In addition, set up waste water tank 8 and cleaning solution case 5 for the belt cleaning device who provides in this embodiment reduces to the drainage requirement in place and the water supply requirement, especially to the user of putting night market, more does benefit to the washing to overware or gridion, has reduced the cost of labor. And the cleaning liquid tank 5 cleans the baking tray or the grill, so the cleaning liquid tank 5 has small volume and the requirement for the field is greatly reduced compared with the prior dish-washing machine.

Although can realize the discharge to waste water through waste water tank 8, waste water is unfavorable for the extraction of second water pump 7 on the diapire of inner bag 2, for this reason in order to be convenient for the collection to waste water, in this embodiment, is equipped with ponding box 9 on the diapire of inner bag 2, and the diapire of ponding box 9 is less than the diapire of inner bag 2, and ponding box 9 passes through the tube coupling with inner bag 2. The waste water flows from the bottom wall and collects in the water accumulation box 9 to facilitate the discharge of the waste water. Optionally, the water inlet of the second water pump 7 is communicated with the waste water outlet 91 of the water accumulation box 9, so that the waste water in the water accumulation box 9 is discharged out of the inner container 2 by the second water pump 7. It can be understood that the water accumulation box 9 and the inner container 2 are of an integral structure.

In the present embodiment, the bracket 3 is slidably disposed in the inner container 2, specifically, by disposing a drawer slide rail on the outer frame 31, the specific structure of the drawer slide rail is the prior art, and is not described in detail in the present embodiment. Wherein, the drawer slide rail is respectively connected with the outer frame 31 and the inner container 2, thereby realizing the purpose that the outer frame 31 and the inner container 2 are connected by the drawer slide rail in a sliding way.

Since the cleaning device uses water during operation, a good seal is required between the door 4 and the housing 1, and for this reason, in the present embodiment, a seal structure is provided between the door 4 and the housing 1. The sealing structure may be a rubber pad.

Optionally, in this embodiment, both the cleaning liquid tank 5 and the waste water tank 8 are provided with sensors. The door body 4 is provided with a control panel which is electrically connected with the first water pump 6 and the second water pump 7 respectively. The control panel is also electrically connected to the sensor. The sensors may be weight sensors, in particular arranged outside the cleaning liquid tank 5 and the waste water tank 8. The control panel is provided with various function buttons including a cleaning control button, a mode selection button and the like.

During the use, on bracket 3 was put into to the overware and the gridion after at first will using, then pressed and wash control button, because all be provided with a plurality of cleaning solution import 21 on the diapire of inner bag 2 and the roof, consequently from four directions about the upper and lower of inner bag 2, through first water pump 6 will be had the cleaning solution of pressure, spray to treating abluent overware and gridion on, last the certain time for overware and gridion are moist by the cleaning solution completely, keep the certain time. And spraying cleaning liquid for cleaning. The cleaning time can be manually selected through a control panel. The waste water after the treatment is collected through the water accumulation box 9 at the bottom, and the waste liquid is pumped into the waste water tank 8 to be stored under the action of the second water pump 7. After 5 liquid levels of cleaning solution case descend a certain position, weight can descend, and 8 water in waste water tank are full backs, and weight can rise, and weight sensor gives control panel with signal transmission this moment, and control panel can indicate the user to fill and clear up. After the whole process is finished, the user can take out the baking tray and the baking rack for use.

In addition, the foregoing is only the preferred embodiment of the present invention and the technical principles applied. It will be understood by those skilled in the art that the present invention is not limited to the particular embodiments described herein, but is capable of various obvious changes, rearrangements and substitutions as will now become apparent to those skilled in the art without departing from the scope of the utility model. Therefore, although the present invention has been described in greater detail by the above embodiments, the present invention is not limited to the above embodiments, and may include other equivalent embodiments without departing from the spirit of the present invention, and the scope of the present invention is determined by the scope of the appended claims.

Claims

1. A cleaning device for cleaning a baking tray or grill, comprising:

a housing (1) forming a cavity having an opening;

the inner container (2) is arranged in the cavity of the shell (1);

the bracket (3) is used for supporting a baking tray or a baking rack, and the bracket (3) can be arranged in the inner container (2) in a sliding way; the bracket (3) comprises an outer frame (31) and a plurality of support rods (32) which are parallel to the horizontal direction and are arranged on the outer frame (31) at intervals;

the door body (4) is fixedly connected with one end, facing the opening, of the bracket (3), and the door body (4) can seal the opening.

2. A cleaning device according to claim 1, characterized in that the cleaning device further comprises a cleaning liquid unit for providing cleaning liquid to the inner container (2), the cleaning liquid unit comprises a cleaning liquid tank (5) and a first water pump (6), the first water pump (6) is detachably connected with the cleaning liquid tank (5), and a water outlet of the first water pump (6) is connected with the cleaning liquid inlet (21) of the inner container (2) through a pipeline.

3. The cleaning device according to claim 2, characterized in that the cleaning device further comprises a waste water unit for removing waste water in the inner container (2) from the inner container (2), the waste water unit comprises a second water pump (7), a water inlet of the second water pump (7) is connected with the inner container (2) through a pipeline, and a water outlet of the second water pump (7) discharges the waste water out of the inner container (2).

4. A cleaning device according to claim 3, characterized in that the waste water unit further comprises a waste water tank (8), the waste water tank (8) being detachably connected to the second water pump (7).

5. The cleaning device according to claim 4, characterized in that the waste water tank (8) and the cleaning liquid tank (5) are respectively arranged on two outer sides of the inner container (2), and the waste water tank (8) and the cleaning liquid tank (5) are respectively arranged on two sides of the door body (4).

6. The cleaning device according to claim 4, characterized in that a water-collecting box (9) is arranged on the bottom wall of the inner container (2), the bottom wall of the water-collecting box (9) is lower than the bottom wall of the inner container (2), and the water-collecting box (9) is communicated with the inner container (2).

7. The washing device according to claim 6, characterized in that the inlet of the second water pump (7) is connected to the water-collecting box (9) by a pipe.

8. A cleaning device according to claim 2, characterized in that the cleaning liquid inlet (21) of the inner container (2) is provided with a shower.

9. The washing apparatus according to claim 1, characterized in that the outer frame (31) and the inner container (2) are slidingly connected by means of drawer slides.

10. The cleaning device according to any one of claims 1 to 9, wherein a sealing structure is provided between the door body (4) and the casing (1).
