CN216470805U - A stable mobile phone case production equipment automatic manipulator slide - Google Patents

Abstract

The utility model discloses a slideway for an automatic manipulator arm of a stable mobile phone case production equipment, which comprises a lateral slideway, the bottom of the lateral slideway is symmetrically provided with a longitudinal slideway, and the symmetrically arranged longitudinal slideway is connected to the lateral slideway. There is a sliding connection between the rails, the surface of the lateral slide rail is provided with a sliding seat, and the sliding seat and the lateral sliding rail are slidingly connected, the surface of the sliding seat is provided with a mounting seat, and the mounting seat and the sliding seat are provided between the sliding seat and the sliding seat. There are multiple mounting holes, and bolts run through the inner side of the mounting holes. The bottom of the mounting seat is provided with a support plate; through the designed storage slot, support plate, movable rod, silicone block, second card slot, card block , to improve the installation of the original mounting seat, a special staff member is required to fix the position of the mounting seat, which is inconvenient. This structure has a certain support for the mounting seat, and the structure can be installed when not in use. storage, thereby increasing the convenience of disassembly and assembly.

Description

A stable mobile phone case production equipment automatic manipulator slide

technical field

The utility model belongs to the technical field of slideways, in particular to a slideway for an automatic mechanical arm of a stable mobile phone case production equipment.

Background technique

During the production process of the mobile phone case, the mobile phone case is taken by the mechanical arm, and during the operation of the mechanical arm, it moves back and forth through the slideway.

During the use of the existing slides for robotic arms, the mounting bases used for connecting the robotic arms and the slides are installed between the slides, because one person is required to hold the mounting base, and another person is required to hold the mounting bases. There is a problem of inconvenient operation due to the bolt penetration operation. Therefore, the utility model provides a slideway for an automatic manipulator arm of a stable mobile phone case production equipment.

Utility model content

The purpose of the present invention is to provide a slideway for an automatic manipulator arm of a stable mobile phone case production equipment, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a slideway for an automatic manipulator arm of a stable mobile phone case production equipment, comprising a transverse slideway, the bottom of the transverse slideway is symmetrically provided with a longitudinal slideway, and the symmetrically arranged There is a sliding connection between the longitudinal slide rail and the transverse slide rail, the surface of the transverse slide rail is provided with a sliding seat, and the sliding seat and the transverse sliding rail are slidingly connected, and the surface of the sliding seat is provided with a mounting seat, so A plurality of mounting holes are opened between the mounting seat and the sliding seat, and bolts are inserted through the inner side of the mounting holes, a support plate is provided at the bottom of the mounting seat, and a second slot is opened at the bottom end of the mounting seat, And the inner side of the second card slot is provided with a card block, the bottom end of the card block and the support plate are in a fixed state, the surface of the sliding seat is provided with a receiving groove, and the other end of the support plate is penetrated by a movable rod, so The two ends of the movable rod are fixed with both sides of the bottom end of the storage slot, the top bottom of the storage slot is provided with a first clamping slot, and the inner side of the first clamping slot is fixed with a silica gel block.

Preferably, one end edge of the support plate is provided with a fixing groove, a top edge of the receiving groove is provided with a placing groove, and a rubber block is fixed inside the placing groove, and a plurality of fixing grooves are formed on the surface of the rubber block. card slot.

Preferably, the surface of the rubber block is in a fit state with the inner wall of the placement groove, and the length dimension of the fixing slot is consistent with the length dimension of the rubber block.

Preferably, the surface of the support plate is in a fit state with the inner wall of the receiving slot, and the surface of the clamping block is in a fit state with the inner wall of the second clip slot.

Preferably, the cross-sectional dimension of the second clamping slot is the same as the cross-sectional dimension of the first clamping slot, and the movable rod is a cylindrical structure.

Preferably, the surface of the sliding seat is provided with a label sticker, and the inner side of the mounting seat is provided with a plurality of connecting holes.

Compared with the prior art, the beneficial effects of the present utility model are:

(1) Through the designed storage slot, support plate, movable rod, silica gel block, second card slot, and card block, when the original mounting seat is installed, a special staff member is required to fix the position of the mounting seat, which is inconvenient. Through the structure, the mounting seat can be supported to a certain extent, and the structure can be accommodated when not in use, thereby increasing the convenience of disassembly and assembly.

(2) The designed fixing grooves, placement grooves, rubber blocks, and fixing card grooves facilitate the staff to expand the support plate, thereby increasing the convenience of use of the support plate.

Description of drawings

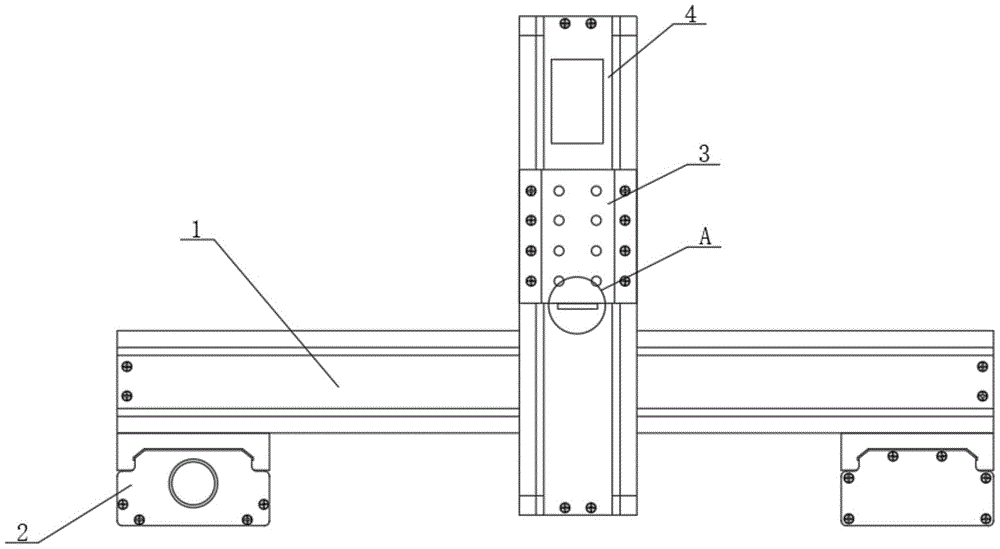

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the enlarged schematic diagram of the region A in Fig. 1 of the utility model;

Figure 3 is a schematic cross-sectional view of the connection between the mounting seat and the side surface of the sliding seat of the present invention;

Fig. 4 is the enlarged schematic diagram of the B part region in Fig. 3 of the utility model;

In the picture: 1. Horizontal slide rail; 2. Vertical slide rail; 3. Mounting seat; 4. Slide seat; 5. Support plate; 6. Storage slot; 7. First card slot; 8. Silicone block; 9. Section Two card slots; 10, card block; 11, fixed slot; 12, movable rod; 13, placement slot; 14, rubber block; 15, fixed card slot.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1 to FIG. 4 , the present utility model provides a technical solution: a slideway for an automatic manipulator arm of a stable mobile phone case production equipment, comprising a lateral slide rail 1 , and a longitudinal slide rail is symmetrically arranged at the bottom of the lateral slide rail 1 2. There is a sliding connection between the symmetrically arranged longitudinal slide rail 2 and the lateral slide rail 1. The surface of the lateral slide rail 1 is provided with a sliding seat 4, and the sliding seat 4 and the lateral sliding rail 1 are slidingly connected. A mounting seat 3 is provided, a plurality of mounting holes are opened between the mounting seat 3 and the sliding seat 4, and bolts are inserted through the inner side of the mounting holes, the bottom of the mounting seat 3 is provided with a support plate 5, and the bottom end of the mounting seat 3 is provided with There is a second card slot 9, and the inner side of the second card slot 9 is provided with a card block 10. The bottom end of the card block 10 and the support plate 5 are in a fixed state, and the surface of the sliding seat 4 is provided with a receiving groove 6. The other end runs through a movable rod 12 , two ends of the movable rod 12 are fixed with both sides of the bottom end of the storage slot 6 , a first card slot 7 is opened at the top bottom of the storage slot 6 , and the inner side of the first card slot 7 is fixed with silica gel Block 8, through the designed storage slot 6, support plate 5, movable rod 12, silicone block 8, second card slot 9, and card block 10, to improve the original mounting seat 3 When installing, a special staff member is required to install the mounting seat. The position of 3 is fixed, and there is a certain inconvenience. Through this structure, the mounting seat 3 can be supported to a certain extent, and the structure can be stored when not in use, thereby increasing the convenience of disassembly and assembly. The surface of the support plate 5 and the storage The inner wall of the slot 6 is in a fit state, the surface of the block 10 is in a fit state with the inner wall of the second slot 9, the cross-sectional dimension of the second slot 9 is consistent with the cross-sectional dimension of the first slot 7, and the movable rod 12 is a cylindrical structure.

In this embodiment, preferably, a fixing groove 11 is formed at one end edge of the support plate 5 , a placing groove 13 is formed at the top edge of the receiving groove 6 , and a rubber block 14 is fixed inside the placing groove 13 . There are a plurality of fixed card slots 15 on the surface. Through the designed fixed slots 11, placement slots 13, rubber blocks 14, and fixed card slots 15, it is convenient for the staff to unfold the support plate 5, thereby increasing the convenience of the support plate 5. , the surface of the rubber block 14 is in a fit state with the inner wall of the placement groove 13 , and the length dimension of the fixing slot 15 is consistent with the length dimension of the rubber block 14 .

In this embodiment, preferably, the surface of the sliding seat 4 is provided with a label sticker, and the inner side of the mounting seat 3 is provided with a plurality of connecting holes.

The working principle and use process of the utility model: in the production process of the mobile phone case, the mobile phone case is automatically taken by the mechanical arm, when the slideway used for moving the mechanical arm is disassembled during the disassembly process, when the slideway is composed of the slideway When disassembling between the mounting seat 3 and the sliding seat 4, first disassemble the bolts running through the inner side of the mounting seat 3 and the sliding seat 4. After the bolts are removed, lift the mounting seat 3 to make the clamping block 10 Separated from the second slot 9, then push the support plate 5 to rotate the support plate 5 around the movable rod 12, so that the support plate 5 is inserted into the inner side of the receiving slot 6, and the inner side of the support plate 5 is fixed to the clamping block 10 It is clipped into the inner side of the first card slot 7, and the clip block 10 and the first card slot 7 are fixed by the silicone block 8. When the support plate 5 embedded in the inner side of the storage slot 6 needs to be unfolded, the finger clip into the inner side of the fixing groove 11, and the fingers are attached to the rubber block 14, and then the inner wall of the fixing groove 11 is pulled to make the support plate 5 rotate around the movable rod 12, so that the support plate 5 is in an unfolded state.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a stable form cell phone case production facility is slide for arm of robot, includes transverse slide rail (1), the bottom symmetry of transverse slide rail (1) is provided with vertical slide rail (2), and the symmetry sets up be sliding connection, its characterized in that between vertical slide rail (2) and transverse slide rail (1): a sliding seat (4) is arranged on the surface of the transverse sliding rail (1), the sliding seat (4) is in sliding connection with the transverse sliding rail (1), a mounting seat (3) is arranged on the surface of the sliding seat (4), a plurality of mounting holes are formed between the mounting seat (3) and the sliding seat (4), bolts penetrate through the inner sides of the mounting holes, a supporting plate (5) is arranged at the bottom of the mounting seat (3), a second clamping groove (9) is formed in the bottom end of the mounting seat (3), a clamping block (10) is arranged on the inner side of the second clamping groove (9), the bottom end of the clamping block (10) and the supporting plate (5) are in a fixed state, an accommodating groove (6) is formed in the surface of the sliding seat (4), a movable rod (12) penetrates through the other end of the supporting plate (5), the two ends of the movable rod (12) are fixed to the two sides of the bottom end of the accommodating groove (6), a first clamping groove (7) is formed in the bottom of the top end of the accommodating groove (6), and a silica gel block (8) is fixed on the inner side of the first clamping groove (7).

2. The stable slide rail for the mechanical arm of the mobile phone shell production equipment according to claim 1, wherein the stable slide rail comprises: fixed slot (11) have been seted up to the one end edge of backup pad (5), holding groove (13) have been seted up to the top edge of groove (6), and the inside of holding groove (13) is fixed with block rubber (14), a plurality of fixed slot (15) have been seted up on the surface of block rubber (14).

3. The stable slide rail for the mechanical arm of the mobile phone shell production equipment according to claim 2, wherein the stable slide rail comprises: the surface of the rubber block (14) is attached to the inner wall of the placing groove (13), and the length of the fixing clamping groove (15) is consistent with that of the rubber block (14).

4. The stable slide rail for the mechanical arm of the mobile phone shell production equipment according to claim 1, wherein the stable slide rail comprises: the surface of the supporting plate (5) and the inner wall of the accommodating groove (6) are in a fit state, and the surface of the clamping block (10) and the inner wall of the second clamping groove (9) are in a fit state.

5. The stable slide rail for the mechanical arm of the mobile phone shell production equipment according to claim 1, wherein the stable slide rail comprises: the cross section size of the second clamping groove (9) is consistent with that of the first clamping groove (7), and the movable rod (12) is of a cylindrical structure.

6. The stable slide rail for the mechanical arm of the mobile phone shell production equipment according to claim 1, wherein the stable slide rail comprises: the surface of the sliding seat (4) is provided with a label sticker, and the inner side of the mounting seat (3) is provided with a plurality of connecting holes.
