Abstract
本实用新型提供了一种PICC穿刺约束床，涉及医疗器械技术领域。它包括床体、头部固定组件、手臂固定组件和躯体固定组件，头部固定组件可拆卸连接在床体的一端并对头部形成约束，限制患者向穿刺一侧转头污染穿刺处及无菌区域，两组手臂固定组件分别活动连接在床体的两侧，每组手臂固定组件均能够从床体中抽出，供手臂放置，起到支撑作用，每组手臂固定组件能够对一个手臂进行约束，不使用时手臂固定组件能够从床体上收回，节约空间，若干组躯体固定组件连接在床体的另一端，可根据躯体的不同身体部位，分别进行约束，头部固定组件、手臂固定组件和躯体固定组件能够相互配合，共同形成对患者全身的约束，减轻工作人员的工作量，减轻患者的痛苦。
The utility model provides a PICC puncture restraint bed, which relates to the technical field of medical instruments. It includes a bed body, a head fixing component, an arm fixing component and a body fixing component. The head fixing component is detachably connected to one end of the bed body and forms a constraint on the head, restricting the patient to turn his head to the puncture side to contaminate the puncture site and no In the bacteria area, two sets of arm fixing components are movably connected on both sides of the bed body, and each set of arm fixing components can be pulled out from the bed body for the arms to be placed to play a supporting role. Constraints, the arm fixing components can be retracted from the bed when not in use, saving space, several groups of body fixing components are connected to the other end of the bed, and can be constrained according to different body parts of the body, head fixing components, arm fixing The component and the body fixing component can cooperate with each other to form a restraint on the whole body of the patient, reduce the workload of the staff and relieve the pain of the patient.
Description
Technical Field
The utility model relates to the technical field of medical instruments, in particular to a PICC puncture restraining bed.
Background
PICC, central venous catheterization through peripheral venipuncture, utilizes the pipe to puncture from the vein of periphery arm, and the pipe directly reaches the great vein that is close to the heart, avoids the direct contact of chemotherapy medicine and arm vein, and the blood flow speed of great vein is very fast in addition, can wash the thinning therapy medicine rapidly, prevents the stimulation of medicine to the blood vessel.
The applicant finds that at least the following technical problems exist in the prior art: when the low-age children, can not cooperate PICC to put the person of managing to carry out the PICC puncture, the patient causes because of restlessness easily and can not puncture successfully once to increase patient's misery as for puncturing repeatedly, simultaneously, have a plurality of medical staff to participate in when putting the pipe and retrain the patient and assist PICC to put the pipe with this, not only wasted the manpower but also retrain the effect limited.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a PICC (peripherally inserted central catheter) puncture restraining bed, which aims to solve the technical problems that a large amount of labor is wasted and the restraining effect is limited when a PICC of a patient is punctured in the prior art. The technical effects that can be produced by the preferred technical scheme in the technical schemes provided by the utility model are described in detail in the following.
In order to achieve the purpose, the utility model provides the following technical scheme:
a PICC puncture restraining bed comprises a bed body, a head fixing component, an arm fixing component and a body fixing component, wherein the head fixing component is detachably connected to one end of the bed body and can restrain a head;
the two groups of arm fixing components are respectively and movably connected to two sides of the bed body, and each group of arm fixing components can be drawn out of the bed body and restrain one arm;
the body fixing components are connected to the other end of the bed body and can restrain the body.
Preferably, the head fixing assembly comprises a fixing baffle and a connecting structure, the fixing baffle is detachably connected with the bed body through the connecting structure, the number of the fixing baffles is two, the fixing baffles are symmetrically arranged, the fixing baffles have radians, and the shapes of the fixing baffles are matched with the shapes of necks.
Preferably, connection structure includes connecting piece and spread groove, every group fixed stop's bottom all is connected with one the connecting piece, a plurality of has been seted up on the bed body the spread groove, every the connecting piece homoenergetic with arbitrary one the spread groove can be dismantled to be connected so that fixed stop with the bed body can be dismantled to be connected and can be adjusted fixed stop is in relative position on the bed body.
Preferably, a buffer layer is arranged on one side of the fixed baffle plate close to the neck.
Preferably, the arm fixing component comprises an arm support and a fixing part, a moving groove is formed in the side face of the bed body, the arm support is connected with the moving groove in a sliding mode, the arm support can be drawn out of or retracted from the moving groove, the fixing part is connected to the arm support, and the fixing part can restrain the arm.
Preferably, the fixing portion is an adjustable strap.
Preferably, the body fixing component comprises two binding bands, the two binding bands are respectively connected to two sides of the bed body, and one ends, far away from the bed body, of the two binding bands are detachably connected together.
Preferably, the two binding bands are respectively provided with a sub-adhesive button and a mother-adhesive button and are connected together through the sub-adhesive button and the mother-adhesive button.
Preferably, the number of the body fixing components is at least three, and the three body fixing components respectively restrain the pelvis, the knee joint and the ankle joint.
Preferably, the number of the body fixing components is at least four, and the four groups of body fixing components respectively restrain the pelvis, the thigh, the knee joint and the ankle joint.
The utility model has the beneficial effects that: the PICC puncture restraining bed comprises a bed body, a head fixing component, an arm fixing component and a body fixing component, wherein the head fixing component is detachably connected to one end of the bed body, the head can be restrained when the head fixing component is connected to the bed body, the phenomenon that a patient turns to one side of a puncture to pollute the puncture part and an aseptic area is limited, and the head fixing component can adjust the fixing position of the head fixing component on the bed body according to the head sizes of different patients, so that the PICC puncture restraining bed is more humanized;
two groups of arm fixing assemblies are respectively and movably connected to two sides of the bed body, each group of arm fixing assemblies can be pulled out of the bed body for placing arms to play a supporting role, each group of arm fixing assemblies can restrain one arm, and the arm fixing assemblies can be retracted from the bed body when not in use, so that space is saved;
the body fixing assemblies are connected to the other end of the bed body, can be respectively restricted according to different body parts of the body, and can adjust the fixing positions of the body fixing assemblies on the bed body according to the statures and heights of different patients, so that the bed is more humanized;
the head fixing component, the arm fixing component and the body fixing component can be matched with each other to jointly form the restraint on the whole body of a patient, the workload of workers is reduced, and the pain of the patient is relieved.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

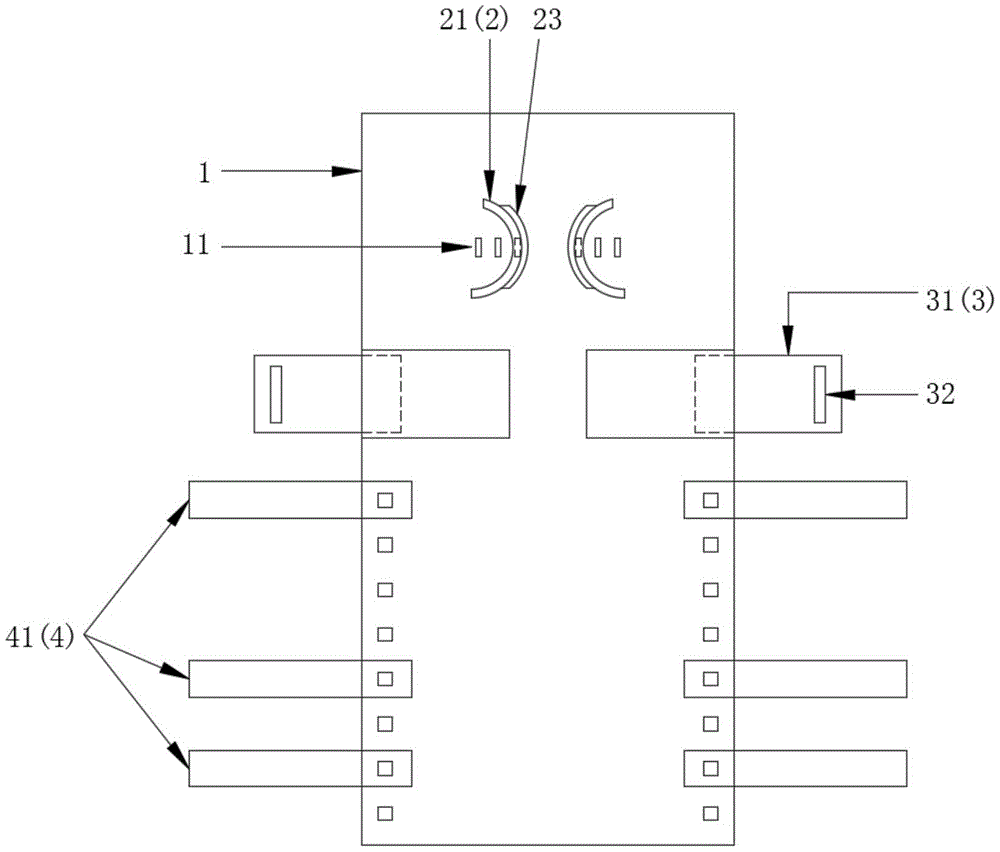

FIG. 1 is a structural view of a second embodiment of the present invention;
FIG. 2 is a block diagram of a third embodiment of the present invention;
FIG. 3 is a side view of the present invention at a head fixation assembly;
in the figure 1, a bed body; 11. connecting grooves;
2. a head fixation assembly; 21. fixing a baffle plate; 22. a connecting structure; 221. a connecting member; 23. a buffer layer;
3. an arm fixing component; 31. an arm support; 32. a fixed part;
4. a body-securing component; 41. and (4) binding the bands.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the technical solutions of the present invention will be described in detail below. It is to be understood that the described embodiments are merely exemplary of the utility model, and not restrictive of the full scope of the utility model. All other embodiments, which can be derived by a person skilled in the art from the examples given herein without any inventive step, are within the scope of the present invention.
In the description of the present invention, it is to be understood that the terms "central," "lateral," "length," "width," "height," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," "side," and the like, as used herein, are used in the orientation or positional relationship indicated in FIG. 1, merely to facilitate the description of the utility model and to simplify the description, and are not intended to indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and are not to be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present invention can be understood as appropriate to those of ordinary skill in the art.
Example one
The embodiment provides a PICC puncture restraint bed, which comprises a bed body 1, a head fixing component 2, an arm fixing component 3 and a body fixing component 4, wherein the head fixing component 2 is detachably connected to one end of the bed body 1, the head can be restrained when the head fixing component 2 is connected to the bed body 1, the puncture part and an aseptic area are prevented from being polluted by turning the head of a patient to the puncture side, and the fixing position of the head fixing component 2 on the bed body 1 can be adjusted according to the head sizes of different patients, so that the PICC puncture restraint bed is more humanized;
two groups of arm fixing assemblies 3 are respectively movably connected to two sides of the bed body 1, each group of arm fixing assemblies 3 can be pulled out of the bed body 1 for placing arms to play a supporting role, each group of arm fixing assemblies 3 can restrain one arm, and the arm fixing assemblies 3 can be retracted from the bed body 1 when not in use, so that the space is saved;
the plurality of groups of body fixing components 4 are connected to the other end of the bed body 1, can be respectively restricted according to different body parts of the body, and can adjust the fixing positions of the body fixing components on the bed body 1 according to the statures and heights of different patients, so that the bed is more humanized;
the head fixing component 2, the arm fixing component 3 and the body fixing component 4 can be mutually matched to form the restraint on the whole body of a patient, the workload of workers is reduced, and the pain of the patient is relieved.
Example two
Referring to fig. 1 and 3, the PICC puncture restraint bed is provided in the embodiment, and comprises a bed body 1, a head fixing component 2, an arm fixing component 3 and a body fixing component 4, wherein the head fixing component 2 is detachably connected to one end of the bed body 1, when the head fixing component 2 is connected to the bed body 1, the head can be restrained, the puncture position and the sterile area are prevented from being polluted by the turning of the patient to the puncture side, and the fixing position of the head fixing component 2 on the bed body 1 can be adjusted according to the head sizes of different patients, so that the PICC puncture restraint bed is more humanized;
two groups of arm fixing assemblies 3 are respectively movably connected to two sides of the bed body 1, each group of arm fixing assemblies 3 can be pulled out of the bed body 1 for placing arms to play a supporting role, each group of arm fixing assemblies 3 can restrain one arm, and the arm fixing assemblies 3 can be retracted from the bed body 1 when not in use, so that the space is saved;
the plurality of groups of body fixing components 4 are connected to the other end of the bed body 1, can be respectively restricted according to different body parts of the body, and can adjust the fixing positions of the body fixing components on the bed body 1 according to the statures and heights of different patients, so that the bed is more humanized;
the head fixing component 2, the arm fixing component 3 and the body fixing component 4 can be mutually matched to form the restraint on the whole body of a patient, the workload of workers is reduced, and the pain of the patient is relieved.
As optional embodiment, head fixed subassembly 2 includes fixed stop 21 and connection structure 22, and fixed stop 21 passes through connection structure 22 and can dismantle with the bed body 1 and be connected, and the quantity of fixed stop 21 is two sets of, and two sets of fixed stop 21 symmetry sets up, and fixed stop 21 has the radian and its shape and neck shape phase-match, and two sets of fixed stop 21 can carry out effective fixed to neck both sides, and the both ends of every fixed stop 21 are corresponding to chin and shoulder respectively, and the at utmost has reduced the uncomfortable sense to patient's head.
As optional implementation mode, the connection structure 22 includes the connecting piece 221 and the connecting groove 11, the bottom of each group of fixed stop 21 is connected with a connecting piece 221, a plurality of connecting grooves 11 have been seted up on the bed body 1, the connecting grooves 11 are set up on the same straight line at equal interval, be on a parallel with the bed width direction, each connecting piece 221 all can be dismantled with arbitrary connecting groove 11 and be connected so that fixed stop 21 can be dismantled with the bed body 1 and be connected, the connection is dismantled preferably connected by the block here, make easy dismounting, simultaneously because the connecting piece 221 can select connecting groove 11 to connect, consequently, can adjust the relative position of fixed stop 21 on the bed body 1, can adjust according to different patient's head size, it is more humanized.
As an alternative embodiment, a buffer layer 23 is disposed on one side of the fixing baffle 21 close to the neck, and the buffer layer 23 may be preferably made of a soft and elastic material, and can play a role in buffering between the neck and the fixing baffle 21, so as to improve the comfort of the patient.
As an optional implementation manner, the arm fixing component 3 includes an arm support 31 and a fixing portion 32, a moving groove is formed in a side surface of the bed body 1, the arm support 31 is slidably connected to the moving groove, the arm support 31 can be drawn out or retracted from the moving groove, when not in use, the arm support 31 is retracted into the bed body 1, so that space is effectively saved, when in use, the arm support 31 is drawn out from the moving groove for placing an arm to play a supporting role, the fixing portion 32 is connected to the arm support 31, and is preferably disposed at a wrist, and the fixing portion 32 can restrain the arm.
As an alternative embodiment, the body-fixing component 4 comprises two straps 41, the two straps 41 are respectively connected to the two sides of the bed 1, wherein the connection is preferably detachable, and the connection mode can be preferably the same as the design of the head-fixing component 2, namely, the structure of the connecting piece and the connecting groove in the connecting structure 22 is adopted, one end of the binding band 41 connected with the bed body 1 is connected with the connecting piece, a row of connecting grooves are respectively arranged at the two sides of the bed body 1, each connecting piece 221 can be detachably connected with any connecting groove so as to enable the binding belt 41 to be detachably connected with the bed body 1, the detachable connection is preferably a clamping connection, so that the disassembly and the assembly are convenient, meanwhile, the connecting piece can be connected by selecting the connecting groove, so that the relative position of the binding band 41 on the bed body 1 can be adjusted, and the bed can be adjusted according to the statures and heights of different patients, and is more humanized;
the one end that two bandages 41 kept away from the bed body 1 can be dismantled and link together, and the sub thread gluing and the female thread gluing are set up respectively to this point preferred on two bandages 41, link together through sub thread gluing and female thread gluing, and the connection form of thread gluing makes things convenient for bonding and dismantlement, and the medical personnel's of being convenient for operation alleviates medical personnel's working pressure.
As an alternative embodiment, the number of the body fixing components 4 is at least three, and the three body fixing components 4 respectively restrain the pelvis, the knee joint and the ankle joint.
EXAMPLE III
Referring to fig. 2 and 3, the PICC puncture restraint bed is provided in the embodiment, and comprises a bed body 1, a head fixing component 2, an arm fixing component 3 and a body fixing component 4, wherein the head fixing component 2 is detachably connected to one end of the bed body 1, when the head fixing component 2 is connected to the bed body 1, the head can be restrained, the puncture position and the sterile area are prevented from being polluted by the turning of the patient to the puncture side, and the fixing position of the head fixing component 2 on the bed body 1 can be adjusted according to the head sizes of different patients, so that the PICC puncture restraint bed is more humanized;
two groups of arm fixing assemblies 3 are respectively movably connected to two sides of the bed body 1, each group of arm fixing assemblies 3 can be pulled out of the bed body 1 for placing arms to play a supporting role, each group of arm fixing assemblies 3 can restrain one arm, and the arm fixing assemblies 3 can be retracted from the bed body 1 when not in use, so that the space is saved;
the plurality of groups of body fixing components 4 are connected to the other end of the bed body 1, can be respectively restricted according to different body parts of the body, and can adjust the fixing positions of the body fixing components on the bed body 1 according to the statures and heights of different patients, so that the bed is more humanized;
the head fixing component 2, the arm fixing component 3 and the body fixing component 4 can be mutually matched to form the restraint on the whole body of a patient, the workload of workers is reduced, and the pain of the patient is relieved.
As optional embodiment, head fixed subassembly 2 includes fixed stop 21 and connection structure 22, and fixed stop 21 passes through connection structure 22 and can dismantle with the bed body 1 and be connected, and the quantity of fixed stop 21 is two sets of, and two sets of fixed stop 21 symmetry sets up, and fixed stop 21 has the radian and its shape and neck shape phase-match, and two sets of fixed stop 21 can carry out effective fixed to neck both sides, and the both ends of every fixed stop 21 are corresponding to chin and shoulder respectively, and the at utmost has reduced the uncomfortable sense to patient's head.
As optional implementation mode, the connection structure 22 includes the connecting piece 221 and the connecting groove 11, the bottom of each group of fixed stop 21 is connected with a connecting piece 221, a plurality of connecting grooves 11 have been seted up on the bed body 1, the connecting grooves 11 are set up on the same straight line at equal interval, be on a parallel with the bed width direction, each connecting piece 221 all can be dismantled with arbitrary connecting groove 11 and be connected so that fixed stop 21 can be dismantled with the bed body 1 and be connected, the connection is dismantled preferably connected by the block here, make easy dismounting, simultaneously because the connecting piece 221 can select connecting groove 11 to connect, consequently, can adjust the relative position of fixed stop 21 on the bed body 1, can adjust according to different patient's head size, it is more humanized.
As an alternative embodiment, a buffer layer 23 is disposed on one side of the fixing baffle 21 close to the neck, and the buffer layer 23 may be preferably made of a soft and elastic material, and can play a role in buffering between the neck and the fixing baffle 21, so as to improve the comfort of the patient.
As an optional implementation manner, the arm fixing component 3 includes an arm support 31 and a fixing portion 32, a moving groove is formed in a side surface of the bed body 1, the arm support 31 is slidably connected to the moving groove, the arm support 31 can be drawn out or retracted from the moving groove, when not in use, the arm support 31 is retracted into the bed body 1, so that space is effectively saved, when in use, the arm support 31 is drawn out from the moving groove for placing an arm to play a supporting role, the fixing portion 32 is connected to the arm support 31, and is preferably disposed at a wrist, and the fixing portion 32 can restrain the arm.
As an alternative embodiment, the body-fixing component 4 comprises two straps 41, the two straps 41 are respectively connected to the two sides of the bed 1, wherein the connection is preferably detachable, and the connection mode can be preferably the same as the design of the head-fixing component 2, namely, the structure of the connecting piece and the connecting groove in the connecting structure 22 is adopted, one end of the binding band 41 connected with the bed body 1 is connected with the connecting piece, a row of connecting grooves are respectively arranged at the two sides of the bed body 1, each connecting piece 221 can be detachably connected with any connecting groove so as to enable the binding belt 41 to be detachably connected with the bed body 1, the detachable connection is preferably a clamping connection, so that the disassembly and the assembly are convenient, meanwhile, the connecting piece can be connected by selecting the connecting groove, so that the relative position of the binding band 41 on the bed body 1 can be adjusted, and the bed can be adjusted according to the statures and heights of different patients, and is more humanized;
the one end that two bandages 41 kept away from the bed body 1 can be dismantled and link together, and the sub thread gluing and the female thread gluing are set up respectively to this point preferred on two bandages 41, link together through sub thread gluing and female thread gluing, and the connection form of thread gluing makes things convenient for bonding and dismantlement, and the medical personnel's of being convenient for operation alleviates medical personnel's working pressure.
As an alternative embodiment, the body fixing components 4 are at least four in number, and four groups of body fixing components 4 respectively restrain the pelvis, the thigh, the knee joint and the ankle joint.
The above description is only for the specific embodiments of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art can easily conceive of the changes or substitutions within the technical scope of the present invention, and the changes or substitutions should be covered within the scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.
Claims (10)
1. The utility model provides a PICC about bed of puncturing, its characterized in that, includes bed body (1), head fixed component (2), arm fixed component (3) and body fixed component (4), wherein: the head fixing component (2) is detachably connected to one end of the bed body (1) and can restrain the head;
the two groups of arm fixing components (3) are respectively and movably connected to two sides of the bed body (1), and each group of arm fixing components (3) can be drawn out of the bed body (1) and restrain one arm;
the body fixing components (4) are connected to the other end of the bed body (1) and can restrain the body.
2. The PICC puncture restraint bed of claim 1, wherein: head fixed subassembly (2) are including fixed stop (21) and connection structure (22), fixed stop (21) pass through connection structure (22) with the bed body (1) can be dismantled and be connected, the quantity of fixed stop (21) is two sets of, and is two sets of fixed stop (21) symmetry sets up, fixed stop (21) have the radian and its shape and neck shape phase-match.
3. The PICC puncture restraint bed of claim 2, wherein: connection structure (22) include connecting piece (221) and spread groove (11), every group the bottom of fixed stop (21) all is connected with one connecting piece (221), a plurality of has been seted up on the bed body (1) spread groove (11), every connecting piece (221) homoenergetic can with arbitrary one spread groove (11) can be dismantled and be connected so that fixed stop (21) with the bed body (1) can be dismantled and be connected and can be adjusted fixed stop (21) is in relative position on the bed body (1).
4. The PICC puncture restraint bed of claim 2, wherein: one side of the fixed baffle plate (21) close to the neck is provided with a buffer layer (23).
5. The PICC puncture restraint bed of claim 1, wherein: arm fixed subassembly (3) are including arm support (31) and fixed part (32), the shifting chute has been seted up to the side of bed body (1), arm support (31) with shifting chute sliding connection, arm support (31) can be followed take out or withdraw in the shifting chute, fixed part (32) are connected on arm support (31), fixed part (32) can retrain the arm.
6. The PICC puncture restraint bed of claim 5, wherein: the fixing part (32) is an adjustable binding band.
7. The PICC puncture restraint bed of claim 1, wherein: the body fixing component (4) comprises two binding bands (41), the two binding bands (41) are connected to two sides of the bed body (1) respectively, and the ends, far away from the bed body (1), of the two binding bands (41) are detachably connected together.
8. The PICC puncture restraint bed of claim 7, wherein: the two binding bands (41) are respectively provided with a sub-sticking buckle and a main sticking buckle and are connected together through the sub-sticking buckle and the main sticking buckle.
9. The PICC puncture restraint bed of claim 1, wherein: the number of the body fixing components (4) is at least three groups, and the body fixing components (4) are respectively used for restraining the pelvis, the knee joint and the ankle joint.
10. The PICC puncture restraint bed of claim 1, wherein: the number of the body fixing components (4) is at least four, and the four body fixing components (4) respectively restrain the pelvis, the thighs, the knee joints and the ankle joints.
