本实用新型公开了一种具有集尘功能的产品铁锈除锈装置，包括主机体，主机体内部底部的中心位置固定有气缸，主机体内部底部的四周设置有滑杆，滑杆上滑动设置有升降板，气缸的一端连接到升降板的底部，升降板顶部的中心位置固定有旋转轴，旋转轴的外部固定有第二齿轮，升降板顶部靠近第二齿轮的一侧设置有第三电机，第三电机顶部连接有第一齿轮，第一齿轮与第二齿轮相互啮合，旋转轴的顶部固定有旋转台，本实用新型通过启动第三电机，第三电机带动第一齿轮转动，第一齿轮就会使第二齿轮转动进而使旋转轴转动，从而使旋转台转动，从而方便旋转台中的零件进行旋转，从而方便对零件进行全方位旋转。
The utility model discloses a product rust removing device with dust collecting function, which comprises a main body, a cylinder is fixed at the center position of the inner bottom of the main body, a sliding rod is arranged around the inner bottom of the main body, and a sliding rod is slidably arranged on the sliding rod. Lifting plate, one end of the cylinder is connected to the bottom of the lifting plate, a rotating shaft is fixed at the center of the top of the lifting plate, a second gear is fixed on the outside of the rotating shaft, and a third motor is arranged on the side of the top of the lifting plate close to the second gear, The top of the third motor is connected with a first gear, the first gear and the second gear are meshed with each other, and a rotary table is fixed on the top of the rotating shaft. The second gear will be rotated and the rotating shaft will be rotated, so that the rotary table will be rotated, thereby facilitating the rotation of the parts in the rotary table, thereby facilitating the omnidirectional rotation of the components.
Description
Technical Field
The utility model relates to a rust cleaning technical field specifically is a product iron rust cleaning device with collection dirt function.
Background
Generally refers to the oxide generated on the surface of metal (including alloy), and is commonly: rust, patina, alundum, and the like. But not necessarily all metal oxides are referred to as "rust". In summary, the oxide of a common metal is indicated by "rust", which is a general name for iron oxide, usually red, and is generated by oxidation-reduction reaction under the atmosphere of iron and oxygen. Rust is produced in different forms in different cases.
Nowadays, this kind of device on the market is various, can satisfy people's user demand basically, but still has certain problem, and current rust cleaning device is convenient rotatory, leads to can not carrying out all-round rust cleaning to the product.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a rust cleaning device is in order to solve the inconvenient rotatory problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a product rust cleaning device with collection dirt function, includes the host computer body, the central point of the internal portion bottom of host computer puts and is fixed with the cylinder, be provided with the slide bar around the internal portion bottom of host computer, it is provided with the lifter plate to slide on the slide bar, the one end of cylinder is connected to the bottom of lifter plate, the central point at lifter plate top puts and is fixed with the rotation axis, the external fixation of rotation axis has the second gear, one side that the lifter plate top is close to the second gear is provided with the third motor, third motor top is connected with first gear, first gear and second gear intermeshing, the top of rotation axis is fixed with the revolving stage.
Preferably, the inside both sides of revolving stage are fixed with electric telescopic handle, electric telescopic handle's one end is connected with splint, the inside central point of revolving stage puts and is connected with the revolving stage, the top of revolving stage is fixed with the part body, splint and the outside interconnect of part body, electric telescopic handle can make splint fixed part.
Preferably, the external portion of the host computer body is inlaid with a control panel, the dust box is arranged on the left side of the external portion of the host computer body in a sliding mode, and the control panel plays a role in controlling the operation of the device.
Preferably, one side that the host computer body top is close to the dust case is fixed with the fixed plate, the right side of fixed plate is fixed with the backup pad, the right side at backup pad top is fixed with first motor, and first motor has played the effect that provides power.
Preferably, a sliding plate is arranged on the right side of the supporting plate in a sliding mode through a sliding rail, and the output end of the first motor is movably connected to the back of the sliding plate through a lead screw.
Preferably, a second motor is fixed on one side of the sliding plate, a connecting plate is fixed on one side of the sliding plate, a guide wheel is movably arranged on the connecting plate through a shaft, an abrasive belt is wound on the guide wheel, the output end of the second motor is connected with the shaft in the upper guide wheel, and the abrasive belt can remove rust on parts.
Preferably, one side at host computer body top is provided with negative-pressure air fan, be connected with the connecting tube on the negative-pressure air fan, the one end of connecting tube is connected with the dust absorption mouth, the dust absorption mouth sets up the one side at the connecting plate, the other end of connecting tube is connected to the inside of dust box, the effect that negative-pressure air fan can remove dust.
Compared with the prior art, the beneficial effects of the utility model are that: this rust cleaning device is rational in infrastructure, has following advantage:
(1) make things convenient for the workstation rotatory through being provided with rotation axis, third motor, first gear, revolving stage and second gear, consequently, during the use, through starting the third motor, the third motor drives first gear revolve, and first gear just can make the second gear revolve and then make the rotation axis rotate to make the revolving stage rotate, thereby make things convenient for the part in the revolving stage to rotate, thereby conveniently carry out the omnidirectional rotation to the part.
(2) Through being provided with electric telescopic handle, splint, part body and revolving stage, realized convenient effect to fixed part, consequently, during the use, through putting the part in the revolving stage, then through starting electric telescopic handle, electric telescopic handle just can make splint remove, splint will the centre gripping part body to fix the part, thereby prevent that the part from leading to the part to drop at the in-process of rust cleaning.
(3) Through being provided with the main engine body, slide bar, cylinder and lifter plate, realized conveniently according to the altitude mixture control rust cleaning distance of part, consequently, during the use, through starting the cylinder, the cylinder will make the lifter plate remove, and the lifter plate will reciprocate at the slide bar to make the surface and the abrasive band contact of part, thus the convenience is adjusted according to the height of part, and the practicality is strong.
Drawings

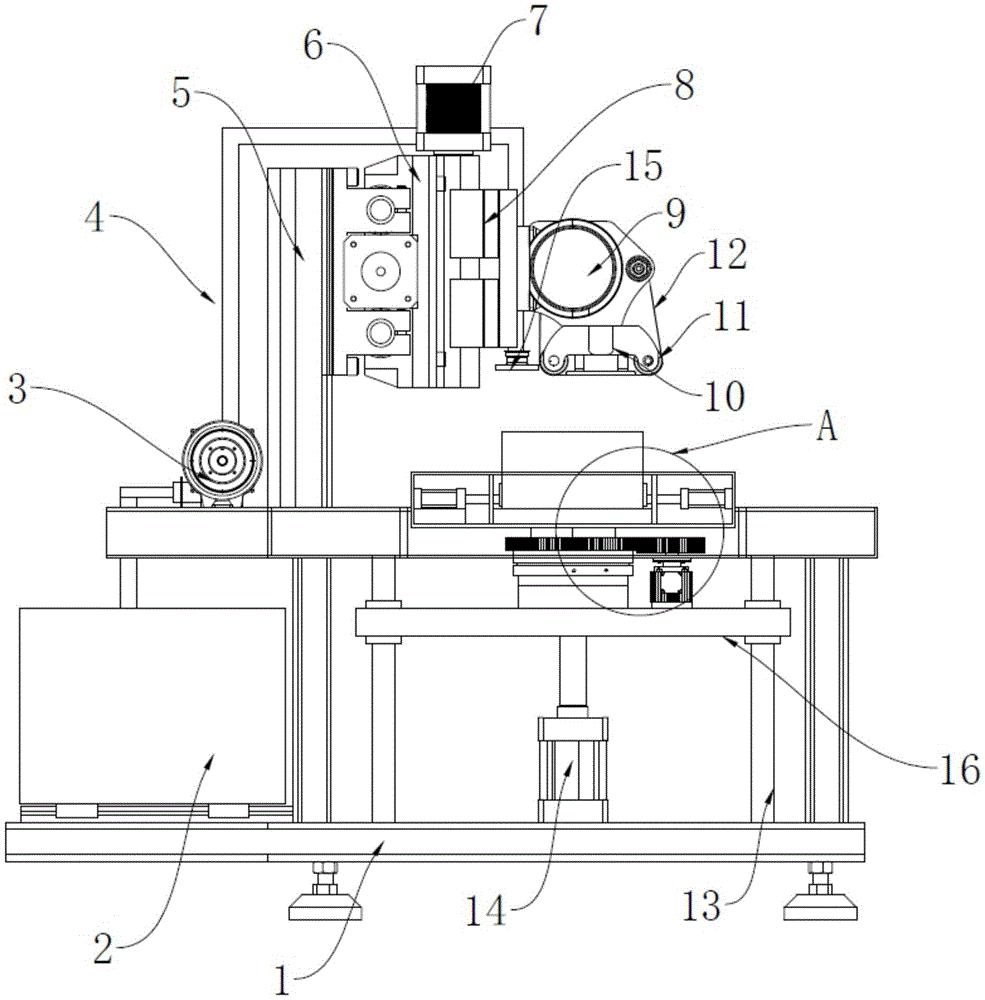

Fig. 1 is a schematic front view of the internal structure of the present invention;
fig. 2 is a schematic front view of the external structure of the present invention;
FIG. 3 is a schematic view of the side view of the present invention;
fig. 4 is an enlarged schematic structural diagram of a in fig. 1 according to the present invention.
In the figure: 1. a main body; 2. a dust box; 3. a negative pressure fan; 4. connecting a pipeline; 5. a fixing plate; 6. a support plate; 7. a first motor; 8. a slide plate; 9. a second motor; 10. a connecting plate; 11. a guide wheel; 12. an abrasive belt; 13. a slide bar; 14. a cylinder; 15. a dust suction port; 16. a lifting plate; 17. a control panel; 18. a rotating shaft; 19. a third motor; 20. a first gear; 21. an electric telescopic rod; 22. a splint; 23. a part body; 24. a rotating table; 25. a second gear.
Detailed Description
The technical solution in the embodiment of the present invention will be clearly and completely described below with reference to the drawings in the embodiment of the present invention, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the scope of the present invention.
Referring to fig. 1-4, the present invention provides an embodiment: a product rust removing device with a dust collecting function comprises a main machine body 1, wherein a cylinder 14 is fixed at the central position of the inner bottom of the main machine body 1, slide rods 13 are arranged around the inner bottom of the main machine body 1, a lifting plate 16 is arranged on the slide rods 13 in a sliding manner, one end of the cylinder 14 is connected to the bottom of the lifting plate 16, the cylinder 14 enables the lifting plate 16 to move by the cylinder 14, the lifting plate 16 can move up and down on the slide rods 13, a rotating shaft 18 is fixed at the central position of the top of the lifting plate 16, a second gear 25 is fixed outside the rotating shaft 18, a third motor 19 is arranged on one side, close to the second gear 25, of the top of the lifting plate 16, the top of the third motor 19 is connected with a first gear 20, the first gear 20 and the second gear 25 can rotate mutually, the first gear 20 and the second gear 25 are meshed with each other, and a rotating table 24 is fixed at the top of the rotating shaft 18;
when the rotary table is used, the third motor 19 is started, the third motor 19 drives the first gear 20 to rotate, the first gear 20 can enable the second gear 25 to rotate, the rotary shaft 18 to rotate, and the rotary table 24 to rotate, so that parts in the rotary table 24 can rotate conveniently, and the parts can rotate in all directions conveniently;
when the abrasive belt grinding machine is used, the air cylinder 14 is started, the air cylinder 14 enables the lifting plate 16 to move, the lifting plate 16 can move up and down on the sliding rod 13, and therefore the surface of a part is in contact with the abrasive belt 12, adjustment according to the height of the part is facilitated, and the abrasive belt grinding machine is high in practicability;
electric telescopic rods 21 are fixed on two sides inside the rotating platform 24, one end of each electric telescopic rod 21 is connected with a clamping plate 22, the rotating platform 24 is connected at the center position inside the rotating platform 24, the clamping plates 22 can be moved by the electric telescopic rods 21, the clamping plates 22 can clamp the part bodies 23, the part bodies 23 are fixed on the tops of the rotating platforms 24, and the clamping plates 22 are connected with the outer parts of the part bodies 23;
when the part rust remover is used, a part is placed in the rotating platform 24, then the electric telescopic rod 21 is started, the clamping plate 22 can be moved by the electric telescopic rod 21, and the part body 23 can be clamped by the clamping plate 22, so that the part is fixed, and the part is prevented from falling off in the rust removing process;
a control panel 17 is embedded outside the main machine body 1, the control panel 17 controls the device, a dust box 2 is slidably arranged on the left side outside the main machine body 1, and the dust box 2 collects dust;
a fixed plate 5 is fixed on one side, close to the dust box 2, of the top of the main body 1, a supporting plate 6 is fixed on the right side of the fixed plate 5, a first motor 7 is fixed on the right side of the top of the supporting plate 6, a sliding plate 8 is arranged on the right side of the supporting plate 6 in a sliding mode through a sliding rail, the output end of the first motor 7 is movably connected to the back of the sliding plate 8 through a lead screw, and the sliding plate 8 can descend due to the first motor 7;
a second motor 9 is fixed on one side of the sliding plate 8, a connecting plate 10 is fixed on one side of the sliding plate 8, a guide wheel 11 is movably arranged on the connecting plate 10 through a shaft, an abrasive belt 12 is wound on the guide wheel 11, the output end of the second motor 9 is connected with the shaft in the upper guide wheel 11, and the guide wheel 11 is rotated by the second motor 9 so as to rotate the abrasive belt 12;
one side at 1 top of the main engine body is provided with negative pressure fan 3, is connected with connecting tube 4 on negative pressure fan 3, and the one end of connecting tube 4 is connected with dust absorption mouth 15, and dust absorption mouth 15 sets up in one side of connecting plate 10, and the other end of connecting tube 4 is connected to the inside of dust case 2, and through starting negative pressure fan 3, negative pressure fan 3 collects in inhaling dust case 2 to the dust.
The output end of the control panel 17 is electrically connected with the input ends of the first motor 7, the second motor 9, the third motor 19, the air cylinder 14, the electric telescopic rod 21 and the negative pressure fan 3 through wires, the model of the first motor 7 can be Y90S-2, the model of the second motor 9 can be Y90L-2, the model of the third motor 19 can be Y80M1-2, the model of the air cylinder 14 can be J64RT2UNIVER, the model of the electric telescopic rod 21 can be KM01, and the model of the negative pressure fan 3 can be SF-126PZ 01.
When the embodiment of the application is used: by putting the device in place, by putting the parts in the rotating table 24, by activating the electric telescopic rod 21, the electric telescopic rod 21 will fix the clamping plate 22, by activating the cylinder 14, the cylinder 14 will move the lifting plate 16, the lifting plate 16 will move on the slide rod 13, the lifting plate 16 will raise the parts, by activating the second motor 9, the second motor 9 will rotate the guide wheel 11 and thus the abrasive belt 12, by activating the first motor 7, the first motor 7 will lower the slide plate 8 and then the abrasive belt 12 will contact the surface of the parts, thus removing rust from the parts, by activating the connecting plate 10, the connecting plate 10 will rotate the first gear 20, the first gear 20 will rotate the second gear 25 and thus the rotating shaft 18, thus rotating the rotating table 24, and the rotating table 24 will rotate the part body 23, therefore, rust removal is carried out on the parts in all directions, and then the negative pressure fan 3 is started to suck dust into the dust box 2 for collection.
Claims (7)
1. The utility model provides a product rust cleaning device with collection dirt function which characterized in that: including the host computer body (1), the central point of the inside bottom of the host computer body (1) puts and is fixed with cylinder (14), be provided with slide bar (13) around the inside bottom of the host computer body (1), slide bar (13) are gone up and are provided with lifter plate (16), the one end of cylinder (14) is connected to the bottom of lifter plate (16), the central point at lifter plate (16) top puts and is fixed with rotation axis (18), the external fixation of rotation axis (18) has second gear (25), one side that lifter plate (16) top is close to second gear (25) is provided with third motor (19), third motor (19) top is connected with first gear (20), first gear (20) and second gear (25) intermeshing, the top of rotation axis (18) is fixed with revolving stage (24).
2. The rust removing apparatus for rust products with a dust collecting function as claimed in claim 1, wherein: the inside both sides of revolving stage (24) are fixed with electric telescopic handle (21), the one end of electric telescopic handle (21) is connected with splint (22), the inside central point of revolving stage (24) puts and is connected with revolving stage (24), the top of revolving stage (24) is fixed with part body (23), the outside interconnect of splint (22) and part body (23).
3. The rust removing apparatus for rust products with a dust collecting function as claimed in claim 1, wherein: the host computer body (1) outside is inlayed and is had control panel (17), the outside left side of host computer body (1) slides and is provided with dust box (2).
4. The rust removing apparatus for rust products with a dust collecting function as claimed in claim 1, wherein: the dust box is characterized in that a fixing plate (5) is fixed on one side, close to the dust box (2), of the top of the host machine body (1), a supporting plate (6) is fixed on the right side of the fixing plate (5), and a first motor (7) is fixed on the right side of the top of the supporting plate (6).
5. The rust removing apparatus for rust products with a dust collecting function as claimed in claim 4, wherein: the right side of the supporting plate (6) is provided with a sliding plate (8) in a sliding mode through a sliding rail, and the output end of the first motor (7) is movably connected to the back of the sliding plate (8) through a lead screw.
6. The rust removing apparatus for rust products with a dust collecting function as claimed in claim 5, wherein: one side of slide (8) is fixed with second motor (9), one side of slide (8) is fixed with connecting plate (10), be provided with guide pulley (11) through the axle activity on connecting plate (10), it has abrasive band (12) to twine on guide pulley (11), the output of second motor (9) and the axle interconnect in upper portion guide pulley (11).
7. The rust removing apparatus for rust products with a dust collecting function as claimed in claim 1, wherein: one side at the top of the main machine body (1) is provided with a negative pressure fan (3), a connecting pipeline (4) is connected to the negative pressure fan (3), one end of the connecting pipeline (4) is connected with a dust collection port (15), the dust collection port (15) is arranged on one side of a connecting plate (10), and the other end of the connecting pipeline (4) is connected to the inside of a dust box (2).
