Abstract

The utility model discloses a novel high-efficiency paddy suction type stone removal machine, which relates to the field of grain processing machinery and equipment. The utility model comprises a main body, a rotating mechanism and a collecting mechanism. The dust suction port is provided with a connecting groove at one end of the dust suction port. In the utility model, by setting a collecting mechanism, when the air enters the collecting box from the air inlet pipe, the dust falls into the collecting block for collection. When the collecting block needs to be removed for processing, the collecting block is pushed upward, and the clamping block is forced to move to the collecting block. until the fixing rod contacts the top of the second connecting groove, the fixing rod moves downward into the fixing groove, fixes the block, pushes the collecting block downward, takes out the collecting block for processing, and when installing the collecting block, Insert the collection block into the first connection slot until the clamping block is displaced into the clamping slot by the elastic force of the fixing spring, so as to fix the collection block and facilitate the collection and disposal of dust.

Description

A new type of high-efficiency paddy suction stone removal machine

technical field

The utility model relates to a novel high-efficiency paddy suction type stoner, in particular to a novel high-efficiency paddy suction type stoner.

Background technique

The stone remover is a machine that separates the impurities in the grain, such as sand and gravel, which are similar in shape and size to the grain, according to the specific gravity and suspension speed of the grain and sand. The stone remover has good stone removal effect, simple structure and small volume. and low energy consumption.

According to Chinese Patent No. CN208613045U, a high-efficiency paddy stoner is provided, the top of which is provided with a wind device, a feeding device is provided on the right side of the wind device, and a dust suction device is provided in the feeding device, A fan casing is arranged at the bottom of the wind device, the lifting shaft is arranged at the bottom of the wind device through the fan casing, and a large miscellaneous sieve plate is arranged in the fan casing. The bottom is provided with a stone-removing sieve plate, the bottom of the fan casing is a base, a small frame is arranged on the upper right of the base, and a horizontal rotating sieve plate is arranged in the small frame. The front end of the small frame is provided with a vibrating roller, the front end of the base is provided with a panning roller, and the right side of the small frame is provided with a vibrating motor, which can efficiently remove a large amount of dust contained in the rice through the dust collector , to prevent dust from entering the equipment and affecting the operation of the equipment and the quality of the milled rice produced; the large miscellaneous sieve plate can effectively remove the light impurities contained in the rice, and further ensure the effect of impurity removal.

However, during the use of the above-mentioned patent, when feeding, part of the rice is easily adhered to the filter screen by the action of wind, which affects the use of the filter screen. Disposal and direct discharge are easy to cause environmental pollution, and a structure is required to collect and process the dust.

SUMMARY OF THE INVENTION

The purpose of this utility model is to provide a novel high-efficiency paddy suction type stone remover to solve the problems raised in the above-mentioned background technology.

To achieve the above object, the utility model provides the following technical solutions:

A novel high-efficiency paddy suction type stoner, comprising a main body, a rotating mechanism and a collecting mechanism, the main body includes a feeding box, the inner wall of the feeding box is provided with a first dust suction port, the first dust suction One end of the port is provided with a first connection groove, the top of the first connection groove is installed with a second dust suction port, and the output end of the second dust suction port is connected with an air inlet pipe;

Wherein, the rotating mechanism includes a first filter screen located on the inner wall of the first dust suction port, and a second filter screen is connected to one side of the first filter screen located on the inner wall of the first dust suction port, and the rotating mechanism also further Including a fan located on the inner wall of the first dust suction port, one end of the fan is connected with a first gear, the outer wall of the first gear is connected with a second gear, the inner wall of the second gear is connected with a connecting shaft, the Both ends of the connecting shaft are connected with a third gear, an outer wall of the third gear is connected with a fourth gear, one end of the fourth gear is connected with a fixed shaft, and one end of the fixed shaft is connected with a first turntable, so The outer wall of the first turntable is connected with the first filter screen, and one end of the other fixed shaft is connected with a second turntable, and the outer wall of the second turntable is connected with the second filter screen.

As a further solution of the present invention: the collection mechanism includes a collection box located at one end of the air inlet pipe, the top of the collection box is provided with an air outlet, and the bottom end of the collection box is provided with a second connection groove, The inner wall of the second connection slot is provided with a card slot, the inner wall of the second connection slot is connected with a collection block, the outer wall of the collection block is connected with a card block, and a fixed spring is connected between the card block and the collection block The top end of the clamping block is provided with a fixing groove, and the top end of the collecting block is connected with a fixing rod.

As a further solution of the present invention, the gear teeth of the first gear mesh with the tooth slots of the second gear, and the gear teeth of the third gear mesh with the tooth slots of the fourth gear.

As a further solution of the present invention: the outer wall of the first turntable is provided with gear teeth, the outer wall of the first filter screen is provided with tooth grooves, the gear teeth of the first turntable and the tooth grooves of the second filter screen The outer wall of the second turntable is provided with gear teeth, the outer wall of the second filter screen is provided with tooth slots, and the gear teeth of the second turntable are meshed with the tooth slots of the first filter screen.

As a further solution of the present invention, the inner wall of the air outlet is provided with a filter plate, the inner wall of the second connecting slot is fitted with the outer wall of the collecting block, and the inner wall of the clamping slot is in contact with the outer wall of the clamping block. fit.

As a further solution of the present invention, one end of the clamping block is provided with an inclined surface, and the inner wall of the fixing groove is fitted with the inner wall of the fixing rod.

As a further solution of the present invention: the top of the collecting block is provided with a through hole, the fixing rod is located inside the through hole, the outer wall of the fixing rod is provided with a rubber ring, and the rubber ring is in contact with the through hole .

Compared with the prior art, the beneficial effects of the present utility model are:

1. By setting the rotating mechanism, when the air enters the first suction port, the air flow drives the fan to rotate, and the rotation of the fan drives the first filter screen and the second filter screen to rotate in the opposite direction, and the second filter screen rotates in the opposite direction. The paddy adhering to the filter screen is scraped off to prevent the paddy from adhering to the first filter screen and thus affecting the vacuuming, which is convenient to prevent the paddy from adhering to the filter screen and affecting the use of the filter screen;

2. By setting the collection mechanism, when the air enters the collection box from the air inlet pipe, the dust falls into the collection block for collection. When the collection block needs to be removed for processing, the collection block is pushed upward, and the clamping block is displaced into the collection block by force. , until the fixing rod contacts the top of the second connecting groove, the fixing rod moves downward into the fixing groove, fixes the block, pushes the collecting block downward, and takes out the collecting block for processing. The collection block is inserted into the first connection slot until the clamping block is displaced into the clamping slot by the elastic force of the fixing spring, so as to fix the collection block and facilitate the collection and disposal of dust.

Description of drawings

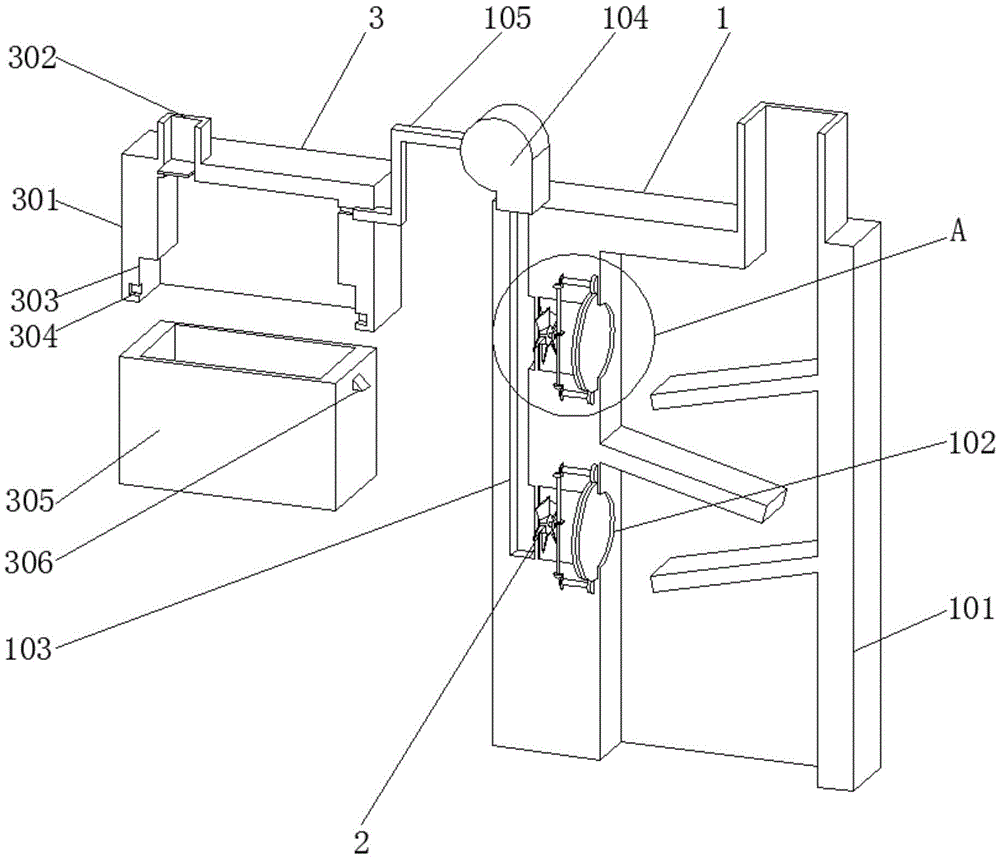

Fig. 1 is the structural representation of a kind of novel high-efficiency paddy suction type stone removal machine;

Fig. 2 is an enlarged view of a new type of high-efficiency paddy suction stone removing machine A;

Fig. 3 is a sectional view of a novel high-efficiency paddy suction stone removing machine collection block;

Figure 4 is an enlarged view of a new type of high-efficiency paddy suction stone removal machine B.

In the figure: 1. main body; 101, feeding box; 102, first suction port; 103, first connecting groove; 104, second suction port; 105, air inlet pipe; 2, rotating mechanism; 201, first A filter screen; 202, the second filter screen; 203, the fan; 204, the first gear; 205, the second gear; 206, the connecting shaft; 207, the third gear; 208, the fourth gear; 209, the fixed shaft; 210 3, the first turntable; 211, the second turntable; 3, the collection mechanism; 301, the collection box; 302, the air outlet; 303, the second connection slot; 304, the card slot; 305, the collection block; , fixed spring; 308, fixed slot; 309, fixed rod.

Detailed ways

Please refer to FIGS. 1 to 4. In the embodiment of the present utility model, a novel high-efficiency paddy suction type stone remover includes a main body 1, a rotating mechanism 2 and a collecting mechanism 3. The main body 1 includes a feeding box 101. The feeding box 101 The inner wall is provided with a first suction port 102, one end of the first suction port 102 is provided with a first connection groove 103, the top of the first connection groove 103 is installed with a second dust suction port 104, The output end is connected with an air inlet pipe 105;

Among them, the rotating mechanism 2 includes a first filter screen 201 located on the inner wall of the first dust suction port 102, and a second filter screen 202 is connected to one side of the first filter screen 201 located on the inner wall of the first dust suction port 102. The rotating mechanism 2 It also includes a fan 203 located on the inner wall of the first dust suction port 102, one end of the fan 203 is connected with a first gear 204, the outer wall of the first gear 204 is connected with a second gear 205, and the inner wall of the second gear 205 is connected with a connecting shaft 206 , the two ends of the connecting shaft 206 are connected with a third gear 207, the outer wall of the third gear 207 is connected with a fourth gear 208, one end of the fourth gear 208 is connected with a fixed shaft 209, and one end of a fixed shaft 209 is connected with a first turntable 210 , the outer wall of the first turntable 210 is connected with the first filter screen 201 , one end of the other fixed shaft 209 is connected with the second turntable 211 , and the outer wall of the second turntable 211 is connected with the second filter screen 202 .

In this new type of high-efficiency paddy suction stone removal machine, when the air enters the first dust suction port 102, the air flow drives the fan 203 to rotate, the rotation of the fan 203 drives the first gear 204 to rotate, and the rotation of the first gear 204 drives the second gear 205. The rotation of the second gear 205 drives the connection shaft 206 to rotate, the rotation of the connection shaft 206 drives the third gear 207 to rotate, the rotation of the third gear 207 drives the fourth gear 208 to rotate, and the two fourth gears 208 rotate in opposite directions. The rotation of the fourth gear 208 drives the fixed shaft 209 to rotate, the rotation of the fixed shaft 209 drives the first turntable 210 and the second turntable 211 to rotate, and the first turntable 210 and the second turntable 211 rotate to drive the first filter screen 201 and the second filter screen 202 rotates in the opposite direction, and the second filter screen 202 rotates in the opposite direction to scrape off the rice adhering to the first filter screen 201, so as to prevent the rice from adhering to the first filter screen 201 and thus affecting the vacuuming, so as to prevent the rice from adhering to the first filter screen 201. The filter will affect the use of the filter.

In FIGS. 3 and 4: the collection mechanism 3 includes a collection box 301 located at one end of the air inlet pipe 105, the top end of the collection box 301 is provided with an air outlet 302, and the bottom end of the collection box 301 is provided with a second connection groove 303, The inner wall of the second connection slot 303 is provided with a clamping slot 304 , the inner wall of the second connection slot 303 is connected with a collection block 305 , the outer wall of the collection block 305 is connected with a clamping block 306 , and a fixed spring is connected between the clamping block 306 and the collection block 305 307 , the top end of the clamping block 306 is provided with a fixing groove 308 , and the top end of the collecting block 305 is connected with a fixing rod 309 .

In this new type of high-efficiency paddy suction type stone removal machine, when the air enters the collection box 301 from the air inlet duct 105, and when the air enters the larger space from a small space, the air flow rate becomes slower, the air adsorption force becomes smaller, and the dust in the air falls to the The collection block 305 is collected in the collection block 305. When the collection block 305 needs to be removed for processing, the collection block 305 is pushed upward, and the clamping block 306 is displaced into the collection block 305 by force until the fixing rod 309 contacts the top of the second connecting groove 303. The rod 309 is displaced downward into the fixing groove 308, the clamping block 306 is fixed, the collecting block 305 is pushed downward, and the collecting block 305 is taken out for processing, which is convenient for collecting and processing the dust.

In FIGS. 1 and 2 : the teeth of the first gear 204 mesh with the tooth slots of the second gear 205 , the teeth of the third gear 207 mesh with the tooth slots of the fourth gear 208 , and the outer wall of the first turntable 210 Gear teeth are provided, the outer wall of the first filter screen 201 is provided with tooth slots, the gear teeth of the first turntable 210 mesh with the tooth slots of the second filter screen 202, the outer wall of the second turntable 211 is provided with gear teeth, and the second filter screen 211 is provided with gear teeth. The outer wall of the mesh 202 is provided with tooth slots, and the gear teeth of the second turntable 211 are engaged with the tooth slots of the first filter screen 201 .

In this novel high-efficiency paddy suction type stone removal machine, the first gear 204 rotates, the first gear 204 rotates to drive the second gear 205 to rotate, the second gear 205 rotates to drive the connecting shaft 206 to rotate, and the connecting shaft 206 rotates to drive the third gear The gear 207 rotates, the rotation of the third gear 207 drives the fourth gear 208 to rotate, the rotation directions of the two fourth gears 208 are opposite, the rotation of the fourth gear 208 drives the fixed shaft 209 to rotate, and the rotation of the fixed shaft 209 drives the first turntable 210 and The second turntable 211 rotates, and the rotation of the first turntable 210 and the second turntable 211 drives the first filter screen 201 and the second filter screen 202 to rotate in opposite directions, so as to facilitate the rotation of the first filter screen 201 and the second filter screen 202 .

In FIGS. 3 and 4 : the inner wall of the air outlet 302 is provided with a filter plate, the inner wall of the second connecting slot 303 is fitted with the outer wall of the collecting block 305 , and the inner wall of the clamping slot 304 is fitted with the outer wall of the clamping block 306 One end of the clamping block 306 is provided with a slope, the inner wall of the fixing slot 308 is fitted with the inner wall of the fixing rod 309, the top end of the collecting block 305 is provided with a through hole, the fixing rod 309 is located inside the through hole, and the outer wall of the fixing rod 309 is set There is a rubber ring, and the rubber ring is in contact with the through hole.

In this new type of high-efficiency paddy suction type stone removal machine, when the collecting block 305 is installed, the fixing rod 309 is pushed up and displaced out of the fixing groove 308, the fixing of the clamping block 306 is cancelled, and the collecting block 305 is inserted into the second connecting groove 303, Until the clamping block 306 is displaced into the clamping slot 304 by the elastic force of the fixing spring 307 , the collecting block 305 is fixed, and the installation of the collecting block 305 is convenient.

The working principle of the present invention is as follows: first, when the air enters the first dust suction port 102, the air flow drives the fan 203 to rotate, the fan 203 rotates to drive the first gear 204 to rotate, and the first gear 204 rotates to drive the second gear 205 to rotate. Rotation, the rotation of the second gear 205 drives the connection shaft 206 to rotate, the rotation of the connection shaft 206 drives the third gear 207 to rotate, the rotation of the third gear 207 drives the fourth gear 208 to rotate, and the rotation directions of the two fourth gears 208 are opposite. The rotation of the four gears 208 drives the fixed shaft 209 to rotate, the rotation of the fixed shaft 209 drives the first turntable 210 and the second turntable 211 to rotate, and the rotation of the first turntable 210 and the second turntable 211 drives the first filter screen 201 and the second filter screen 202 Rotate in the opposite direction, the second filter screen 202 rotates in the opposite direction to scrape off the paddy adhering to the first filter screen 201, preventing the paddy from adhering to the first filter screen 201 and affecting dust collection, which is convenient for preventing the paddy from adhering to the filter screen. When the air enters the collection box 301 from the air inlet duct 105, when the air enters the larger space from a small space, the air flow rate becomes slower, the air adsorption force becomes smaller, and the dust in the air falls to the collection The collection block 305 is collected. When the collection block 305 needs to be removed for processing, the collection block 305 is pushed upward, and the clamping block 306 is forced to be displaced into the collection block 305 until the fixing rod 309 contacts the top of the second connecting groove 303, and the fixing rod 309 moves downward into the fixing groove 308, fixes the clamping block 306, pushes the collecting block 305 downward, takes out the collecting block 305 for processing, and when installing the collecting block 305, pushes the fixing rod 309 upward and moves out of the fixing groove 308, cancel the fixing of the blocking block 306, and insert the collecting block 305 into the second connecting groove 303 until the blocking block 306 is displaced into the blocking groove 304 by the elastic force of the fixing spring 307, thereby fixing the collecting block 305 to facilitate the collection of dust and processing.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. The technical solution of the utility model and its utility model concept are equivalently replaced or changed, and should be covered within the protection scope of the present utility model.

Claims (7)

1. A novel high-efficiency paddy suction type stone remover comprises a main body (1), a rotating mechanism (2) and a collecting mechanism (3), and is characterized in that the main body (1) comprises a feeding box (101), a first dust suction port (102) is formed in the inner wall of the feeding box (101), a first connecting groove (103) is formed in one end of the first dust suction port (102), a second dust suction port (104) is installed at the top end of the first connecting groove (103), and the output end of the second dust suction port (104) is connected with an air inlet pipe (105);

wherein, the rotating mechanism (2) comprises a first filter screen (201) positioned on the inner wall of the first dust suction port (102), one side of the first filter screen (201) positioned on the inner wall of the first dust suction port (102) is connected with a second filter screen (202), the rotating mechanism (2) further comprises a fan (203) positioned on the inner wall of the first dust suction port (102), one end of the fan (203) is connected with a first gear (204), the outer wall of the first gear (204) is connected with a second gear (205), the inner wall of the second gear (205) is connected with a connecting shaft (206), two ends of the connecting shaft (206) are connected with a third gear (207), the outer wall of the third gear (207) is connected with a fourth gear (208), one end of the fourth gear (208) is connected with a fixed shaft (209), and one end of the fixed shaft (209) is connected with a first rotating disc (210), the outer wall of first carousel (210) links to each other with first filter screen (201), another the one end of fixed axle (209) is connected with second carousel (211), the outer wall of second carousel (211) links to each other with second filter screen (202).

2. The novel high-efficiency rice suction type stone remover as claimed in claim 1, wherein the collecting mechanism (3) comprises a collecting box (301) located at one end of the air inlet pipe (105), an air outlet (302) is formed in the top end of the collecting box (301), a second connecting groove (303) is formed in the bottom end of the collecting box (301), a clamping groove (304) is formed in the inner wall of the second connecting groove (303), a collecting block (305) is connected to the inner wall of the second connecting groove (303), a clamping block (306) is connected to the outer wall of the collecting block (305), a fixing spring (307) is connected between the clamping block (306) and the collecting block (305), a fixing groove (308) is formed in the top end of the clamping block (306), and a fixing rod (309) is connected to the top end of the collecting block (305).

3. The new high-efficiency rice suction type stoner as claimed in claim 1, characterized in that the teeth of the first gear (204) are engaged with the teeth grooves of the second gear (205), and the teeth of the third gear (207) are engaged with the teeth grooves of the fourth gear (208).

4. The novel high-efficiency paddy suction type stone separator as claimed in claim 1, wherein the outer wall of the first rotary disc (210) is provided with gear teeth, the outer wall of the first filter screen (201) is provided with gear teeth, the gear teeth of the first rotary disc (210) are meshed with the gear teeth of the second filter screen (202), the outer wall of the second rotary disc (211) is provided with gear teeth, the outer wall of the second filter screen (202) is provided with gear teeth, and the gear teeth of the second rotary disc (211) are meshed with the gear teeth of the first filter screen (201).

5. The novel efficient rice suction type stoner as claimed in claim 2, wherein the inner wall of the air outlet (302) is provided with a filter plate, the inner wall of the second connecting groove (303) is attached to the outer wall of the collecting block (305), and the inner wall of the clamping groove (304) is attached to the outer wall of the clamping block (306).

6. The novel high-efficiency rice suction type stoner as claimed in claim 2, wherein one end of the fixture block (306) is provided with an inclined surface, and the inner wall of the fixing groove (308) is attached to the inner wall of the fixing rod (309).

7. The novel high-efficiency paddy suction type stoner as claimed in claim 2, characterized in that the top of the collection block (305) is provided with a through hole, the fixing rod (309) is located inside the through hole, the outer wall of the fixing rod (309) is provided with a rubber ring, and the rubber ring is in contact with the through hole.
