CN216417261U - Intracardiac branch of academic or vocational study nursing is with pressing hemostasis device - Google Patents

Abstract

The utility model discloses a pressing hemostasis device for nursing care in cardiology, which comprises a moving base plate, a support vertical cylinder is fixedly connected to the upper surface of the moving base plate, a controller is arranged on the left side of the support vertical cylinder, and the inner side of the support vertical cylinder slides A telescopic sliding rod is connected, the top of the telescopic sliding rod is rotatably connected with a rotating shaft, the surface of the rotating shaft is fixedly connected with a rotating seat, the surface of the rotating seat is rotatably connected with a turning rod, and the right end of the turning rod is fixedly connected with a pressing top plate. The pressing hemostatic device for cardiology nursing can drive the telescopic sliding rod to slide inside the supporting vertical cylinder by setting the electric push rod, and quickly adjust the height of the pressing top plate. , the position of the arc-shaped pressing plate can be adjusted horizontally. By setting the electric telescopic rod, the limit sliding sleeve and the limit sliding rod, the extension of the electric telescopic rod can be controlled, and the arc-shaped pressing plate can be lowered, so as to achieve the operation of the patient's operation. The purpose of pressing to stop bleeding is convenient to use.

Description

A kind of compression hemostatic device for cardiology nursing

technical field

The utility model relates to the technical field of medical aids, in particular to a pressing hemostasis device for cardiology nursing.

Background technique

The full name of Cardiology Department is the Department of Cardiovascular Medicine, which is a clinical department set up by major internal medicine departments of hospitals at all levels to diagnose and treat cardiovascular and vascular diseases. , acute myocardial infarction and other cardiovascular diseases.

When treating patients with cardiac diseases, surgery is often used. After surgery, it is necessary to perform pressure hemostasis care on the wound. Therefore, a pressure hemostasis device needs to be used. Most of the existing pressure hemostasis devices are of fixed structure. The volume is relatively large, which is difficult to install, occupies a storage space after use, and has poor adjustability when pressing the patient to stop bleeding, which is inconvenient to use.

To this end, the utility model proposes a pressing hemostasis device for cardiology nursing.

Utility model content

The purpose of the present utility model is to provide a pressing hemostasis device for nursing care in cardiology, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a pressing hemostasis device for cardiology nursing, comprising a moving base plate, the upper surface of the moving base plate is fixedly connected with a supporting vertical cylinder, and the left side of the supporting vertical cylinder is provided with a control device. The interior of the supporting vertical cylinder is slidably connected with a telescopic sliding rod, the top of the telescopic sliding rod is rotatably connected with a rotating shaft, the surface of the rotating shaft is fixedly connected with a rotating seat, the surface of the rotating seat is rotatably connected with a turning rod, and the right end of the turning rod is fixedly connected with a When pressing the top plate, a fixing mechanism is arranged between the surface of the telescopic sliding rod and the pressing top plate. The surface of the pressing top plate is provided with a cross slot, and the inner wall of the cross slot is slidably connected with a T-shaped slider, and the bottom end of the T-shaped slider is fixed A connecting plate is connected, the lower surface of the connecting plate is fixedly connected with an electric telescopic rod, and the telescopic end of the electric telescopic rod is fixedly connected with an arc-shaped pressing plate.

Preferably, an electric push rod is fixedly connected to the inner bottom wall of the supporting vertical cylinder, and the telescopic end of the electric push rod is fixedly connected to the bottom end of the telescopic sliding rod.

Preferably, the fixing mechanism includes a latch rod arranged on the top of the telescopic sliding rod, and a latch seat adapted to the latch rod is provided on the upper surface of the pressing top plate.

Preferably, the top of the T-shaped slider is provided with a locking screw, and the nut of the locking screw is in contact with the upper surface of the pressing top plate.

Preferably, two limit slide sleeves are symmetrically arranged on the lower surface of the connecting plate, the bottom end of the limit slide sleeve is slidably connected to the limit slide bar, and the bottom end of the limit slide bar is connected to the upper arc of the arc-shaped pressing plate. surface fixed connection.

Preferably, the surface of the arc-shaped pressing plate is threadedly connected with a fine-adjusting nut, and the threaded end of the fine-adjusting nut extends to the lower surface of the arc-shaped pressing plate and is rotatably connected with a rubber pressing block.

beneficial effect

The utility model provides a pressing hemostasis device for cardiology nursing, which has the following beneficial effects:

1. The pressing hemostatic device for nursing care in cardiology is easy to move the device by setting a moving bottom plate, and by setting an electric push rod, it can drive the telescopic sliding rod to slide inside the supporting vertical cylinder, and quickly adjust the height of the pressing top plate, By setting the cross chute, T-shaped slider and locking screw, the position of the arc-shaped pressing plate can be adjusted laterally. The arc-shaped pressing plate can be driven to descend, so as to achieve the purpose of pressing the patient's surgical site to stop bleeding, and it is convenient to use.

2. The pressing hemostatic device for nursing care in cardiology, by setting a rotating shaft, a rotating seat, a turning rod and a fixing mechanism, firstly pull out the bolt rod from the bolt seat, and turn the pressing top plate 180 degrees with the turning rod as the axis, and the turning rod is rotating. The seat is rotated, and then the pressing top plate is bent down around the rotating shaft, and the electric push rod is retracted, thereby achieving the purpose of reducing the volume of the device and facilitating transportation and storage.

3. The press hemostasis device for nursing care in cardiology, by setting the fine adjustment nut and the rubber extrusion block, can rotate the fine adjustment nut according to the position of the wound, so that the rubber extrusion block in the corresponding position is more convex and the local extrusion is enhanced. force.

Description of drawings

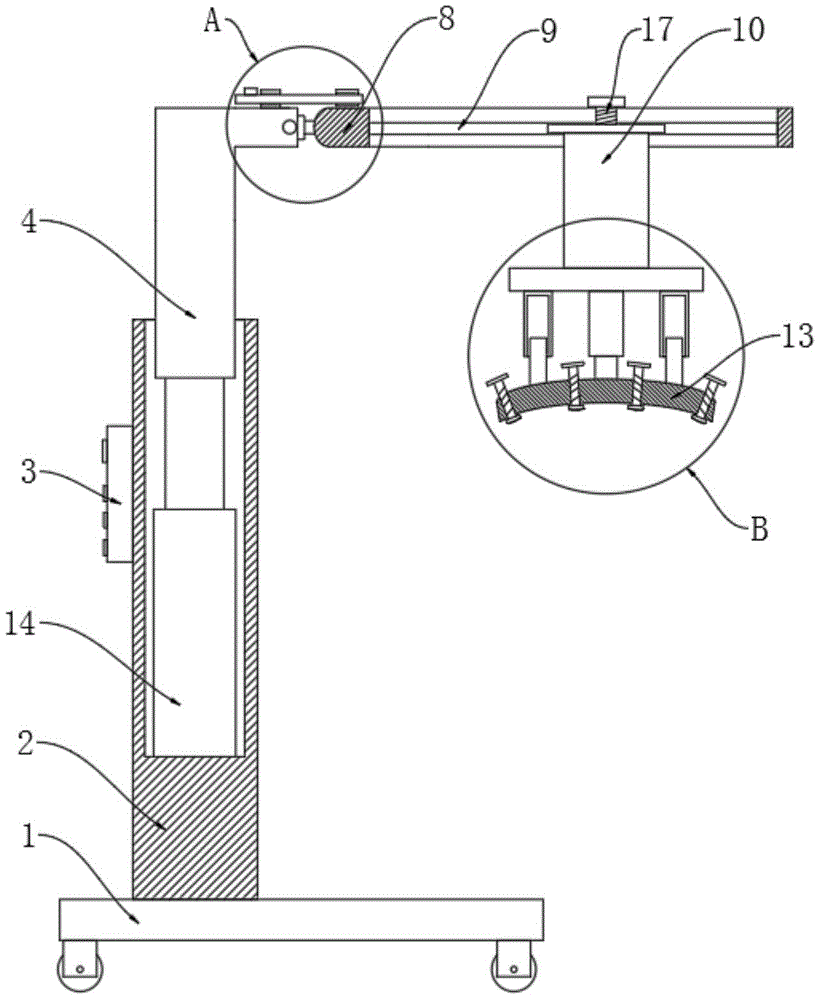

Fig. 1 is a schematic view of a frontal cross-sectional structure in a state of the present utility model;

Fig. 2 is a schematic view of enlarged structure at A place in Fig. 1;

Fig. 3 is the enlarged structural schematic diagram at B in Fig. 1;

4 is a schematic diagram of the front view structure of the utility model state two;

FIG. 5 is a schematic diagram of the three-dimensional structure of the fixing mechanism of the present invention.

In the picture: 1 moving bottom plate, 2 supporting vertical cylinder, 3 controller, 4 telescopic sliding rod, 5 rotating shaft, 6 rotating seat, 7 flipping rod, 8 pressing top plate, 9 cross chute, 10T type slider, 11 connecting plate, 12 electric telescopic rod, 13 arc pressing plate, 14 electric push rod, 15 bolt rod, 16 bolt seat, 17 locking screw, 18 limit sliding sleeve, 19 limit sliding rod, 20 fine adjustment nut, 21 rubber extrusion piece.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-5 , the present invention provides a technical solution: a pressing hemostasis device for cardiology nursing, comprising a moving base plate 1 , and the moving base plate 1 is arranged to facilitate the movement of the device, and the upper surface of the base plate 1 is moved. A supporting vertical cylinder 2 is fixedly connected, a controller 3 is arranged on the left side of the supporting vertical cylinder 2, a telescopic sliding rod 4 is slidably connected inside the supporting vertical cylinder 2, and an electric push rod 14 is fixedly connected to the inner bottom wall of the supporting vertical cylinder 2 , the telescopic end of the electric push rod 14 is fixedly connected with the bottom end of the telescopic sliding rod 4. By setting the electric push rod 14, the telescopic sliding rod 4 can be driven to slide inside the supporting vertical cylinder 2, and the overall height of the device can be quickly adjusted.

The top of the telescopic sliding rod 4 is rotatably connected with a rotating shaft 5, the surface of the rotating shaft 5 is fixedly connected with a rotating seat 6, the surface of the rotating seat 6 is rotatably connected with a turning rod 7, and the right end of the turning rod 7 is fixedly connected with a pressing top plate 8, the telescopic sliding rod A fixing mechanism is provided between the surface of 4 and the pressing top plate 8, the fixing mechanism includes a latch rod 15 arranged on the top of the telescopic sliding rod 4, and the upper surface of the pressing top plate 8 is provided with a latching rod 15.

The pressing hemostatic device for nursing care in cardiology is provided with a rotating shaft 5, a rotating base 6, a turning rod 7 and a fixing mechanism. , the turning rod 7 rotates in the rotating seat 6, and then the pressing top plate 8 is bent downward around the rotating shaft 5, so as to achieve the purpose of reducing the volume of the device and making it convenient for transportation and storage.

A cross slide 9 is laterally opened on the surface of the pressing top plate 8, and the inner wall of the cross slide 9 is slidably connected with a T-shaped slider 10. The top of the T-shaped slider 10 is provided with a locking screw 17, and the nut of the locking screw 17 is connected to the Press the upper surface of the top plate 8 to abut.

A connecting plate 11 is fixedly connected to the bottom end of the T-shaped slider 10 , an electric telescopic rod 12 is fixedly connected to the lower surface of the connecting plate 11 , and an arc-shaped pressing plate 13 is fixedly connected to the telescopic end of the electric telescopic rod 12 . A fine-adjusting nut 20 is threadedly connected to the surface of the upper surface of the fine-adjusting nut 20 , and the threaded end of the fine-adjusting nut 20 extends to the lower surface of the arc-shaped pressing plate 13 and is rotatably connected with a rubber pressing block 21 .

By setting the cross slide 9, the T-shaped slider 10 and the locking screw 17, the position of the arc-shaped pressing plate 13 can be adjusted laterally. Controlling the extension of the electric telescopic rod 12 can drive the arc-shaped pressing plate 13 to descend, so as to achieve the purpose of pressing the patient’s surgical site to stop bleeding, and it is convenient to use. Rotate the fine adjustment nut 20 to make the rubber pressing block 21 at the corresponding position more protruding, thereby enhancing the local pressing force.

The lower surface of the connecting plate 11 is symmetrically provided with two limit sliding sleeves 18 . The arc surfaces are fixedly connected, and by arranging the limit sliding sleeve 18 and the limit sliding rod 19 , the stability of the arc-shaped pressing plate 13 when moving can be enhanced.

Working principle: When the pressing hemostatic device for cardiology nursing is used, the device is moved to the patient's bed by the moving base plate 1, the controller 3 is connected to the mains, and the electric push rod 14 is used to extend and retract to drive the retractable sliding rod 4. Sliding inside the supporting vertical cylinder 2 to quickly adjust the height of the pressing top plate 8, and then sliding the T-shaped slider 10 in the cross slot 9 according to the position of the patient, so that the arc-shaped pressing plate 13 corresponds to the position of the patient, Use the locking screw 17 to lock, and then control the electric telescopic rod 12 to slowly extend, drive the arc-shaped pressing plate 13 to descend, so as to achieve the purpose of pressing the patient's surgical site to stop bleeding. The rubber extruding block 21 at the position is more convex, which enhances the local pressing force. After the end of use, the latch rod 15 is pulled out from the latch seat 16, and the pressing top plate 8 is turned 180 degrees with the flip rod 7 as the axis, and the flip rod 7 Rotate in the rotating seat 6, and then bend the pressing top plate 8 downward around the rotating shaft 5 and place it stably, thereby achieving the purpose of reducing the volume of the device and facilitating transportation and storage.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a intracardiac branch of academic or vocational study nursing is with pressing hemostasis device, is including removing bottom plate (1), its characterized in that: the upper surface of the movable bottom plate (1) is fixedly connected with a supporting vertical cylinder (2), the left side of the supporting vertical cylinder (2) is provided with a controller (3), the inside of the supporting vertical cylinder (2) is connected with a telescopic slide rod (4) in a sliding manner, the top of the telescopic slide rod (4) is connected with a rotating shaft (5) in a rotating manner, the surface of the rotating shaft (5) is fixedly connected with a rotating seat (6), the surface of the rotating seat (6) is connected with a turnover rod (7) in a rotating manner, the right end of the turnover rod (7) is fixedly connected with a pressing top plate (8), a fixing mechanism is arranged between the surface of the telescopic slide rod (4) and the pressing top plate (8), a cross-shaped sliding groove (9) is transversely formed in the surface of the pressing top plate (8), the inner wall of the cross-shaped sliding groove (9) is connected with a T-shaped sliding block (10) in a sliding manner, the bottom end of the T-shaped sliding block (10) is fixedly connected with a connecting plate (11), and the lower surface of the connecting plate (11) is fixedly connected with an electric telescopic rod (12), the telescopic end of the electric telescopic rod (12) is fixedly connected with an arc-shaped pressing plate (13).

2. The compression hemostasis device for cardiology department care according to claim 1, wherein: the inner bottom wall of the supporting vertical cylinder (2) is fixedly connected with an electric push rod (14), and the telescopic end of the electric push rod (14) is fixedly connected with the bottom end of the telescopic sliding rod (4).

3. The compression hemostasis device for cardiology department care according to claim 1, wherein: the fixing mechanism comprises a plug pin rod (15) arranged at the top of the telescopic slide rod (4), and a plug pin seat (16) matched with the plug pin rod (15) is arranged on the upper surface of the pressing top plate (8).

4. The compression hemostasis device for cardiology department care according to claim 1, wherein: the top of the T-shaped sliding block (10) is provided with a locking screw (17), and a nut of the locking screw (17) is abutted to the upper surface of the pressing top plate (8).

5. The compression hemostasis device for cardiology department care according to claim 1, wherein: the lower surface of the connecting plate (11) is symmetrically provided with two limiting sliding sleeves (18), the bottom ends of the limiting sliding sleeves (18) are connected with limiting sliding rods (19) in a sliding mode, and the bottom ends of the limiting sliding rods (19) are fixedly connected with the upper cambered surface of the arc pressing plate (13).

6. The compression hemostasis device for cardiology department care according to claim 1, wherein: the surface threaded connection of arc pressing plate (13) has fine adjustment nut (20), and the screw thread end of fine adjustment nut (20) extends to the lower surface of arc pressing plate (13) and rotates and is connected with rubber extrusion piece (21).
