An anti-kick quilt for irritable patients

technical field

The utility model belongs to the technical field of medical care products, in particular to an anti-kick quilt cover for irritable patients.

Background technique

In the daily care of the ICU, patients have a high probability of irritability. The reasons include the disease itself, the stimulation of traumatic catheters, pain, side effects of drugs, and environmental stimulation.

If the patient is irritable when sleeping at night, the quilt will be easily kicked over, leaving the body exposed and affecting the recovery of the patient. For this reason, we propose an anti-kick quilt for irritable patients.

Utility model content

The purpose of the utility model is to provide an anti-kick quilt cover for irritable patients with simple structure and reasonable design in order to solve the above problems.

The utility model realizes the above-mentioned purpose through the following technical solutions:

An anti-kick quilt cover for irritable patients, comprising a quilt cover main body and long straps arranged on the four corners of the quilt cover main body, a pair of shoulder guards and a pair of sleeve covers are arranged on the outside of the quilt cover main body, and a pair of leg fixing straps are arranged inside the quilt cover main body , the shoulder guard and the quilt cover main body and between the sleeve cover and the quilt cover main body are fixed to each other by providing snap buttons;

The sleeve is arranged in a cylindrical shape, and one end of the sleeve facing the outer wall of the quilt body is provided with a U-shaped opening communicating with the top of the sleeve, and a double-headed zipper is provided at the U-shaped opening.

As a further optimized solution of the present invention, the bottom of the sleeve is provided with an elastic band, and the elastic band is provided with a snap button, the outer side of the quilt body is sewn with a fixed cloth strip near the elastic band, and the elastic band wraps around the elastic band. The loop structure is formed by fixing the cloth strip and fixing it by pressing the button.

As a further optimized solution of the present invention, the outer side of the quilt cover main body is provided with a quilt cover zipper part.

As a further optimized solution of the present invention, one end of the leg fixing belt is sewn on the inner side of the quilt cover body, and the other end and the quilt cover body are fixed to each other by arranging snap buttons or Velcro.

As a further optimized solution of the present invention, the outer side of the quilt cover body is sewed with a storage tape at a position between a pair of shoulder pads, and the storage fabric tape extends from the upper end of the quilt cover body and passes between the inner side of the quilt cover body The storage buckles are arranged to be buckled with each other, so that the upper end of the quilt cover main body forms an arc-shaped concave structure.

As a further optimized solution of the present invention, the sleeve is provided with an interlayer, and the interior of the interlayer and the interior of the shoulder pad are filled with space cotton.

The beneficial effects of the present utility model are:

In the utility model, the whole anti-kick quilt cover for irritable patients has ingenious structural design and strong function, which is convenient for medical staff to care for, and at the same time, the limbs of the patient can be better fixed on the main body of the quilt cover by setting the sleeve cover and the leg fixing belt. It can prevent the patient from kicking the quilt cover when he is irritable, and the effect is good.

Description of drawings

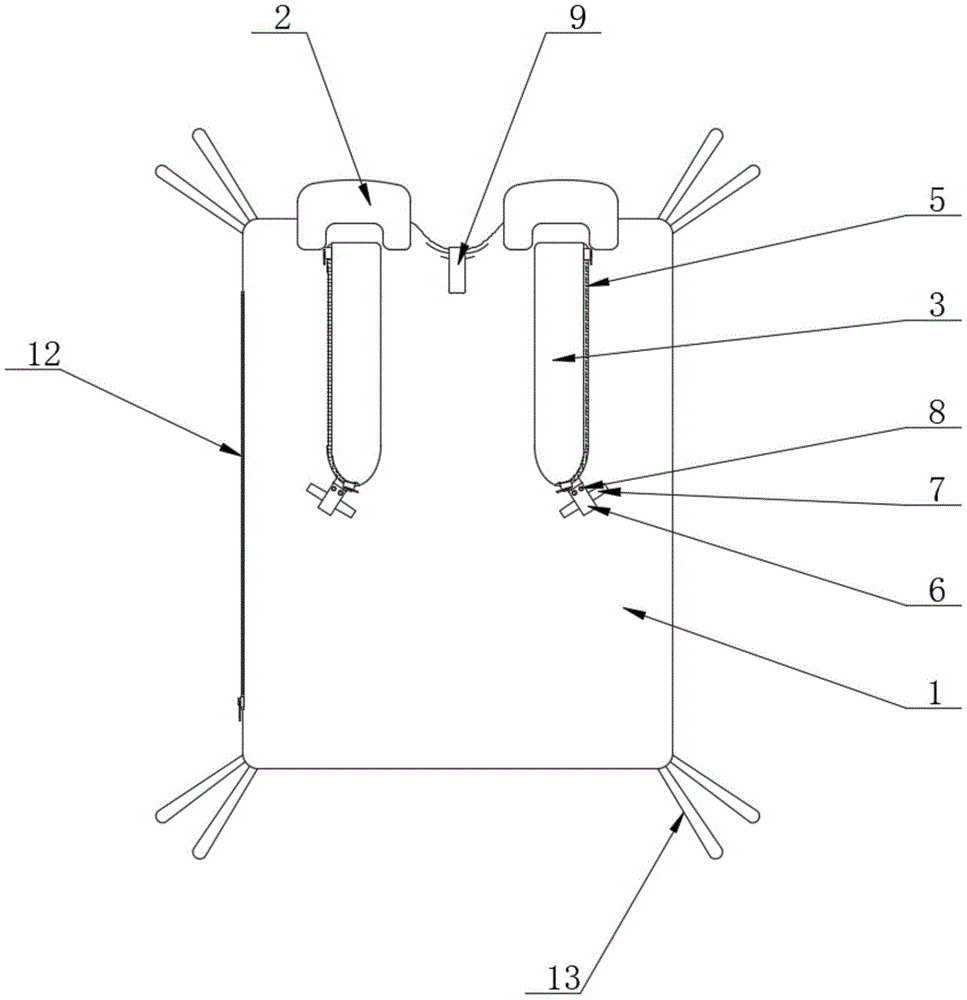

Fig. 1 is the top view provided by the utility model;

Fig. 2 is the bottom view provided by the present utility model;

3 is a schematic structural diagram of a perspective view of the sleeve provided by the present invention;

4 is a cross-sectional view of the sleeve provided by the present utility model;

Fig. 5 is the vertical sectional view of the shoulder pad provided by the utility model;

In the picture: 1. Main body of quilt cover; 2. Shoulder pads; 3. Sleeve cover; 4. Leg fixing belt; 5. Double-head zipper; 6. Elastic belt; 7. Fixed cloth strip; 8. Press button; 9 , storage cloth belt; 10, storage buckle; 11, snap button; 12, zipper part of quilt cover; 13, long strap; 14, space cotton.

Detailed ways

The application will be described in further detail below in conjunction with the accompanying drawings. It is necessary to point out that the following specific embodiments are only used to further illustrate the application, and should not be construed as limiting the protection scope of the application. Those skilled in the art can The above application content makes some non-essential improvements and adjustments to this application.

As shown in Figures 1-5, an anti-kick quilt cover for irritable patients includes a quilt cover main body 1 and long straps 13 arranged on the four corners of the quilt cover main body 1. The outer side of the quilt cover main body 1 is provided with a pair of shoulder pads 2 and a pair of sleeves Cover 3, and the inner side of the quilt cover main body 1 is provided with a pair of leg fixing belts 4, the shoulder pads 2 and the quilt cover main body 1 and between the sleeve cover 3 and the quilt cover main body 1 are fixed to each other by arranging snap buttons 11;

The sleeve cover 3 is arranged in a cylindrical shape, and the end of the sleeve cover 3 facing the outer side wall of the quilt cover body 1 is provided with a U-shaped opening that communicates with the top of the sleeve cover 3 and a double-headed zipper part 5 is arranged at the U-shaped opening. The side U-shaped opening of 3 can be opened by pulling the double-headed zipper part 5, which is convenient for taking out the patient's arm and placing the pipeline, making it easier for the patient's arm infusion operation or the medical staff to observe and care for the indwelling cannula.

In order to further ensure that the connection between the sleeve 3 and the quilt body 1 is fastened, the sleeve 3 is displaced, and an elastic band 6 is arranged at the bottom of the sleeve 3, and the elastic band 6 is provided with a snap button 8. The said The outer side of the quilt cover body 1 is sewed with a fixed cloth strip 7 near the elastic band 6. The elastic band 6 bypasses the fixed cloth strip 7 and is fixed by pressing the button 8 to form a ring-shaped structure. The snap button 8 is opened, so that the elastic band 6 is wound out from the fixed cloth strip 7. At the same time, the disassembly process of the sleeve cover 3 and the quilt cover body 1 can be completed by removing the snap button 11 between the sleeve cover 3 and the outer side of the quilt cover body 1. .

The outer side of the quilt cover main body 1 is provided with a quilt cover zipper part 12 , which is convenient for inserting a quilt core into the quilt cover main body 1 .

One end of the leg fixing belt 4 is sewn on the inner side of the quilt cover main body 1, and the other end and the quilt cover main body 1 are fixed to each other by setting a snap button 11 or a Velcro, which is convenient for medical staff to fix the patient's legs. Open one end of the leg fixing belt 4 to separate it from the quilt cover body 1, and then pass the leg fixing belt 4 around the patient's leg, so that the other end of the leg fixing belt 4 is connected to the quilt cover through the snap button 11 or the Velcro The main body 1 can be fixed, so that the patient's leg is bound between the quilt body 1 and the leg fixing belt 4 by the leg fixing belt 4, and the width of the leg fixing belt 4 can be flexibly selected according to actual needs.

The outer side of the quilt cover main body 1 is sewn with a storage belt 9 at the position between the pair of shoulder pads 2 , and the storage cloth belt 9 extends from the upper end of the quilt cover main body 1 to the inner side of the quilt cover main body 1 by setting a storage buckle. 10 and buckle each other, so that the upper end of the quilt cover main body 1 forms an arc-shaped concave structure. The purpose of this setting is that, in the case of gas incision or electrode pads attached to the patient's neck, the above method can be used to form the upper end of the quilt cover main body 1. The arc-shaped concave structure is convenient for medical staff to view and care.

The sleeve 3 is provided with an interlayer, and the interior of the interlayer and the shoulder pad 2 are filled with space cotton 14 to ensure that the sleeve 3 and the shoulder pad 2 have a certain shape strength, and the structure is relatively soft when the patient is in contact.

The whole process of using the anti-kick quilt cover is to open the zipper part 12 of the quilt cover on one side of the quilt cover main body 1, and put the quilt core into the quilt cover main body 1;

First, open one end of the leg fixing belt 4 to separate it from the quilt body 1, then, pass the leg fixing belt 4 around the patient's leg, so that the other end of the leg fixing belt 4 passes through the snap button 11 or the magic The sticker can be fixed with the quilt cover body 1, so that the patient's leg is bound between the quilt cover body 1 and the leg fixing belt 4 by the leg fixing belt 4;

Then, the patient's arms are respectively inserted into a pair of sleeves 3, and the pair of shoulder pads 2 located at the upper end of the quilt body 1 are attached to the patient's shoulders to prevent the patient's shoulders from being exposed. The side of the sleeves 3 can be pulled The double-headed zipper part 5 is opened, which is convenient for the patient's arm infusion or the observation and care of the indwelling cannula by doctors and patients. In addition, in the case of gas incision or electrode pads attached to the patient's neck, the cloth belt 9 is used to make the quilt cover. The upper end of the main body 1 is formed with an arc-shaped concave structure, which is convenient for medical staff to view. In addition, the nursing shoulder pads 2, the sleeve cover 3 and the quilt cover main body 1 are all detachable settings, which is convenient for subsequent cleaning and replacement of the quilt cover main body 1;

Finally, the long straps 13 provided on the four corners of the quilt cover main body 1 can be fixed on the baffle or the bed board of the hospital bed, so as to ensure that the quilt cover main body 1 is fixed on the hospital bed.
