本实用新型提供了一种基于清洁生产的瓦楞纸板印刷棍清洁装置，属于瓦楞纸加工技术领域，包括支撑架、支撑杆、把手，支撑杆设置在支撑架左侧，把手固定连接在支撑杆左侧顶端。本实用新型通过设置有清洁环、喷孔、分流板，清洁环具有良好的清洁能力，使用时将清洁环套在印刷棍外侧，对印刷棍外壁进行清洁，能将印刷棍外壁污垢冲洗干净，同时分流板具有良好的分流增压效果，通过喷孔与分流板上圆孔的面积差，喷孔呈圆台状的设置，使得增大喷孔内部压强，提高水流通过圆孔时的冲击力，便于对印刷棍进行冲洗清洁操作，能有效提高清洁效果。
The utility model provides a corrugated cardboard printing roller cleaning device based on clean production, belonging to the technical field of corrugated paper processing, comprising a support frame, a support rod and a handle. top. The utility model is provided with a cleaning ring, a spray hole and a distribution plate, and the cleaning ring has good cleaning ability. When in use, the cleaning ring is sleeved on the outer side of the printing roller to clean the outer wall of the printing roller, and can wash away the dirt on the outer wall of the printing roller. At the same time, the splitter plate has a good split-flow booster effect. Through the area difference between the nozzle hole and the circular hole on the splitter plate, the nozzle hole is arranged in a truncated cone shape, which increases the internal pressure of the nozzle hole and improves the impact force of the water flow when it passes through the round hole. It is convenient to rinse and clean the printing roller, which can effectively improve the cleaning effect.
Description
Technical Field
The utility model relates to the technical field of corrugated paper processing, in particular to the technical field of corrugated board printing roller cleaning devices.
Background
Corrugated paper printing equipment performs printing through a printing roller, and the surface of the printing roller needs to be cleaned after the printing roller is used.
For the research of corrugated paper printing clearance, through the search discovery, there is a patent number CN202022329827.0, discloses a corrugated container board printing rod cleaning device based on clean production, this kind of corrugated container board printing rod cleaning device based on clean production is provided with cleans the subassembly, L shape installation piece, locking plate, cleans the silk floss, handle, connecting rod, dead lever, compression spring, location mounting, first holding ring, second holding ring, recess, gyro wheel, supporting shoe, makes its convenient to use, and the clearance is simple, and installation dismantlement is all easy operation, conveniently cleans the change of silk floss simultaneously.
However, research and analysis show that the cleaning device cleans the printing roller by arranging the cleaning assembly, the cleaning sponge, the compression spring, the positioning fixing piece and other components, but the cleaning device cleans the printing roller only by the cleaning sponge, so that the cleaning device is poor in cleaning effect, easy to have residual dirt, incapable of cleaning the printing roller by 360 degrees and residual cleaning dead angles.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the problems of poor cleaning effect and easy cleaning dead angles in the background technology, and provides a corrugated board printing stick cleaning device based on cleaning production.
In order to achieve the purpose, the utility model provides the following technical scheme: the novel multifunctional umbrella stand comprises a support frame, a support rod and a handle, wherein the support rod is arranged on the left side of the support frame, and the handle is fixedly connected to the top end of the left side of the support rod.
The limiting mechanism comprises a hinge and a clamping plate, the hinge is embedded in the middle of the left side of the supporting frame, and the clamping plate is fixedly connected to the upper end and the lower end of the inner wall of the right side of the supporting frame;
clean mechanism, including clean ring, the chamber that flows, orifice, flow distribution plate, tooth's socket, spacing groove, inlet opening, collection box, micro motor, clean ring sets up at support frame inner wall middle part, the chamber embedding that flows sets up at clean ring inner wall, the orifice embedding sets up at clean ring inboard, the flow distribution plate embedding sets up in the orifice inner wall outside, the tooth's socket embedding sets up at clean ring outer wall middle part, the spacing groove embedding sets up in the tooth's socket inner wall outside, the inlet opening embedding sets up at clean ring rear side, collect box fixed connection in the support frame bottom, micro motor sets up at support frame inner wall left side middle part.
Furthermore, the support frame is arranged in a C shape and is matched with the cleaning ring.
Furthermore, the joint board is "T" shape cylindric setting, and joint board and spacing groove agree with.
Furthermore, the cleaning ring is arranged in a semicircular plate shape.
Furthermore, the flow distribution plate is a circular plate-shaped device with a plurality of round holes embedded in the surface, and the flow distribution plate is matched with the spray holes.
Furthermore, the spray holes are arranged in a round table shape, the number of the spray holes is a plurality, and the spray holes are equidistantly arranged on the surface of the inner wall of the cleaning ring.
Furthermore, the collecting box is a square plate with a hollow top, and the width of the collecting box is larger than that of the supporting frame.
Furthermore, the rear side of the water inlet hole is connected with a hose, and one end of the hose is connected with an external water pipe.
Furthermore, a gear is arranged at the front end of the micro motor, the gear is matched with the tooth socket, and the micro motor is electrically connected with an external power supply through an electric wire.
1. This kind of corrugated container board printing roller cleaning device based on clean production is provided with clean ring, the orifice, the flow distribution plate, clean ring has good clean ability, will clean the ring cover in the printing roller outside during use, clean printing roller outer wall, can wash printing roller outer wall dirt totally, the flow distribution plate has good reposition of redundant personnel pressure boost effect simultaneously, the area difference through round hole on orifice and the flow distribution plate, the orifice is the setting of round platform form, make the inside pressure of increase orifice, improve the impact force when rivers pass through the round hole, be convenient for wash clean operation to the printing roller, can effectively improve clean effect.
2. Secondly, still be provided with cleaning ring, tooth's socket, micro motor, during the use, drive the gear through micro motor and rotate, the gear drives cleaning ring through the meshing with the tooth's socket and rotates to adjust cleaning ring's position, carry out 360 cleanness to the printing rod, can effectively avoid clean dead angle, reinforcing cleaning effect.
Drawings

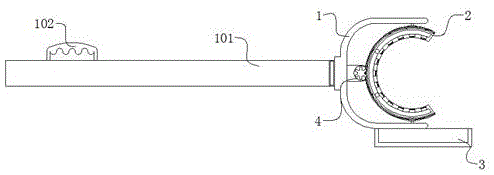

Fig. 1 is an overall sectional structure diagram of the present invention.
FIG. 2 is a cross-sectional view of a cleaning ring according to the present invention.
FIG. 3 is a schematic view of a cleaning ring structure of the present invention.
Fig. 4 is a schematic structural diagram of fig. 2 at a according to the present invention.
Fig. 5 is a schematic structural diagram of fig. 3 at B according to the present invention.
Reference numerals: the cleaning device comprises a support frame 1, a support rod 101, a handle 102, a hinge 103, a clamping plate 104, a cleaning ring 2, a flowing cavity 201, a jet hole 202, a flow distribution plate 2021, a tooth groove 203, a limiting groove 204, a water inlet hole 205, a collection box 3 and a micro motor 4.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Hereinafter, a cleaning device for a corrugated cardboard printing stick based on cleaning production according to a practical embodiment will be described with reference to the drawings, and as shown in fig. 1 and 2, the cleaning device for a corrugated cardboard printing stick based on cleaning production comprises a support frame 1, a support rod 101, and a handle 102, wherein the support rod 101 is arranged at the left side of the support frame 1, and the handle 102 is fixedly connected to the top end of the left side of the support rod 101.
As shown in figures 1 and 2, the corrugated board printing stick cleaning device based on cleaning production comprises a limiting mechanism, the limiting mechanism comprises a hinge 103 and a clamping plate 104, the hinge 103 is embedded in the middle of the left side of the support frame 1, and the clamping plate 104 is fixedly connected to the upper end and the lower end of the inner wall of the right side of the support frame 1.
In a specific embodiment: the supporting frame 1 is arranged in a C shape, the supporting frame 1 is matched with the cleaning ring 2, the supporting frame 1 has good supporting capacity, the cleaning ring 2 can be limited and supported, and the cleaning ring 2 is prevented from shaking in the using process, so that the using is prevented from being influenced;
wherein, joint board 104 is "T" shape cylindric setting, and joint board 104 agrees with spacing groove 204, and joint board 104 has good limiting displacement, when adjusting clean ring 2 position, through being connected of joint board 104 with spacing groove 204, spacing clean ring 2, cooperation micro motor 4 goes up the gear and is connected with tooth's socket 203, avoids clean ring 2 to rock about when using to the influence is used.
As shown in fig. 1-3, the corrugated cardboard printing stick cleaning device based on cleaning production comprises a cleaning mechanism, the cleaning mechanism comprises a cleaning ring 2, a flowing cavity 201, a spray hole 202, a flow distribution plate 2021, a tooth space 203, a limiting groove 204, a water inlet hole 205, a collection box 3 and a micro motor 4, the cleaning ring 2 is arranged in the middle of the inner wall of a support frame 1, the flowing cavity 201 is embedded in the inner wall of the cleaning ring 2, the spray hole 202 is embedded in the inner side of the cleaning ring 2, the flow distribution plate 2021 is embedded in the outer side of the inner wall of the spray hole 202, the tooth space 203 is embedded in the middle of the outer wall of the cleaning ring 2, the limiting groove 204 is embedded in the outer side of the inner wall of the tooth space 203, the water inlet hole 205 is embedded in the rear side of the cleaning ring 2, the collection box 3 is fixedly connected to the bottom of the support frame 1, and the micro motor 4 is arranged in the middle of the left side of the inner wall of the support frame 1.
In a specific embodiment: the cleaning ring 2 is arranged in a semicircular plate shape, the cleaning ring 2 has good cleaning capability, and when the cleaning ring is used, the cleaning ring 2 is sleeved outside the printing rod to clean the outer wall of the printing rod, so that dirt on the outer wall of the printing rod can be washed clean;
the flow distribution plate 2021 is a circular plate-shaped device with a plurality of round holes embedded in the surface, the flow distribution plate 2021 is fitted with the spray holes 202, the flow distribution plate 2021 has a good flow distribution pressurization effect, and the pressure inside the spray holes 202 is increased by the area difference between the spray holes 202 and the round holes on the flow distribution plate 2021, so that the impact force when water flows through the round holes is improved, the washing and cleaning operation of the printing stick is facilitated, and the cleaning effect can be effectively improved;
furthermore, the spray holes 202 are arranged in a circular truncated cone shape, the number of the spray holes 202 is a plurality, and the spray holes 202 are equidistantly arranged on the surface of the inner wall of the cleaning ring 2, so that the printing stick can be washed and cleaned in a large area, the printing stick can be cleaned quickly, meanwhile, the spray holes 202 are arranged in a circular truncated cone shape, the pressure intensity of the inner wall of the spray holes 202 is increased, the impact force of sprayed water flow is improved, and the cleaning effect is enhanced;
the collecting box 3 is a square plate with a hollow top, the width of the collecting box 3 is larger than that of the supporting frame 1, the collecting box 3 has good wastewater collecting capacity, cleaned wastewater can be contained, and the wastewater is prevented from being spilled on a printing machine, so that the printing work of the corrugated board is influenced;
furthermore, a hose is connected to the rear side of the water inlet 205, one end of the hose is connected with an external water pipe, the hose has good ductility, the situation that the cleaning ring 2 cannot rotate due to the fact that the cleaning ring 2 is pulled by the hose when the position of the cleaning ring 2 is adjusted is avoided, and meanwhile the cleaning ring 2 can have sufficient water flow to clean the printing stick;
when the cleaning device is used, the gear is driven to rotate by the micro motor 4, the gear drives the cleaning ring 2 to rotate by meshing with the tooth socket 203, so that the position of the cleaning ring 2 is adjusted, the printing stick is cleaned for 360 degrees, the cleaning dead angle can be effectively avoided, and the cleaning effect is enhanced;
when the corrugated board printing stick cleaning device based on cleaning production is used, firstly, a hose is connected with an external water pipe, a handle 102 is held, a cleaning ring 2 is placed on the outer side of the printing stick, an external water valve is opened, water flow is guided into a flow cavity 201 through the hose and is sprayed out after being pressurized through a spray hole 202 and a flow distribution plate 2021, the surface of the printing stick is cleaned, then a power supply is connected, a micro motor 4 is electrified to operate, the micro motor 4 drives a tooth socket 203 to rotate through a gear, the tooth socket 203 drives the cleaning ring 2 to rotate, meanwhile, a clamping plate 104 is clamped with a limiting groove 204, the cleaning ring 2 rotates along the clamping plate 104 when rotating, the printing stick is washed and cleaned at 360 degrees when the cleaning ring 2 rotates, cleaned sewage flows downwards due to the action of gravity and flows into a collection box 3 to be collected, then, a support rod 101 and the handle 102 are held, the cleaning ring 2 is slowly moved towards the other side of the printing stick, and washing the whole printing roller, and after washing, finishing the power supply and the external water valve, and separating the cleaning ring 2 from the printing roller.
The above is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, it is possible to make several variations and modifications without departing from the concept of the present invention, and these should be considered as the protection scope of the present invention, which will not affect the effect of the implementation of the present invention and the utility of the patent.
Claims (9)
