Breathable radiation-proof polyester fabric

Technical Field

The utility model relates to the technical field of polyester fabrics, in particular to a breathable radiation-proof polyester fabric.

Background

The terylene fabric is a chemical fiber garment fabric which is used in daily life. The most important advantage is that it has good crease resistance and shape-preserving property, so that it is suitable for making outdoor articles such as coat and clothing, various bags and tents, etc. The current surface fabric can realize protecting against radiation, antichemical, fire-retardant, functions such as cold-proof, guarantee people's health and safety under various environment, but the function simplification of current surface fabric, often can not satisfy the demand of operation under the complex environment, and simultaneously, the radiation protection dacron surface fabric snugness of fit descends, make at the in-process of wearing, not only can produce a large amount of static, still can't absorb human sweat, and then the bad sweat smell appears, and wait to air-dry the back and have formation salt, influence the image, and then make the comfort level of dress descend.

Referring to the existing Chinese patent with publication number CN211968679U, a high-efficiency radiation-proof polyester fabric is disclosed, which comprises: a fabric base layer; the radiation-proof layer is arranged inside the fabric base layer; the antistatic layer is arranged inside the radiation-proof layer; the sweat discharging structure is arranged in the static removing layer and comprises a breathable layer, the breathable layer is arranged in the static removing layer, and an one-way heat conducting layer is arranged in the breathable layer.

Foretell this kind of high-efficient radiation protection polyester fabric, realization that can be fine is to the discharge and the absorption of sweat, can be quick adsorb the sweat through the sweat-absorbing layer that sets up and sweat-absorbing clamping piece, improves the adsorption efficiency to the sweat, and then improves the comfort level of wearing, can be to the surface fabric in the use through setting up the static layer that removes, the static of production is detached to silver fibre through in the radiation protection layer can play radiation protection and antistatic effect, and then improved this polyester fabric's practicality. However, the efficient radiation-proof polyester fabric still has some disadvantages, such as: the air permeability is not good and the antibacterial effect is not good.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a breathable radiation-proof polyester fabric which is good in breathable effect and has an antibacterial effect, so that the problems in the background art are solved.

In order to achieve the purpose, the utility model provides the following technical scheme:

the utility model provides a ventilative radiation protection dacron surface fabric, includes the basic unit, the basic unit includes polyester fiber, silver-colored fibre and stainless steel metal fiber, silver-colored fibre with the winding of stainless steel metal fiber polyester fiber weaves, basic unit one side is equipped with the bamboo fiber layer, the bamboo fiber layer deviates from one side of basic unit is equipped with the conductive fiber layer, the conductive fiber layer deviates from the bamboo fiber layer is equipped with cotton fiber layer, cotton fiber layer deviates from one side of conductive fiber layer is equipped with the elastic layer, the elastic layer deviates from one side of cotton fiber layer is equipped with milk protein fiber layer.

Preferably, a shielding layer is arranged between the elastic layer and the milk protein fiber layer.

Preferably, the shielding layer comprises nano-metal shielding fibers and silver-plated fibers which are woven with each other.

Preferably, the cotton fiber layer is woven with a plurality of air holes.

Preferably, the elastic layer includes acrylic fiber threads and spandex fiber threads which are woven with each other.

Preferably, the bamboo fiber layer and the conductive fiber layer are bonded through viscose fibers.

Preferably, the whole thickness of the base layer, the bamboo fiber layer, the conductive fiber layer, the elastic layer and the milk protein fiber layer is 3-5 mm.

Compared with the prior art, the utility model has the beneficial effects that:

1. the base layer comprises the polyester fibers, the silver fibers and the stainless steel metal fibers, so that the fabric has an anti-radiation effect, the metal fibers are not easy to break, and the problem of being pulled out is solved;

2. the fabric is provided with the conductive fiber layer, so that the fabric can prevent static electricity while protecting against radiation, the cotton fiber layer increases the moisture absorption and ventilation effects of the fabric, the fabric has the warm keeping effect, the elastic layer enables the fabric to have elasticity, the service life of the fabric is prolonged, the milk protein fiber layer enables the fabric to be more close-fitting and comfortable to wear, and the moisture absorption and ventilation properties of the fabric are increased.

Drawings

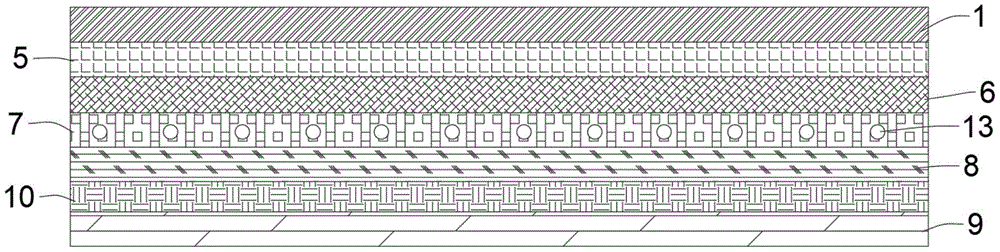

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic diagram of the infrastructure of the present invention;

FIG. 3 is a schematic view of the structure of the elastic layer of the present invention;

fig. 4 is a schematic diagram of a shielding layer structure according to the present invention.

In the figure: 1. a base layer; 2. polyester fiber; 3. silver fibers; 4. stainless steel metal fibers; 5. a bamboo fiber layer; 6. a conductive fiber layer; 7. a cotton fiber layer; 8. an elastic layer; 9. a milk protein fiber layer; 10. a shielding layer; 11. a nano-metal shielding fiber; 12. silver-plated fibers; 13. air holes are formed; 14. acrylic fiber yarn; 15. a spandex fiber thread.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution:

the utility model provides a ventilative radiation protection dacron surface fabric, including basic unit 1, basic unit 1 includes polyester fiber 2, silver-colored fibre 3 and stainless steel metal fiber 4 winding polyester fiber 2 weave, 1 one side of basic unit is equipped with bamboo fibrous layer 5, one side that bamboo fibrous layer 5 deviates from basic unit 1 is equipped with conductive fiber layer 6, conductive fiber layer 6 deviates from bamboo fibrous layer 5 and is equipped with cotton fibrous layer 7, one side that cotton fibrous layer 7 deviates from conductive fiber layer 6 is equipped with elastic layer 8, one side that elastic layer 8 deviates from cotton fibrous layer 7 is equipped with milk protein fibrous layer 9.

Referring to fig. 1, a shielding layer 10 is arranged between the elastic layer 8 and the milk protein fiber layer 9, so that the radiation protection effect of the fabric is increased.

Referring to fig. 4, since the shielding layer 10 includes the nano metal shielding fibers 11 and the silver-plated fibers 12 that are woven with each other, the shielding effect of the fabric is enhanced, and the fabric is more radiation-proof.

Referring to fig. 1, since the cotton fiber layer 7 is woven with the plurality of air holes 13, the air permeability of the fabric can be increased.

Referring to fig. 3, since the elastic layer 8 includes the acrylic fiber threads 14 and the spandex fiber threads 15 which are woven with each other, both the acrylic fiber threads 14 and the spandex fiber threads 15 have super elasticity, and the two fibers are woven in a mixed manner, so that the fabric has soft and comfortable texture and good elasticity.

Referring to fig. 1, since the bamboo fiber layer 5 and the conductive fiber layer 6 are bonded by the viscose fiber, the bamboo fiber layer 5 and the conductive fiber layer 6 are better bonded together.

Referring to fig. 1, the overall thickness of the base layer 1, the bamboo fiber layer 5, the conductive fiber layer 6, the elastic layer 8 and the milk protein fiber layer 9 is 3-5mm, so that the overall thickness of the fabric is not too thick.

The structure principle is as follows: the base layer 1 comprises the polyester fibers 2, the silver fibers 3 and the stainless steel metal fibers 4, so that the fabric has an anti-radiation effect, the metal fibers are not prone to being broken, the problem of being pulled out is solved, the silver fibers 3 can also improve the antibacterial and anti-static effects of the fabric, the bamboo fiber layer 5 enables the fabric to have moisture absorption and ventilation effects and enables the fabric to have antibacterial and mite removal effects, the conductive fiber layer 6 enables the fabric to be anti-static while being anti-radiation, the cotton fiber layer 7 increases the moisture absorption and ventilation effects of the fabric and enables the fabric to have a warm-keeping effect, the elastic layer 8 enables the fabric to have elasticity, the service life of the fabric is prolonged, the milk protein fiber layer 9 enables the fabric to be more close-fitting and comfortable to wear, and the moisture absorption and ventilation effects of the fabric are improved.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a ventilative radiation protection dacron surface fabric, includes basic unit (1), its characterized in that: basic unit (1) includes polyester fiber (2), silver-colored fibre (3) and stainless steel metal fiber (4), silver-colored fibre (3) with stainless steel metal fiber (4) winding polyester fiber (2) are woven, basic unit (1) one side is equipped with bamboo fibrous layer (5), bamboo fibrous layer (5) deviate from one side of basic unit (1) is equipped with conductive fiber layer (6), conductive fiber layer (6) deviate from bamboo fibrous layer (5) are equipped with cotton fibrous layer (7), cotton fibrous layer (7) deviate from one side of conductive fiber layer (6) is equipped with elastic layer (8), elastic layer (8) deviate from one side of cotton fibrous layer (7) is equipped with milk protein fibrous layer (9).

2. The breathable radiation-proof polyester fabric according to claim 1, characterized in that: a shielding layer (10) is arranged between the elastic layer (8) and the milk protein fiber layer (9).

3. The breathable radiation-proof polyester fabric according to claim 2, characterized in that: the shielding layer (10) comprises nano metal shielding fibers (11) and silver-plated fibers (12) which are woven with each other.

4. The breathable radiation-proof polyester fabric according to claim 1, characterized in that: the cotton fiber layer (7) is woven with a plurality of air holes (13).

5. The breathable radiation-proof polyester fabric according to claim 1, characterized in that: the elastic layer (8) comprises acrylic fiber threads (14) and spandex fiber threads (15) which are mutually woven.

6. The breathable radiation-proof polyester fabric according to claim 1, characterized in that: the bamboo fiber layer (5) and the conductive fiber layer (6) are bonded through viscose fibers.

7. The breathable radiation-proof polyester fabric according to claim 1, characterized in that: the whole thickness of the base layer (1), the bamboo fiber layer (5), the conductive fiber layer (6), the elastic layer (8) and the milk protein fiber layer (9) is 3-5 mm.
