Abstract
本实用新型公开了一种高稳定性的篮式过滤器，包括本体，所述本体的内壁转动连接有滤篮，所述滤篮上开设有均匀分布的过滤孔，所述本体的顶部设置有驱动装置，所述驱动装置的底部与滤篮相连接，所述本体的左侧设置有清灰装置，所述本体的底部设置有排废装置。该实用新型，清洁板向右移动的过程中会拉伸弹簧的同时带动清洁杆插入到对应的过滤孔内部，进而将过滤孔内部附着的废弃杂物剔除，进而起到对滤篮清理的目的，并且电机一启动后会带动清理环旋转，清理环底部与滤篮固定连接，进而实现带动滤篮旋转的目的，实现对滤篮上所有的过滤孔清理的目的，保证装置的过滤效率和效果。
The utility model discloses a high-stability basket filter, comprising a main body, the inner wall of the main body is rotatably connected with a filter basket, the filter basket is provided with evenly distributed filter holes, and the top of the main body is provided with a filter basket. A driving device, the bottom of the driving device is connected with the filter basket, the left side of the main body is provided with a ash cleaning device, and the bottom of the main body is provided with a waste discharge device. In the utility model, when the cleaning plate moves to the right, the spring will be stretched and the cleaning rod will be inserted into the corresponding filter hole, so as to remove the waste and debris attached to the filter hole, and then the purpose of cleaning the filter basket is achieved. , and after the motor is started, it will drive the cleaning ring to rotate, and the bottom of the cleaning ring is fixedly connected with the filter basket, thereby realizing the purpose of driving the filter basket to rotate, realizing the purpose of cleaning all the filter holes on the filter basket, and ensuring the filtration efficiency and effect of the device. .
Description
Technical Field
The utility model relates to the technical field of filters, in particular to a basket type filter with high stability.
Background
A Basket type filter mainly comprises a connecting pipe, a main pipe, a filter Basket, a flange cover, a fastener and the like. After the liquid enters the filter basket through the main pipe, solid impurity particles are blocked in the filter basket, and clean fluid passes through the filter basket and is discharged from the filter outlet. When the cleaning is needed, the screw plug at the bottom of the main pipe is unscrewed, fluid is drained, the flange cover is detached, and the main pipe is installed again after cleaning.
When the existing basket filter is used, a large amount of waste sundries are accumulated on the filter basket due to long-term use of the filter basket, the problem of cleaning is troublesome, and after the basket filter is used, a large amount of dirt is also accumulated on the inner wall of the basket filter, so that the filtering effect is influenced, and the basket filter with high stability is needed.
SUMMERY OF THE UTILITY MODEL
In view of the problems in the prior art, the present invention is directed to a basket filter with high stability.
In order to solve the above problems, the present invention adopts the following technical solutions.
The utility model provides a basket filter of high stability, includes the body, the inner wall of body rotates and is connected with the filter basket, set up evenly distributed's filtration pore on the filter basket, the top of body is provided with drive arrangement, drive arrangement's bottom is connected with the filter basket, the left side of body is provided with ash removal device, the bottom of body is provided with waste discharge device.
As a further description of the above technical solution:
the driving device comprises a first motor, the bottom of the first motor is fixedly connected with the body, an output shaft of the first motor is fixedly connected with a cleaning ring, the bottom end of the cleaning ring penetrates through the body and extends to the inside of the body, and the bottom of the cleaning ring is fixedly connected with the filter basket.
As a further description of the above technical solution:
the ash removal device comprises a mounting box, the right side of the mounting box is inserted on the body, the inner wall sliding connection of the mounting box is provided with a cleaning plate, cleaning rods are arranged at equal intervals on the right side of the cleaning plate, the right end of each cleaning rod penetrates through the mounting box and extends to the inside of each filter hole, a motor II is fixedly connected to the front side of the mounting box, an eccentric wheel is connected to the inner wall of the mounting box in a rotating mode, the right side of the eccentric wheel is in contact with the cleaning plate, an output shaft of the motor II is fixedly connected with the eccentric wheel, two springs are fixedly connected to the left side of the cleaning plate, and the other ends of the springs are fixedly connected with the mounting box.
As a further description of the above technical solution:
the waste discharge device comprises a bottom block, the bottom of the bottom block is fixedly connected with the body, a sealing plate is slidably connected to the inner wall of the bottom block, an electric push rod is fixedly connected to the bottom of the sealing plate, the bottom end of the electric push rod is inserted into the body, two sealing rods are fixedly connected to the inner wall of the bottom block, two sealing holes are formed in the sealing plate, the inner walls of the sealing holes are respectively in contact with the two sealing rods, and two waste discharge holes are formed in the bottom of the body.
As a further description of the above technical solution:
the top of bottom block has seted up the guide way, the shape of guide way is tubaeform.
As a further description of the above technical solution:
the controller is installed at the top of the body, and the output end of the controller is in signal connection with the first motor and the second motor respectively.
Compared with the prior art, the utility model has the advantages that:
the cleaning plate drives the cleaning rod to insert into the corresponding filtering hole when moving rightwards, so that the attached waste sundries inside the filtering hole are removed, the purpose of cleaning the filtering basket is achieved, the cleaning ring can be driven to rotate after the motor is started, the bottom of the cleaning ring is fixedly connected with the filtering basket, the purpose of driving the filtering basket to rotate is achieved, the purpose of cleaning all the filtering holes in the filtering basket is achieved, and the filtering efficiency and the effect of the device are guaranteed.
Drawings

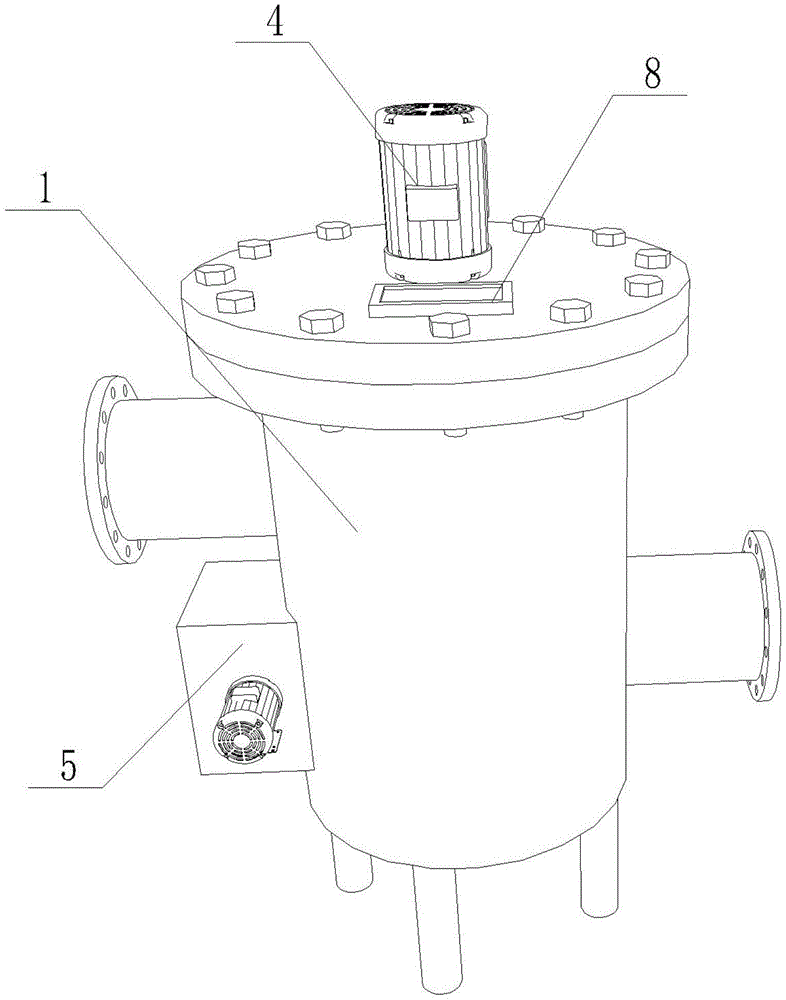

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a subjective chart of the present invention;
FIG. 3 is a bottom view of the present invention;
fig. 4 is a front cross-sectional view of the present invention.
The reference numbers in the figures illustrate:
1. a body; 2. a filter basket; 3. a filtration pore; 4. a drive device; 401. a first motor; 402. cleaning a ring; 5. a dust removal device; 501. mounting a box; 502. cleaning the plate; 503. a cleaning rod; 504. a second motor; 505. an eccentric wheel; 506. a spring; 6. a waste discharge device; 601. a bottom block; 602. a sealing plate; 603. an electric push rod; 604. a sealing rod; 605. sealing the hole; 606. waste discharge holes; 7. a guide groove; 8. and a controller.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention;
referring to fig. 1-4, a basket filter with high stability comprises a body 1, wherein a filter basket 2 is rotatably connected to the inner wall of the body 1, filter holes 3 which are uniformly distributed are formed in the filter basket 2, a driving device 4 is arranged at the top of the body 1, the bottom of the driving device 4 is connected with the filter basket 2, an ash cleaning device 5 is arranged on the left side of the body 1, and a waste discharge device 6 is arranged at the bottom of the body 1.
In the utility model, impurities with the diameter smaller than that of the filter holes 3 can be filtered through the filter holes 3 arranged on the filter basket 2, so that the purpose of filtering is achieved, after the filter basket is used for a period of time, a large amount of waste impurities can be accumulated on the inner wall of the filter basket 2, the filter holes 3 can be blocked by the waste impurities, so that the filtering effect and the efficiency are influenced, at the moment, the driving device 4 and the dust cleaning device 5 are simultaneously started, the dust cleaning device 5 can remove the impurities blocked in the filter holes 3, so that the purpose of cleaning the filter basket 2 is achieved, the driving device 4 can drive the filter basket 2 to rotate, the purpose of cleaning all the filter holes 3 on the filter basket 2 is achieved, the filtering efficiency and the effect of the device are ensured, the driving device 4 can clean the inner wall of the body 1 during rotation, so that the purpose of cleaning the body 1 is achieved, the practicability of the device is improved, and then the cleaned impurities can be discharged to the outside of the body 1 through the waste discharging device 6, and then realize the clear purpose to body 1, the device has replaced the current mode of opening body 1 top flange and clearing up the device inside, can realize the purpose of automatic clearance, reduces the operation degree of difficulty and live time, improves the practicality of device.
Please refer to fig. 1, 2 and 4, wherein: the driving device 4 comprises a first motor 401, the bottom of the first motor 401 is fixedly connected with the body 1, an output shaft of the first motor 401 is fixedly connected with a cleaning ring 402, the bottom end of the cleaning ring 402 penetrates through and extends to the inside of the body 1, and the bottom of the cleaning ring 402 is fixedly connected with the filter basket 2.
In the utility model, when the cleaning device is used, the first motor 401 is started firstly, the first motor 401 can drive the cleaning ring 402 to rotate after being started, the bottom of the cleaning ring 402 is fixedly connected with the filter basket 2, so that the aim of driving the filter basket 2 to rotate is achieved, the cleaning ring 402 can slide along the inner wall of the body 1 in the rotating process, a large amount of dirt attached to the inner wall of the body 1 can be scraped in the rotating process of the cleaning ring 402, the aim of cleaning the inside of the body 1 is achieved, and the practicability of the cleaning device is improved.
Please refer to fig. 1-4, wherein: the ash removal device 5 comprises a mounting box 501, the right side of the mounting box 501 is inserted into the body 1, the inner wall of the mounting box 501 is connected with a cleaning plate 502 in a sliding mode, the right side of the cleaning plate 502 is fixedly connected with cleaning rods 503 which are arranged at equal intervals, the right end of each cleaning rod 503 penetrates through the mounting box 501 and extends into the filter hole 3, the front side of the mounting box 501 is fixedly connected with a second motor 504, the inner wall of the mounting box 501 is rotatably connected with an eccentric wheel 505, the right side of the eccentric wheel 505 is in contact with the cleaning plate 502, the output shaft of the second motor 504 is fixedly connected with the eccentric wheel 505, the left side of the cleaning plate 502 is fixedly connected with two springs 506, and the other ends of the two springs 506 are fixedly connected with the mounting box 501.
In the utility model, when the filter basket is used, the second motor 504 is started, the second motor 504 drives the eccentric wheel 505 to rotate, the eccentric wheel 505 can push the cleaning plate 502 to move rightwards after rotating, the cleaning plate 502 can stretch the spring 506 and simultaneously drive the cleaning rod 503 to be inserted into the corresponding filter hole 3 in the rightwards moving process, and then waste sundries attached to the interior of the filter hole 3 are removed, thereby achieving the purpose of cleaning the filter basket 2.
Please refer to fig. 3 and 4, wherein: waste discharge device 6 includes bottom block 601, bottom and body 1 fixed connection of bottom block 601, the inner wall sliding connection of bottom block 601 has closing plate 602, the bottom fixedly connected with electric putter 603 of closing plate 602, the bottom interlude of electric putter 603 is on body 1, two sealing rod 604 of inner wall fixed connection of bottom block 601, two sealed holes 605 have been seted up on closing plate 602, the inner wall of two sealed holes 605 contacts with two sealing rod 604 respectively, two waste discharge hole 606 have been seted up to the bottom of body 1.
In the utility model, after the waste impurities on the inner wall of the body 1 and the inside of the filtering hole 3 are cleaned, the impurities fall onto the bottom block 601 and the sealing plate 602, at the moment, the electric push rod 603 is started, the electric push rod 603 drives the sealing plate 602 to descend, the sealing hole 605 is separated from the sealing rod 604 after the sealing plate 602 descends, at the moment, the impurities fall into the body 1 through the sealing hole 605, and then are discharged through the waste discharge hole 606, so that the purpose of discharging the impurities is realized.
Please refer to fig. 4, in which: the top of the bottom block 601 is provided with a guide groove 7, and the guide groove 7 is horn-shaped.
In the utility model, the guide groove 7 arranged at the top of the bottom block 601 can facilitate the introduction of the waste impurities on the inner wall of the body 1 and the inside of the filtering hole 3 into the sealing hole 605 on the sealing plate 602 for discharge, thereby improving the practicability of the device.
Please refer to fig. 1 and 2, wherein: the top of the body 1 is provided with a controller 8, and the output end of the controller 8 is respectively in signal connection with the first motor 401 and the second motor 504.
In the utility model, the controller 8 arranged on the top of the body 1 can be convenient for a user to control the first motor 401 and the second motor 504, thereby improving the practicability of the device.
The working principle is as follows: the filtering holes 3 arranged on the filtering basket 2 can filter impurities with a diameter smaller than that of the filtering holes 3, so that the filtering purpose is achieved, after the filtering basket is used for a period of time, a large amount of waste impurities can be accumulated on the inner wall of the filtering basket 2, the waste impurities can block the filtering holes 3, the filtering effect and the filtering efficiency are affected, at the moment, the first motor 401 and the second motor 504 are started simultaneously, the second motor 504 can drive the eccentric wheel 505 to rotate, the eccentric wheel 505 can push the cleaning plate 502 to move rightwards after rotating, the cleaning plate 502 can stretch the spring 506 and simultaneously drive the cleaning rod 503 to be inserted into the corresponding filtering hole 3 in the rightwards process, so that the impurities adhered to the inside of the filtering hole 3 are removed, the purpose of cleaning the filtering basket 2 is achieved, the first motor 401 can drive the cleaning ring 402 to rotate after being started, the bottom of the cleaning ring 402 is fixedly connected with the filtering basket 2, so that the purpose of driving the filtering basket 2 to rotate is achieved, the purpose of cleaning all the filter holes 3 on the filter basket 2 is realized, the filtering efficiency and the effect of the device are ensured, the cleaning ring 402 can slide along the inner wall of the body 1 in the rotating process, a large amount of dirt attached to the inner wall of the body 1 can be scraped off in the rotating process of the cleaning ring 402, the purpose of cleaning the inside of the body 1 is further realized, the practicability of the device is improved, then after the waste sundries on the inner wall of the body 1 and the inside of the filter holes 3 are cleaned, the sundries can fall onto the bottom block 601 and the sealing plate 602, at the moment, the electric push rod 603 is started, the sealing plate 602 can be driven to descend by the electric push rod 603, after the sealing plate 602 descends, the sealing hole 605 can be separated from the sealing rod 604, at the moment, the sundries can fall into the body 1 through the sealing hole 605 and then be discharged through the waste discharge hole 606, the purpose of discharging the sundries is further realized, the device replaces the existing mode of cleaning the inside of opening the top flange of the device on the top of the body 1, the purpose of automatic cleaning can be realized, the operation difficulty and the service time are reduced, and the practicability of the device is improved.
The above are merely preferred embodiments of the present invention; the scope of the utility model is not limited thereto. Any person skilled in the art should be able to cover the technical scope of the present invention by equivalent or modified solutions and modifications within the technical scope of the present invention.
Claims (6)
1. A basket filter of high stability, includes body (1), its characterized in that: the inner wall of body (1) rotates and is connected with and strains basket (2), strain and offer evenly distributed's filtration pore (3) on basket (2), the top of body (1) is provided with drive arrangement (4), the bottom of drive arrangement (4) is connected with straining basket (2), the left side of body (1) is provided with ash removal device (5), the bottom of body (1) is provided with exhaust device (6).
2. A high stability basket filter according to claim 1 wherein: the driving device (4) comprises a first motor (401), the bottom of the first motor (401) is fixedly connected with the body (1), an output shaft of the first motor (401) is fixedly connected with a cleaning ring (402), the bottom end of the cleaning ring (402) penetrates through and extends to the inside of the body (1), and the bottom of the cleaning ring (402) is fixedly connected with the filter basket (2).
3. A high stability basket filter according to claim 1 wherein: the ash cleaning device (5) comprises a mounting box (501), the right side of the mounting box (501) is inserted in the body (1), the inner wall of the mounting box (501) is connected with a cleaning plate (502) in a sliding way, the right side of the cleaning plate (502) is fixedly connected with cleaning rods (503) which are arranged at equal intervals, the right end of the cleaning rod (503) penetrates through the mounting box (501) and extends to the inside of the filter hole (3), the front surface of the mounting box (501) is fixedly connected with a second motor (504), the inner wall of the mounting box (501) is rotatably connected with an eccentric wheel (505), the right side of the eccentric wheel (505) is contacted with the cleaning plate (502), the output shaft of the motor II (504) is fixedly connected with the eccentric wheel (505), two springs (506) are fixedly connected to the left side of the cleaning plate (502), and the other ends of the two springs (506) are fixedly connected with the mounting box (501).
4. A high stability basket filter according to claim 1 wherein: waste discharge apparatus (6) include end piece (601), the bottom and body (1) fixed connection of end piece (601), the inner wall sliding connection of end piece (601) has closing plate (602), the bottom fixedly connected with electric putter (603) of closing plate (602), the bottom of electric putter (603) alternates on body (1), two sealing rod (604) of inner wall fixed connection of end piece (601), two sealed hole (605) have been seted up on closing plate (602), two the inner wall of sealed hole (605) contacts with two sealing rod (604) respectively, two waste discharge hole (606) have been seted up to the bottom of body (1).
5. A high stability basket filter according to claim 4, wherein: the top of the bottom block (601) is provided with a guide groove (7), and the guide groove (7) is horn-shaped.
6. A high stability basket filter according to claim 1 wherein: the controller (8) is installed at the top of the body (1), and the output end of the controller (8) is in signal connection with the first motor (401) and the second motor (504) respectively.
