Abstract

The utility model belongs to the medical field, in particular to an electrocardiogram monitoring blood oxygen saturation anti-dropping device, comprising a monitor; the monitor is electrically connected with a lead, and the other end of the lead is electrically connected with a The upper finger splint, the lower finger splint is rotatably connected to the upper finger splint, the two sides of the lower finger splint are fixedly connected with connecting plates, and the side of the connecting plate away from the lower finger splint is fixedly connected with a cylinder, the The inner side of the cylinder is slidably connected with a sliding rod, the sliding rod is in the shape of "L", and the long arm end of the sliding rod is fixedly installed with a clamping arm, and the clamping arm is arc-shaped; by pushing the sliding rod, the sliding rod is in the cylinder Sliding inside, the slide bar will drive the clamp arm to clamp on the finger, so that the upper finger splint and the lower finger splint are further fixed on the finger by the clamp arm, avoiding relying solely on the clamping force of the upper finger splint and the lower finger splint. Because the patient's fingers are prone to fall off.

Description

An anti-drop device for ECG monitoring blood oxygen saturation

technical field

The utility model relates to the medical field, in particular to an electrocardiogram monitoring blood oxygen saturation anti-dropping device.

Background technique

The ECG monitoring oximeter is a medical device that monitors the blood oxygen saturation of the human body.

At present, when the ECG monitoring oximeter is used, it is necessary to clamp the finger clip on the finger, and then sense the human body condition through the finger clip, and then the display screen displays the data.

When the traditional finger clip is clamped on the finger, the finger clip will easily fall off the finger due to the disorder of the patient's finger. Therefore, an anti-dropping device for ECG monitoring blood oxygen saturation is proposed to solve the above problems. .

Utility model content

In order to make up for the deficiencies of the prior art and solve the problem that the finger clips are likely to fall off the fingers due to the tampering of the patient's fingers when the traditional finger clips are clamped on the fingers, the utility model proposes an ECG monitoring blood test. Oxygen saturation anti-drop device.

The technical solution adopted by the present utility model to solve the technical problem is as follows: an electrocardiogram monitoring blood oxygen saturation anti-dropping device according to the present utility model includes a monitor; the monitor is electrically connected with a wire, so The other end of the wire is electrically connected with an upper finger splint, the upper finger splint is rotatably connected with a lower finger splint, and both sides of the lower finger splint are fixedly connected with a connecting plate, and the connecting plate is far away from the lower finger splint. A cylinder is fixedly connected on one side, a sliding rod is slidably connected inside the cylinder, the sliding rod is in the shape of "L", and the long arm end of the sliding rod is fixedly installed with a clamping arm, and the clamping arm is arc-shaped, so The side of the connecting plate close to the cylinder is fixedly connected with a fixing block, the side of the fixing block away from the connecting plate is provided with a chute, the inner wall of the chute is slidably connected with a slide plate, and the slide plate and the chute are fixedly connected There is a second spring, the short arm of the sliding rod is fixedly connected with a support plate, the support plate is in the shape of "L", and the long arm end of the support plate is evenly provided with a slot, by connecting the upper finger splint and the lower finger splint. Clamp on the finger, and then push the slide bar to make the slide bar slide in the cylinder, the slide bar will drive the clamp arm to clamp on the finger, so that the upper finger splint and the lower finger splint are further fixed on the finger by means of the clamp arm, avoiding the need for a single clamp. Relying on the clamping force of the upper finger splint and the lower finger splint, the finger splint will easily fall off due to the tampering of the patient's fingers, and then pull the limit plate, so that the limit plate no longer blocks the sliding plate, so that the second spring is due to the elastic force. Recover and push the slide plate, so that the card slot is connected with the slide plate, so that the slide bar is fixed. When the upper finger splint and the lower finger splint need to be removed from the fingers, pull the slide plate so that the slide plate is no longer clamped with the card slot. Then push the limit plate so that the limit plate blocks the sliding plate, so that the limit plate is fixed, then pull the slide bar so that the clamp arm is no longer in contact with the finger, and then remove the upper and lower finger splints from the fingers Walk.

Preferably, a limit plate is inserted through one side of the fixed block, a magnetic plate is fixedly connected to one side of the limit plate, and the surface of the magnetic plate is magnetically connected with the fixed block. The magnetic plate slides along with the limit plate, and at this time, the magnetic plate and the fixed block are magnetically attracted, so that the limit plate is fixed.

Preferably, the slide plate is in an "L" shape, and the short arm end of the slide plate is welded with an inclined block, and the inclined block is a right-angled triangle. The sliding rod makes the sliding rod slide in the cylinder, and the groove will push the inclined surface of the inclined block, so that the inclined block is no longer clamped with the clamping groove. When the sliding rod moves to the appropriate position, the inclined block will The thrust of the card is re-connected to the card slot.

Preferably, two receiving plates are fixedly connected to one side of the monitor, the two receiving plates are in an "L" shape, and a connecting block is fixedly connected to the long arm end of the receiving plate, and the connecting block is far from the receiving plate. One side of the plate is rotatably connected with a rotating plate, one side of the rotating plate is fixedly connected with a support block, the support block is in the shape of an "L", and the short arm end of the support block is slidably connected with a plug board, the plug board It is inserted in the connection block. By pulling the plug-in board, the plug-in board slides out from the connection block, then turn the turntable 90 degrees clockwise, and then wrap the wire around the two storage boards, and then turn the turntable so that the When the turning board returns to its original position, the turning board will press the wires, so that the excess wires are fixed on the storage board, and then push the plug-in board. At this time, the plug-in board will be inserted into the connecting block, so that the turning board will be fixed inside. It plays the role of storing the lead, avoiding the lead from being too long. When the patient is using the monitor, the lead is accidentally pulled by other people, and the finger splint will fall off the finger. After the excess lead is stored, Clip the finger splint over your fingers.

Preferably, the turning plate is in an "L" shape, and a rubber block is fixedly connected to the short arm end of the turning plate. By rotating the turning plate, the rubber block will press the wire, avoiding the possibility of directly pressing the wire with the turning plate. Crush the wire.

Preferably, the plug board is in the shape of "L", and the short arm end of the plug board is fixedly connected with a first spring, and the other end of the first spring is fixedly connected with the support block. Sliding, by releasing the plug board, the first spring pulls the plug board due to the recovery of the elastic force.

The beneficial part of the present utility model is:

1. By pushing the slide bar, the slide bar slides in the cylinder, and the slide bar will drive the clamp arm to clamp on the finger, so that the upper finger splint and the lower finger splint are further fixed on the finger by means of the clamp arm, avoiding relying solely on the upper finger. The clamping force of the splint and the lower finger splint, the finger splint will easily fall off due to the tampering of the patient's fingers.

2. By wrapping the wires on the two storage boards, and then rotating the turntables, the turntables return to their original position. At this time, the turntables will press the wires so that the excess wires are fixed on the storage boards, which plays a role in the alignment of the wires. The function of storage prevents the lead from being too long. When the patient is using the monitor, the lead is accidentally pulled by other people, and the finger splint will fall off the finger.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative labor.

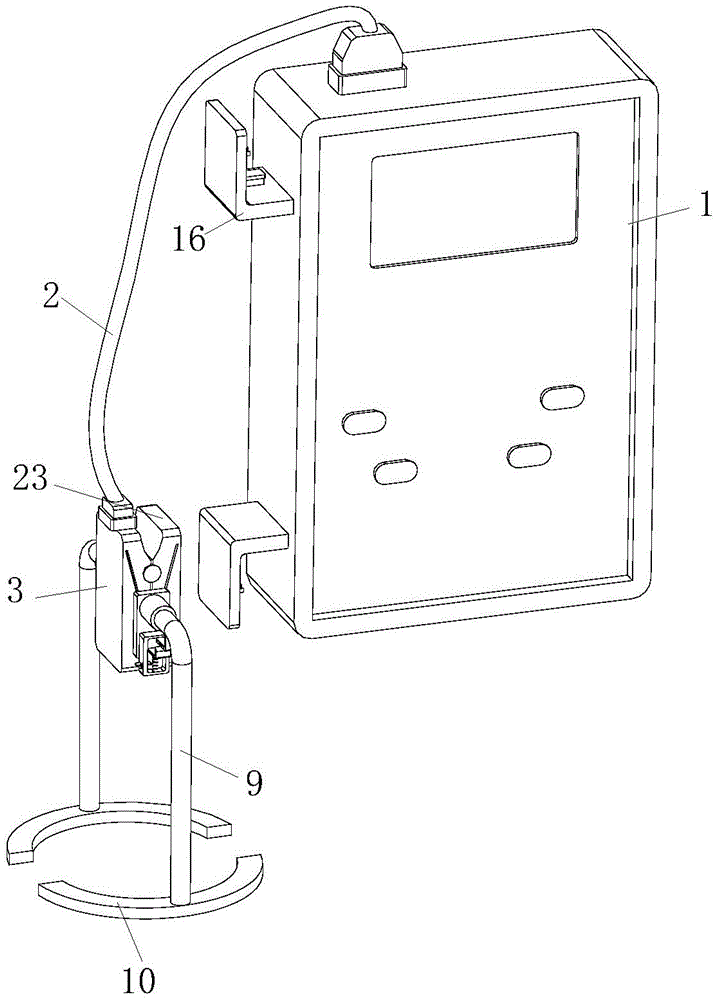

Fig. 1 is the three-dimensional structure schematic diagram of Embodiment 1;

Fig. 2 is the structural representation of clamp arm;

Fig. 3 is the structural representation at A of Fig. 2;

Figure 4 is a schematic structural diagram of a storage board;

FIG. 5 is a schematic structural diagram of the sponge block in the second embodiment.

In the figure: 1. Monitor; 2. Conductor; 3. Upper finger splint; 4. Sponge block; 5. Connecting plate; 6. Fixed block; 7. Cylinder; 8. Support plate; 9. Slider; 10. Clip Arm; 11, slide plate; 12, card slot; 13, inclined block; 14, limit plate; 15, magnetic plate; 16, storage plate; 17, insert plate; 18, connecting block; 19, first spring; 20, Support block; 21, turn plate; 22, rubber block; 23, lower finger splint; 24, second spring; 25, chute.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example 1

Please refer to Figures 1-4, an ECG monitoring blood oxygen saturation anti-drop device, including a monitor 1; the monitor 1 is electrically connected with a lead 2, and the other end of the lead 2 is electrically connected An upper finger splint 3 is connected, and a lower finger splint 23 is rotatably connected to the upper finger splint 3. Both sides of the lower finger splint 23 are fixedly connected with a connecting plate 5, and the connecting plate 5 is far away from the lower finger splint 23. A cylinder 7 is fixedly connected on one side, and a sliding rod 9 is slidably connected inside the cylinder 7. The sliding rod 9 is in the shape of an "L", and the long arm end of the sliding rod 9 is fixedly installed with a clamping arm 10. The arm 10 is arc-shaped, the side of the connecting plate 5 close to the cylinder 7 is fixedly connected with a fixing block 6, and the side of the fixing block 6 away from the connecting plate 5 is provided with a chute 25, and the inner wall of the chute 25 slides A sliding plate 11 is connected, a second spring 24 is fixedly connected between the sliding plate 11 and the chute 25, and a supporting plate 8 is fixedly connected to the short arm of the sliding rod 9, and the supporting plate 8 is in an “L” shape, and The long arm end of the support plate 8 is evenly provided with a card slot 12; during operation, the upper finger splint 3 and the lower finger splint 23 are clamped on the fingers, and then the slide bar 9 is pushed, so that the slide bar 9 slides in the cylinder 7, and the slide bar 9 slides. The rod 9 will drive the clamping arm 10 to be clamped on the finger, so that the upper finger splint 3 and the lower finger splint 23 are further fixed on the finger by means of the clamping arm 10, avoiding relying solely on the clamping force of the upper finger splint 3 and the lower finger splint 23, The finger splint will easily fall off due to the tampering of the patient's fingers, and then the limit plate 14 is pulled, so that the limit plate 14 no longer blocks the sliding plate, so that the second spring 24 pushes the slide plate 11 due to the recovery of the elastic force, thereby locking the slot 12 The clamping connection with the sliding plate 11 makes the sliding rod 9 fixed, and when the upper finger splint 3 and the lower finger splinting plate 23 need to be removed from the fingers, the sliding plate 11 is pulled so that the sliding plate 11 is no longer clamped with the card slot 12, Then push the limit plate 14 so that the limit plate 14 blocks the sliding plate 11, so that the limit plate 14 is fixed, and then pull the sliding rod 9, so that the clamping arm 10 is no longer in contact with the fingers, and then the upper finger clamping plate 3 and The lower finger splint 23 is removed from the finger.

A limiting plate 14 is inserted through one side of the fixing block 6, a magnetic plate 15 is fixedly connected to one side of the limiting plate 14, and the surface of the magnetic plate 15 is magnetically connected with the fixing block 6; Push the limiting plate 14 so that the magnetic plate 15 slides along with the limiting plate 14 . At this time, the magnetic plate 15 will magnetically attract the fixing block 6 , so that the limiting plate 14 is fixed.

The sliding plate 11 is in an "L" shape, and the short arm end of the sliding plate 11 is welded with an inclined block 13, and the inclined block 13 is a right-angled triangle; during operation, the clamping slot 12 is connected with the inclined block 13, so that the sliding rod 9 is fixed, and then push the sliding rod 9, so that the sliding rod 9 slides in the cylinder 7, and the slot 12 will push the inclined surface of the inclined block 13, so that the inclined block 13 is no longer engaged with the clamping slot 12. When the 9 moves to an appropriate position, the inclined block 13 will be engaged with the card slot 12 again due to the pushing force of the second spring 24 .

One side of the monitor 1 is fixedly connected with two receiving plates 16, the two receiving plates 16 are in the shape of "L", and the long arm end of the receiving plate 16 is fixedly connected with a connecting block 18, the connecting block 18 A turning plate 21 is rotatably connected to the side away from the receiving plate 16, and a supporting block 20 is fixedly connected to one side of the turning plate 21. The supporting block 20 is in an “L” shape, and the short arm end of the supporting block 20 slides The plug-in board 17 is connected, and the plug-in board 17 is inserted into the connection block 18; during operation, the plug-in board 17 is pulled out from the connection block 18 by pulling the plug-in board 17, and then the rotary board 21 is rotated 90 degrees clockwise. degree, and then wrap the wire 2 on the two receiving plates 16, and then turn the turning plate 21 to make the turning plate 21 return to its original position. At this time, the turning plate 21 will press the wire 2, so that the excess wire 2 is fixed in the Then push the plug board 17, at this time, the plug board 17 will be inserted into the connection block 18, so that the turning plate 21 is fixed, which plays the role of accommodating the wire 2 and avoids the wire 2 being too long. When the patient is using the monitor 1, the lead 2 is accidentally pulled by other people, and the finger splint will fall off the finger. After the excess lead 2 is stored, the finger splint will be clamped on the finger.

The turning plate 21 is in an “L” shape, and the short arm end of the turning plate 21 is fixedly connected with a rubber block 22; during operation, by rotating the turning plate 21, the rubber block 22 will press the wire 2, avoiding the direct use of the turning plate 21. The plate 21 pressing the wire 2 may crush the wire 2.

The plug board 17 is in an "L" shape, and the short arm end of the plug board 17 is fixedly connected with a first spring 19, and the other end of the first spring 19 is fixedly connected with the support block 20; during operation, by pulling the plug board 17, the inserting plate 17 is made to slide, and by loosening the inserting plate 17, the first spring 19 pulls the inserting plate 17 due to the recovery of the elastic force.

Embodiment 2

Please refer to FIG. 5, Comparative Example 1, as another embodiment of the present utility model, the sponge block 4 is cemented on the inner side wall of the sponge block 4; during operation, when the clamping arm 10 is clamped on the finger, The sponge block 4 will come into contact with the finger first, and at this time, the sponge will protect the finger, so as to avoid that the clamping arm 10 is relatively hard and clamped on the finger for a long time, which will affect the blood circulation.

Working principle, by clamping the upper finger splint 3 and the lower finger splint 23 on the fingers, and then pulling the limit plate 14, so that the limit plate 14 no longer blocks the sliding plate, so that the second spring 24 pushes the slide plate 11 due to the recovery of the elastic force, At this time, the sliding plate 11 will drive the inclined block 13 to slide, so that the clamping groove 12 and the inclined block 13 are clamped, so that the sliding rod 9 is fixed, and then the sliding rod 9 is pushed, so that the sliding rod 9 slides in the cylinder 7, and at the same time The clamping slot 12 will push the inclined surface of the inclined block 13, so that the inclined block 13 is no longer engaged with the clamping slot 12, and the sliding rod 9 will drive the clamping arm 10 to clamp on the finger, so that the upper finger splint 3 and the lower finger splint 23 With the help of the clamping arm 10, it is further fixed on the finger, which avoids relying solely on the clamping force of the upper finger splint 3 and the lower finger splint 23. The finger splint will easily fall off due to the tampering of the patient's finger. After the clamping arm 10 is clamped on the finger, , the inclined block 13 will be engaged with the card slot 12 due to the thrust of the first spring 19. When the upper finger splint 3 and the lower finger splint 23 need to be removed from the fingers, the slide plate 11 is pulled so that the inclined block 13 is no longer connected to the card slot. The slot 12 is snapped, and then the limit plate 14 is pushed, so that the limit plate 14 blocks the slide plate 11. At this time, the magnetic plate 15 will be magnetically attracted with the fixing block 6, so that the limit plate 14 is fixed, and then the sliding rod 9 is pulled. The clamping arm 10 is no longer in contact with the fingers, and then the upper finger splint 3 and the lower finger splint 23 are removed from the fingers.

By pulling the plug-in board 17, the plug-in board 17 slides out from the connection block 18, and then the turning board 21 is rotated 90 degrees clockwise, and then the wire 2 is wound on the two receiving boards 16, and then the turning board 21 is rotated so that the The turning plate 21 returns to its original position. At this time, the rubber block 22 will press the wire 2, so that the excess wire 2 is fixed on the receiving plate 16, and then the plug plate 17 is released, so that the first spring 19 is pulled due to the recovery of the elastic force. Inserting board 17, at this time, the inserting board 17 will be inserted into the connecting block 18, so that the turning plate 21 is fixed, which plays the role of storing the lead 2 and avoids the lead 2 being too long. When the patient uses the monitor 1 , if someone else accidentally pulls the lead 2, the finger splint will fall off the finger. After the excess lead 2 is stored, clamp the finger splint on the finger.

In the description of this specification, description with reference to the terms "one embodiment", "example", "specific example", etc. means that a specific feature, structure, material or characteristic described in connection with the embodiment or example is included in the present invention. in at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The basic principles, main features and advantages of the present invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention.

Claims (6)

1. An electrocardiogram monitoring blood oxygen saturation anti-dropping device, characterized in that: comprising a monitor (1); the monitor (1) is electrically connected with a lead (2), and the lead (2) An upper finger splint (3) is electrically connected to the other end of the upper finger splint, a lower finger splint (23) is rotatably connected to the upper finger splint (3), and connecting plates are fixedly connected to both sides of the lower finger splint (23). (5), a cylinder (7) is fixedly connected to the side of the connecting plate (5) away from the lower finger splint (23), and a sliding rod (9) is slidably connected inside the cylinder (7), and the sliding rod (9) is "L" shaped, and the long arm end of the sliding rod (9) is fixedly installed with a clamping arm (10), the clamping arm (10) is arc-shaped, and the connecting plate (5) is close to the cylinder (7) ) is fixedly connected with a fixing block (6), the side of the fixing block (6) away from the connecting plate (5) is provided with a chute (25), and the inner wall of the chute (25) is slidably connected with a sliding plate (11), a second spring (24) is fixedly connected between the sliding plate (11) and the chute (25), and a support plate (8) is fixedly connected to the short arm of the sliding rod (9). The plate (8) is in an "L" shape, and the end of the long arm of the support plate (8) is evenly provided with clamping grooves (12). 2. An electrocardiographic monitoring blood oxygen saturation anti-dropping device according to claim 1, characterized in that: a limit plate (14) is inserted through one side of the fixed block (6), and the limit plate (14) is inserted through one side of the fixed block (6). A magnetic plate (15) is fixedly connected to one side of the bit plate (14), and the surface of the magnetic plate (15) is magnetically connected to the fixing block (6). 3. An electrocardiogram monitoring blood oxygen saturation anti-dropping device according to claim 2, characterized in that: the slide plate (11) is in an "L" shape, and the short arm end of the slide plate (11) is welded with An inclined block (13), the inclined block (13) is a right-angled triangle. 4. An electrocardiographic monitoring blood oxygen saturation anti-dropping device according to claim 3, characterized in that: one side of the monitor (1) is fixedly connected with two receiving plates (16), and two The receiving plate (16) is in the shape of an "L", and a connecting block (18) is fixedly connected to the long arm end of the receiving plate (16), and the connecting block (18) rotates away from the side of the receiving plate (16). A turning plate (21) is connected, one side of the turning plate (21) is fixedly connected with a support block (20), the support block (20) is in an "L" shape, and the short arm end of the support block (20) A plug-in board (17) is slidably connected, and the plug-in board (17) is inserted into the connection block (18). 5. An electrocardiographic monitoring blood oxygen saturation anti-dropping device according to claim 4, characterized in that: the rotating plate (21) is in an "L" shape, and the short arm end of the rotating plate (21) is in the shape of an "L". A rubber block (22) is fixedly connected. 6. An electrocardiographic monitoring blood oxygen saturation anti-dropping device according to claim 5, characterized in that: the plug board (17) is in an "L" shape, and the short arm end of the plug board (17) is in the shape of an "L". A first spring (19) is fixedly connected, and the other end of the first spring (19) is fixedly connected with the support block (20).
