本实用新型涉及饮品调配装置领域，特别涉及一种新生儿配奶装置，包括恒温电热壶、奶粉混匀机；恒温电热壶的的上端设置有净水管、水泵、输水管，净水管连通恒温电热壶及外设的纯净水管道；水泵连通恒温电热壶的内侧及输水管的一端；奶粉混匀机包括杯体、杯盖；输水管的另一端连通杯体的内侧，杯体上设置有刻度和出奶阀，杯盖可拆卸盖合在杯口上；杯盖上安装有转动电机，转动电机的输出轴上安装有搅拌桨，杯盖盖合杯口时，搅拌桨位于杯体的内侧。使用本实用新型可以实现一次配置足够的奶液，再经出奶阀快速分配，大大缩短了配奶耗时，减轻了医护人员的配奶负担；超声波振荡器和紫外消毒灯的设置解决了杯体和搅拌桨清洗麻烦、消毒麻烦的问题。
The utility model relates to the field of beverage dispensing devices, in particular to a milk dispensing device for newborns, comprising a thermostatic electric kettle and a milk powder mixer; the upper end of the thermostatic electric kettle is provided with a water purification pipe, a water pump and a water delivery pipe, and the water purification pipe is communicated with The thermostatic electric kettle and the peripheral pure water pipeline; the water pump is connected to the inner side of the thermostatic electric kettle and one end of the water delivery pipe; the milk powder mixer includes a cup body and a cup lid; the other end of the water delivery pipe is connected to the inner side of the cup body, and the cup body is provided with There are scales and a milk valve, and the lid of the cup is detachable and closed on the mouth of the cup; a rotating motor is installed on the lid, and a stirring paddle is installed on the output shaft of the rotating motor. inside. By using the utility model, enough milk can be prepared at one time, and then quickly distributed through the milk outlet valve, which greatly shortens the time-consuming of milk formulating and reduces the burden of milk formulating on medical staff; The body and stirring paddle are troublesome to clean and sterilize.
Description
Technical Field
The utility model relates to the field of beverage blending devices, in particular to a newborn milk blending device.
Background
The hospital stay time of sick neonates is usually more than 7 days, and currently, the number of the sick neonates in the hospital is large, especially the sick neonates who are in the hospital due to jaundice, lung water inflow and other problems. The in-patient newborn needs to drink milk for many times every day, and the infant is joined in marriage milk by the manual allotment in the hospital at present, spoon milk powder, water of heating respectively in the feeding bottle of going one by one, both occupied a large amount of manpower resources, and is consuming time hard, shakes even every bottle of milk and all needs longer time moreover, and when joining in marriage milk at every turn, the milk that mixes earlier all becomes the temperature very easily and crosses low, needs to warm again, and is very troublesome.
SUMMERY OF THE UTILITY MODEL
In order to improve the milk preparation efficiency in hospitals and reduce the manpower consumption caused by milk preparation, the utility model aims to provide a newborn milk preparation device, and the technical scheme adopted by the utility model is as follows:
a newborn milk preparing device comprises a constant temperature electric kettle and a milk powder mixing machine;
the upper end of the constant-temperature electric kettle is provided with a water purifying pipe, a water pump and a water delivery pipe, one end of the water purifying pipe is communicated with the inner side of the constant-temperature electric kettle, and the other end of the water purifying pipe is connected with an external pure water pipeline; the water inlet end of the water pump is communicated with the inner side of the constant-temperature electric heating kettle, and the water outlet end of the water pump is connected with one end of the water delivery pipe;
the milk powder mixing machine comprises a cup body and a cup cover; the other end of the water delivery pipe is communicated with the inner side of the cup body, scales are arranged on the cup body, a milk outlet valve is arranged at the bottom of the side cup wall of the cup body, the cup opening of the cup body is arranged upwards, and the cup cover can be detachably covered on the cup opening; the cup cover is provided with a rotating motor, an output shaft of the rotating motor is provided with a stirring paddle, and the stirring paddle is positioned on the inner side of the cup body when the cup cover covers the cup opening.
Preferably, an electronic water temperature meter is installed on the constant temperature electric kettle, a temperature sensing probe of the electronic water temperature meter is installed at the lower end of the inner side of the constant temperature electric kettle, and a display of the electronic water temperature meter is installed on the outer side surface of the constant temperature electric kettle.
Preferably, the side wall of the cup body is made of transparent lead-free glass.
Preferably, a powder adding opening is formed in the cup cover and penetrates through the upper side and the lower side of the cup cover, and a powder adding cover is covered above the powder adding opening in a openable mode.
Preferably, the milk powder mixing machine further comprises a base, the height of the base is larger than 15cm, and the constant-temperature electric kettle and the milk powder mixing machine are both arranged on the base.
Preferably, an ultraviolet disinfection lamp is installed on one surface of the cup cover facing the inner side of the cup body.
Preferably, an ultrasonic oscillator is installed at the bottom of the cup body; furthermore, a maximum milk dispensing water level line and a maximum cleaning water level line are arranged on the cup body, and the maximum cleaning water level line is positioned above the maximum milk dispensing water level line.
Preferably, the electric kettle further comprises a controller, an electric control water valve is arranged on the water purification pipe, a liquid level sensor is arranged in the constant-temperature electric kettle, and the electric control water valve and the liquid level sensor are respectively connected with the controller; furthermore, a temperature sensor and an electric heating ring are installed at the bottom of the cup body, and the temperature sensor and the electric heating ring are respectively connected with the controller.
In conclusion, due to the adoption of the technical scheme, the utility model has the beneficial effects that:
by using the utility model, enough milk can be prepared at one time and then rapidly distributed through the milk outlet valve, thereby greatly shortening the time for preparing milk and reducing the burden of milk preparation for medical personnel; the liquid level sensor, the controller and the electric control water valve are arranged, so that the function of automatically filling purified water into the constant-temperature electric kettle is realized, and the workload of medical staff is further reduced; the arrangement of the electronic water temperature meter is convenient for medical staff to know the water temperature condition in the constant-temperature electric kettle, and is beneficial to judging whether the water in the constant-temperature electric kettle is heated to the set temperature suitable for milk preparation; the arrangement of the controller, the temperature sensor and the electric heating ring effectively keeps the temperature of milk in the cup body, and the trouble that the milk needs to be heated by additionally searching a heating device after being filled into a feeding bottle or other containers in winter is avoided; the ultrasonic oscillator is arranged to greatly facilitate the cleaning of the cup body and the stirring paddle, the ultraviolet disinfection lamp is arranged to greatly facilitate the disinfection of the cup body and the stirring paddle, and the problems that the cleaning of the cup body and the stirring paddle is troublesome and the disinfection is troublesome are solved.
Drawings

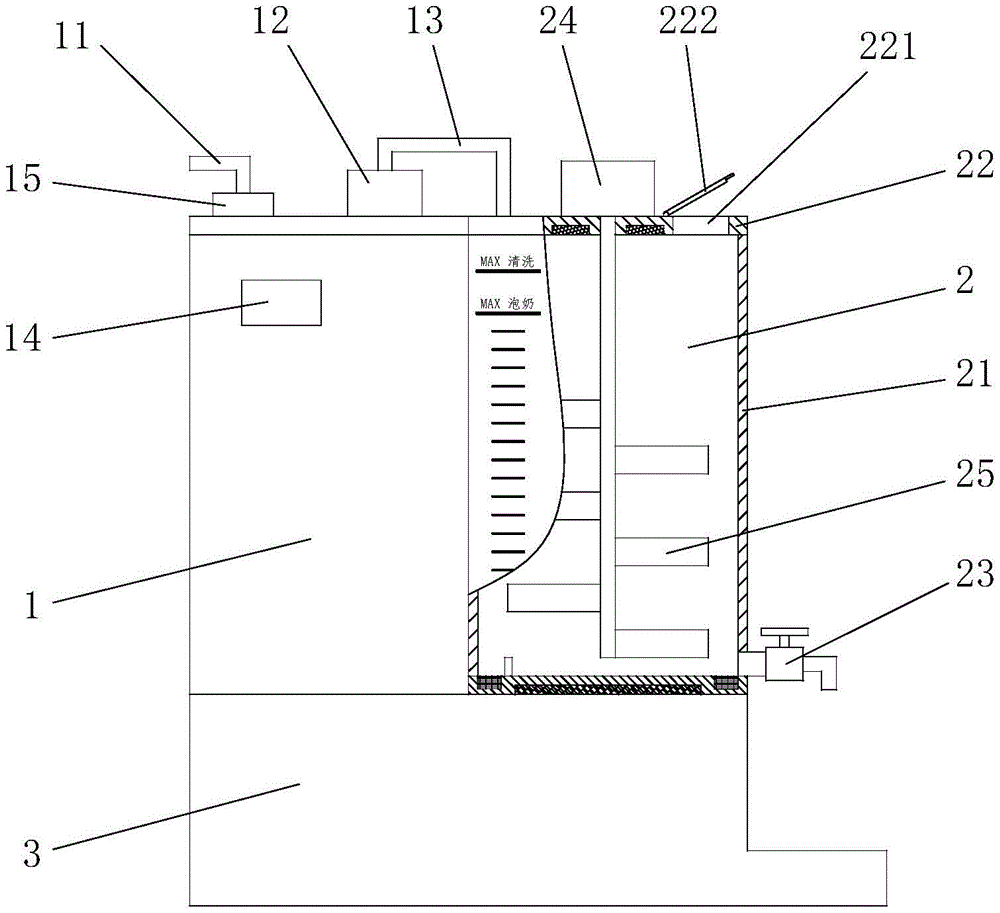

FIG. 1 is a schematic partial cross-sectional view of an embodiment of the present invention.
Fig. 2 is a partial sectional schematic view of a milk powder mixer according to an embodiment of the present invention.
FIG. 3 is a schematic diagram of a control relationship according to an embodiment of the present invention.
Wherein: 1-constant temperature electric kettle, 11-purified water pipe, 12-water pump, 13-water pipe, 14-electronic water temperature meter, 15-electric control water valve, 16-liquid level sensor,
2-milk powder mixer, 21-cup body, 211-scale, 212-maximum milk preparation water level line, 213-maximum cleaning water level line, 22-cup cover, 221-powder adding port, 222-powder adding cover, 23-milk valve, 24-rotating motor, 25-stirring paddle, 26-ultraviolet disinfection lamp, 27-ultrasonic oscillator, 28-temperature sensor, 29-electric heating ring, ultrasonic generator,
3-base and 4-controller.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. The drawings are only for purposes of illustration and are not intended to be limiting, certain elements of the drawings may be omitted, enlarged or reduced to better illustrate the embodiments of the present invention, and do not represent the size of the actual product, and it is understood that some well-known structures, elements and descriptions thereof in the drawings may be omitted for persons skilled in the art.
Referring to fig. 1-3, in a preferred embodiment of the present invention, a newborn infant dispensing device includes a constant temperature electric kettle 1, a milk powder mixer 2;
the upper end of the constant temperature electric kettle 1 is provided with a water purifying pipe 11, a water pump 12 and a water delivery pipe 13, one end of the water purifying pipe 11 is communicated with the inner side of the constant temperature electric kettle 1, and the other end is connected with an external pure water pipeline; the water inlet end of the water pump 12 is communicated with the inner side of the constant temperature electric kettle 1, and the water outlet end of the water pump 12 is connected with one end of the water delivery pipe 13.
The structure of the constant temperature electric kettle 1 for realizing constant temperature heating is the existing structure, and is widely used in a water dispenser, and details are not repeated herein, the water purifying pipe 11 and the water pump 12 can be both arranged on the cover of the constant temperature electric kettle 1, generally, in order to improve the heat preservation effect of the constant temperature electric kettle 1 and reduce the heating frequency, the kettle body of the constant temperature electric kettle 1 is made of non-transparent material, so that the constant temperature electric kettle 1 needs to be opened to observe the water quantity in the kettle, the constant temperature electric kettle 1 is frequently opened to easily accelerate the heat dissipation in the kettle and increase the risk of pollutants entering the kettle, and the constant temperature electric kettle 1 is frequently opened to confirm the water quantity, which is troublesome, therefore, preferably, the constant temperature electric kettle further comprises a controller 4, the water purifying pipe 11 is provided with an electric control water valve 15, a liquid level sensor 16 is arranged in the constant temperature electric kettle 1, the electric control water valve 15 and the liquid level sensor 16 are respectively connected with the controller 4, set up minimum water level value and maximum water level value through controller 4, when level sensor 16 senses the pure water level in constant temperature electric kettle 1 and is less than minimum water level value, automatically controlled water valve 15 of controller 4 control is opened, the pure water passes through in pure water pipe 11 gets into constant temperature electric kettle 1, when level sensor 16 senses the pure water level in constant temperature electric kettle 1 and reaches maximum water level value, automatically controlled water valve 15 of controller 4 control is closed, block the pure water and get into in the constant temperature electric kettle 1, thereby realize the function of automatic pure water of annotating in the constant temperature electric kettle 1, further reduce medical personnel's work load.
Preferably, the constant temperature electric kettle 1 is provided with the electronic water thermometer 14, a temperature sensing probe of the electronic water thermometer 14 is arranged at the lower end of the inner side of the constant temperature electric kettle 1, a display of the electronic water thermometer 14 is arranged on the outer side surface of the constant temperature electric kettle 1, and the electronic water thermometer 14 is mainly arranged to facilitate medical personnel to know the water temperature condition in the constant temperature electric kettle 1, so as to judge whether the water in the constant temperature electric kettle 1 is heated to a set temperature suitable for milk preparation.
The milk powder mixing machine 2 comprises a cup body 21 and a cup cover 22; the other end of the water delivery pipe 13 is communicated with the inner side of the cup body 21, the capacity of the cup body 21 is set to be about 10 liters, so that enough milk can be prepared at one time, and the difficulty in maintenance caused by overlarge volume can be avoided, the cup body 21 is provided with scales 211, and the side wall of the cup body 21 is preferably made of transparent lead-free glass, so that medical personnel can conveniently know the conditions of the water injection amount, the milk residual amount and the like in the cup body 21; a milk outlet valve 23 is mounted at the bottom of the side wall of the cup body 21, the milk outlet valve 23 can be a common tap on a beverage machine, the cup mouth of the cup body 21 is arranged upwards, the cup cover 22 can be detachably covered on the cup mouth, and the water delivery pipe 13 can be manufactured into a structure which penetrates through the cup cover 22 and is communicated with the inner side of the constant-temperature electric kettle 1, so that the water delivery pipe 13 and the cup cover 22 can be detached together, and the cleaning or the replacement is convenient; the cup cover 22 is provided with a rotating motor 24, the rotating motor 24 preferably adopts a speed reducing motor, an output shaft of the rotating motor 24 is provided with a stirring paddle 25, when the cup cover 22 covers the cup mouth, the stirring paddle 25 is positioned on the inner side of the cup body 21, and the stirring paddle 25 preferably adopts a multi-blade paddle type structure, so that the milk powder and the water are mixed more uniformly. In order to facilitate the filling of the milk powder, the trouble of opening the whole cup cover 22 every time the milk powder is filled is avoided, preferably, the cup cover 22 is provided with a powder adding opening 221, the powder adding opening 221 penetrates through the upper side and the lower side of the cup cover 22, and the powder adding cover 222 is covered above the powder adding opening 221 in a openable manner.
The heated purified water enters the milk mixing machine 2 from the constant-temperature electric kettle 1 through the water conveying pipe 13 to carry out milk preparation, the milk preparation needs a certain time, and the milk preparation needs to wait for being canned into a feeding bottle after being prepared, the temperature of the milk is reduced in the time, especially in cold winter, in order to enable the milk to continuously keep a certain temperature in the milk mixing machine 2, preferably, the bottom of the cup body 21 is provided with a temperature sensor 28 and an electric heating ring 29, the temperature sensor 28 and the electric heating ring 29 are respectively connected with the controller 4, when the temperature sensor 28 senses that the temperature of the milk in the cup body 21 is lower than a set temperature, the controller 4 controls the electric heating ring 29 to heat, and when the temperature sensor 28 senses that the temperature of the milk in the cup body 21 reaches the set temperature, the controller 4 controls the electric heating ring 29 to stop heating.
In order to conveniently place the constant-temperature electric kettle 1 and the milk powder mixing machine 2 and conveniently place a milk container in a sufficient space below the milk outlet valve 23, preferably, the height of the base 3 is larger than 15cm, and the constant-temperature electric kettle 1 and the milk powder mixing machine 2 are both arranged on the base 3.
The operation of the utility model is as follows:
the cup cover 22 is closed, a certain amount of purified water is injected into the constant-temperature electric kettle 1 through the water purifying pipe 11, when the purified water in the constant-temperature electric kettle 1 reaches a specified temperature, the water pump 12 is started, a specified amount of warm water is injected into the cup body 21, the powder adding cover 222 is opened, a specified amount of milk powder is added into the cup body 21 through the powder adding port 221, the rotating motor 24 is started, the rotating motor 24 drives the stirring paddle 25 to stir the milk powder and the warm water in the cup body 21 uniformly, a milk bottle or other milk container is placed below the milk outlet valve 23, the milk outlet valve 23 is opened, and the prepared milk can be taken out.
Because the cup body 21 and the stirring paddle 25 need to be in direct contact with the milk in the using process, in order to enable the configured milk to meet the sanitary standard, the milk powder mixing machine 2 needs to clean and disinfect the cup body 21 and the stirring paddle 25 after being used for a period of time, and in order to facilitate the cleaning of the cup body 21 and the stirring paddle 25, in the embodiment, the bottom of the cup body 21 is provided with the ultrasonic oscillator 27, and the dirt layer is dispersed, emulsified and peeled off to achieve the cleaning purpose by utilizing the direct and indirect effects of the cavitation effect, the acceleration effect and the direct current effect of ultrasonic waves in the liquid on the liquid and the dirt. When the washing, close out milk valve 23, toward the pure water of filling in the cup 21, the water level of pure water is greater than the biggest liquid level when joining in marriage milk, covers bowl cover 22, opens ultrasonic oscillator 27 certain time, opens out milk valve 23, and the liquid in the discharge cup 21 closes out milk valve 23, continues to fill the pure water toward the cup 21 in, so reciprocal many times, can reach fine clean effect. In order to clearly know whether the water level of the purified water during the cleaning is higher than the maximum water level during the milk dispensing, it is preferable that the cup body 21 is provided with a maximum milk dispensing level line 212 and a maximum cleaning water level line 213, the maximum cleaning water level line 213 is located above the maximum milk dispensing level line 212, the water level during the milk dispensing is arranged below the maximum milk dispensing level line 212, and the water level during the cleaning is equal to the water level corresponding to the maximum cleaning water level line 213. In order to facilitate the disinfection of the cup body 21 and the stirring paddle 25, preferably, an ultraviolet disinfection lamp 26 is installed on one surface of the cup cover 22 facing the inner side of the cup body 21, and during disinfection, the cup cover 22 is covered, and the ultraviolet disinfection lamp 26 is turned on.
The above description is intended to describe in detail the preferred embodiments of the present invention, but the embodiments are not intended to limit the scope of the claims of the present invention, and all equivalent changes and modifications made within the technical spirit of the present invention should fall within the scope of the claims of the present invention.
Claims (10)
1. A newborn infant milk preparing device is characterized in that: comprises a constant temperature electric kettle and a milk powder mixing machine;
the upper end of the constant-temperature electric kettle is provided with a water purifying pipe, a water pump and a water delivery pipe, one end of the water purifying pipe is communicated with the inner side of the constant-temperature electric kettle, and the other end of the water purifying pipe is connected with an external pure water pipeline; the water inlet end of the water pump is communicated with the inner side of the constant-temperature electric heating kettle, and the water outlet end of the water pump is connected with one end of the water delivery pipe;
the milk powder mixing machine comprises a cup body and a cup cover; the other end of the water delivery pipe is communicated with the inner side of the cup body, scales are arranged on the cup body, a milk outlet valve is arranged at the bottom of the side cup wall of the cup body, the cup opening of the cup body is arranged upwards, and the cup cover can be detachably covered on the cup opening; the cup cover is provided with a rotating motor, an output shaft of the rotating motor is provided with a stirring paddle, and the stirring paddle is positioned on the inner side of the cup body when the cup cover covers the cup opening.
2. A newborn infant formula device according to claim 1, characterized in that: the electronic water temperature meter is mounted on the constant-temperature electric heating kettle, a temperature sensing probe of the electronic water temperature meter is mounted at the lower end of the inner side of the constant-temperature electric heating kettle, and a display of the electronic water temperature meter is mounted on the outer side face of the constant-temperature electric heating kettle.
3. A newborn infant formula device according to claim 1, characterized in that: the side wall of the cup body is made of transparent lead-free glass.
4. A newborn infant formula device according to claim 1, characterized in that: the powder feeding port is formed in the cup cover and penetrates through the upper side and the lower side of the cup cover, and a powder feeding cover is covered above the powder feeding port in a openable mode.
5. A newborn infant formula device according to claim 1, characterized in that: still include the base, the height of base is greater than 15cm, constant temperature electric kettle with the milk powder blending machine is all installed on the base.
6. A newborn infant formula device according to claim 1, characterized in that: an ultraviolet disinfection lamp is arranged on one surface of the cup cover facing the inner side of the cup body.
7. A newborn infant formula device according to claim 1, characterized in that: and an ultrasonic oscillator is arranged at the bottom of the cup body.
8. A newborn infant formula device according to claim 7, characterized in that: the cup body is provided with a maximum milk distribution water level line and a maximum cleaning water level line, and the maximum cleaning water level line is positioned above the maximum milk distribution water level line.
9. A newborn infant formula device according to claim 1, characterized in that: the constant-temperature electric kettle is characterized by further comprising a controller, an electric control water valve is arranged on the water purification pipe, a liquid level sensor is arranged in the constant-temperature electric kettle, and the electric control water valve and the liquid level sensor are respectively connected with the controller.
10. A newborn infant formula device according to claim 9, characterized in that: the temperature sensor and the electric heating ring are installed at the bottom of the cup body and are respectively connected with the controller.
